Jovy Turbo-IR Benchtop Rework System/Turbo IR BGA rework machine
|

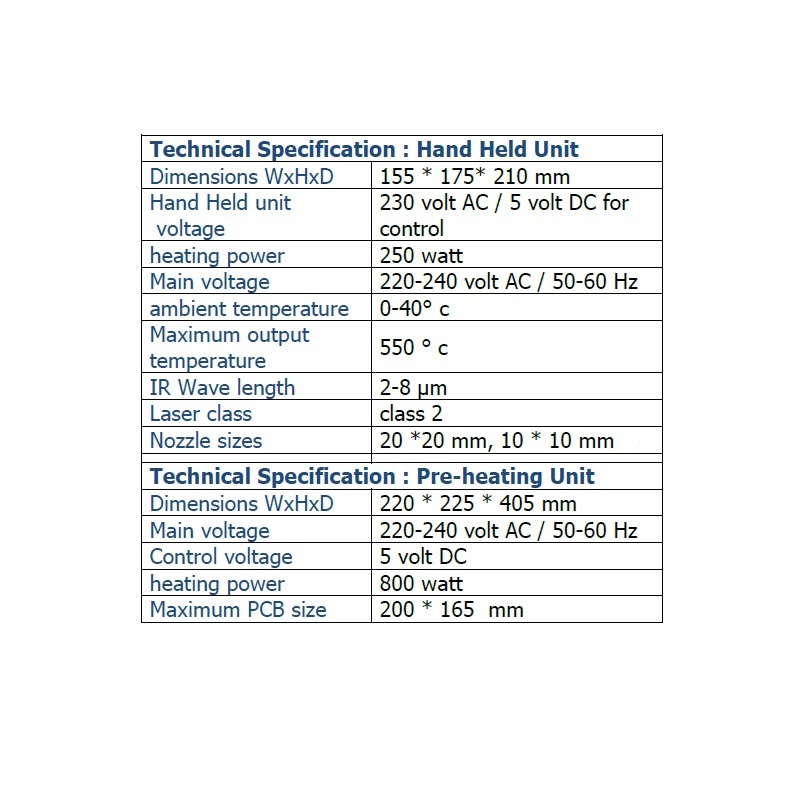

Technical Specification : Hand Held Unit |
|
|
Dimensions WxHxD |
155 * 175* 210 mm |
|
Hand Held unit voltage |
230 volt AC / 5 volt DC for control |
|
heating power |
250 watt |
|
Main voltage |
220-240 volt AC / 50-60 Hz |
|
ambient temperature |
0-40° c |
|
Maximum output temperature |
550 ° c |
|
IR Wave length |
2-8 µm |
|
Laser class |
class 2 |
|
Nozzle sizes |
20 *20 mm, 10 * 10 mm |
|
Technical Specification : Pre-heating Unit |
|
|
Dimensions WxHxD |
220 * 225 * 405 mm |
|
Main voltage |
220-240 volt AC / 50-60 Hz |
|
Control voltage |
5 volt DC |
|
heating power |
800 watt |
|
Maximum PCB size |
200 * 165 mm |
Our official partner in China is LYBGA,we announce here this machine is not to be compared with RE-7500, as it is different and advanced in technology where it incorporated hybrid technology which combines flow of heating air through its fast ramp and IR with its safety and effectiveness which make this machine tailored for the sensitive and sophisticated applications, for example smart phones repair, small and very small boards which require high precision in handling

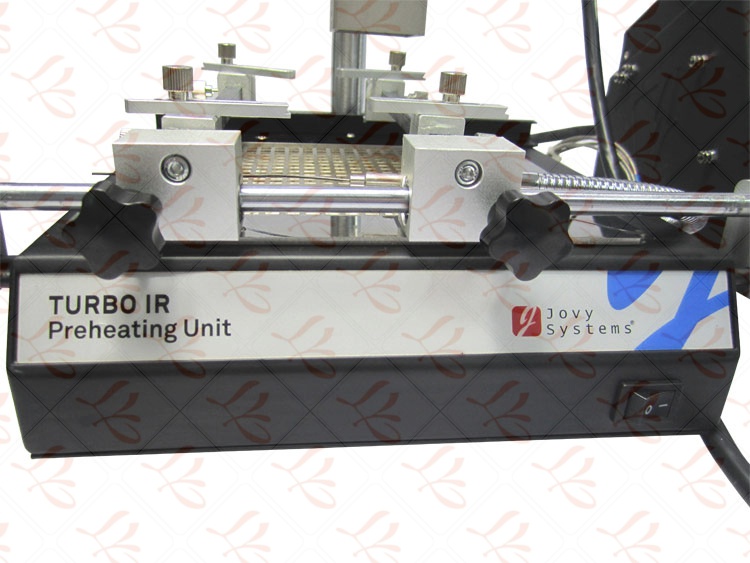

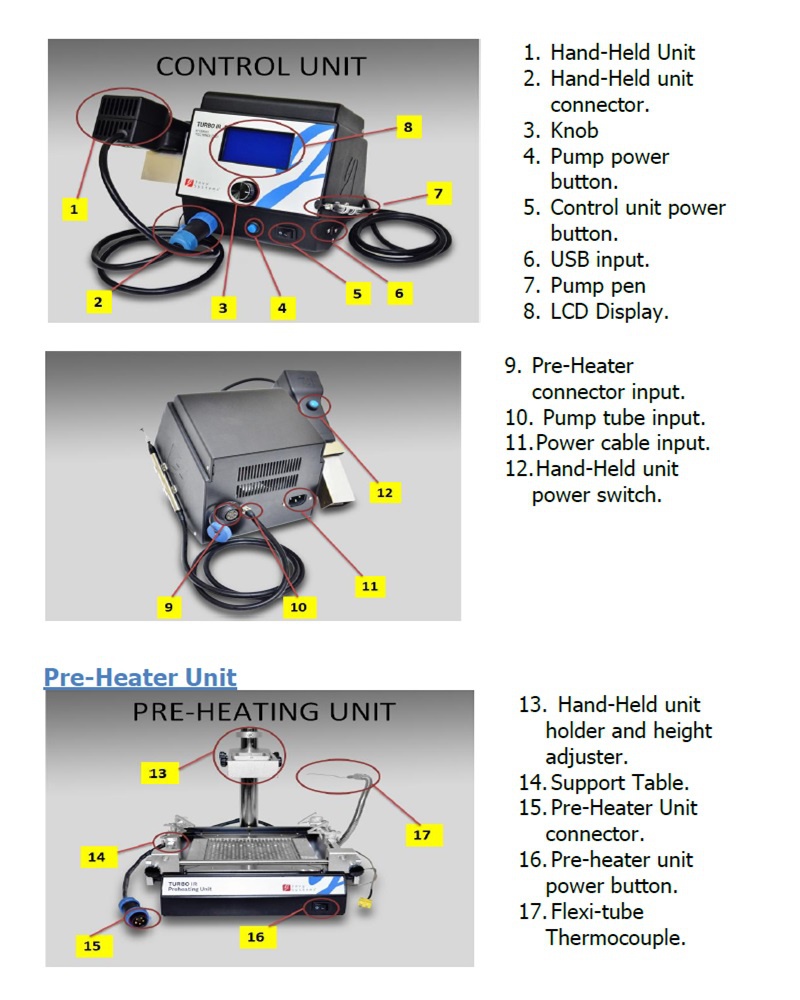

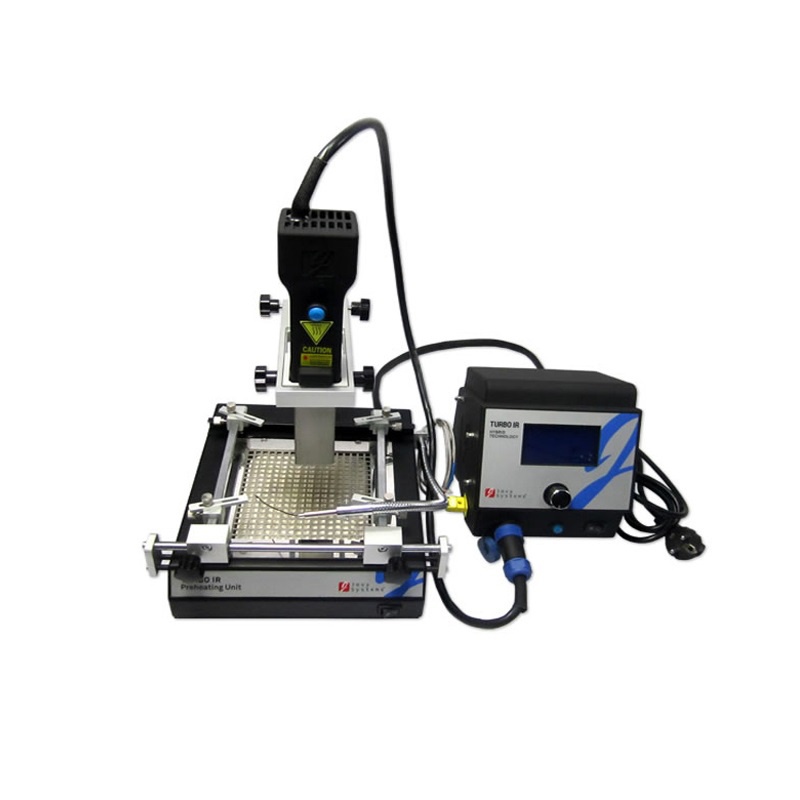

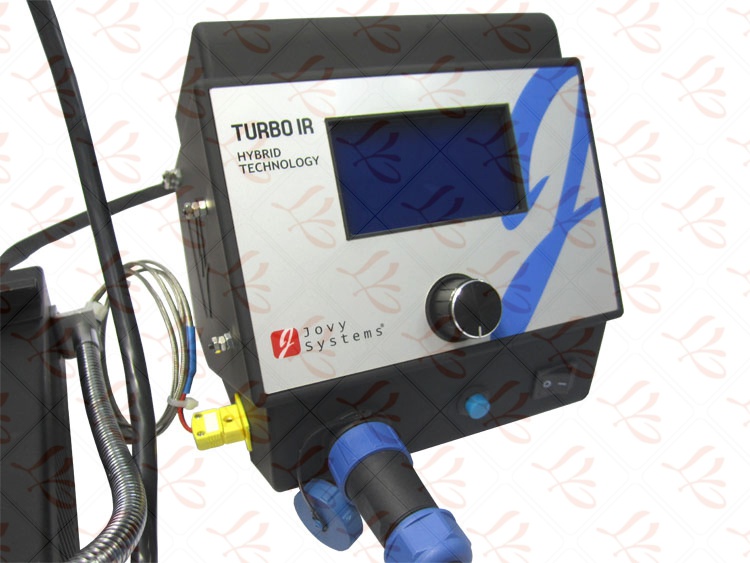

Benchtop Rework Station consists of two main parts; *The Control Unit and*The Preheating Unit. Hand Held unit`s Dimensions:155 * 175* 210 mm.Hand Held unit voltage: 230 volt AC / 5 volt DC for control. heating power: 250 watt.Maximum output temperature : 550 ° c. Pre-heating unit`s dimensions: 220 * 225 * 405 mm. heating power : 800 watt Maximum PCB size : 200 * 165 mm Total Weight : 7 kgm .Warranty : 1 year.

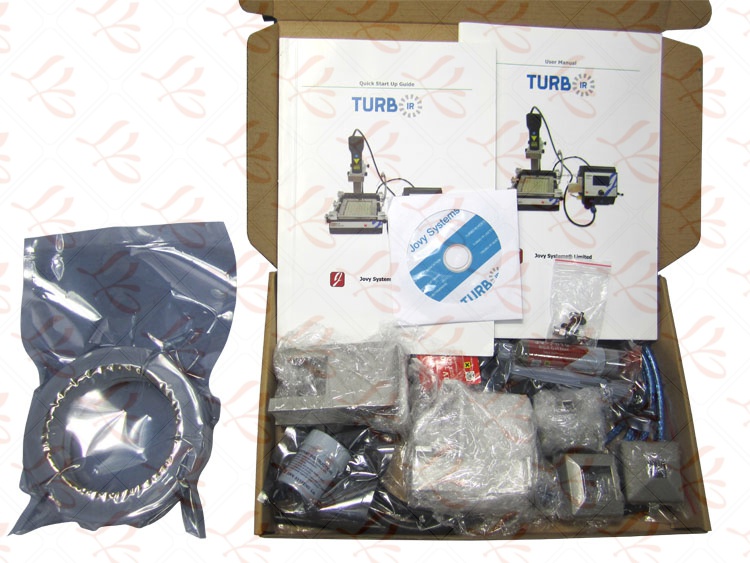

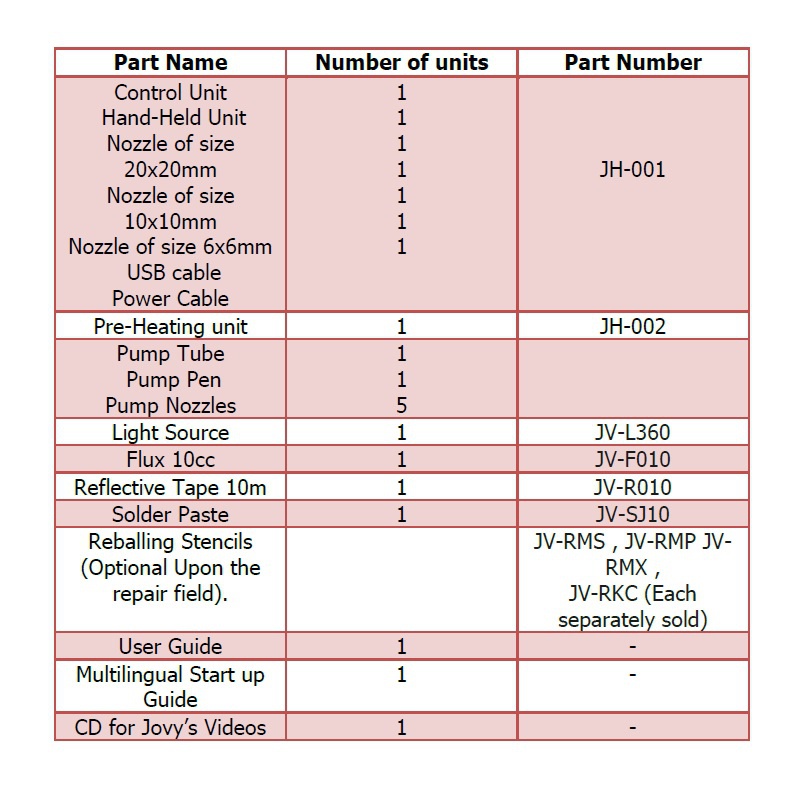

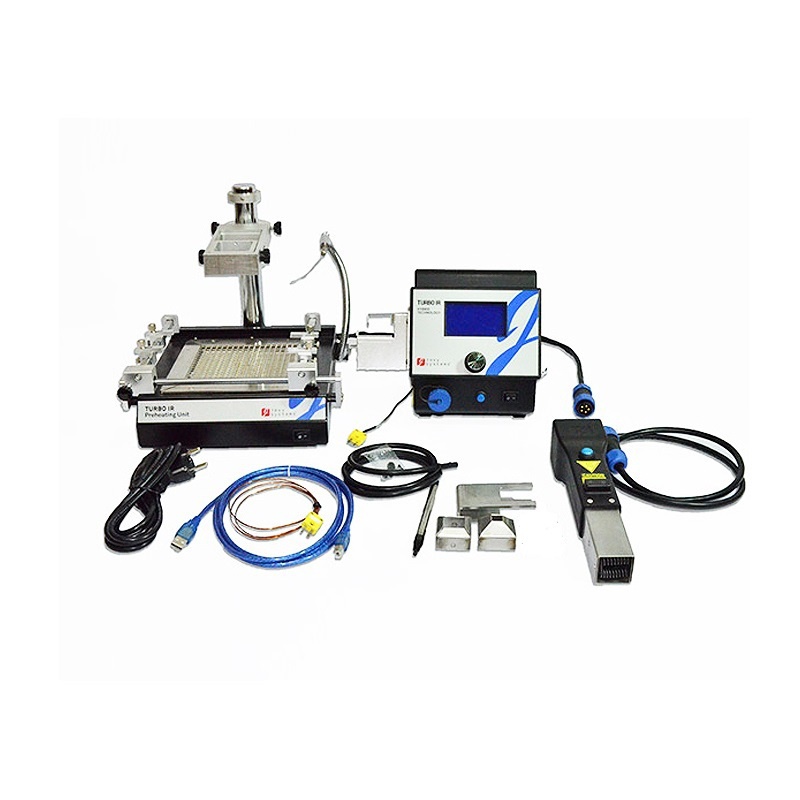

Content of this package includes free items of
Nozzle of size 20x20mm 1& Nozzle of size 10x10mm 1 & Nozzle of size 6x6mm 1 & USB cable 1& Pump Tube 1& Pump Pen 1& Pump Nozzles 5 &Power Cable 1& Flux 10cc 1& Reflective Tape 10m 1& Solder Paste 1
