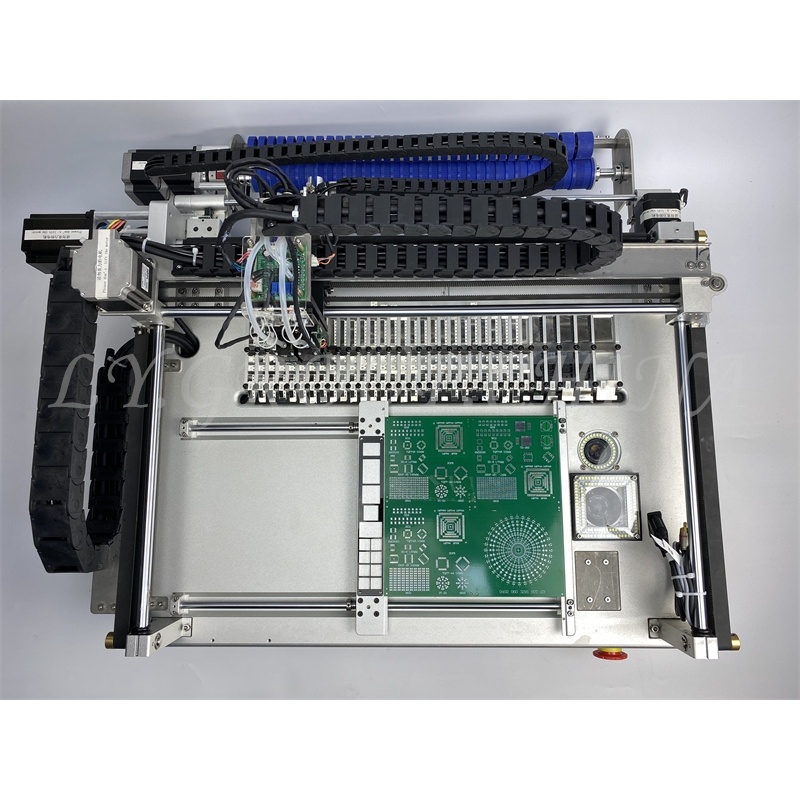

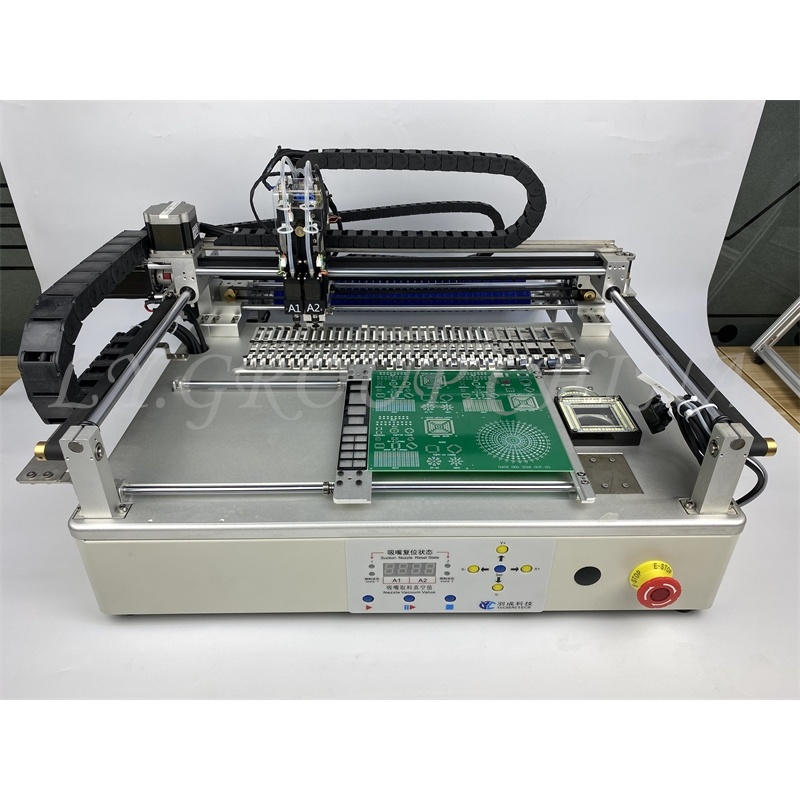

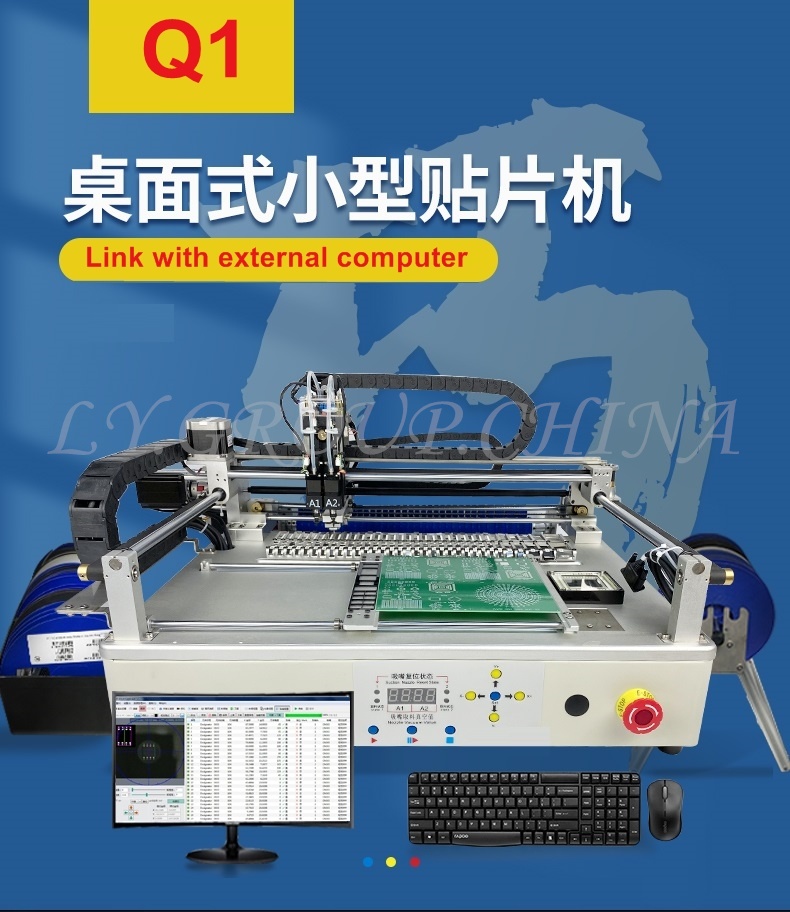

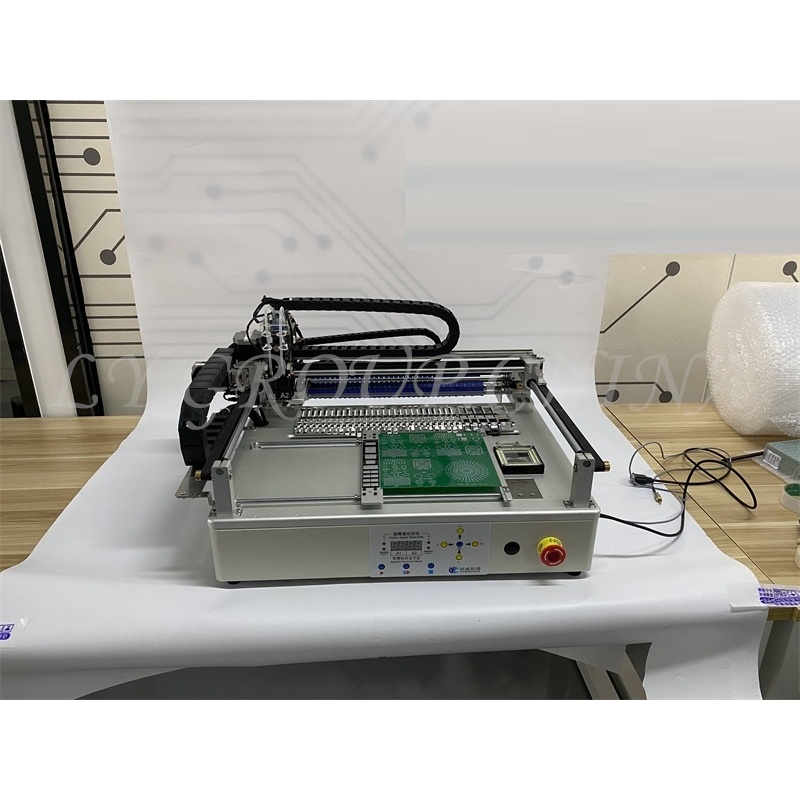

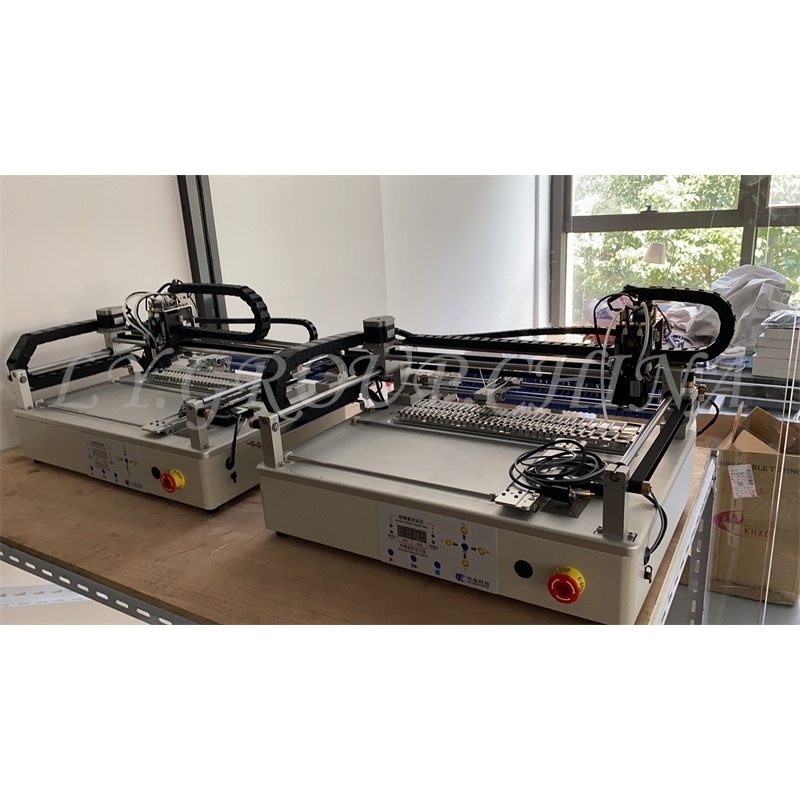

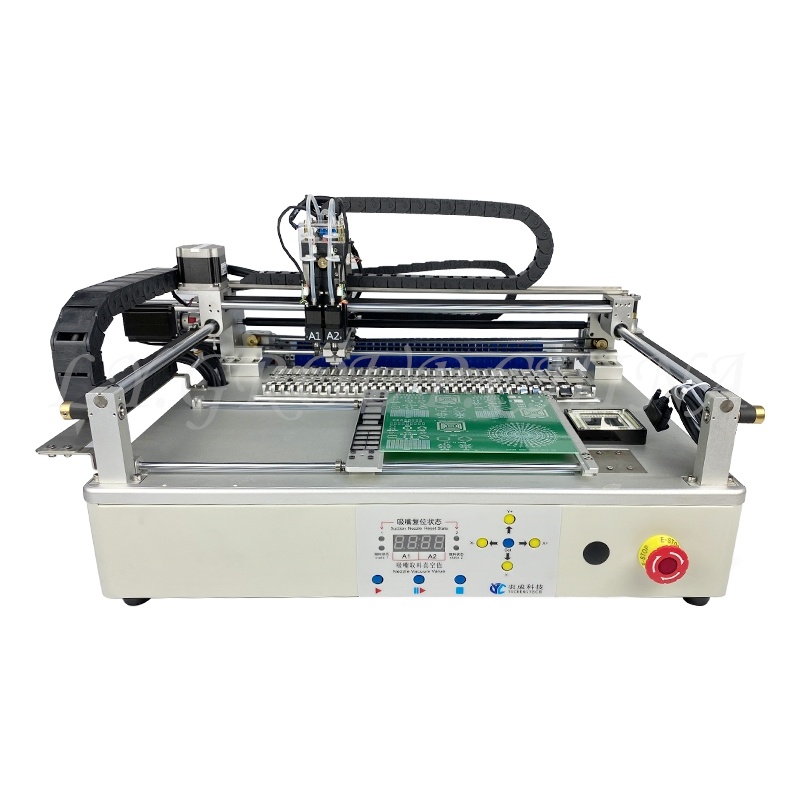

LY Q1 High Speed 33 Bits With Full Vision Desktop Automatic SMT Pick And Place Machine Chip Mounter LED SMD Dual Heads For PCB Assembly Line

RE: Need to use with air compressor.

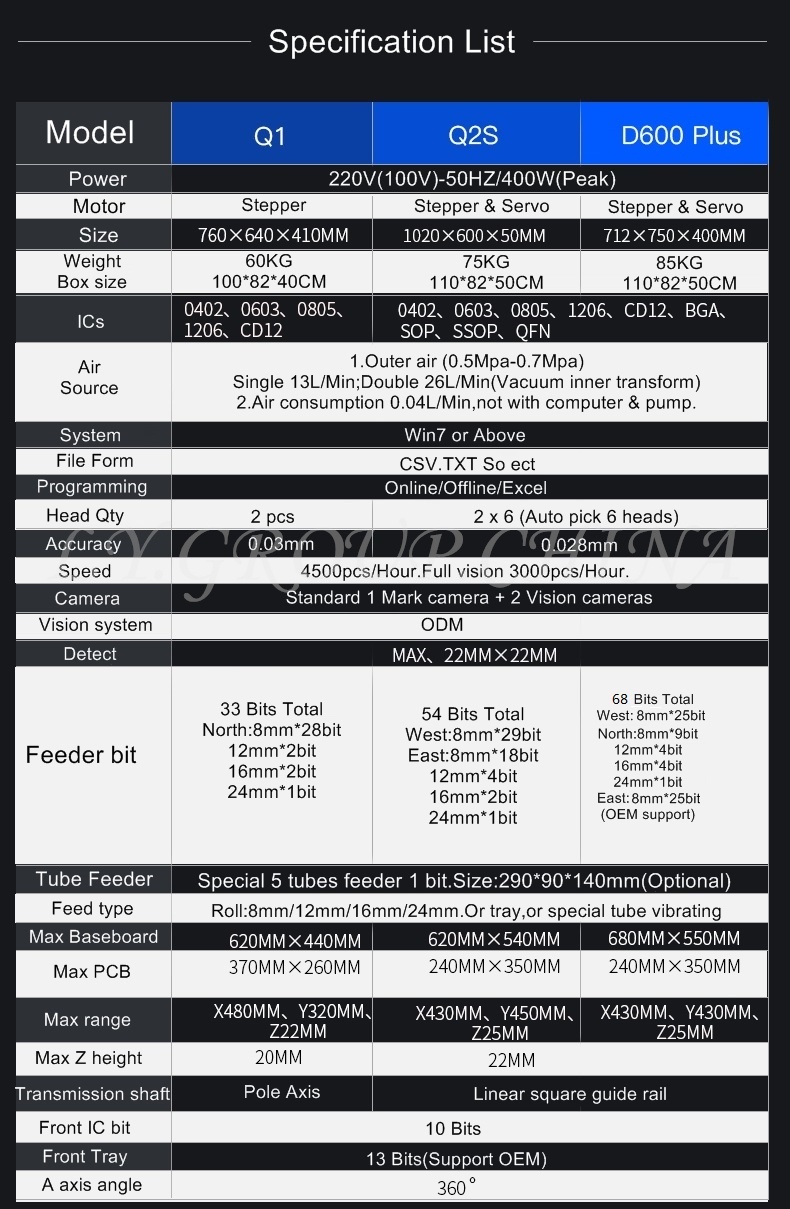

Power:220V or 110V. 50HZ/400W

Motor: Stepper

Size:76*65*40CM

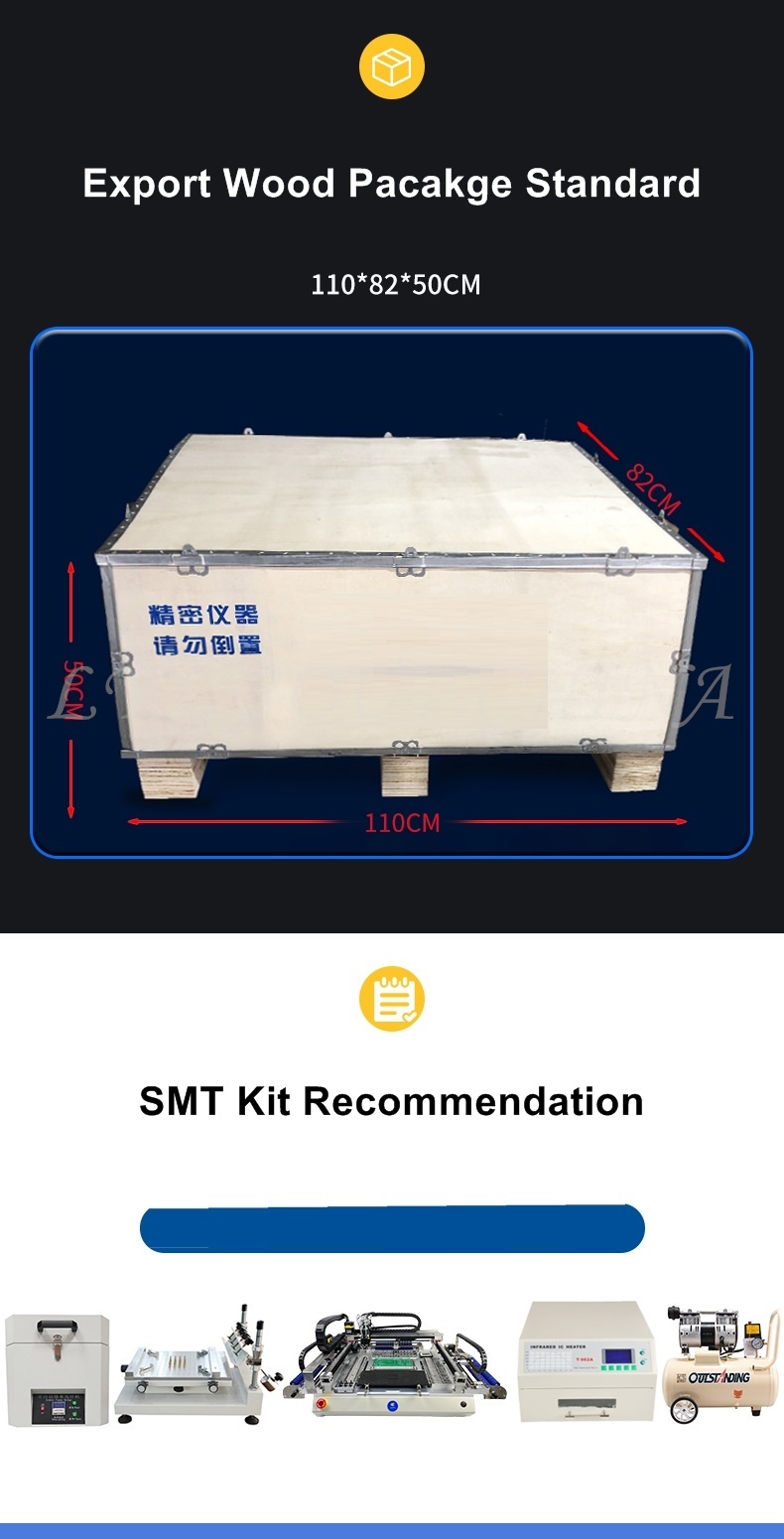

Cartoon size: 100*82*40CM

QFP Type: 0402,0603,0805,1206,CD12

Air In :Compress air 0.5MPA-0.7MPA,0.04L/Min

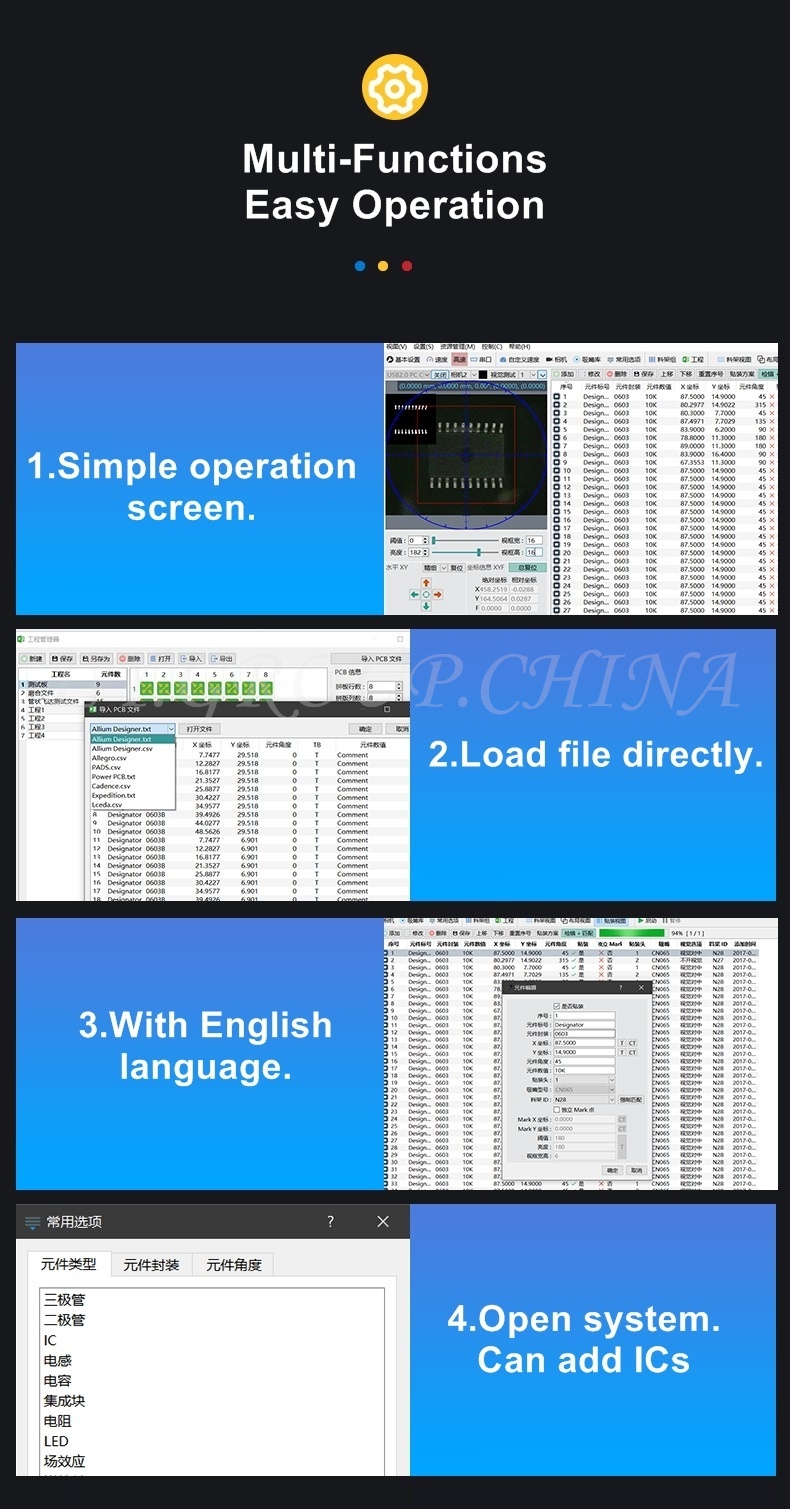

Operation: Win7 or above

File form: CSV,TXT

Program way: Online/ Offline/ Excel

Nozzle QY: 2 pcs

Accuracy: 0.03mm

Speed: Resistance 3500pcs/hour, Full vision 2500pcs/hour

Camera: 3pcs

Recognition : MAX, 17*17MM

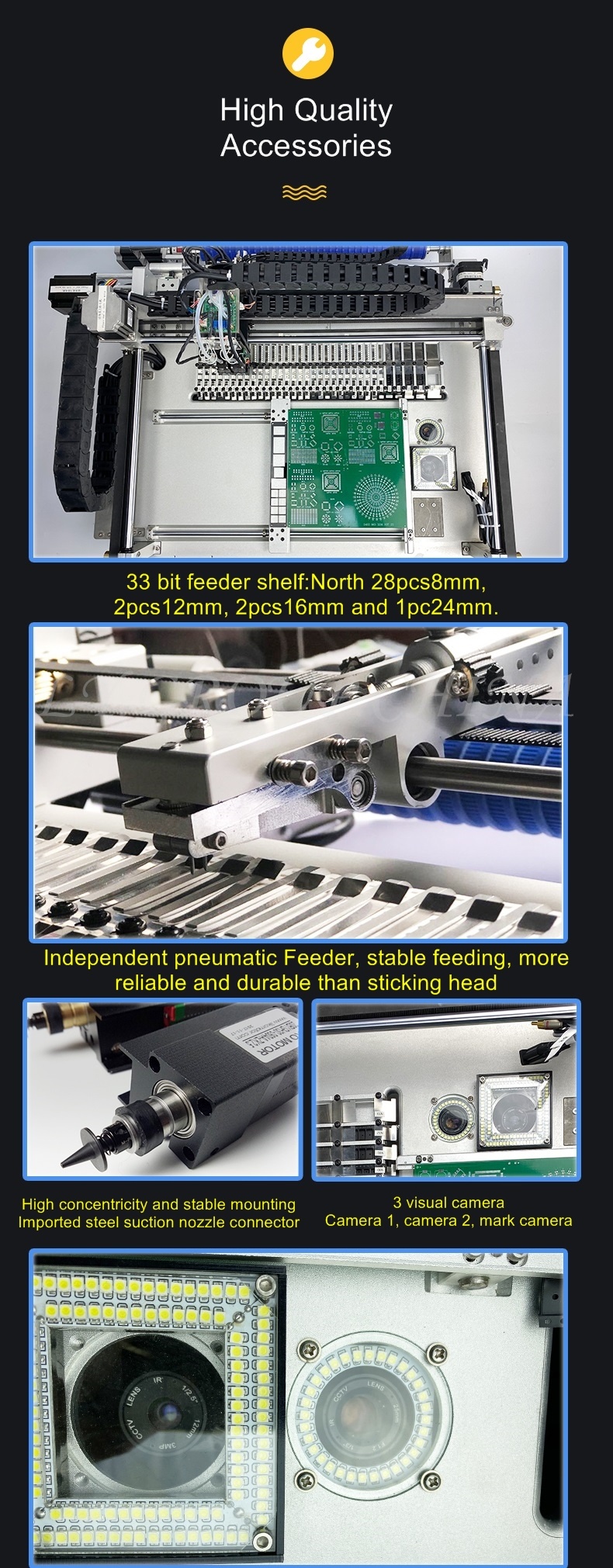

Feeder: 33 Bits (OEM Support)

Tube feeder: 5 tubes, Size: 290*90*140mm (Optional)

Max Base board: 620*440mm

Max PCB Size: 370*260mm

Max range: X:480MM/ Y:320MM/ Z:20MM

Front IC Feeder: 10 Bits

Weight:65KG
