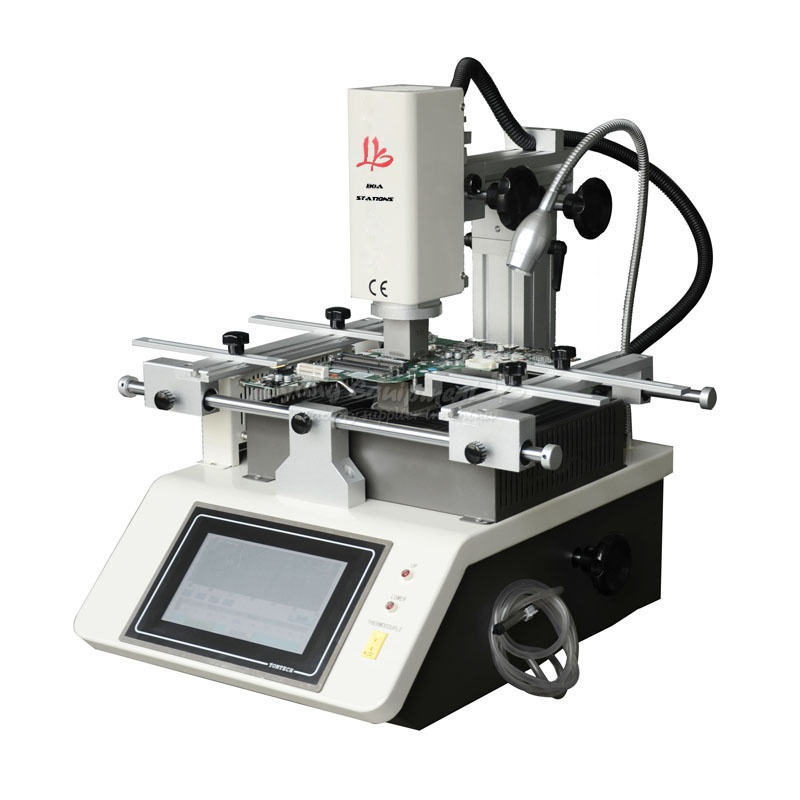

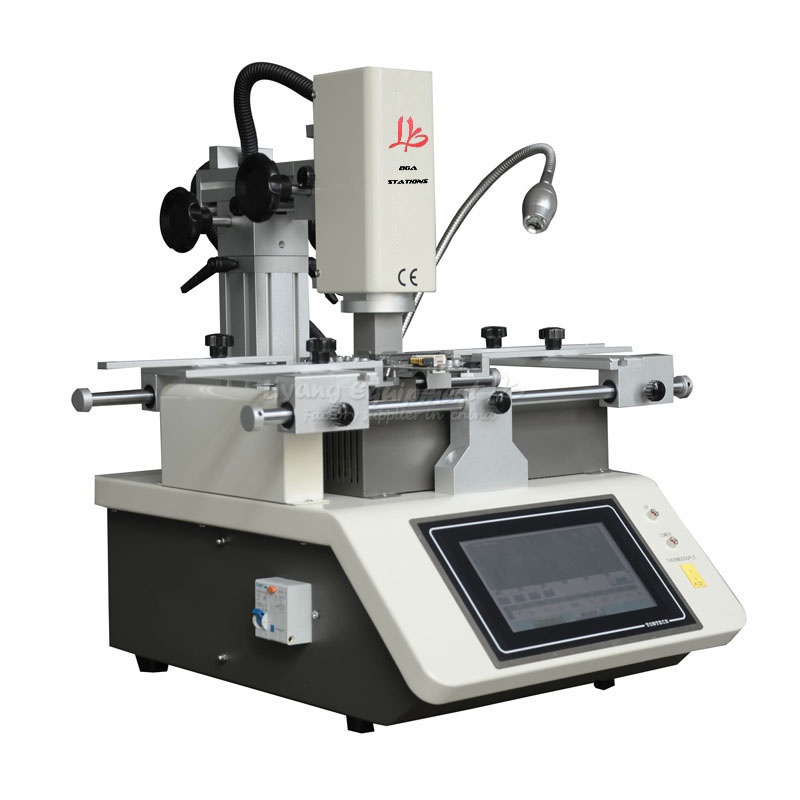

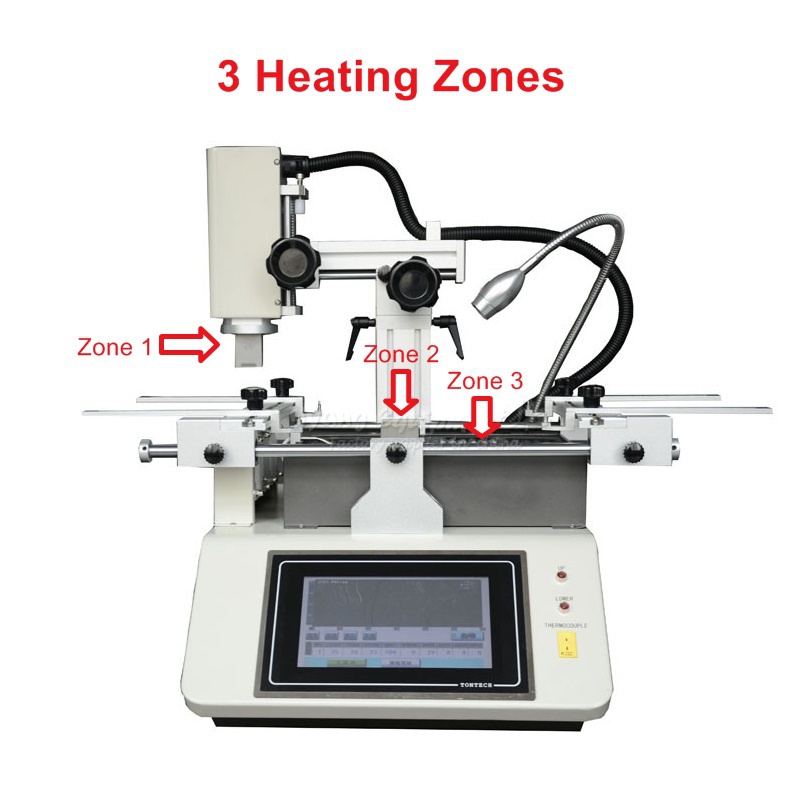

NEW hot air mobile rework station repair system mobile repair station LY-5200 touch screen 3 zones
|
1 |
power |
AC220V±10% 50/60Hz |
|
2 |
Total power |
3400W |
|
3 |
Up heater |
800W |
|
4 |
Down heater |

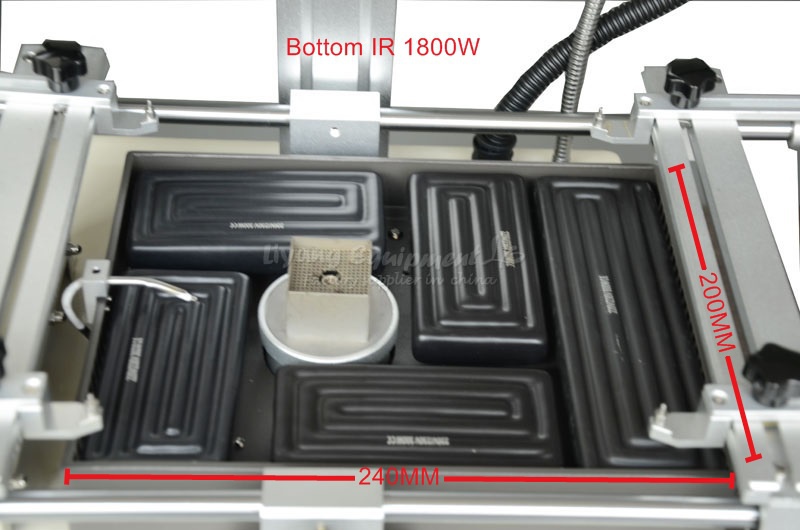

Second 800W,IR 1800W |
|
5 |
size |
395×450×590mm |
|
6 |
PCB location |
V-shape+universal jigs |
|
7 |
Temp. Control |
K Sensor,independent temperature control,precision within ±2 degree |
|
8 |
PCB size |
Max 195×260mm Min 10×10 mm |
|
9 |
Preheating area |
240×200mm |
|
10 |
material |
High sensitive touch screen+Touch screen man-machine interface operation |
Packing list:
Pcb jig x 4
Universal hook x 4
Special mini Nozzles x 4 for mobiles（top 5 ,bottom 1 ）
(Top 10*10mm,14*14mm,18*18mm,23*23mm,28*28mm,
Bottom 35*35mm)
Manual ( if not received, send by mail)
