CNC Router 6040Z/Engraving Drilling and Milling Machine]
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

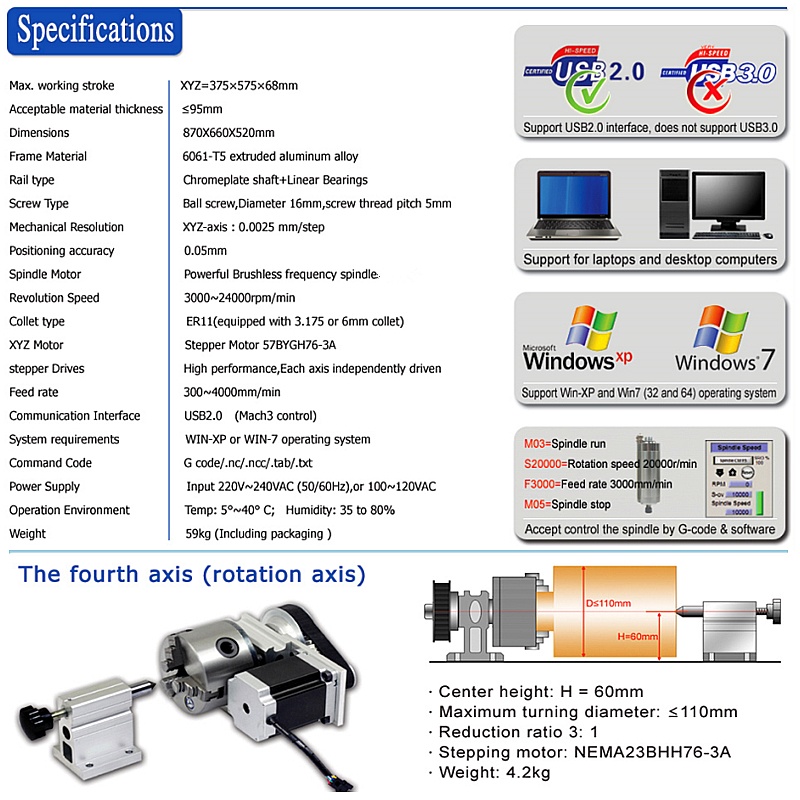

Model and Technical Parameters
| MODEL | 6040Z-800W | |||
| Attribute | 3axis-LPT | 3axis-USB | 4axis-LPT | 4axis-USB |
| Axis | 3axis | 3axis | 4axis | 4axis |
| Interface | LPT port | USB port | LPT port | USB port |

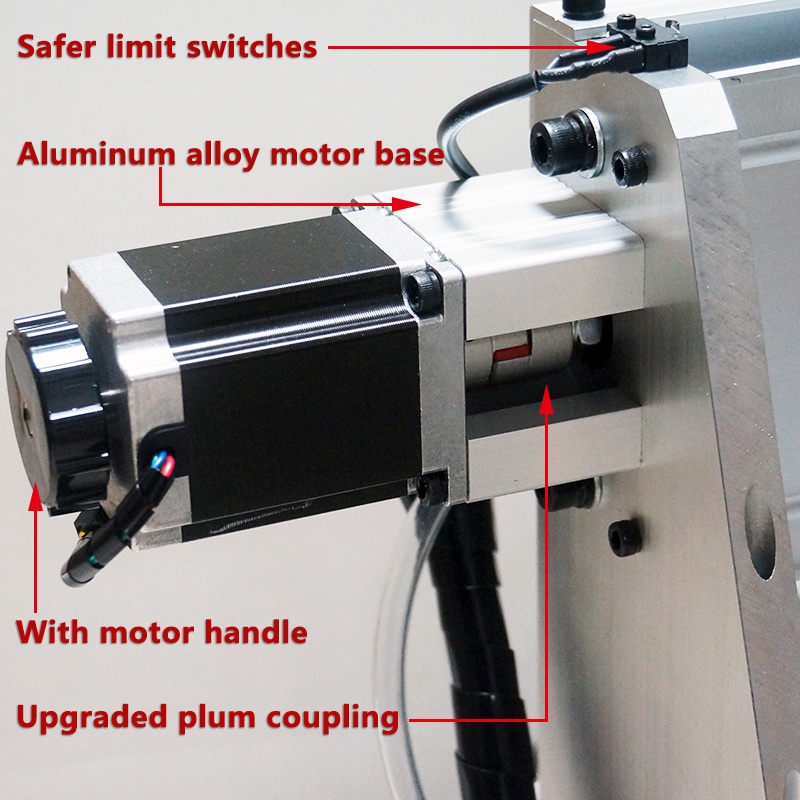

| Limit switch | Yes | yes | Yes | Yes |

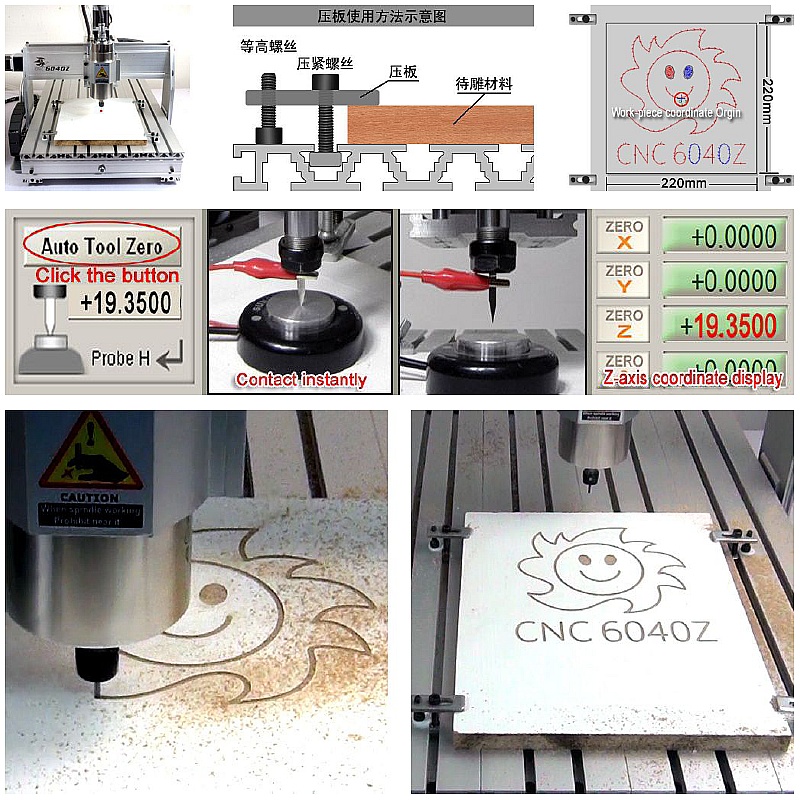

| Tool auto-checking | Yes | Yes | Yes | Yes |
| Spindle Motor: | 800W | 800W | 800W | 800W |
| Type of screw | Ball screw | Ball screw | Ball screw | Ball screw |
| Weigh | 56 | 56 | 60 | 60 |
|
Machine Dimensions： |
870X660X520mm |
|||
|
Rack material： |
6061 and 6063 Hard aluminum alloy |
|||
|
Engraving area： |
575X375mm |
|||
|
Z-Axis Stroke： |
68mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness： |
≤ 95mm |
|||
|

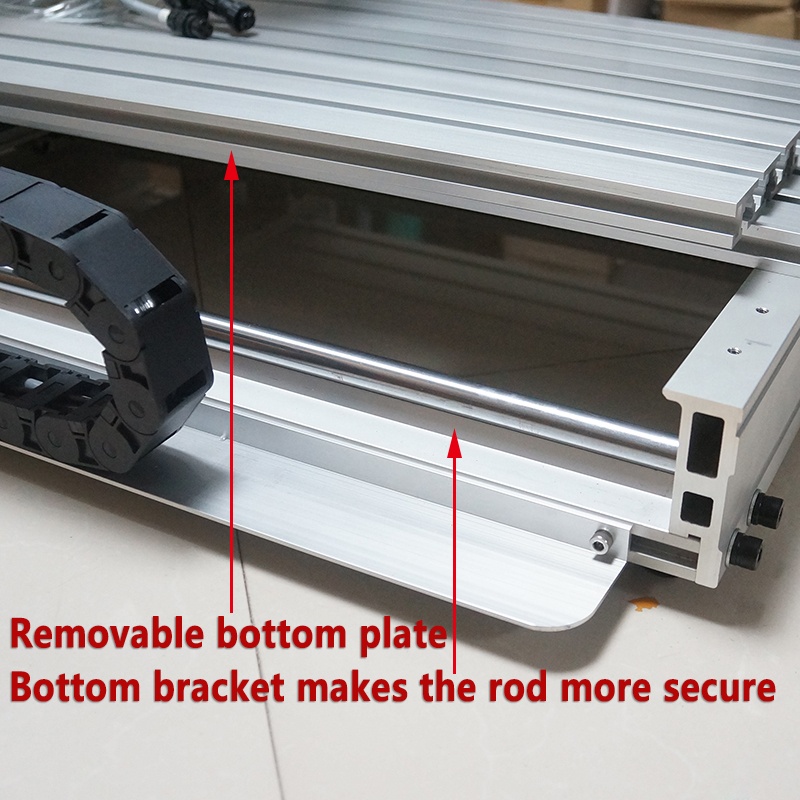

Rail type： |

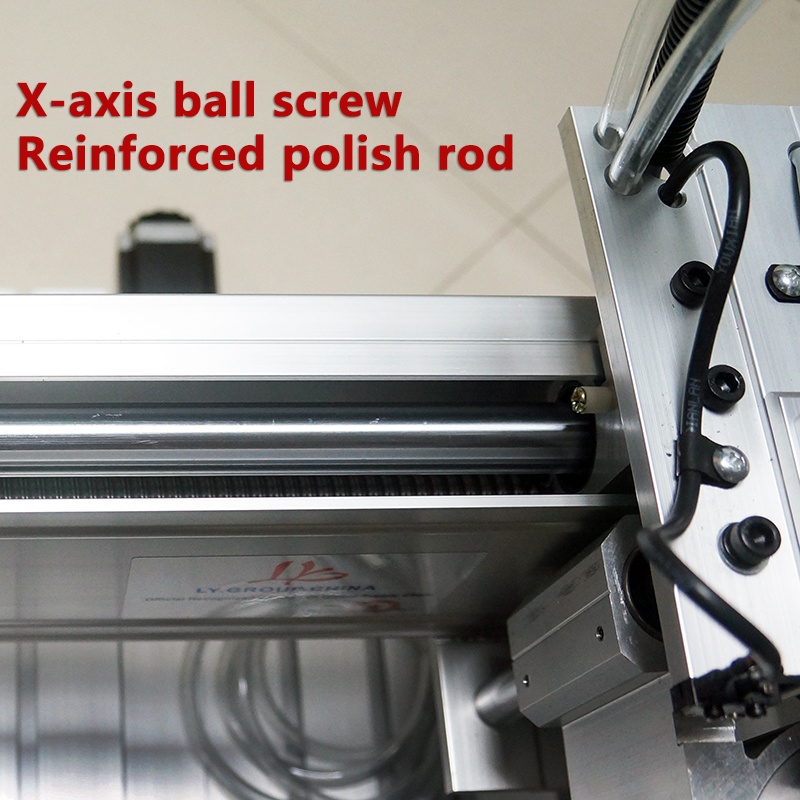

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||
|
Type of screw： |
Ball screw 1605, Pitch 5mm |
|||
| Spindle motor： | 800W VFD water cooling spindle , 0-24000r/min | |||
|
Collet type： |
ER11,1/8″(3.175mm) Collet |
|||
|
Stepper motor and drive： |
two-phase hybrid stepping motor 57BYGH76-3A, 8 segments drive. |
|||
|
Maximum operating speed： |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
|
Repeat positioning Accuracy： |
0.03mm |
|||
|

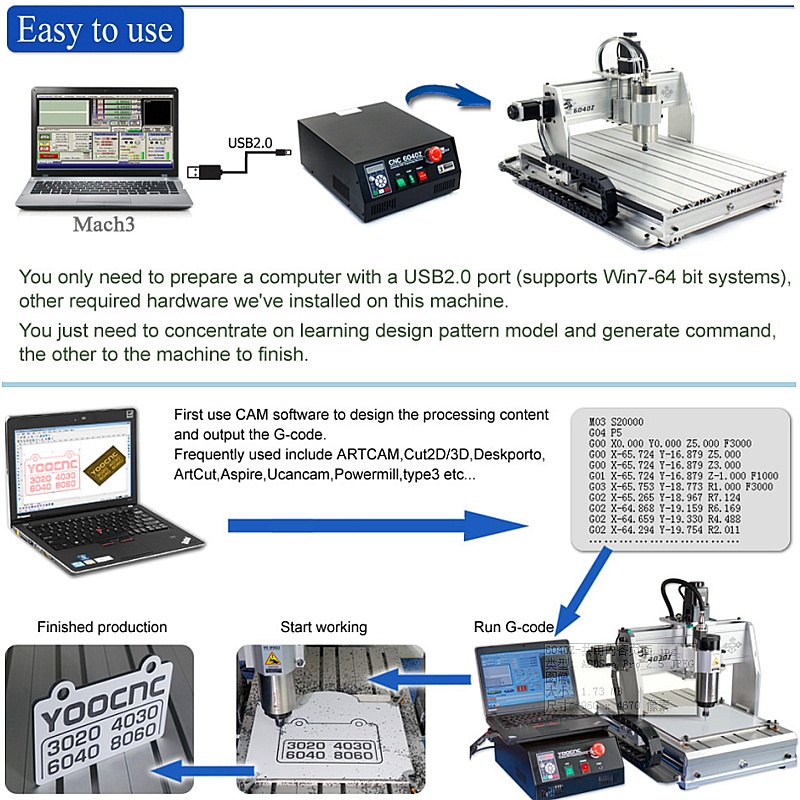

Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|

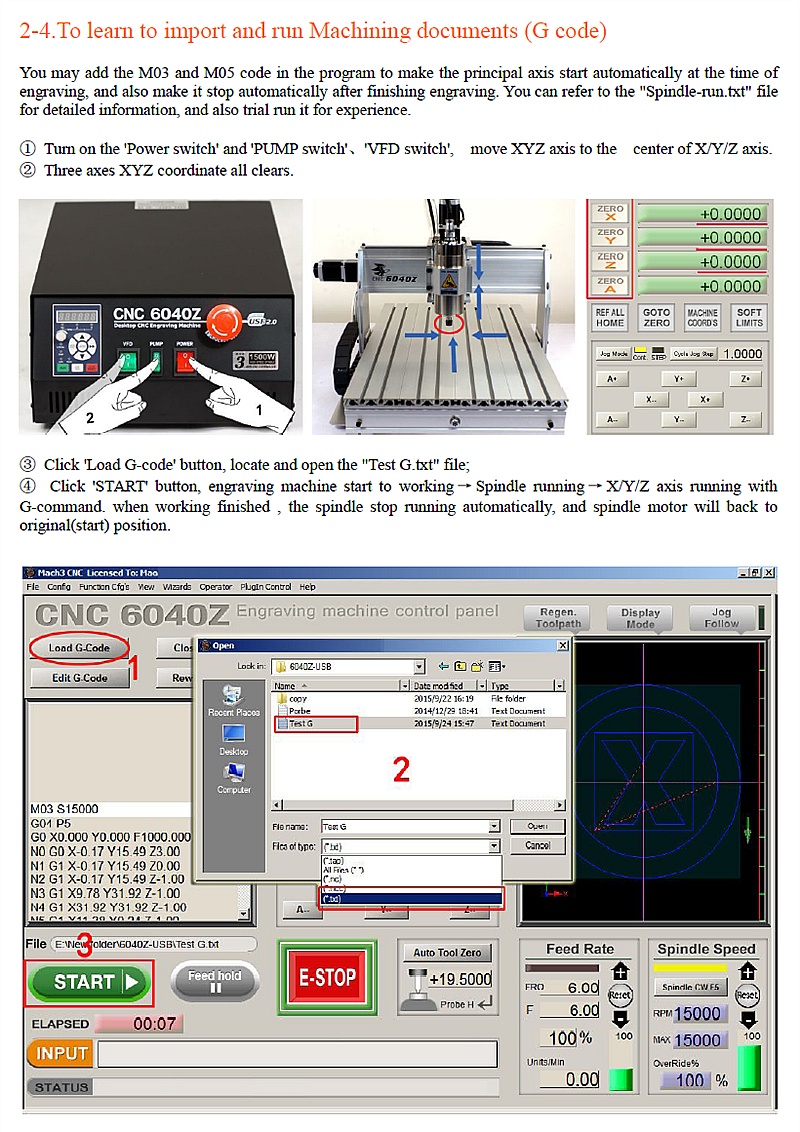

Command code： |
G code/.nc/.ncc/.tab/.txt |
|||

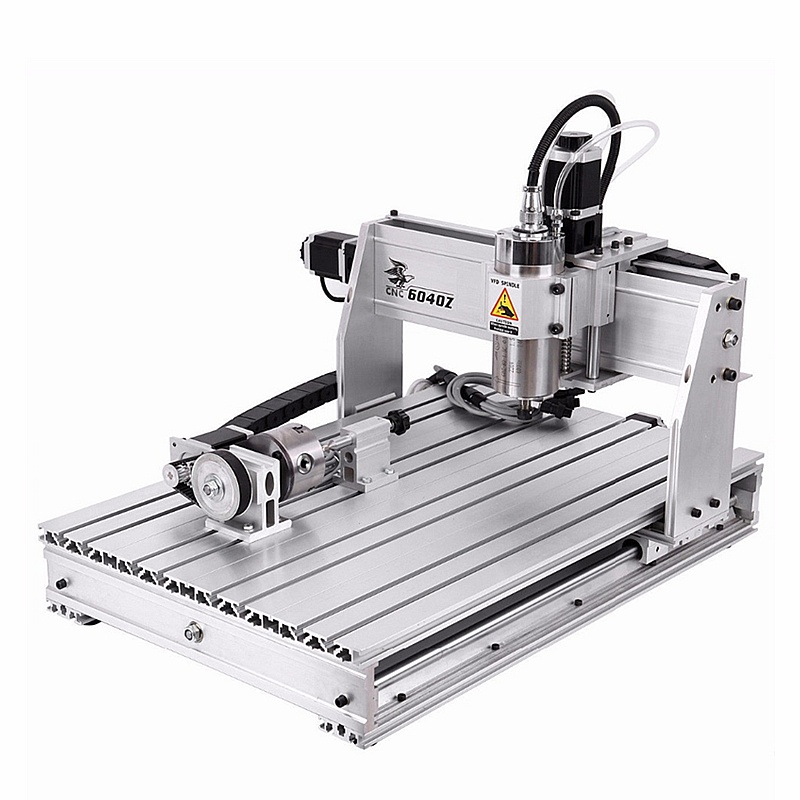

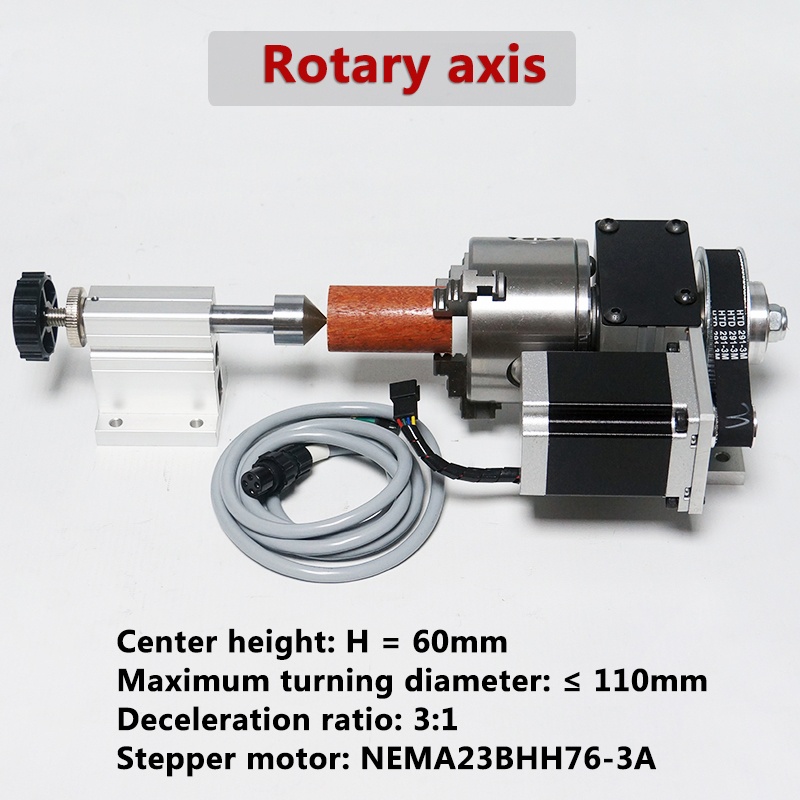

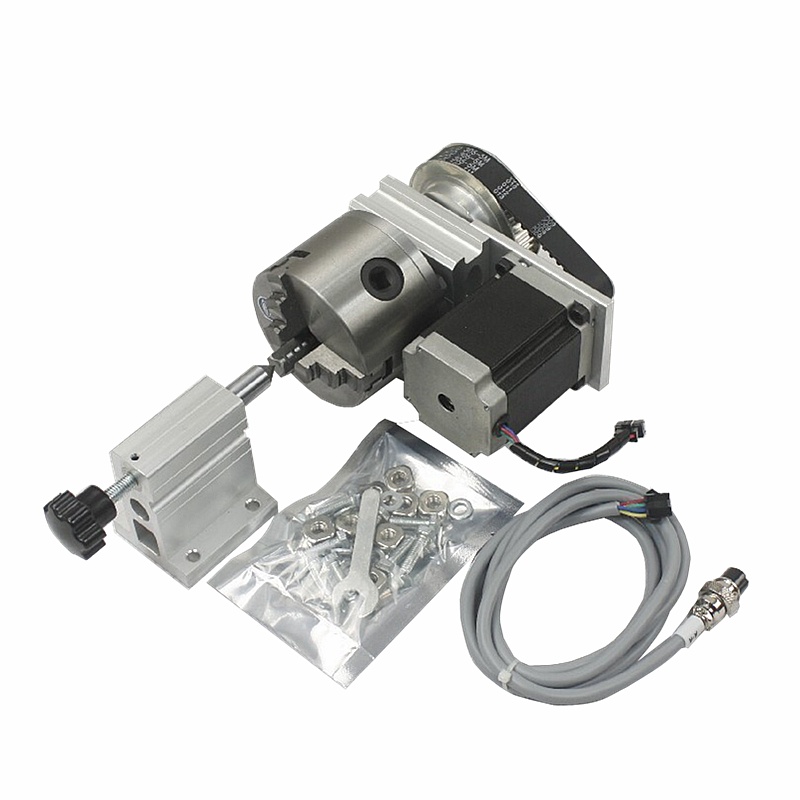

| Rotation Axis (4th Axis)
Description: |
Center height: H = 60mm
Maximum turning diameter: ≤ 110mm Deceleration ratio: 3:1 Stepper motor: NEMA23BHH76-3A Weight: 4.2KG |
|||
Thanks for your order!

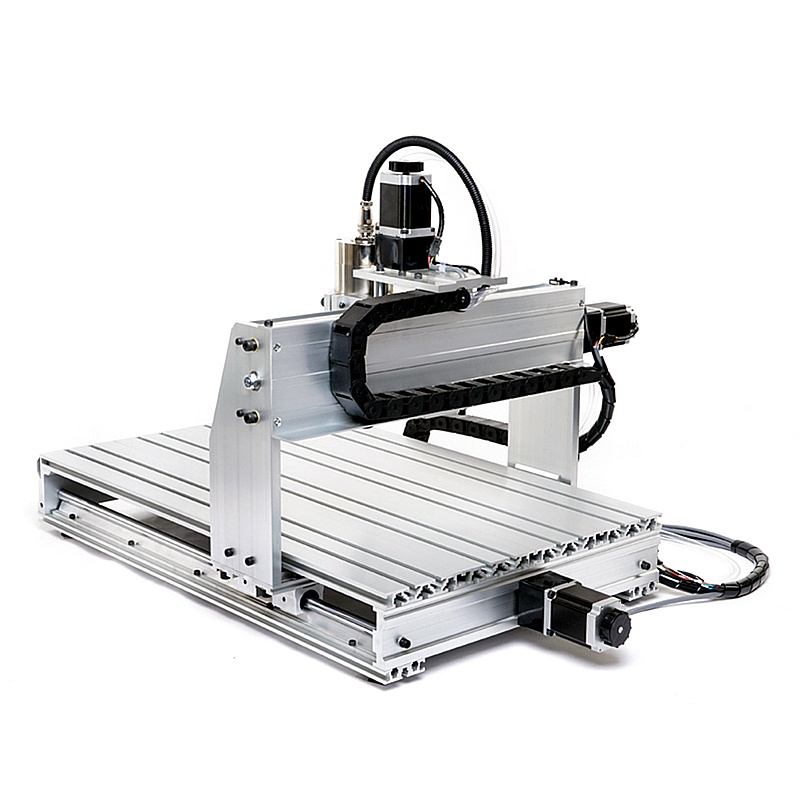

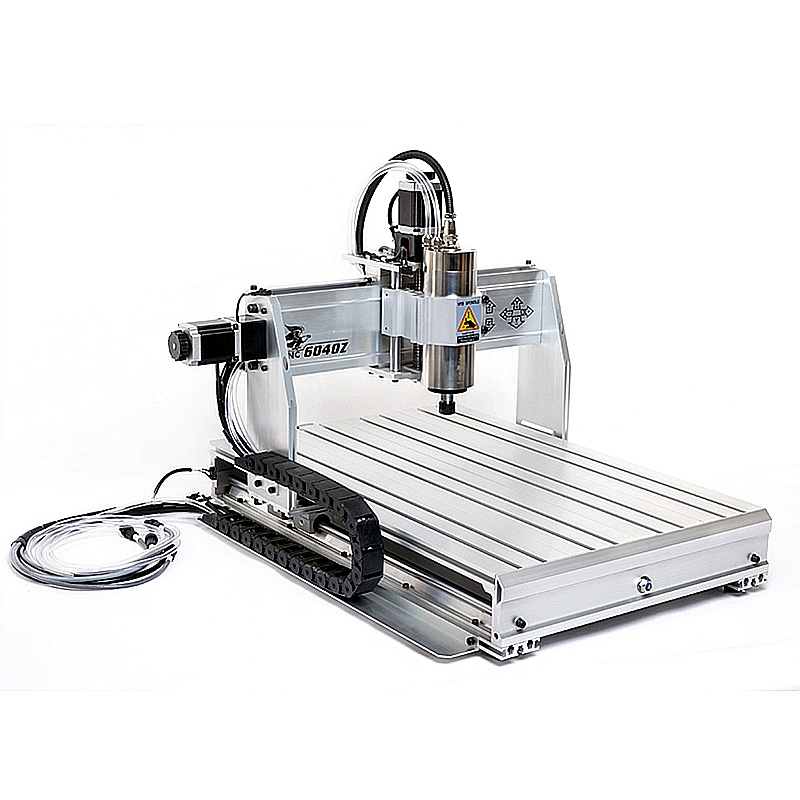

Product Pictures
