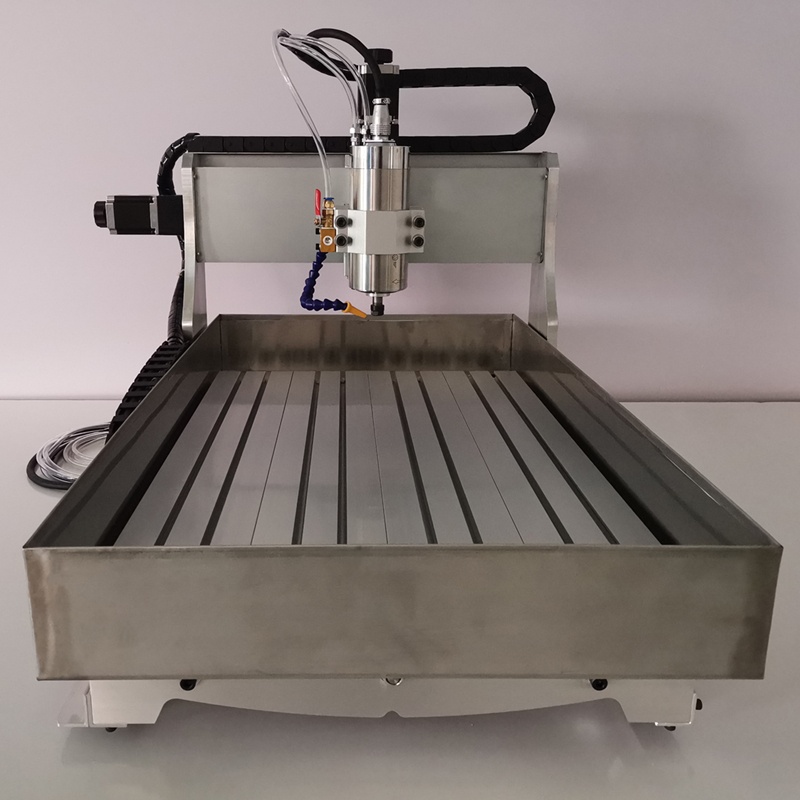

CNC Router Engraver 3040 800W 1500W 2.2KW USB Milling Machine with water tank for metal stone wood working
Reviews(0)
Product Detail
Product Tags

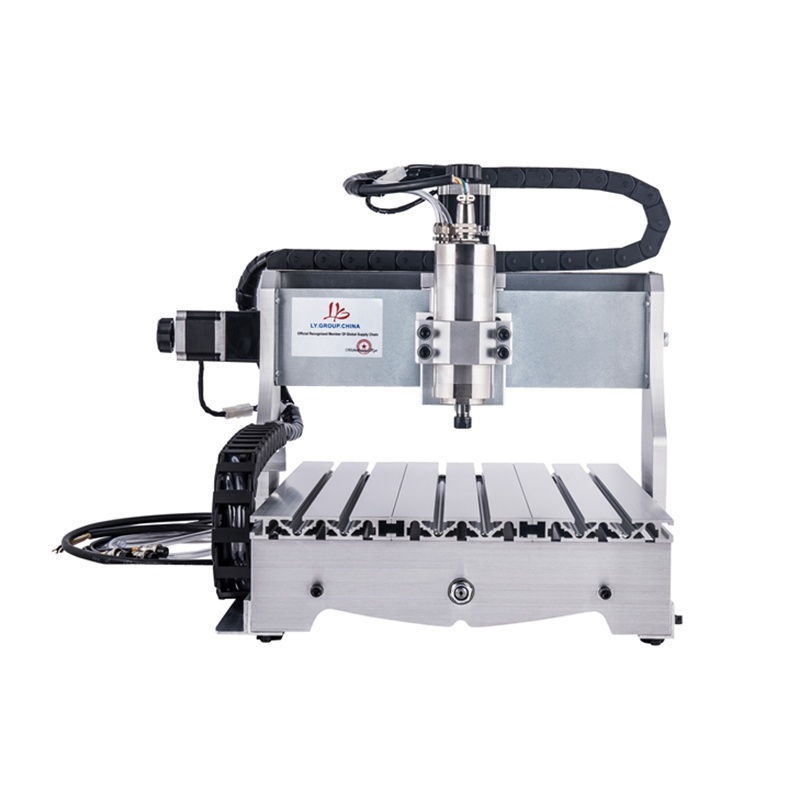

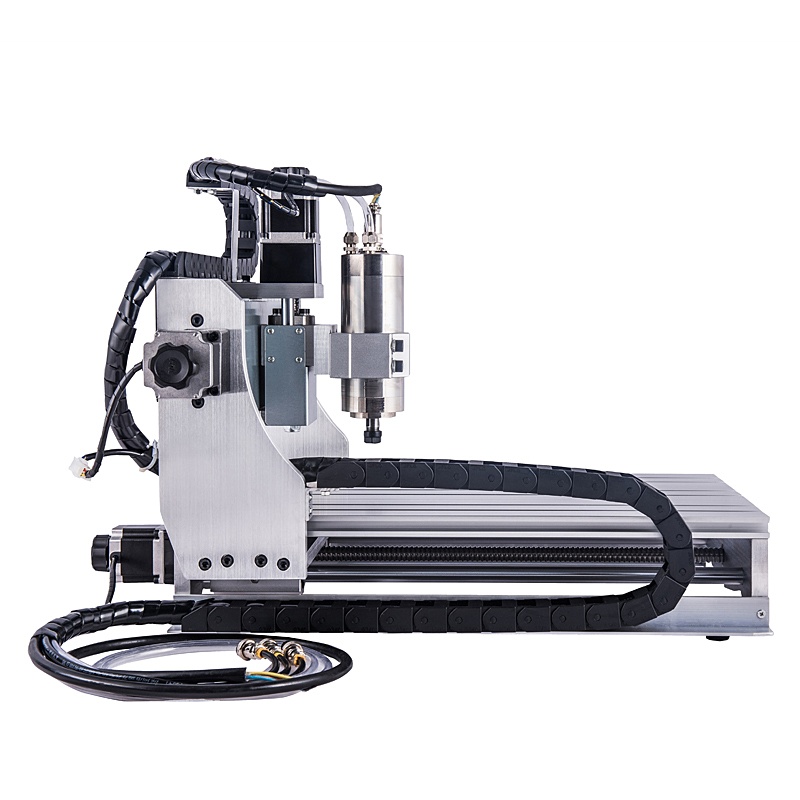

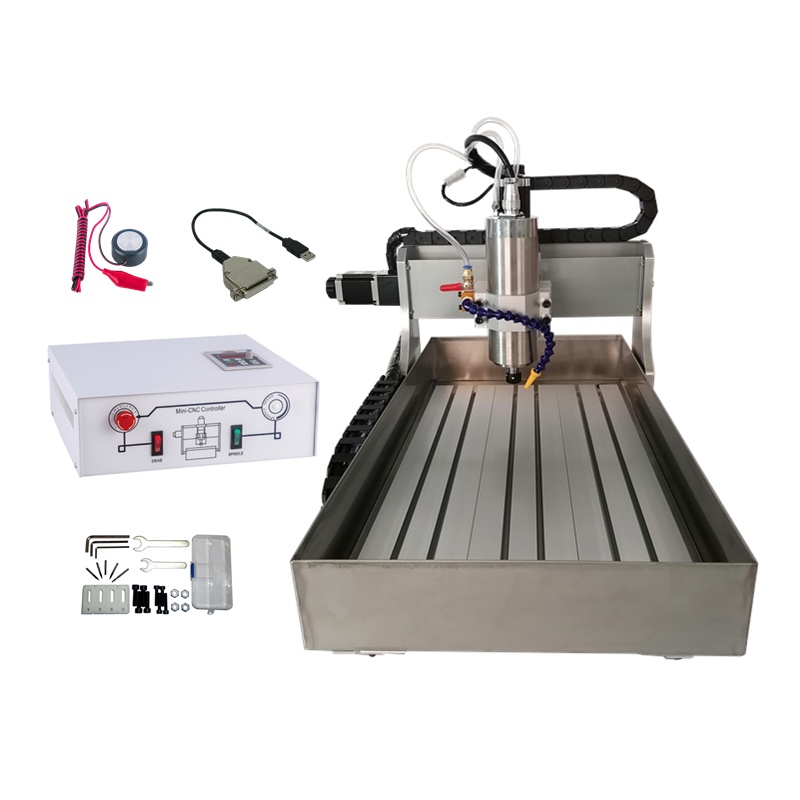

CNC Router Engraver 3040 800W 1500W 2.2KW USB Milling Machine with water tank for metal stone wood working
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters

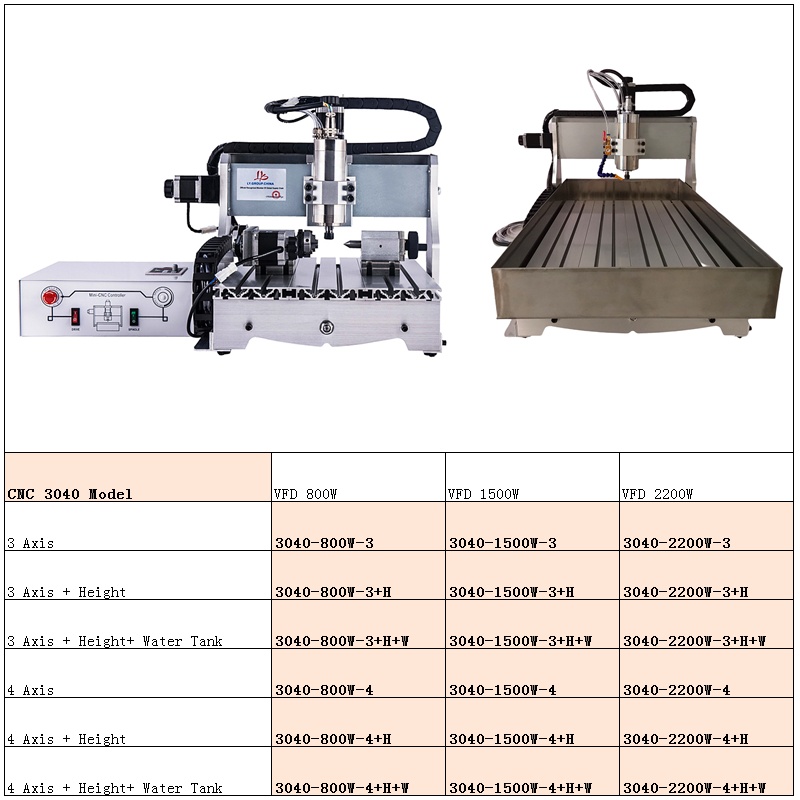

| MODEL | CNC 3040 |
| Axis | 3axis /4axis |
| Interface | LPT and USB 2 IN 1 |

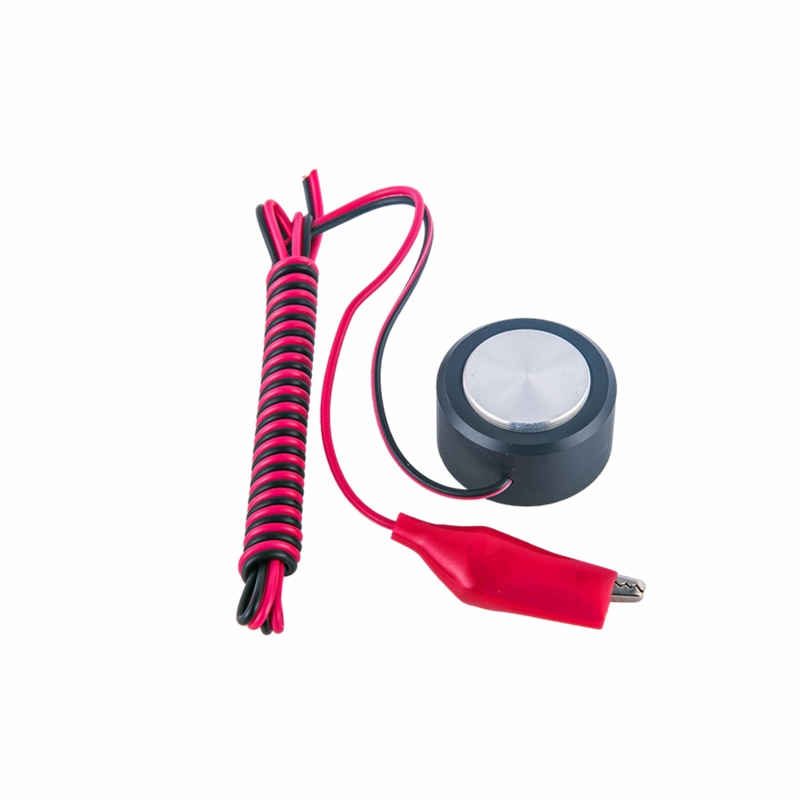

| Toolauto-checking | Yes |

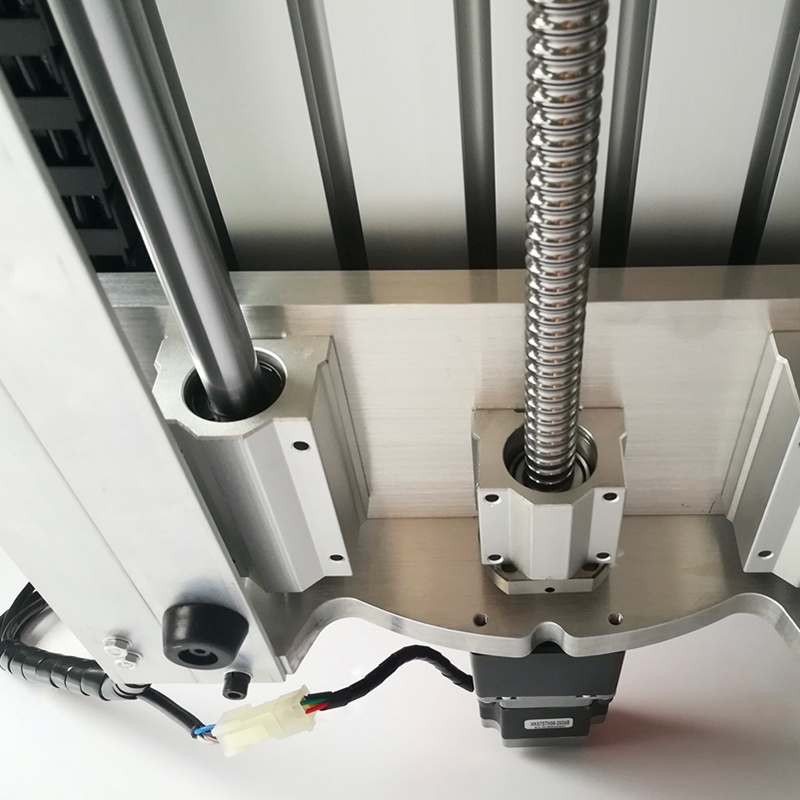

| Type of screw | 1605 Ball screw |
|
Machine Dimensions： |
660X570X450mm |
|

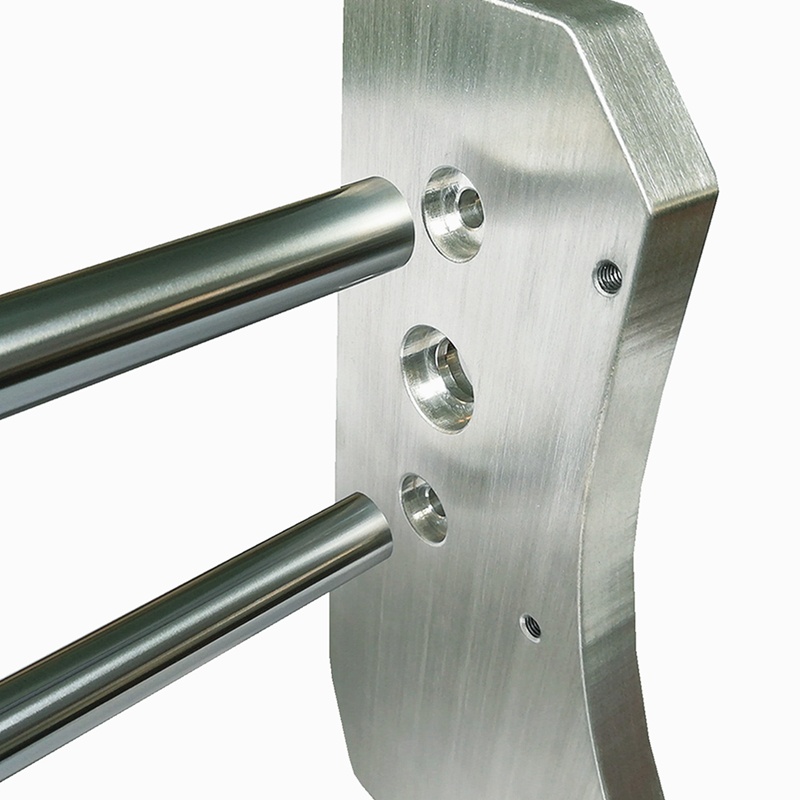

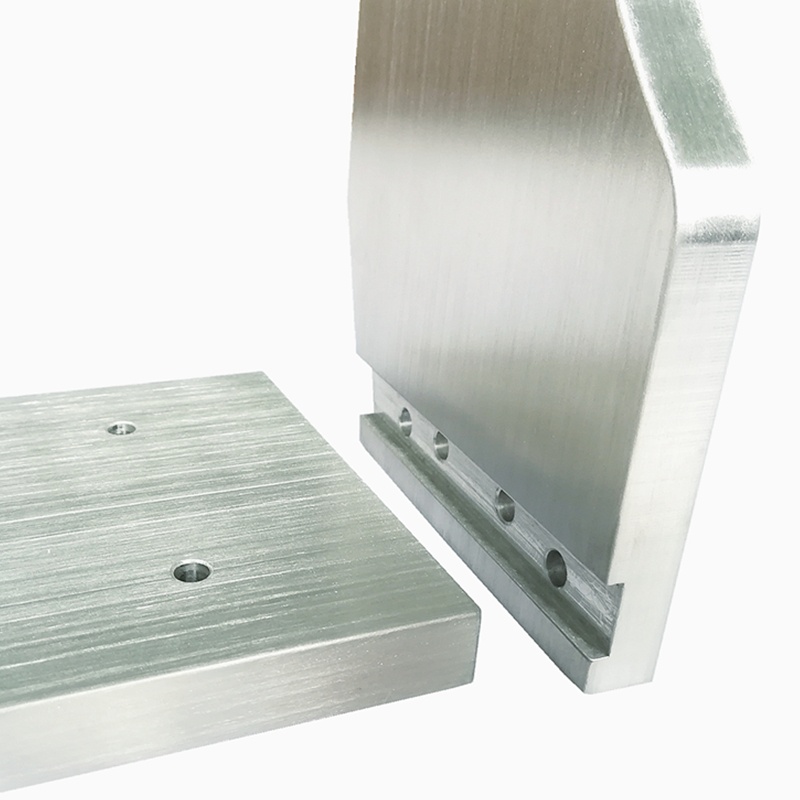

Rack material： |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|
Engraving area： |
400X300mm |
|
Z-Axis Stroke： |
60mm, Engraving depth depends on the length of the tool edge |
|

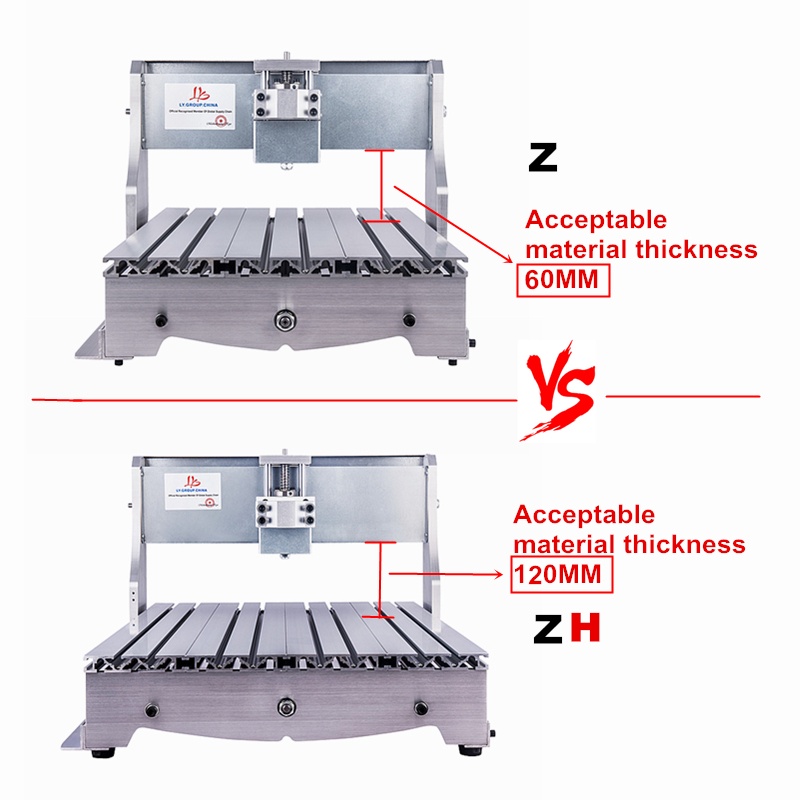

Acceptable material thickness： |
≤60 & ≤120 mm |
|
Rail type： |
Chromeplate shaft+Linear Bearings,Surface hardening 61HRC |

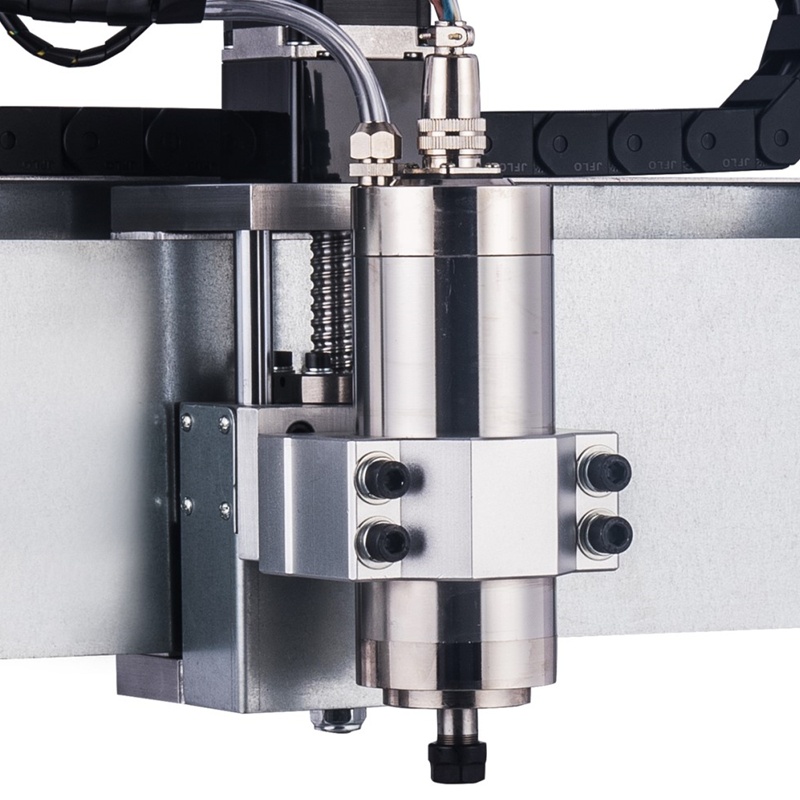

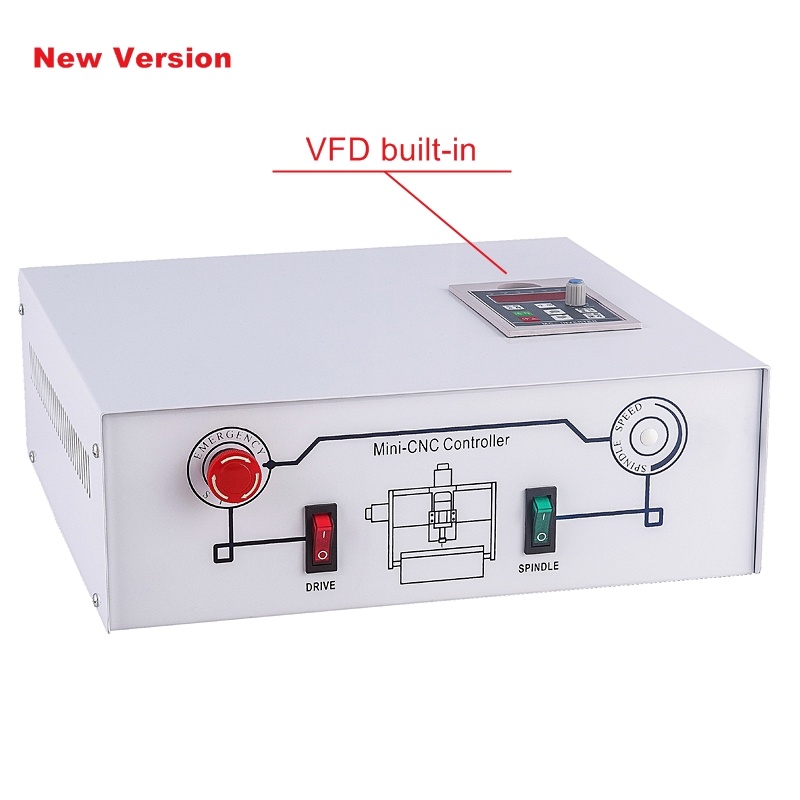

| Spindle motor： | 800W/1500W/2200W VFD water cooling spindle |
|
Collet type： |
ER11/ER16,1/8″(3.175mm) Collet |
|

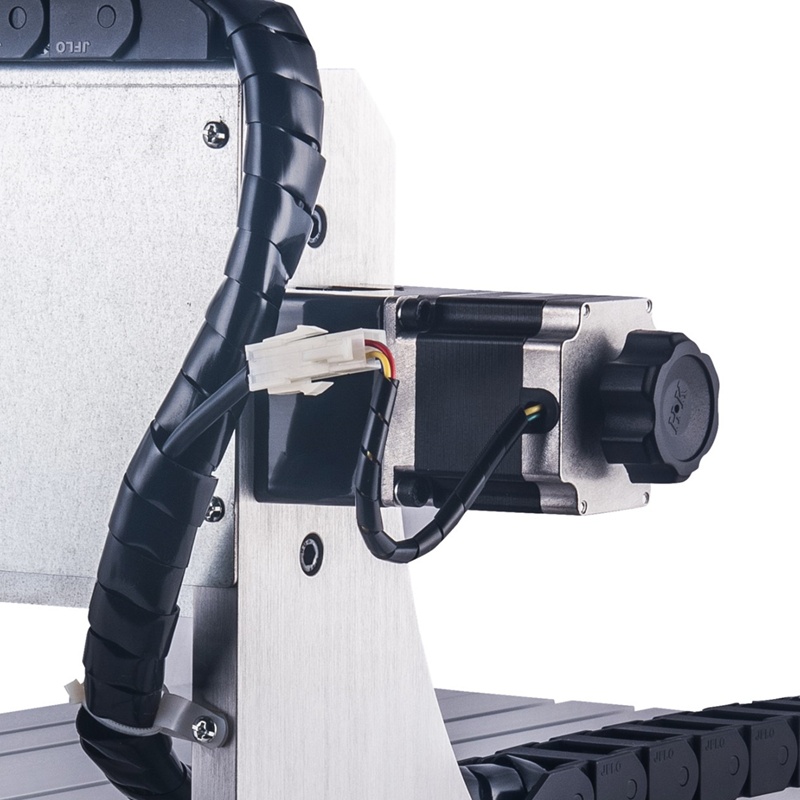

Stepper motor and drive： |
two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive. |
|
Maximum operating speed： |
4000mm/min (Engraving speed : 300-3000mm/min) |
|
Repeat positioning Accuracy： |
≤0.03mm |
|
Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|
Command code： |
G code/.nc/.ncc/.tab/.txt |

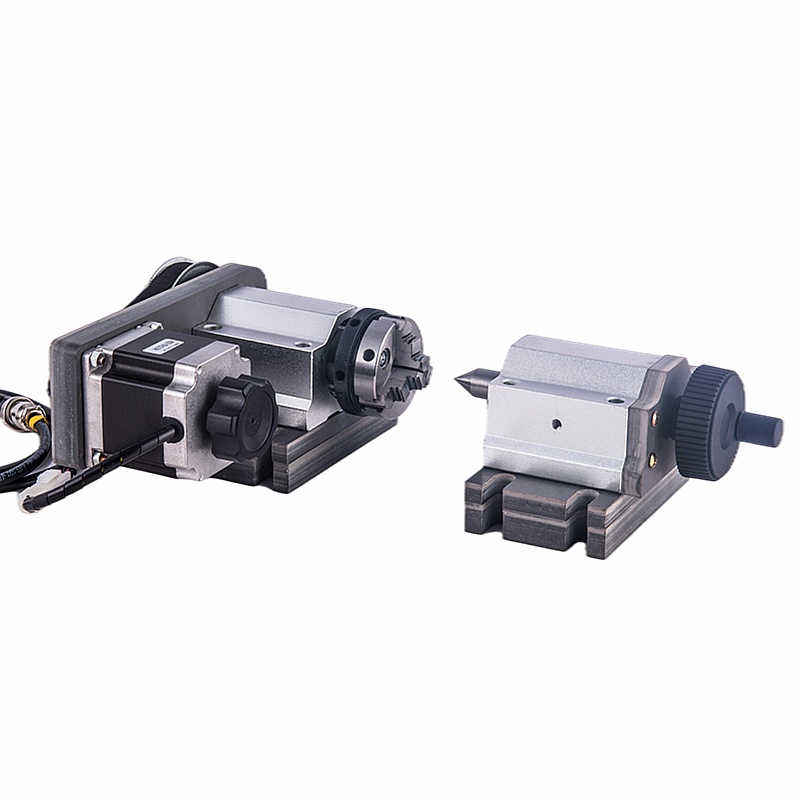

| Rotation Axis (4th Axis)
Description: |
Chuck Size: 50mm self-centering chuck
Center height: H = 51mm Clamping diameter: 50mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg |
Thanks for your order!

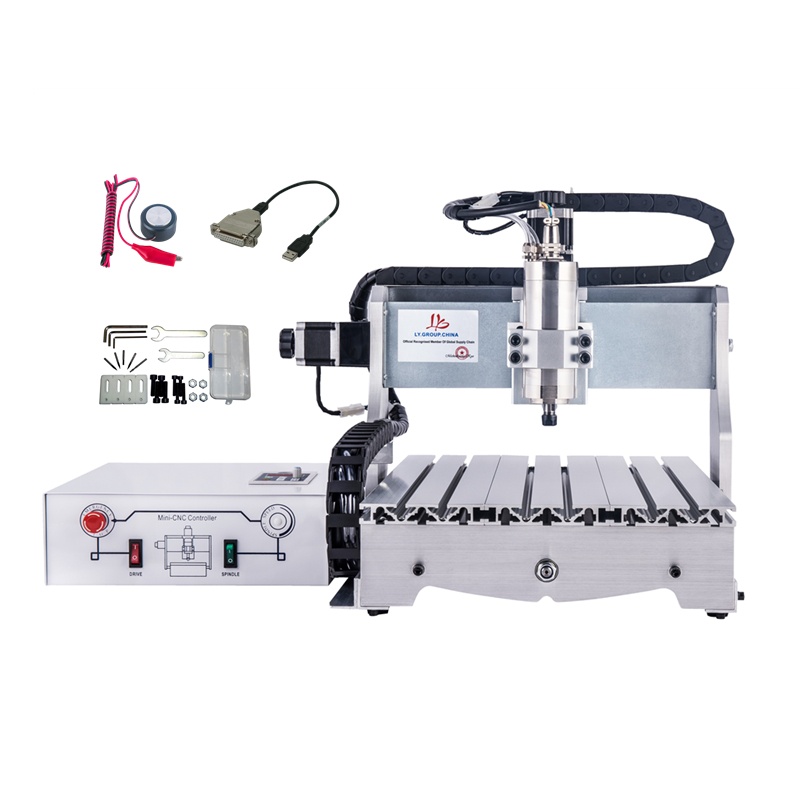

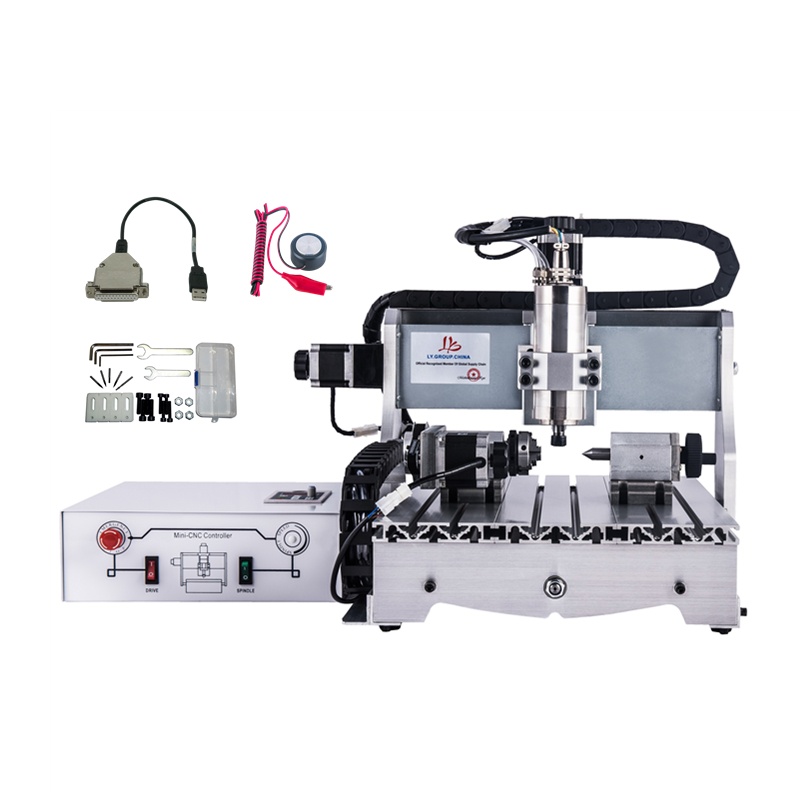

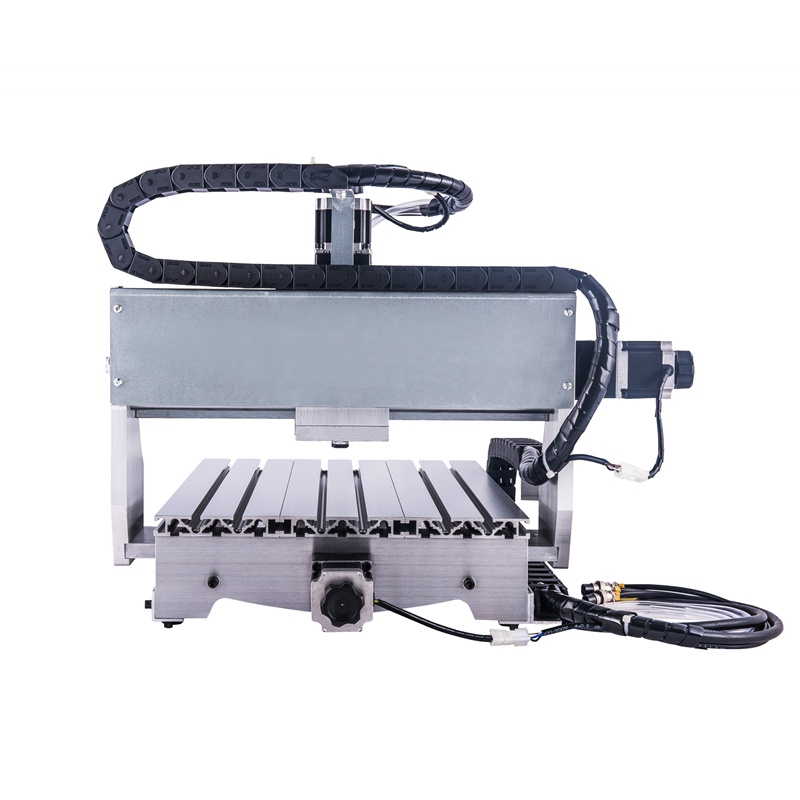

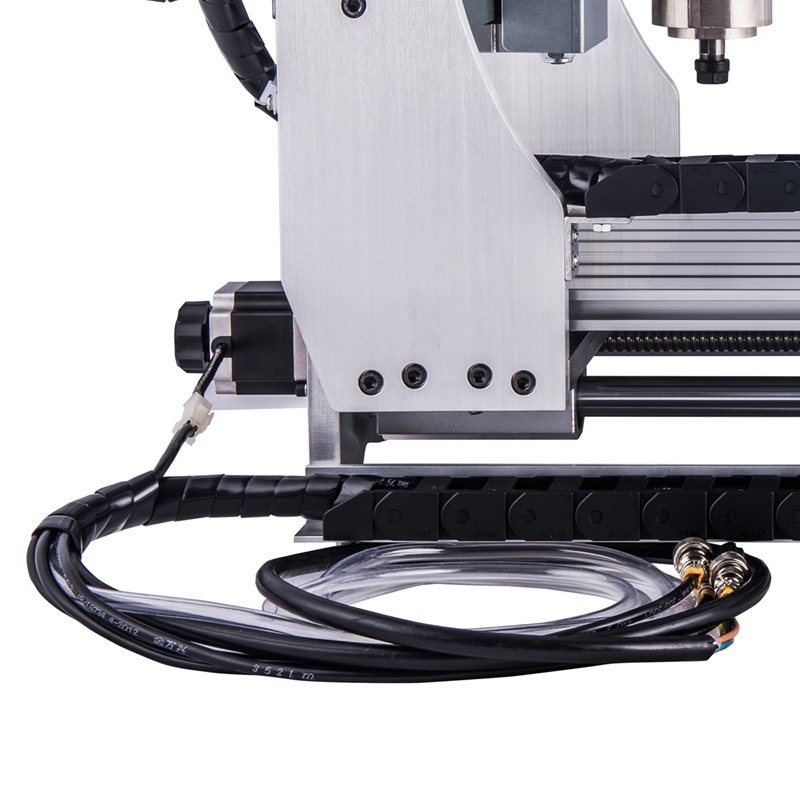

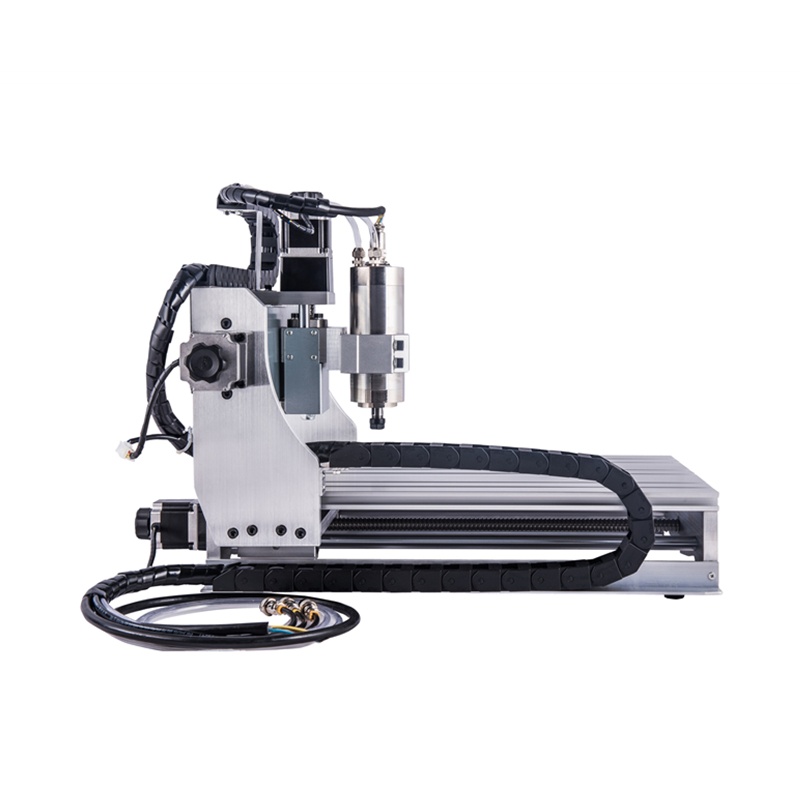

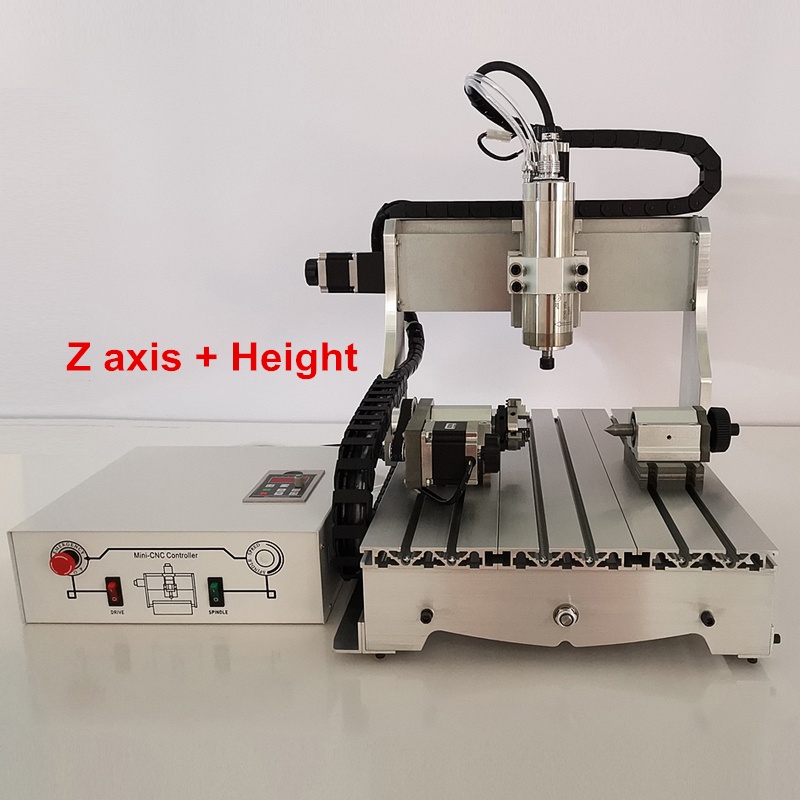

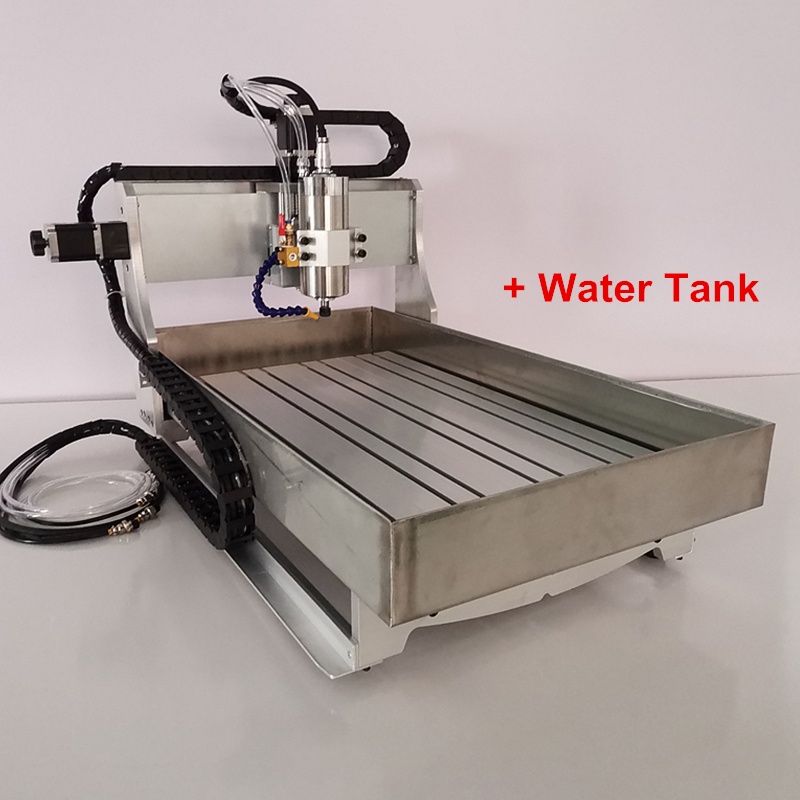

Product Pictures
