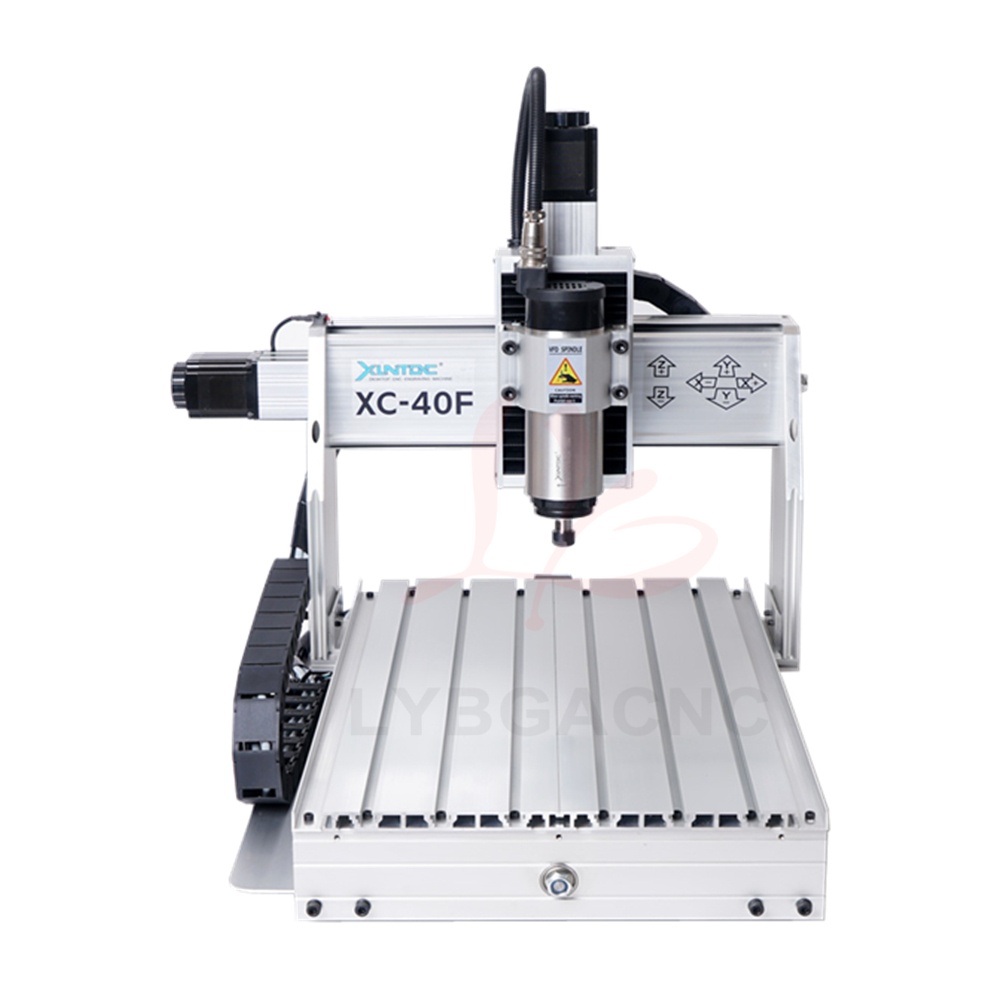

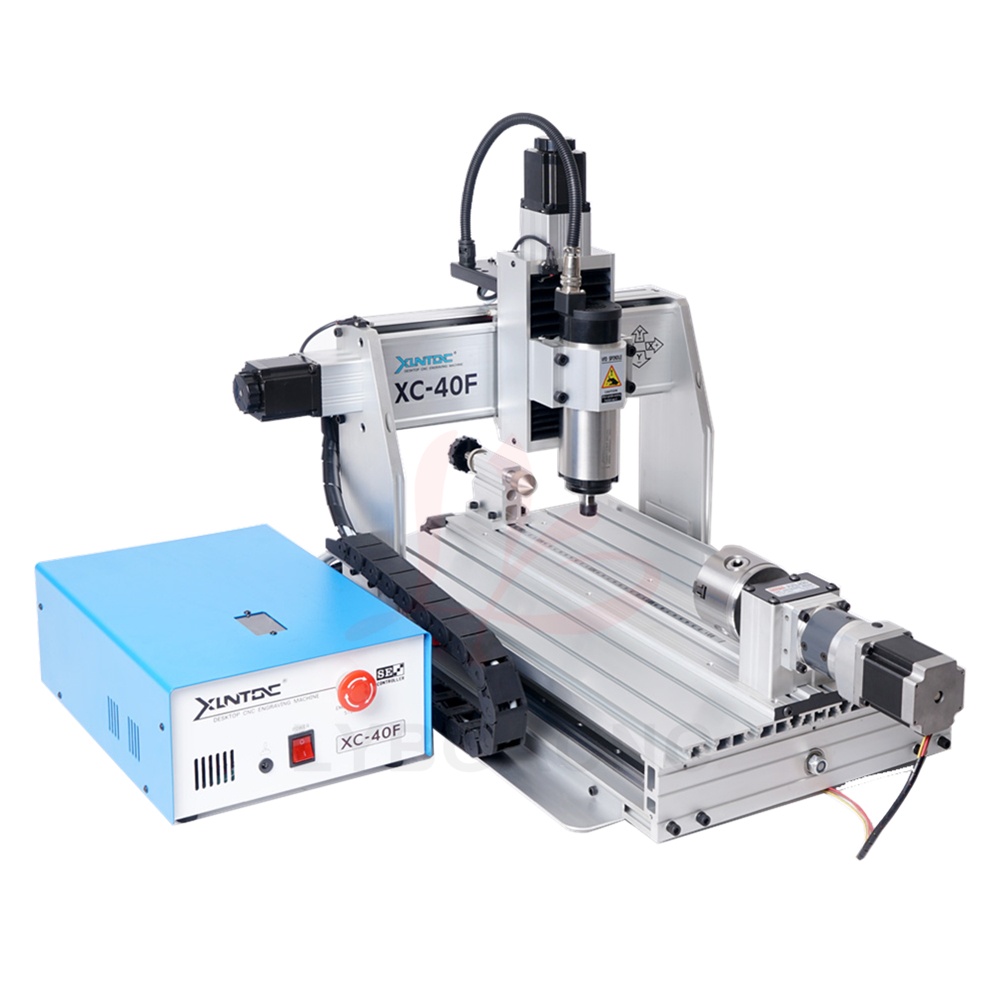

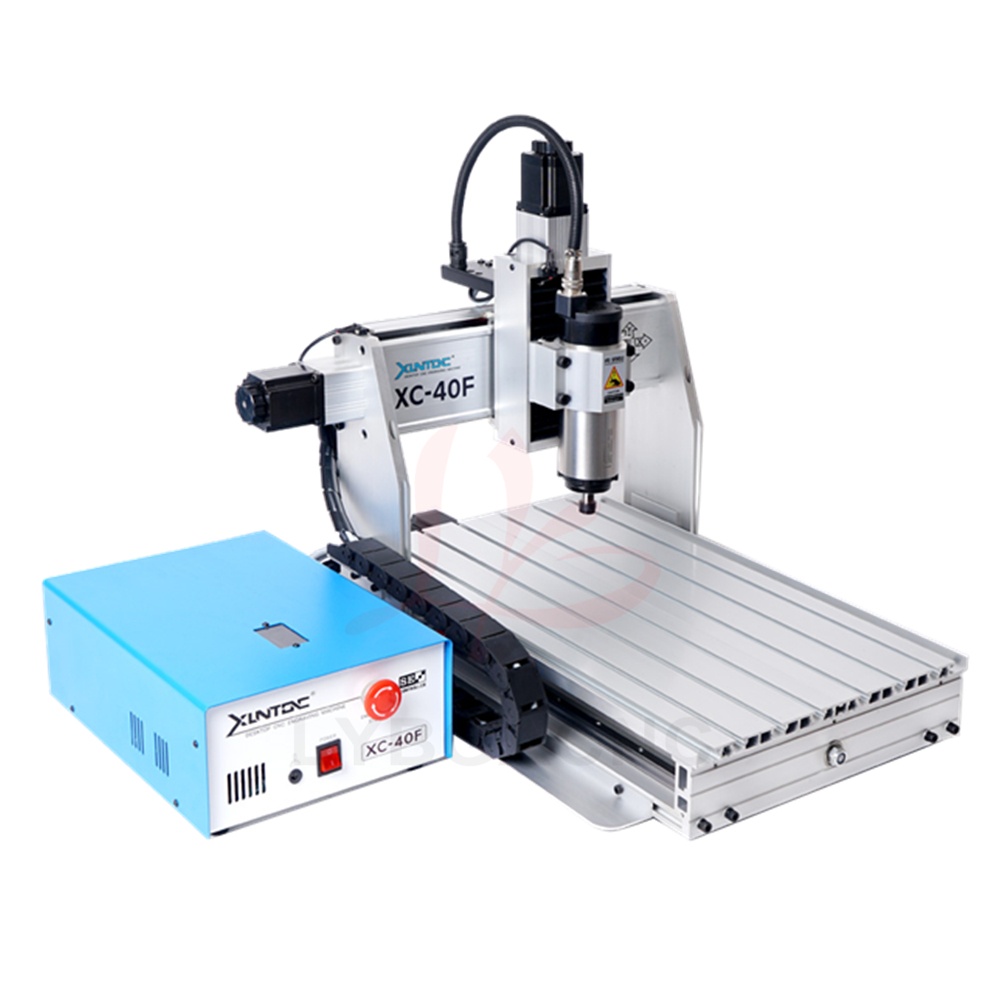

Engraving Drilling and Milling Machine USB LYBGACNC XC-40F
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

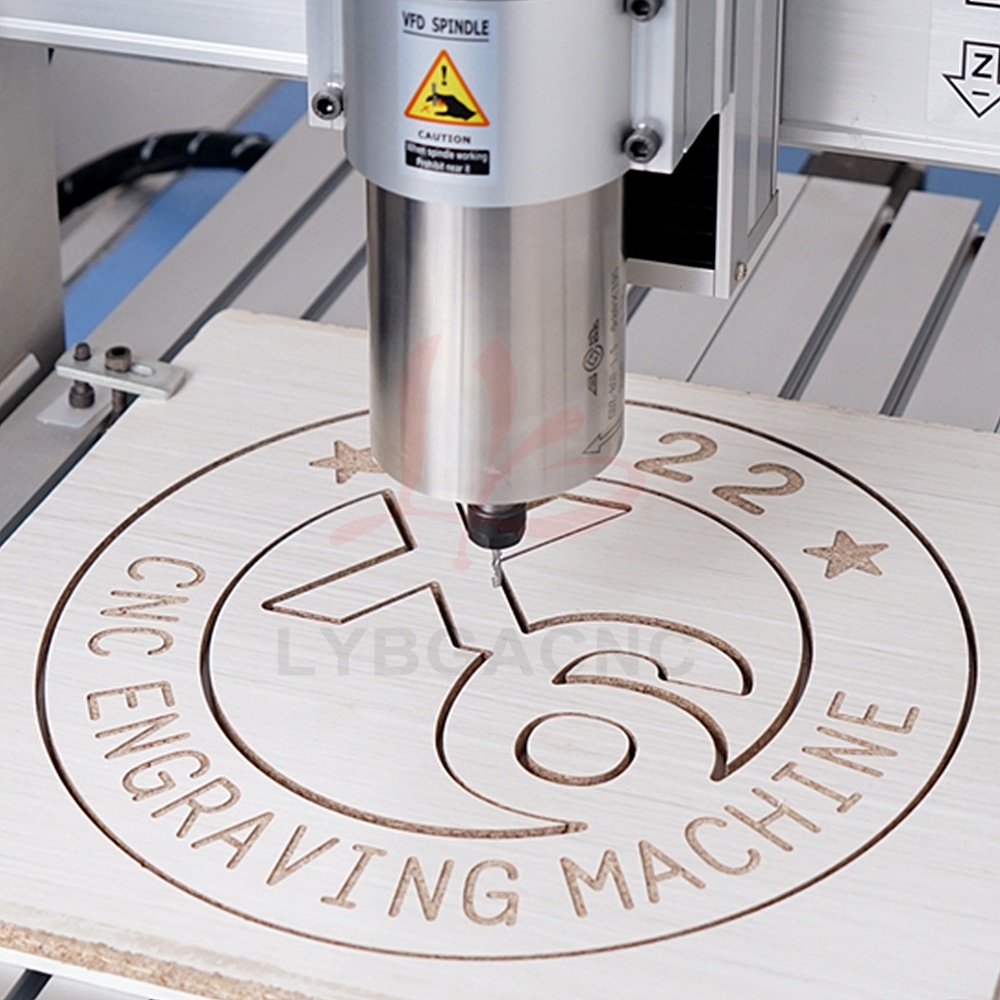

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

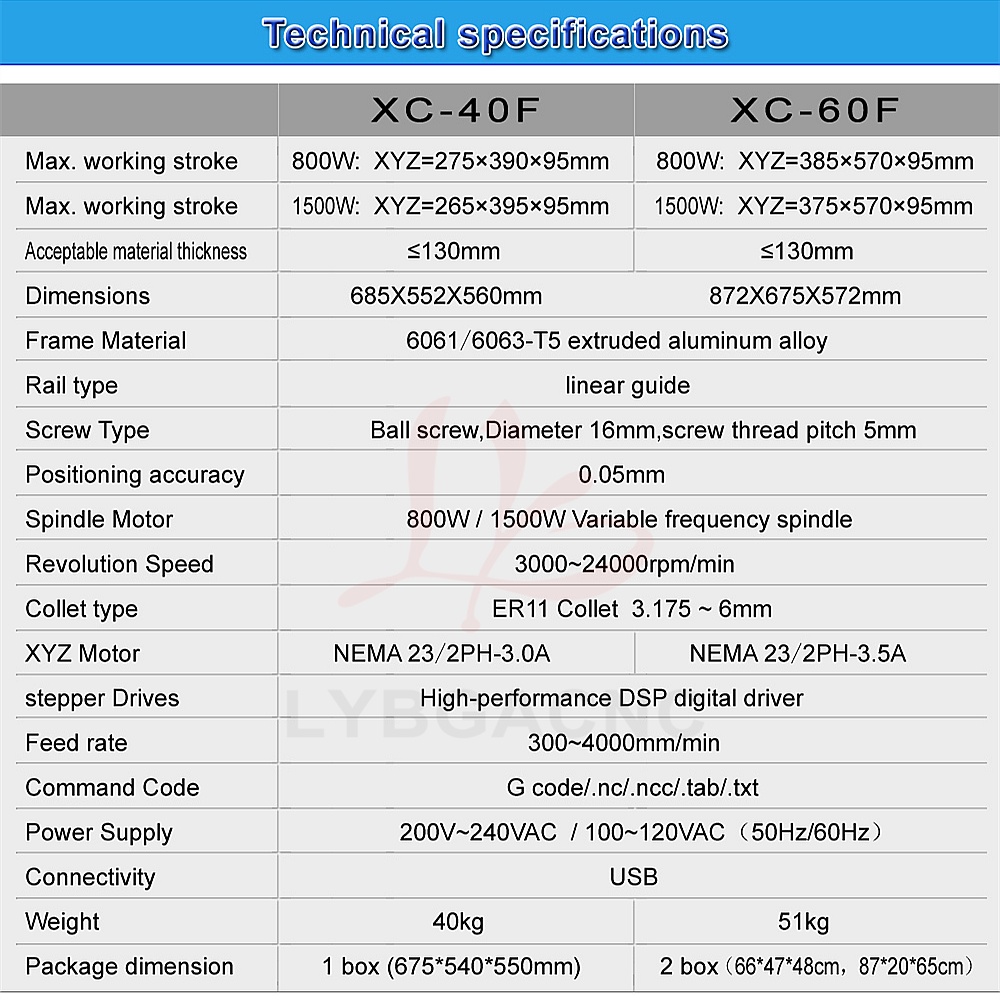

Model and Technical Parameters:
| MODEL | XC-40F | |||
| Attribute | 0.8KW-3axis | 0.8KW-4axis | 1.5KW-3axis | 1.5KW-4axis |
| Axis | 3axis | 4axis | 3axis | 4axis |
| Interface | USB port | USB port | USB port | USB port |
| Limit switch | Yes | yes | Yes | Yes |
| Tool auto-checking | Yes | Yes | Yes | Yes |
| Spindle Motor: | 800W VFD | 800W VFD | 1.5KW VFD | 1.5KW VFD |
| Weigh | 40 | 46 | 41 | 47 |
|

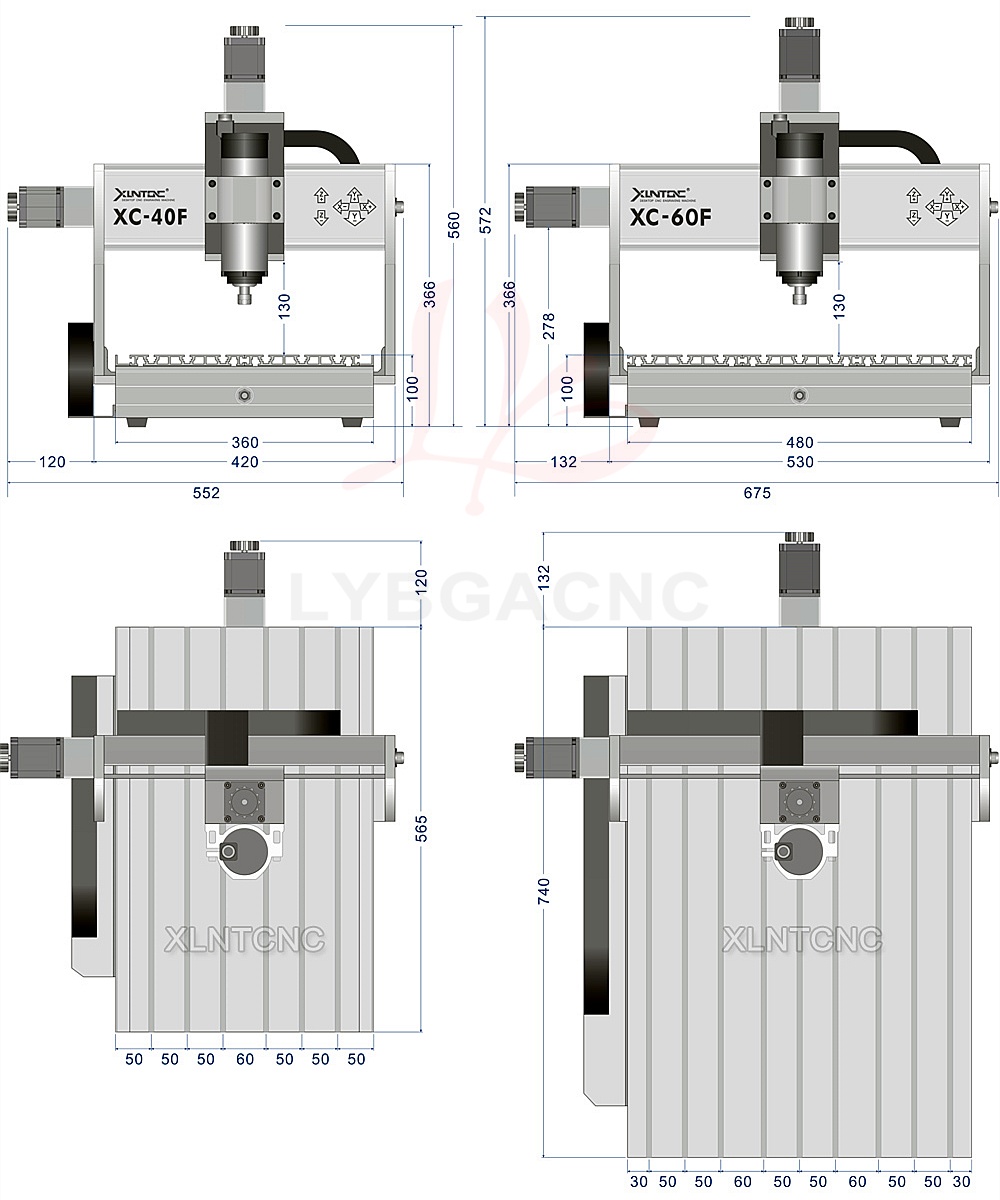

Machine Dimensions： |
685X5520X560mm |
|||
|

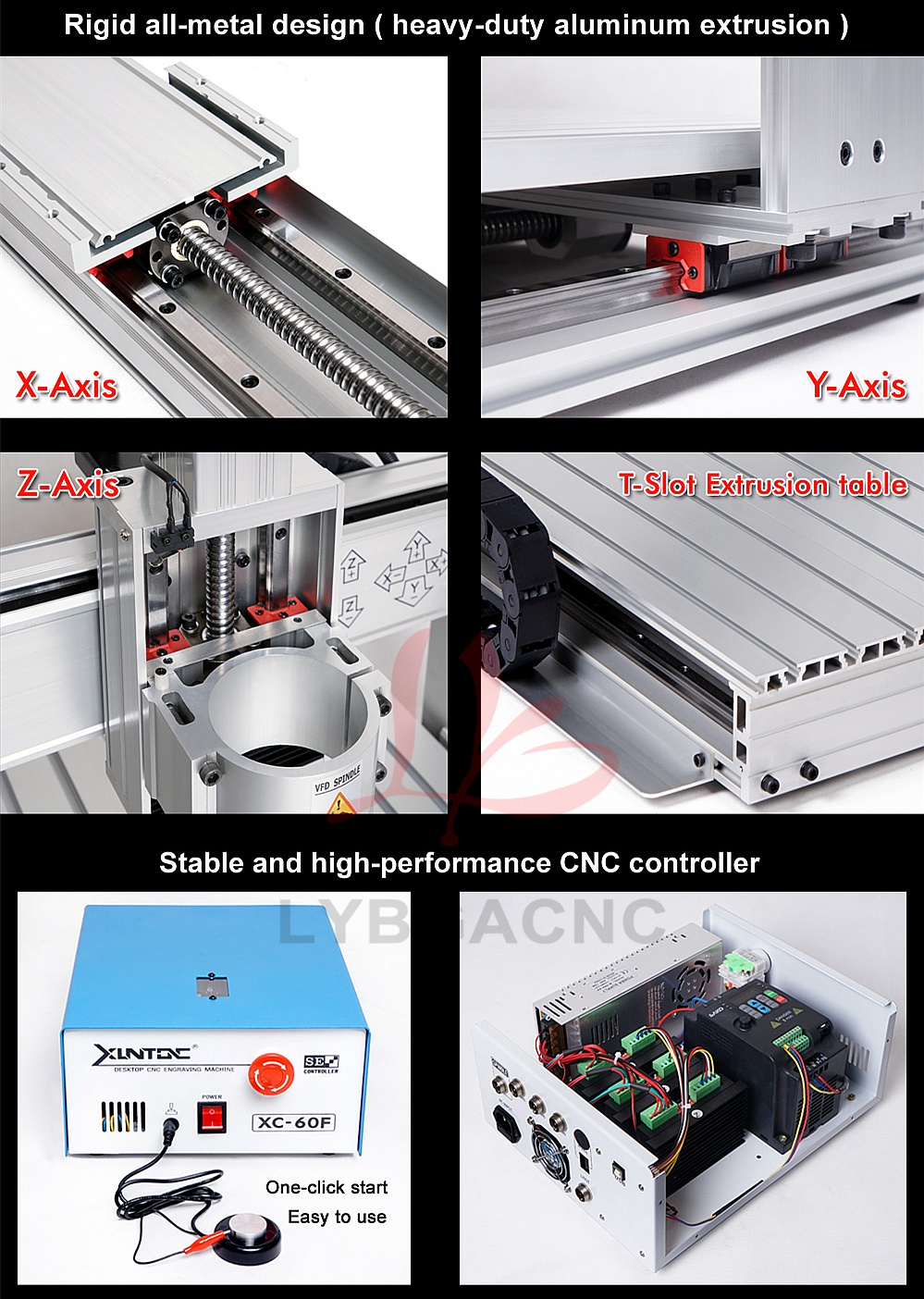

Frame material： |
6061 and 6063-T5 extruded aluminum alloy |
|||
|
Engraving area： |
390X275mm(0.8KW) / 395X265mm(1.5KW) |
|||
|
Z-Axis Stroke： |
95mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness |
≤ 130mm |
|||
|
Rail type： |
Linear guide |
|||
|
Type of screw： |
Ball screw 1605, Pitch 5mm |
|||
| Spindle motor： | 800W / 1500W Variable frequency spindle , 3000-24000r/min | |||
|
Collet type： |
ER11,1/8″(3.175mm or 6mm) Collet |
|||
|
Stepper motor and drive： |
stepping motor NEMA 23/2PH-3.0A, High-performance DSP digital driver |
|||
|
Maximum operating speed： |
4000mm/min (Engraving speed: 300-3000mm/min) |
|||
|
Repeat positioning Accuracy： |
0.03mm |
|||
|

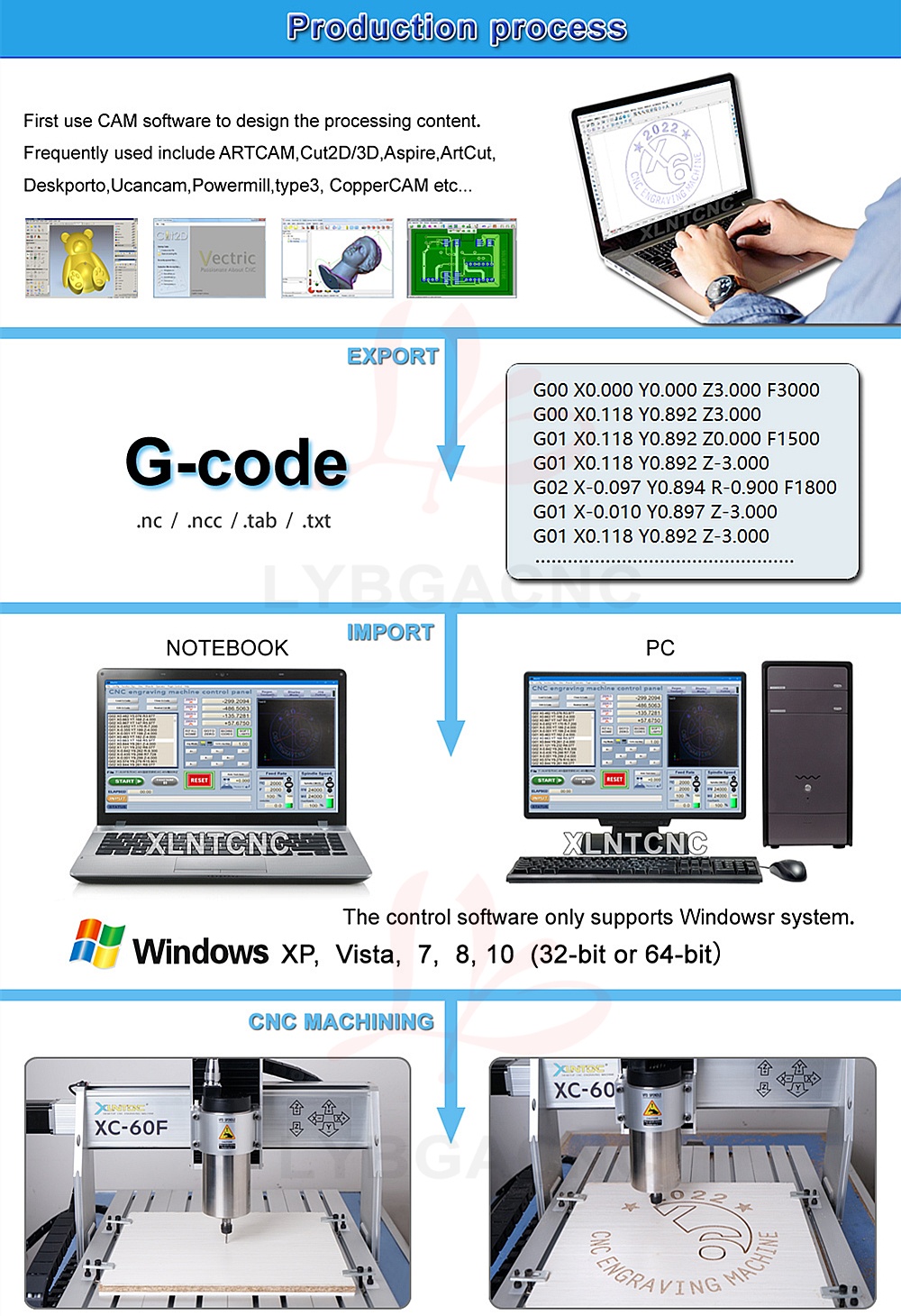

Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||
| Power Supply | Input 200V~ 240VAC (50/60Hz) or 100~ 120VAC | |||

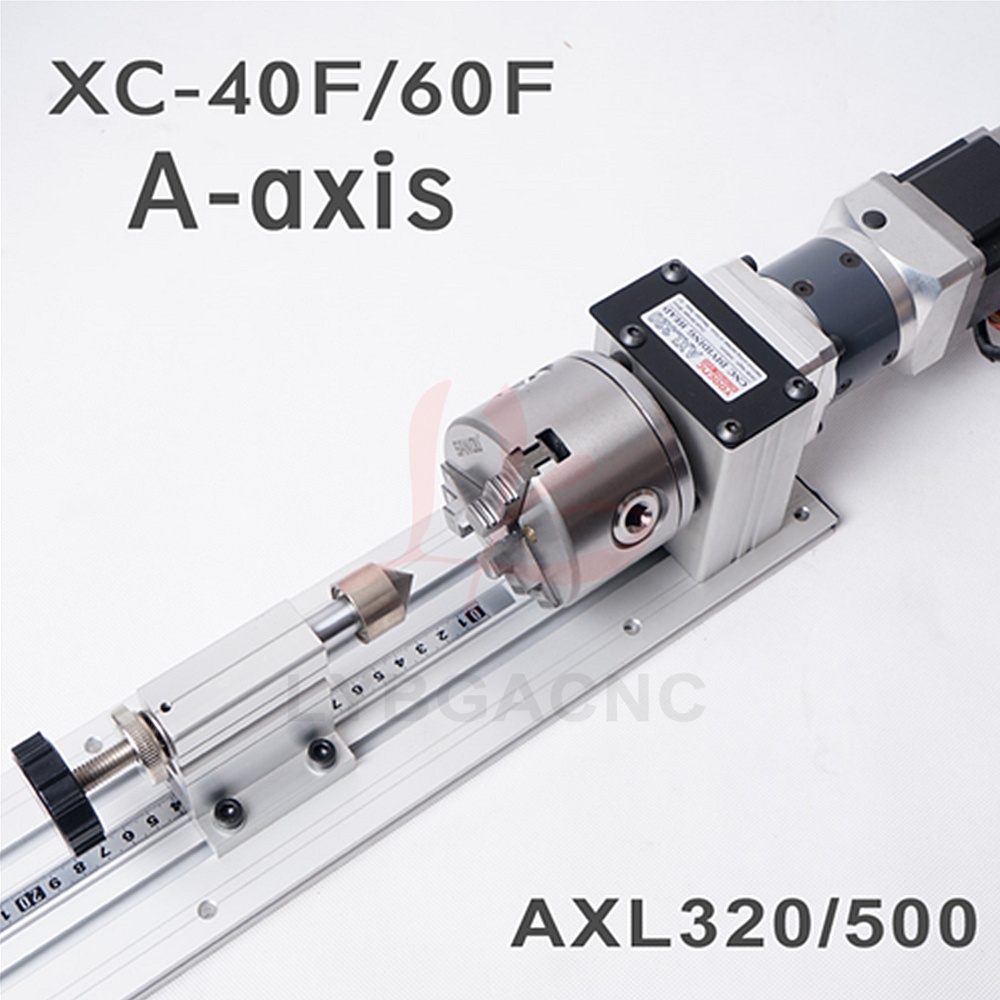

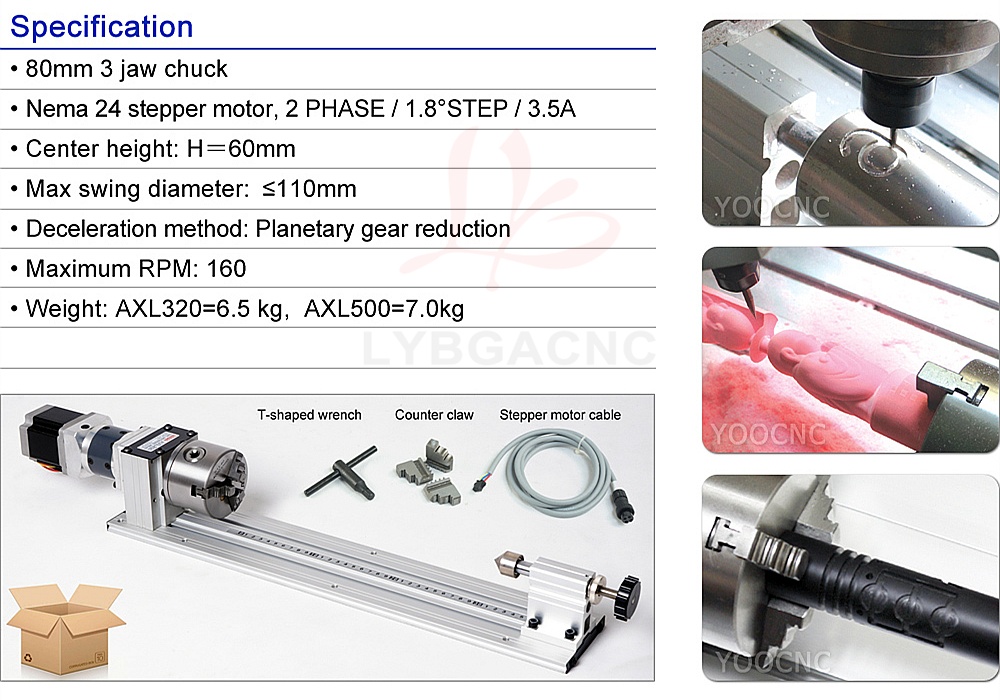

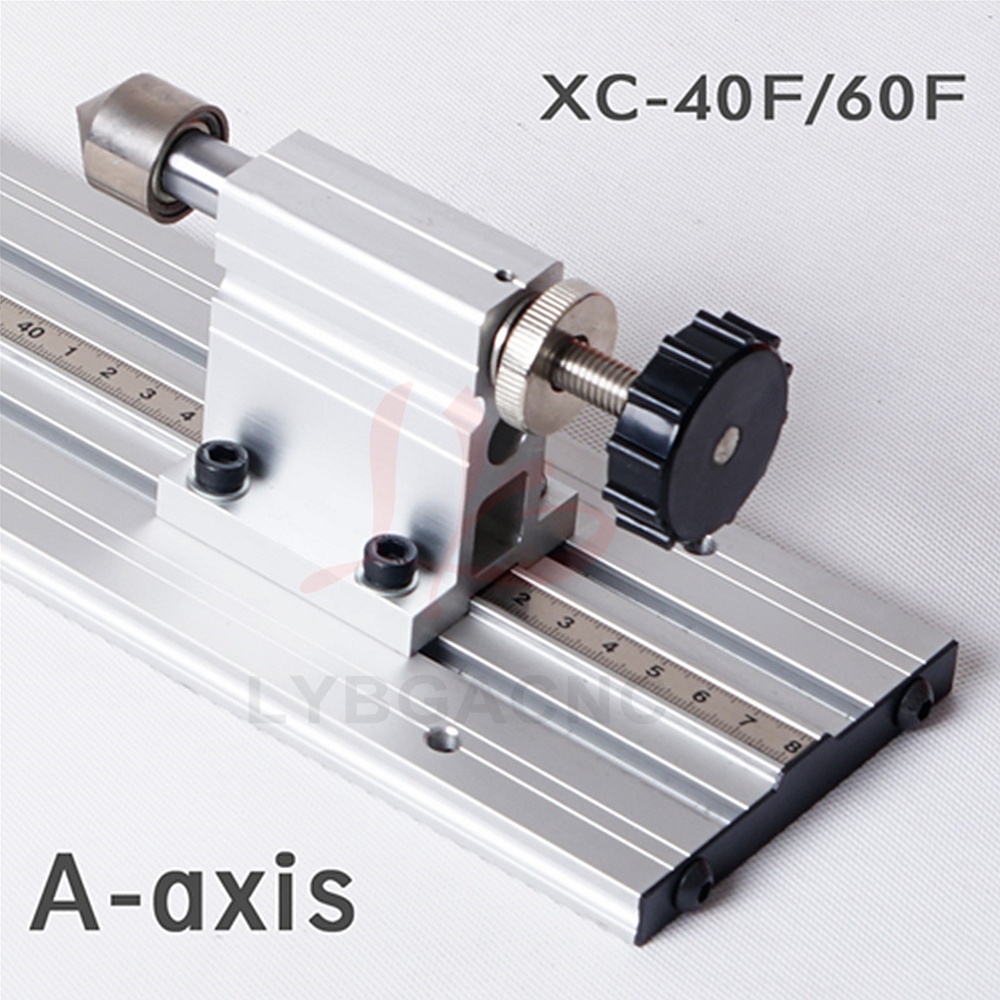

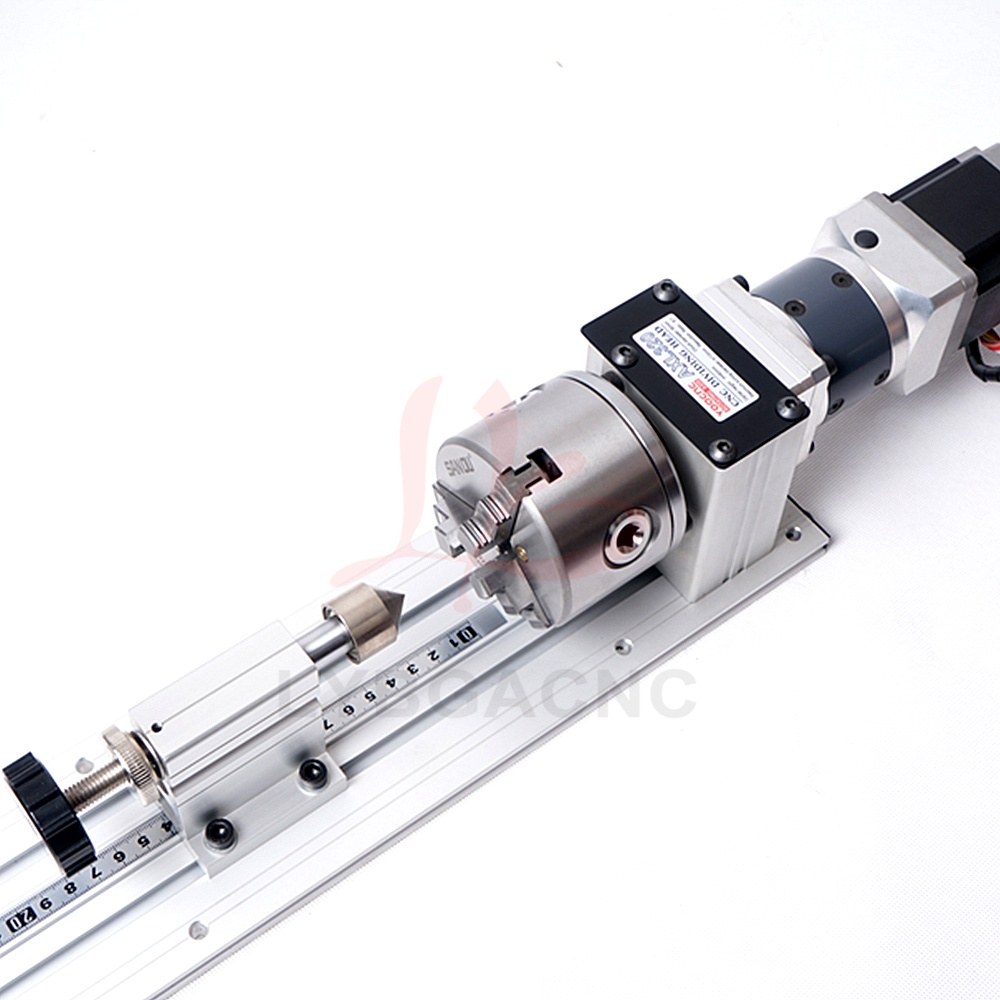

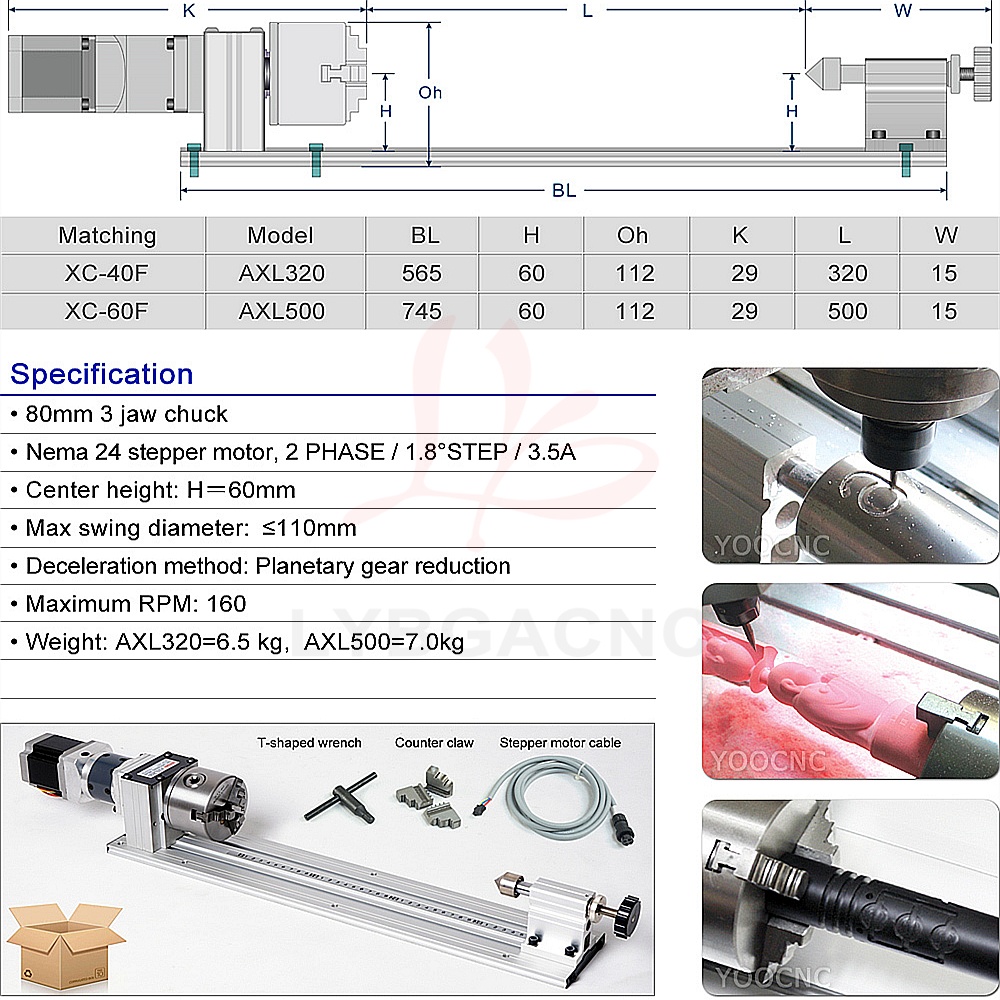

| Rotation Axis (4th Axis)
Description: |
80mm 3 jaw chuck
Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration method: Planetary gear reduction Nema23 stepper motor, 2 PHASE/ 1.8°STEP /3.5A Maximum RPM: 1 60 Weight: AXL320=6.5KG |
|||
