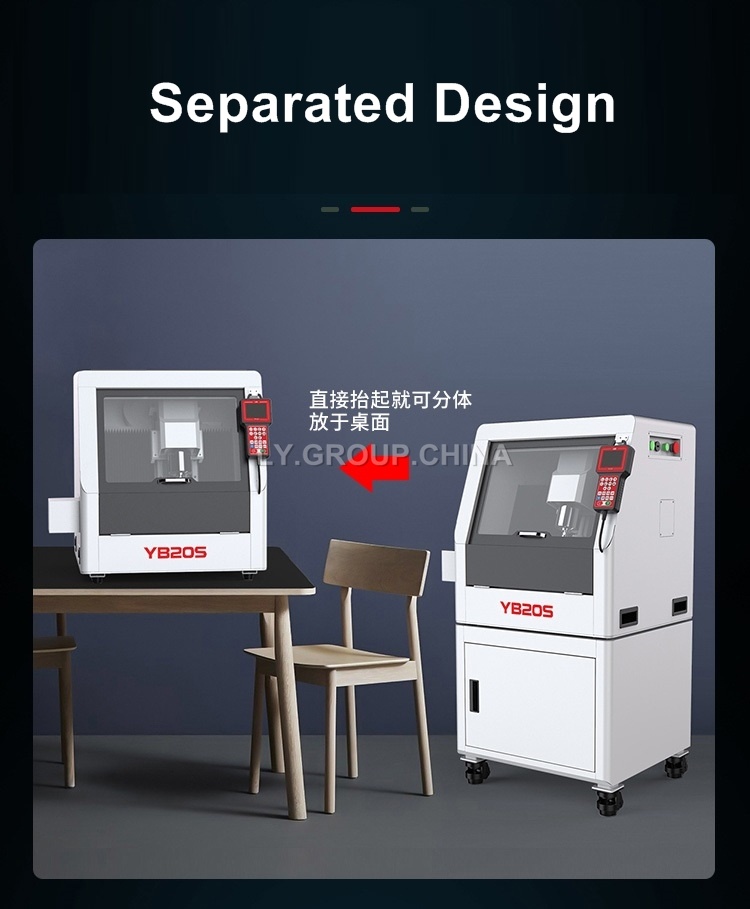

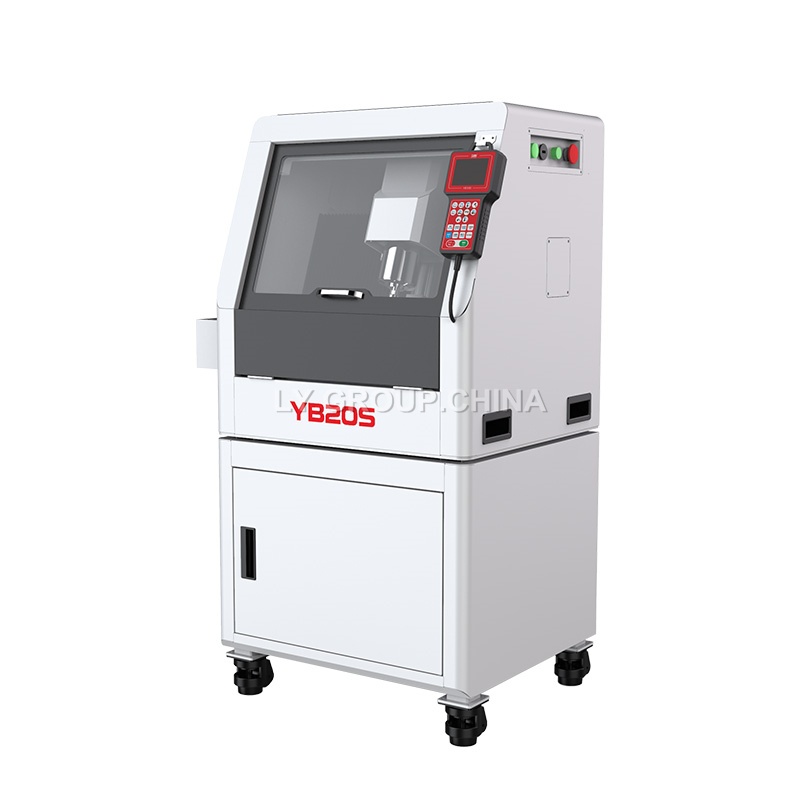

LY YB20S separated enclosed mini desktop CNC engraving machine X/Y/A 3 axis linkage for jewelry Jade stone glass gem metal wood shale graphite firebrick emerald work size diameter 150mm length 200mm 1800W
item ID: 70165
Reviews(0)
Reviews(0)
Product Detail
Product Tags
LY YB20S separated enclosed mini desktop CNC engraving machine X/Y/A 3 axis linkage for jewelry Jade stone glass gem metal wood shale graphite firebrick emerald work size diameter 150mm length 200mm 1800W
Video:
| Parameter | |
| Model | YB20S |
| X/Y/A Stroke | 300Mm*200Mm*360° |

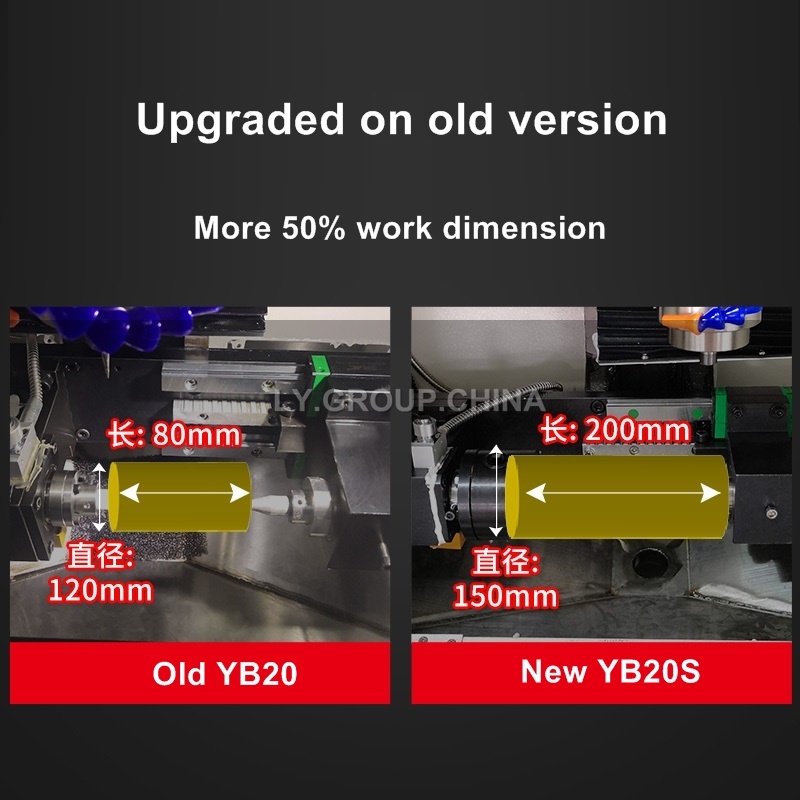

| Dimension Of Stereo Processing (3D) | Φ150*L200MM |

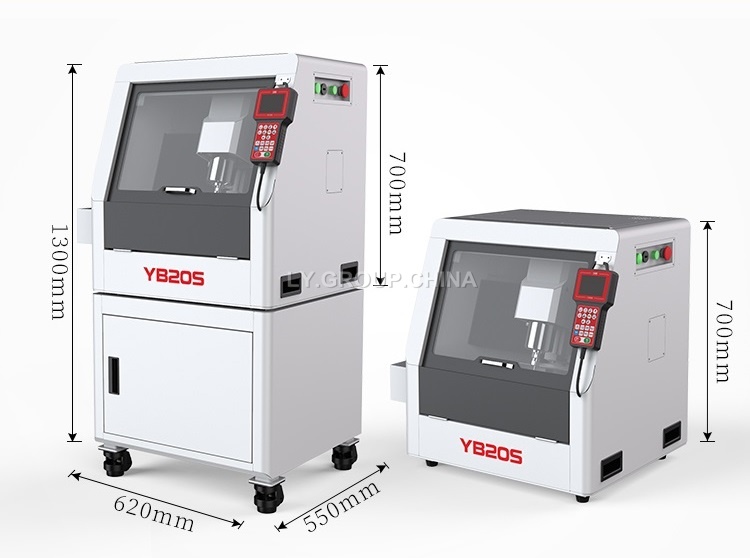

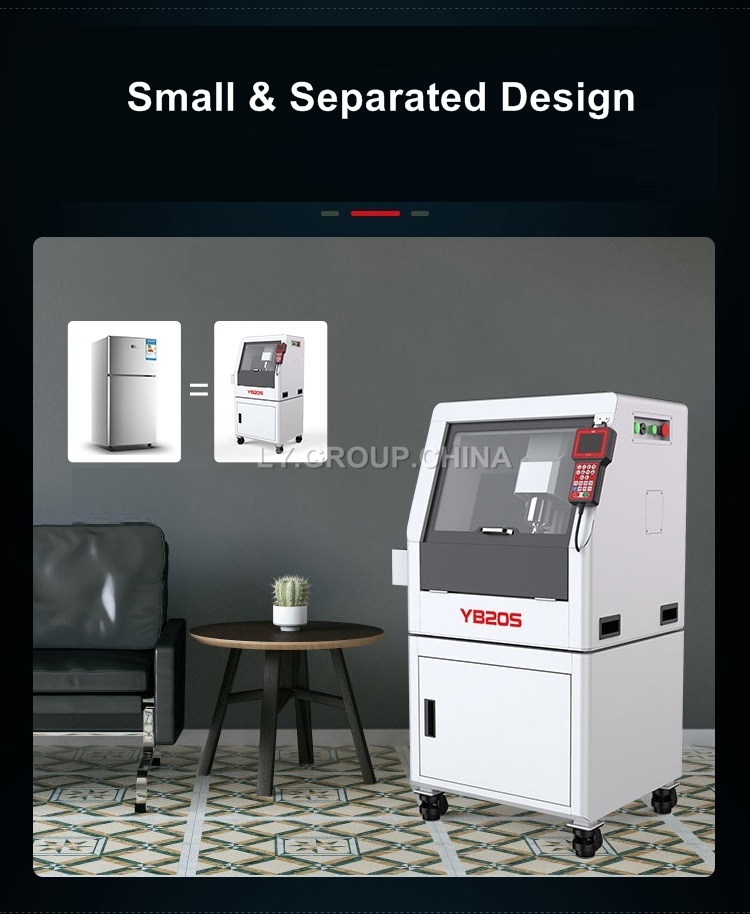

| L*W*H | 620*550*1200MM |
| Weight | About 180Kg |
| Material | Cast Iron/Steel |
| Engraving And Clamping Mode | Clamp & Glue stick |

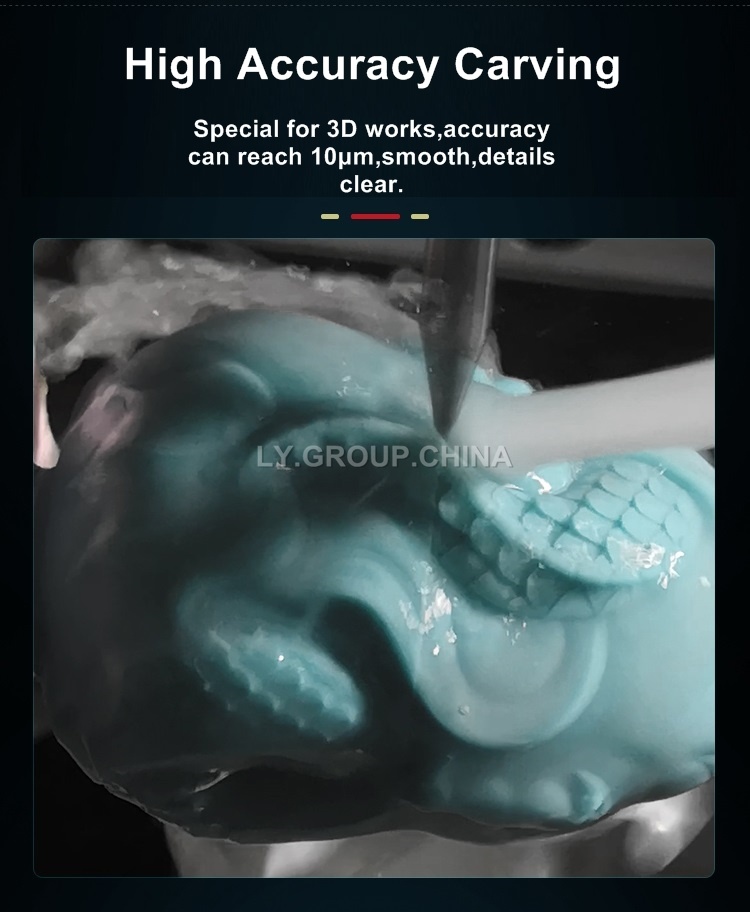

| Accuracy | 0.01Mm |
| Spindle Speed | 0-24000Rpm/Min |
| Processing Speed | 0-15000Mm/Min |

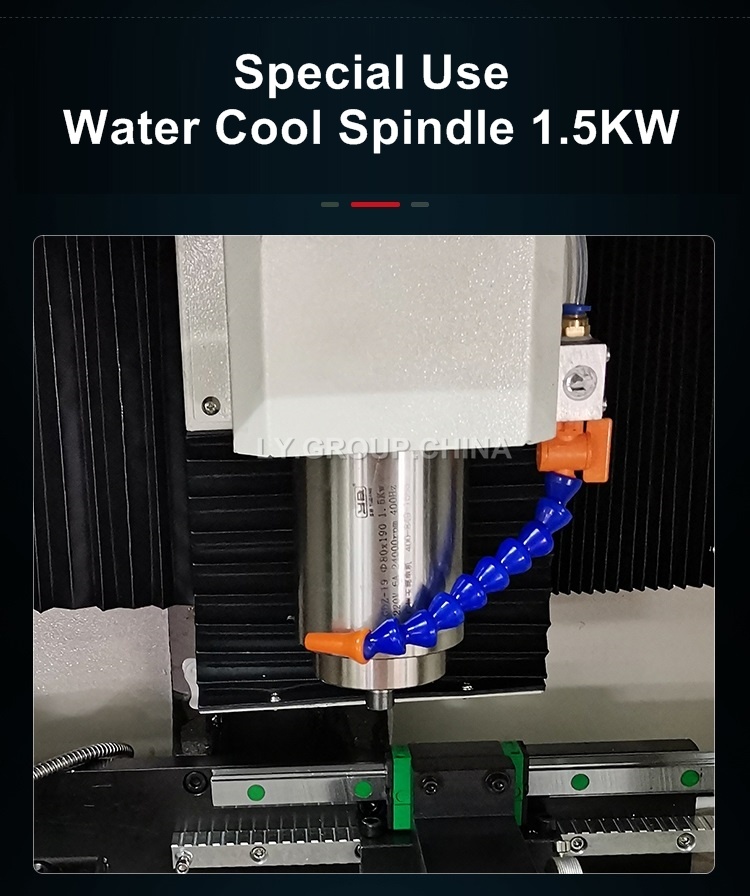

| Spindle Power | 1500W High speed Water-Cool Frequency Spindle |
| Guide Rail | Imported Square Rail TaiWan |
| Screw Rod | Imported TaiWan |
| Drive Mode | Hybird Servo System |
| The Diameter Of Clamping Tool Shank | 2.5mm/3mm/4mm/6mm |
| Voltage | AC220V 50-60hz |
| Total Power | 1.8KW |

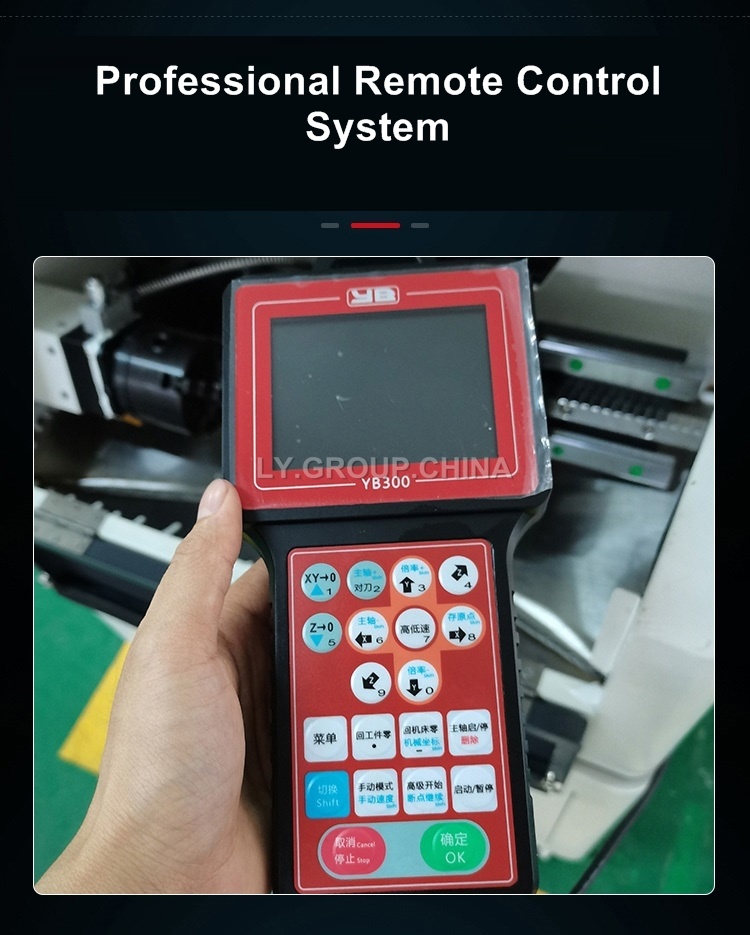

| Control System | Off-Line Remote Control System |
Thanks for your order!
Product Pictures
USD$1019
