Mini CNC Router 3020 300×200 Engraving Drilling and Milling Machine
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
| MODEL |
3020 |
|||||
| Software System |
GRBL |
MACH3 |
||||
| Spindle Motor: | 300W DC | 500W DC | 800W VFD | 300W DC | 500W DC | 800W VFD |
| Spindle speed: | 0-12000r/min | 0-12000r/min | 0-24000r/min | 0-12000r/min | 0-12000r/min | 0-24000r/min |
| Interface | USB port | USB port | USB port | USB port | USB port | USB port |
| Weigh | 25 | 25 | 26 | 25 | 25 | 26 |
|
Machine Dimensions： |
510X450X460mm |
|||||
|
Rack material： |
6061-T6 Hard aluminum alloy (15MM) |
|||||
|
Engraving area： |
300X200mm |
|||||
|
Z-Axis Stroke： |
60mm, Engraving depth depends on the length of the tool edge |
|||||
|
Acceptable material thickness： |
≤80mm |
|||||
|
Size of table |
300x440mm |
|||||
|
Rail type： |
Chromeplate shaft + Surface hardening 61HRC (X16mm Y16mm Z12mm) |
|||||
|

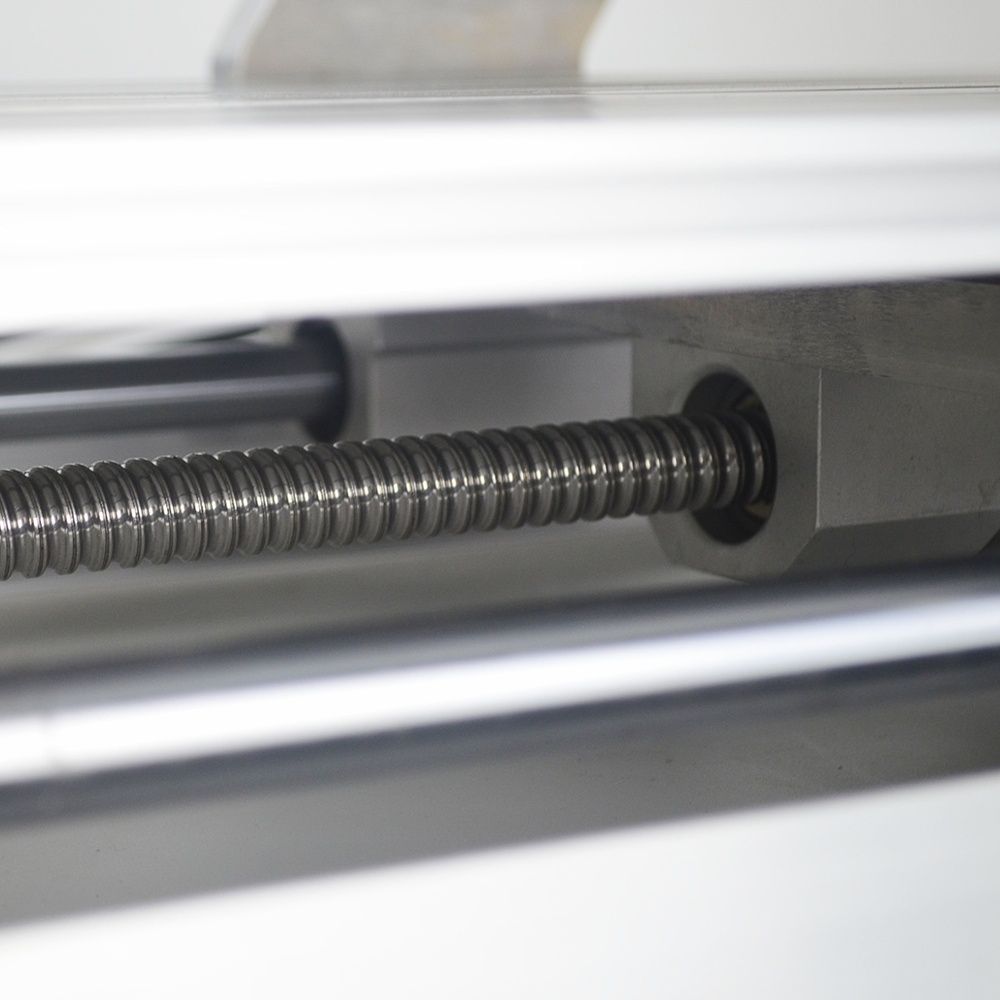

Type of screw： |
Ball screw 1605 |
|||||
|
Collet type： |
ER11,1/8″(3.175mm) Collet |
|||||
|

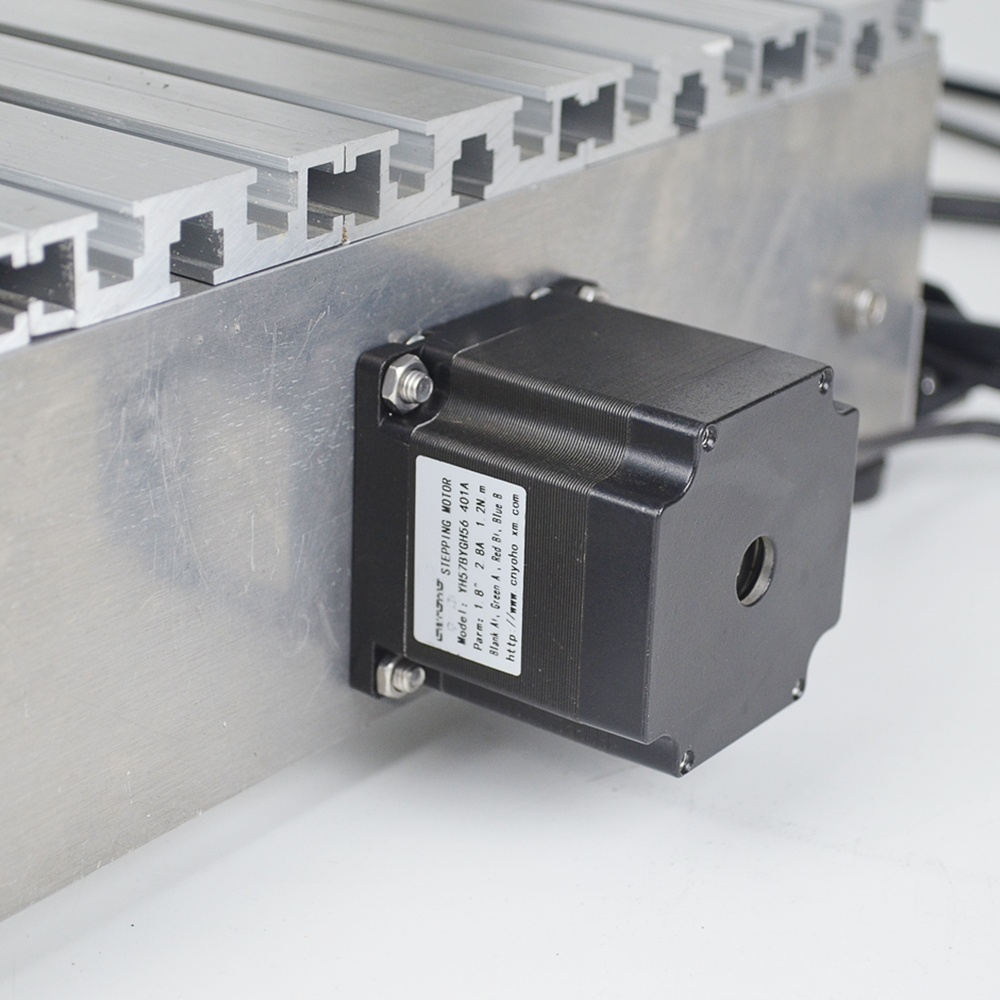

Stepper motor and drive： |
two-phase hybrid stepping motor 57BYGH56 |
|||||
|
Maximum operating speed： |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||||
|
Repeat positioning Accuracy： |
0.03mm |
|||||
|
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||||
Thanks for your order!

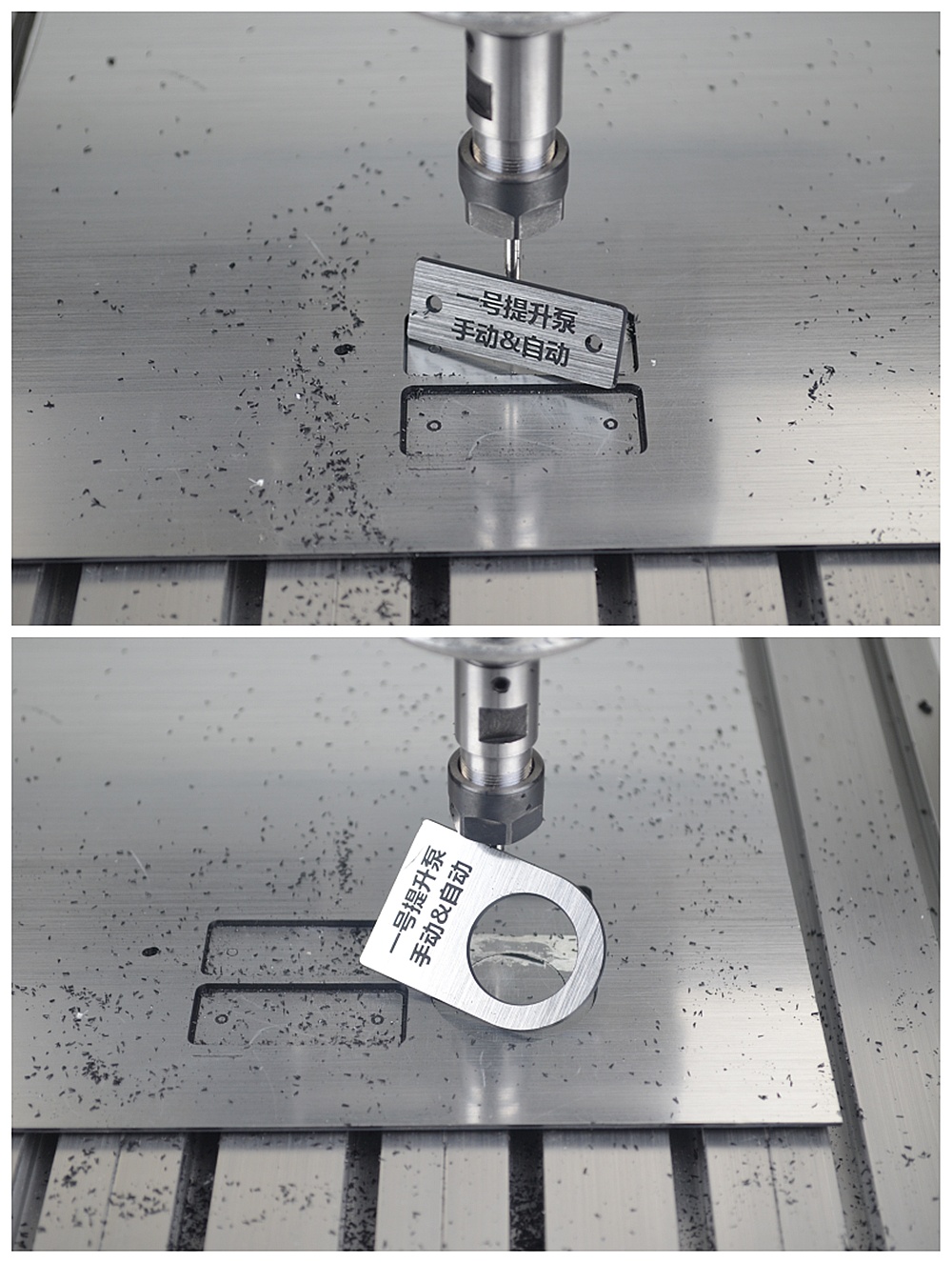

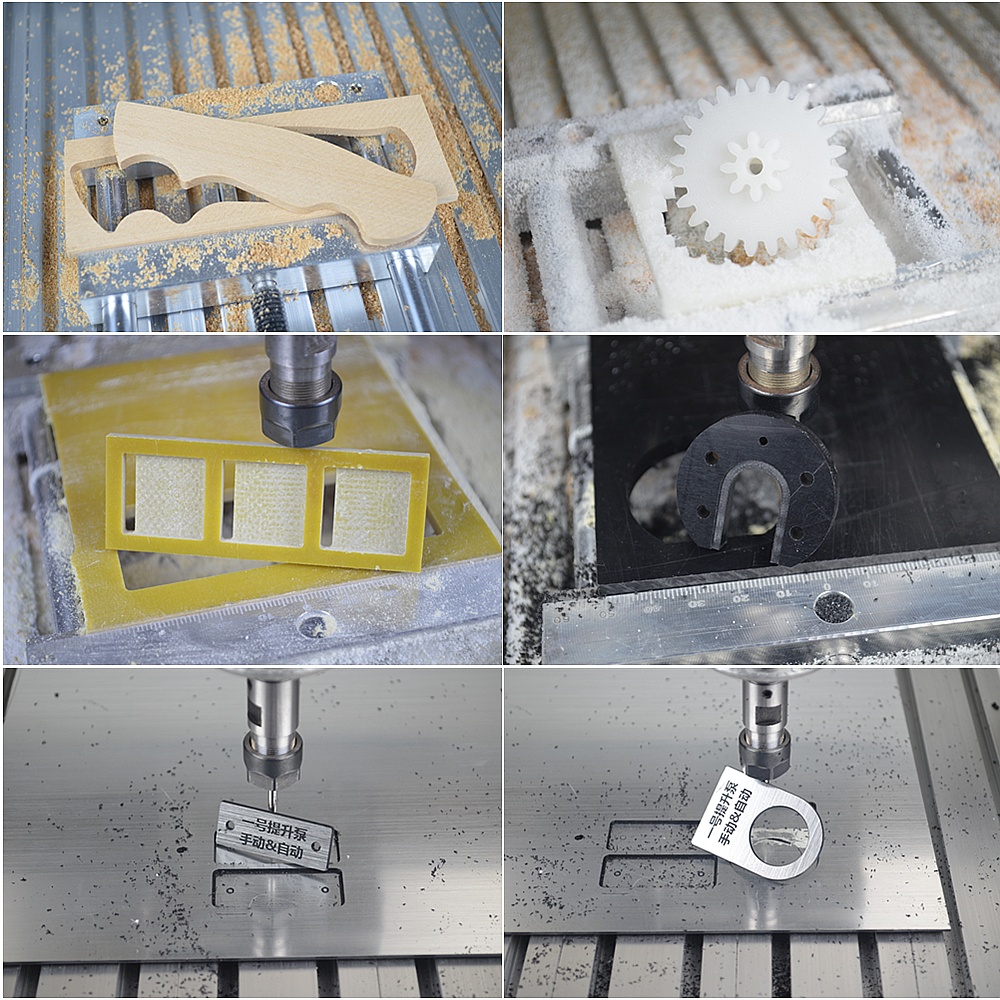

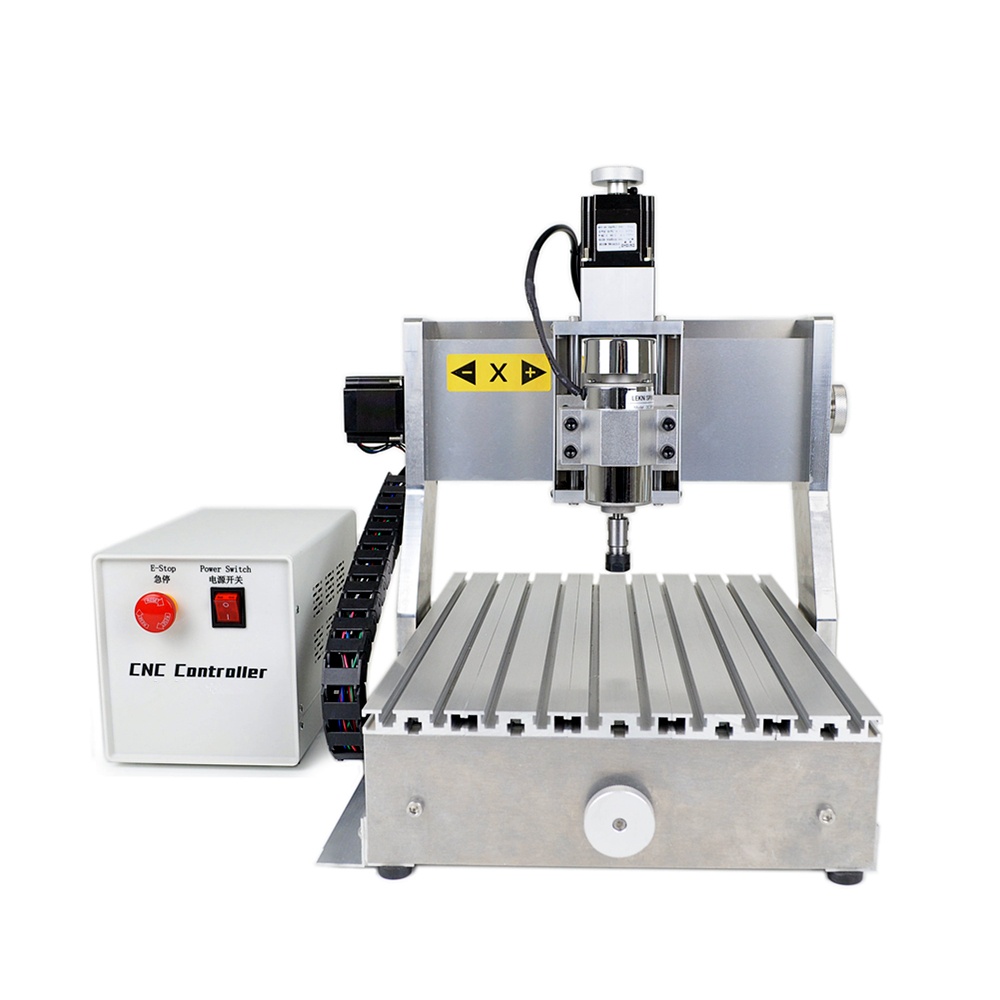

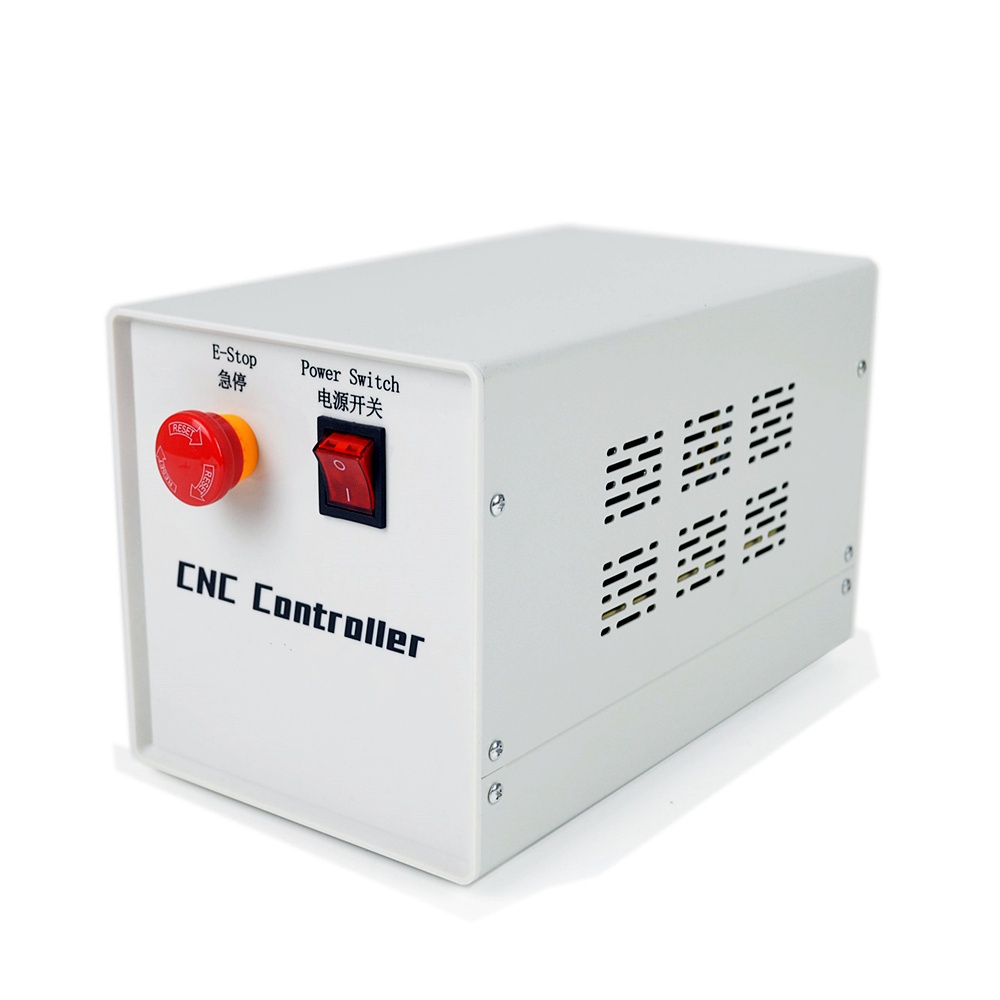

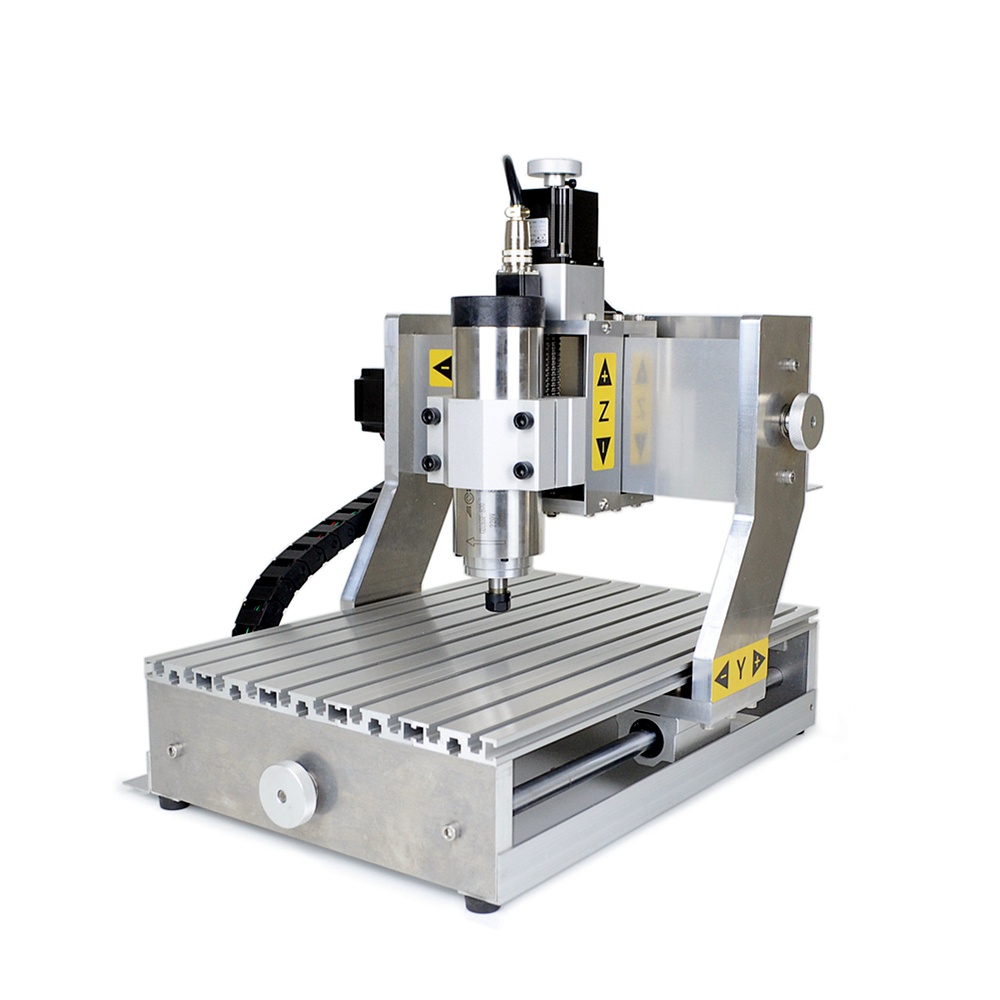

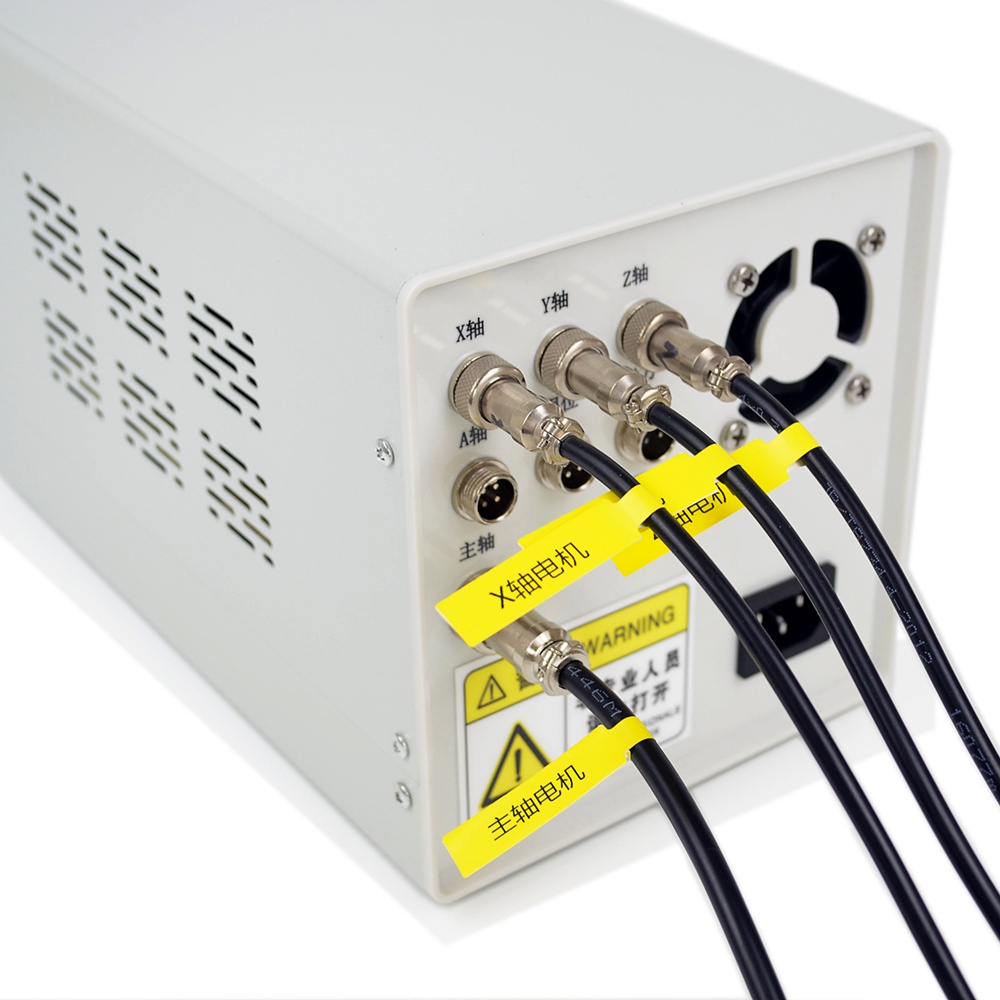

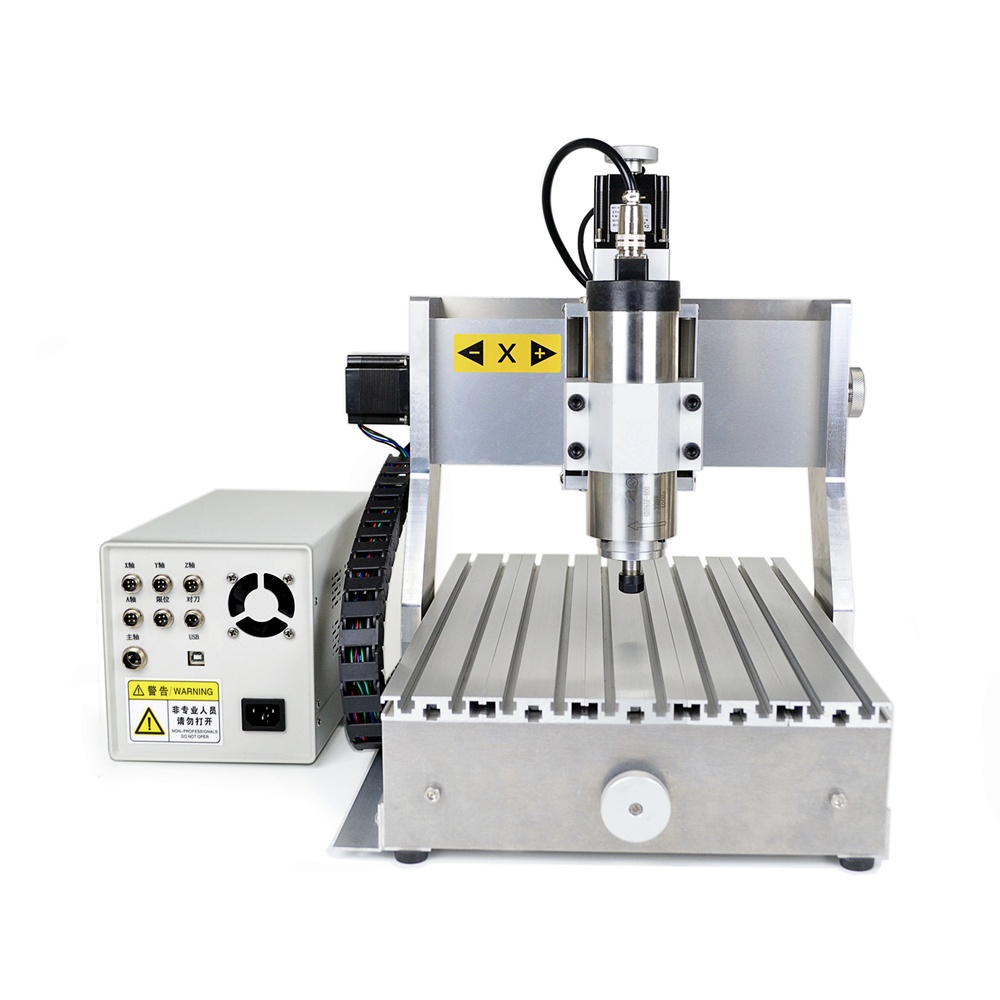

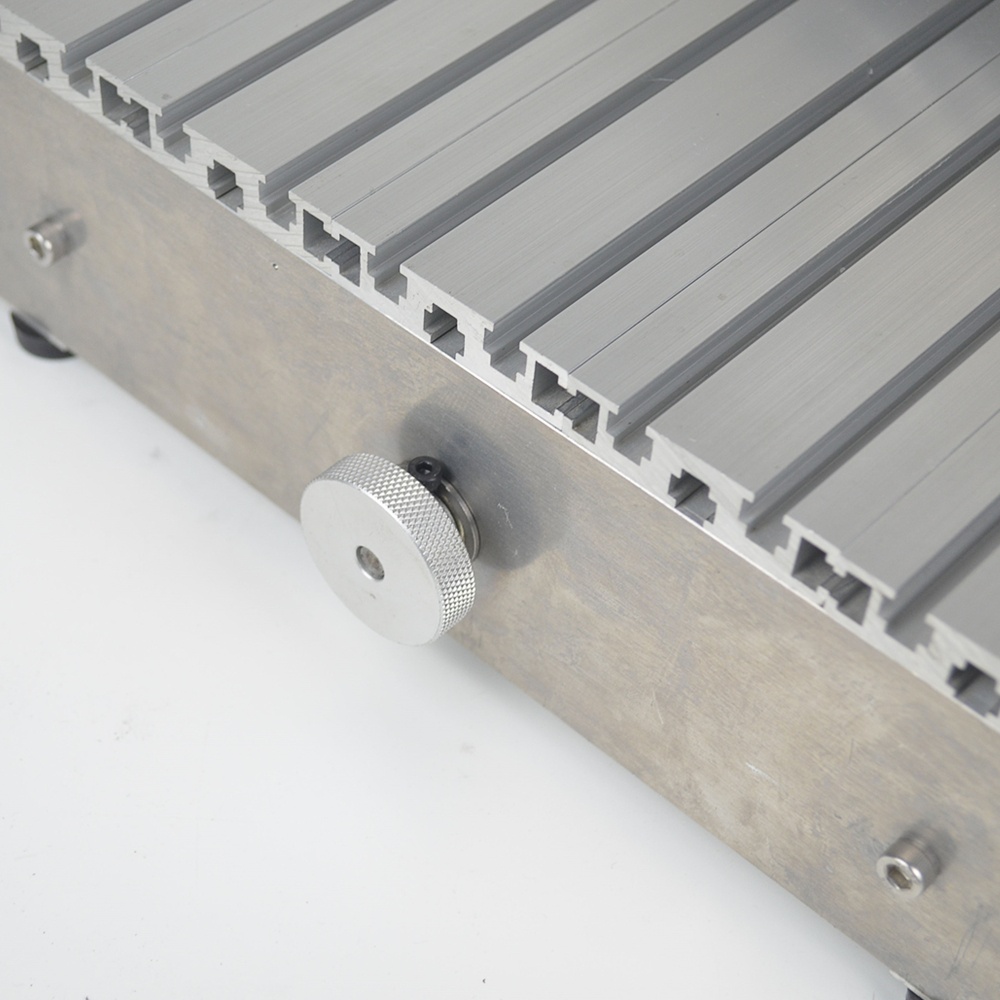

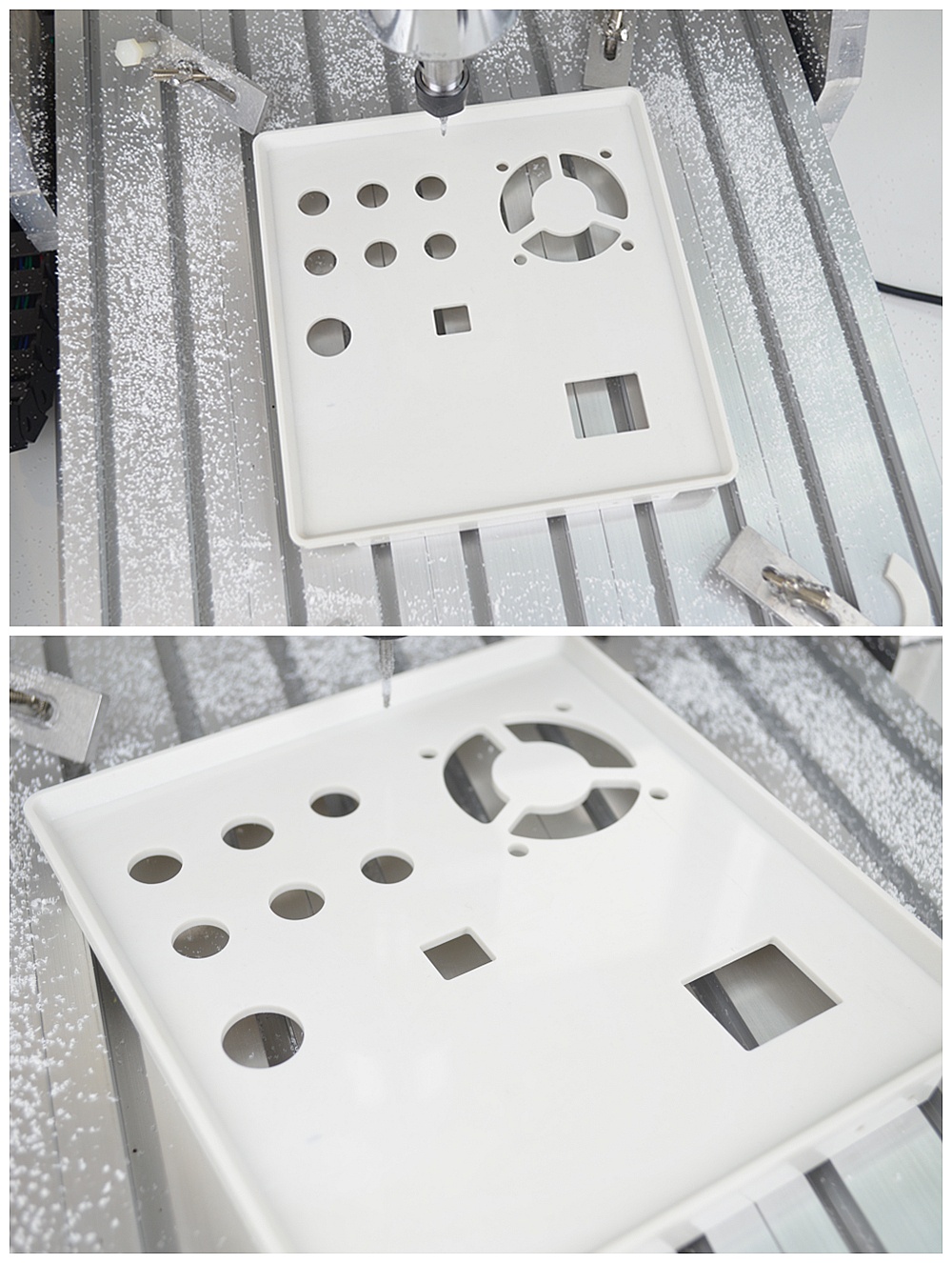

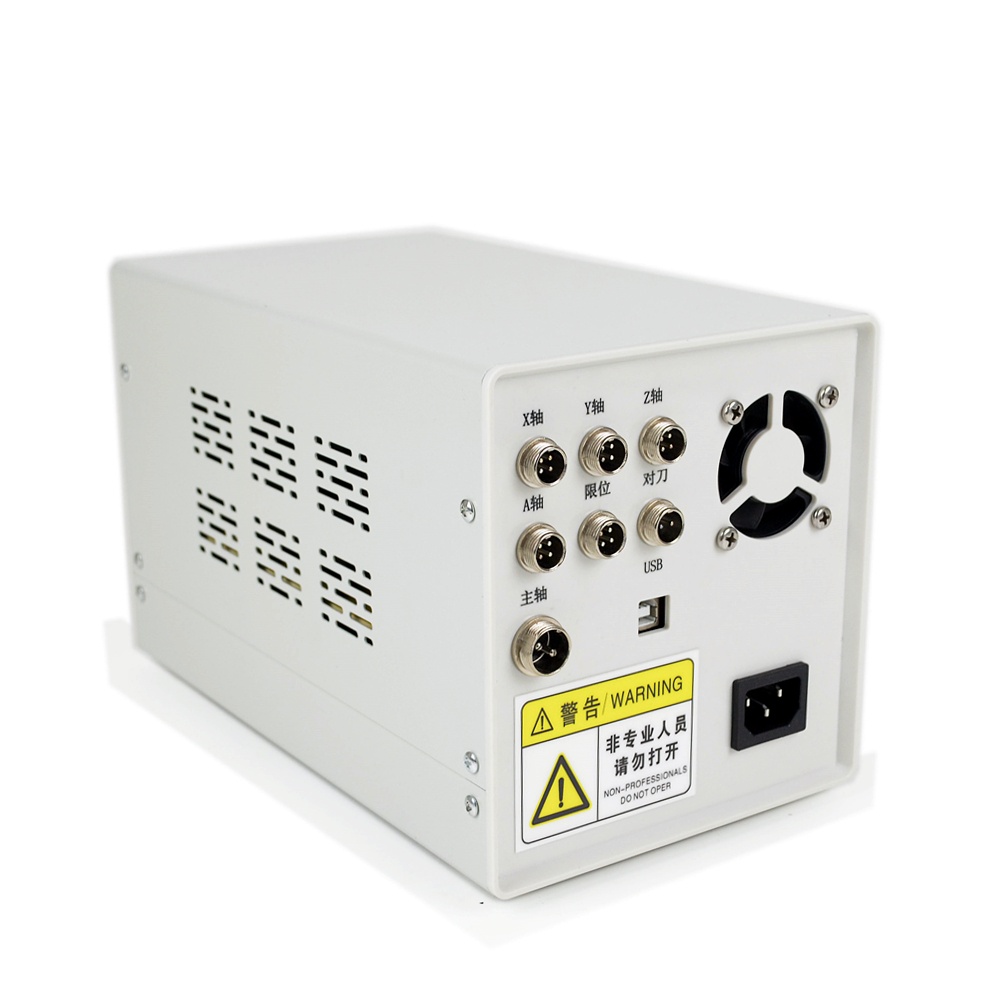

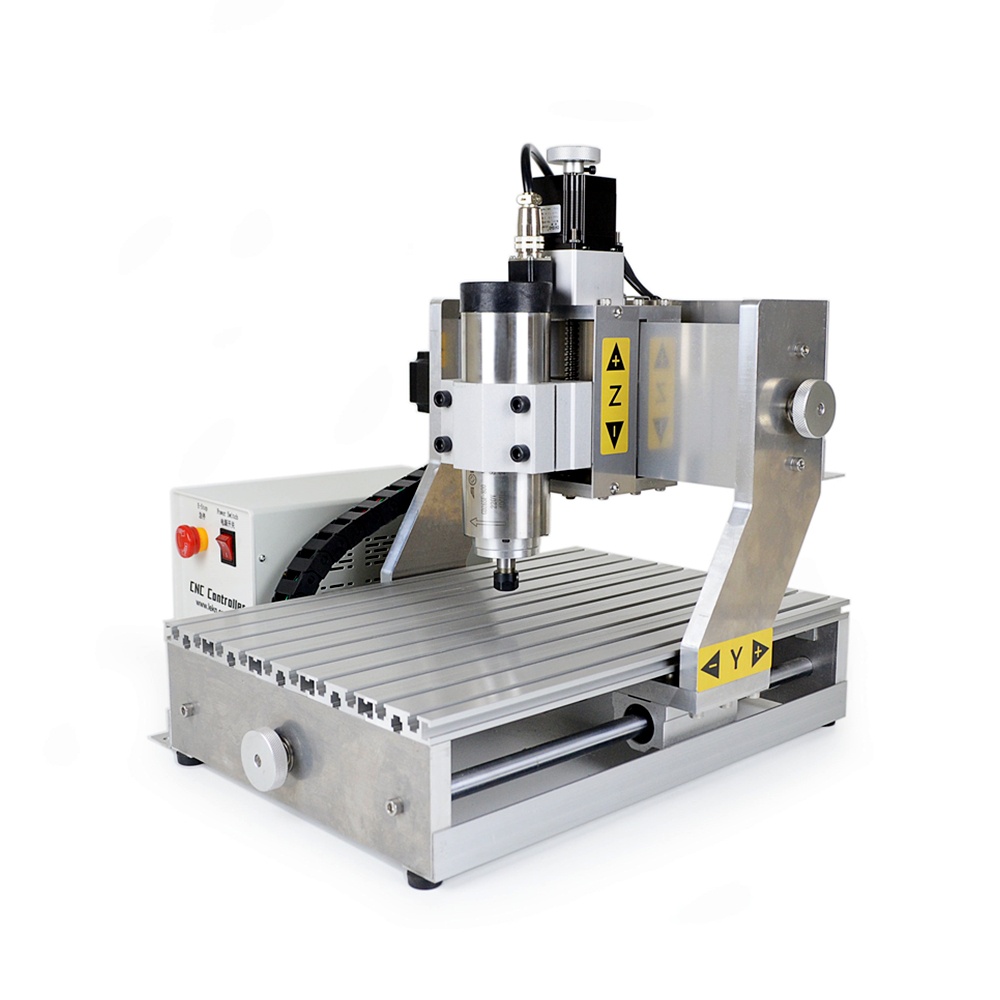

Product Pictures
