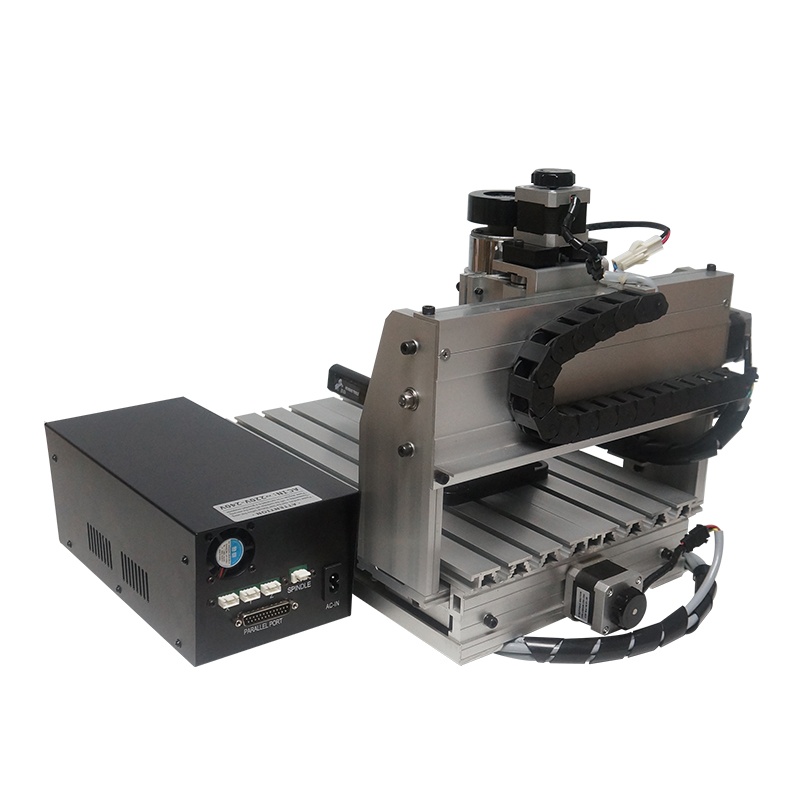

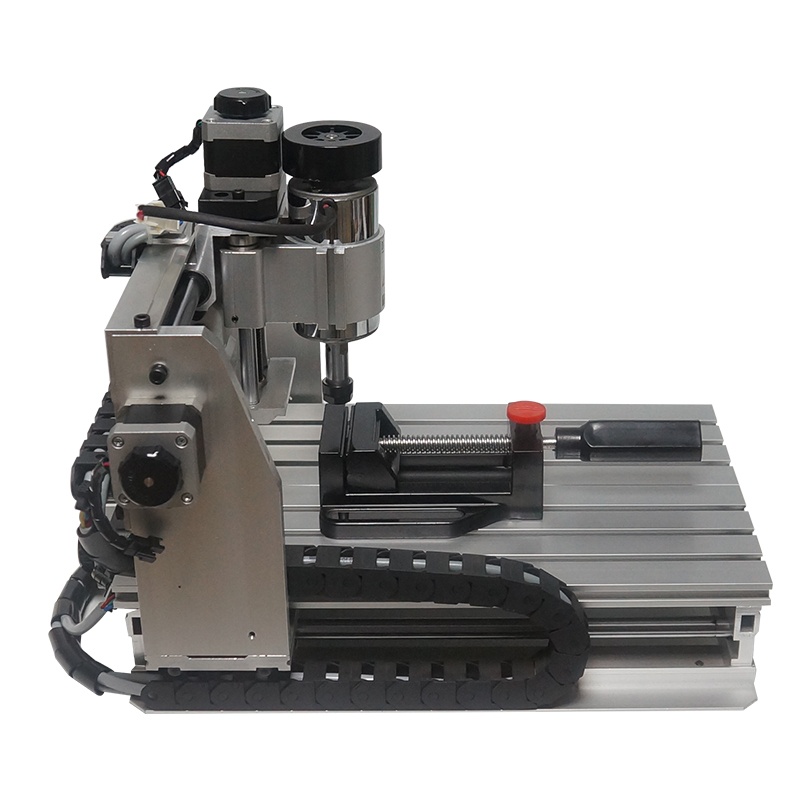

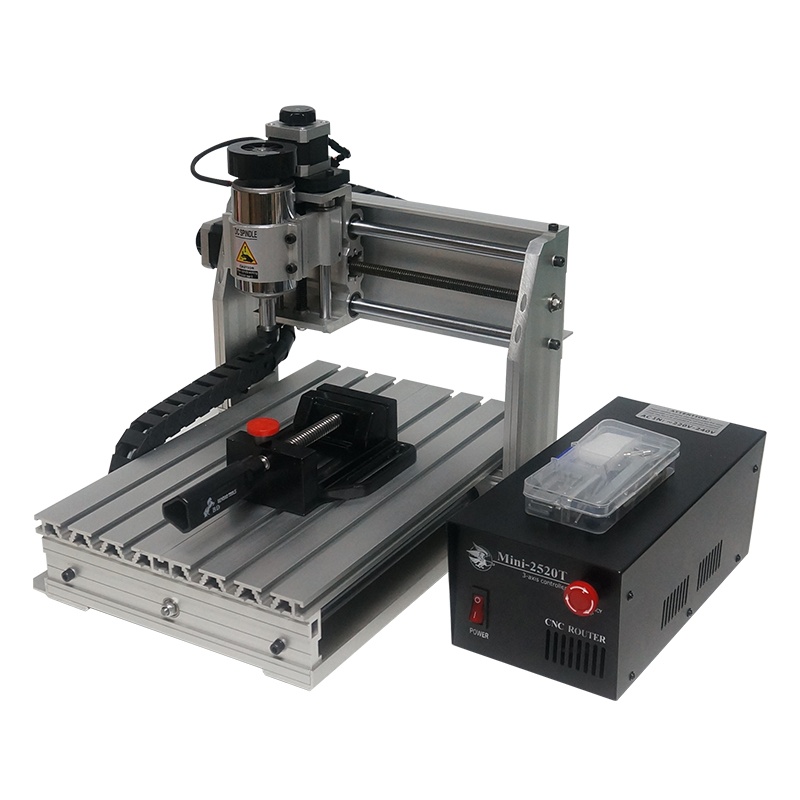

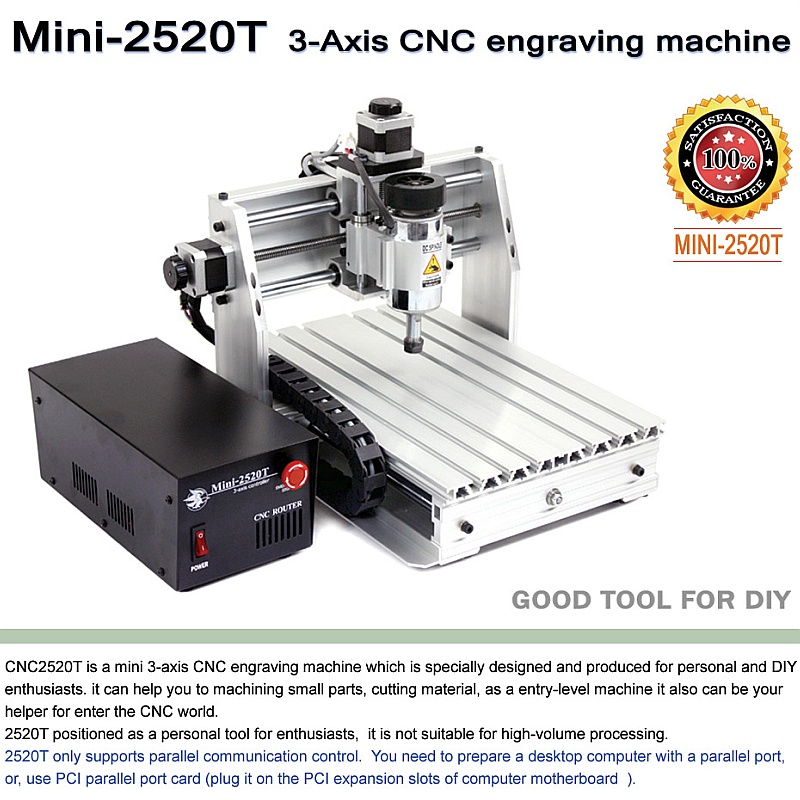

Mini CNC Router Engraver Milling Machine CNC2520T
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

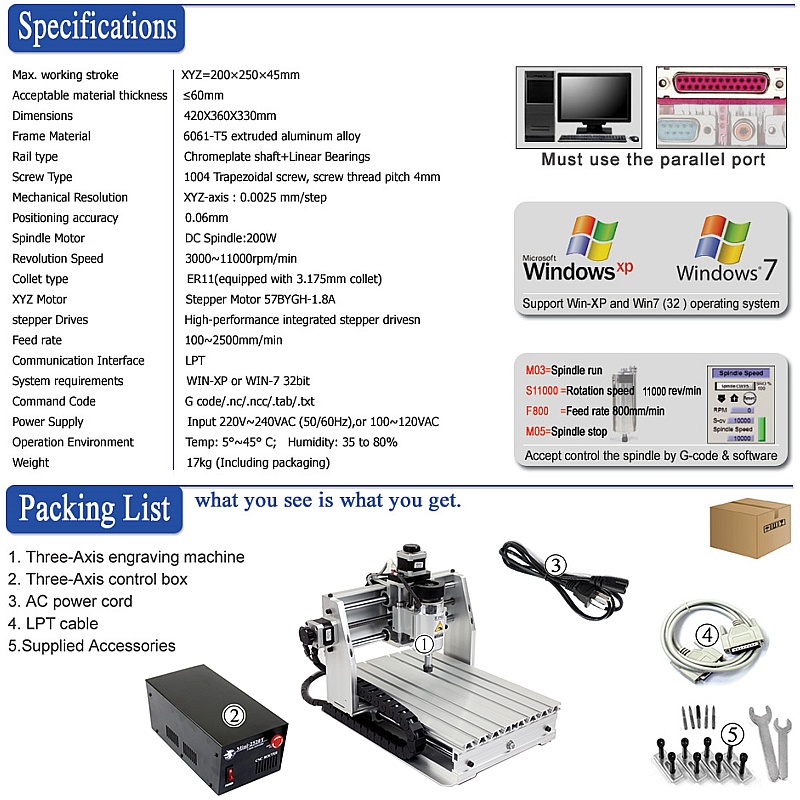

Model and Technical Parameters
| MODEL | LY-Mini | |||
| Attribute | ||||
| Axis | 3axis | |||

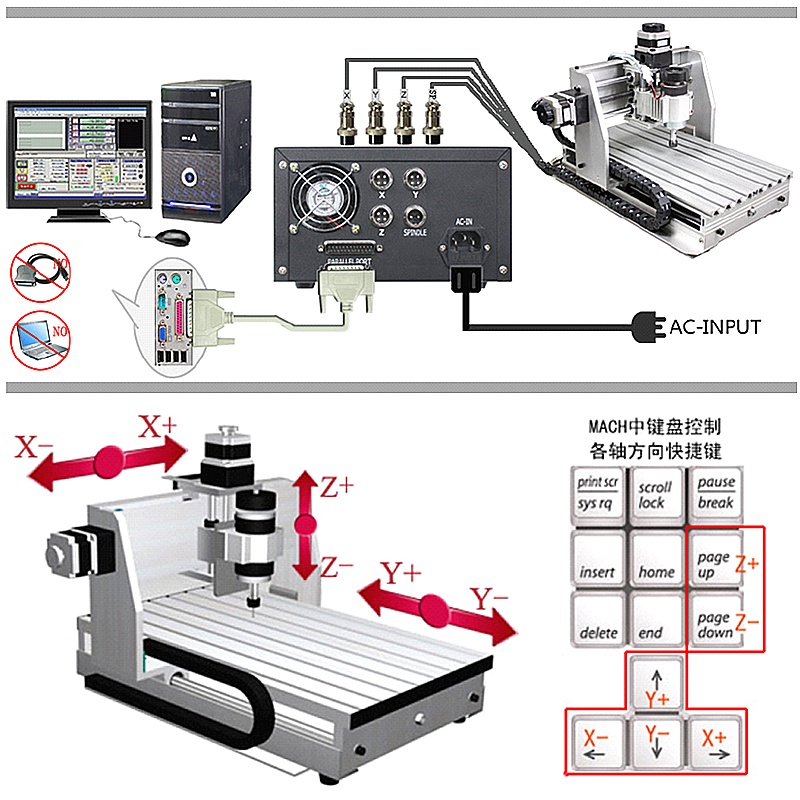

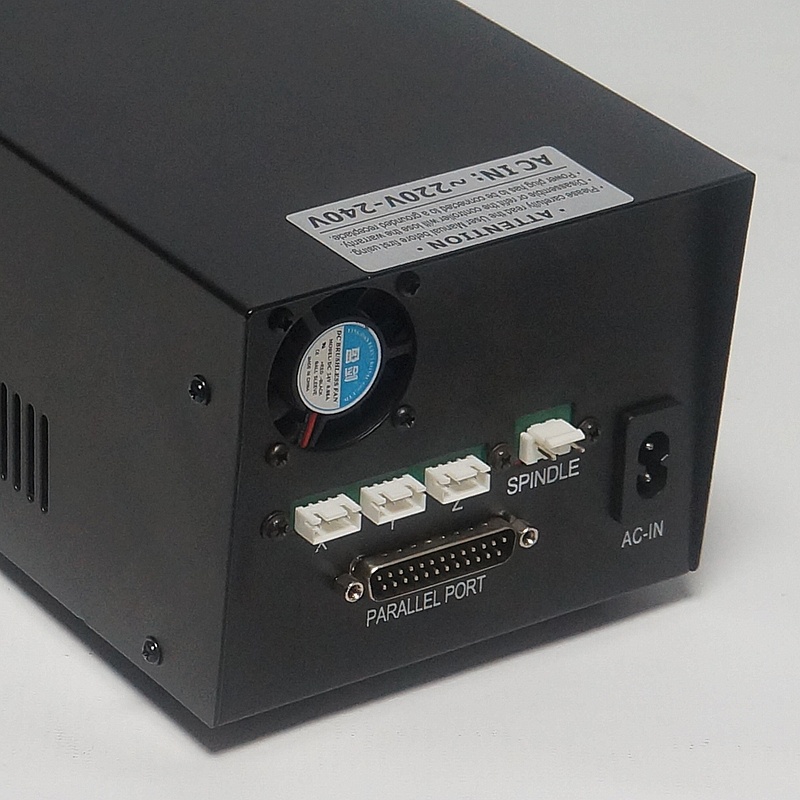

| Interface | LPT port | |||
| Limit switch | No | |||
| Tool auto-checking | No | |||
| Spindle Motor: | 200W | |||

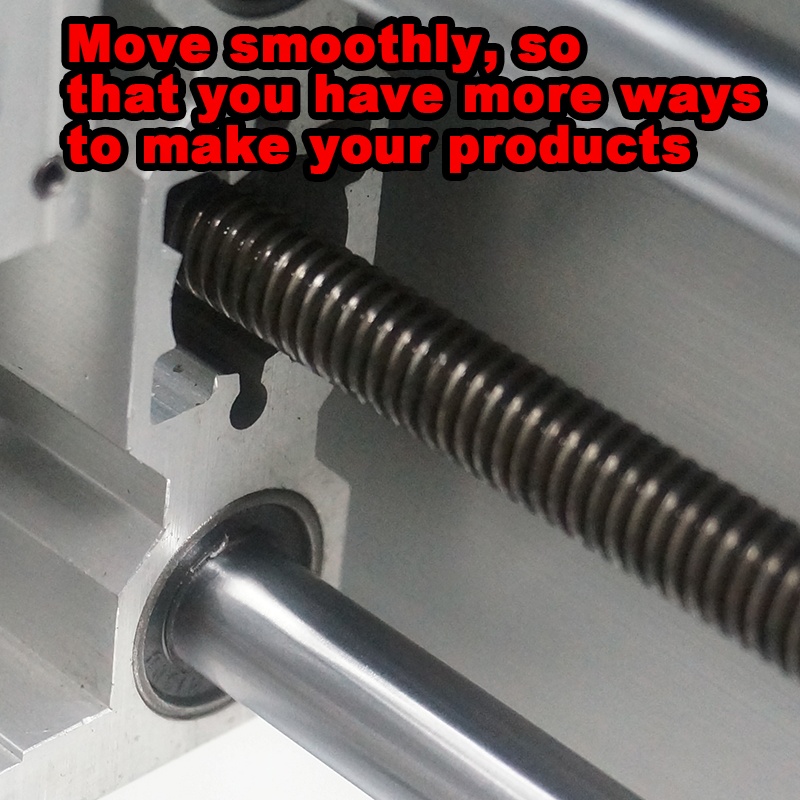

| Type of screw | Trapezoidal Screw | |||
| Weigh | 17KG | |||
|
Machine Dimensions： |
420X3600X330mm |
|||
|
Rack material： |
6061-T5 extruded aluminum alloy |
|||
|
Engraving area： |
250X200mm |
|||
|
Z-Axis Stroke： |
45mm |
|||
|
Acceptable material thickness： |
≤60mm |
|||
|
Rail type： |
Chromeplate shaft + Linear Bearings |
|||

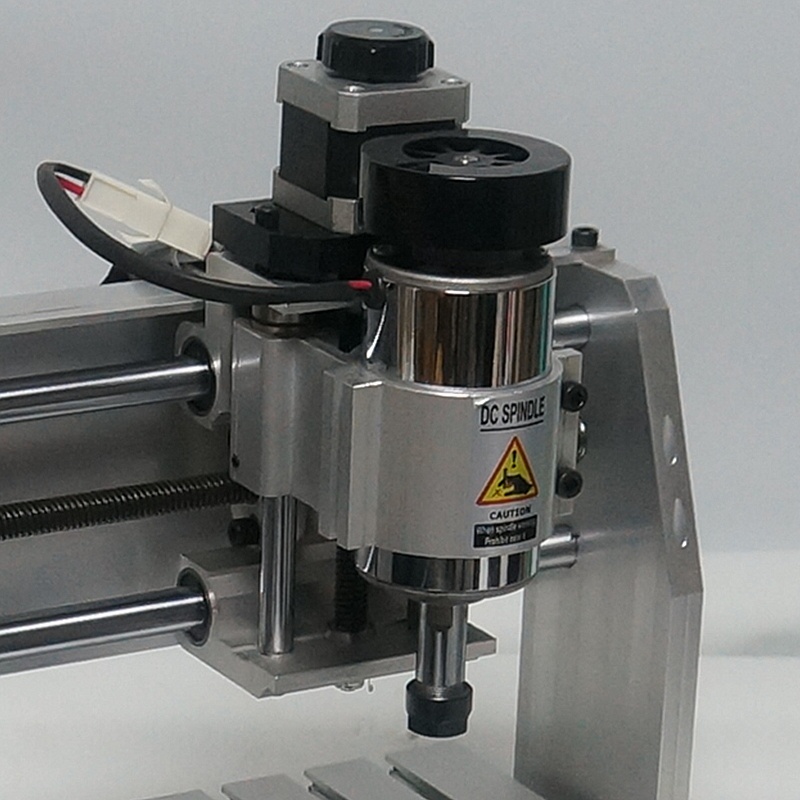

| Spindle motor： | 200W (Very small noise) | |||
|

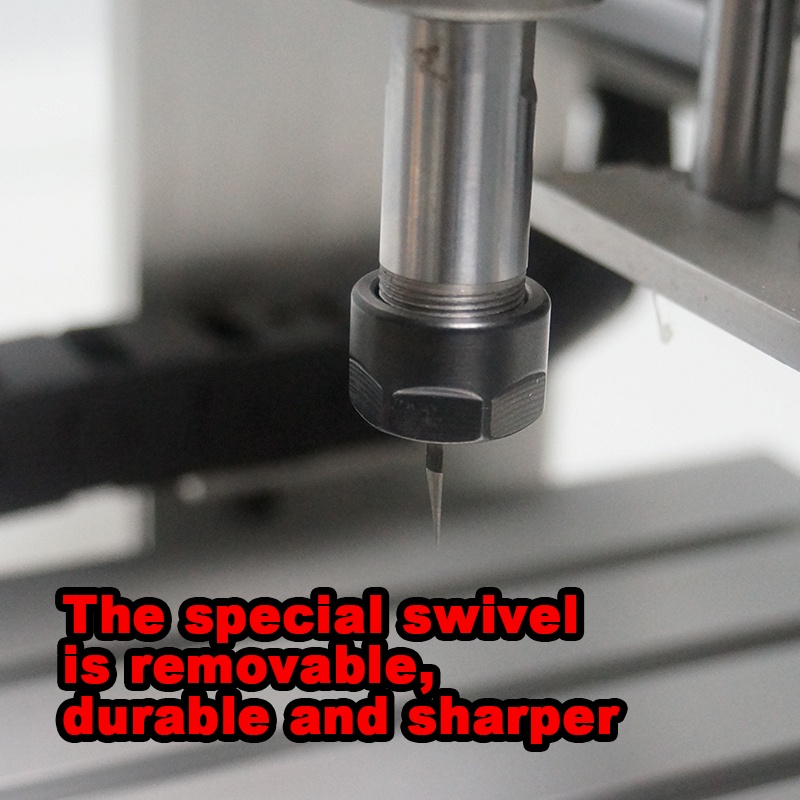

Collet type： |
ER11,1/8″(3.175mm) Collet |
|||
|

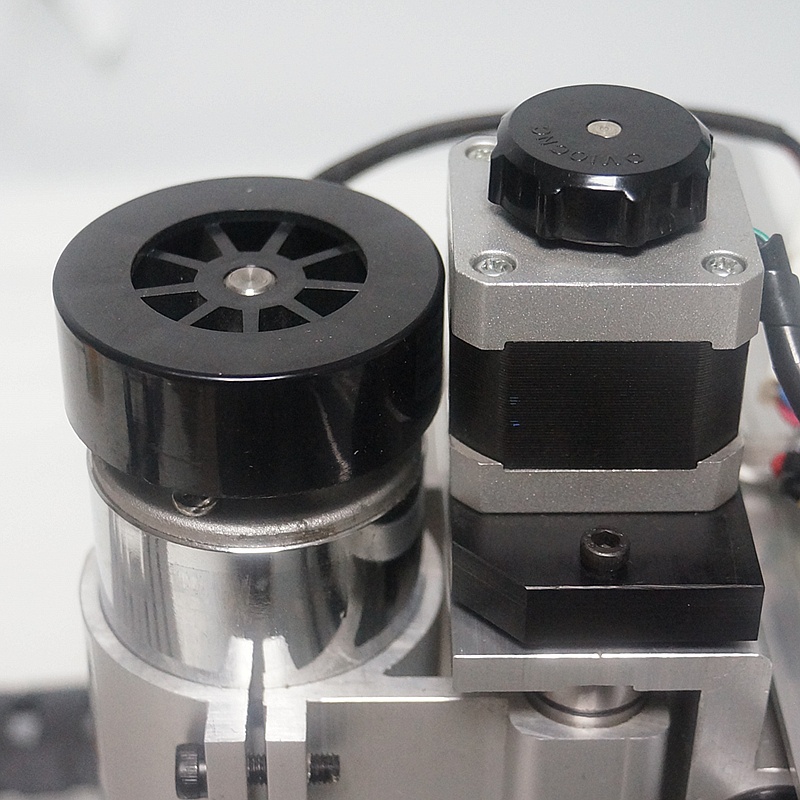

Stepper motor and drive： |
two-phase hybrid stepping motor 57BYGH-1.8A |
|||
|
Maximum operating speed： |
100-2500mm/min |
|||
|
Repeat positioning Accuracy： |
≤0.04mm |
|||
|
Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||
Thanks for your order!

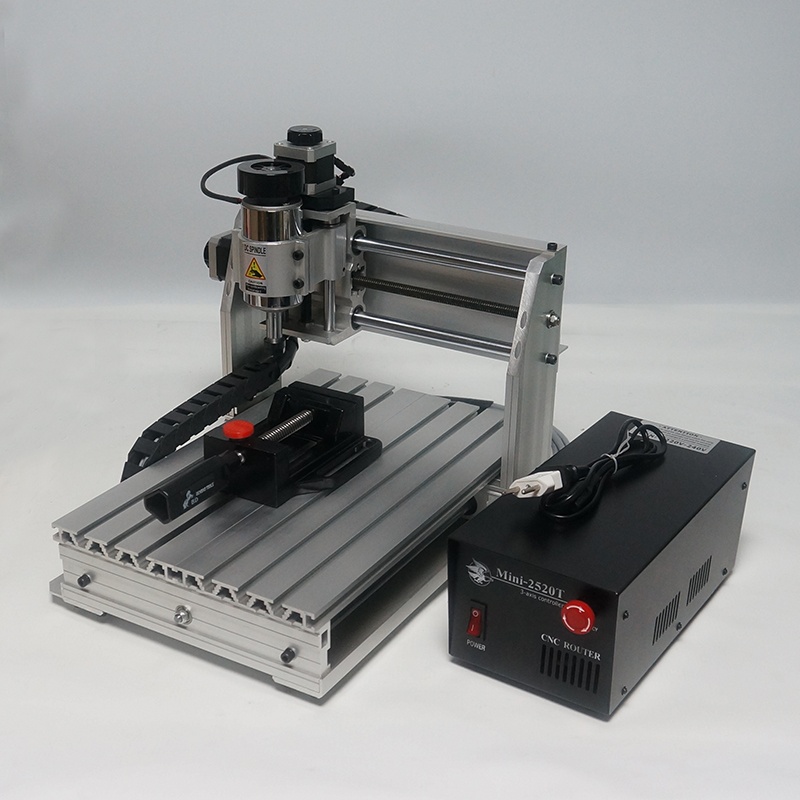

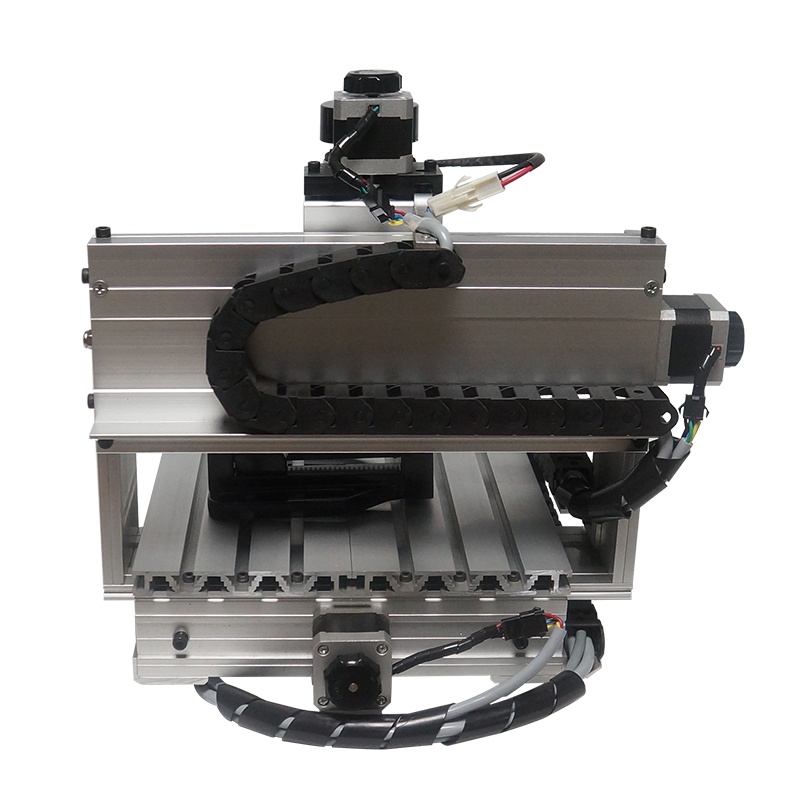

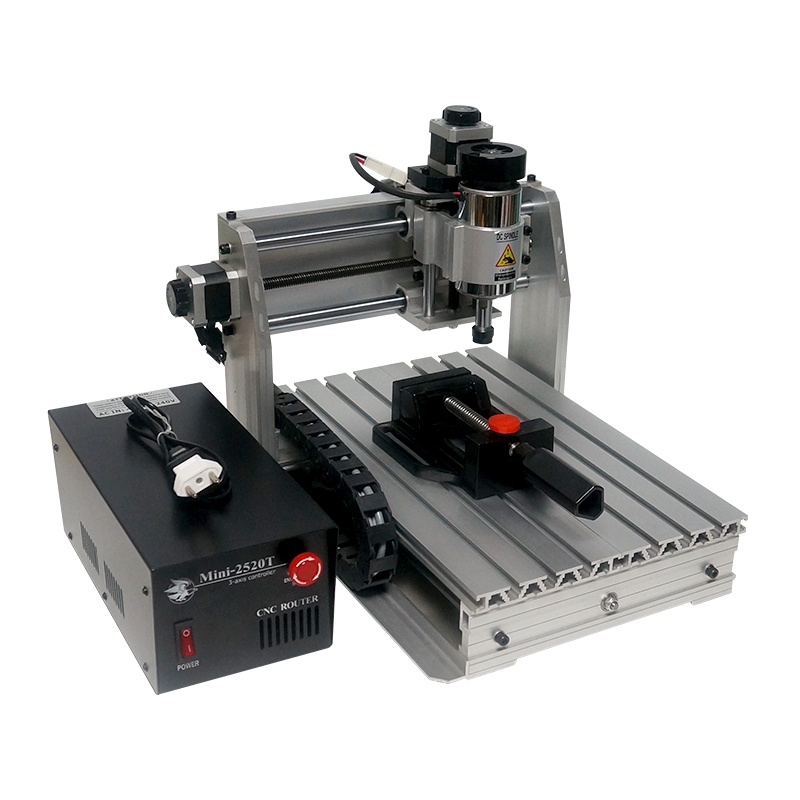

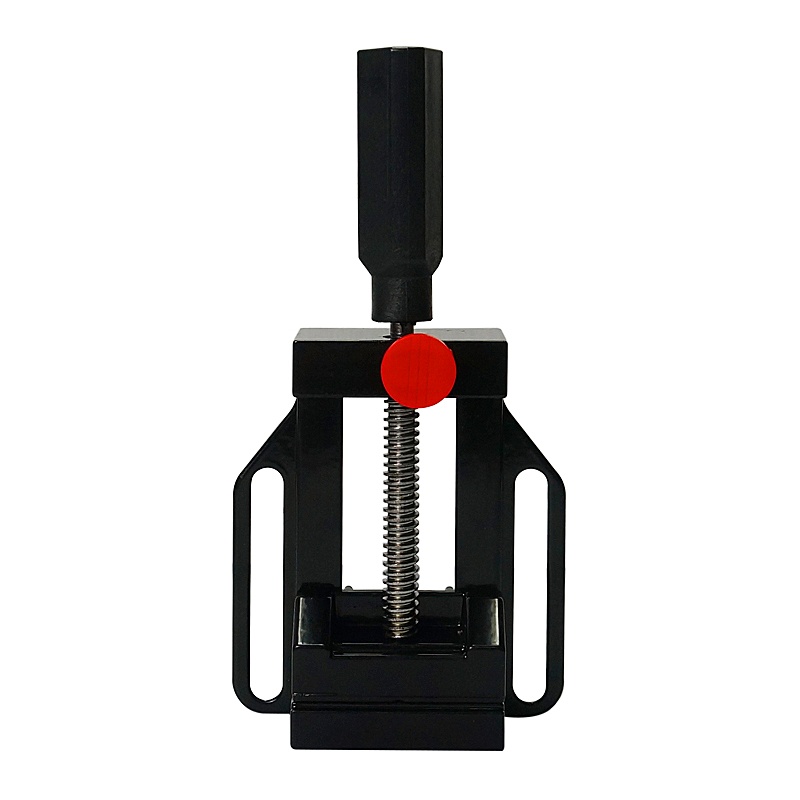

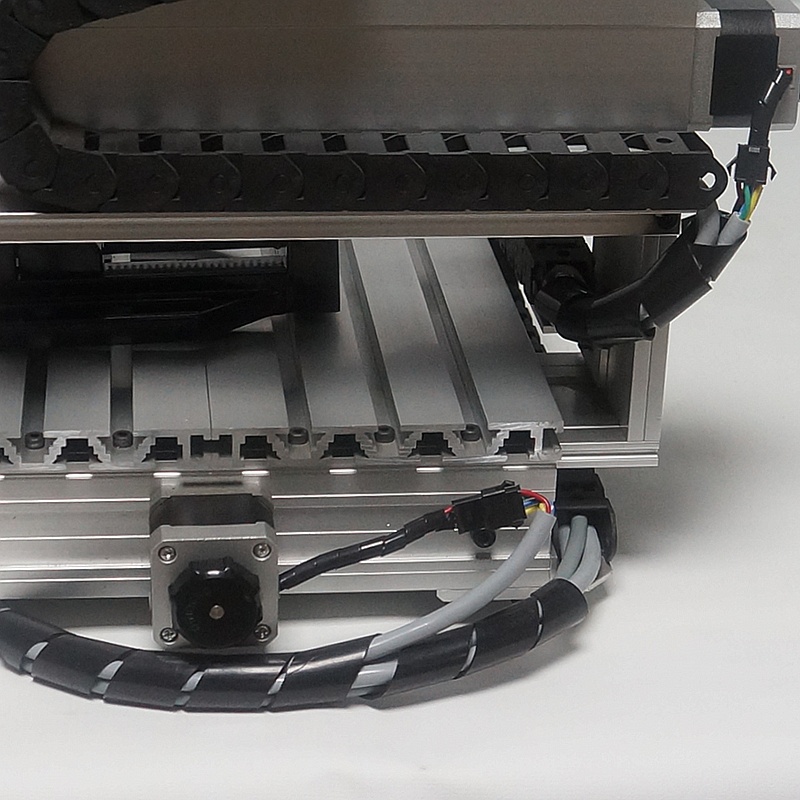

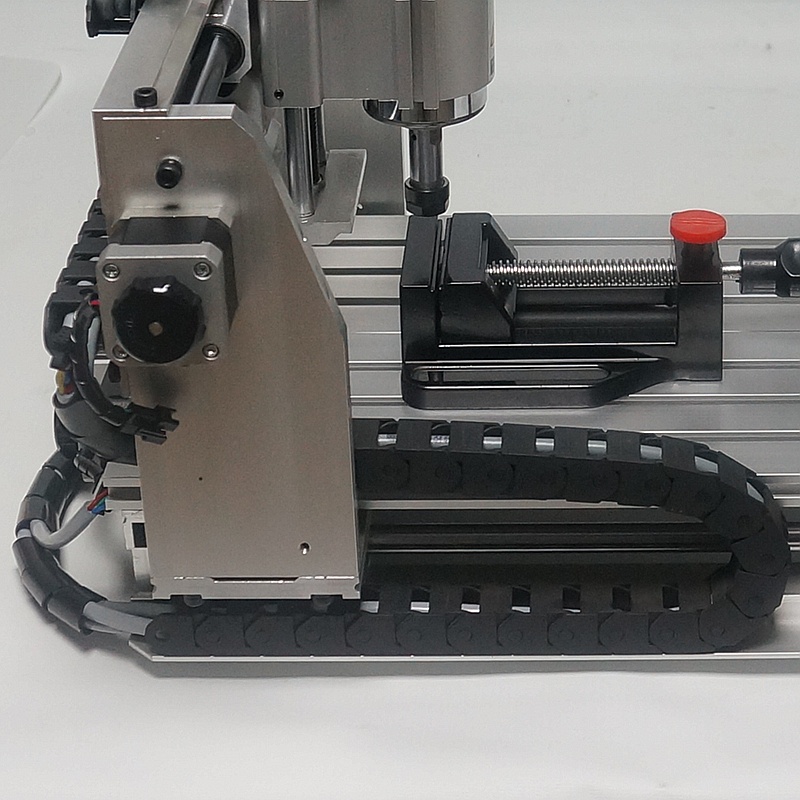

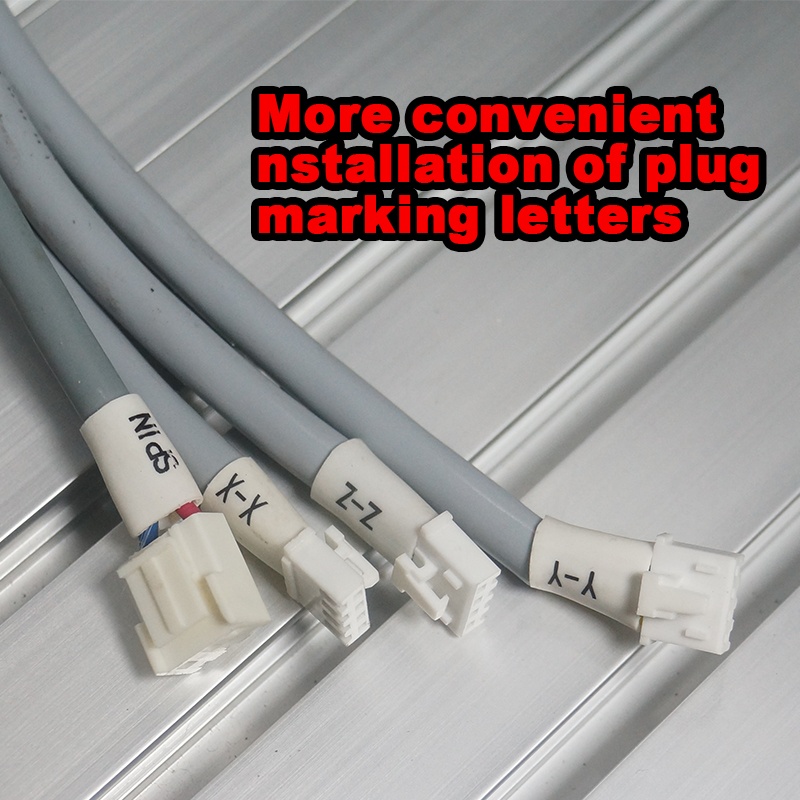

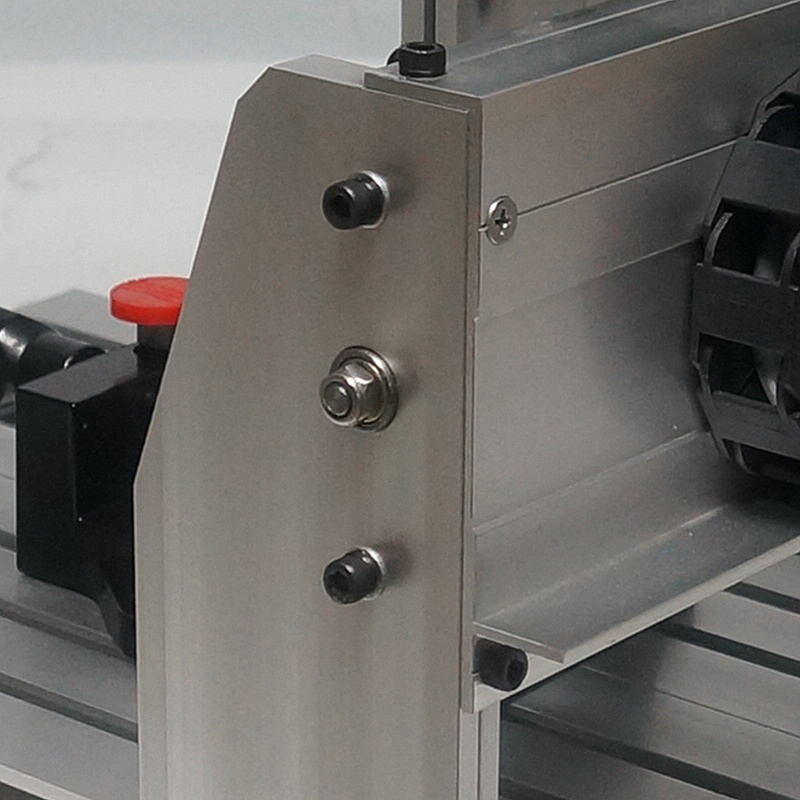

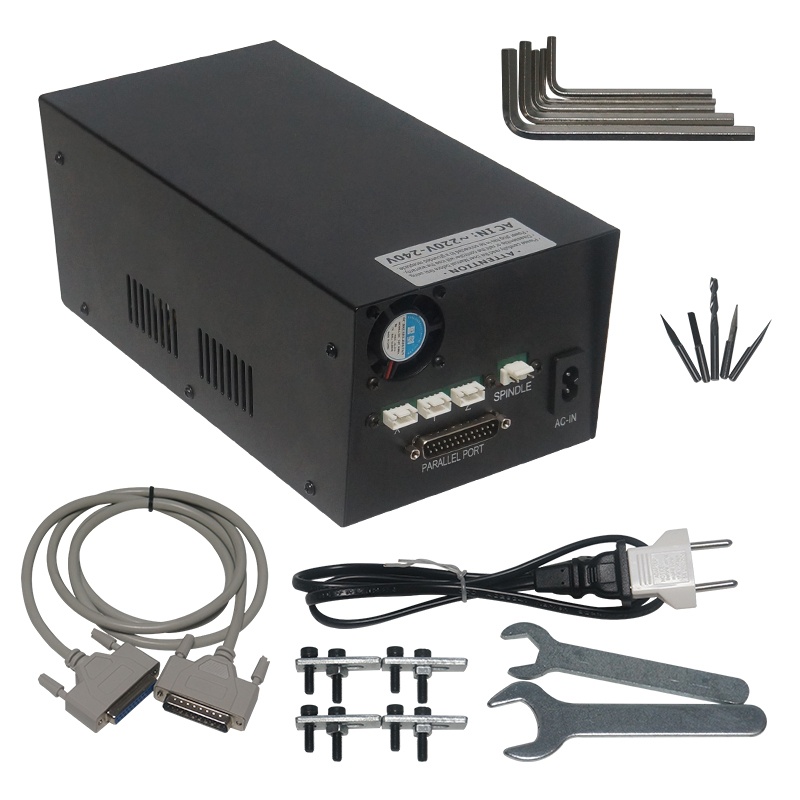

Product Pictures
