2017 new LY 5300 auto optical alignment system Mobile BGA rework station 2 zones 2500W
Mobile rework video: https://youtu.be/cO5RII03_bU
Our BGA Rework Station/ BGA reballing station are widely used to replace and repair the BGA chip in laptop, mobile phone, xbox360,ps3,etc.
The main user is repairing shops and factory to provide the after-sales service and rework.
How to separate BGA chip from motherboard?
How to replace a new BGA chip?
Repair steps:
1) Separate the BGA chip from mother board –we called desoldering
2) Clean Pad
3) Reballing or replace a new BGA chip directly
4) Alignment/Positioning – Depend on experience ,silk frame ,optical camera
5) replace a new BGA chip – we called Soldering
|
Power supply |
AC 220V±10% 50/60Hz |
|
|
3 |
Total power |
Max 2500W |
|
4 |
Heater power |
Upper temp.zone 1200W,Down temp.zone 1200W |
|
5 |
Electrical material |
Driving motor+ smart temp.controller+color touch screen |
|
6 |
Temperature controlling |
(high precision K-sensor)(Closed Loop),independent temp.controller,the precision can reach ±1 |
|
7 |
Locating way |
V shape slot,PCB support jigs can adjust |
|
8 |
PCB size |
Max 140×160mm Min 5×5 mm |
|
9 |
Applicable chips |
Max 80×80mm Min 1×1 mm |
|
10 |
Overall dimension |
L450×W470×H670mm |
|
11 |
Temperature Interface |
1 pcs |
|
12 |
Weight of machine |
40KG |
|
13 |
Color |
Blue+White Mini BGA rework station |

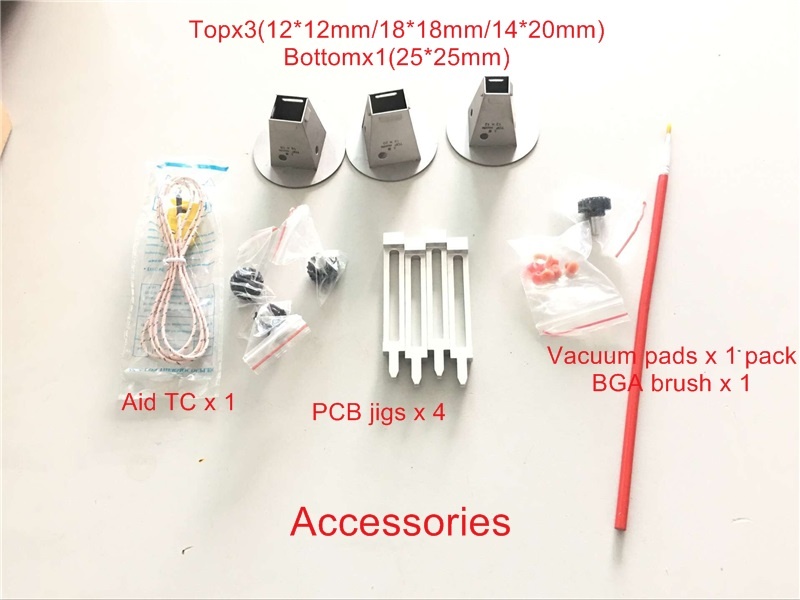

Nozzles : 3 top,1 bottom(Top 18*18mm,12*12mm,14*20mm,Bottom 25*25mm)
