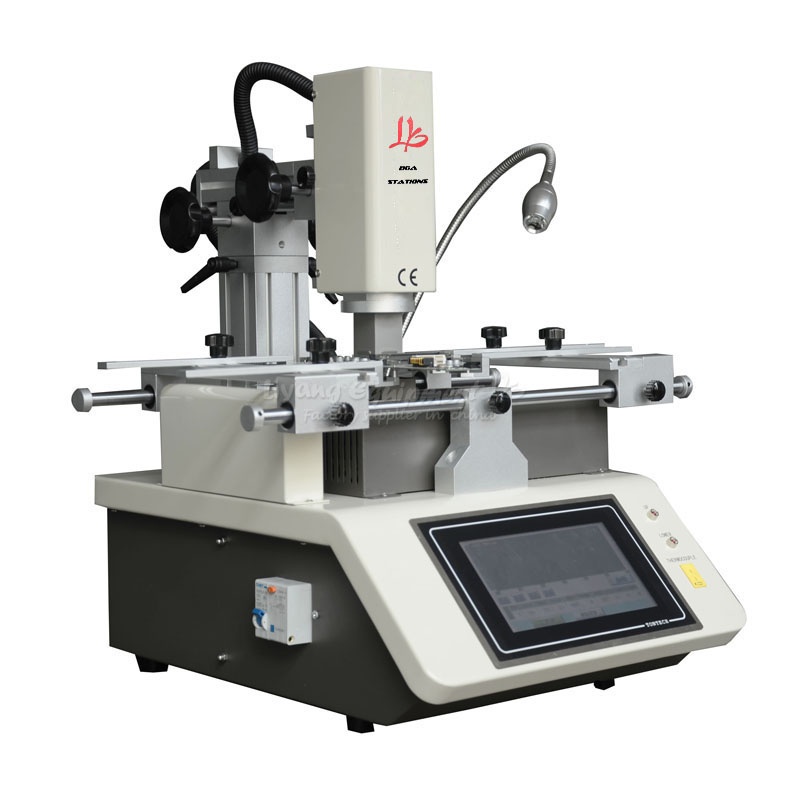

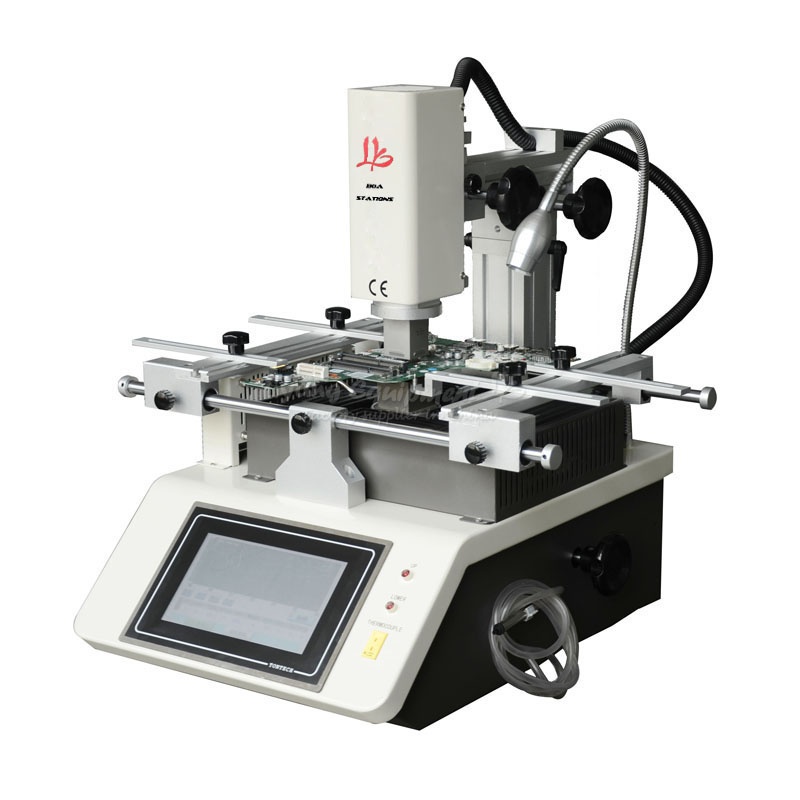

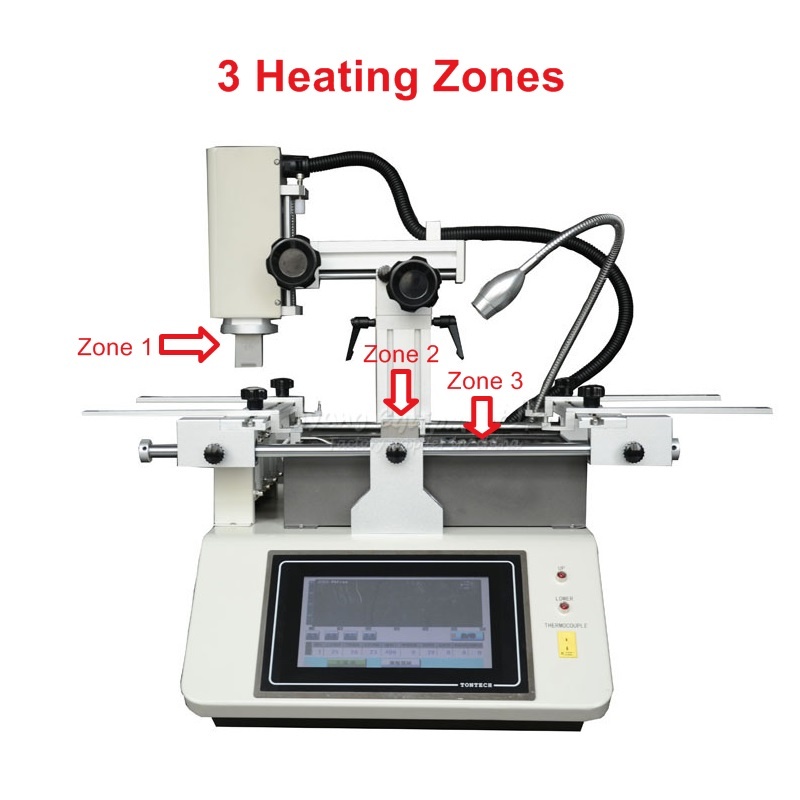

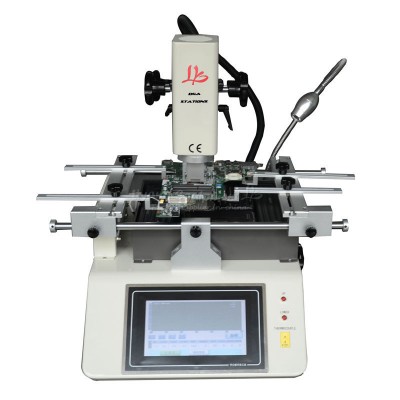

NEW hot air mobile rework station repair system mobile repair station LY-5200 touch screen 3 zones

NEW hot air mobile rework station repair system mobile repair station LY-5200 touch screen 3 zones

item ID: 65185
0 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 50 votes, average: 0.00 out of 5
Reviews(0)
USD$2000 USD$1300 (% off)
Payment

Product Detail

Product Tags

NEW hot air mobile rework station repair system mobile repair station LY-5200 touch screen 3 zones

1

power

AC220V±10% 50/60Hz

2

Total power

3400W

3

Up heater

800W

4

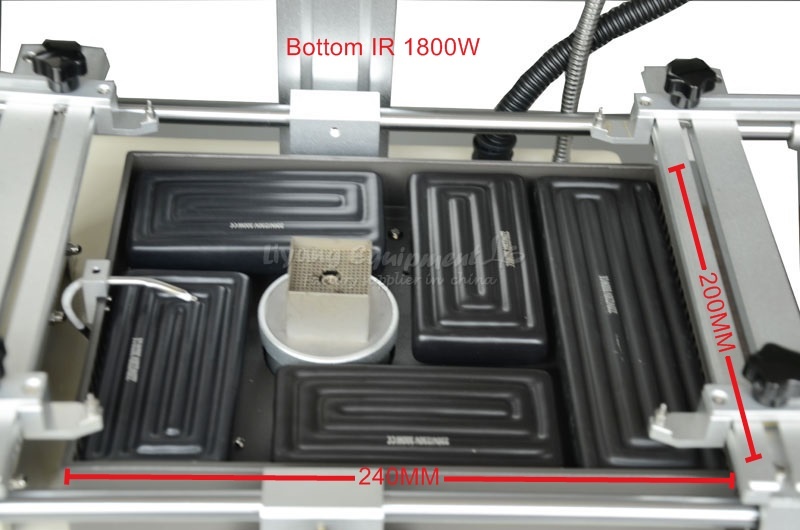

Down heater

Second 800W,IR 1800W

5

size

395×450×590mm

6

PCB location

V-shape+universal jigs

7

Temp. Control

K Sensor,independent temperature control,precision within ±2 degree

8

PCB size

Max 195×260mm   Min 10×10 mm

9

Preheating area

 240×200mm

10

material

High sensitive touch screen+Touch screen man-machine interface operation



Packing list:

Pcb jig x 4

Universal hook x 4

Special mini Nozzles x 4 for mobiles(top 5 ,bottom 1 )

 (Top 10*10mm,14*14mm,18*18mm,23*23mm,28*28mm,

Bottom 35*35mm)

Manual ( if not received, send by mail)
