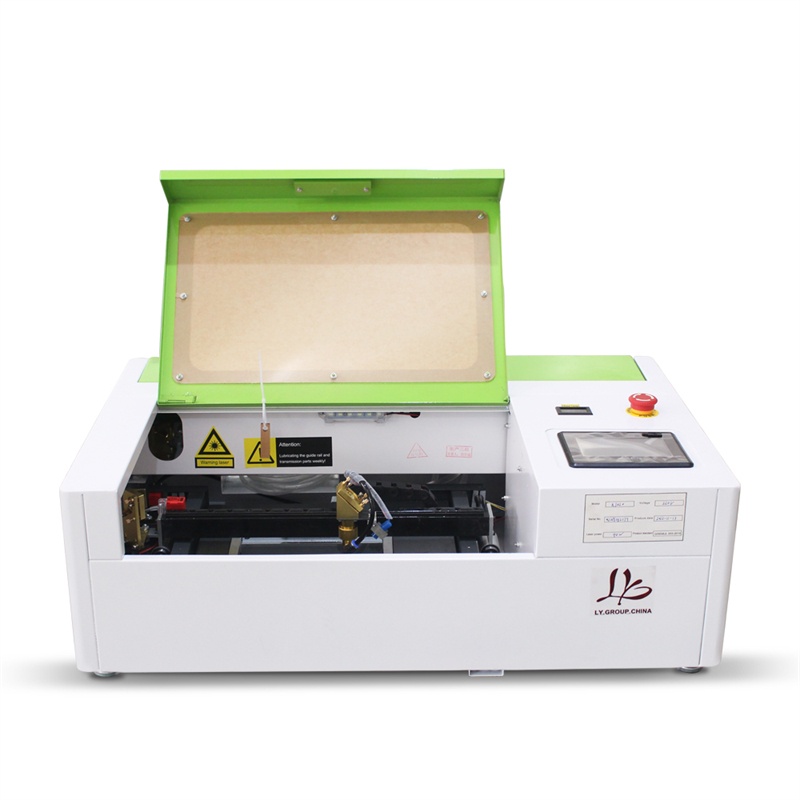

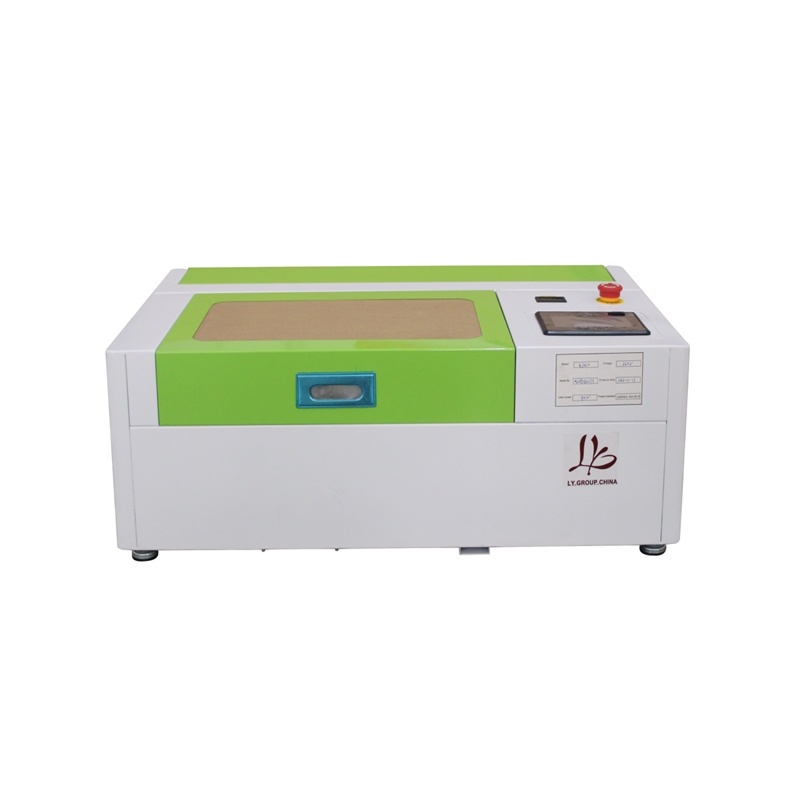

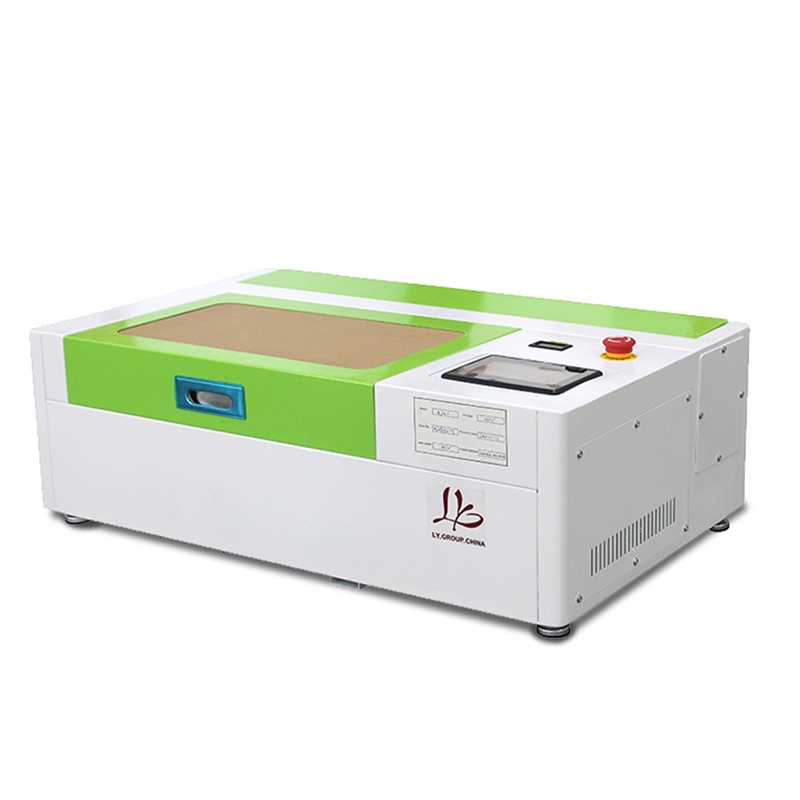

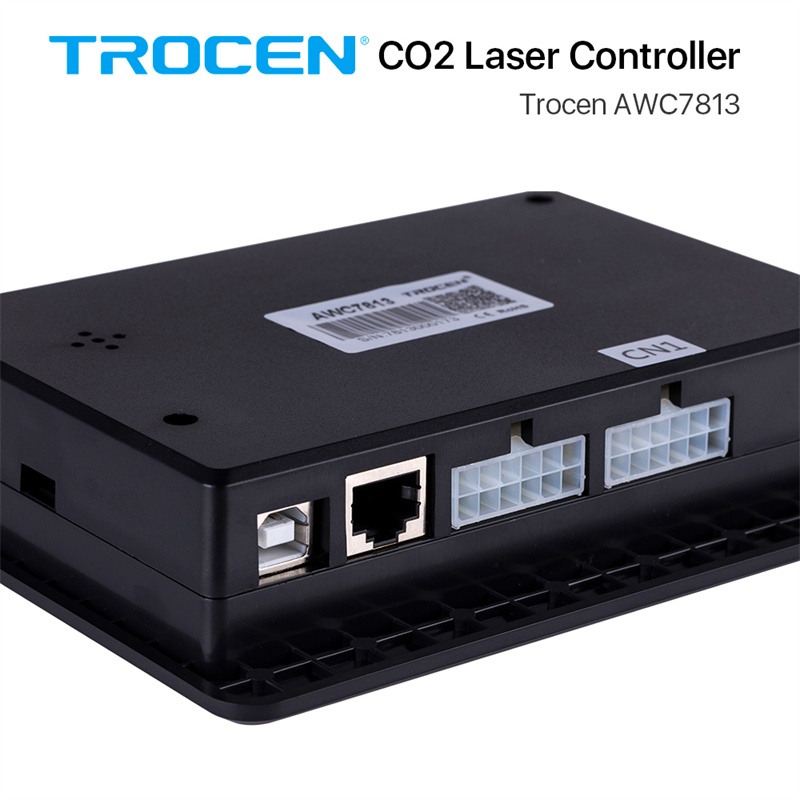

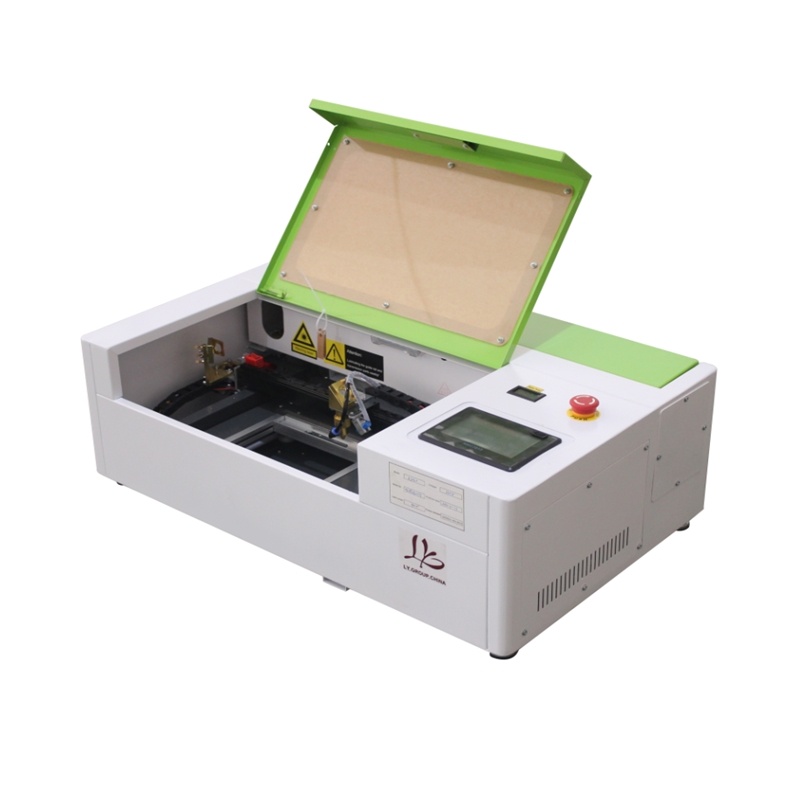

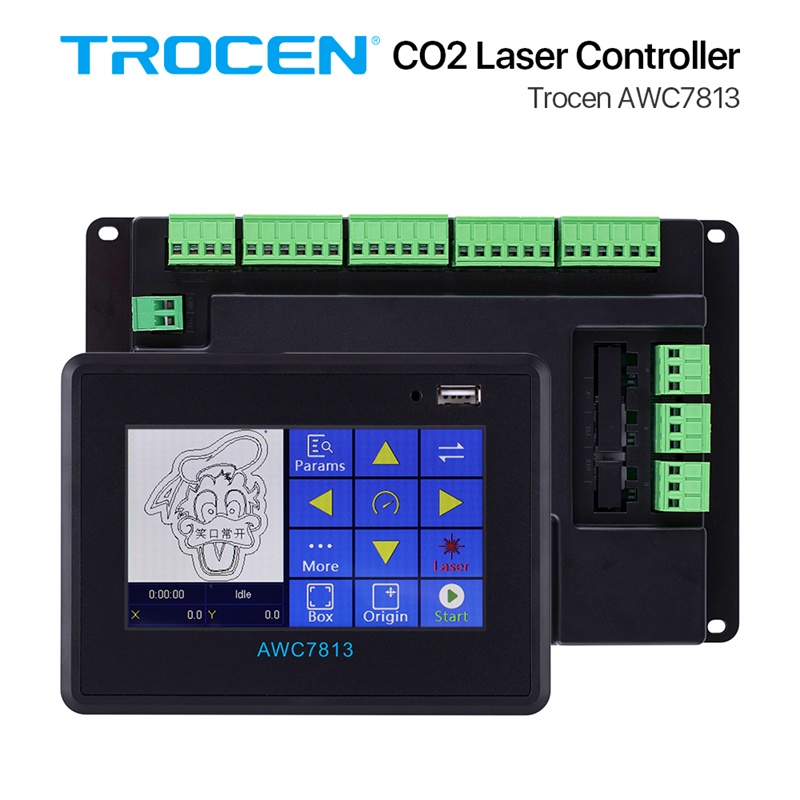

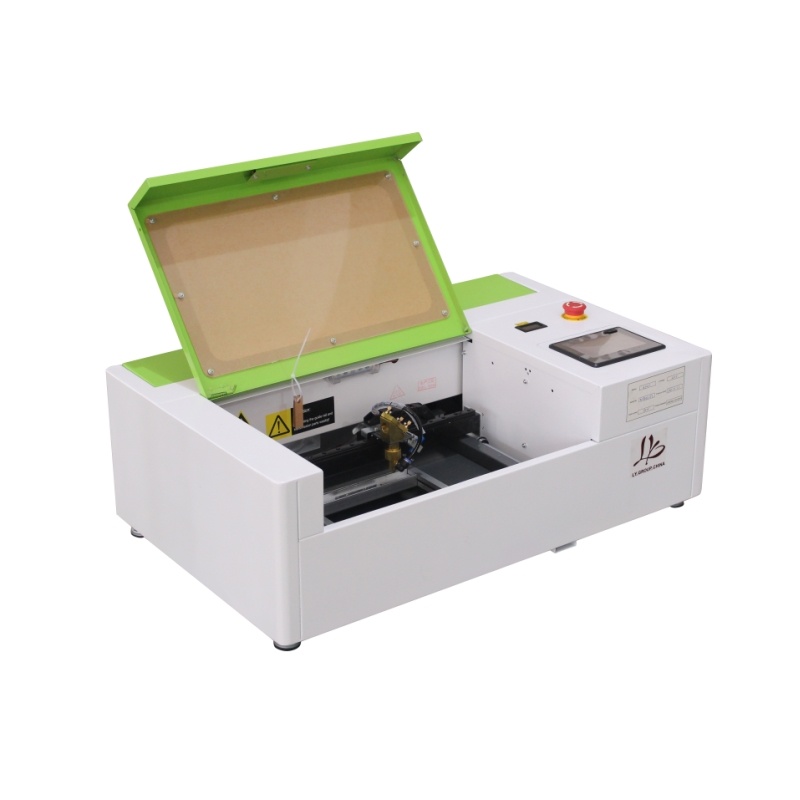

LY Mini Laser 3020/2030 40W DSP Off-Line TROCEN AWC7813 CO2 Laser Engraver Engraving Cutting Machine With Honeycomb Work Size 300*200mm
Reviews(0)
Product Detail
Product Tags
LY Mini Laser 3020/2030 40W DSP Off-Line TROCEN AWC7813 CO2 Laser Engraver Engraving
Cutting Machine With Honeycomb Work Size 300*200mm

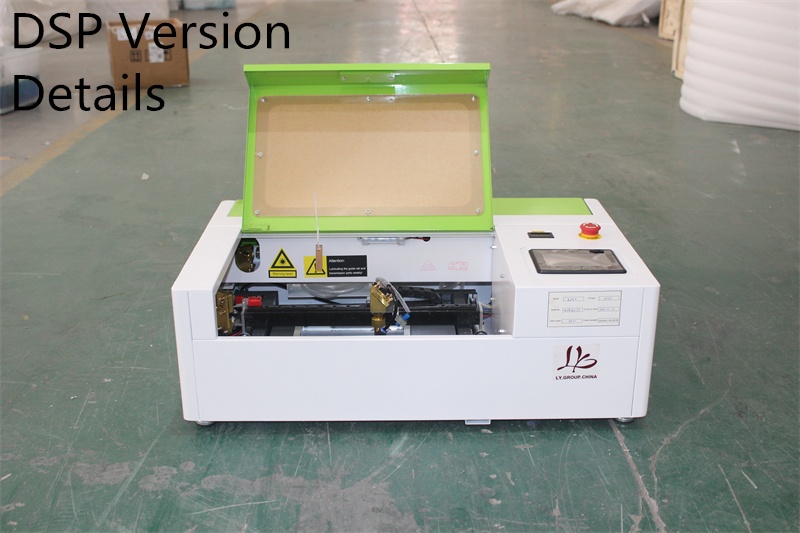

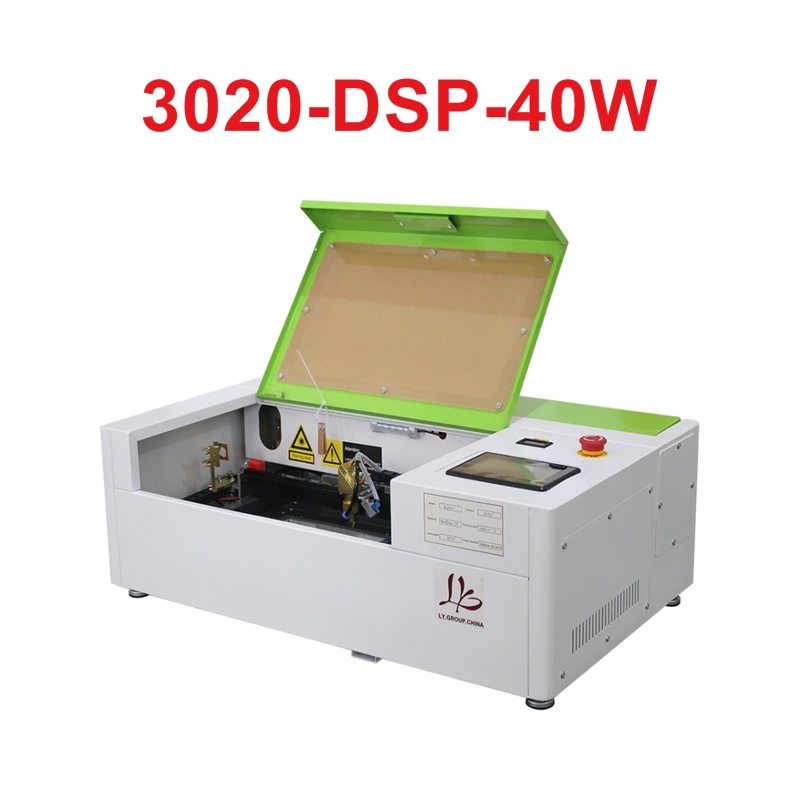

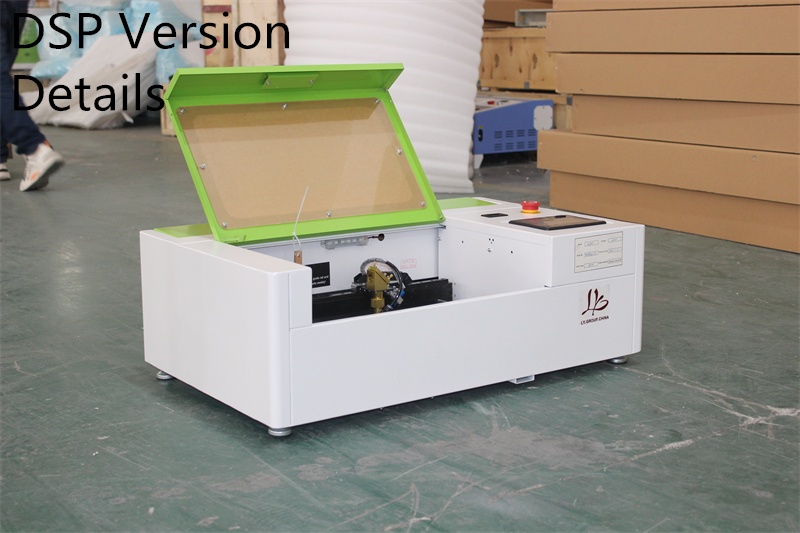

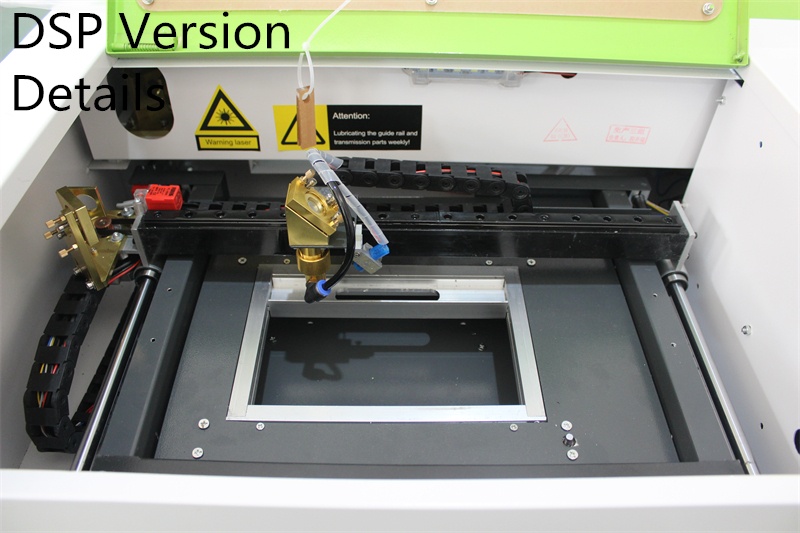

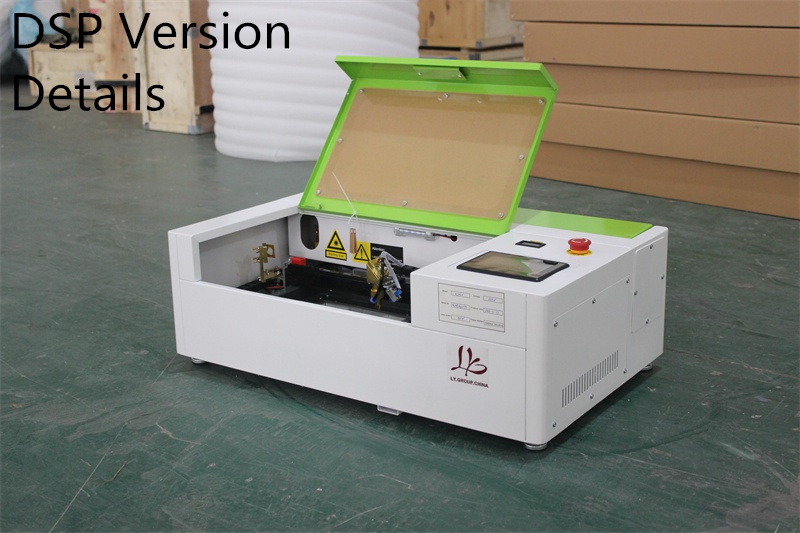

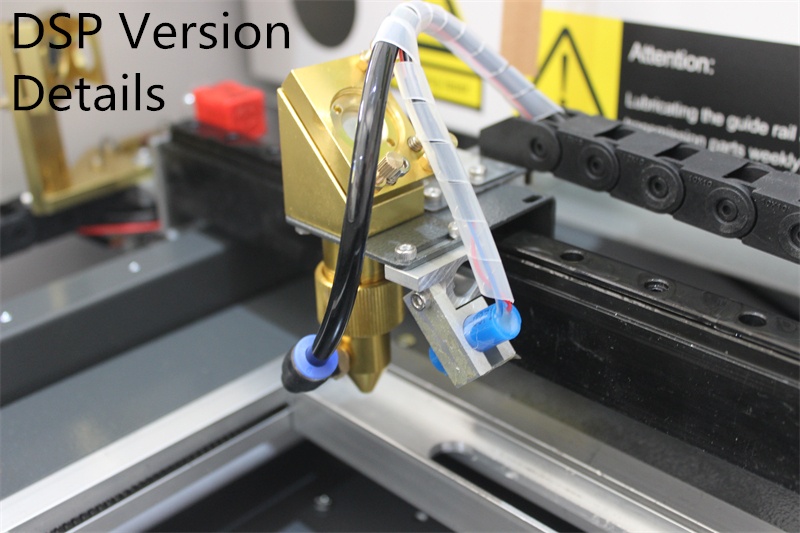

3020-40W DSP Version
(RE: If need Ruida offline controller contact with sales, plus more $130)
110/220V 40W 300*200mm Mini CO2 Laser Engraver Engraving Cutting Machine 3020 Laser with USB Sport blowing anti-flaming system red light alignment
300*200 mm Mini CO2 Laser Engraver Engraving Cutting Machine

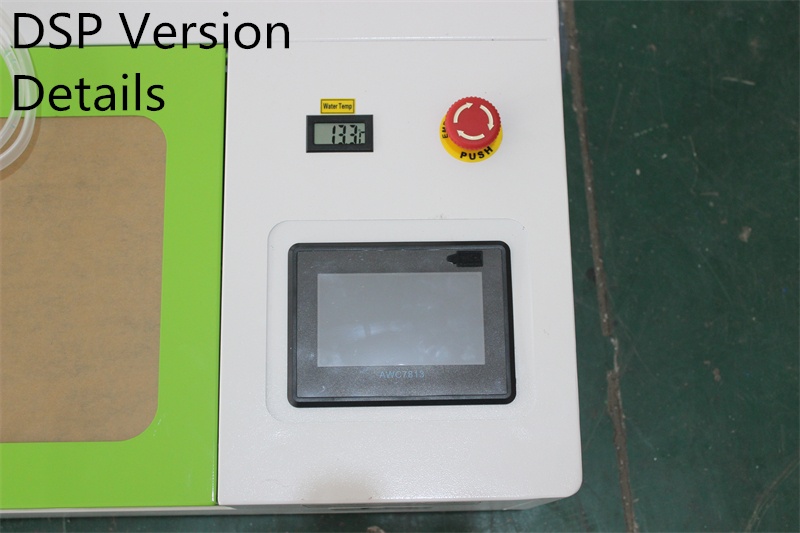

3020 Laser with USB Sport LCD panel
Specification:
| Communication Interface | Off-Line Control |
| FDA Compliant | Yes |
| CE Certification | Yes |
| ISO9001 Quality Certification | Yes |
| Laser Type | CO2 Gas |
| Tube Trigger Volt | 20KV |
| Tube Operating Volt | 15KV |
| Current | 18~22mA |
| Engraving Area | 12x8in.(30x20cm) |
| Maximum Item Size to Engrave | 10.25W x 8.75L x 2.85H in. |
| Laser Tube (life hours) | 1000-1300 Hours |
| Laser Power | 40W |
| Engraving Speed | 0-200mm/s (0-7 in./s) |
| Cutting Speed | 0-20mm/s (0-0.7 in./s) |
| Minimum Shaping Character | 1 X 1mm (0.04 X0.04)in. |
| Resolution Ratio | 0.026mm / 0.001 in. (1000dpi) |
| Power Supply | 110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item. |
| Resetting Positioning | 0.01mm (0.0004 in.) |
| Motor Type | Stepper Motor |

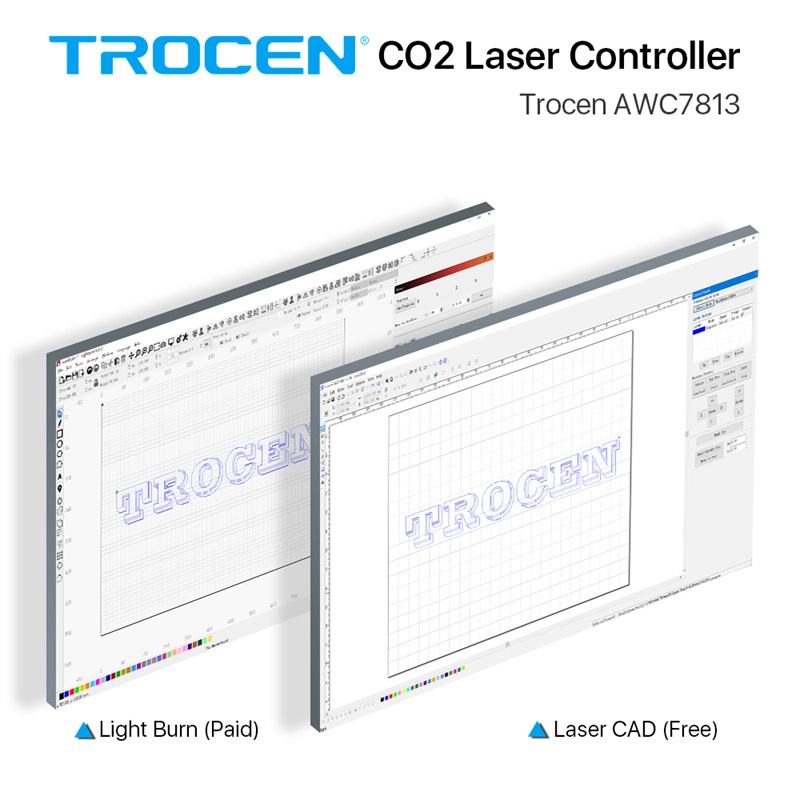

| Software Supported | DSP Version have special software |
| Power Consumption | 250W |
| Operating Temperature | 32-113F (0-45C) |
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
| Water Cooling | Water Pump include |

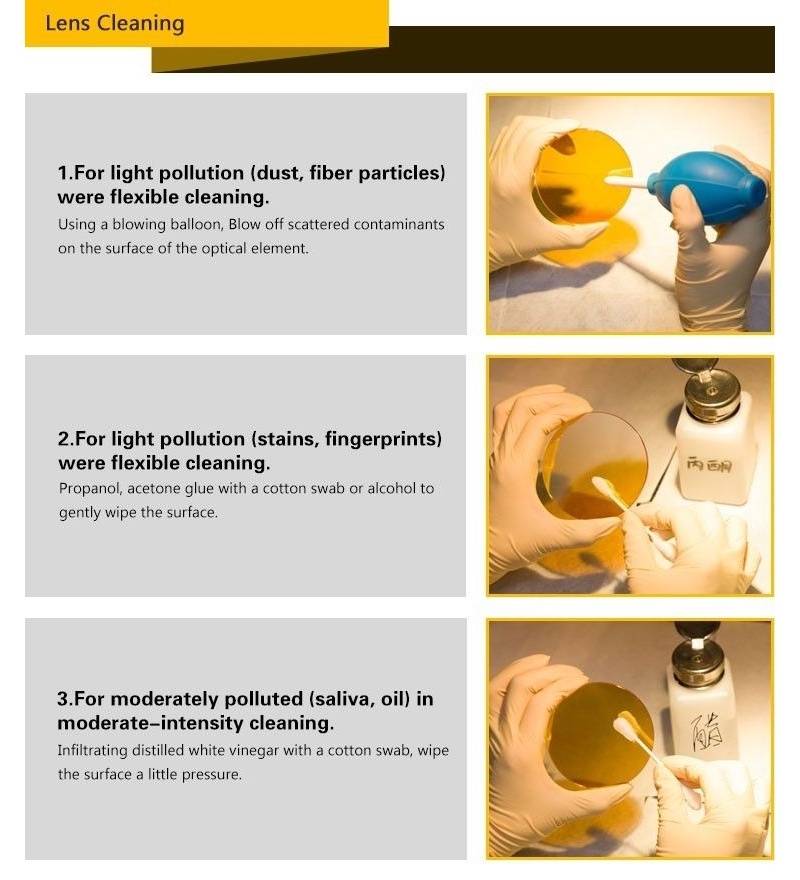

| Recommended Spare Parts/Consumables | Laser Tube, Focal lens, Reflection lens |
| Product Dimensions | 31.4 X 19.6 X 9.8in.(800x500x250mm) |
| Product Weight | 32Kg/67lb (shipping 38kg/80lb) |
| Warranty | One year |
Packing list :
1.laser 3020 Engraving machine 40W DSP Version

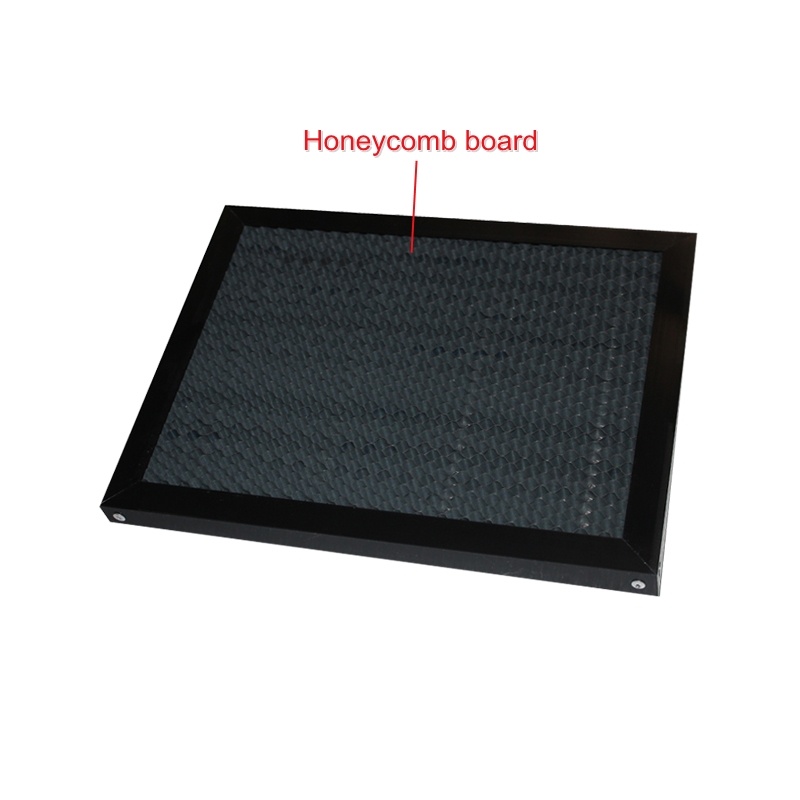

2.Honey comb board 300*200mm
3.USB date line
4.Power line
5.USB dongle (DSP version not with)
6.Smoke pipe
7.Water pump
8.Air pump
9.Smoke fan
Thanks for your order!
