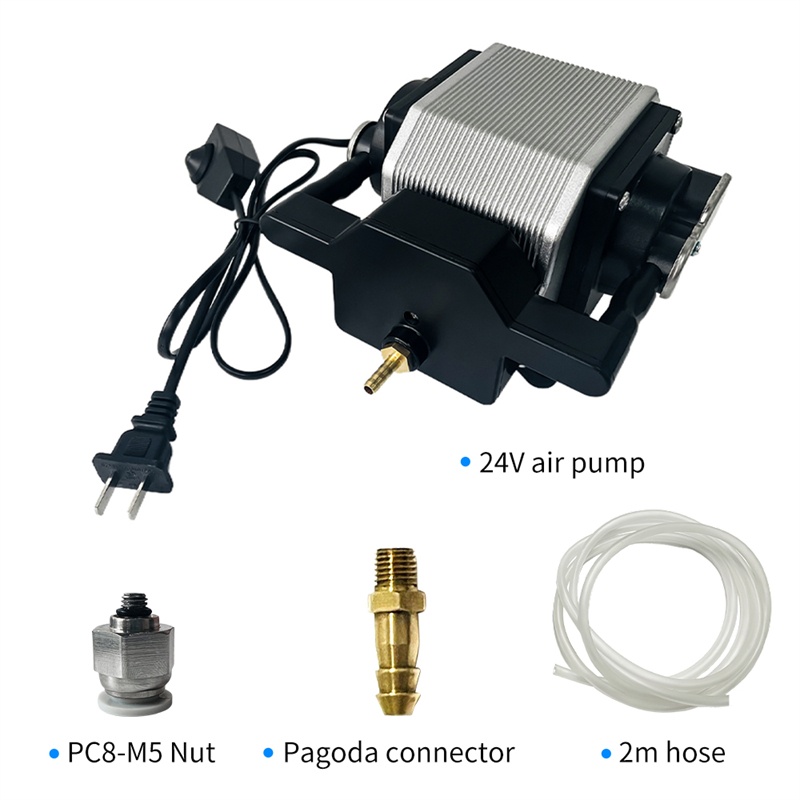

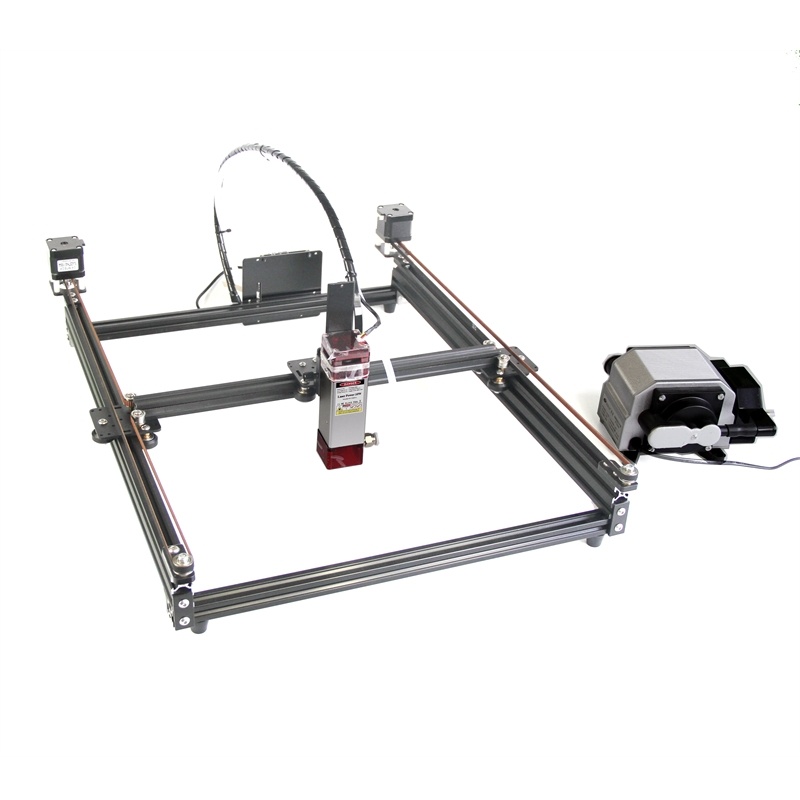

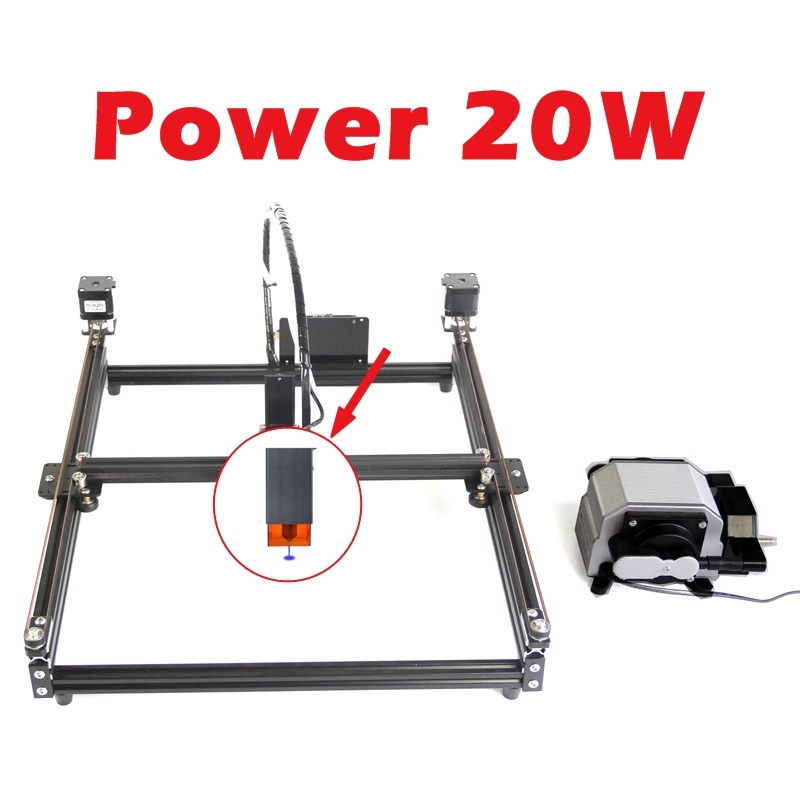

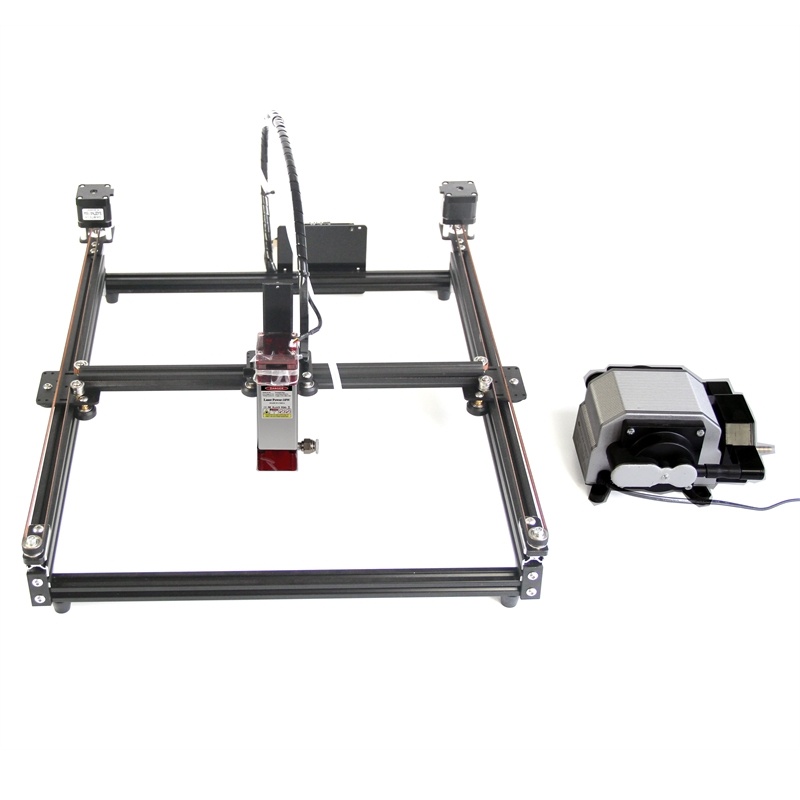

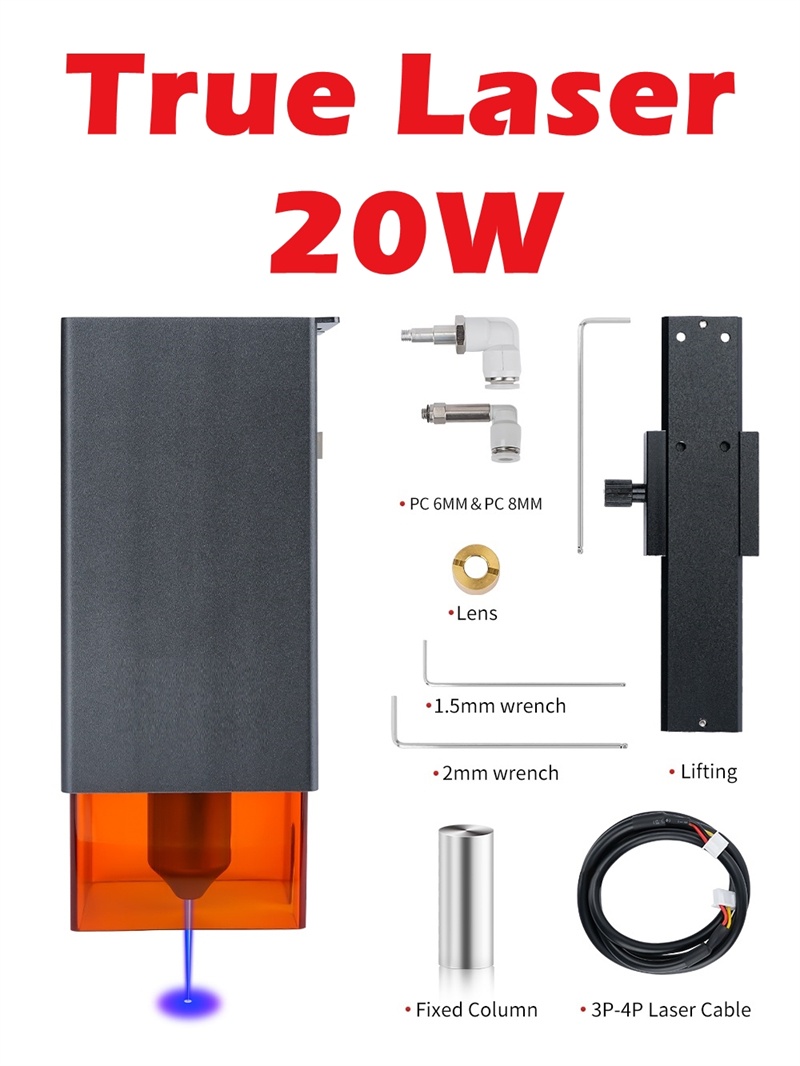

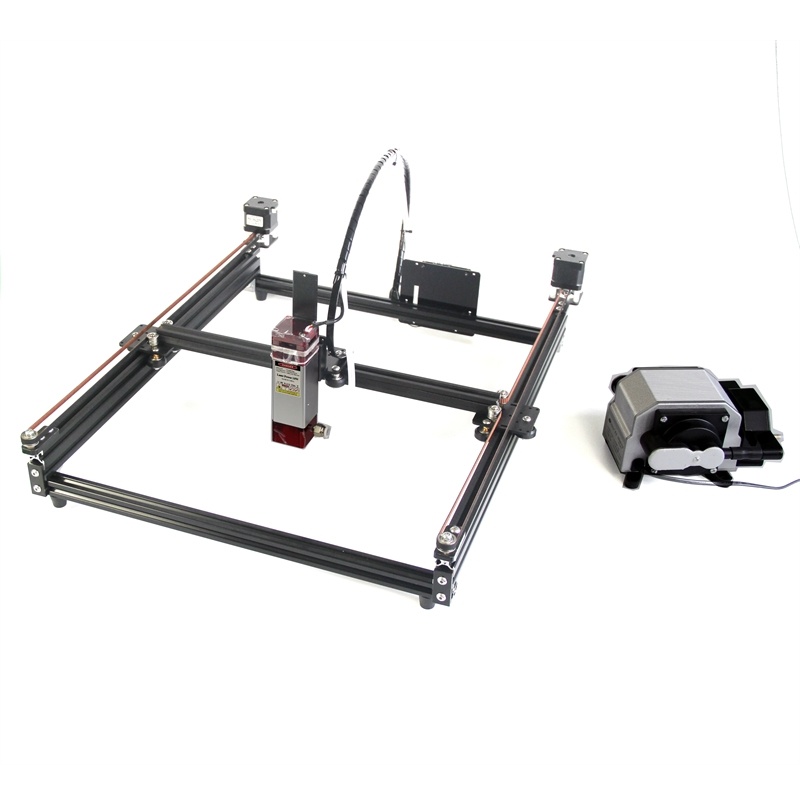

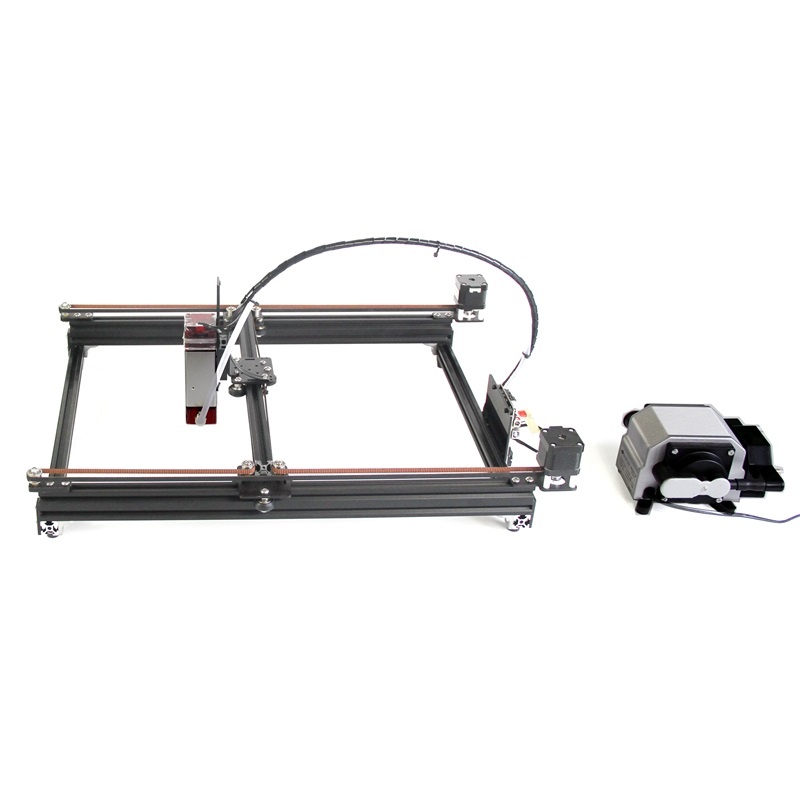

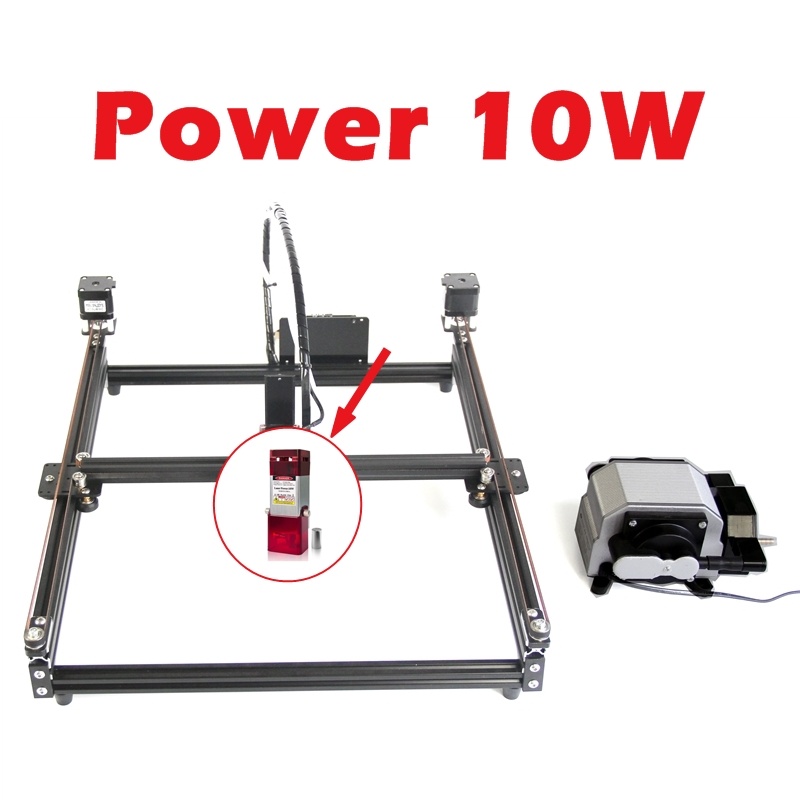

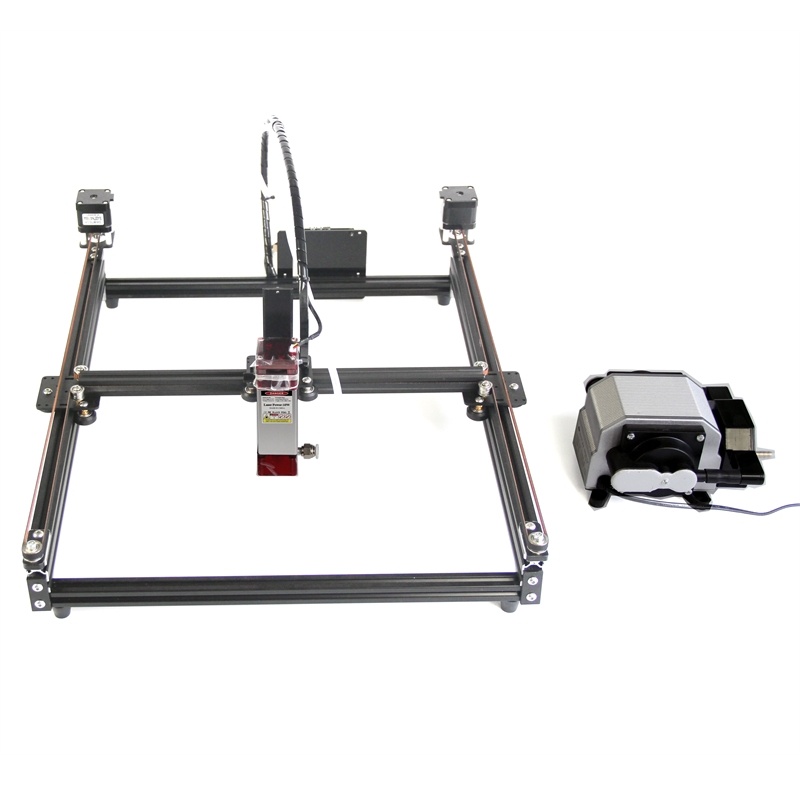

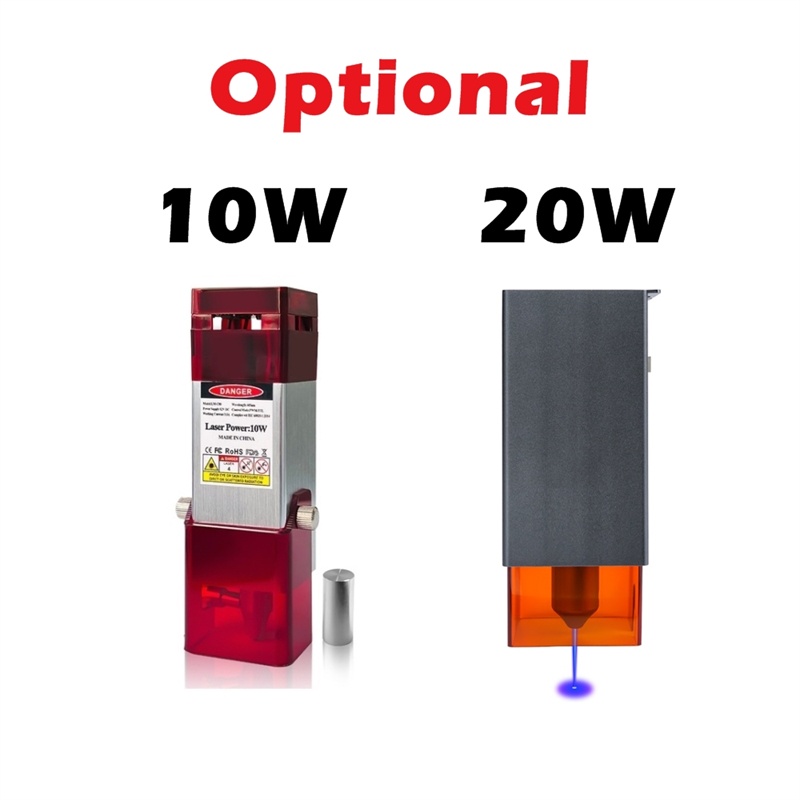

DIY Disassembled LY Frame Type Belt Pulley Laser Cutting Engraving Machine 455NM 10W Off-line Control Kit Size A0 A1 A2 A3 A4 A5 Support Web Wifi Android APP With Air Pump Optional 20W As Upgrade

DIY Disassembled LY Frame Type Belt Pulley Laser Cutting Engraving Machine 455NM 10W Off-line Control Kit Size A0 A1 A2 A3 A4 A5 Support Web Wifi Android APP With Air Pump Optional 20W As Upgrade

Common Features:

Power supply: 12V, 2A

Operation system: Win XP/Win7/Win10

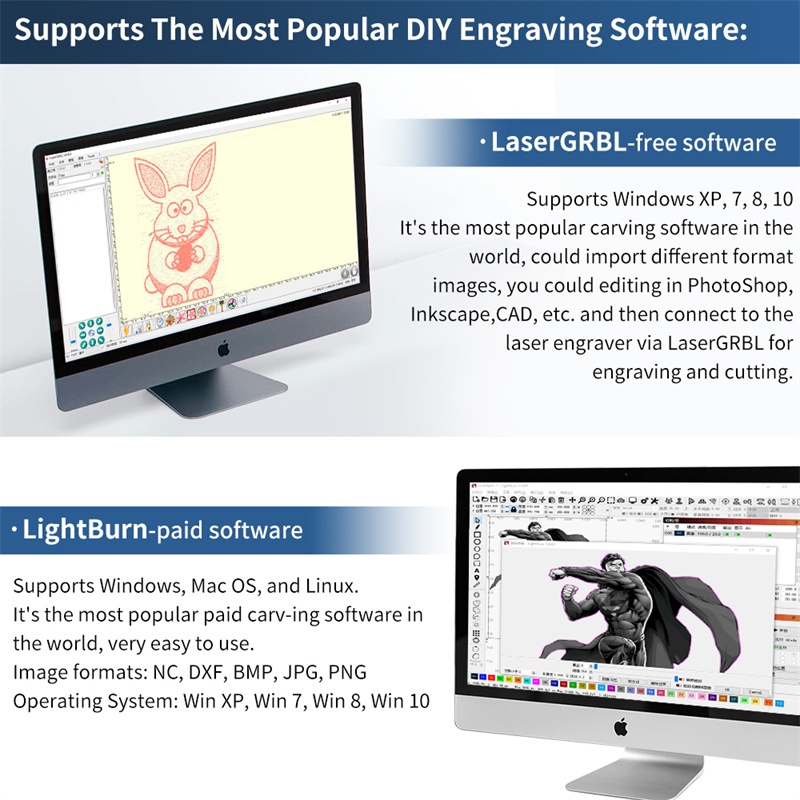

Support software: Inkscape (free),LaserGRBL (free), LightBurn (Need to pay)

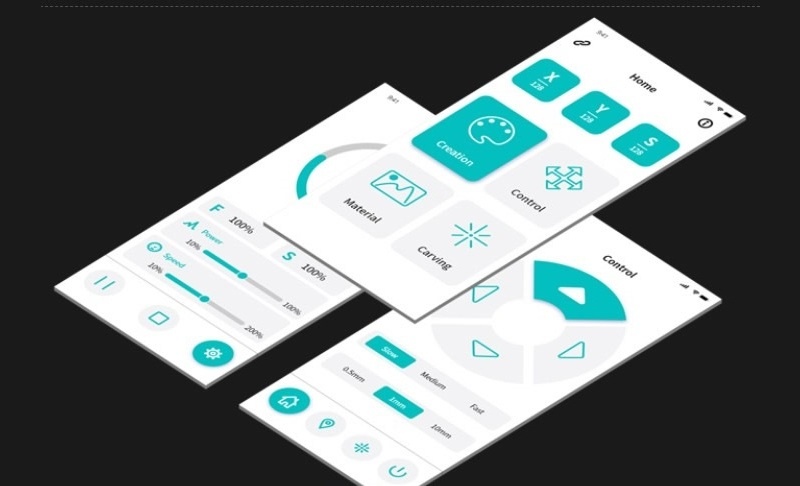

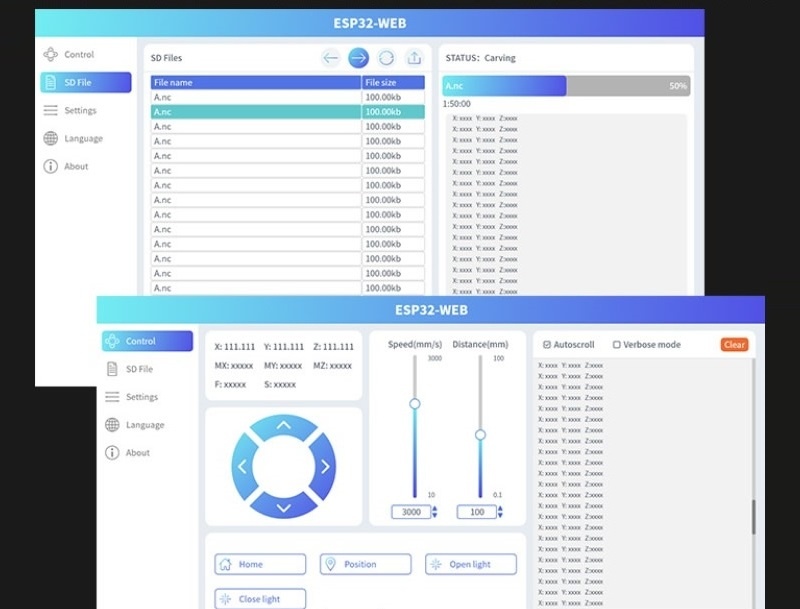

Support: web with wifi, Android app

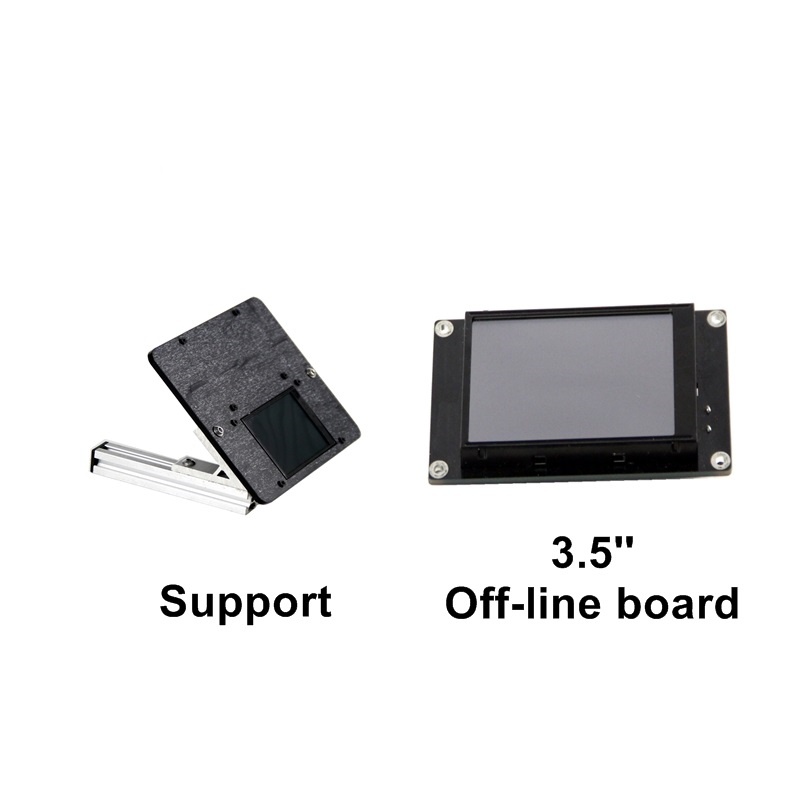

3.5 Inch Touch Screen Off line control board with stand support

Basic Spare Parts:

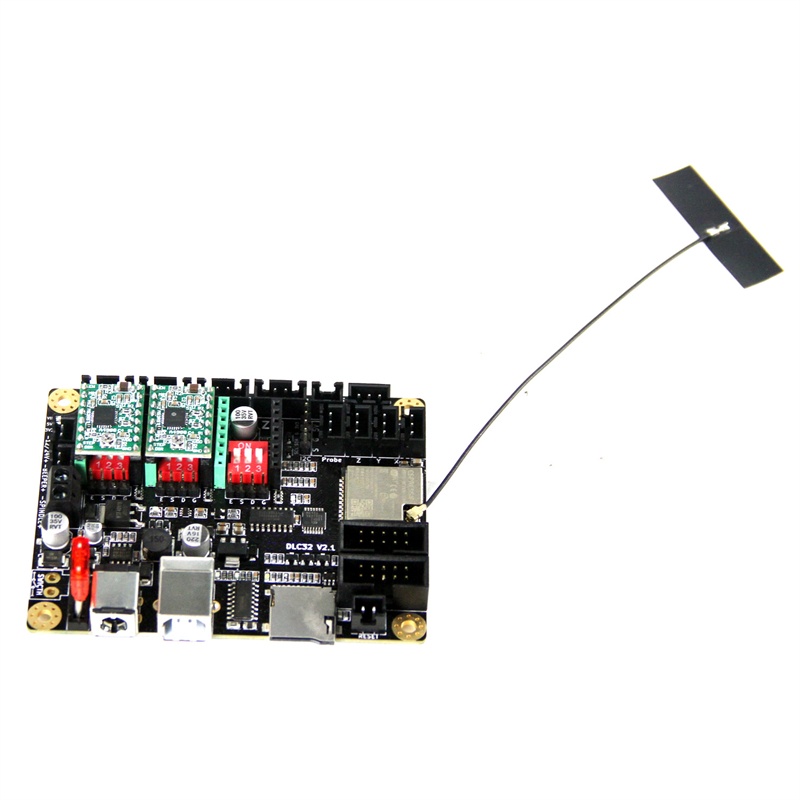

1, 1 set * 32bit controller with wifi（240MHZ）

2, 2 * A4988 stepper drive chip

3, 2 * stepper motor

4, 1 * 12V adapter

5, 3 set * linear guider parts

6, 1 set * 2020 and 2040 aluminum

7, 1 set * screw and nut

8, 1 set * bearing

9, 1 set * metal material

10, other parts

A5 version

Parameter description:

Equipment Size: 320MM * 410MM * 140MM (W * L * H)

Engraving area: 150MM*210MM

Weight: 7KG

A4 version

Parameter description:

Equipment Size: 380MM * 500MM * 140MM (W * L * H)

Engraving area: 210MM*300MM

Weight: 8KG

A3 Version

Parameter description:

Equipment Size: 470MM * 620MM * 140MM (W * L * H)

Engraving area: 300MM*420MM

Weight: 10KG

A2 Version

Parameter description:

Equipment Size: 590MM * 795MM * 140MM (W * L * H)

Engraving area: 420MM*594MM

Weight: 11KG

A1 Version

Parameter description:

Equipment Size: 760MM * 1040MM * 140MM (W * L * H)

Engraving area: 594MM*841MM

Weight: 13KG

A0 Version

Parameter description:

Equipment Size: 1010MM * 1390MM * 140MM (W * L * H)

Engraving area: 841MM*1189MM

Weight: 16KG
