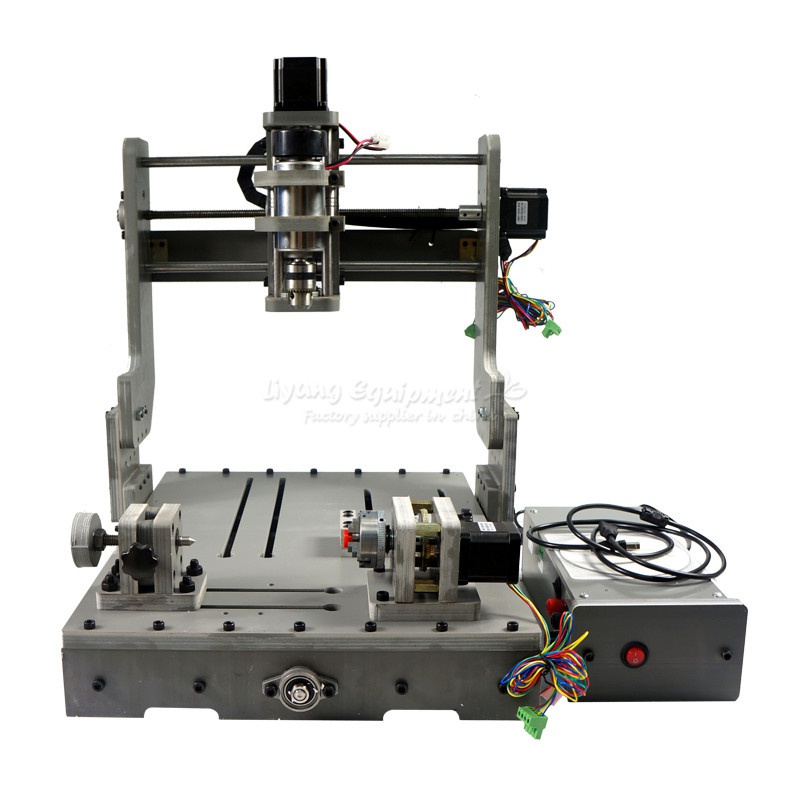

Engraving machine DIYCNC 3040 CNC Router Engraving Drilling and Milling Machine usb version
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty
Model and Technical Parameters
| MODEL | CNC3040 | |||
| Attribute | 3axisLPT | 3axisUSB | 4axisLPT | 4axisUSB |
| Axis | 3axis | 3axis | 4axis | 4axis |
| Interface | LPT Port | USB Port | LPT Port | USB Port |
| Spindle Motor: | 300W | 300W | 300W | 300W |
| Weigh | 24 | 24 | 28 | 28 |
| Max. working stroke | XYZ=300*400*120mm | |||

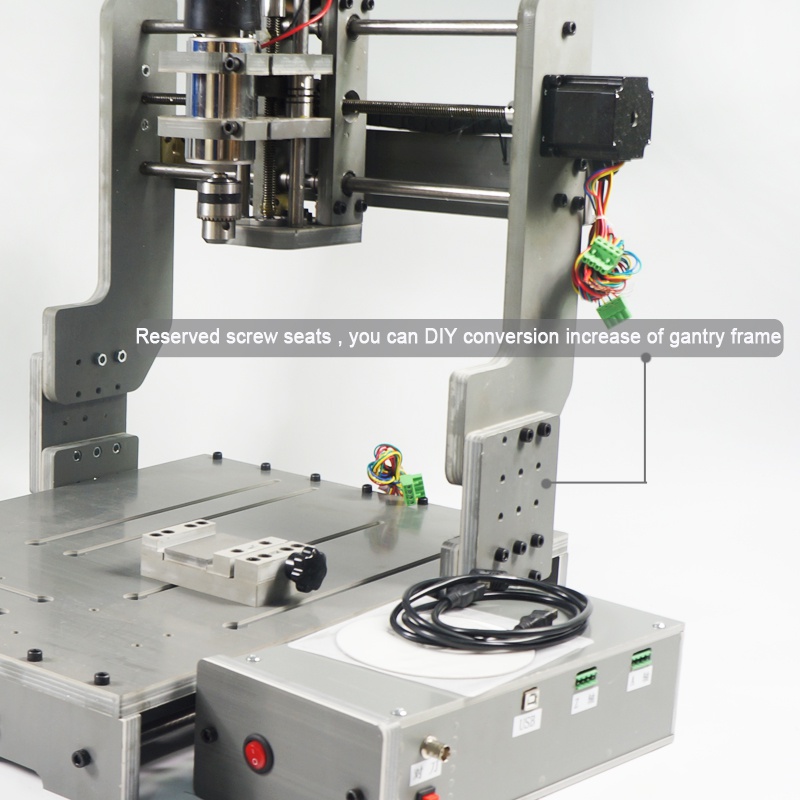

| Acceptable material thickness | ≤80mmor 150mm
You can diy conversion increase of gantry frame |
|||
| Rail type | X and Y and Z axis to hard shaft diameter of 12 mm, Three axis are 10mm stainless steel screw, with double nut back to poor organization |
|||
| Spindle motor |
300W DC spindle ,0-11000r/min |
|||
| Collet type |
Drill Chuck |
|||

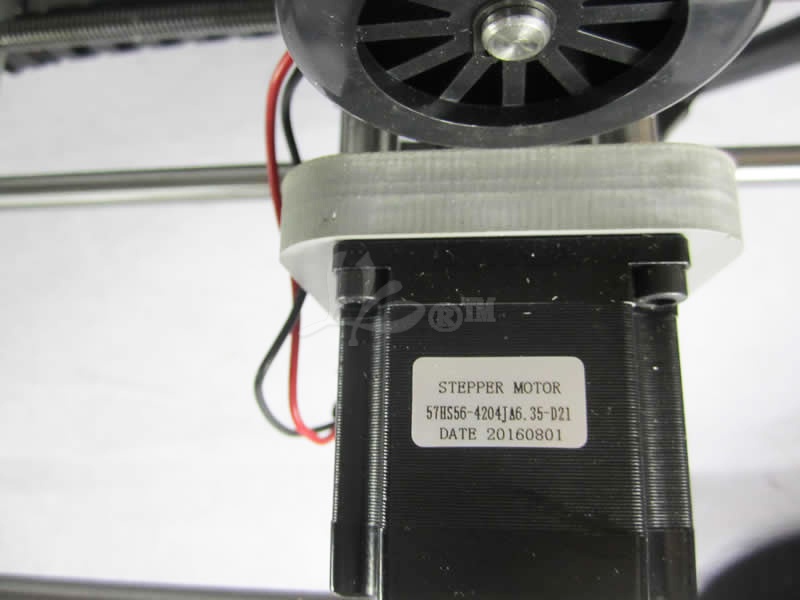

| Stepper motor and drive |
57HS56 |
|||
| Maximum operating speed |
2500mm/min (Engraving speed : 300-2500mm/min) |
|||
| Repeat positioning Accuracy |
0.03mm |
|||

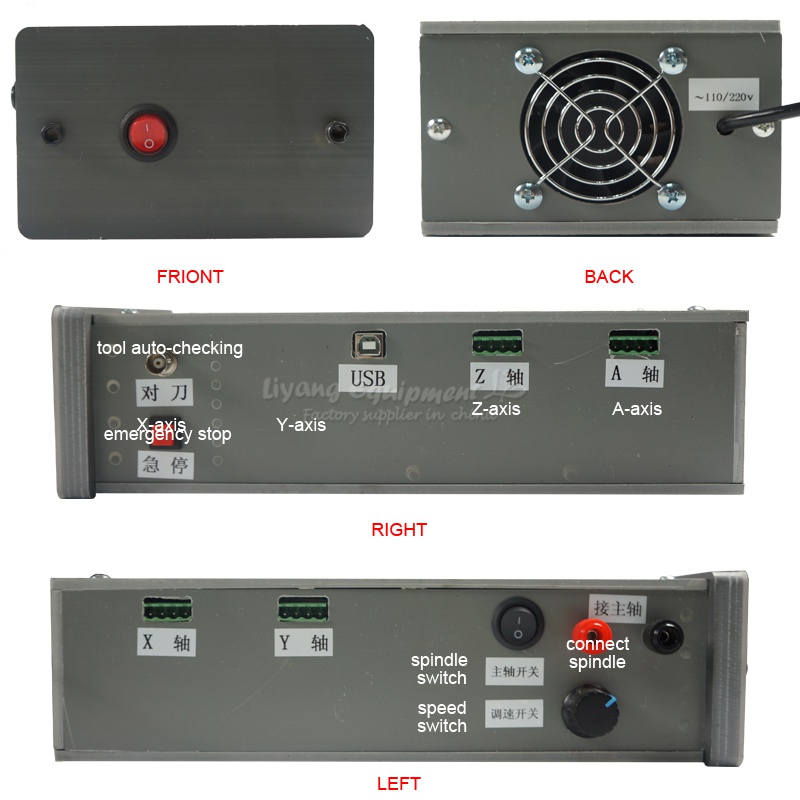

| Communication interface |
LPT port or USB port |
|||
| System requirements | Win-XP / Win 7 32 bit or 64 bit operating system | |||
| Software Co
patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|||
| Command code |
G code/.nc/.ncc/.tab/.txt |
|||
| Machine weight |
24kg |
|||

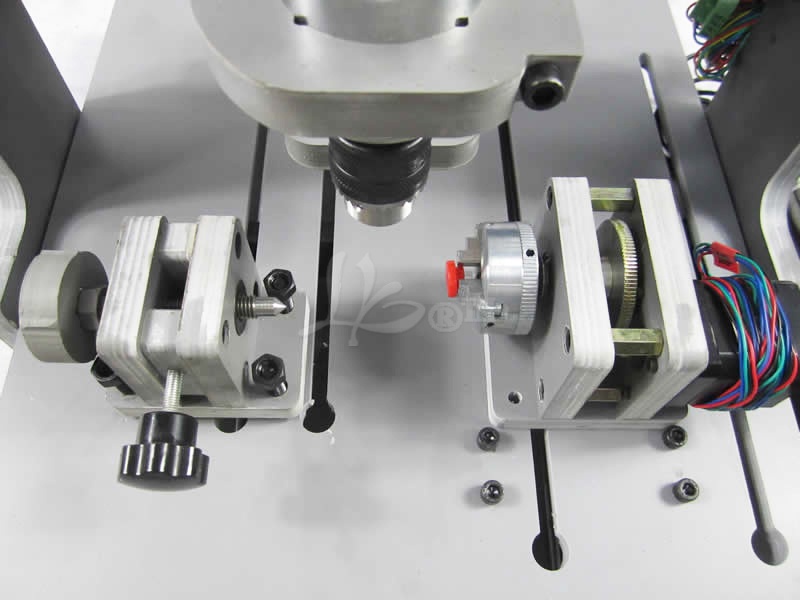

| Rotation Axis (4th Axis) | Weight: 3kg | |||
