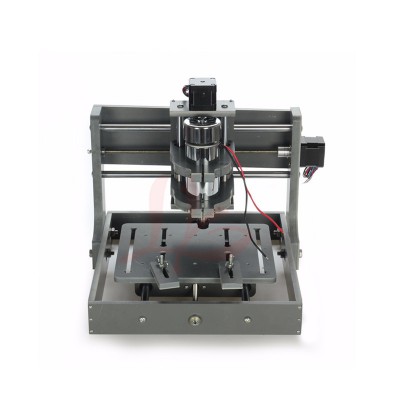

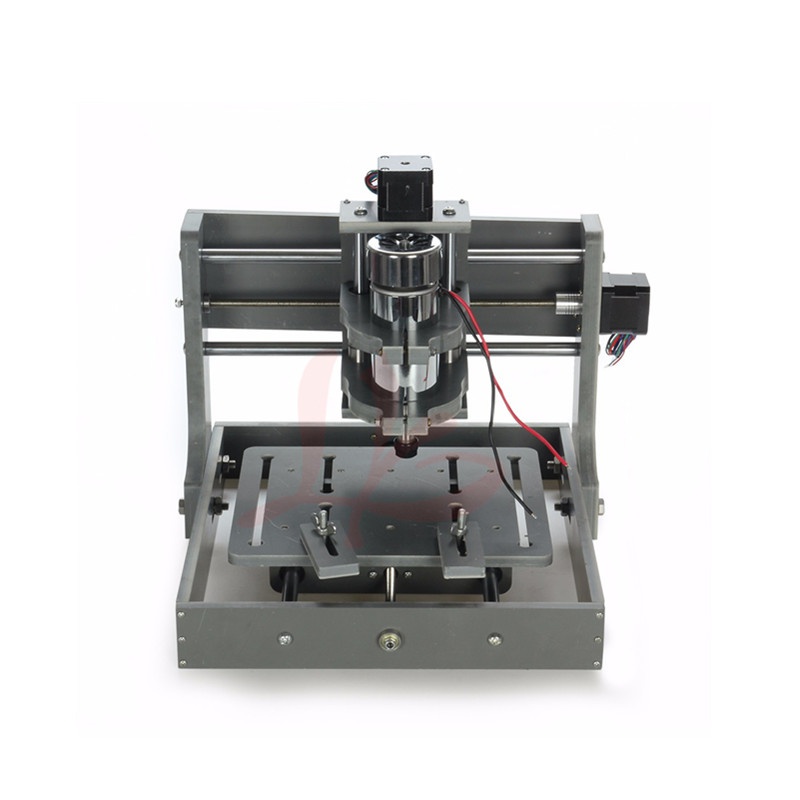

DIY CNC Frame or Router machine 2020 Engraving Drilling and Milling Machine with motors spindle or without

Introduction

This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;

Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;

It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.

It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.

More Precise Stepping Motor

Simple operation and installation

1 year machine part and 6 months electrical parts、stepping motor、spindle Free Warranty

Feature

1. Support MACH3 System.

2. Suitable for engraving PVC PCB wood materials.

3. Working table size 200 * 200 * 70mm

4. Equipped with a 300W high-speed spindle

5. With English installation manual, simply operation

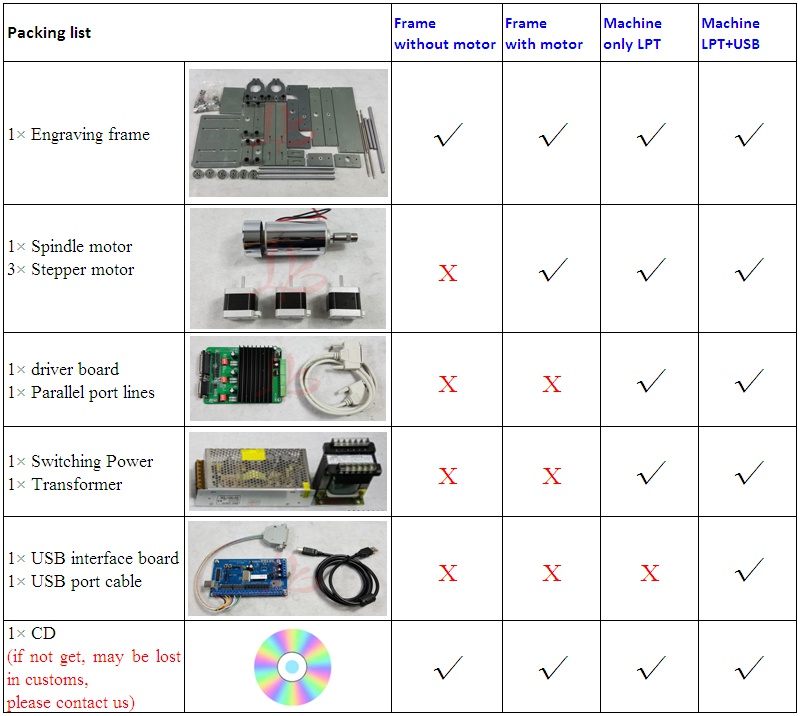

Model and Technical Parameters

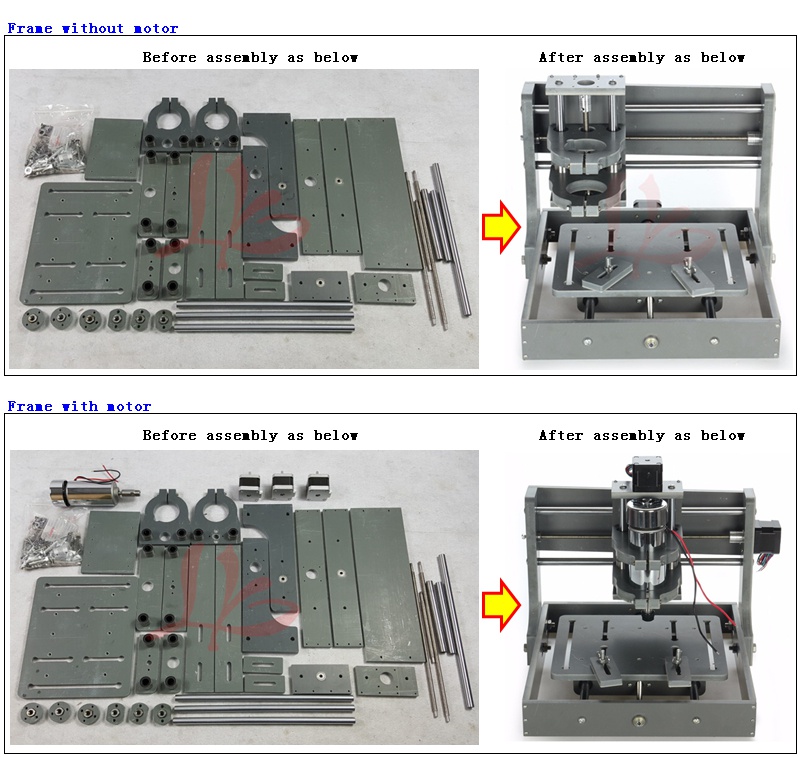

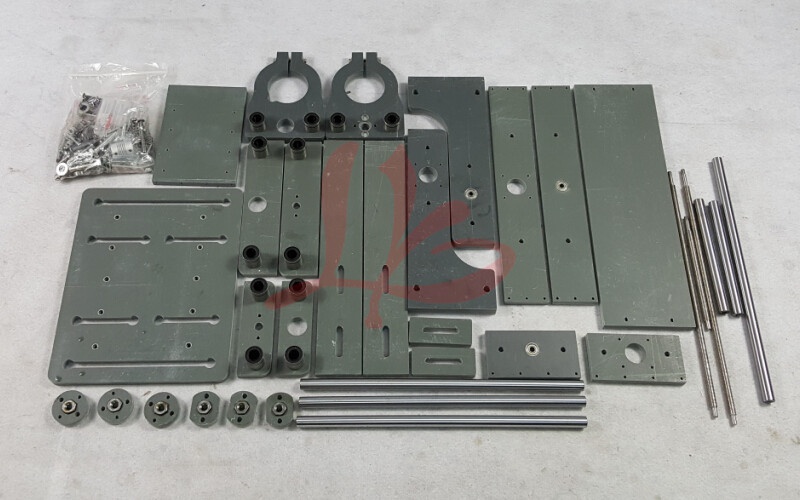

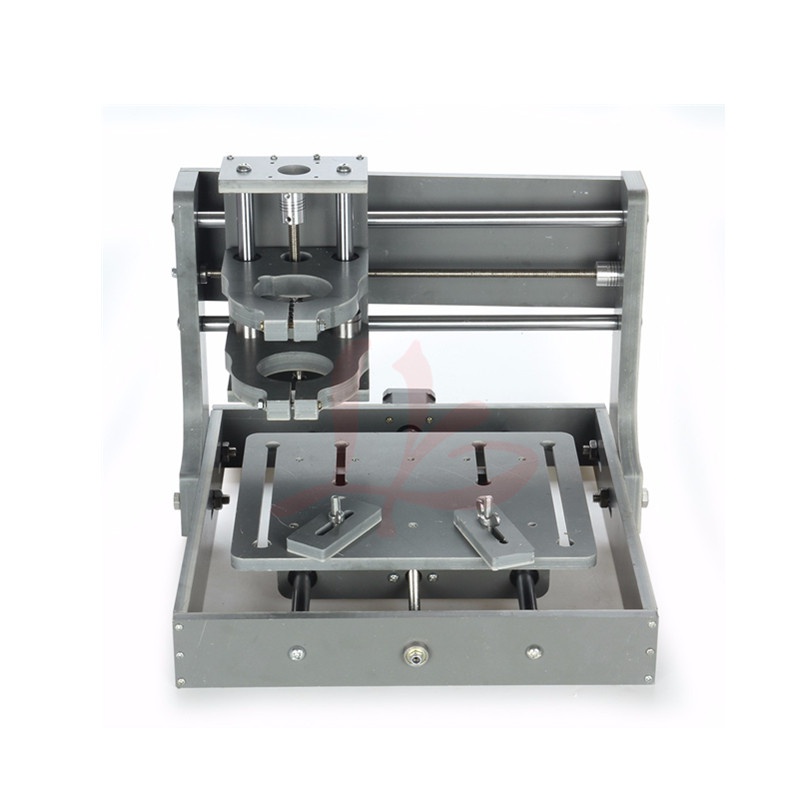

without motorFrame

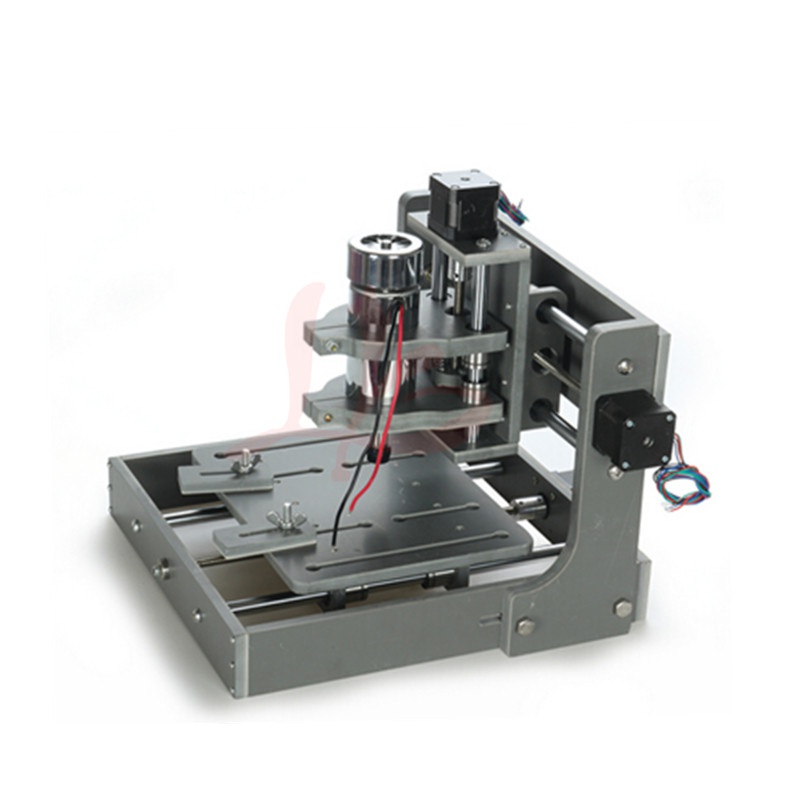

with motorMachine

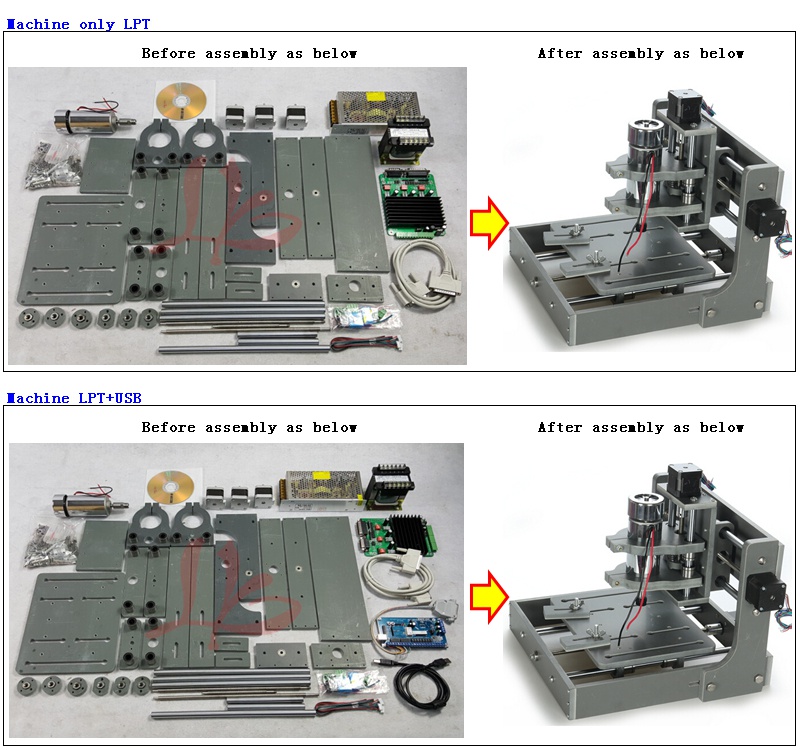

only LPTMachine

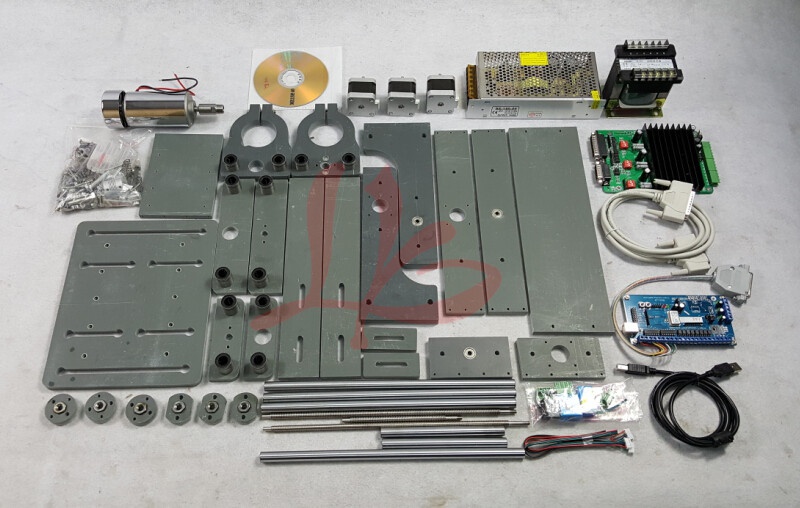

LPT+USBAxis3axis3axis4axis4axisInterfaceNoNoLPT portLPT+USB portSpindle Motor:NoNo300W300WWeigh7.59.511.812

Machine Dimensions

600X700X500mm

Table structure

10mm PCB

Lead screw

M8 threaded stainless steel Lead screw triangle

Engraving area

200X200X70mm

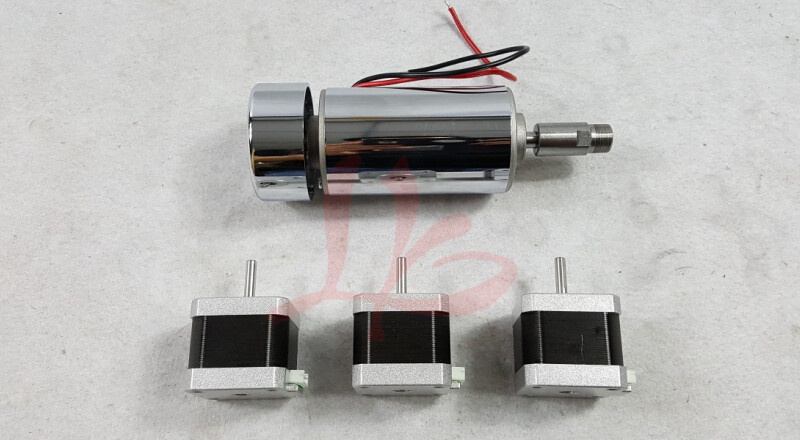

Spindle motor

300W high-speed (10,000 rpm)

Collet type

ER11,1/8″(3.175mm) Collet

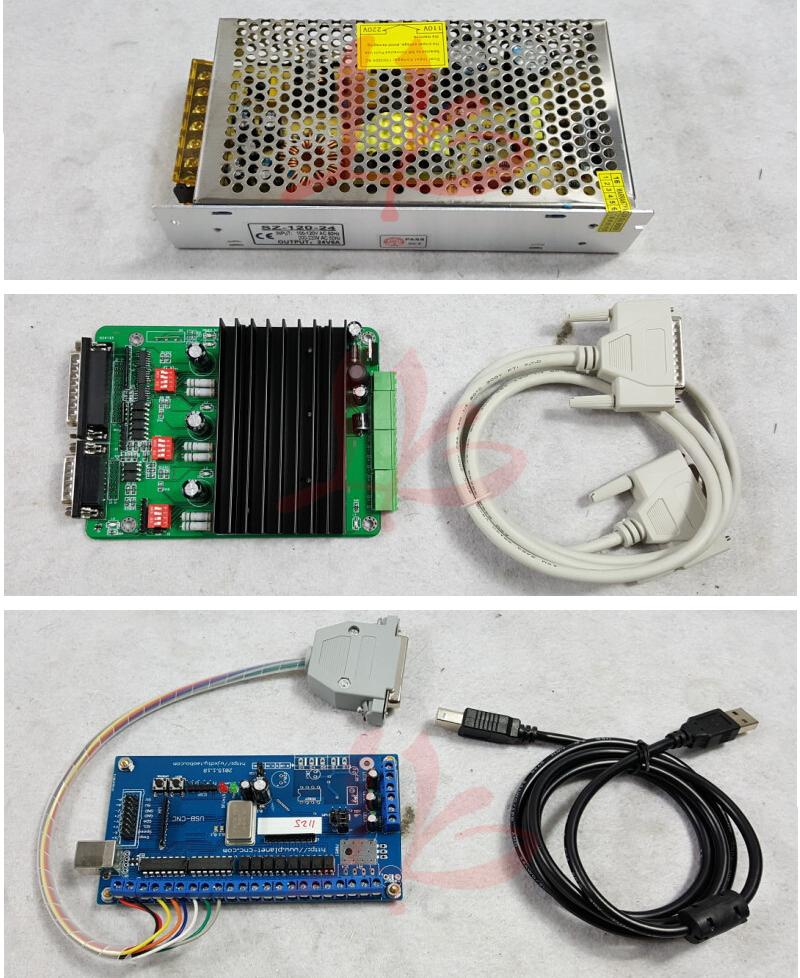

Stepper motor and drive

NEMA17 Stepper motor

Current of Driver

1.68A

Resolution ratio

0.02mm

MAX. moving speed

4000 mm/min

Software Compatability

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code

G code/.nc/.ncc/.tab/.txt
