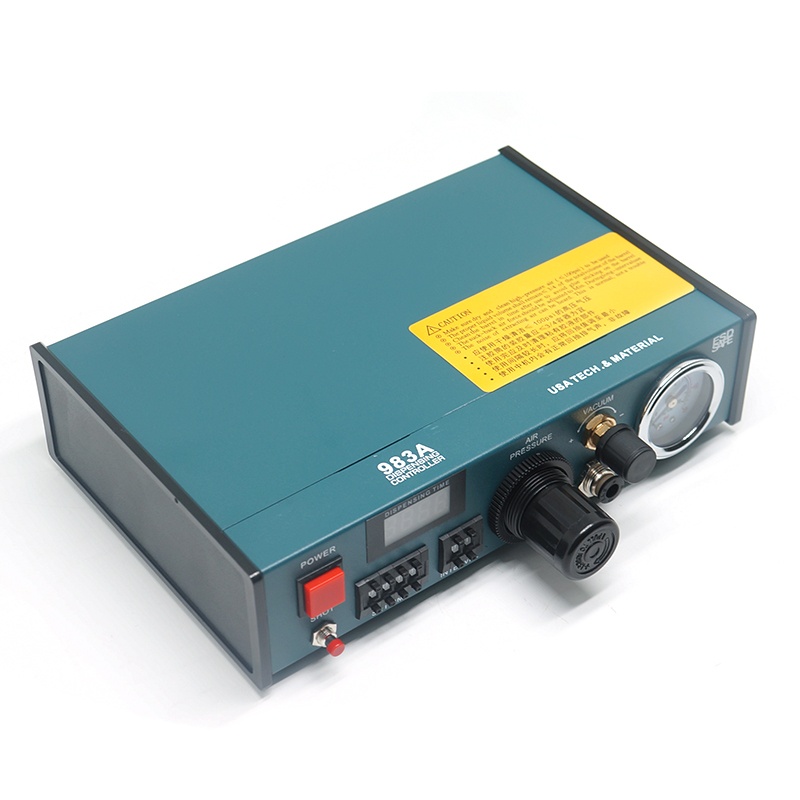

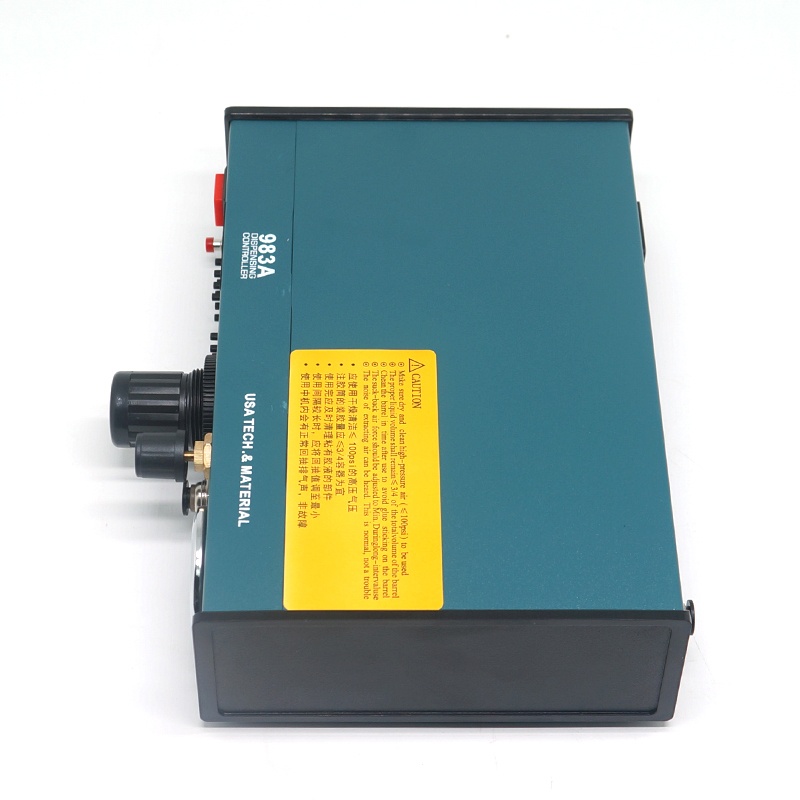

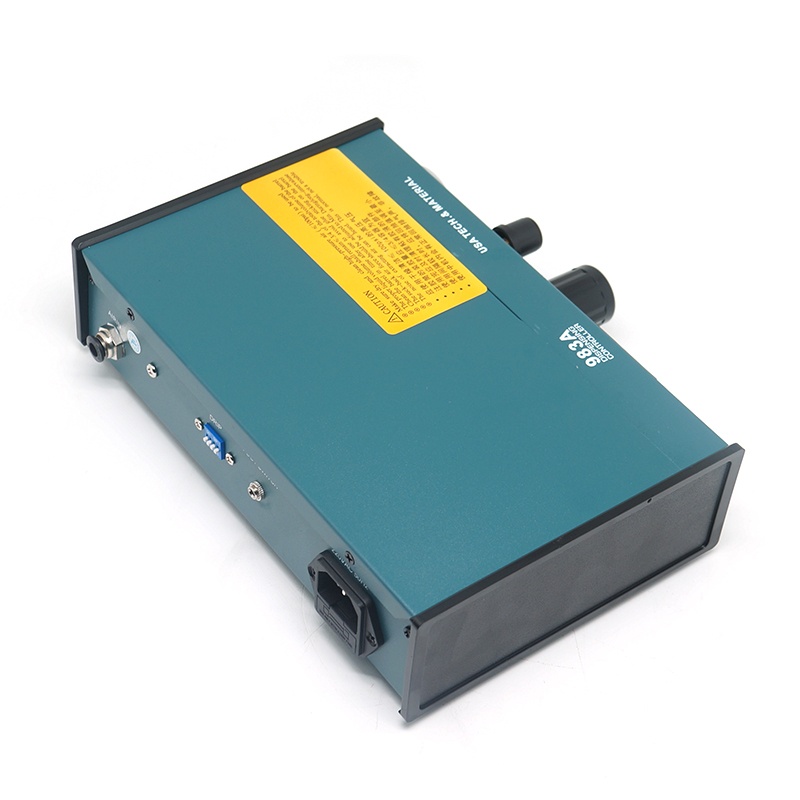

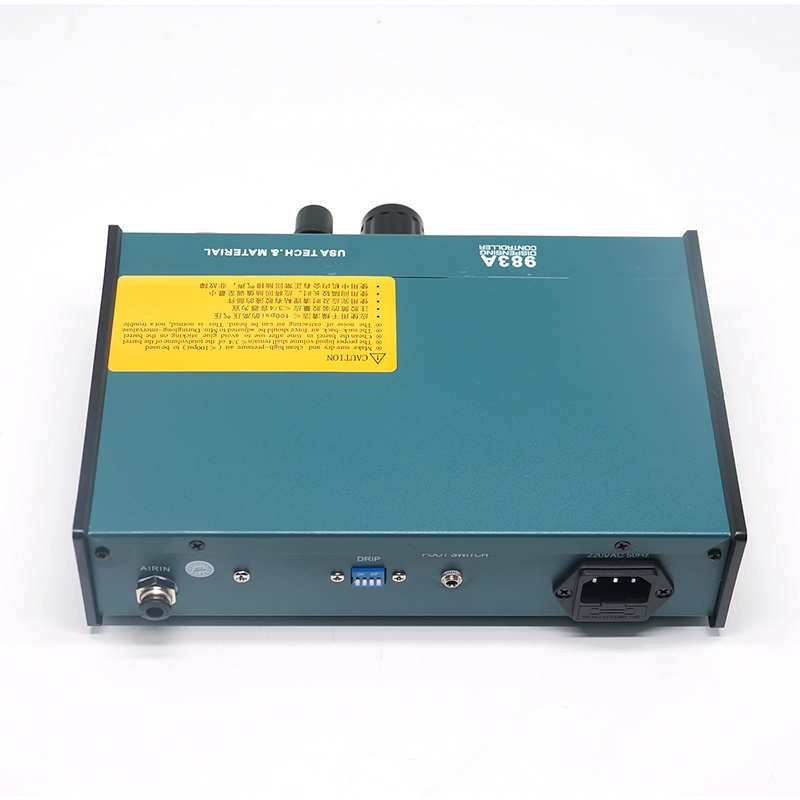

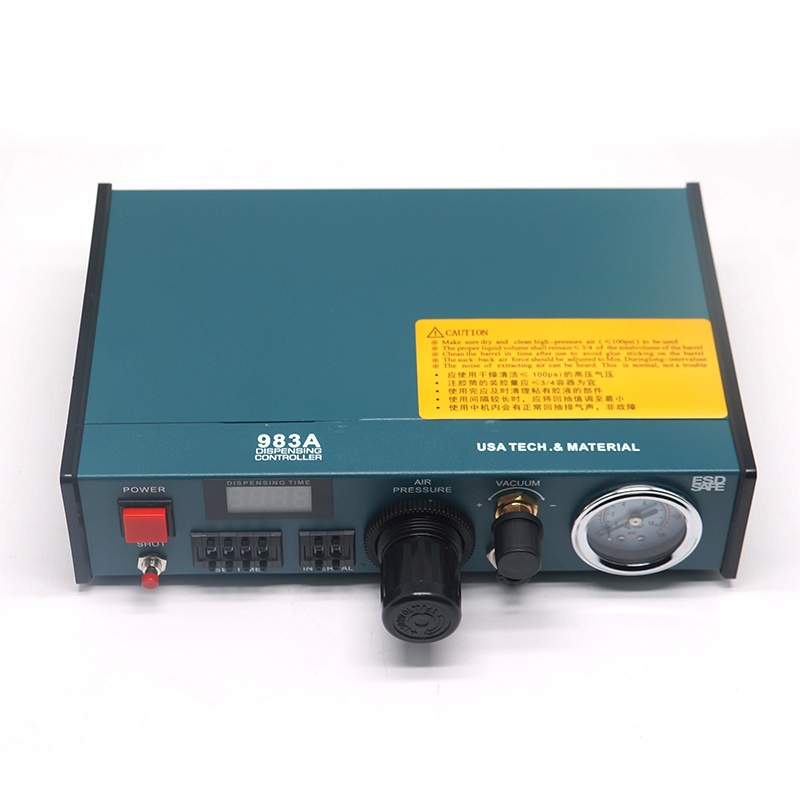

Auto Glue Dispenser Solder Paste Liquid Controller Dropper Fluid dispenser YDL-983A 220V 110V
Digital timed air dispenser plus the function of cycle dispensing and time display.
Dispensing material include solder paste, glue, adhesives, grease, sealant, silicone, RTV, cyanoacrylate, anaerobic and UV cure resins etc.
Features:
• Manual or timer operation modes
• Foot pedal controlled
• Suck-back feature ensure no dripping
• Designed for wide range of application as EFD, I&J Fisnar

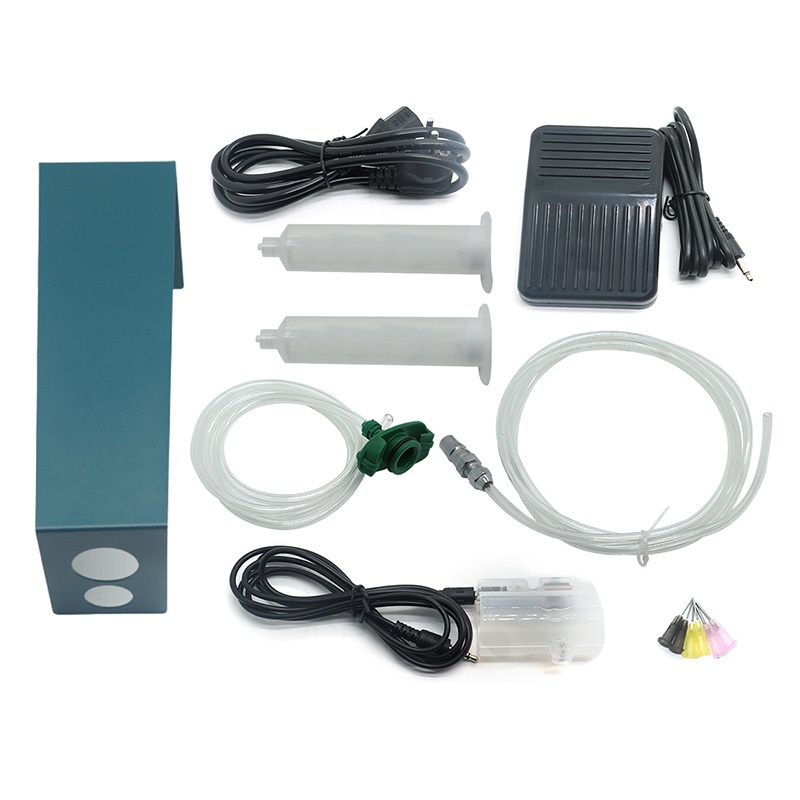

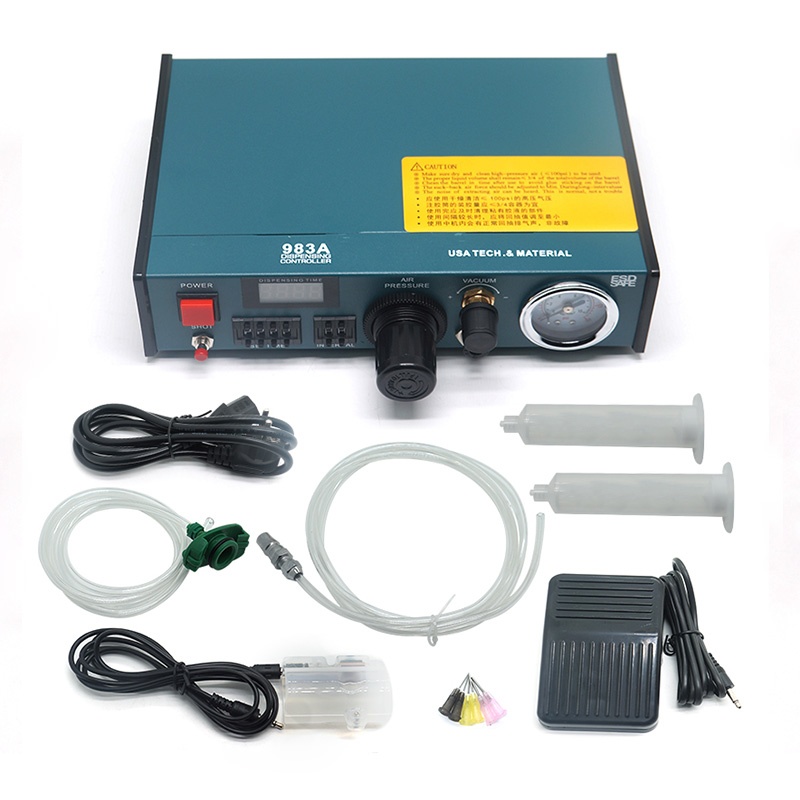

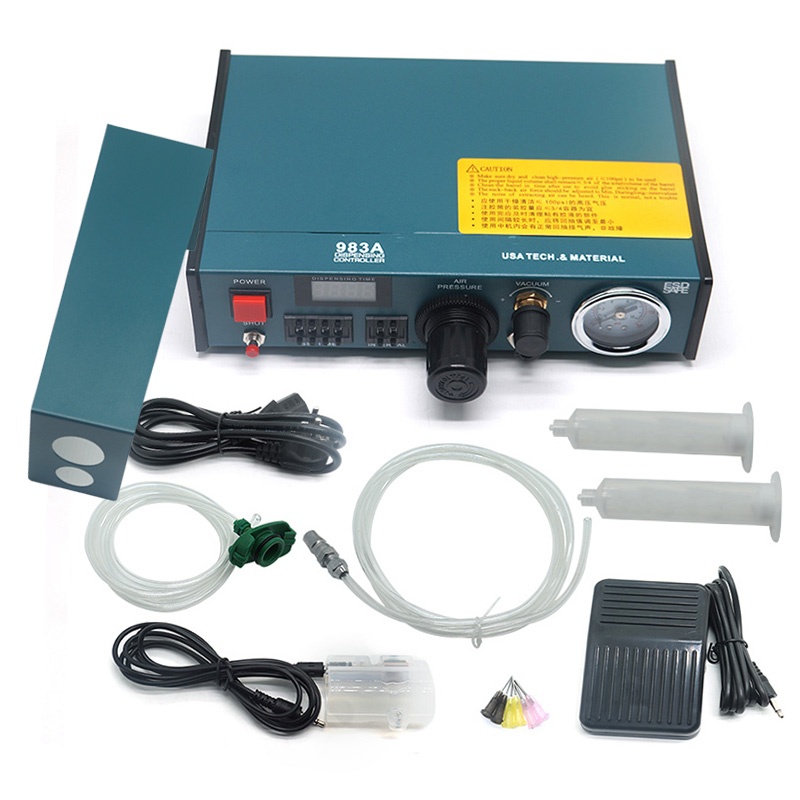

• Complete with an accessory dispensing kit
• Timer mode dispensing time 0.01-99.99 seconds
• Timer mode cycle time 0.1-9.9 seconds
• Manual mode, materials could be dispensed continuously until operator release the foot pedal
• This unit need to be connected to air compressor (1.5HP or above)
| Size : | 23.5 x 20.5 x 6.3 cm |
| Timer mode dispensing time : | 0.01-99.99 seconds |
| Timer mode cycle interval : | 0.1-9.9 seconds |
| Manual mode dispensing time : | Controlled by the foot pedal |
| Input voltage : | 220V |
| Internal voltage : | 24VDC |
| Air input : | 70-100 psi |
| Air output : | 1-100 psi |
| packing Weight : | 3 kg |
Thanks for your order!

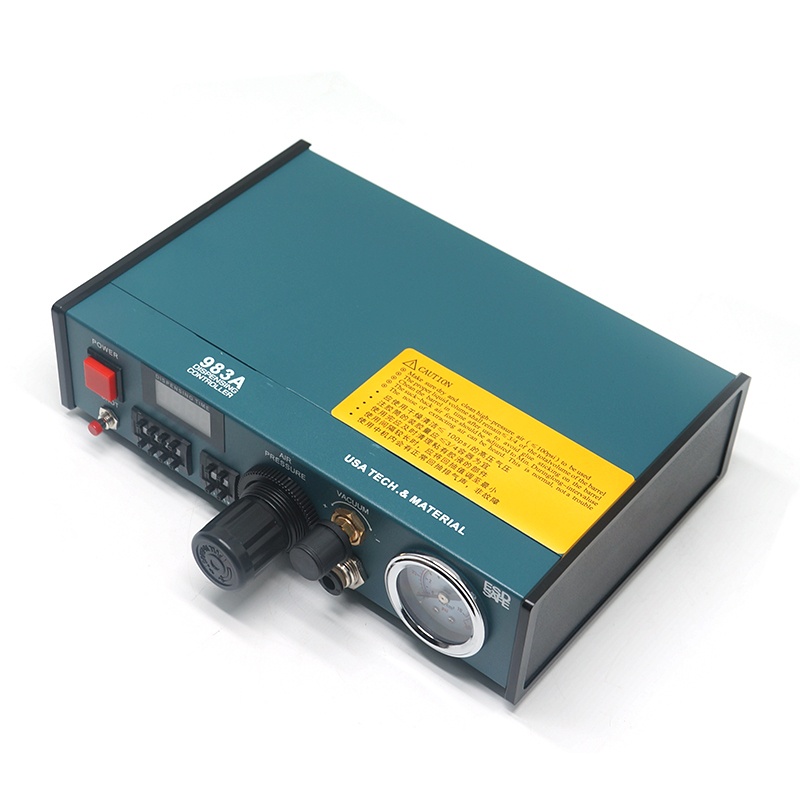

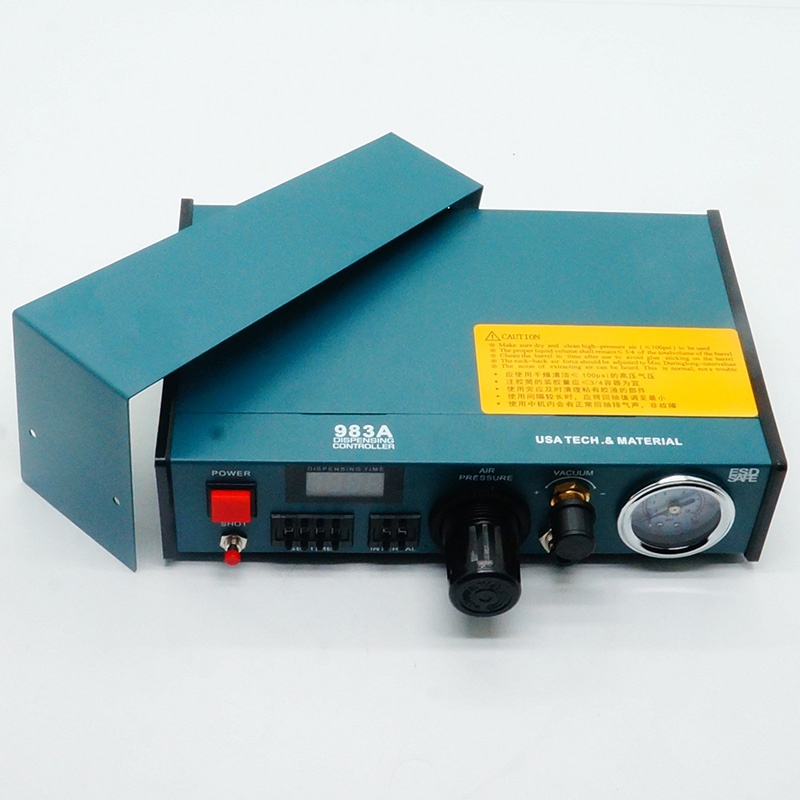

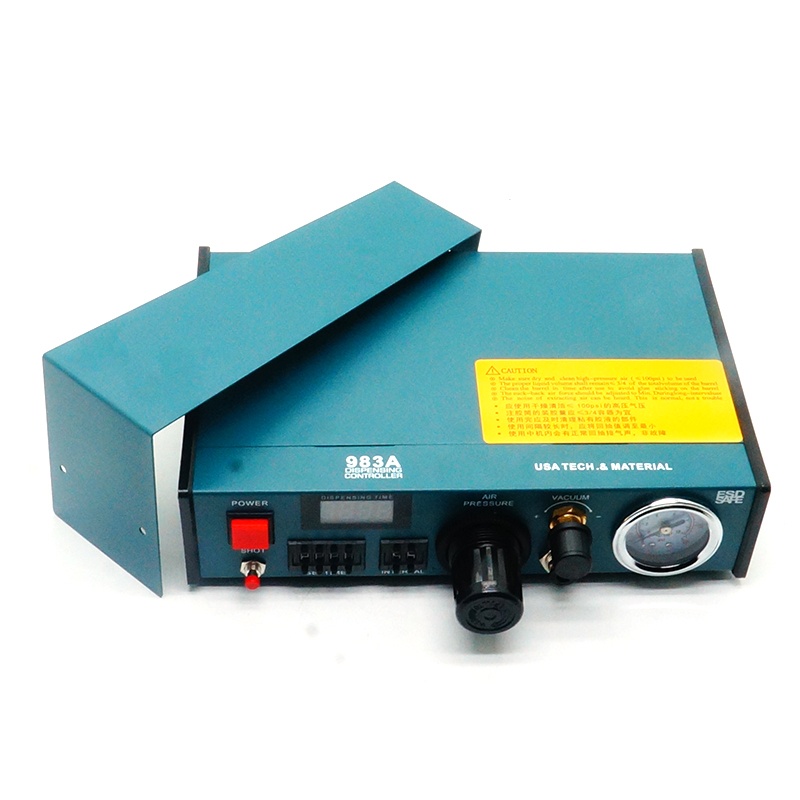

Product Pictures
