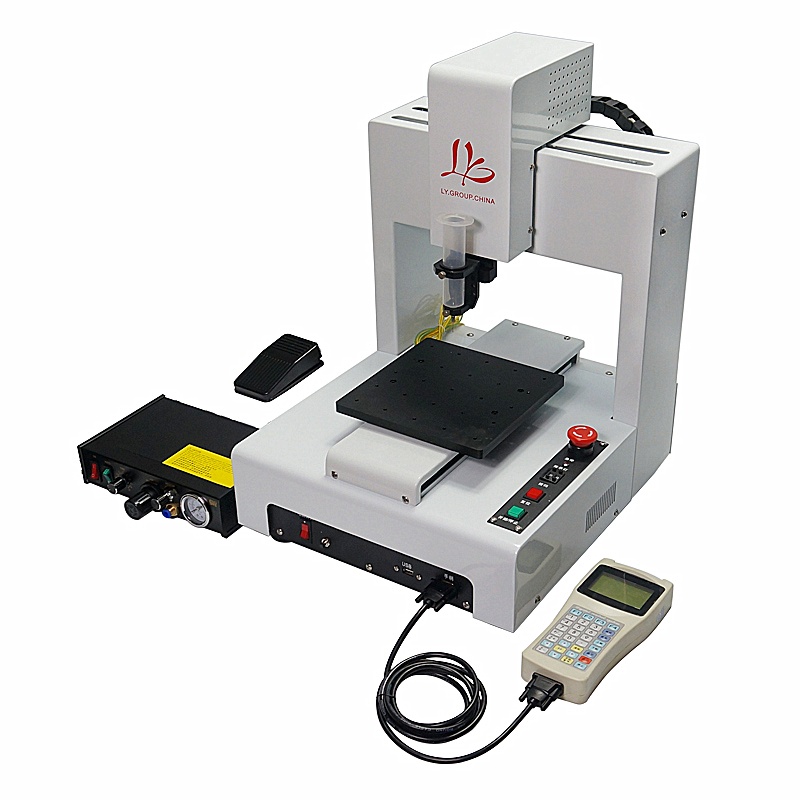

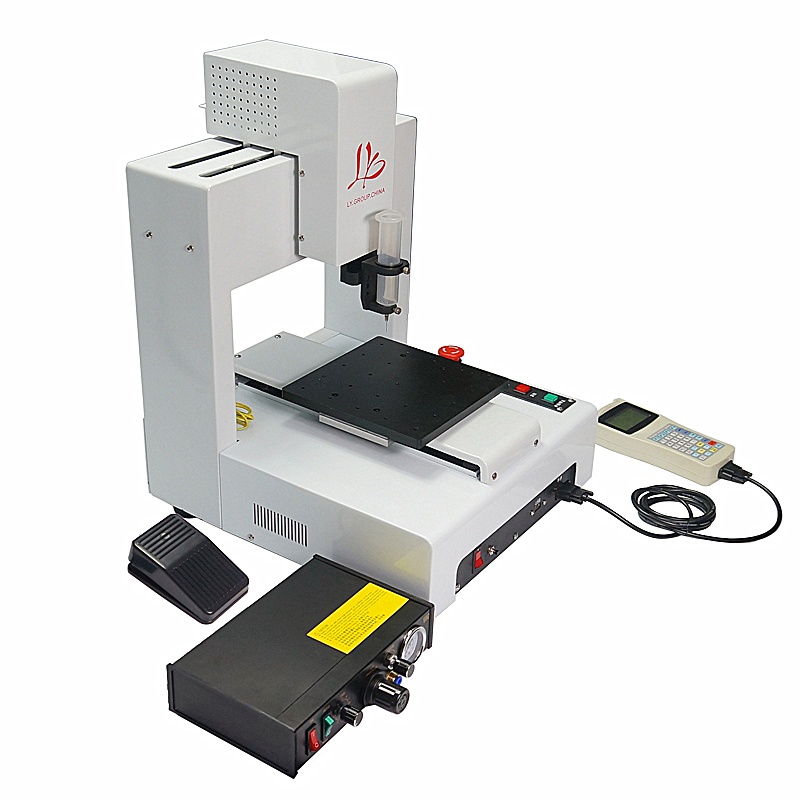

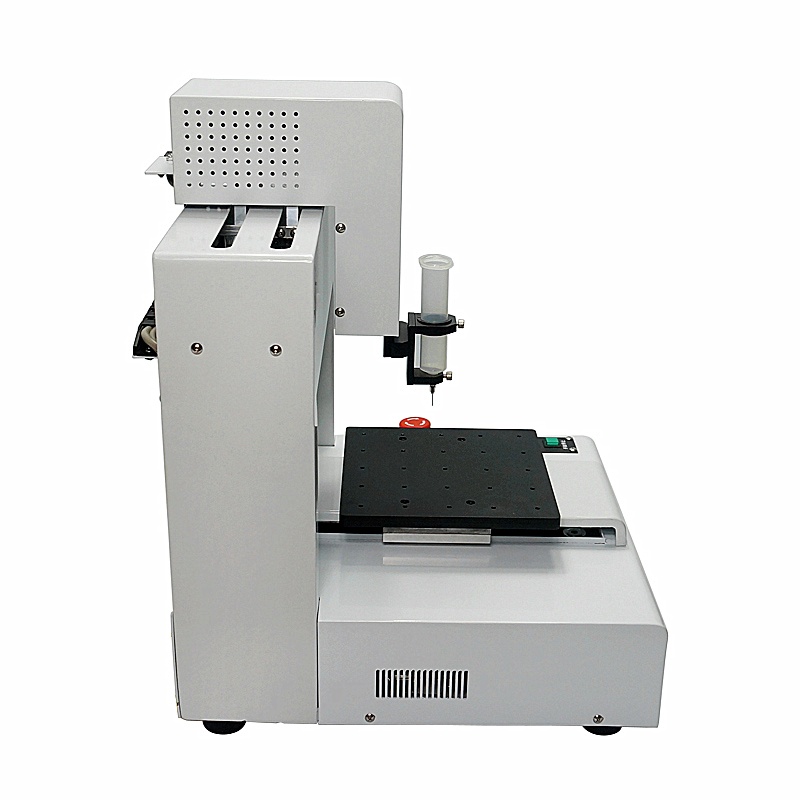

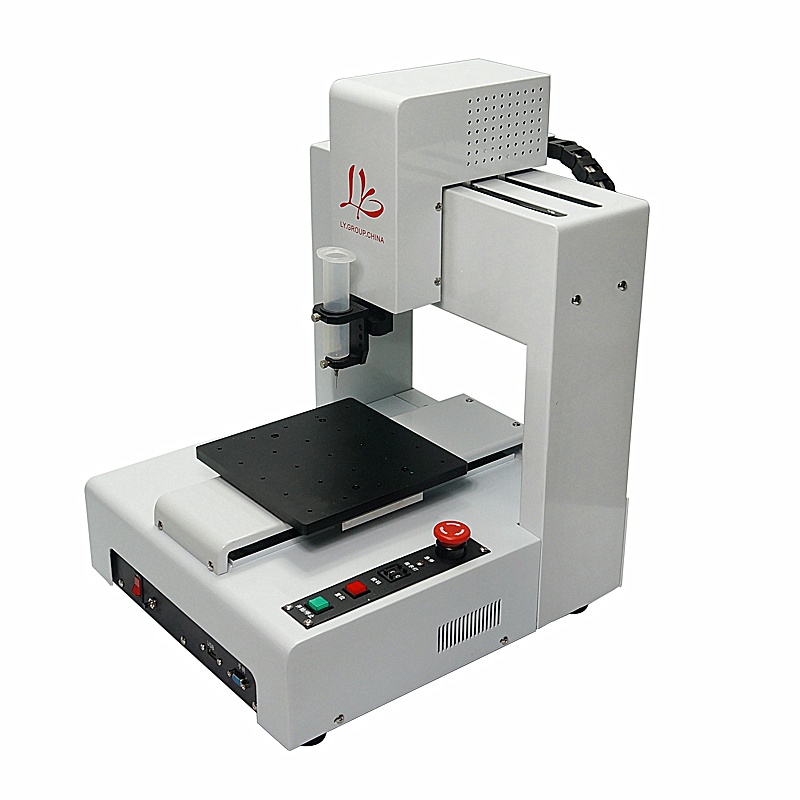

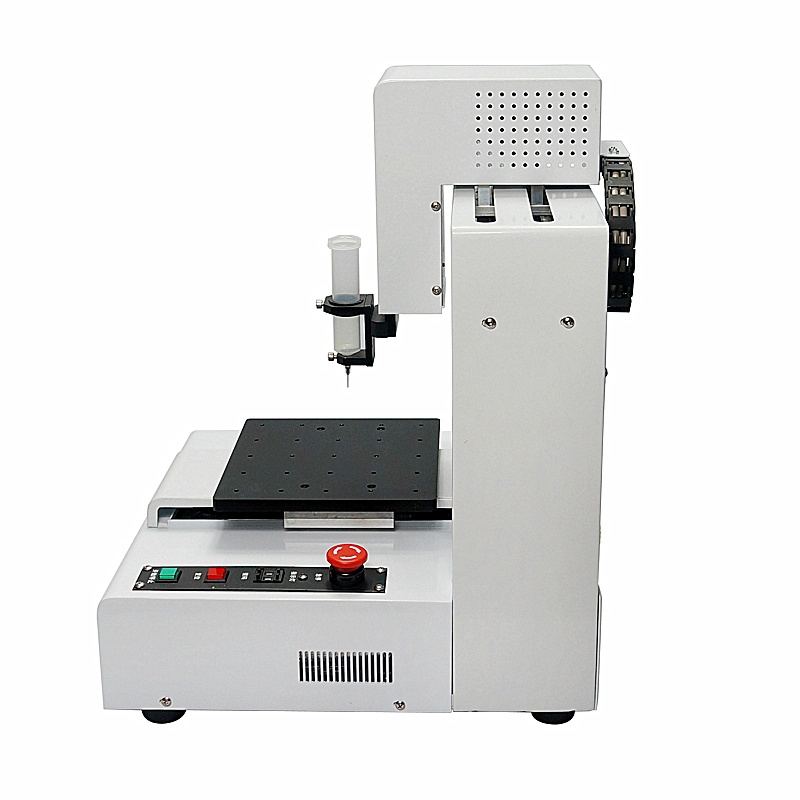

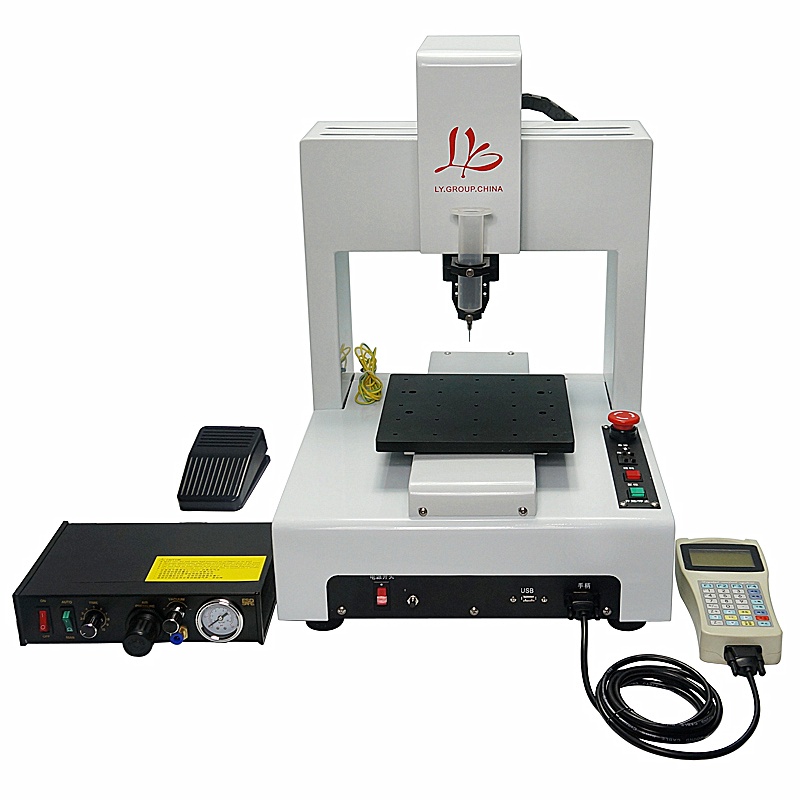

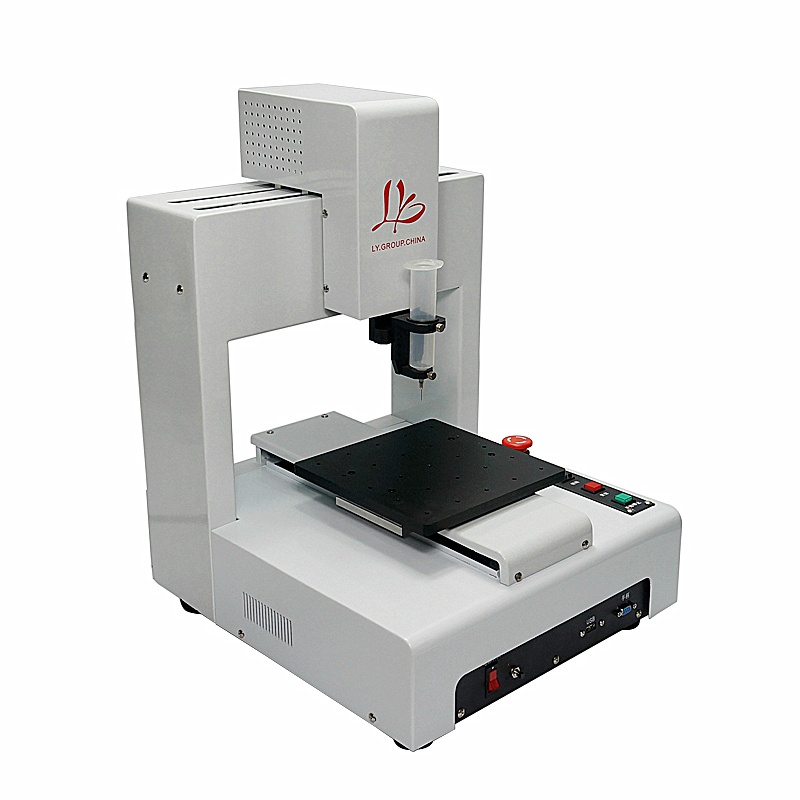

LY-221 automatic glue dispenser 3 axis compatible for mobile frame glue dispensing works 110V/220V

LY-221 automatic glue dispenser 3 axis compatible for mobile frame glue dispensing works 110V/220V

Video:

https://www.youtube.com/watch?v=60DQjtJHuZI&feature=youtu.be

Introduction

Product name: desktop type automatic cavity manipulator
product model: LY-221

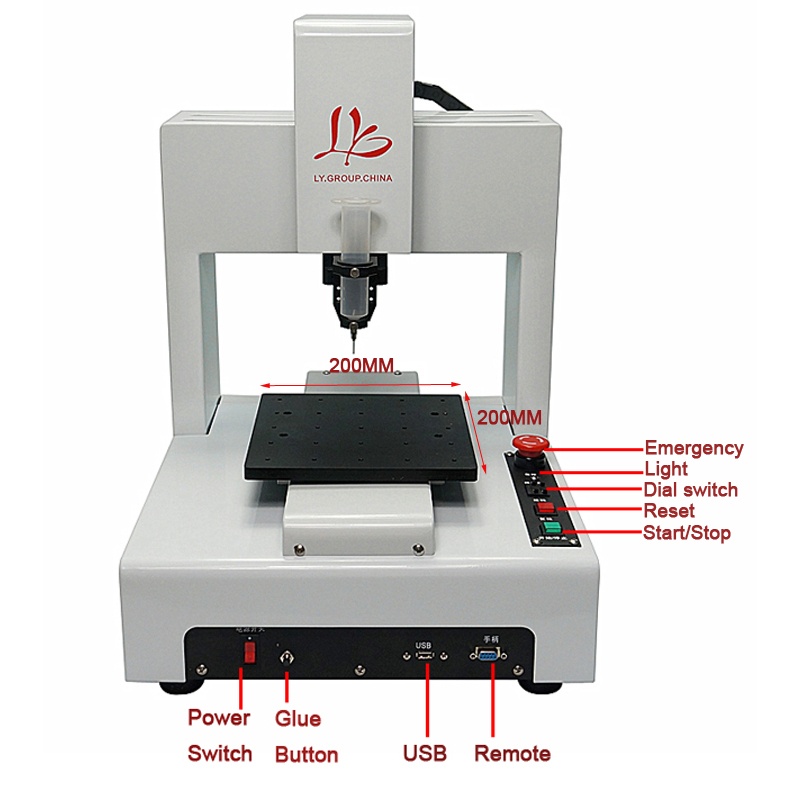

Processing range: 200/200/70

Maximum load: Y:8 kg /Z:    4 kg

Movement speed: 0.1-500mm/sec

Ability to decompose: 0.01 mm/Axis

Repeat accuracy: + /- 0.01 mm/Axis

Guide rail:Hiwin (Japanese)

Motor:Shinano (Japanese)

Program recording mode

At least 100 in each group, each group of 100 points (can support to upload the computer)

Display mode

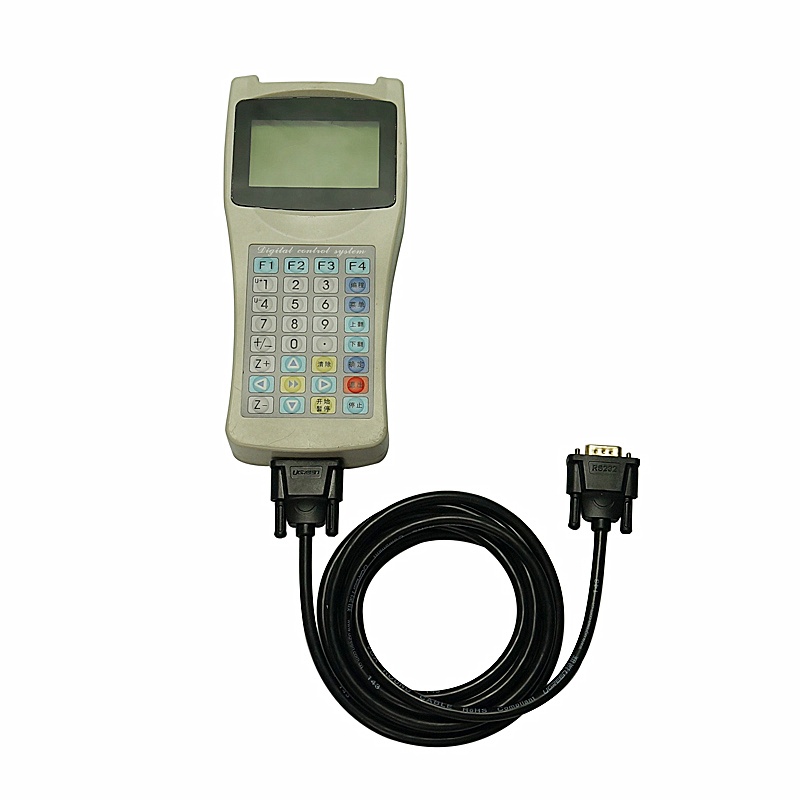

Teach Pendant LCD

The motor system

Day progress of micro level precision motors

Operating mode

PTP&CP

The transmission way

Synchronous belt

Movement between function

Three axis (3 d space any routes are available)

Edit mode

Teach box/PC

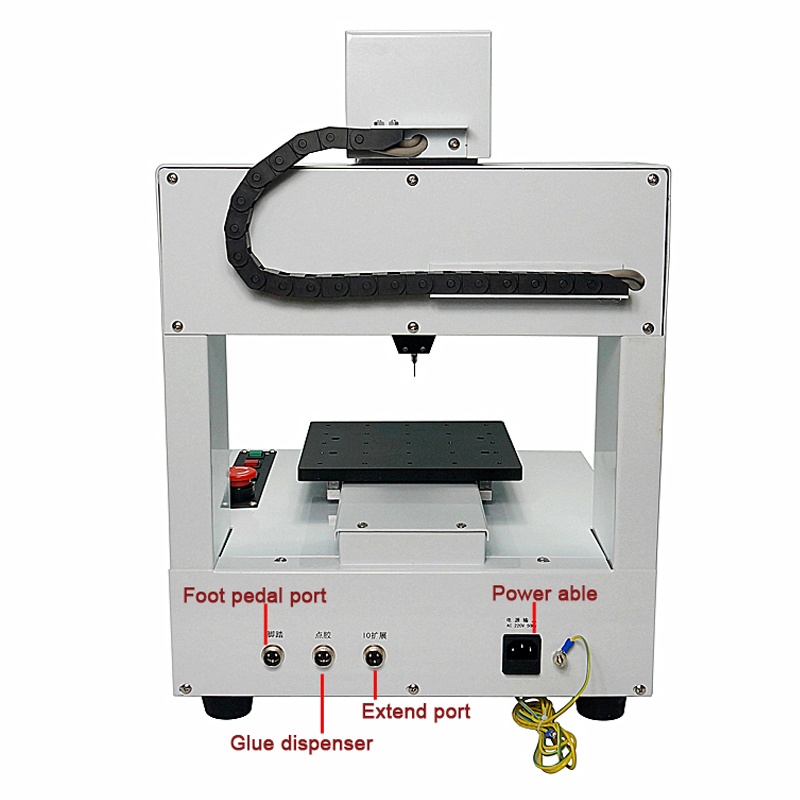

The I/O signals: 8 inputs/outputs

External control interface: Rs232

The input power: Full voltage AC110V – 220 – v, 300 w

Working environment temperature: 5 to 40 ℃

Work environment humidity: 20-90%

Installation dimensions: 380 * 420 * 485 mm

Body weight: 45 kg

Machine performance: desktop automatic dispensing machine)

1, the generation of artificial particular dispensing operation, realizing mechanization production
2, Chinese keyboard operation, easy to understand, does not need external teaching apparatus, debugging more convenient than similar products, simple and convenient, high-speed precision.
3, with point, line, face, arc, circle, irregular curve function such as continuous repair and triaxial linkage between;
Rotation of 4, software has the area array, translation, etc., U disk upload/download program files can be convenient for data management and preservation.

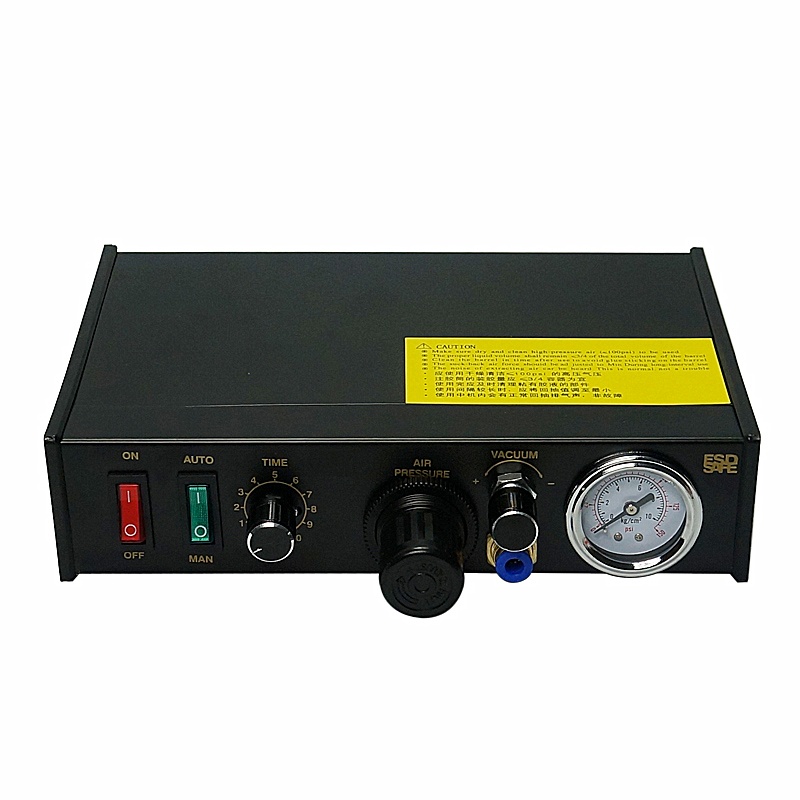

5 the thickness, glue, glue amount speed, dispensing time, stop time all can set parameters, the glue quantity is stable, no glue LouDi;
6, according to the process need, can be mounted to the workbench positioning PIN, glue gun or floor heating temperature control device
7, optional two fine-tuning glue tube clamp, double work at the same time, multiplied improve work efficiency;
Suitable for fluid dispensing,
For example: the UV glue, AB glue, EPOXY (vinyl), white glue, EMI conductive adhesive, SILICON, EPOXY resin, instant glue, silver glue, red glue, solder paste, cooling paste, solder paste, clear lacquer, screws, etc
Suitable for object:
Mobile phone, computer case, CD machine, printer, and ink holder, PC board, LCD, LED, DVD, digital cameras, switches, connectors, relays, radiator, semiconductor, electronics, or with SMT equipment attachment quick point/glue, clock, toys, medical equipment and other liquid dispensing products
