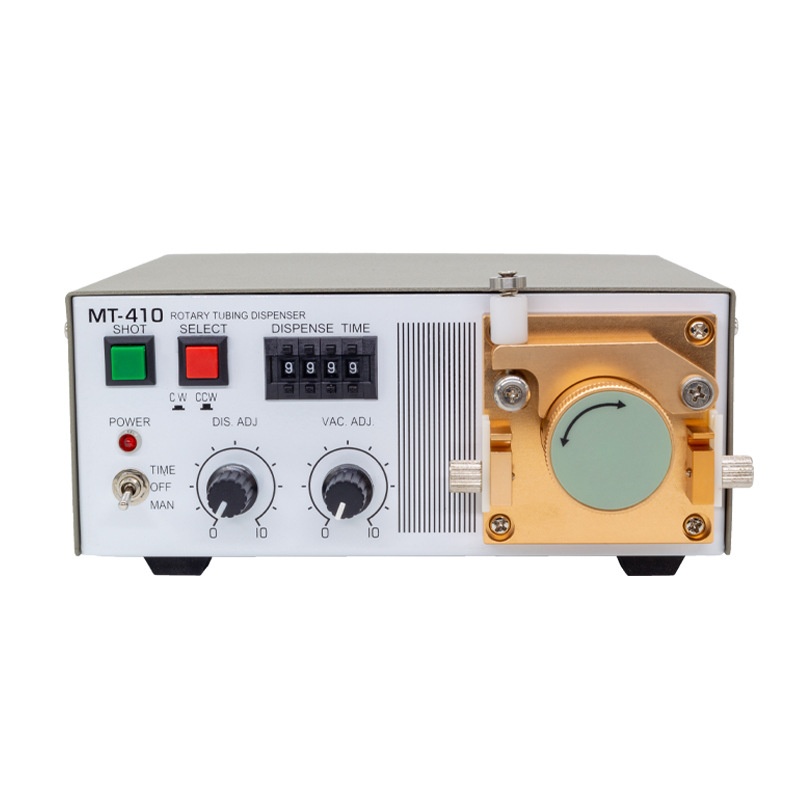

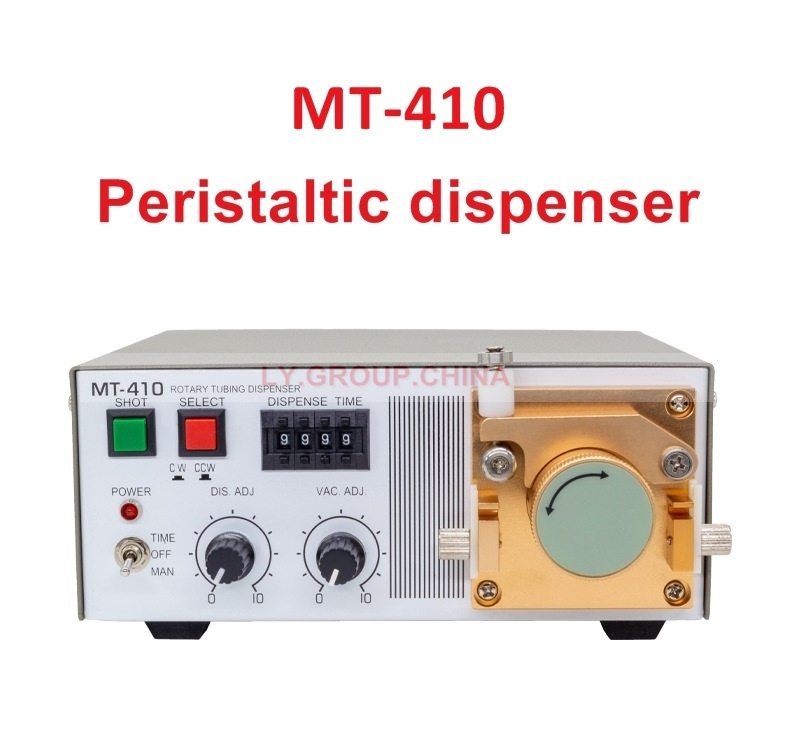

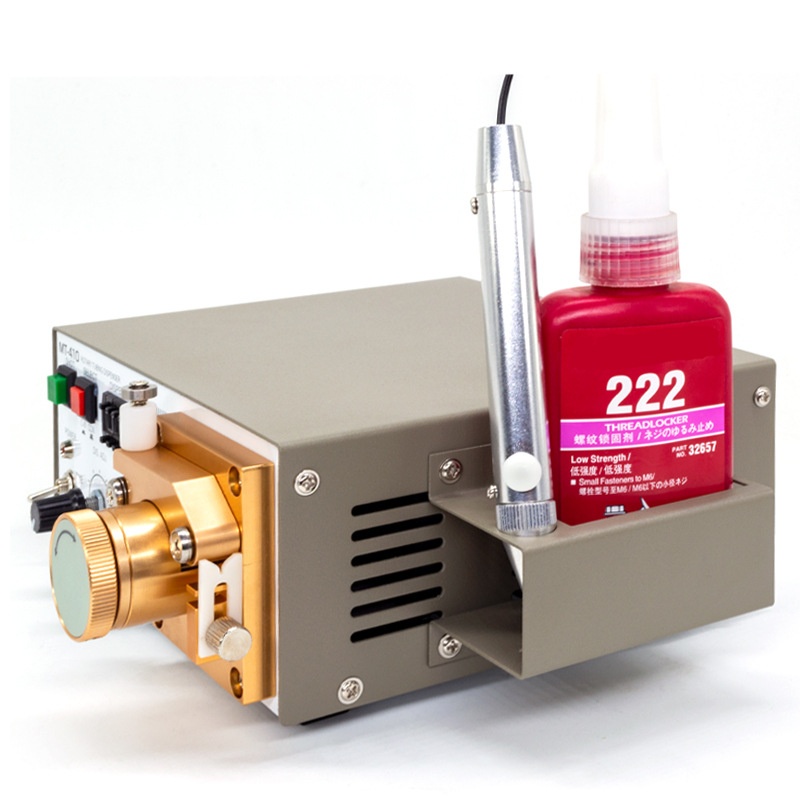

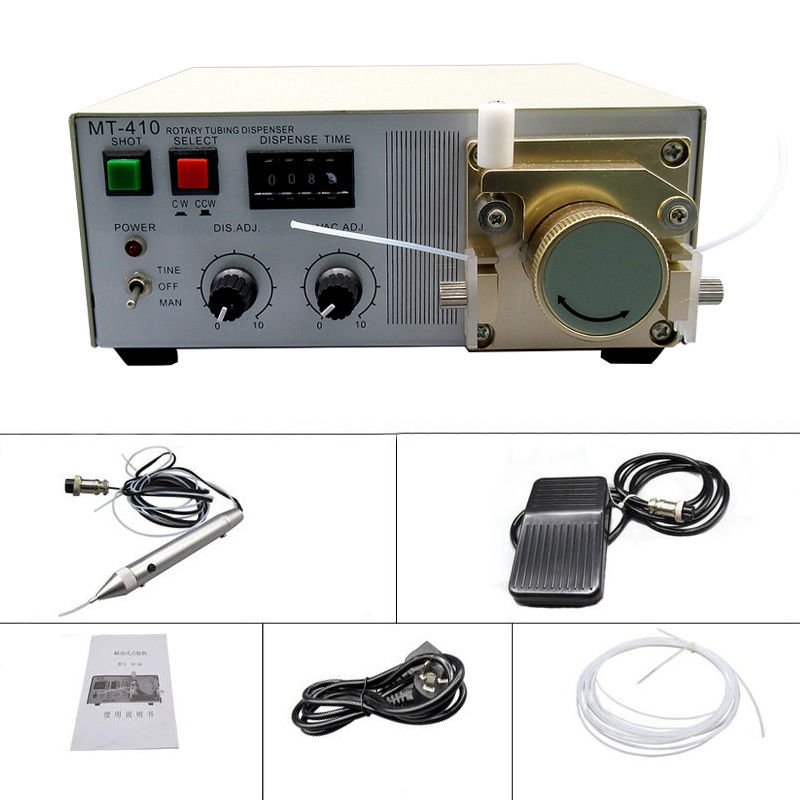

Original Manual Automatic MT-410 Peristaltic glue dispenser machine 30W Compatible For 502 instant quick-drying liquid anaerobic adherse

Original Manual Automatic MT-410 Peristaltic glue dispenser machine 30W Compatible For 502 instant quick-drying liquid anaerobic adherse

Description

Spit the amount of plastic adjustment range: 0 ~ 999.9

Back to the amount of plastic adjustment range: 0 ~ 400

Minimum throughput: 0.0001ml

Use Material Viscosity: 10000cps or less

Dimensions: 188 * 168 * 88mm

Power consumption: 30W

Power supply: 110 / 220V 60 / 50Hz

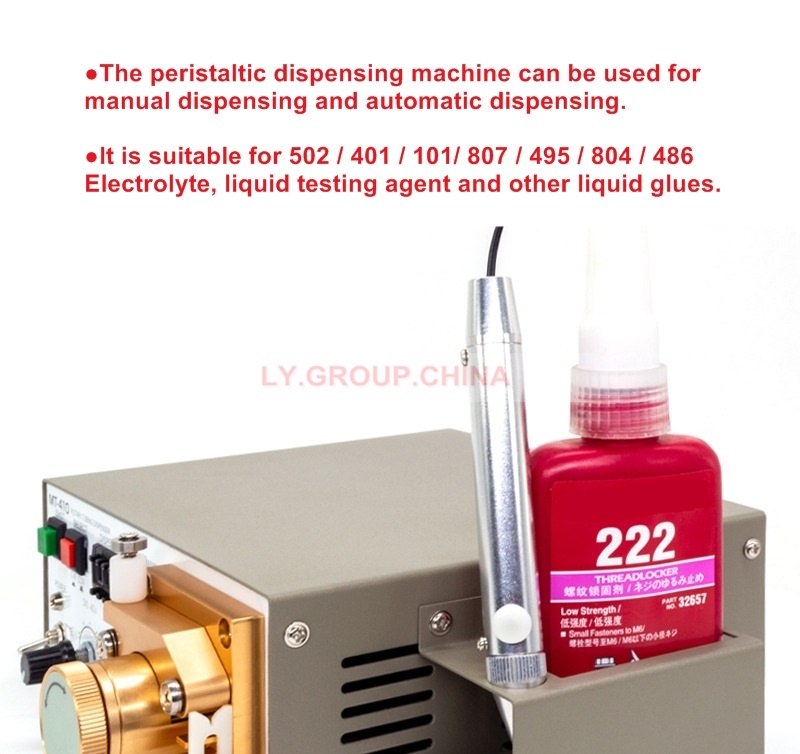

Discharge mode: stable action mode (quantitative discharge), manual control mode

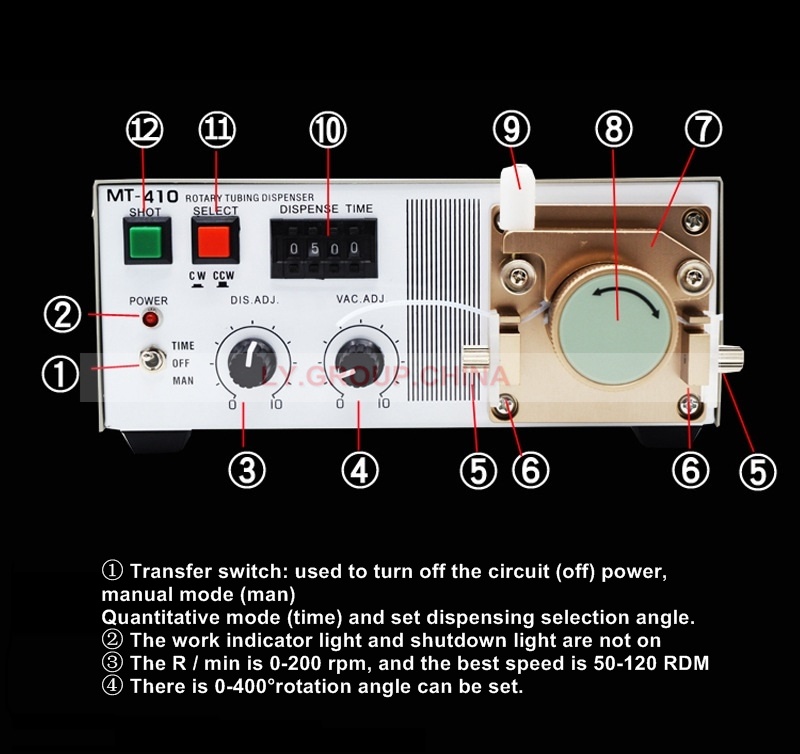

I. Manual Mode

1. Install the power cord of the machine, and power on, pull the transfer switch to the MAN position, and the indicator light is on.

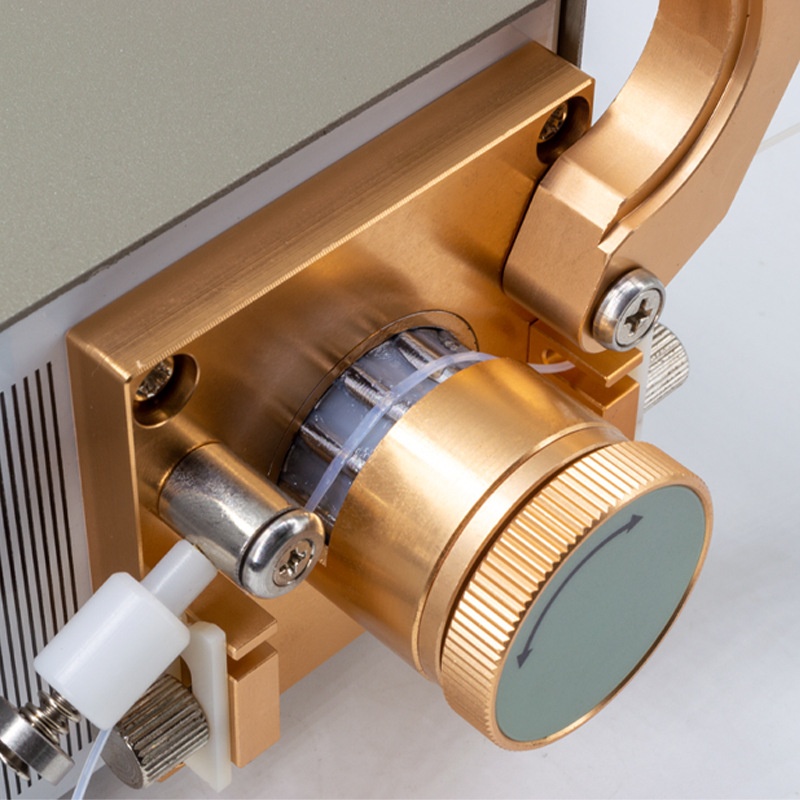

2. Install the Teflon tube.

3．To set forward and reverse press the CW CCW button to switch, we select the CCW button to switch, we select CW-turn clockwise.

4．Set the back suction VAC.ADJ. Turn forward large, turn reverse small to select the required value. Use manual mode reverse to turn back suction.

5．Adjust DIS, ADJ, knob, set the speed (working speed is 50 ~ 120RAM)

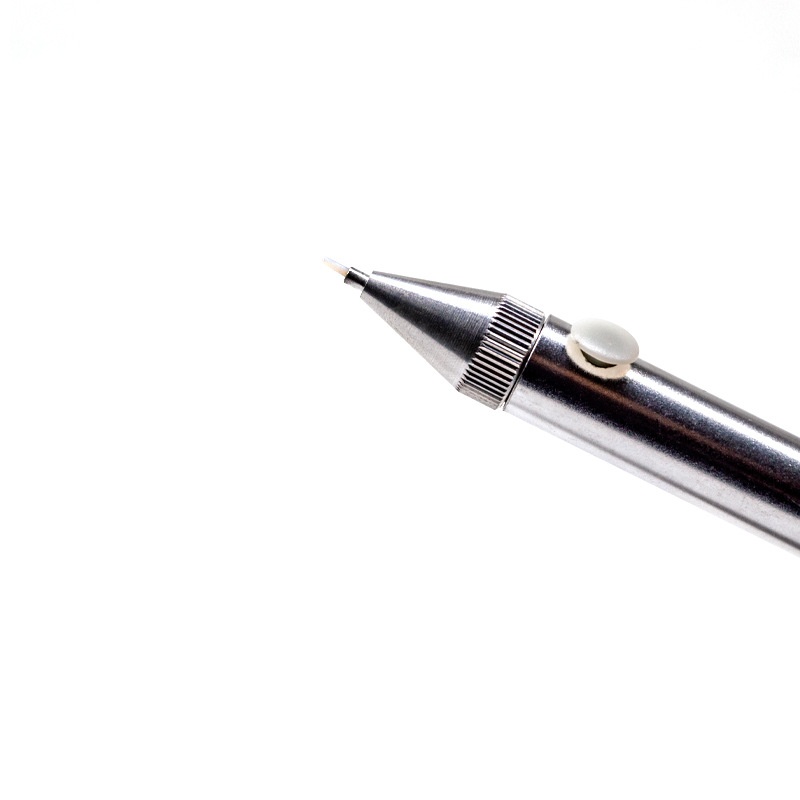

6. Press “SHOT” key, or manual switch, foot switch to complete the job.

2. Automatic mode

1. Pull the switch to the TIME position, and the indicator light is on.

2. Use the DISPENSE TIME key to set the dispensing angle.

3．Work according to the above manual mode 2, 3, 4, 5, 6 programs.

Note: (DISPENSE TIME) key turns back suction function when turned counterclockwise. The suction knob (VAC, ADJ) changes to set the dispensing angle.

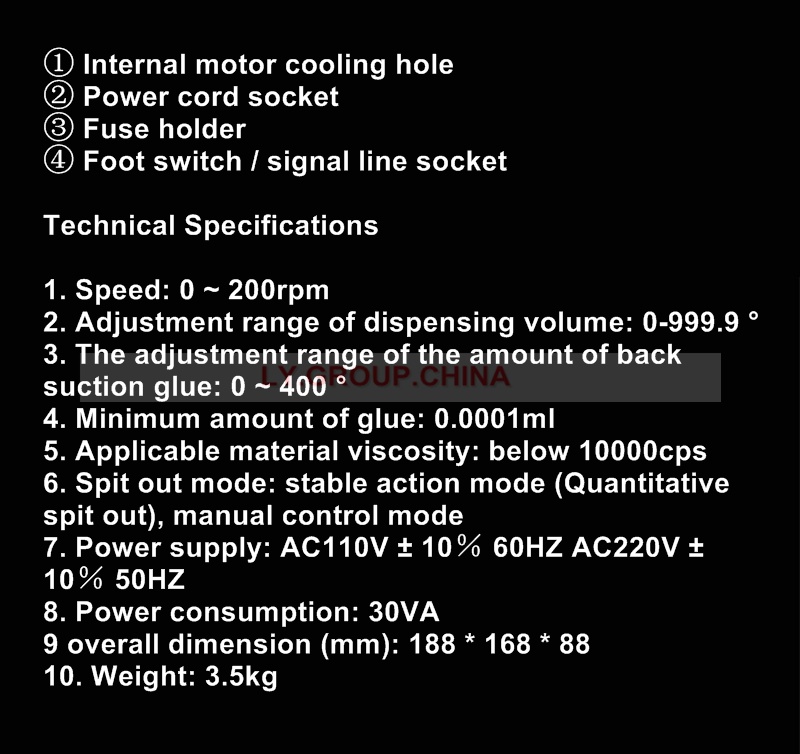

Technical specifications:

1. Speed: 0 ~ 200rmp

2. Adjustable range of discharged glue amount: 0 ~ 999.9

3.Adjustment range of back suction amount: 0 ~ 400

4, small amount of glue: 0.0001ml

5.Applicable material viscosity: below 10000cps

6.Ejection mode: stable operation mode (quantitative ejection), manual control mode

7. Power supply: AC110V +/- 10% 60Hz AC220V +/- 10% 50Hz

8.Power consumption: 30VA

9.Dimension (mm): 188 X 168 X 88

10.Weight: 3.5KG
