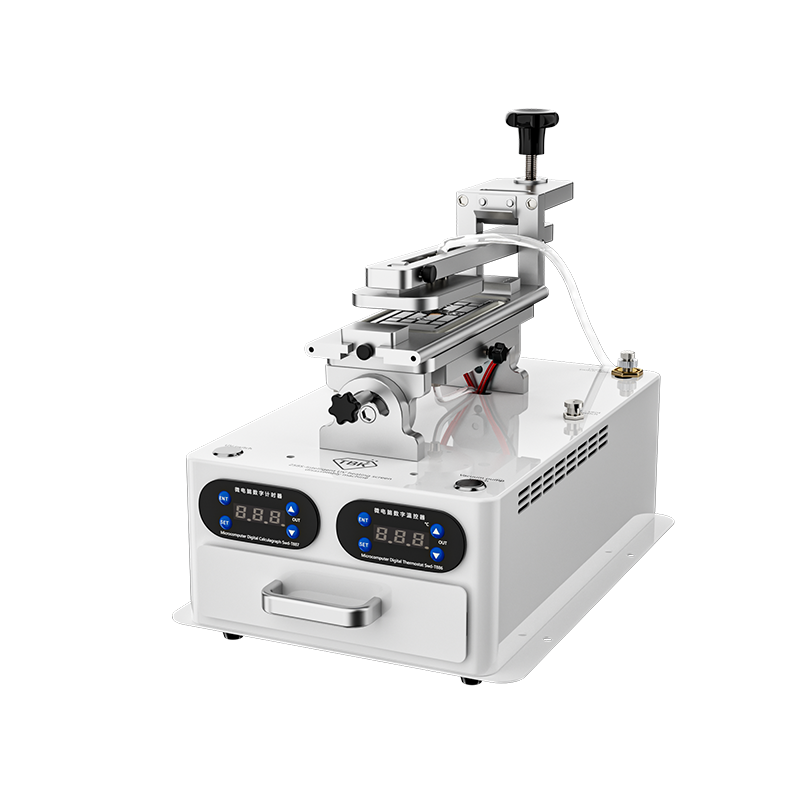

LY-TBK-258S Intelligent Constant Temperature Heating LCD Screen Dismantling Housing Frame Separator Machine OCA Degumming UV Curing For iPhone Samsung Back Cover Separation

LY-TBK-258S Intelligent Constant Temperature Heating LCD Screen Dismantling Housing Frame Separator Machine OCA Degumming UV

Curing For iPhone Samsung Back Cover Separation

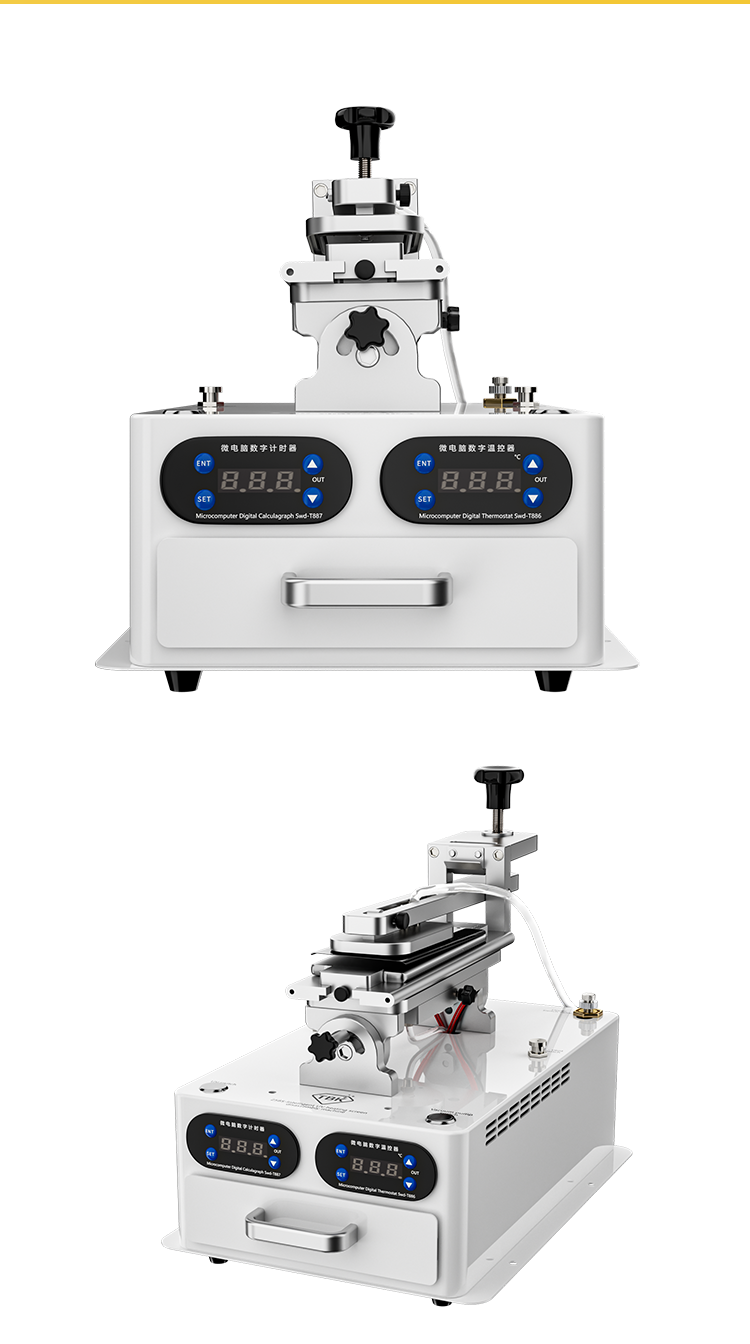

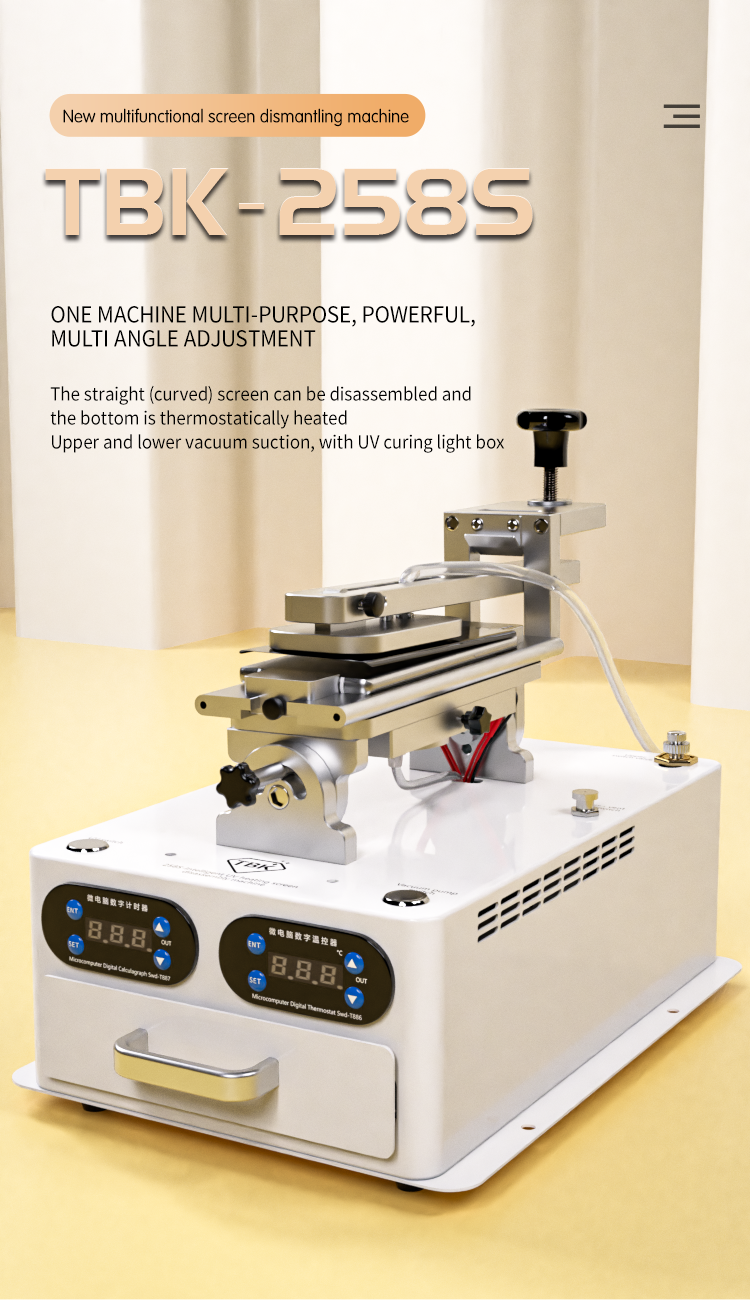

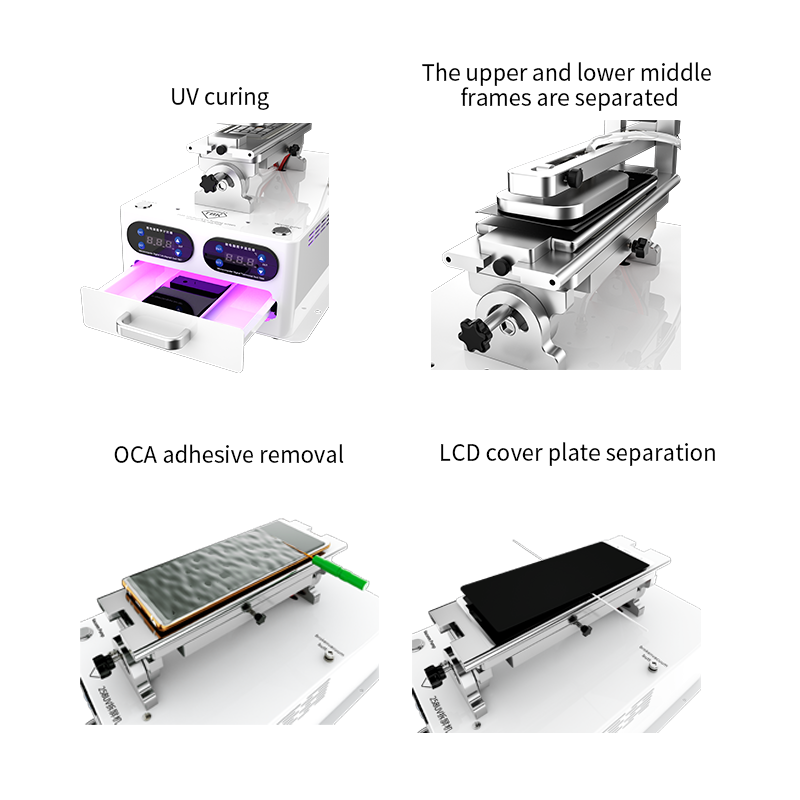

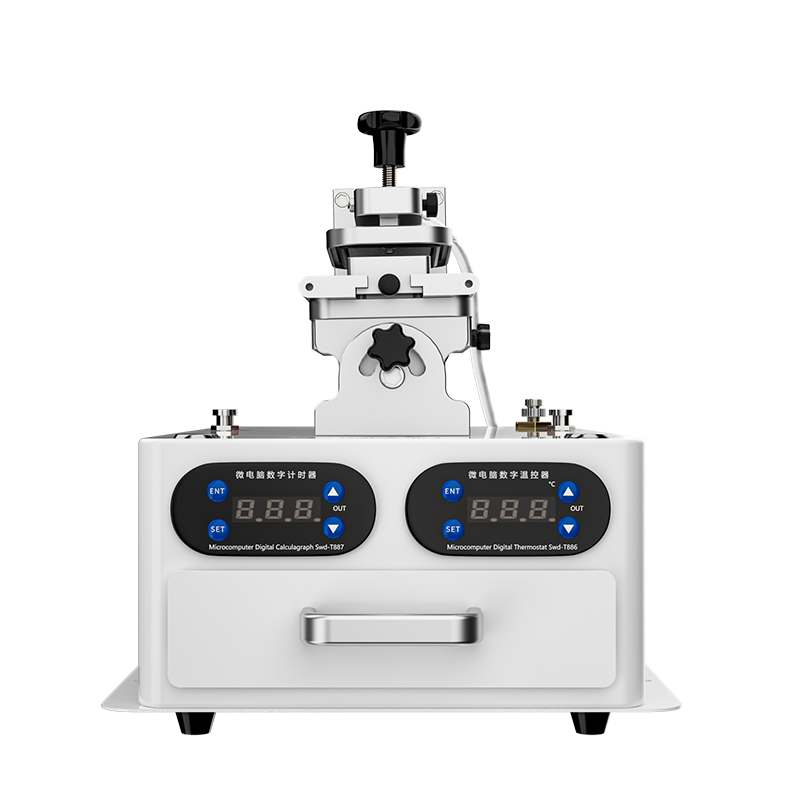

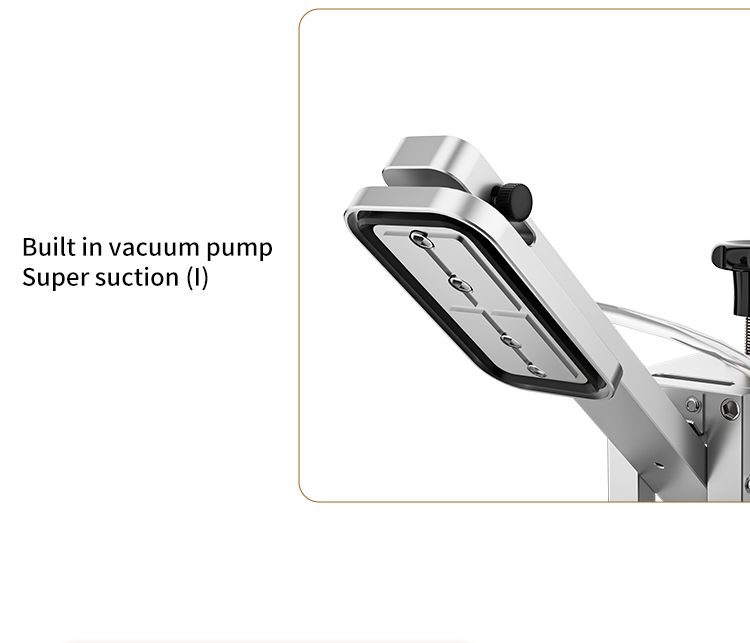

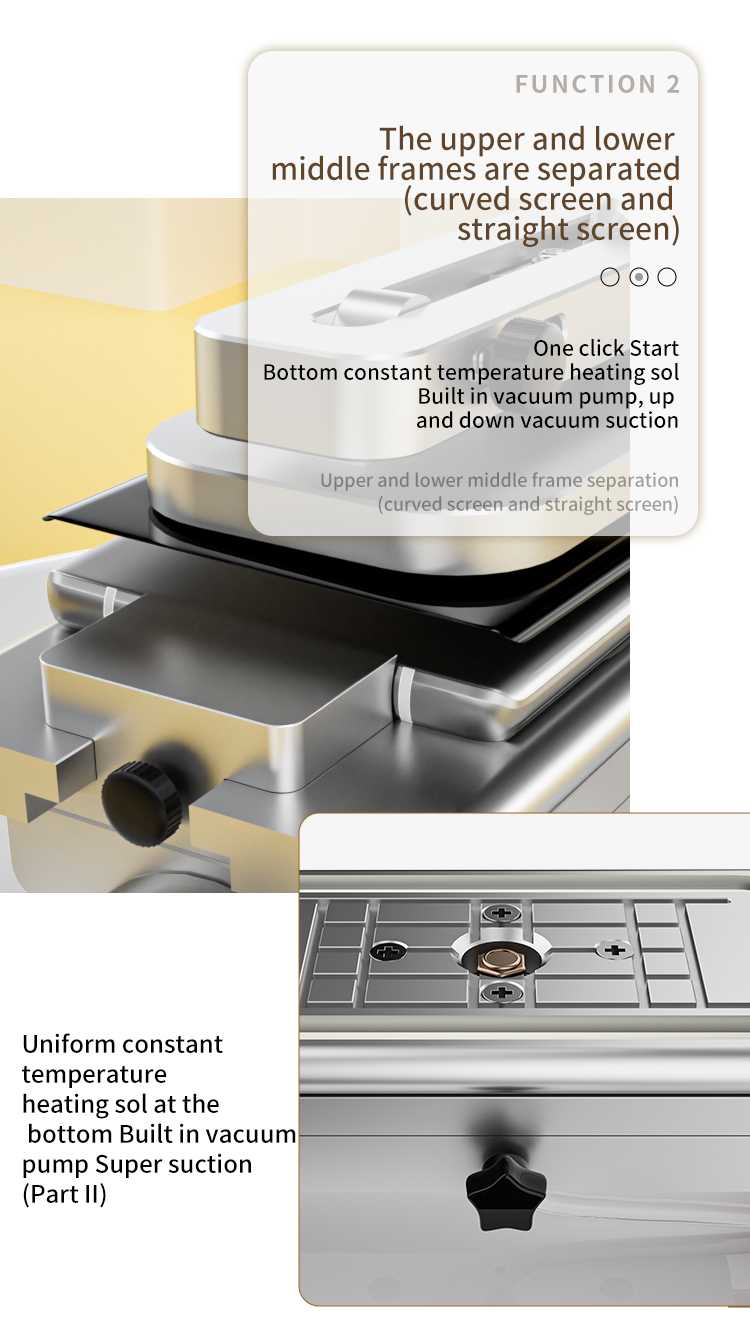

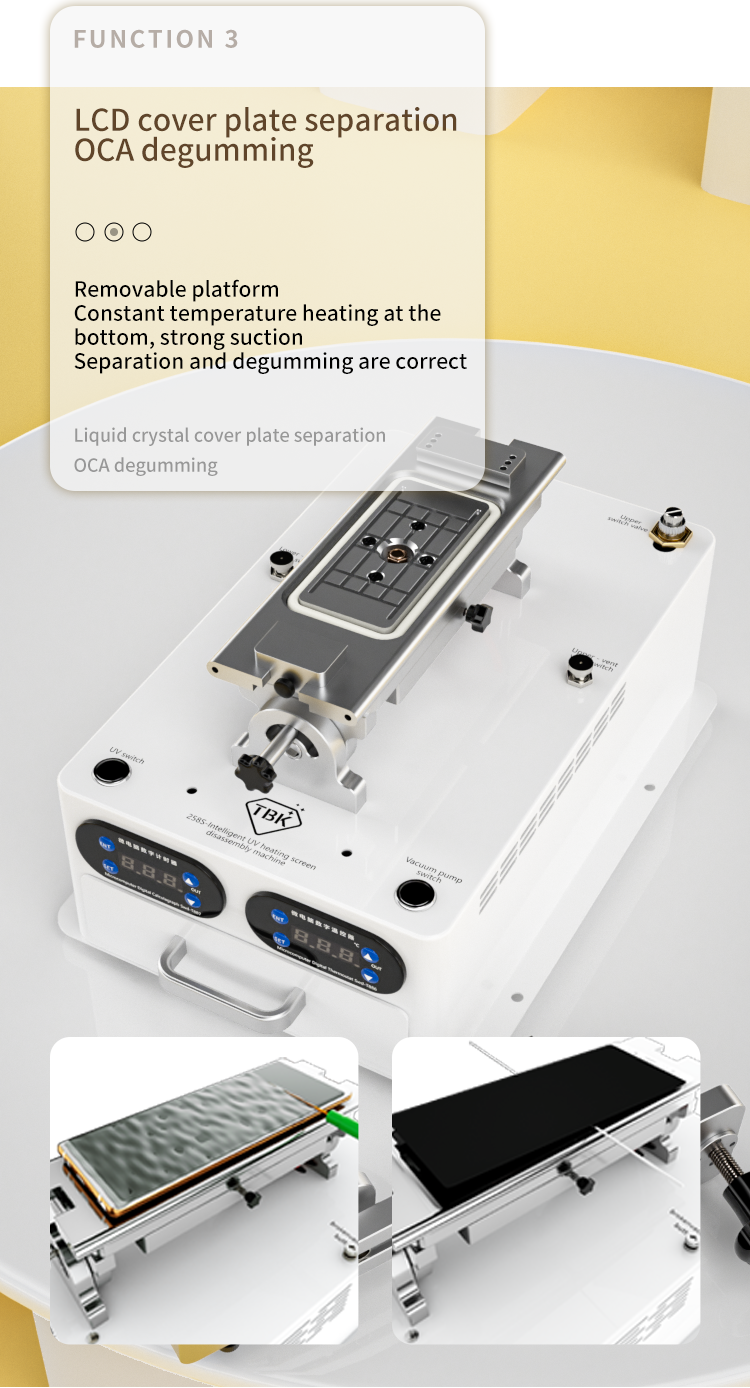

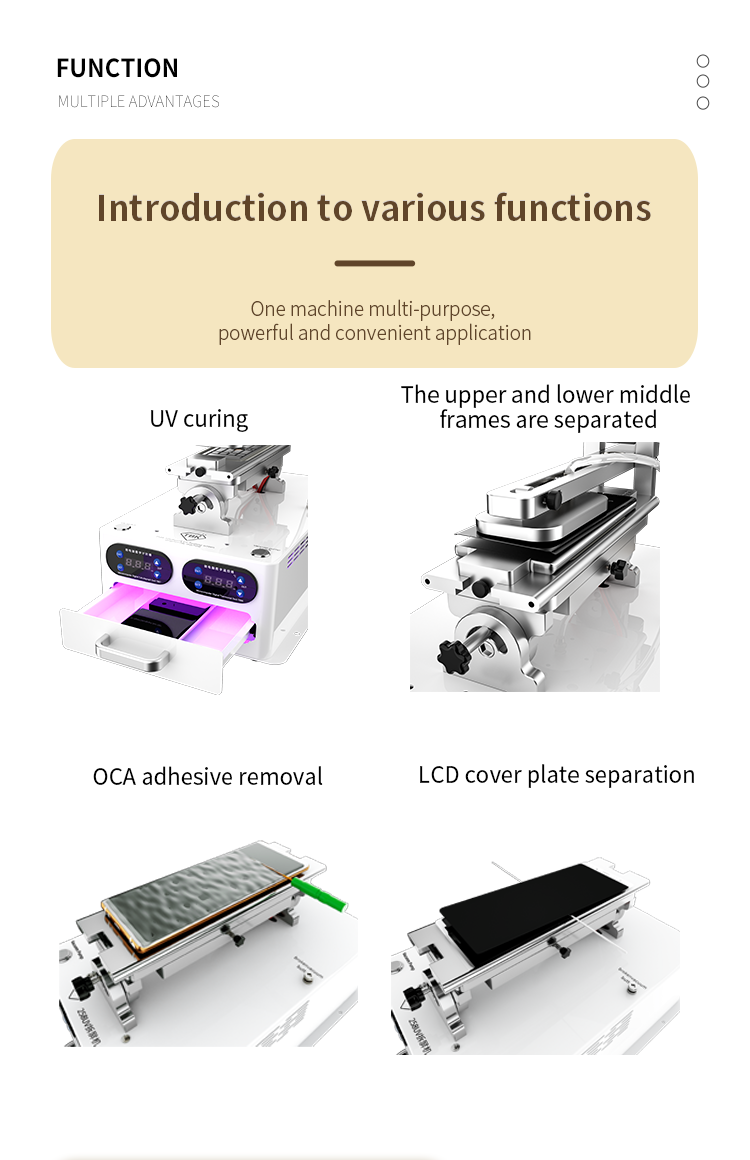

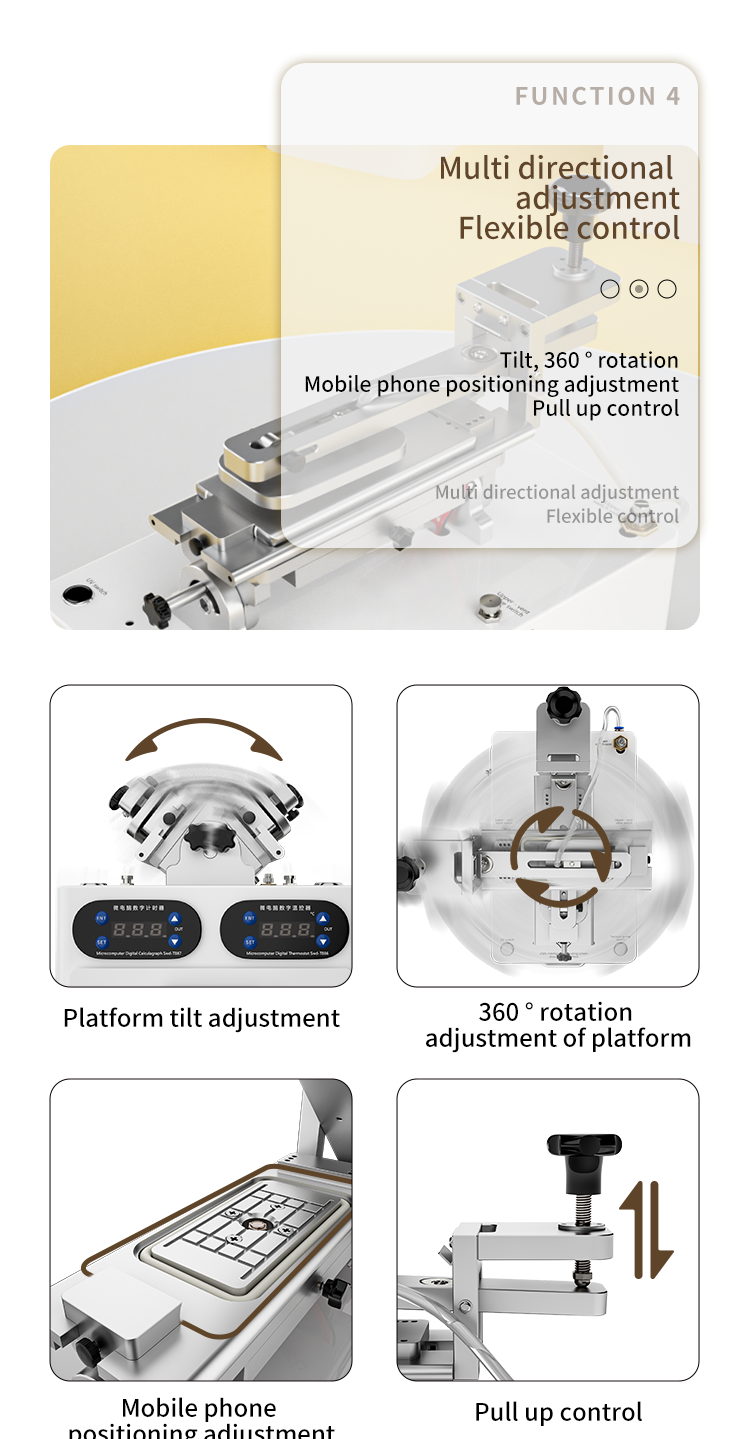

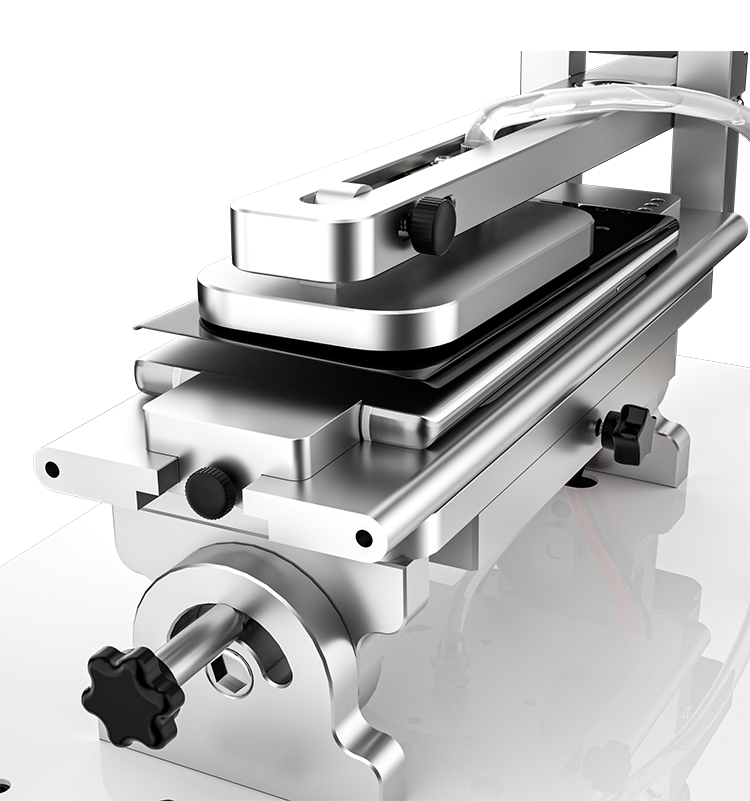

New LY-TBK-258S intelligent constant temperature heating screen dismantling machine, built-in vacuum pump, upper and lower double suction cups, chassis constant temperature heating, multi- directional flexible rotation Control, with its own UV light box, the straight (curved) screen can be disassembled, and the function is powerful (frame separation, UV curing, OCA degumming, and LCD cover plate separation during disassembly) One machine in hand, no worries about repairing the screen!

Operation:

Screen removal

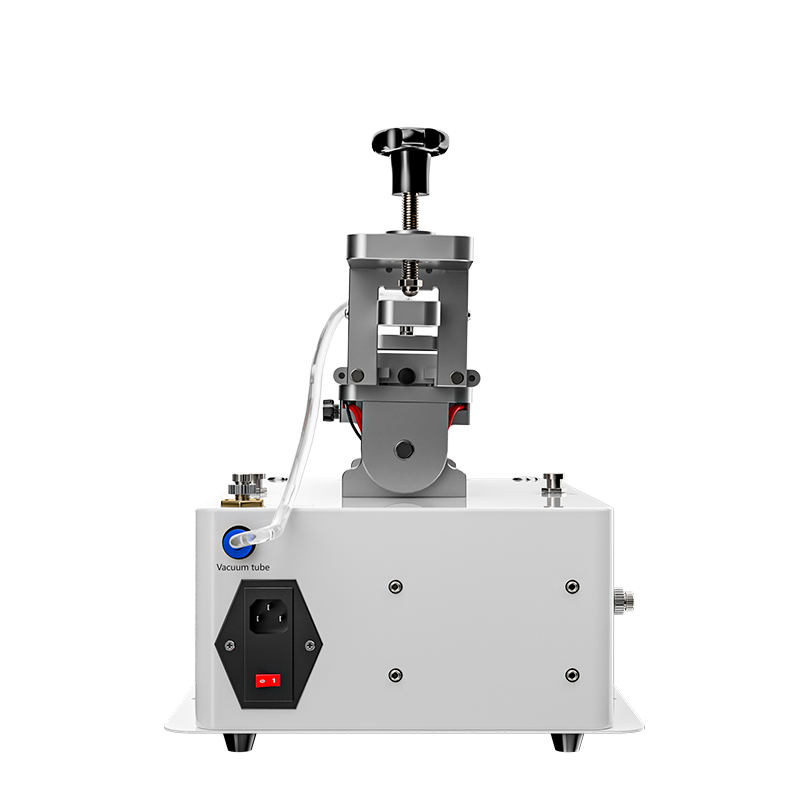

1. Plug in the power cord and turn on the power switch

2. Set the heating temperature (press set to set the temperature, press set again to jump to (one, ten) position settings,

▲to increase (▼to decrease) the temperature

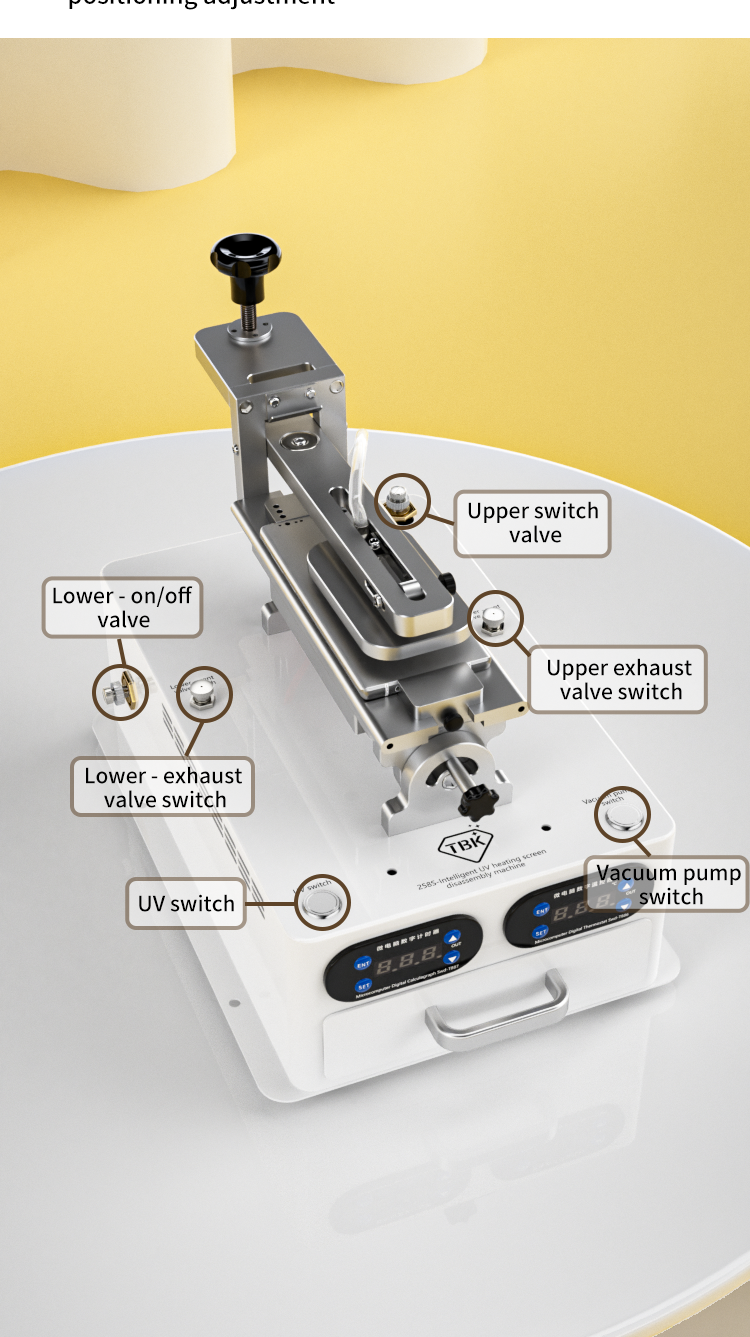

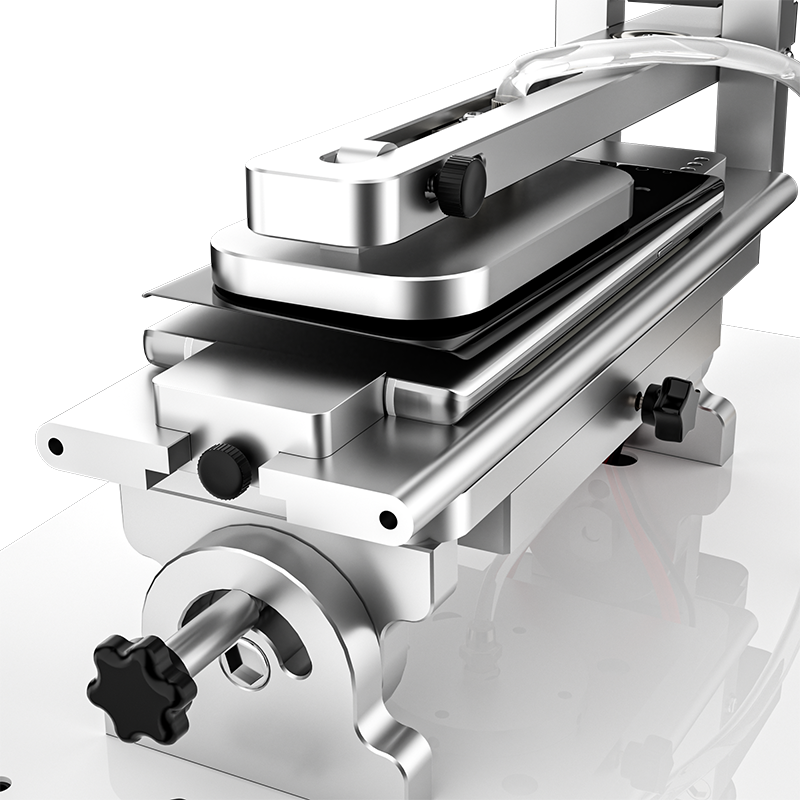

3. Place the mobile phone on the working platform (straight screen: open the upper and lower- on-off valve switch)

(curved screen: open the upper and lower – on-off valve switch, clamp the mobile phone through the front and rear

fixed knobs of the platform)

4. Press the vacuum pump start button and pull up the screen through the knob behind the upper suction cup

5. {straight screen: Press (upper and lower exhaust valves) after separation} {curved screen: Press (upper exhaust valves)

after separation to loosen the front and rear fixing blocks

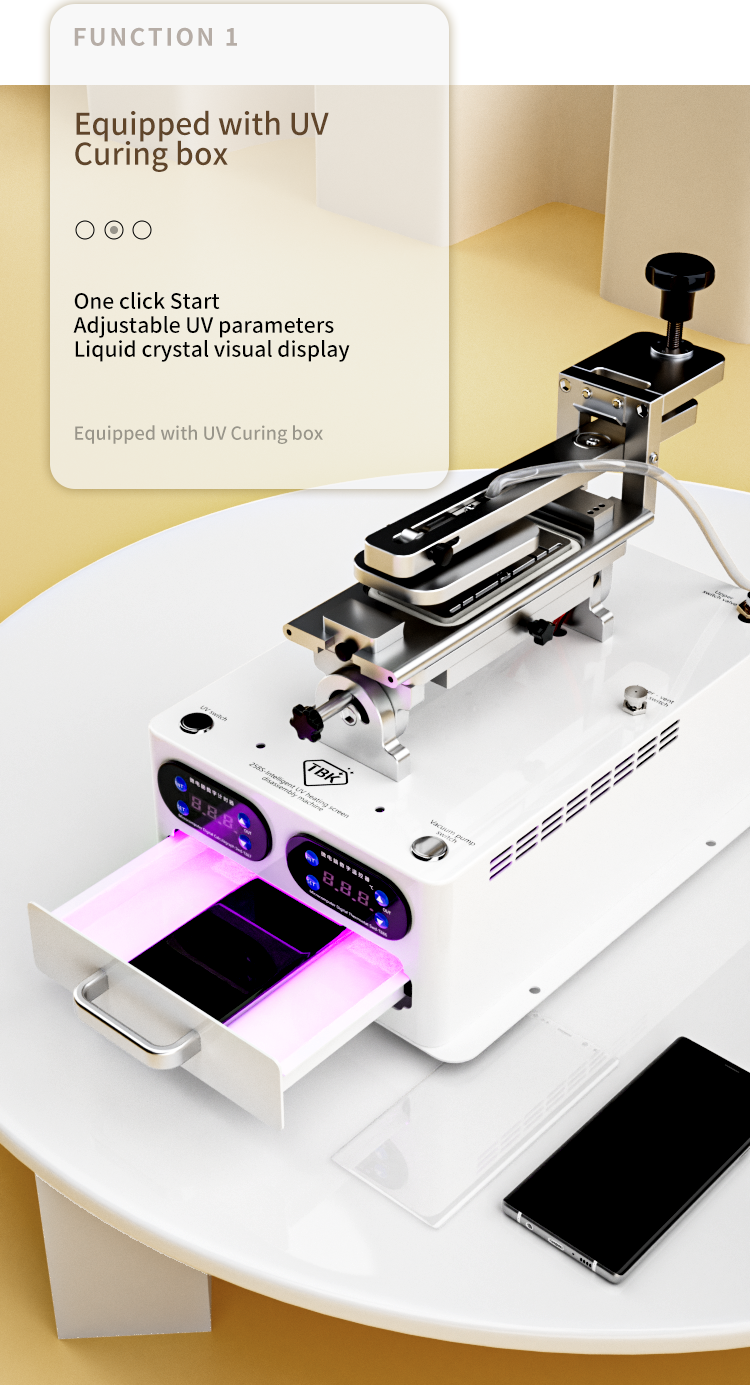

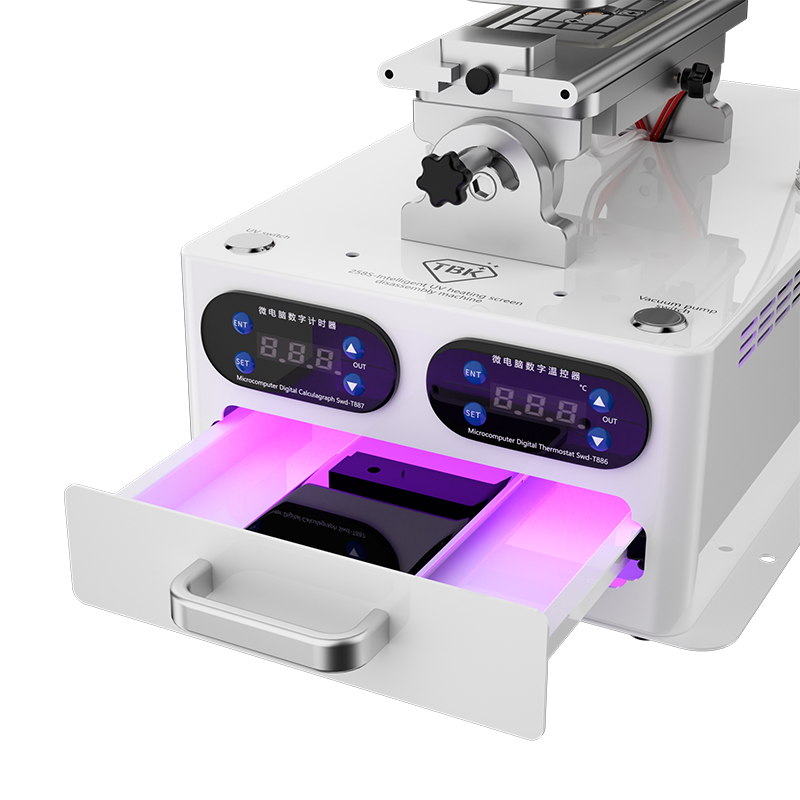

UV curing

1. Plug in the power cord and turn on the power switch

2. Set the UV curing duration (press set to set the UV duration, press set again to jump to (one, ten, hundred) position

settings,▲to increase (▼to decrease) the duration)

Maximum settable 999 (unit: seconds/s)

3. Put the mobile phone into the UV curing box and close it

4. Press the UV switch to start curing

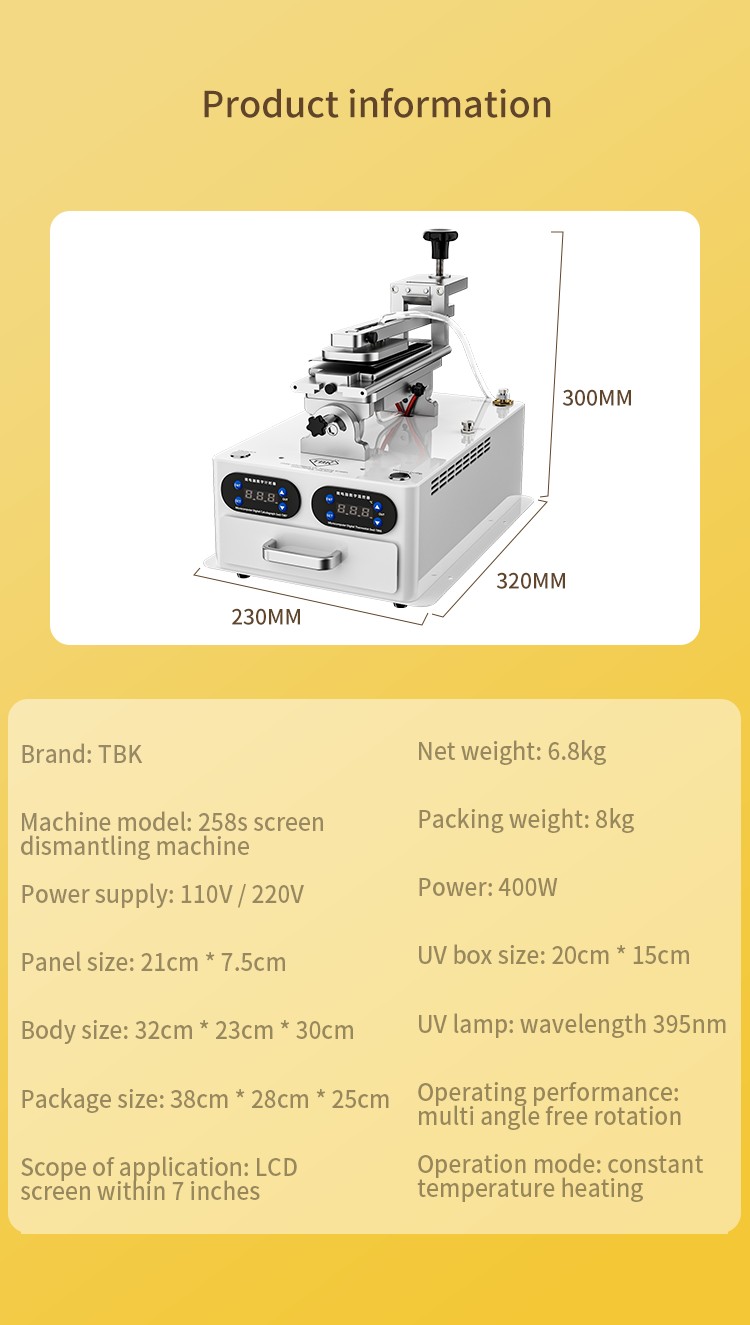

Specification:

- Model: LY-TBK-258S

- Operating voltage: 110/220V

- Power: 400W

- UV light box size: 200 x 150mm

- Product size: 320 x 230 x 300mm

- Package size: 380 x 280 x 250mm

- Net weight of product: 6.8kg

- Gross weight: 8kg

- UV: 395nm

Thanks for your order!
