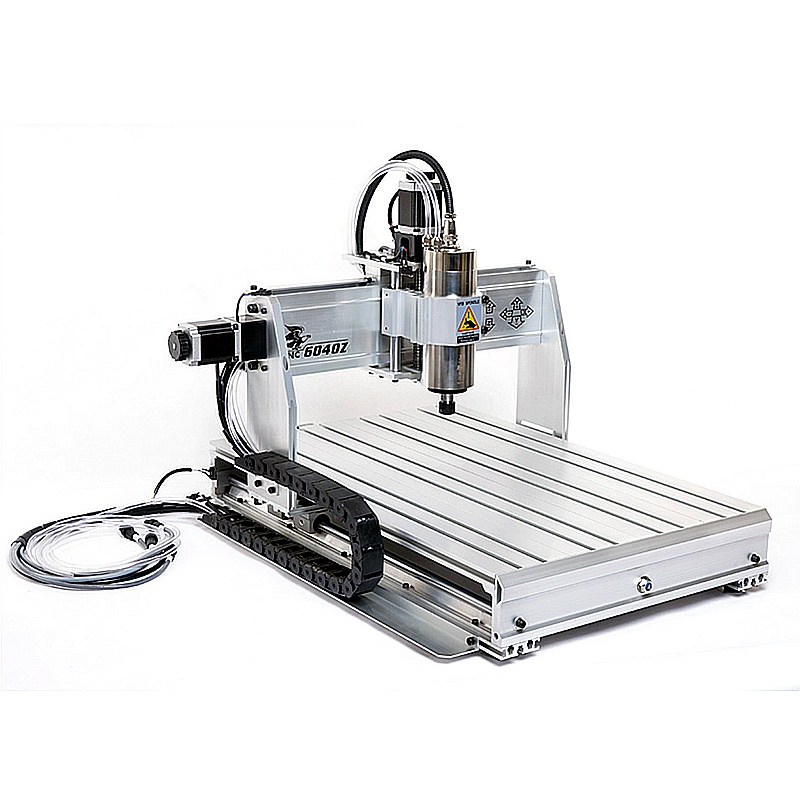

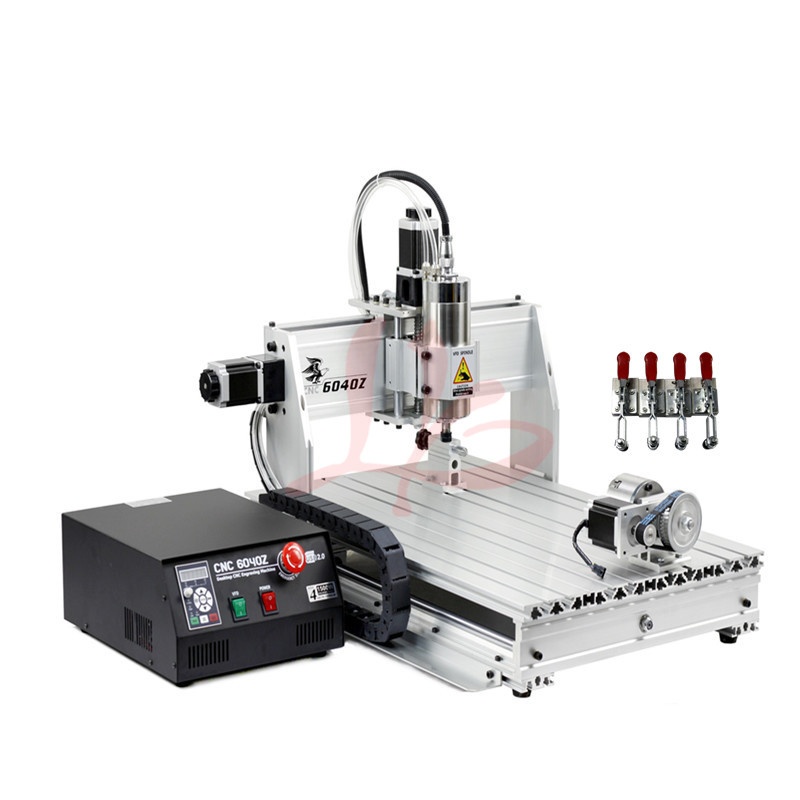

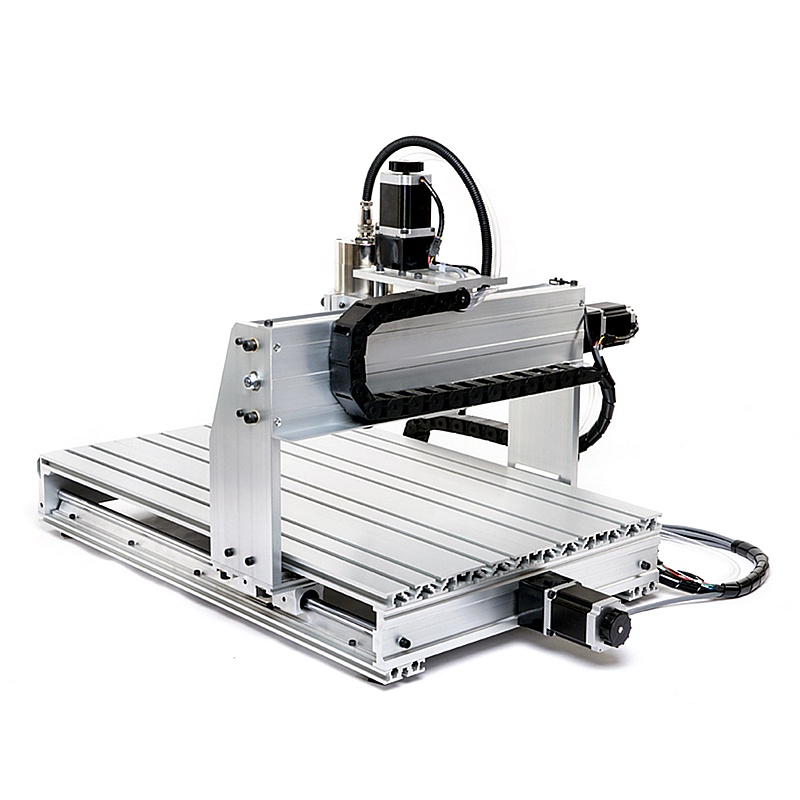

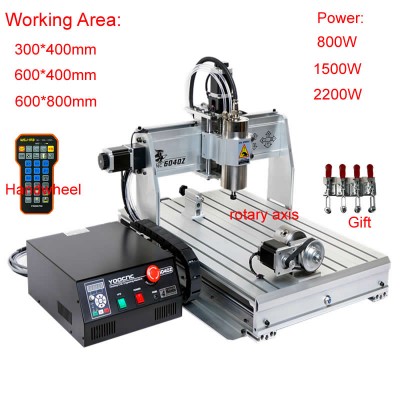

4 Axis CNC Router 6040/3040/8060 USB Milling Engraving Machine with Limit Switch Dust Cover for DIY Wood PCB PVC Acrylic Metal

Product Detail

Product Tags

CNC Router Engraver 3040/6040/8060 800W/1500w/2200w lpt/USB Engraving Drilling and Milling Machine

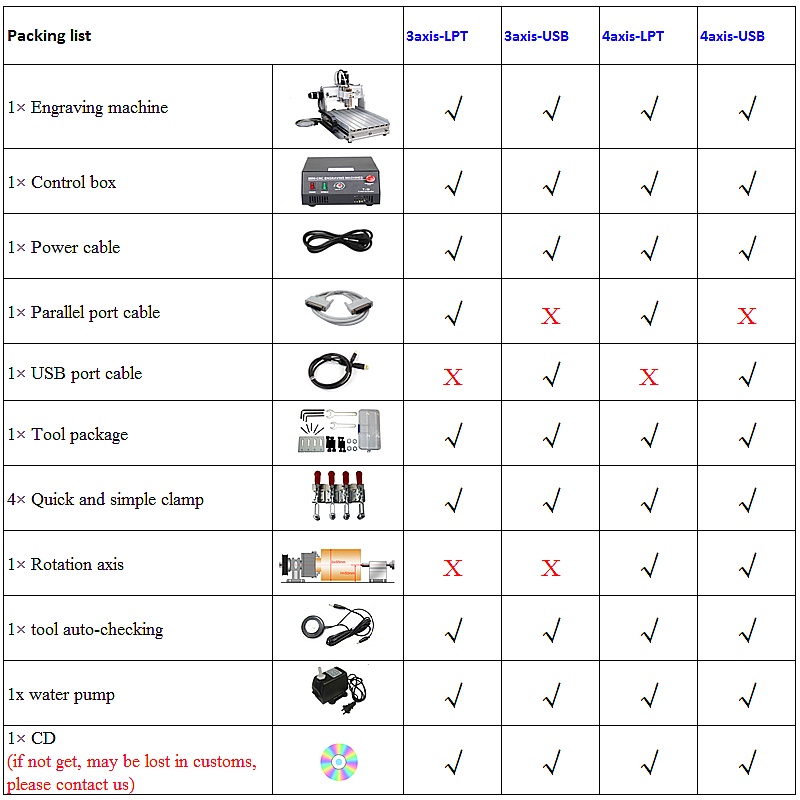

Package has CD , CD include detail english manual and software , it is very easy for operate the machine ,

Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

Model and Technical Parameters

MODEL	3040/6040/8060
Attribute	3axis-LPT	3axis-USB	4axis-LPT	4axis-USB
Axis	3axis	3axis	4axis	4axis

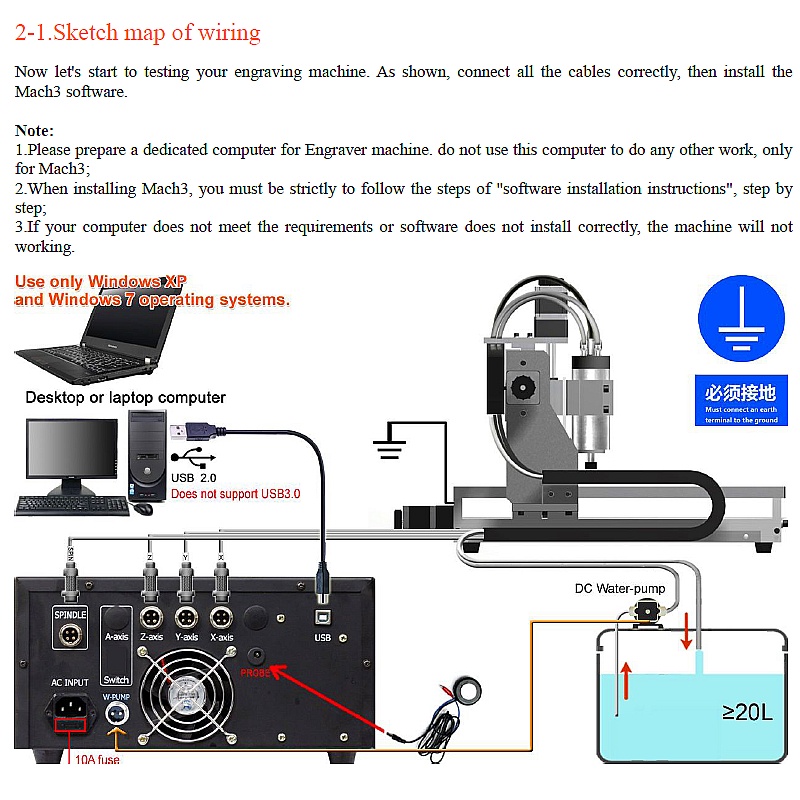

Interface	LPT port	USB port	LPT port	USB port
Limit switch	Yes	yes	Yes	Yes

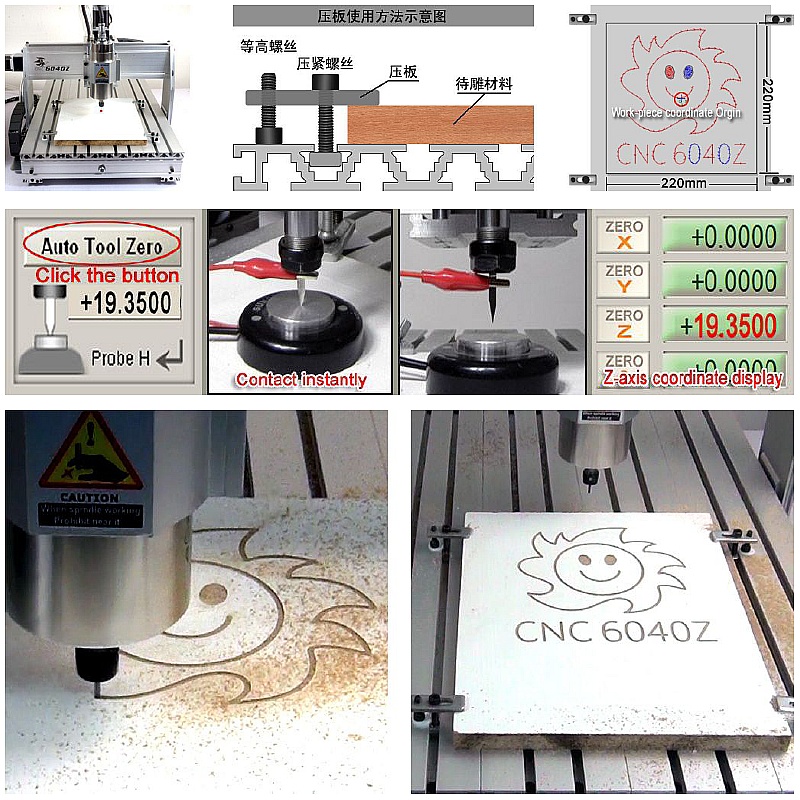

Tool auto-checking	Yes	Yes	Yes	Yes
Spindle Motor:	800/1500/2200W	800/1500/2200W	800/1500/2200W	800/1500/2200W
Type of screw	Ball screw	Ball screw	Ball screw	Ball screw
Weigh	56	56	60	60
Machine Dimensions: 3040 6040 8060	650X530X520mm 870X660X520mm 1130X890X610mm
Rack material:	6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)
Engraving area: 3040 6040 8060	395X285mm 575X375mm 790X580mm
Z-Axis Stroke: 3040 6040 8060	70mm, 80mm, 105mm, Engraving depth depends on the length of the tool edge
Acceptable material thickness:	≤ 115mm
Rail type:	Chromeplate shaft + Linear Bearings, Surface hardening 61HRC
Type of screw:	3040/6040 :Ball screw 1605, Pitch 5mm 8060: Ball screw (XZ axis 1605, Y axis 2005)
Spindle motor:	800W/1500W/2200W VFD water cooling spindle , 0-24000r/min
Collet type:	800W/1500W ER11,1/8″(3.175mm) Collet/ 2200W er20
Stepper motor and drive: 3040 6040 8060	two-phase hybrid stepping motor 57BYGH56-2.5A, 8 segments drive. two-phase hybrid stepping motor 57BYGH76-3A, 8 segments drive. 60BYGH86-3.5A, Each axis independently driven
Maximum operating speed:	4000mm/min (Engraving speed: 300-3000mm/min)
Repeat positioning Accuracy:	0.03mm

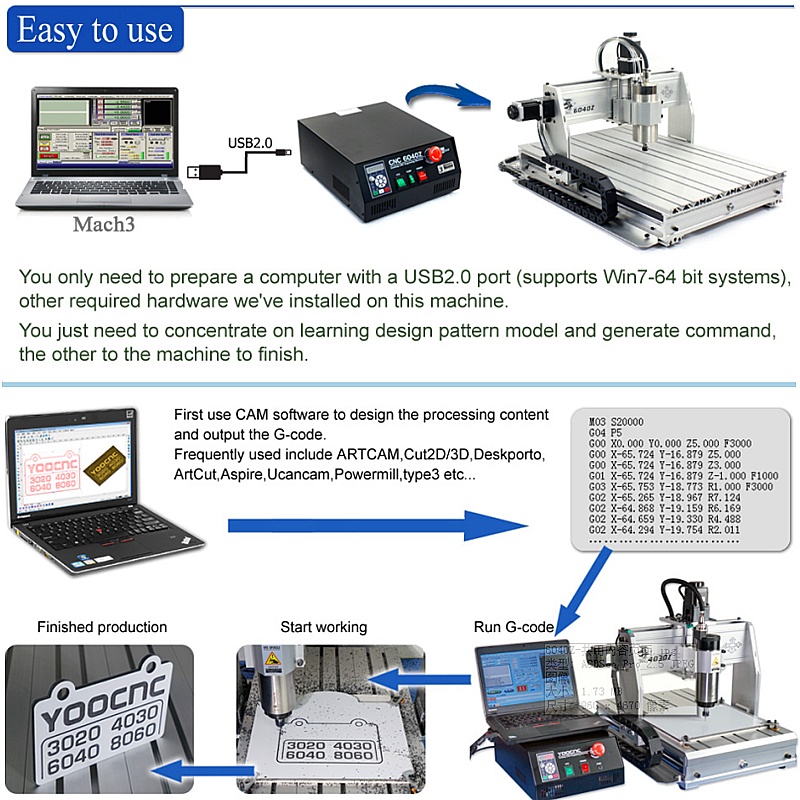

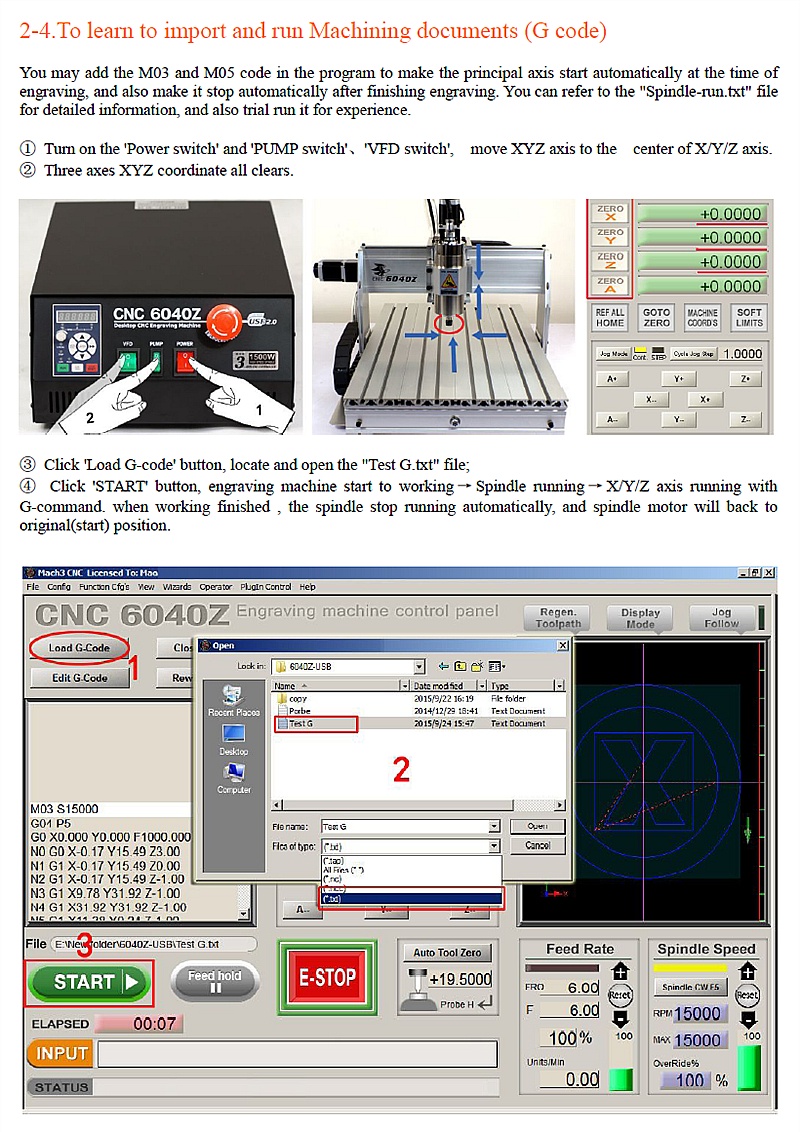

Software Compatability:	Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)
Command code:	G code/.nc/.ncc/.tab/.txt

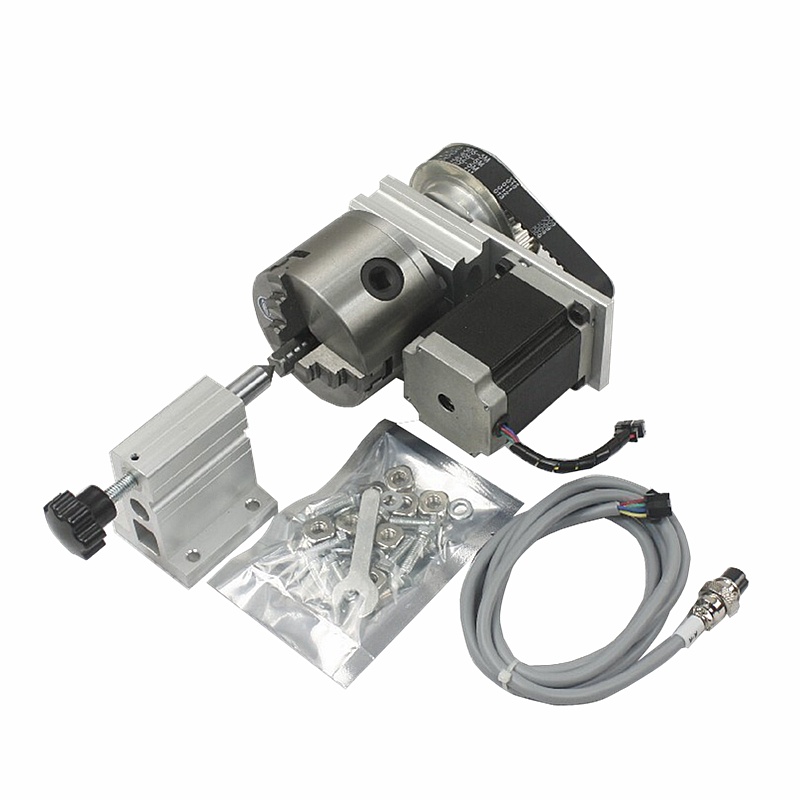

Rotation Axis (4th Axis) Description:	Center height: H = 60mm Maximum turning diameter: ≤ 110mm Deceleration ratio: 3:1 Stepper motor: NEMA23BHH76-3A Weight: 4.2KG
