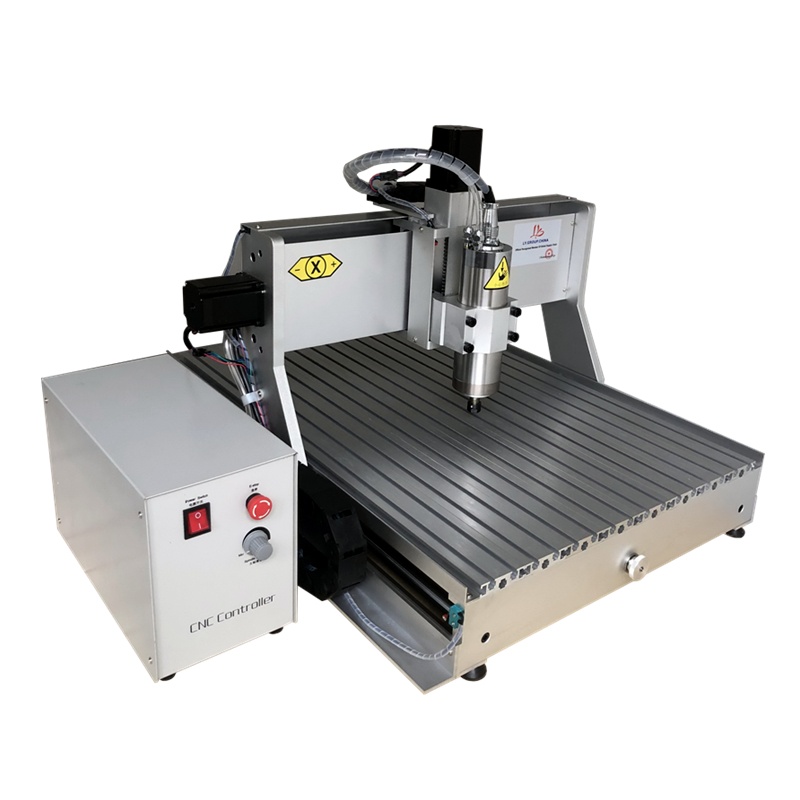

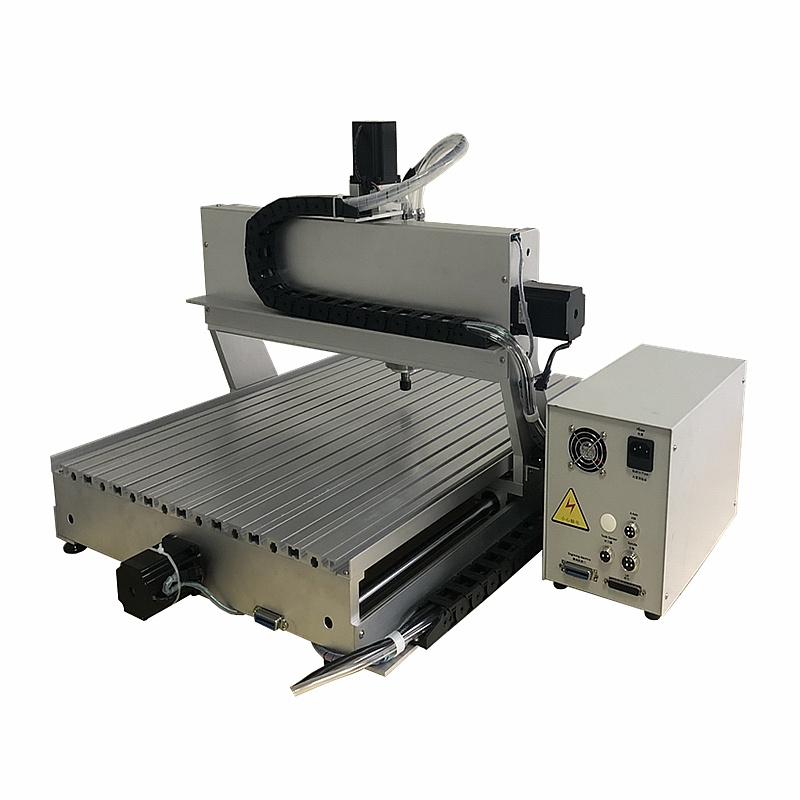

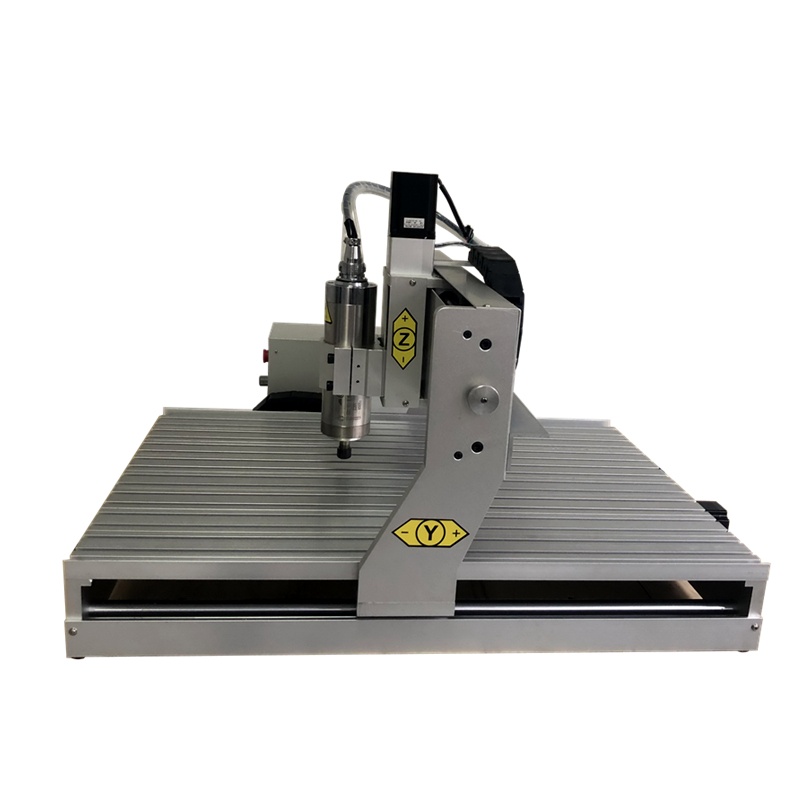

CNC 6090 2.2KW 4axis Wood Router 6040 Engraving Drilling Machine 3040 1500W PCB Metal Milling Machine with Limit Switch
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
| MODEL | 3020/3040/6040/6090 800W/1.5KW/2200W | ||||
| Attribute | 3axis-LPT | 3axis-USB | 4axis-LPT | 4axis-USB | |
| Axis | 3axis | 3axis | 4axis | 4axis | |

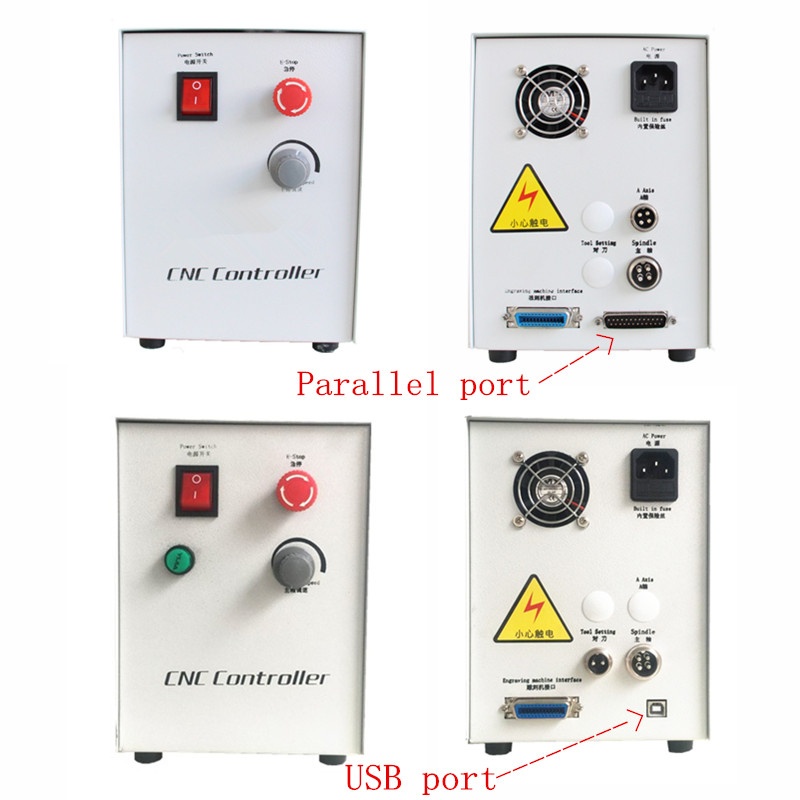

| Interface | LPT port | USB port | LPT port | USB port | |
| Limit switch | Yes | yes | Yes | Yes | |
| Tool auto-checking | Yes | yes | Yes | Yes | |
| Spindle Motor: | 800W/1.5KW/2200W | 800W/1.5KW/2200W | 800W/1.5KW/2200W | 800W/1.5KW/2200W | |
| Type of screw | Ball screw | Ball screw | Ball screw | Ball screw | |
| Weigh:3020
3040 6040 6090 |
38KG 46KG 51KG 115KG |
38KG 46KG 51KG 115KG |
44KG 52KG 51KG 122KG |
44KG 52KG 51KG 122KG |
|
|
Machine Dimensions: 3020 3040 6040 6090 |
490X420X425mm 600X510X480mm 810X640X480mm 1200X780X580mm |
|||||
|
Rack material: |
6061 and 6063 Hard aluminum alloy |
|||||
|
Engraving area: 3020 3040 6040 6090 |
300X200mm 300X400mm 600X400mm 900X600mm |
|||||
|

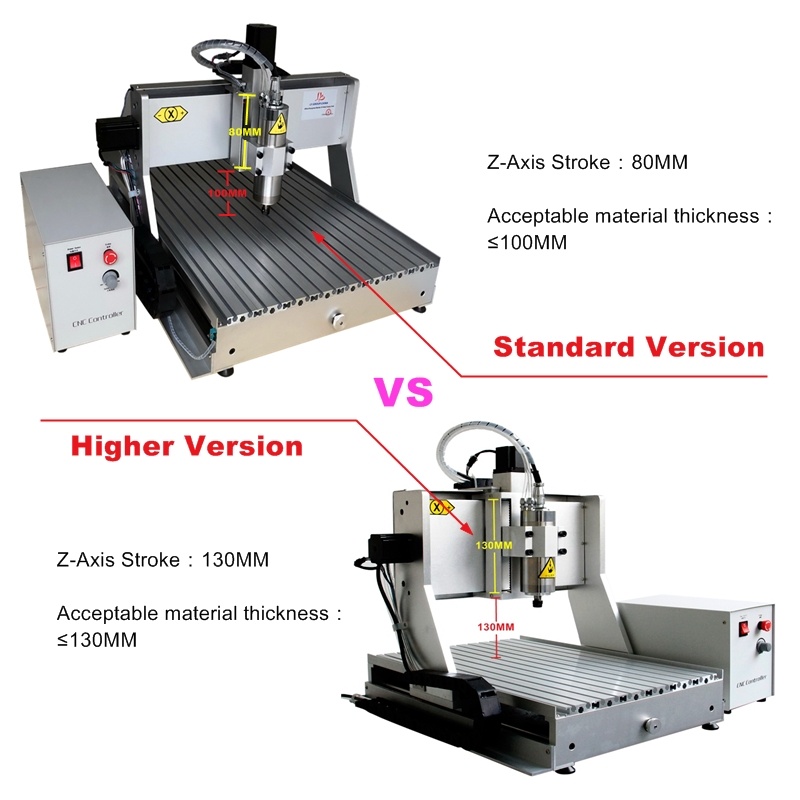

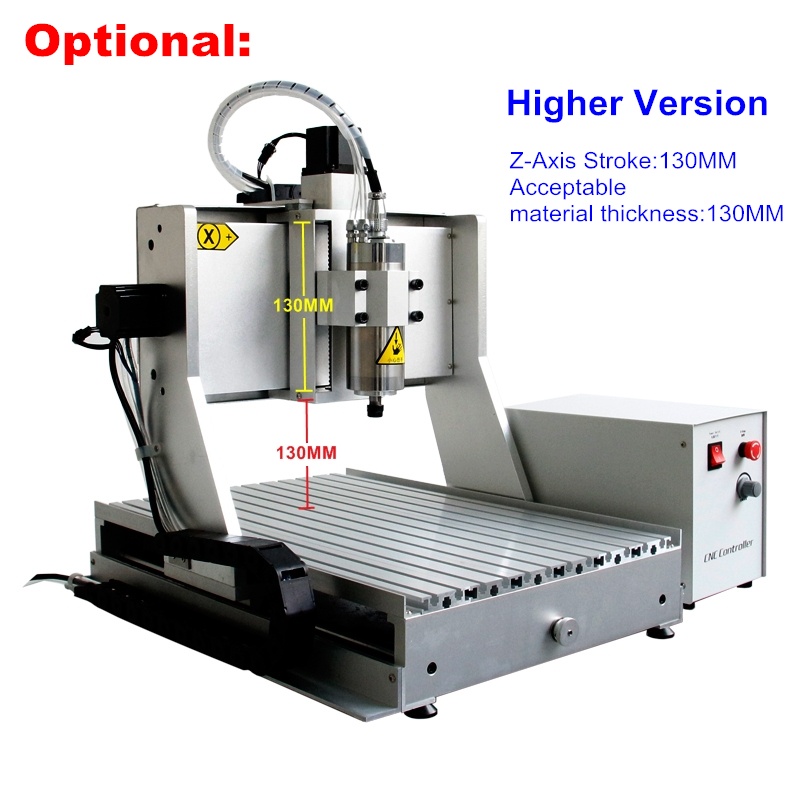

Z-Axis Stroke: 3020 3040 6040 6090 |
60mm 80mm 80mm 125mm, Engraving depth depends on the length of the tool edge |
|||||
|
Acceptable material thickness: 3020 3040 6040 6090 |
≤60mm ≤100mm ≤100mm ≤125mm |
|||||
|
Rail type: |
Chromeplate shaft + Linear Bearings, Surface hardening 61HRC |
|||||
|
Type of screw: |
Ball screw 1605, Pitch 5mm |
|||||
| Spindle motor: | VFD water cooling spindle ,0-24000r/min | |||||
|
Collet type: |
ER11(0.8KW 1.5KW) 3.175mm Collet & ER20(2.2KW), 6mm Collet |
|||||
|
Stepper motor and drive: |
two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive. |
|||||
|
Maximum operating speed: |
4000mm/min (Engraving speed :300-3000mm/min) |
|||||
|
Repeat positioning Accuracy: |
0.03mm |
|||||
|
Software Compatability: |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||||
|
Command code: |
G code/.nc/.ncc/.tab/.txt |
|||||

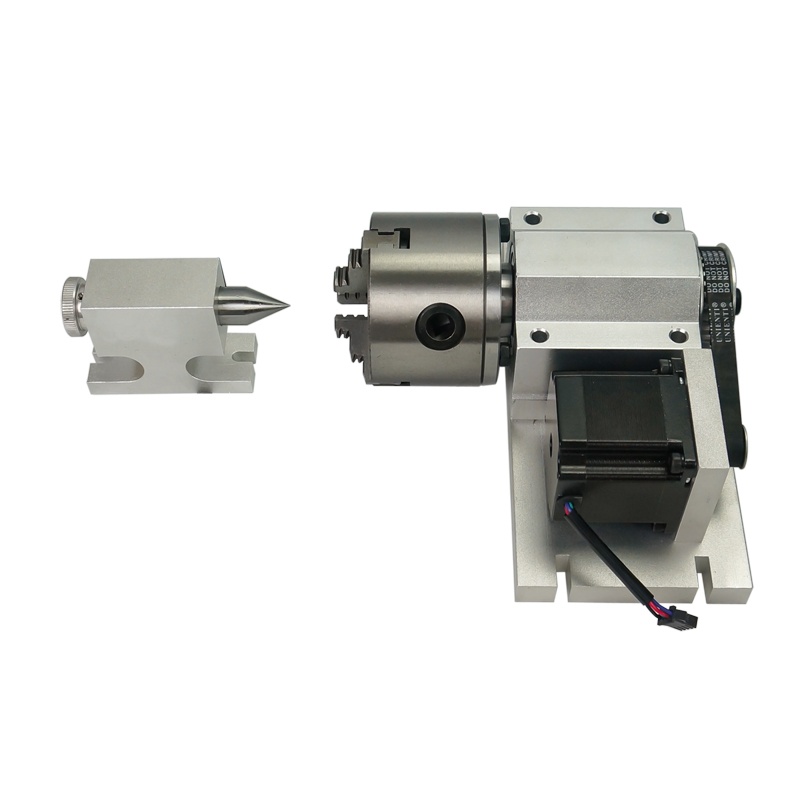

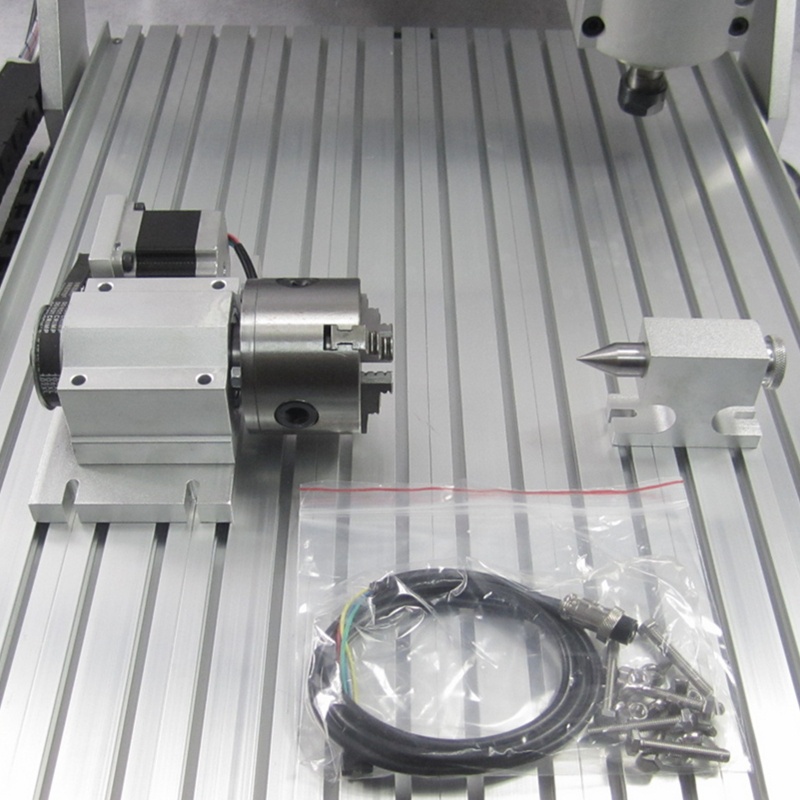

| Rotation Axis (4thAxis)Description: | Chuck Size: 80mm self-centering chuckCenter height: H = 49mm
Clamping diameter: 80mm or less Deceleration mode: synchronous wheel / belt Deceleration ratio: 3:1 Stepper motor: 57 type two phase 4 line Positioning accuracy: 0.075 ° |
|||||
Thanks for your order!

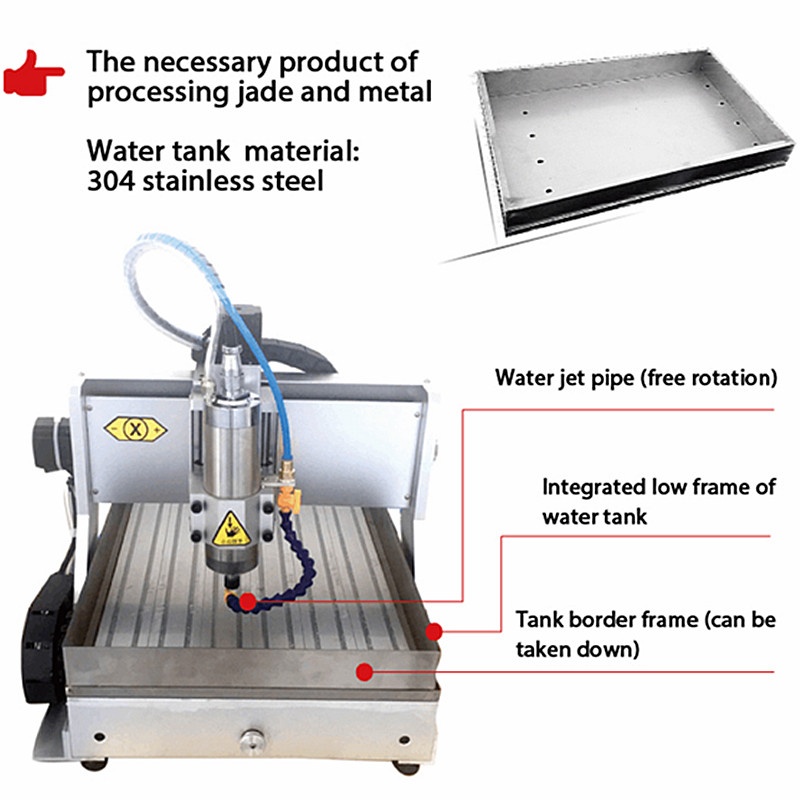

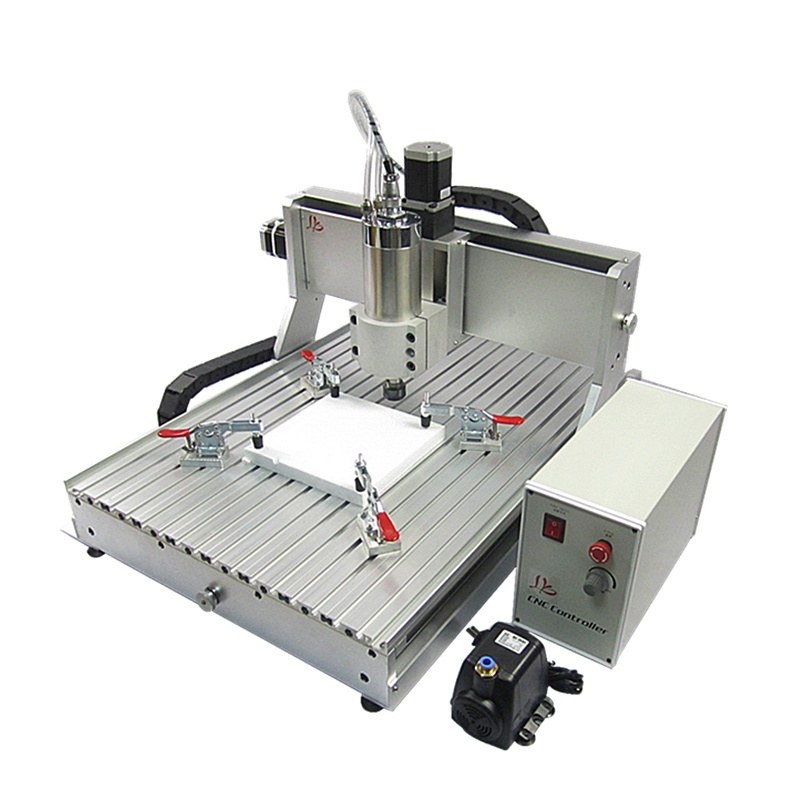

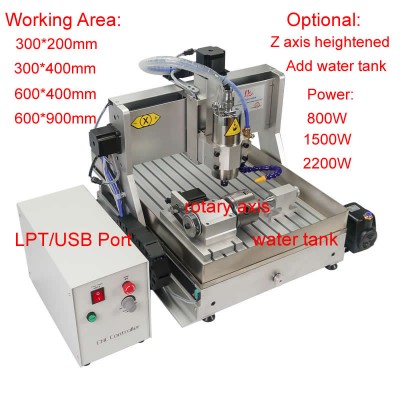

Product Pictures
