ACHI IR6500 infrared BGA Soldering Rework Station IR 6500 For Motherboard Chip PCB Refurbished Repair System Solder Welding 220V

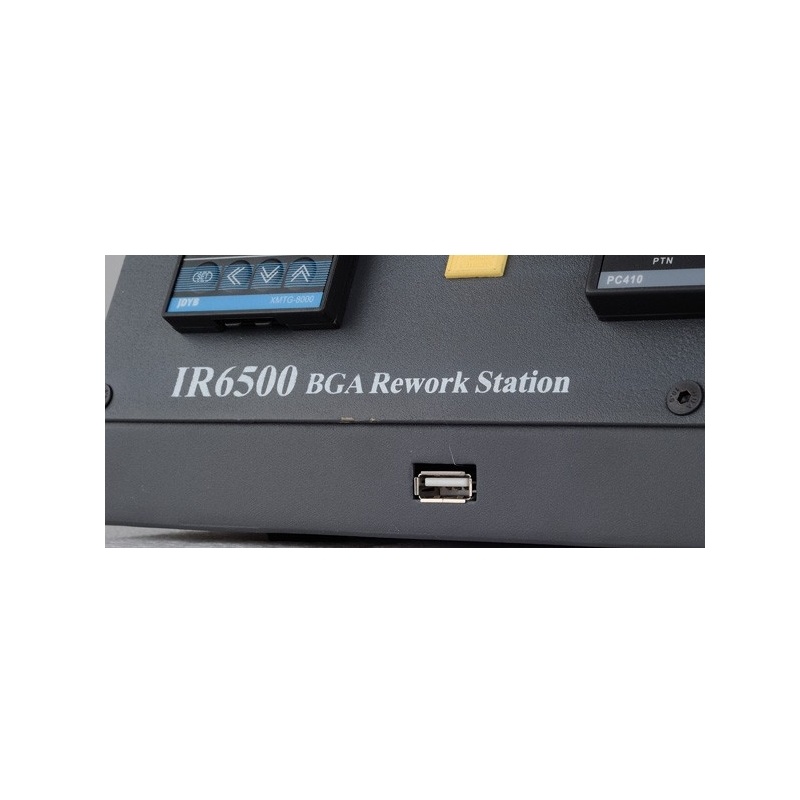

1. USB interface.
2. 2 temperature zones
3. With tempering glass,more uniform heating
4. Hot sale model, praised by many customers.
5. Low cost.
6. Technical support is always available
7. Original Factory, look for worldwide distributors
Where this IR6500 DIY IR BGA Reflow Rework Station Price Good can be used for ?
1. For repairing Mobile phones
2. For repairing Notebooks/ Laptops/computers
3. For repairing game consoles, especially for XBOX360/PS3/WII
4. For repairing any other mainboards with size from 22x22mm to 500x400mm
5. For preheating chips or mainboards before soldering to improve rework efficiency.
Specifications of this IR6500 DIY IR BGA Reflow Rework Station Price Good
|
Total power |
1250W |
|
Voltage |
AC220V±10% 50/60Hz |
|

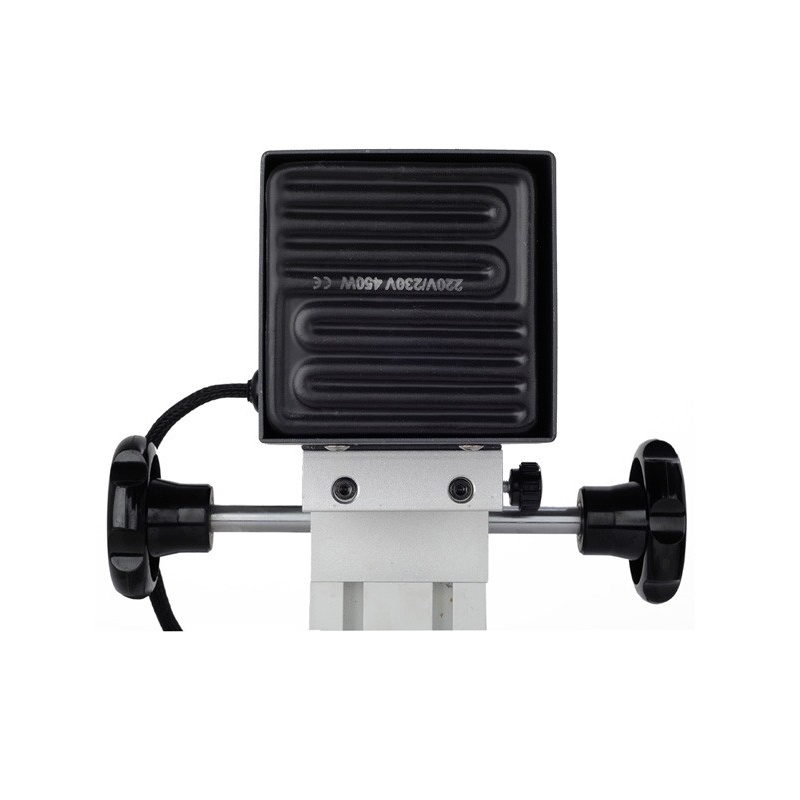

Top heater |
IR 400W |
|
Size of topr heater |
80mm*80mm |
|
Bottom heater |
IR 800W |
|
Size of bottom heating |
180mm*180mm |
|
PCB size |
Max. 400*305 mm |
|
BGA chip size |
Max. 70*70 mm |
|
Positioning |
V-groove PCB |
|
Temperature control |
K Type temperature Sensor and Closed loop |
|
Temperature accuracy |
±2°C |
|
Dimension |
475*480*420mm |
|
Net weight |
16 KG |

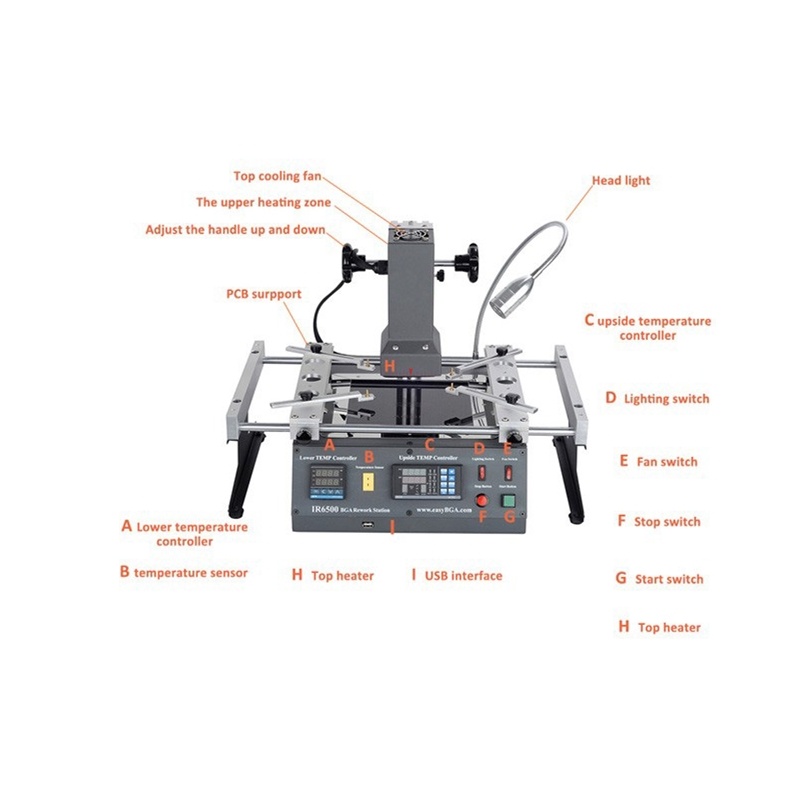

Main Structure of this IR6500 DIY IR BGA Reflow Rework Station Price Good
Thanks for your order!

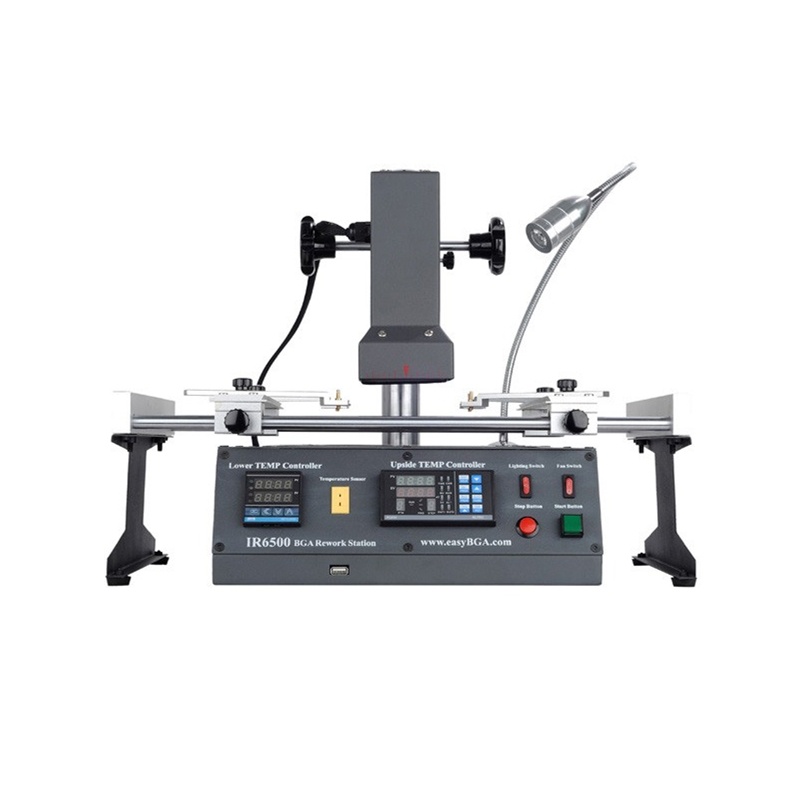

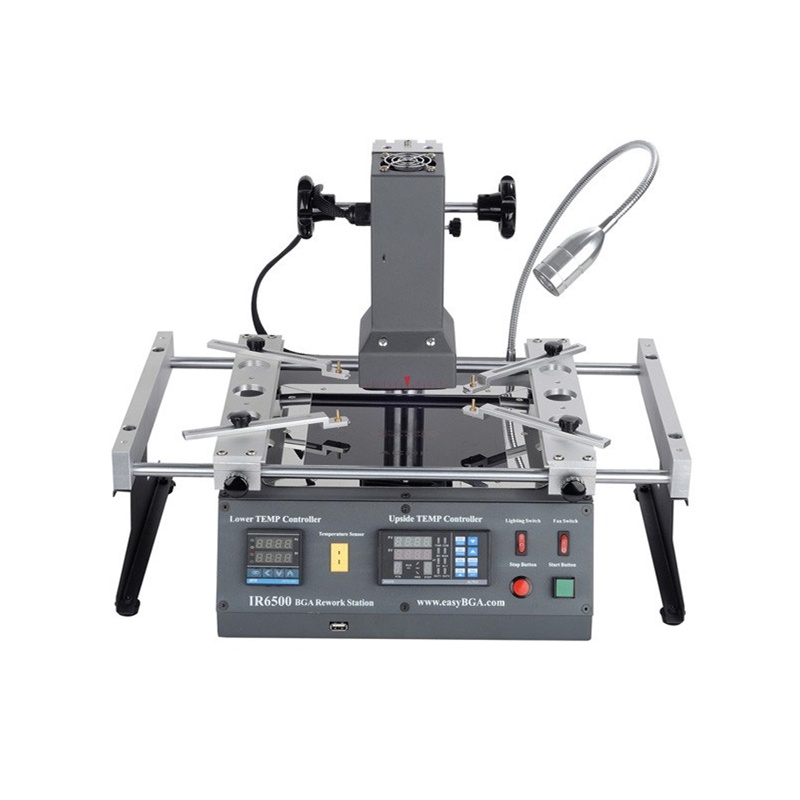

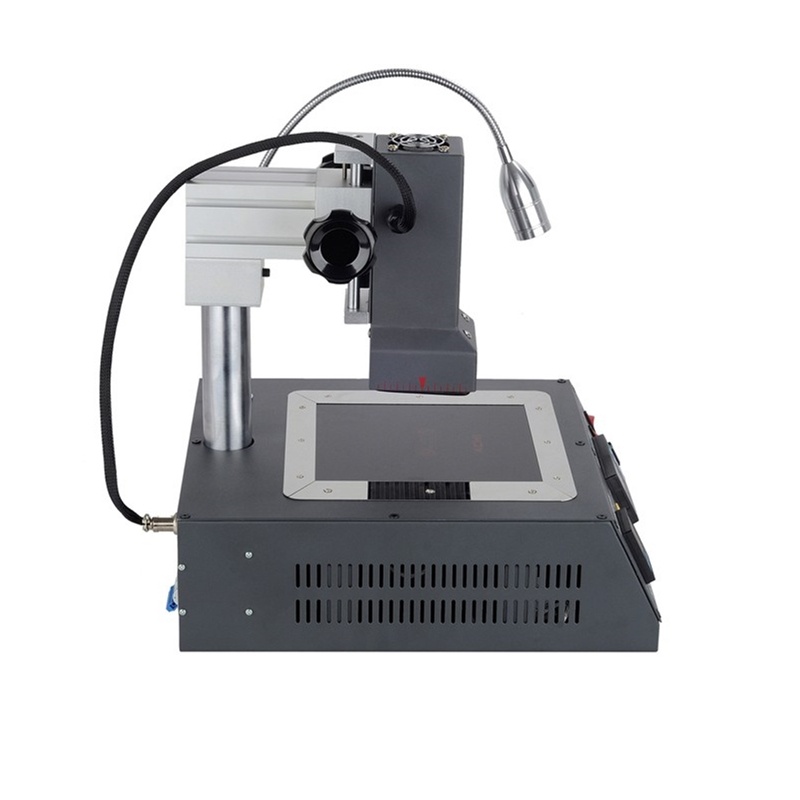

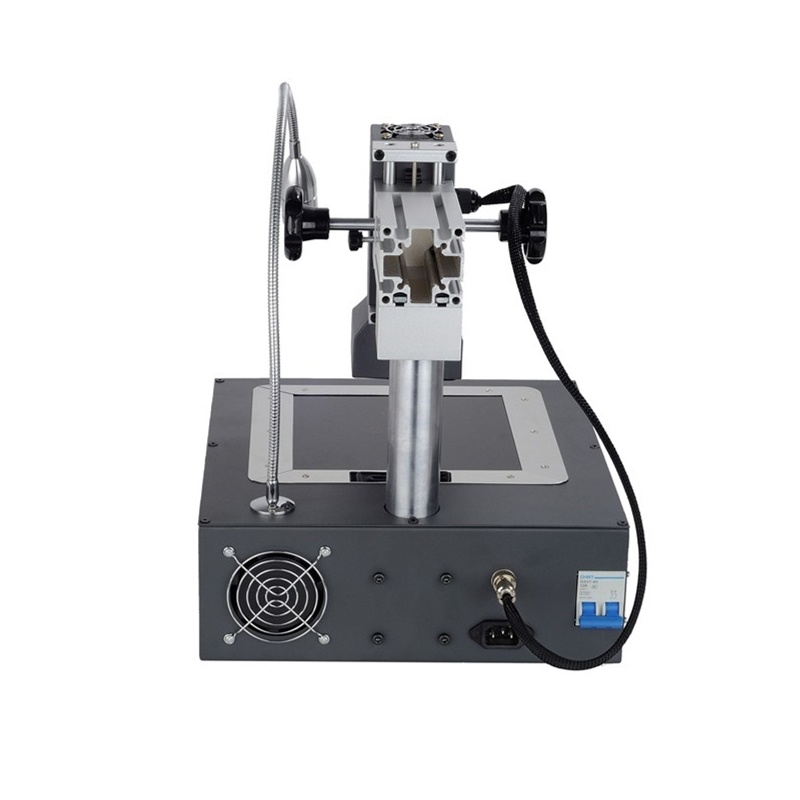

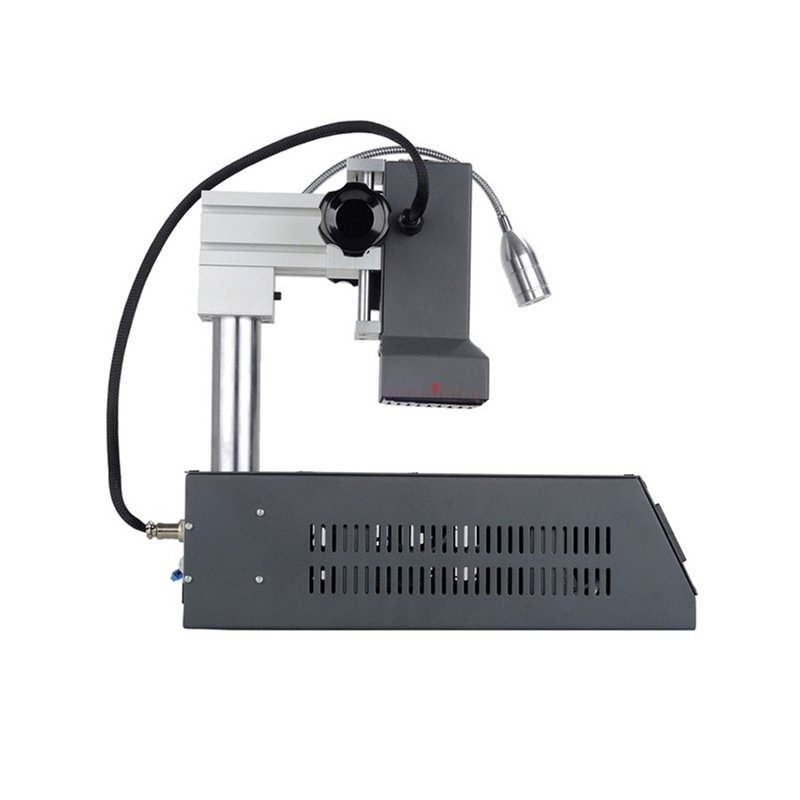

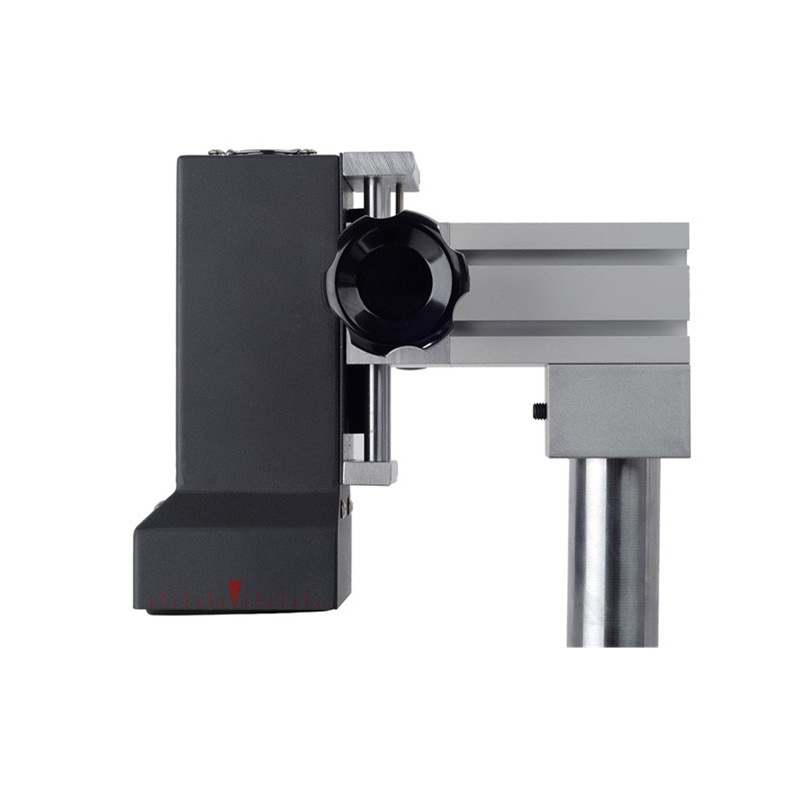

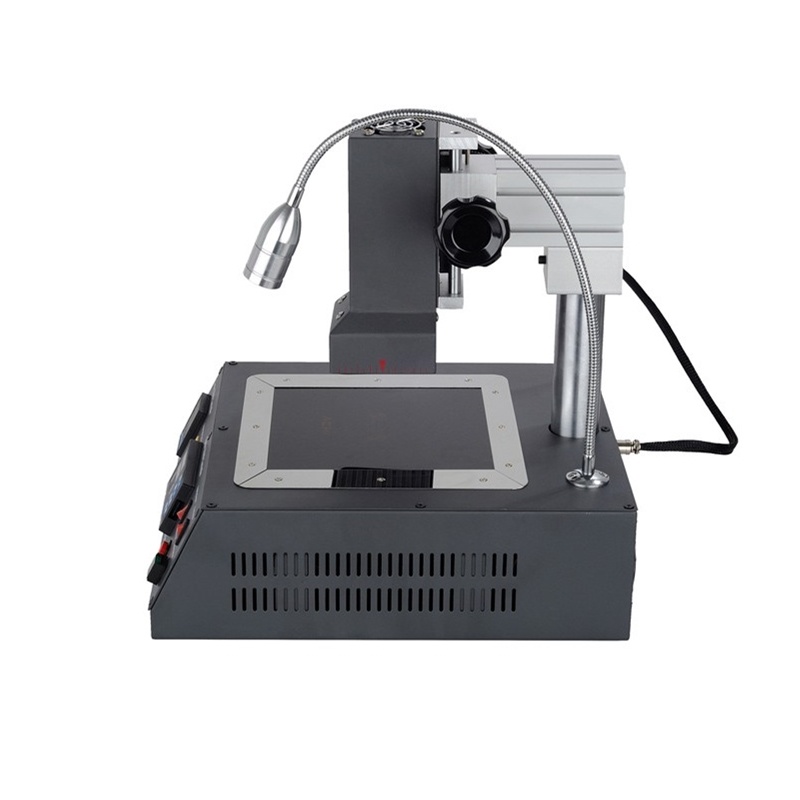

Product Pictures
