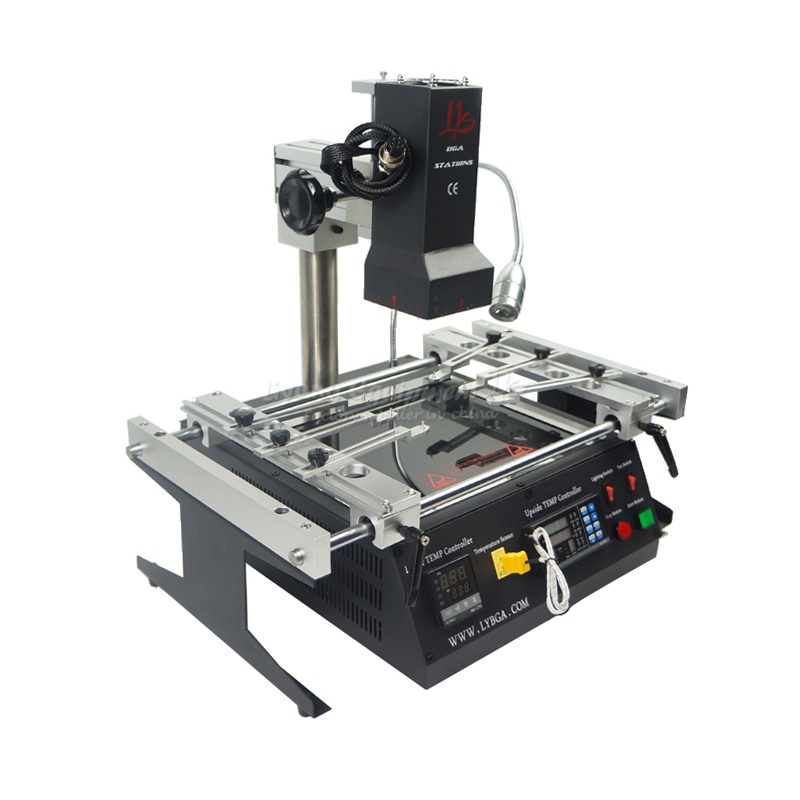

LY IR6500 V.2 BGA repair rework solder station 2 zones infrared 2300W PC410 software control
CE Certification
can be connected to a computer or laptop
8 constant temperature segments
It can easily rework the variety of CPU’s seat
Introduction
IR6500 V.2 Rework station for laptop motherboards, desktop computer motherboards, server boards, industrial computer boards, all kinds of game boards, communications equipment motherboards, LCD TVs and other large circuit board BGA rework.
IR6500 V.2 innovative designs an effective solution to general of infrared rework station vulnerable to the impact of air flow. will lead an inaccurate of temperature control can easily deal with lead-free soldering rework.
Technical Parameters
| Basic Parameters | |
| Zones | 2 |
| Operations | Manual / Software |
| Heating | IR |
| Dimension | L495mmx W480mmx H420mm |
| Weight | 16kg |
| Total weight | About 17 kg, vary with the differen need of the users |
| Electrical Parameters | |
| Power | 220V AC |
| Upper Heating | IR |

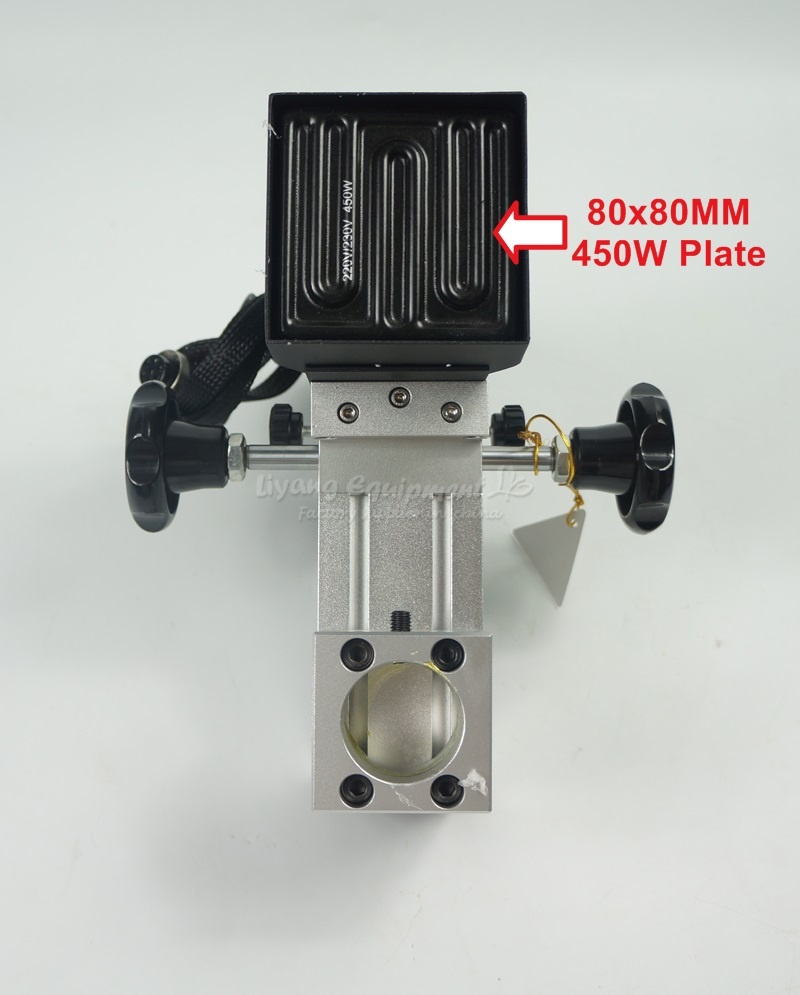

| Size of Upper heating | 80mm x 80mm |
| Consumption of upper heating | 450W |
| Bottom Heating | IR |

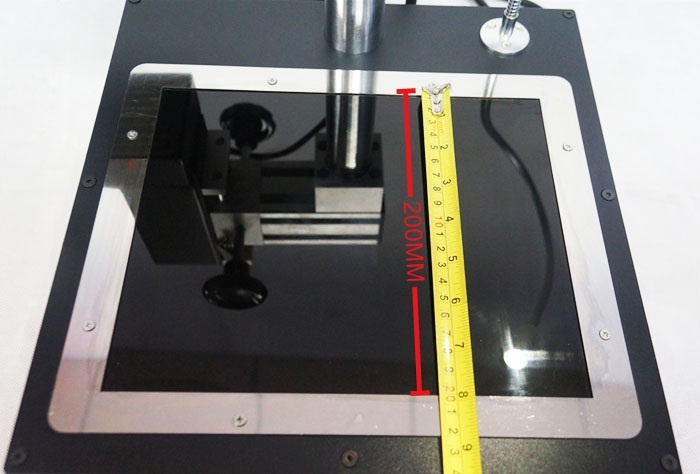

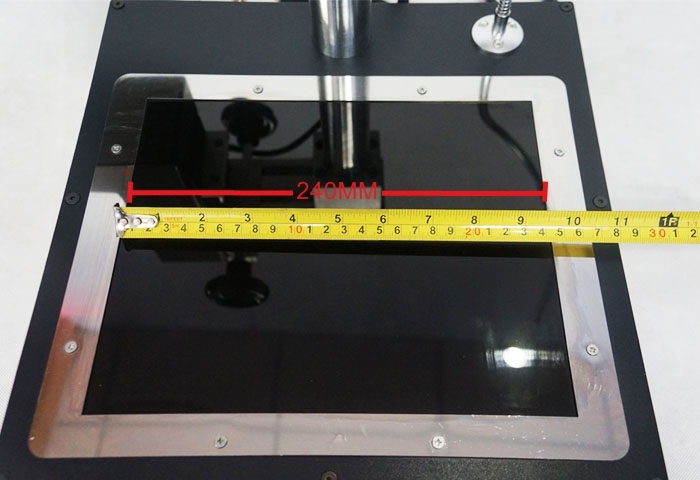

| Size of Bottom heating | 2400mm x2000mm |
| Consumption of Bottom heating | 1800W |
| General power | 2300W |

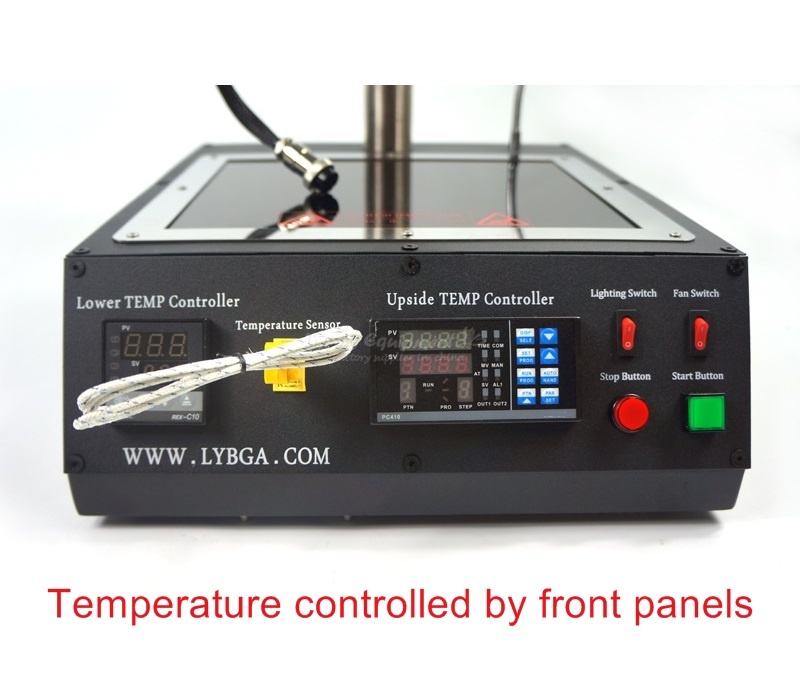

| Temperature Control | |
| Control mode of Upper | Independent temperature control, high-precision closed-loop |
| control, precision ± 0.5%, Alarm | |
| Control mode of Bottom | Independent temperature control, high-precision closed-loop |
| control, precision ± 0.5%, NO Alarm | |
| Rework Function | |
| SMD | Suit for welding, remove or repair packaged devices |
| such as BGA,PBGA,CSP,multi-layer substrates, EMI | |
| metallic shield product and solder/lead free Rework welding | |
| Size of applicable chips | ≤70mm x70 mm |
| Size of applicable PCB | ≤400mm x305mm |

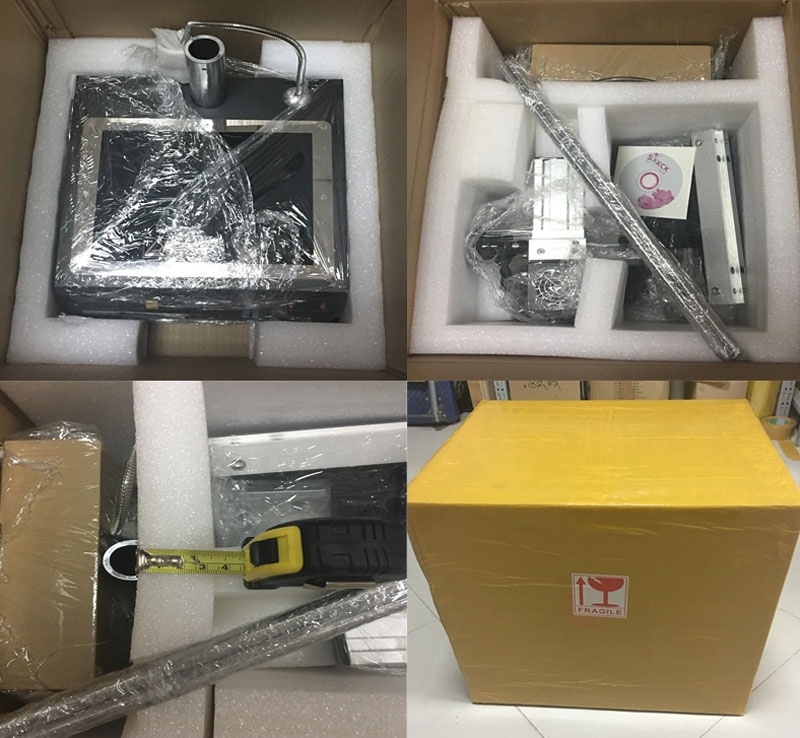

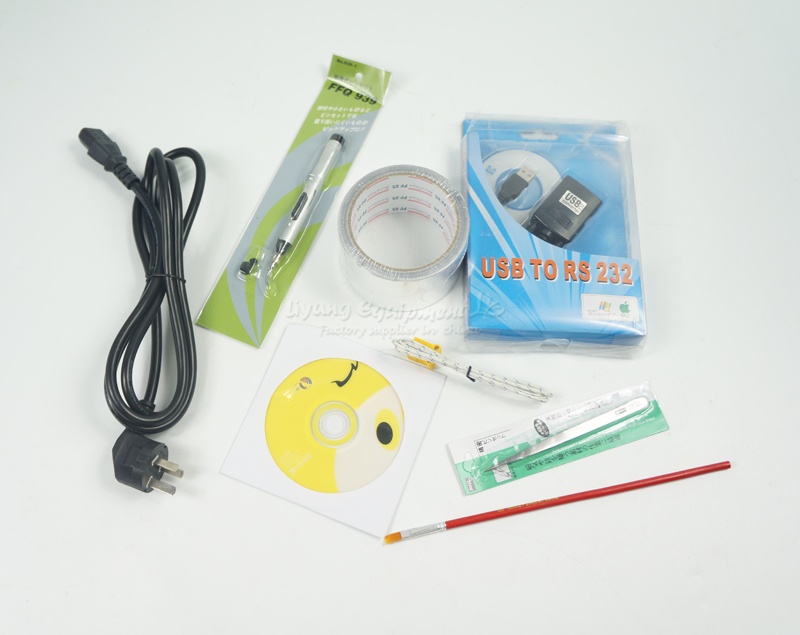

Packing list:
1× bga rework station
1× power cable
1× usb to rs232 port cable (with CD)
1× thermocouple
1× vacuuum pen
1x tweezers

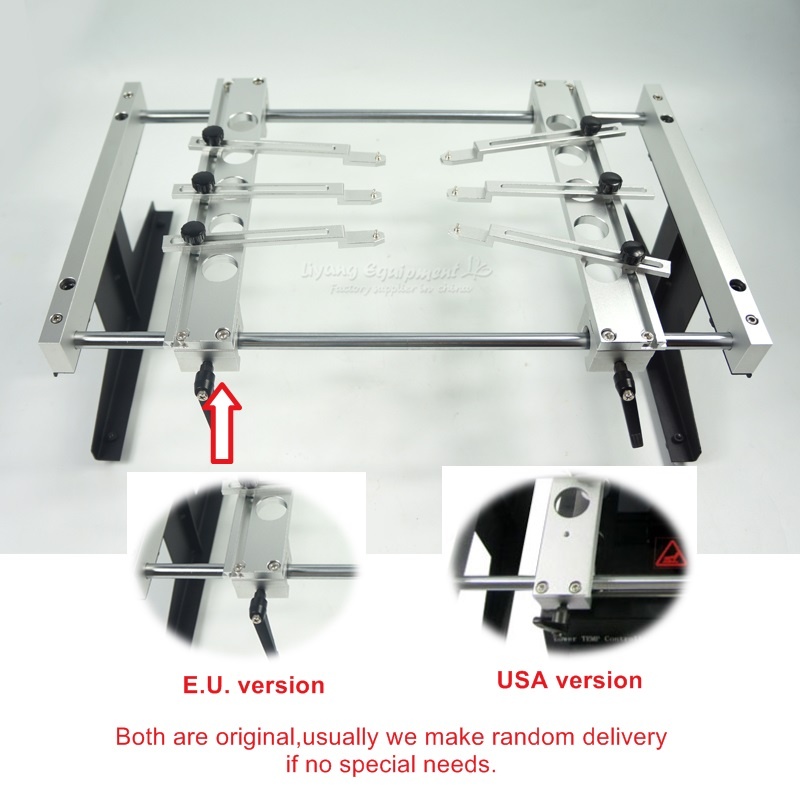

6x pcb jig with screw
1× CD of manual and software (if not get or broken, please contact us,we send to you by mail)
Thanks for your order!

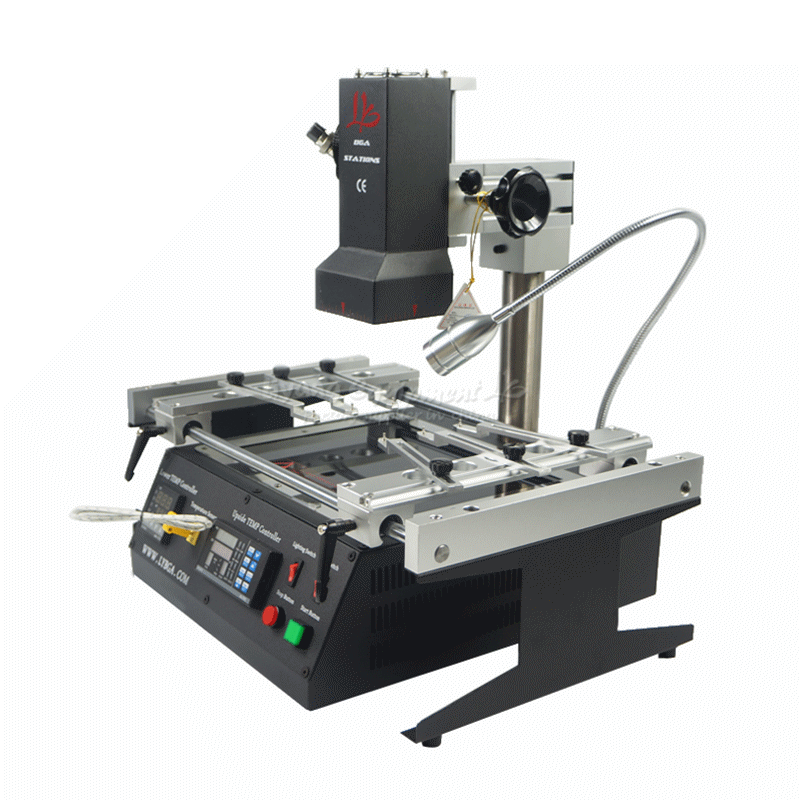

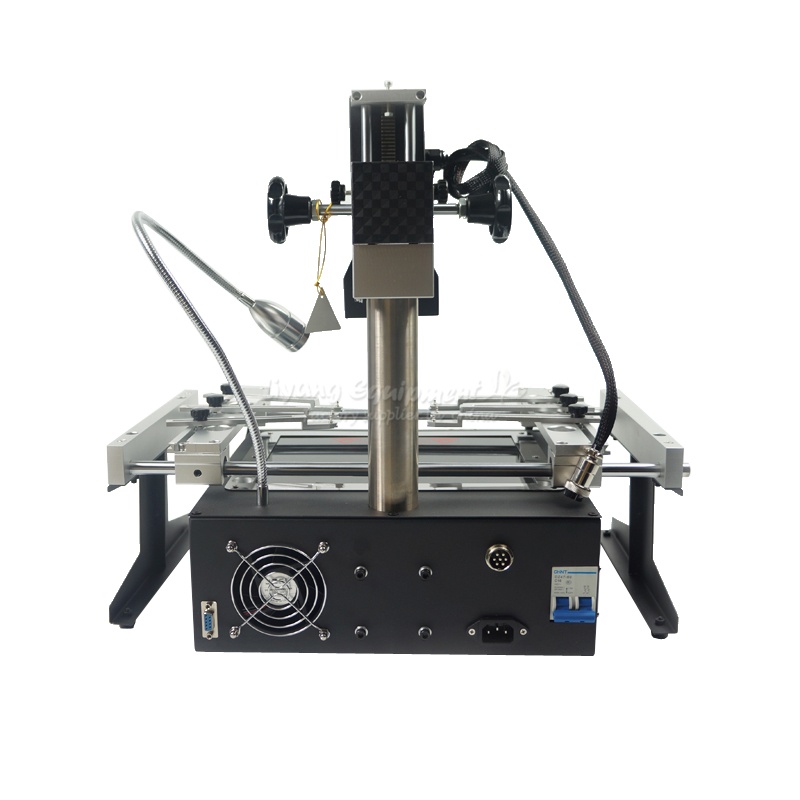

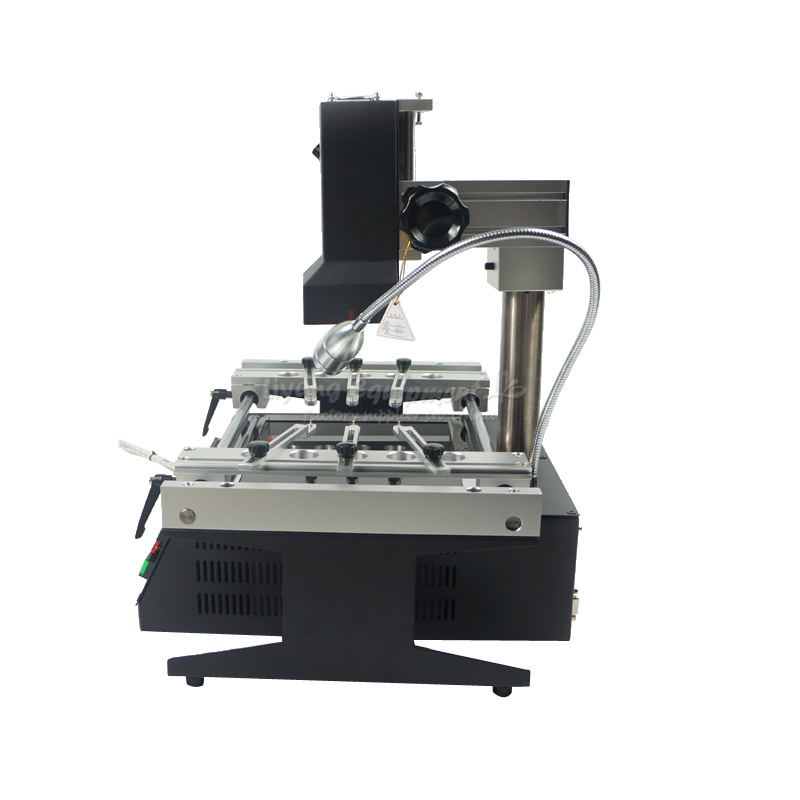

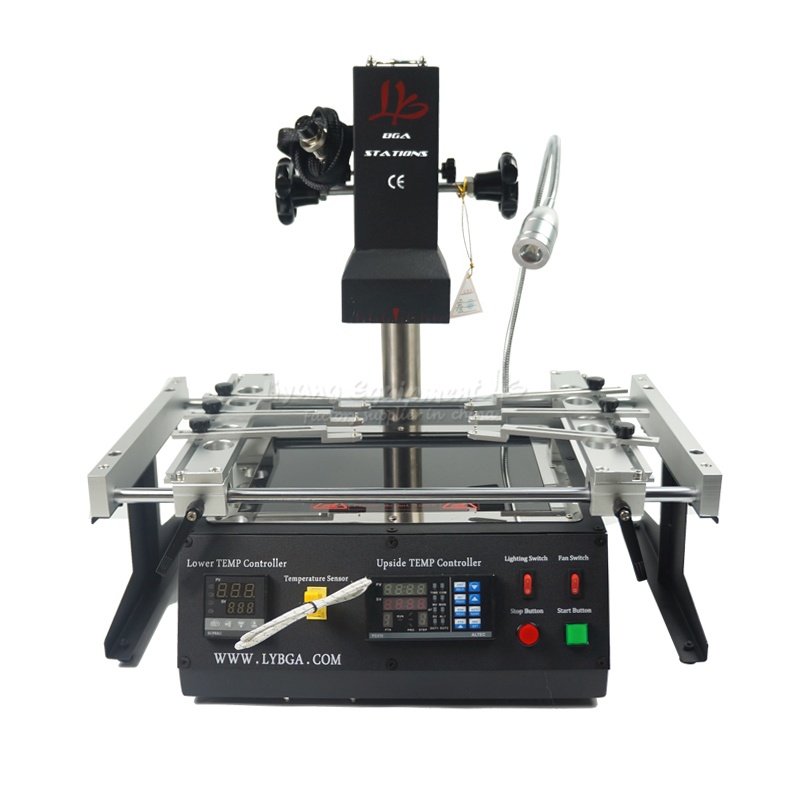

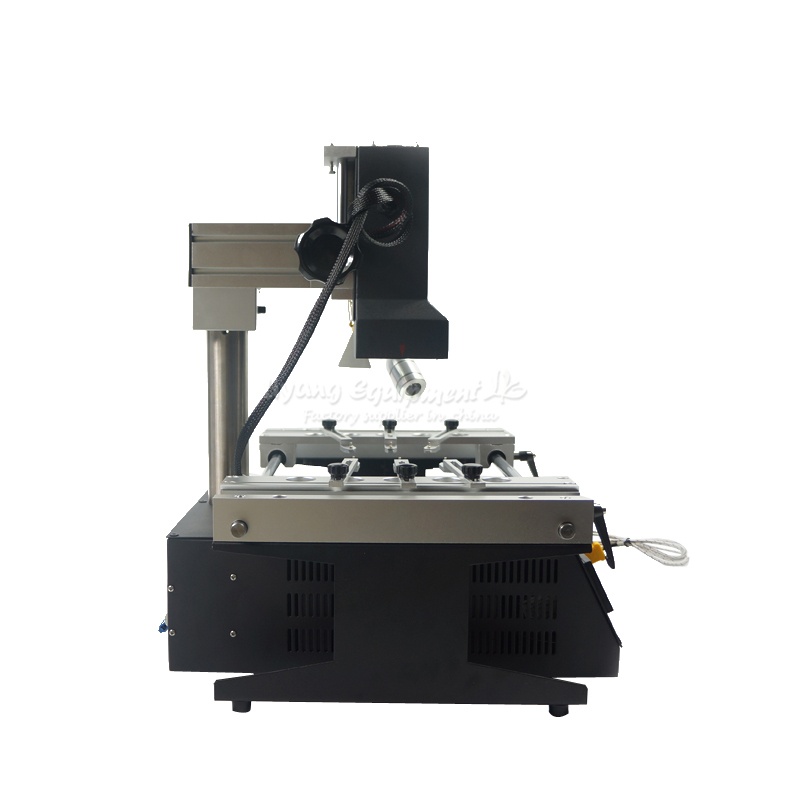

Product Pictures
