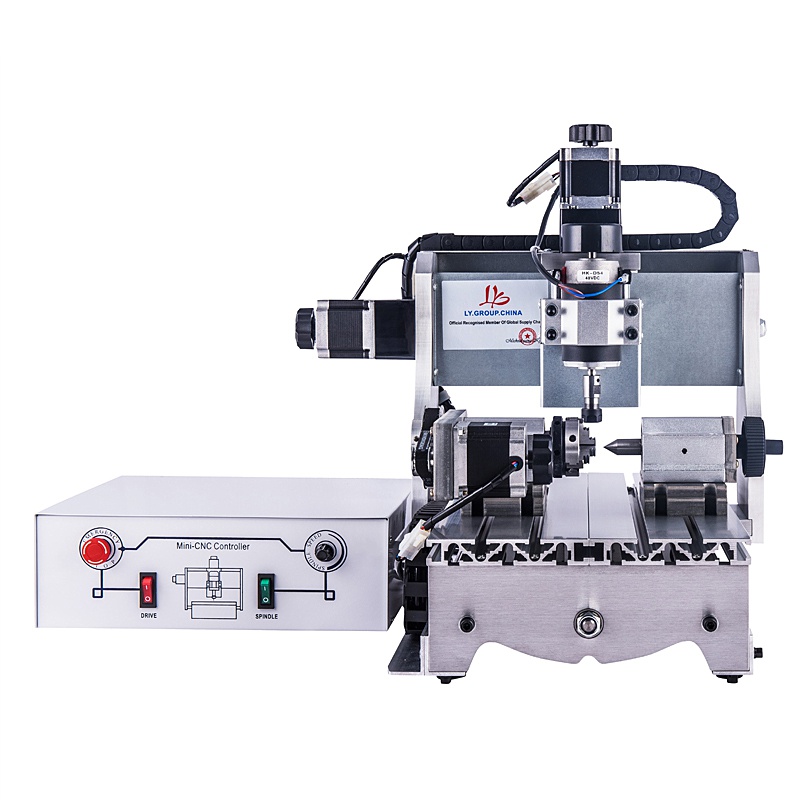

Mini CNC Router Engraver 3020T 300W Milling Machine 3 axis 4 axis
Introduction
The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.
The cnc router is designedfor large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.
Model and Technical Parameters
| MODEL | 3020 | |||
| Attribute | T-D300 3axis | T-D300 4axis | Z-D300 3axis | Z-D300 4axis |
| Axis | 3axis | 4axis | 3axis | 4axis |
| Interface | LPT port | LPT port | LPT port | LPT port |
| Limit switch | No | No | No | No |
| Toolauto-checking | No | No | No | No |
| Spindle Motor: | 300W | 300W | 300W | 300W |
| Type of screw | 1404Trapezoidal Screw | 1404Trapezoidal Screw | 1605Ball screw | 1605Ball screw |
| Weigh | 25KG | 29KG | 26KG | 30KG |
|
Machine Dimensions： |
560X450X450mm |
|||
|
Rack material： |
6061 and 6063 Hard aluminum alloy (The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.) |
|||
|
Engraving area： |
300X200mm |
|||
|
Z-Axis Stroke： |
60mm, Engraving depth depends on the length of the tool edge |
|||
|
Acceptable material thickness： |
≤60mm |
|||
|
Rail type： |
Chromeplate shaft+Linear Bearings,Surface hardening 61HRC |
|||
| Spindle motor： | 300W/12000r/min(Very small noise) | |||
|
Collet type： |
ER11,1/8″(3.175mm) Collet |
|||
|
Stepper motor and drive： |
two-phase hybrid stepping motor3A/PHASE,150N.cm, 8 segments drive. |
|||
|
Maximum operating speed： |
4000mm/min (Engraving speed : 300-3000mm/min) |
|||
|
Repeat positioning Accuracy： |
≤0.03mm |
|||
|
Software Compatability： |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM,coppercam) |
|||
|
Command code： |
G code/.nc/.ncc/.tab/.txt |
|||

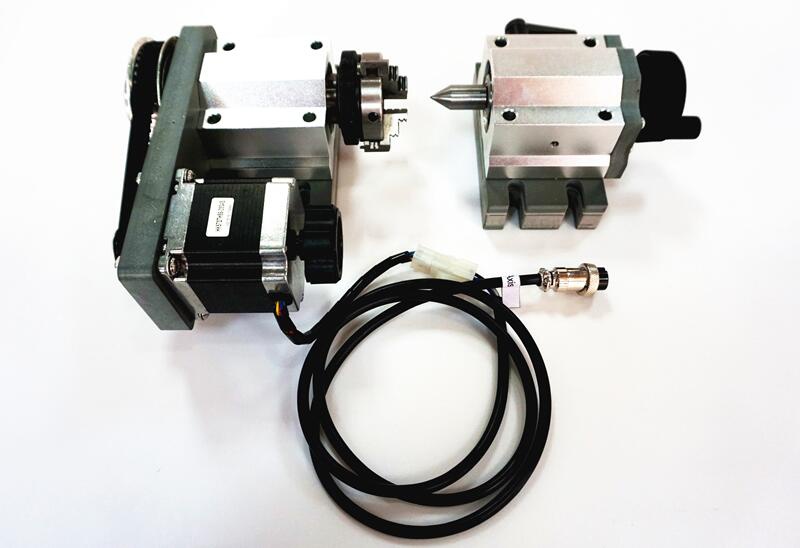

| Rotation Axis (4th Axis)Description: | Chuck Size: 50mm self-centering chuckCenter height: H = 51mmClamping diameter: 50mm or less
Deceleration mode: synchronous wheel / belt Deceleration ratio: 4:1 Stepper motor:NEW 57 type / 3A Stepper Drive: T65-axis drive Positioning accuracy: 0.075 ° Weight: 4kg |
|||
