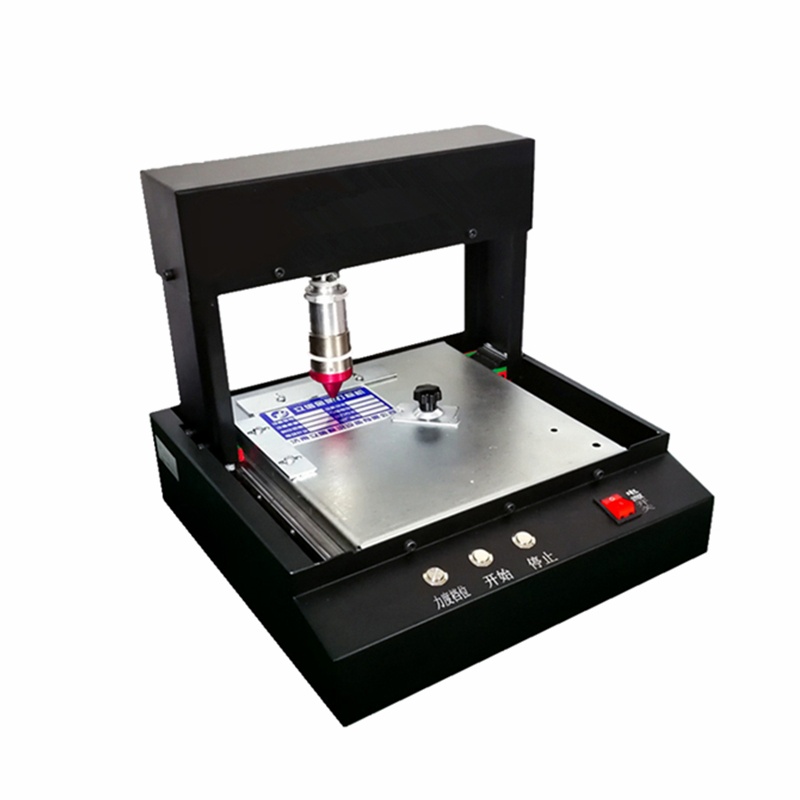

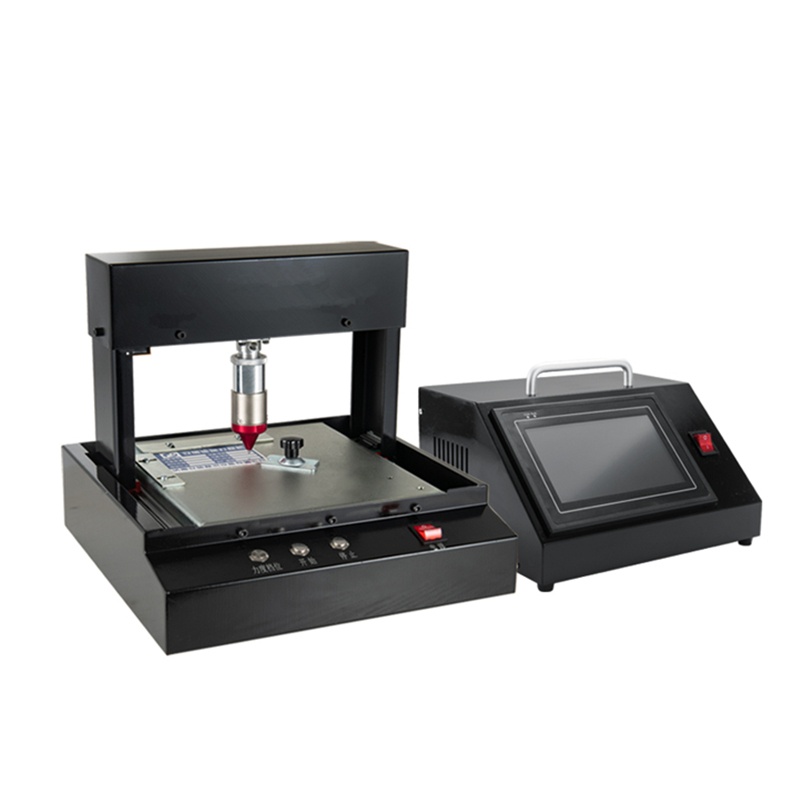

Offline control electric touch screen metal nameplate marking machine 190×120 240*200 300*250mm
Product function:
automatic dot pin marking machine, CNC Stainless Steel / Aluminum / Iron / electric Dot Pin metal Engraving Marking Machine for Vin Code .
These machines are ideal for replacing a hand punching operation & has a lot of advantages over many similar conventional processes.
Hot foil stamping is also replaced with Pneumatic Metal marking machine. These machine are capable of marking on soft & hard components.
These machines can mark all metals such as Steel, Stainless Steel, Copper brass, Gold, Silver etc.Ideal for marking on hard plastics.
These machines mark permanent Batch numbers, Serial numbers, Barcode scanned data, Data from PLC, Date Codes, Month Codes, Year Codes, etc.
Machine parameters:
One type of portable electric marking machine
No gas source, marking the first choice, simple operation, easy maintenance
Support system: Windows xp or Win7/8/10 system
|
Model: |
1912 / Offline control |
2420 / Offline control |
3025 / Offline control |
|
Marking range: |

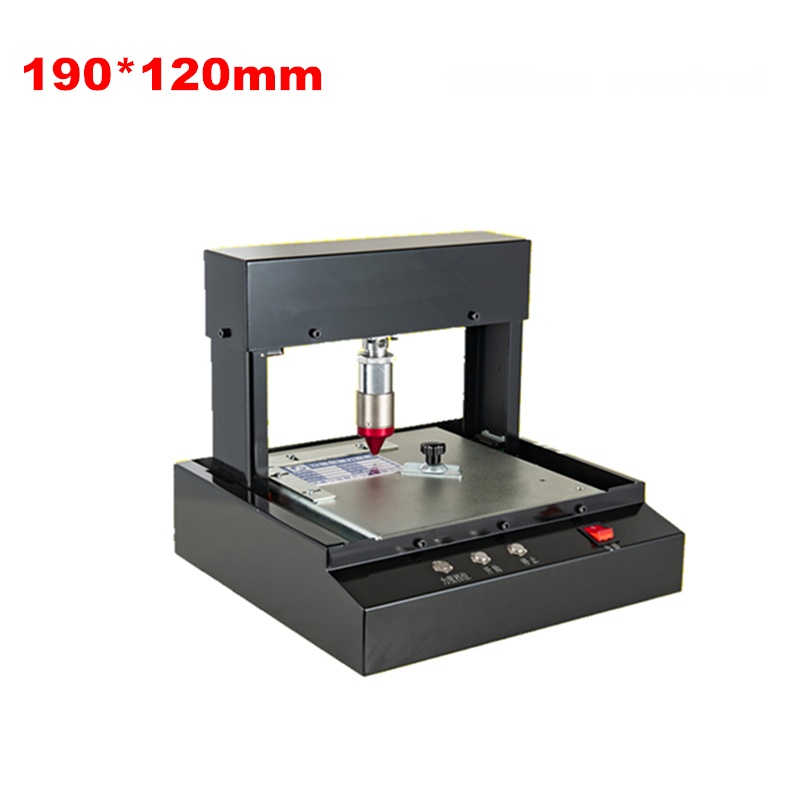

190x120mm |
240x200mm |

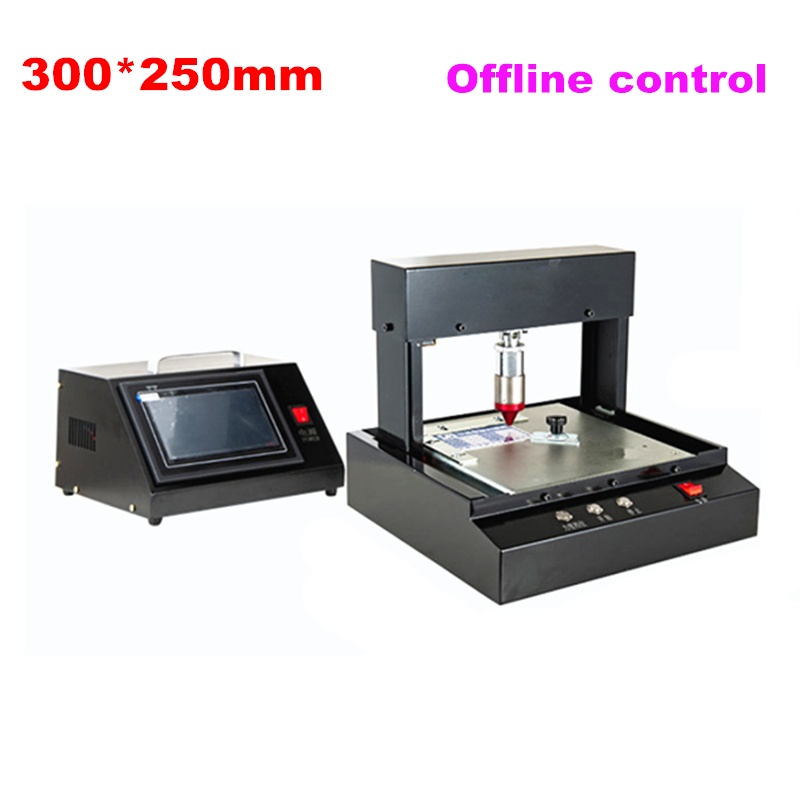

300x250mm |
|
Weight: |
about 20KG /24KG |
about 24KG /28KG |
about 26KG /30KG |
|
Packing size: |
about 400x350x350mm |
about 450x400x350mm |
about 500x450x350mm |
|
Lifting height: |
10mm |
||
|
Marking speed: |
50mm/s |
||
|
Marking depth: |
0.1-0.6mm depending on the material hardness |
||
|
Needle hardness: |
93HRA |
||
|
Needle distance: |
0.5-1mm |
||
|
Voltage: |
110V-220V |
||
|
Power: |
≤200W |
||
|
Operating temperature: |
-15 ~ 45 degrees Celsius |
||
|
Applications: |
all kinds of metal and non-metallic plane marking; a variety of nameplate, signs marking, affordable, simple operation |
||
Note:
Electric ———–need Customer Preparation: Computer;

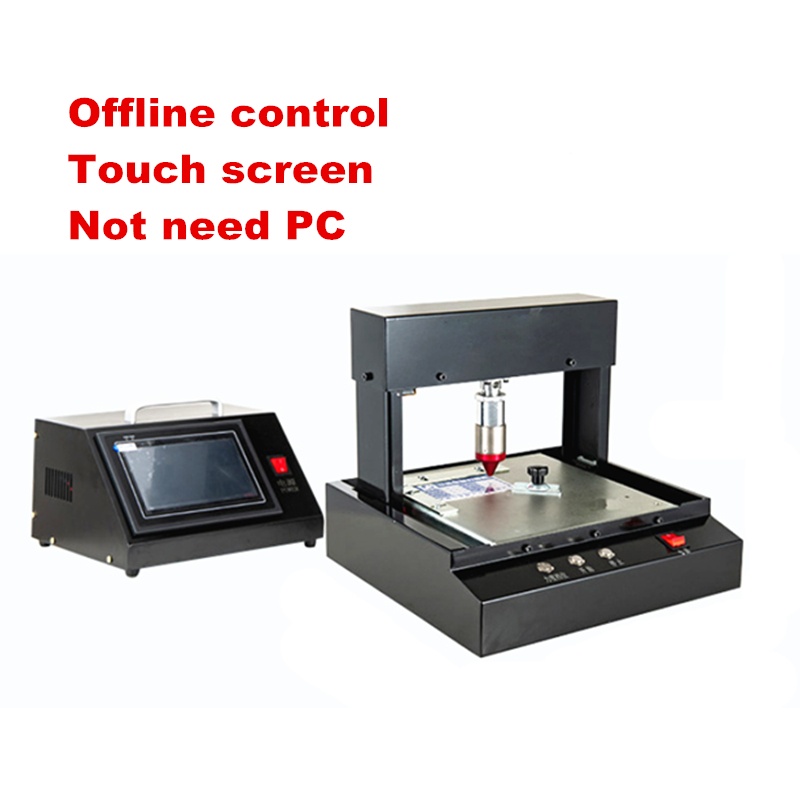

Offline control———–not need Computer;

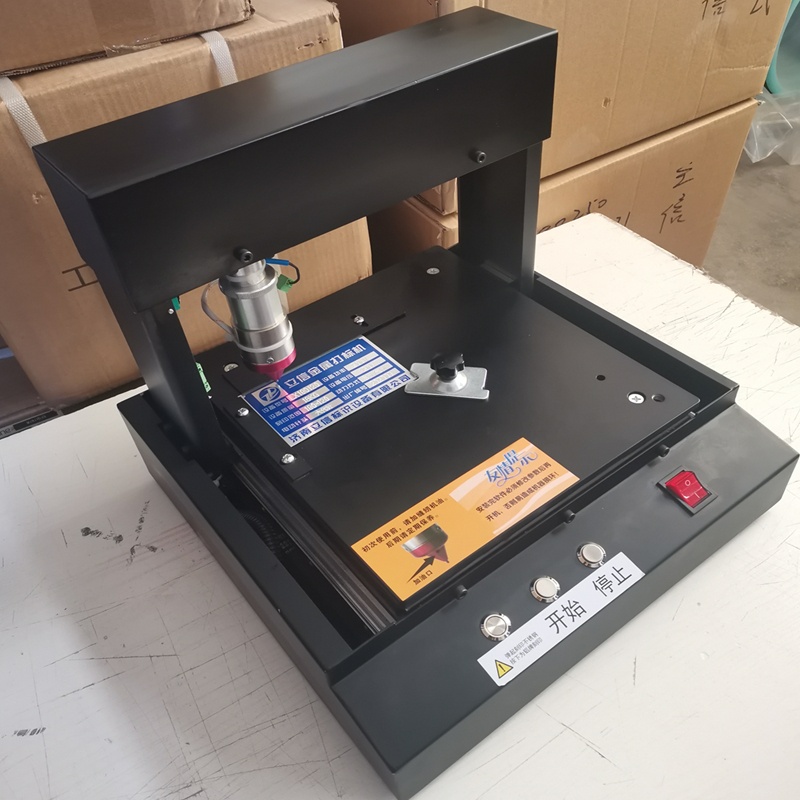

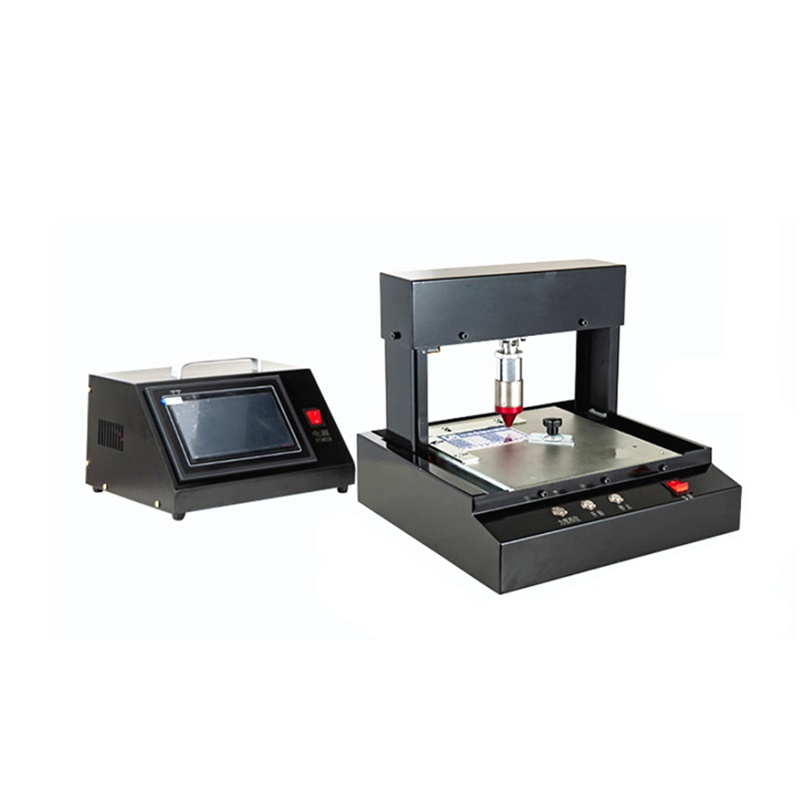

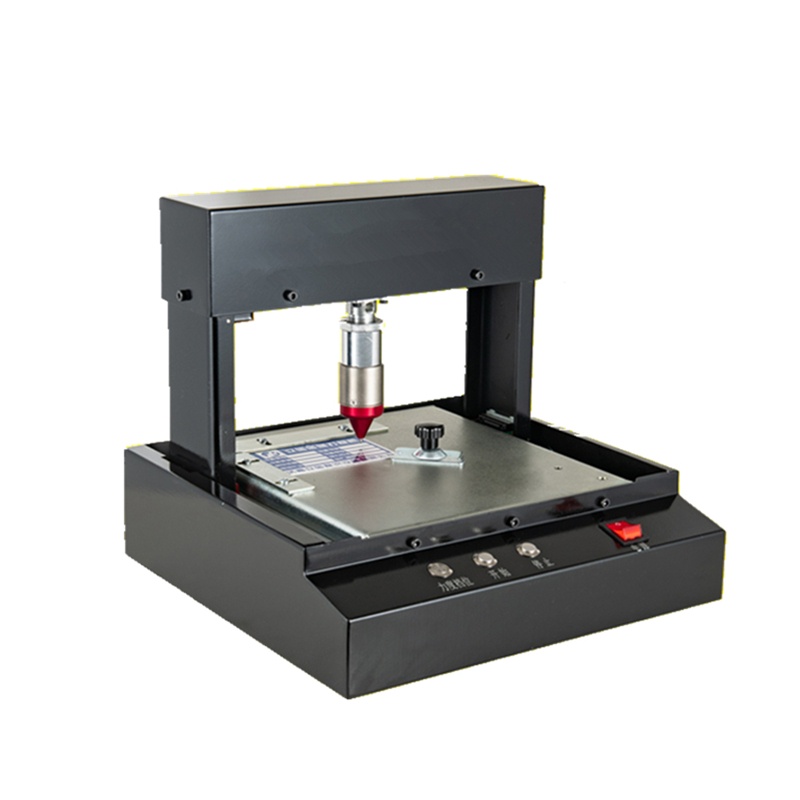

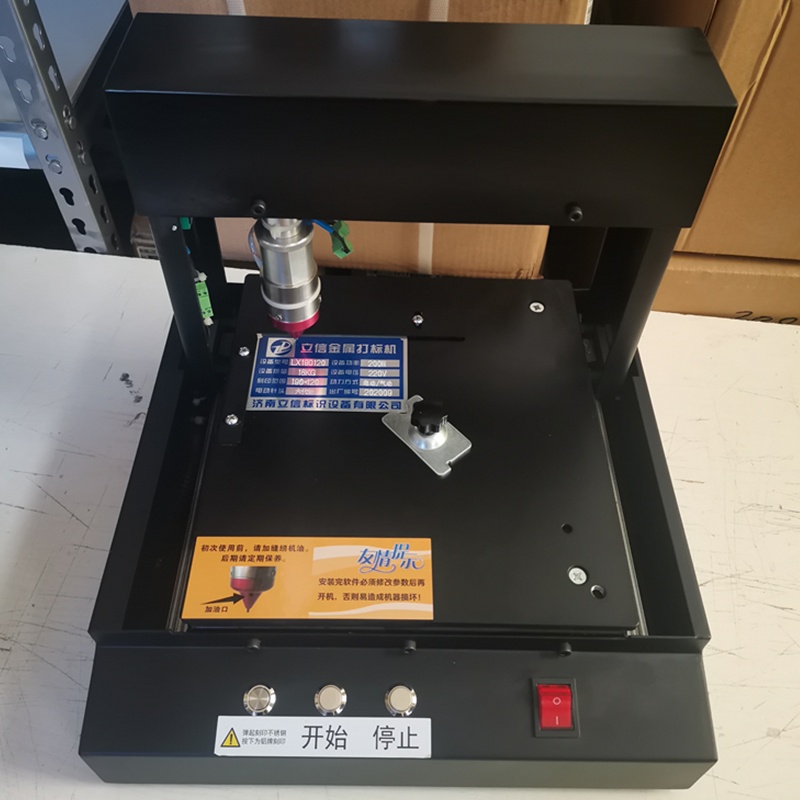

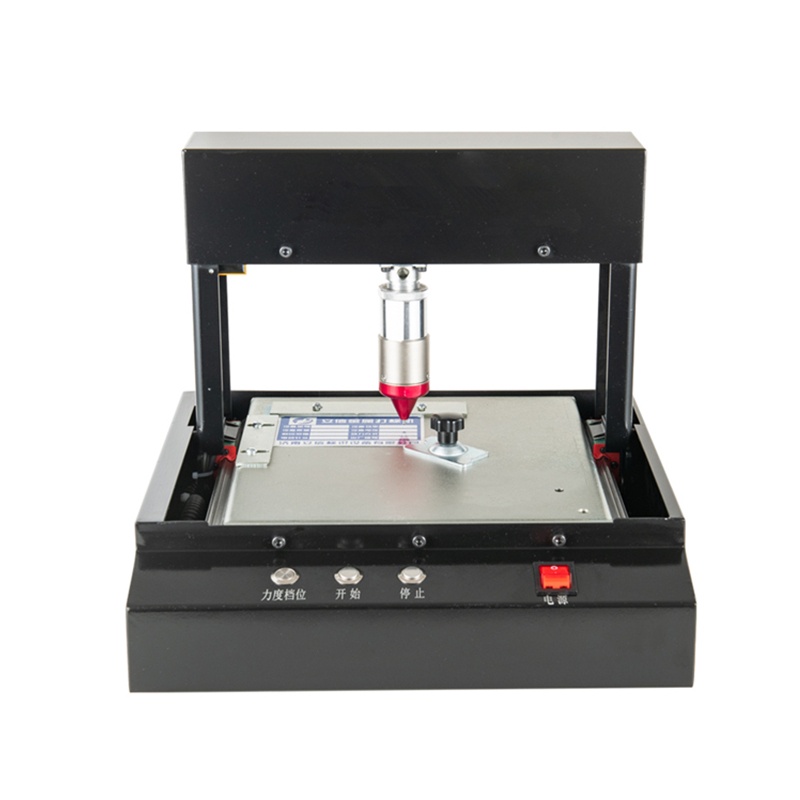

Product Pictures
