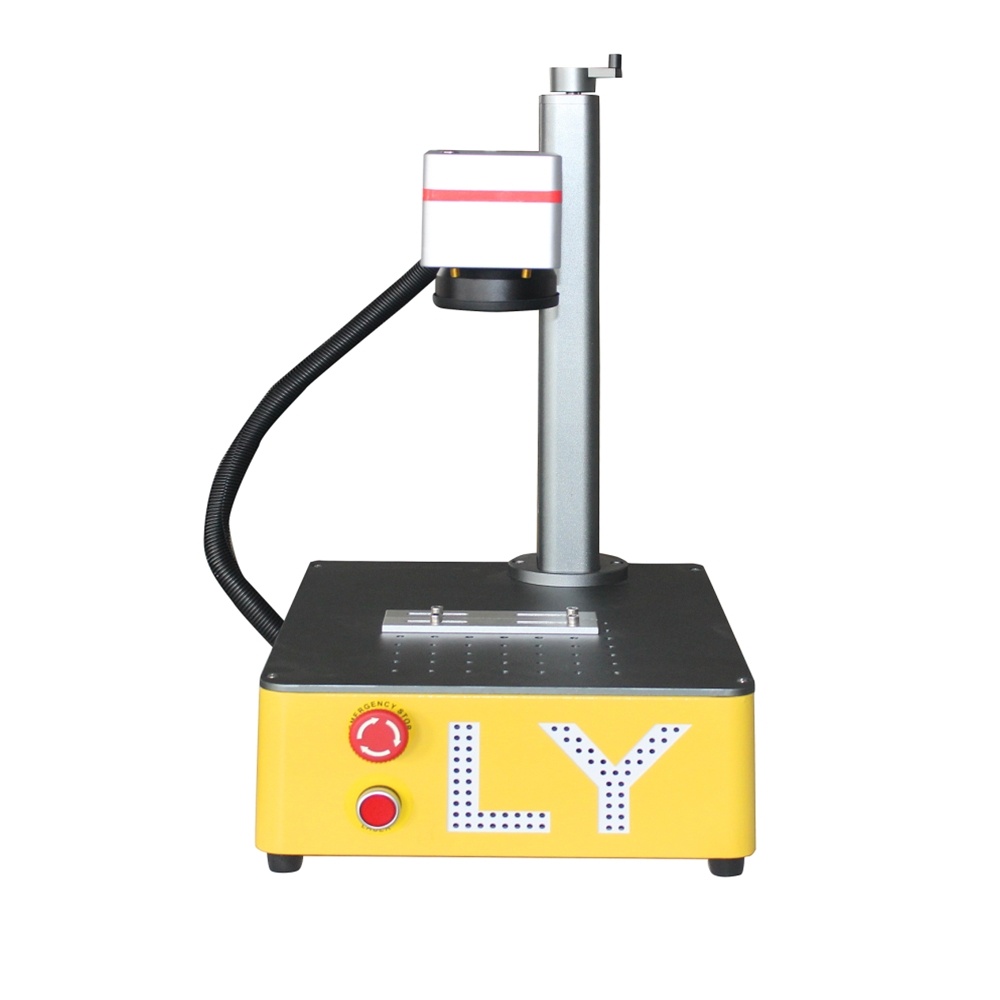

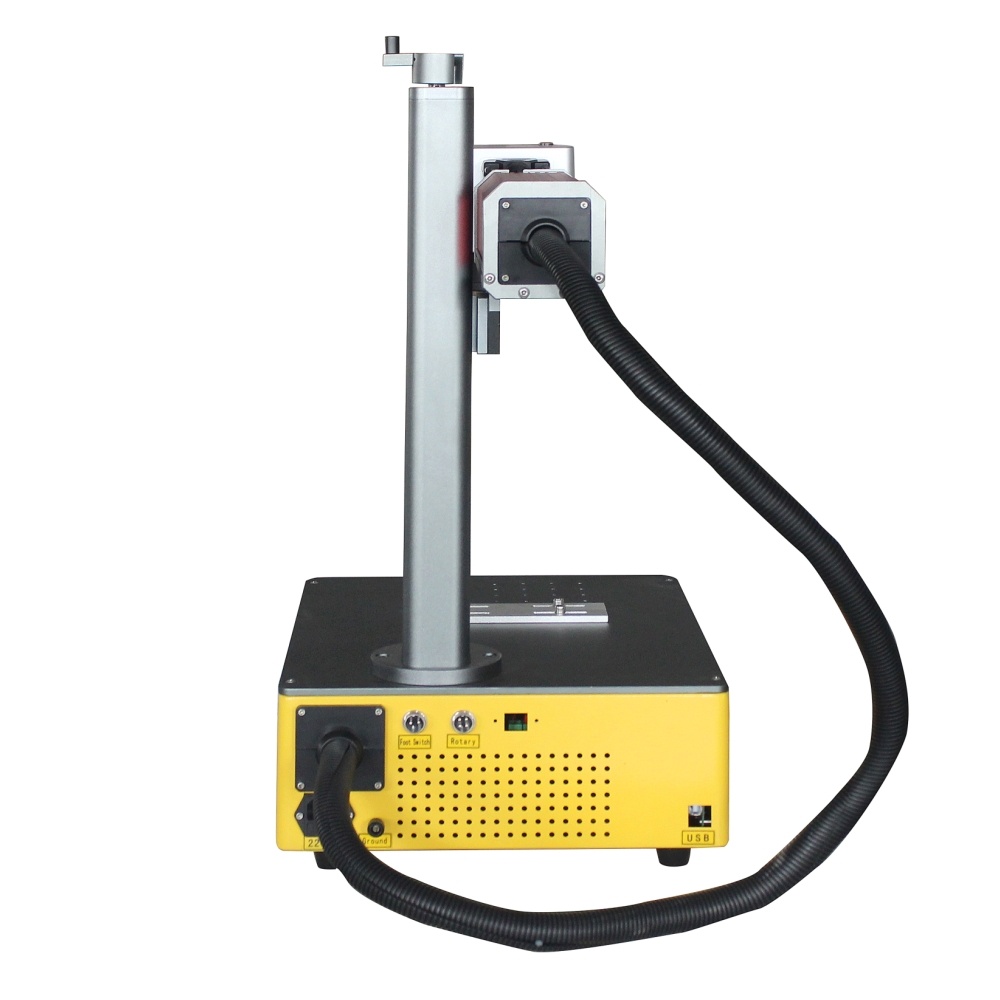

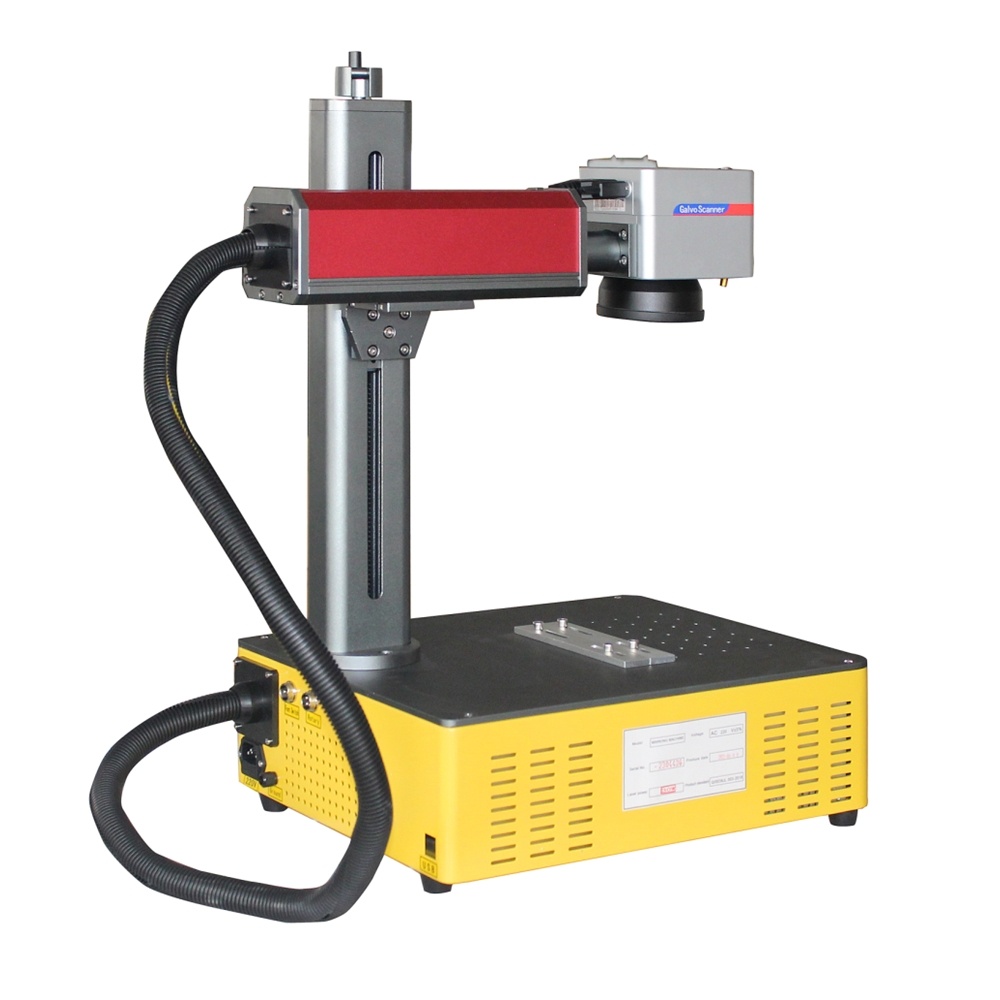

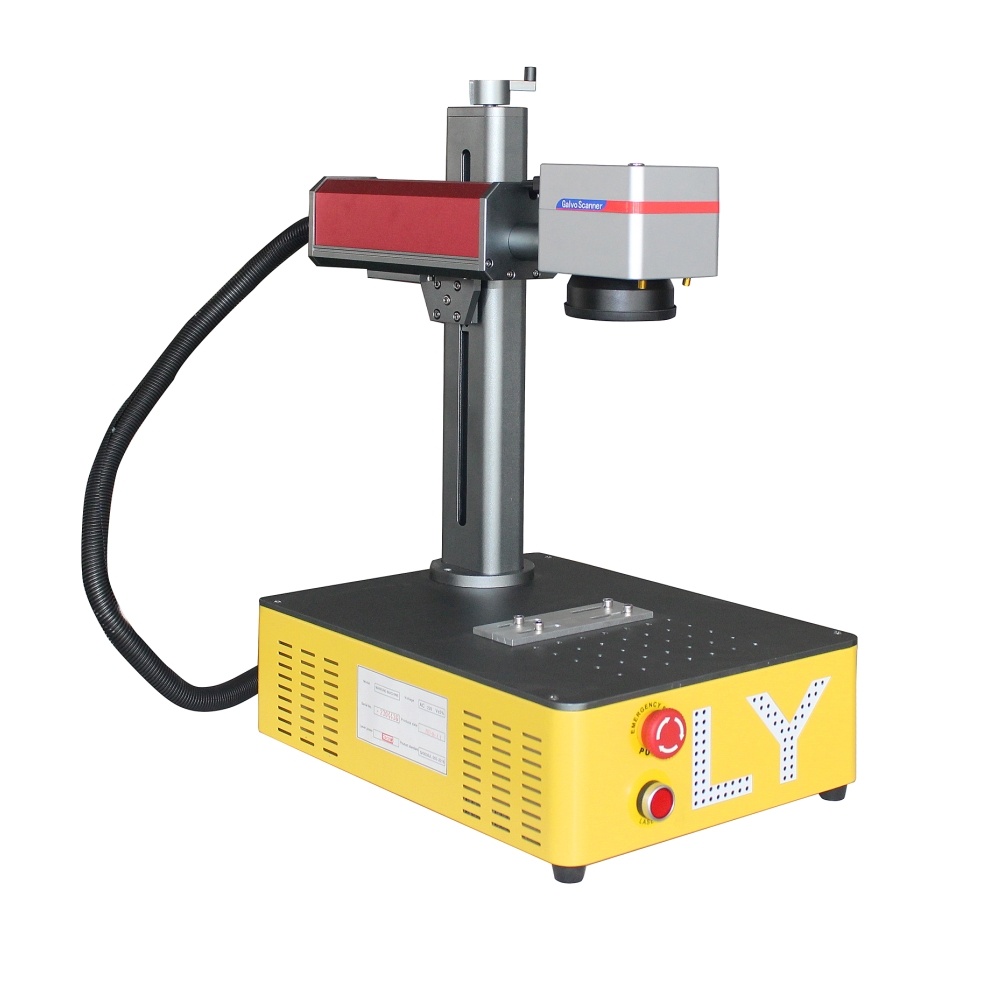

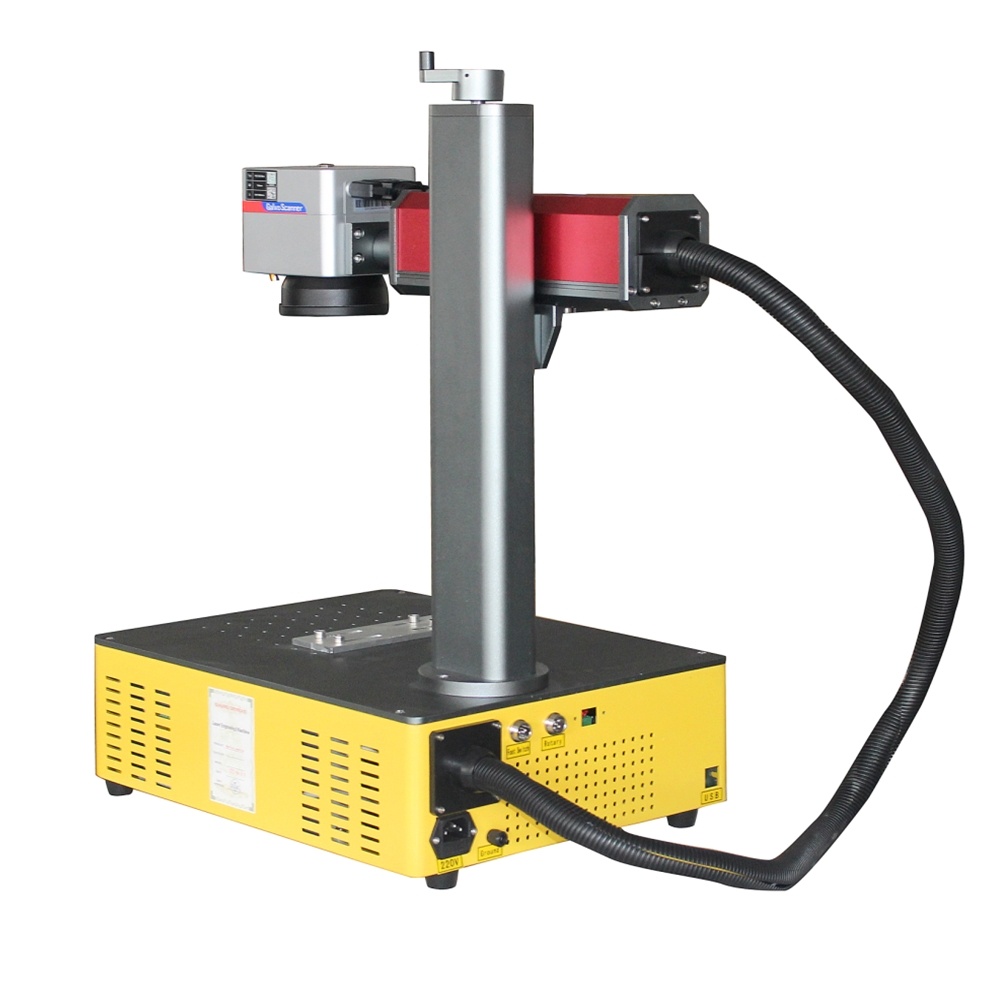

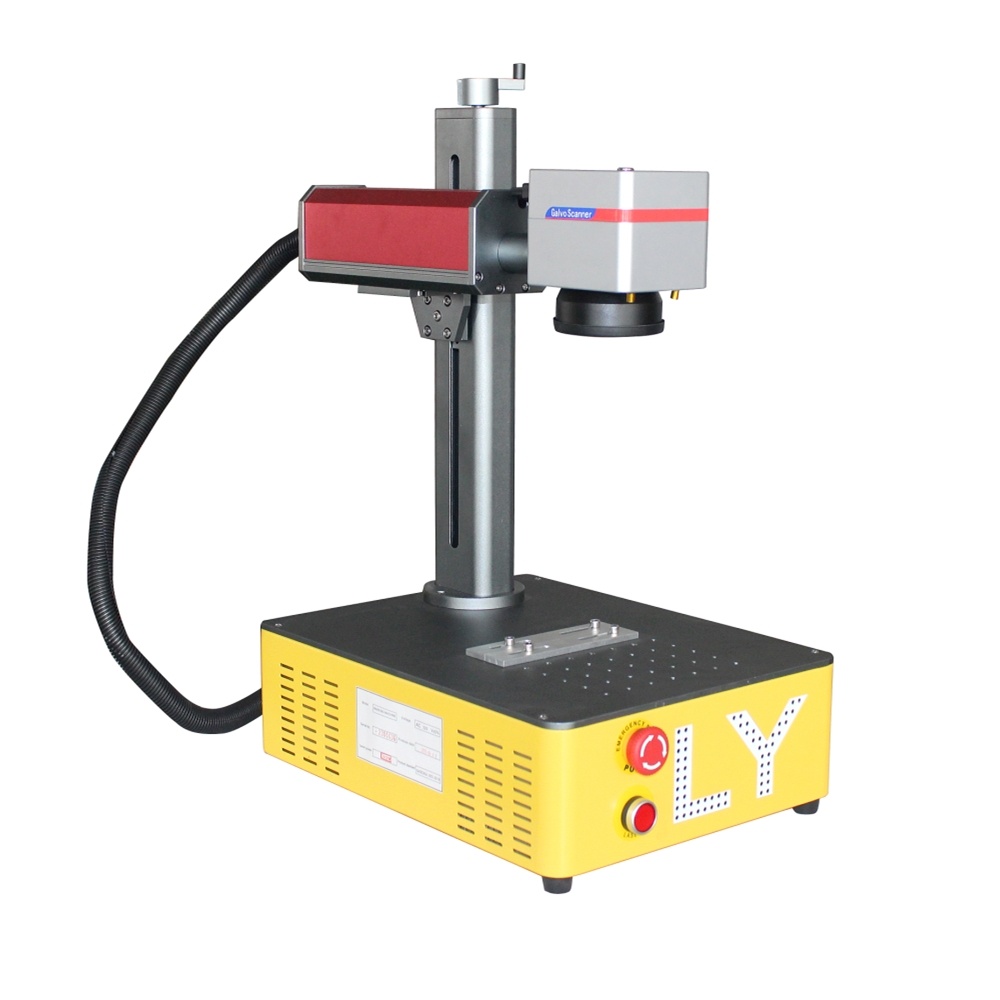

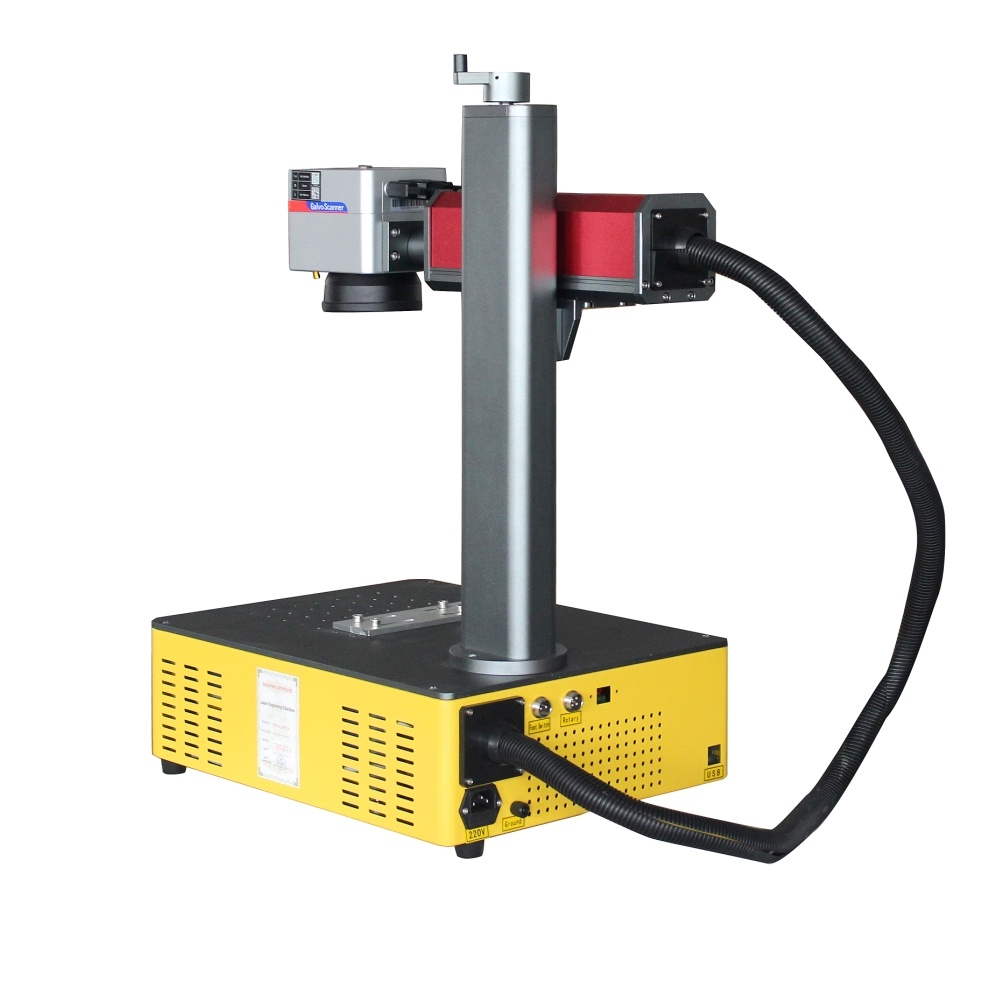

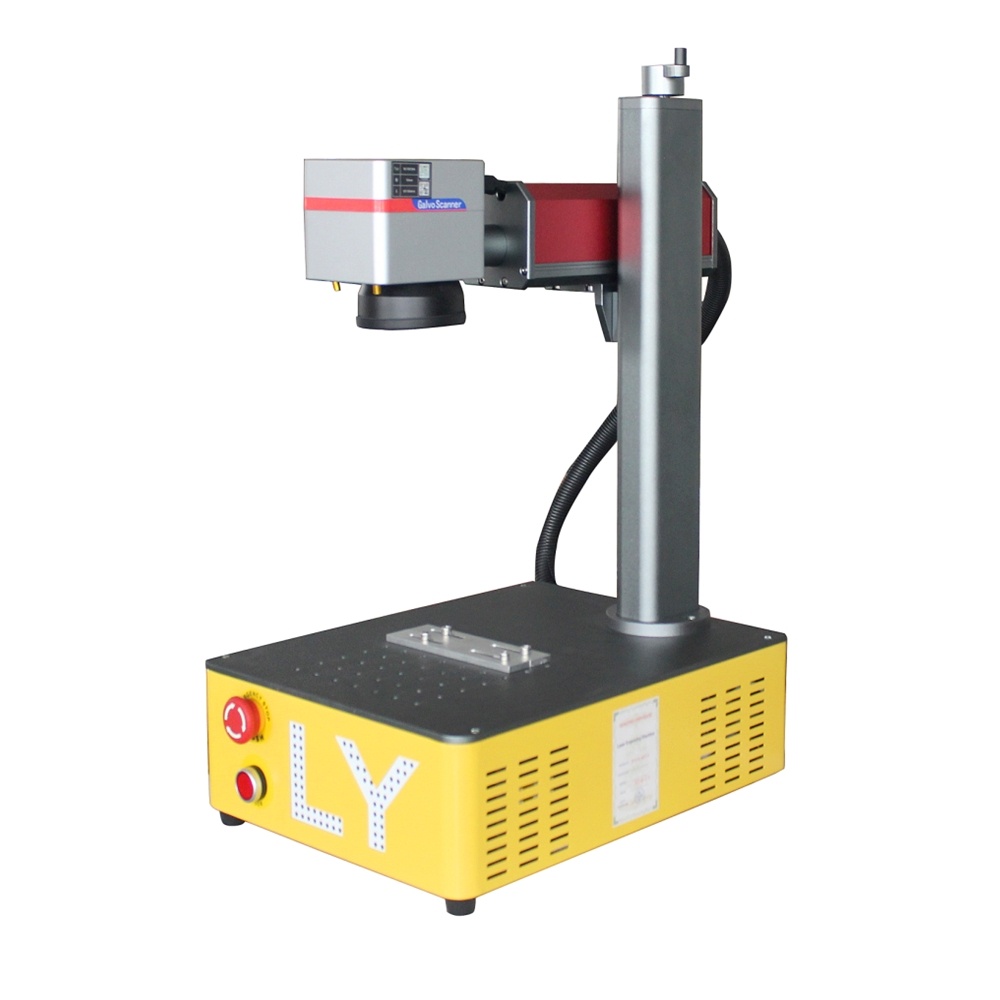

Desktop LY Green Series 532NM Fiber Green Laser Marking Machine For Universal Stuff Crystal Glass 2D Inner Carving Brand Maiman 5W 10W 220V 110V With Or Without Special Use Cool Chiller

Desktop LY Green Series 532NM Fiber Green Laser Marking Machine For Universal Stuff Crystal Glass 2D Inner Carving Brand Maiman 5W 10W 220V 110V With Or Without Special Use Cool Chiller

Compare with optical fiber & CO2 laser

Optical fiber laser marking machine long wavelength 1064nm,is limited to all metal materials and plastic rubber, spraying materials, electroplating materials.

CO2 laser marking machine is limited to leather, cloth, paper, bamboo and wood products, acrylic, glass, resin and other non-metallic materials.

Ultraviolet ray UV laser marking machine than the general laser marking machine,use short 355nm wavelength, light spot is cold and very small, make the heating area of the material is smaller, easy to heat deformation; Lower power; Marking effect is more detailed ,limited to the ultra-fine marking environment, food and medicine packaging, Glass,Crystal, Ceramic plates,electronic components, metal jewelry marking.

Green Fiber laser marking: (5W)

The repitition rate 20-30kHz, the pulse width maintains at 6-8ns, lower processing heat, higher peak power, better processing capacity.

● The laser power 4-5W;

● Narrow pulse width, low thermal effect of processing, not easy to cause scorch on the

    plastic surface;

● High peak power, strong processing ability, capable of processing more materials;

● Air-cooled structure, compact laser head, compatible with the optical path of fiber laser;

● Service life ＞ 20000 hours.

Green Fiber laser marking: (10W)

Maintenance-free, no need for regular commissioning, effectively solve power attenuation; long life which is far better than similar products.

● The laser power 16-20W;

● Patented technology to solve the power attenuation after long-term use;

● Compared with other brands, no need to adjust the optical path regularly, completely maintenance-free, with a service life＞20000 hours;

● All-in-one machine, highly integrated, customers don’t need to purchase additional accessories;

● Superior beam quality M2<1.1, deeper cutting and better effect;

● 3 layers of protection, protection grade IP65, more suitable for harsh working environment.

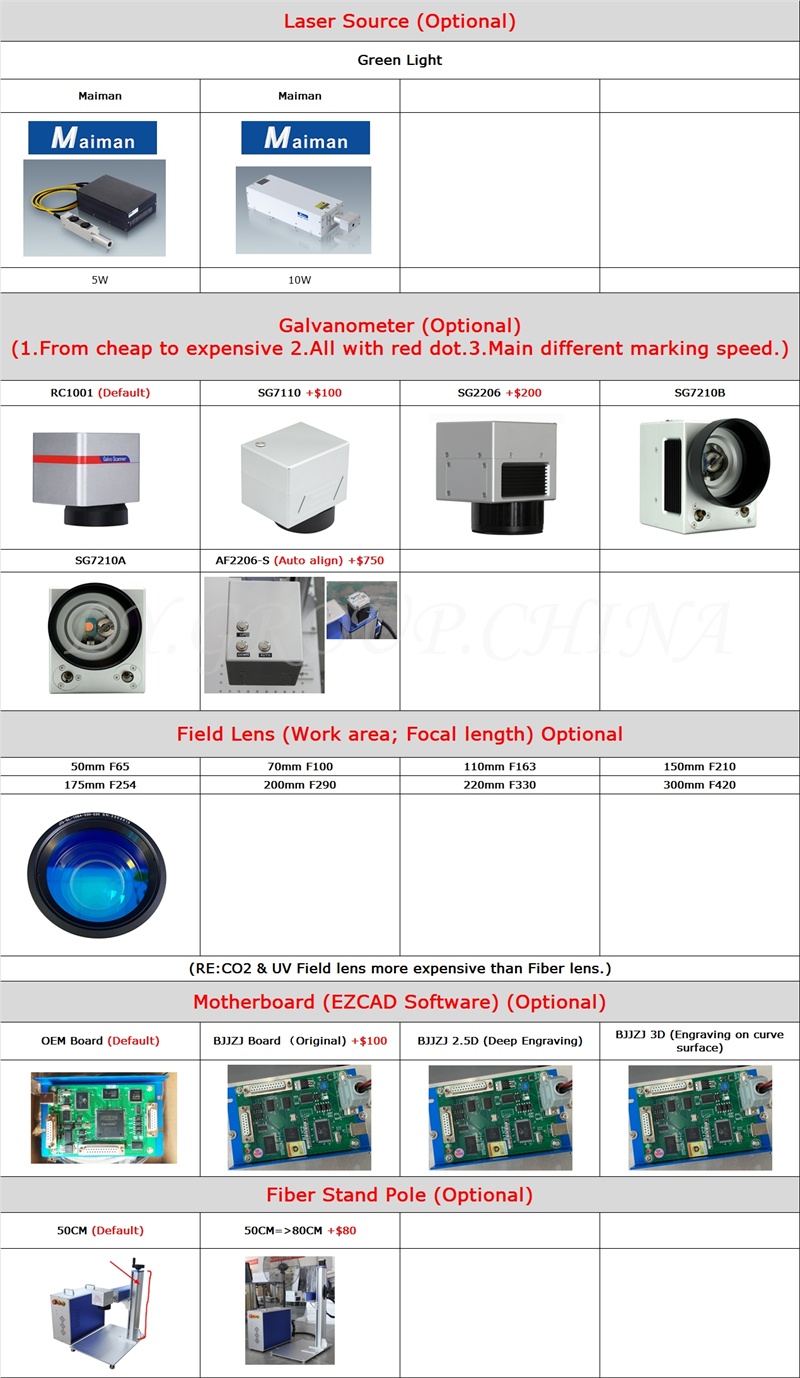

Machine Specification:

500mm column

Maiman 5W/10W green light water cooling

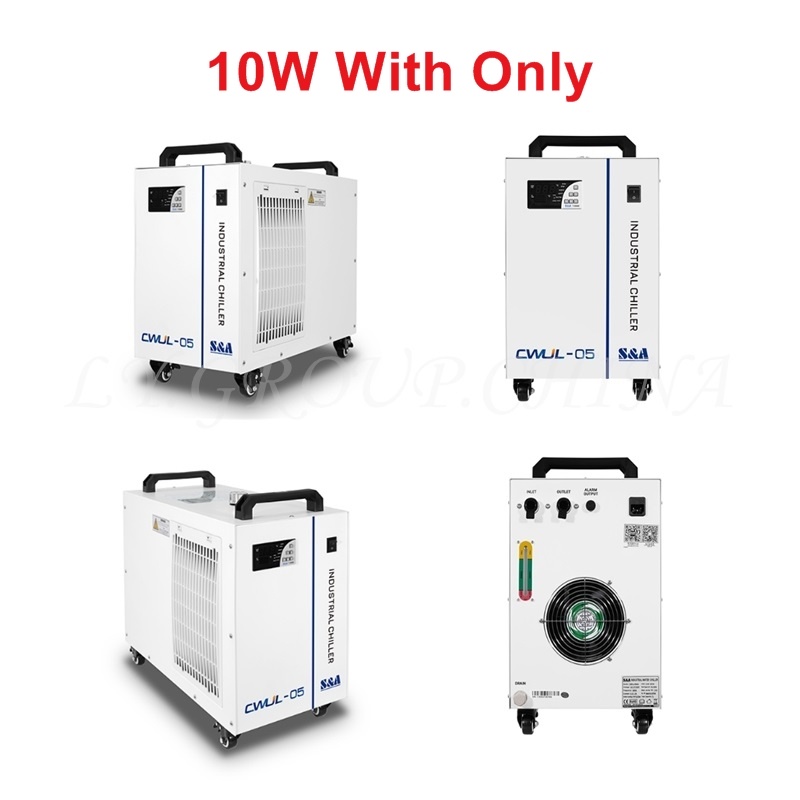

Cool Chiller CWUL-05 or same level (10W with)

Galvanometer: SG7110 Silicon

Field Lens:532-115Mm(Less than200MM Optional)

Golden Orange Motherboard

Power supplier with accessories

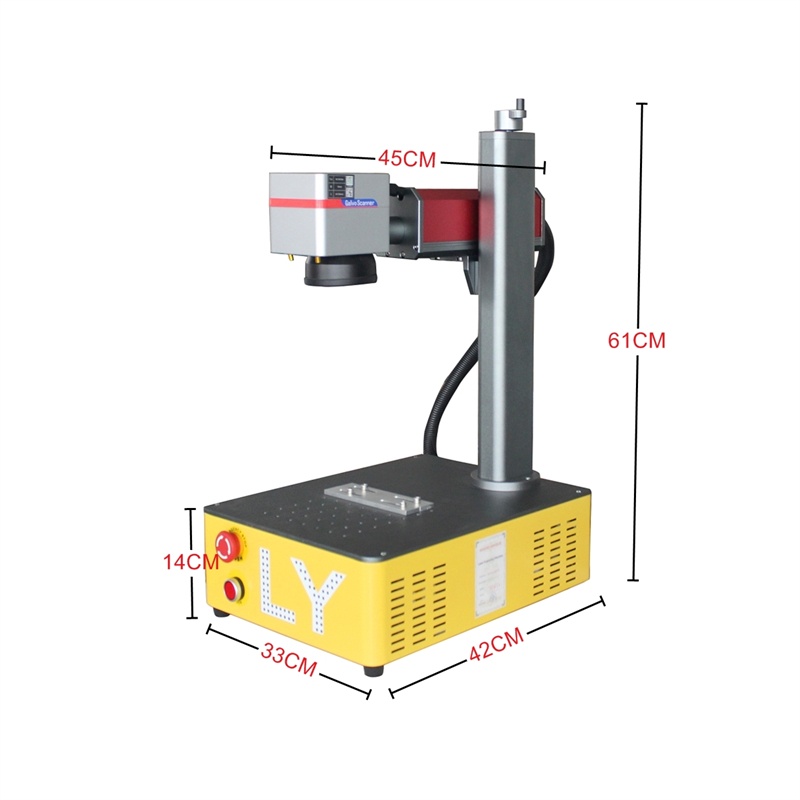

Machine Size:650*450*350mm

N.W:20KG

G.W:25KG

Green Fiber Laser parameter:

Power: 5W

Model No.   MMEPGF-532-5L

Optical Characteristics

Wavelength (nm)     532nm±1nm

Average Power (W)  5±0.5W@20kHz

Single Pulse Energy (uJ)  200-250uJ@20kHz

Pulse Width (ns) ~7ns@20kHz

Repitition Rate   Uncontrollable, range 20-30kHz

Pulse Stability    <3% rms

Long Term Stability  <±3%

Beam Characteristics

Polarization Ratio     linear; >100:1

Beam Diameter  6mm

Beam Circularity >90%

Spatial Mode     TEM00, M2 <1.2

Operating Specifications

Warm-up Time  <15 minutes from cold start

Electrical Requirement     DC12V，>200W

Ambient Temperature    10-35℃，RH<80%

Storage Conditions   -10-40℃，RH<90%

Physical Characteristics

Cooling System  Air-Cooled

Power: 10W

Model No.MMEPG-532-10

Optical Characteristics

Wavelength (nm)     532nm

Average Power (W)  >10W@40kHz

Single Pulse Energy (uJ)  ~250uJ@40kHz

Pulse Width (ns) ~15ns@40kHz

Repitition Rate   20kHz-500kHz

Pulse Stability    <3% rms

Long Term Stability  <±3%

Beam Characteristics

Polarization Ratio     Vertical；>100:1

Beam Diameter  6mm(Built in beam expander)

Beam Circularity >90%

Spatial Mode     TEM00,M2<1.2

Operating Specifications

Warm-up Time  <15 minutes from cold start

Electrical Requirement     DC12V，350W

Ambient Temperature    10-35℃，RH<80%

Storage Conditions   -10-40℃，RH<90%

Physical Characteristics

Cooling System  Water-Cooled

Water Temperature (laser inlet)   25℃

Packing List
LY  Green fiber laser marking machine Separated x1 (5W / 10W )

Special UV marking machine use cool chiller x 1 ( 10W with )
