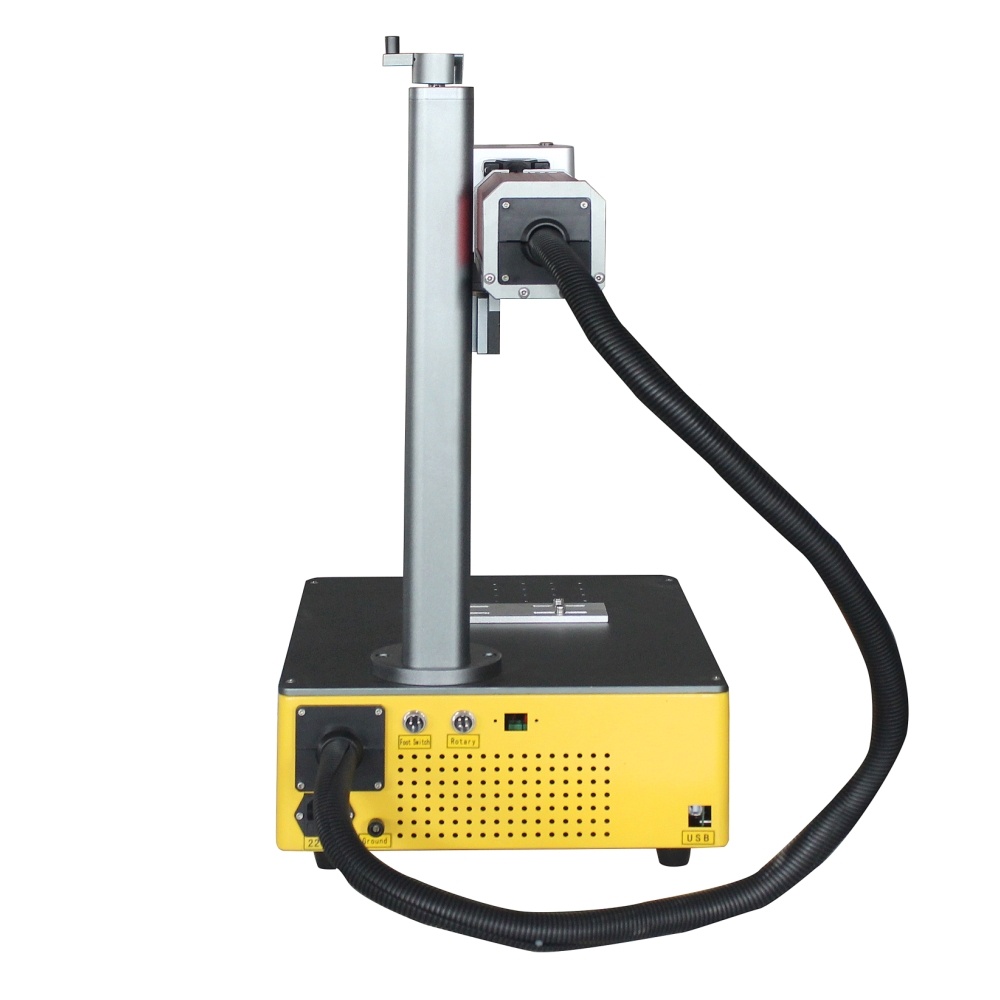

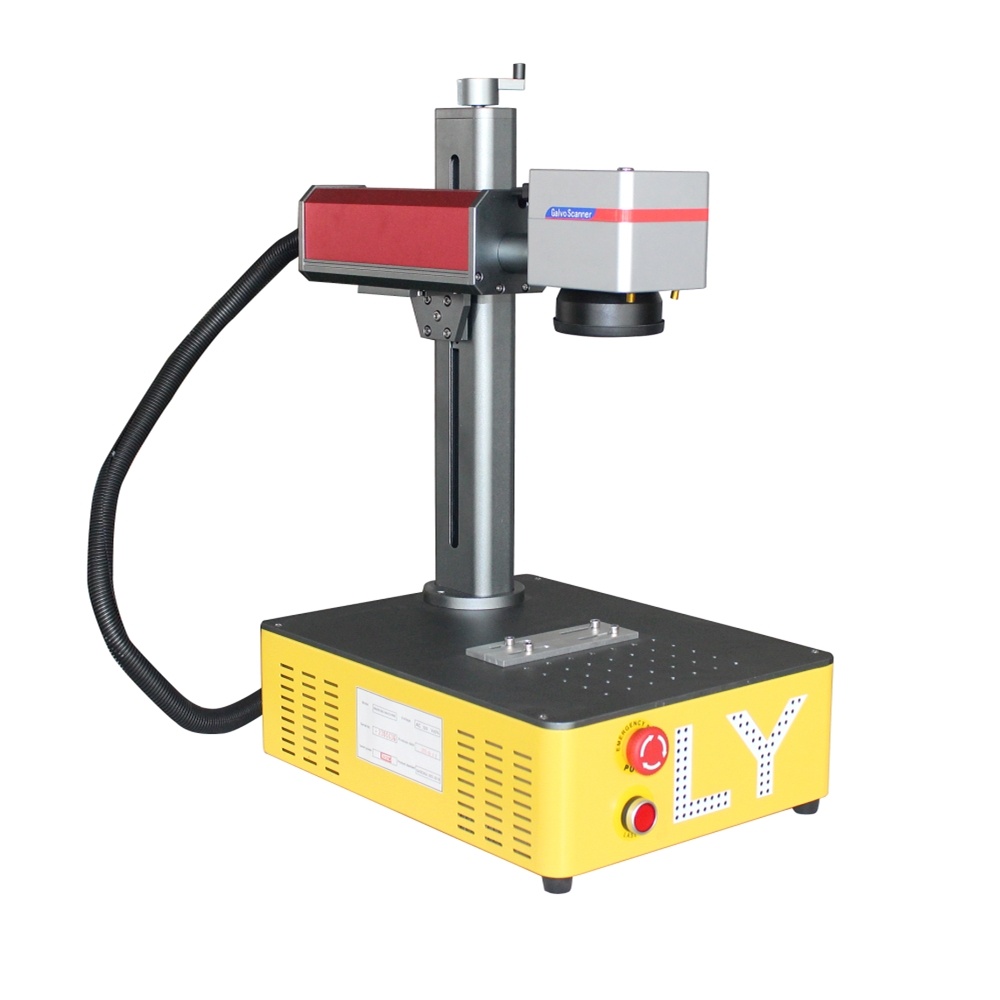

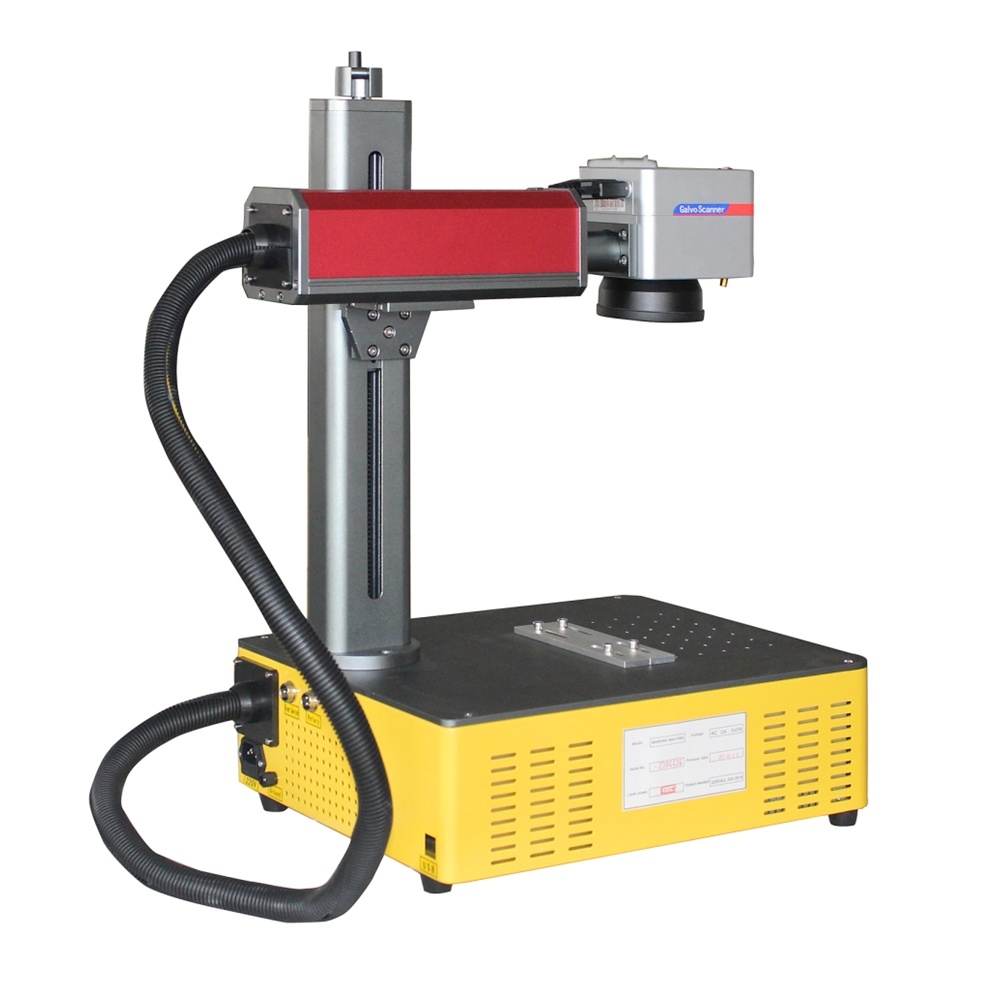

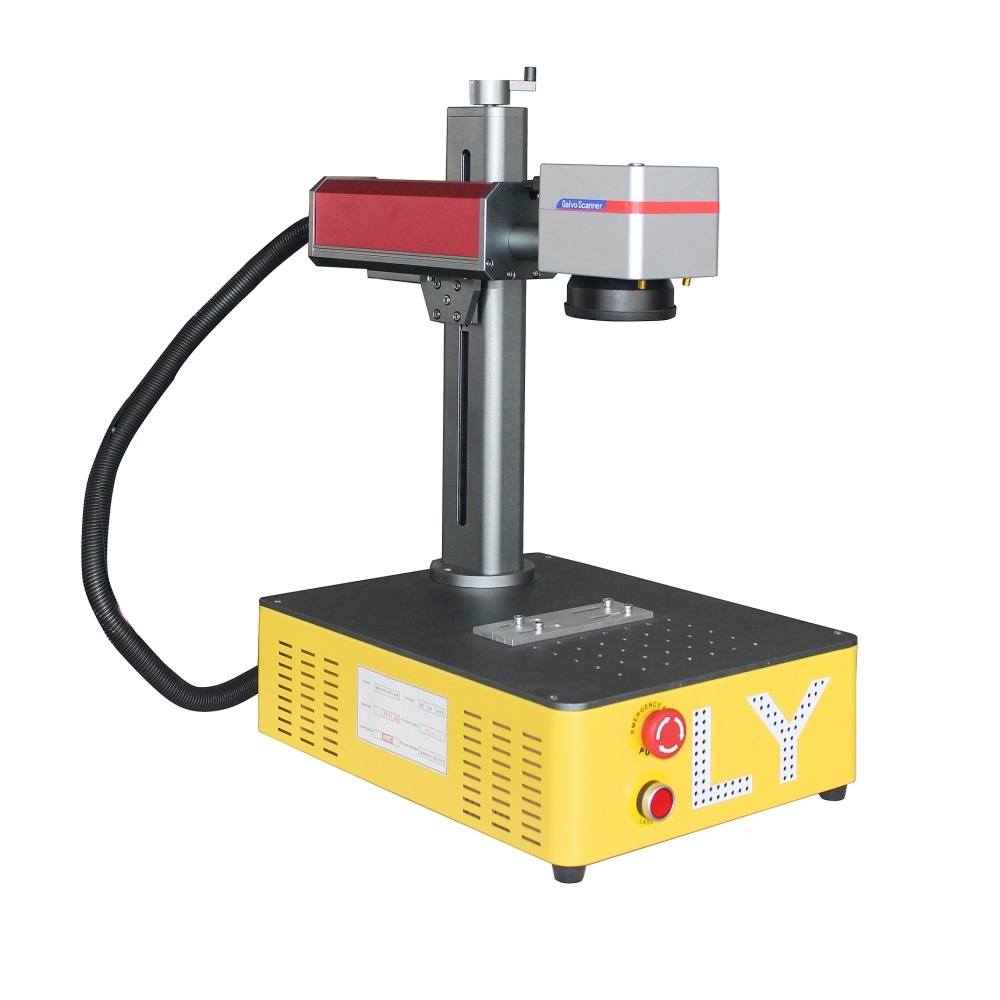

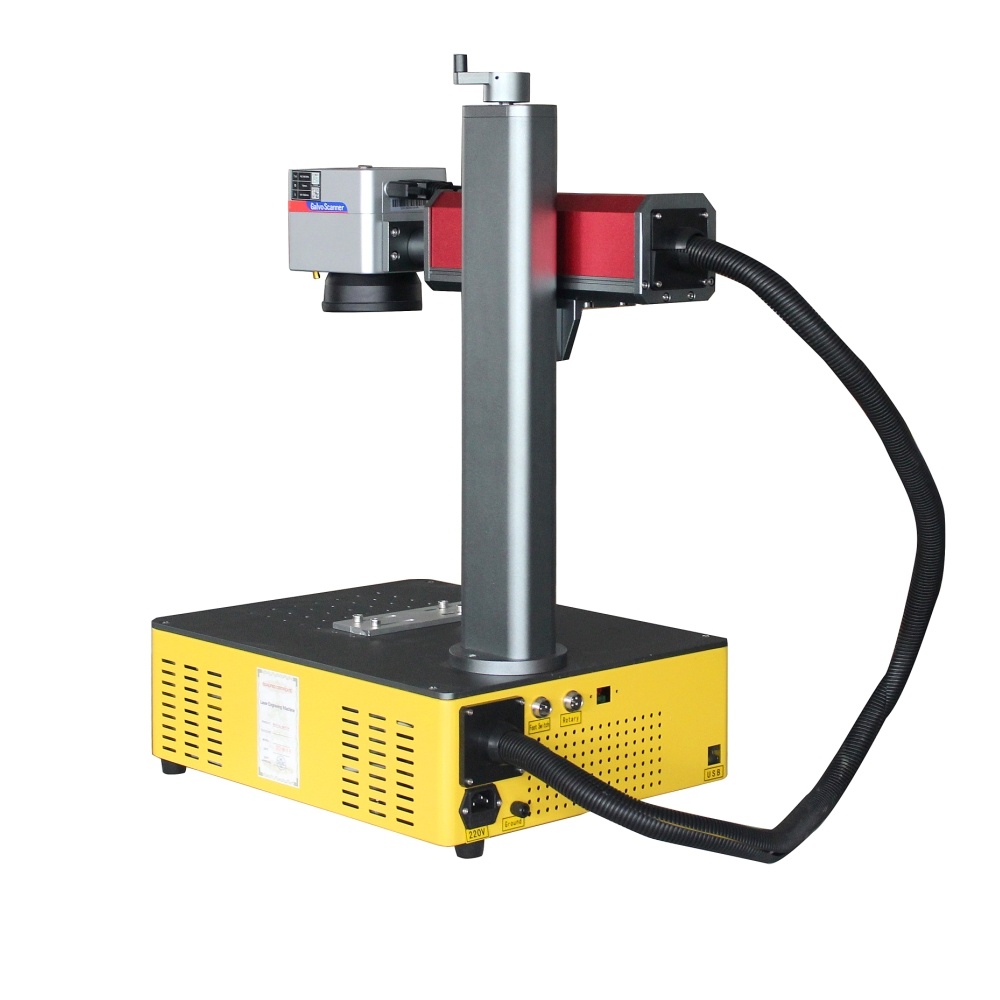

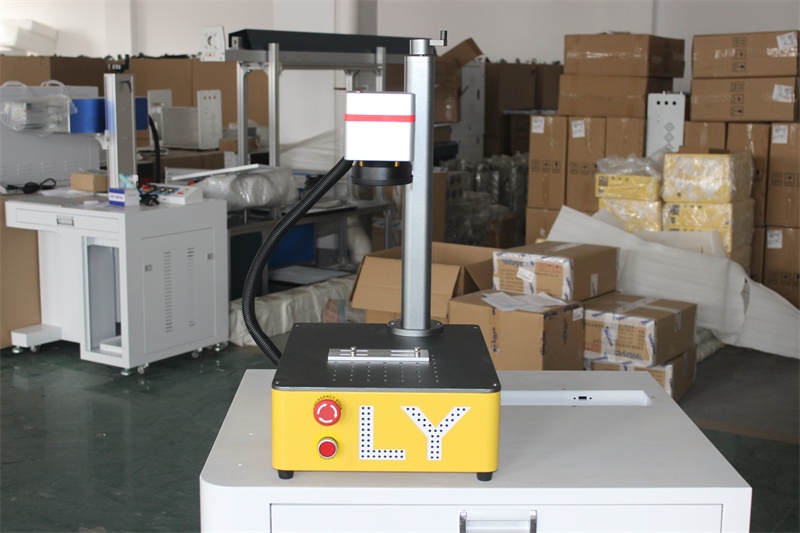

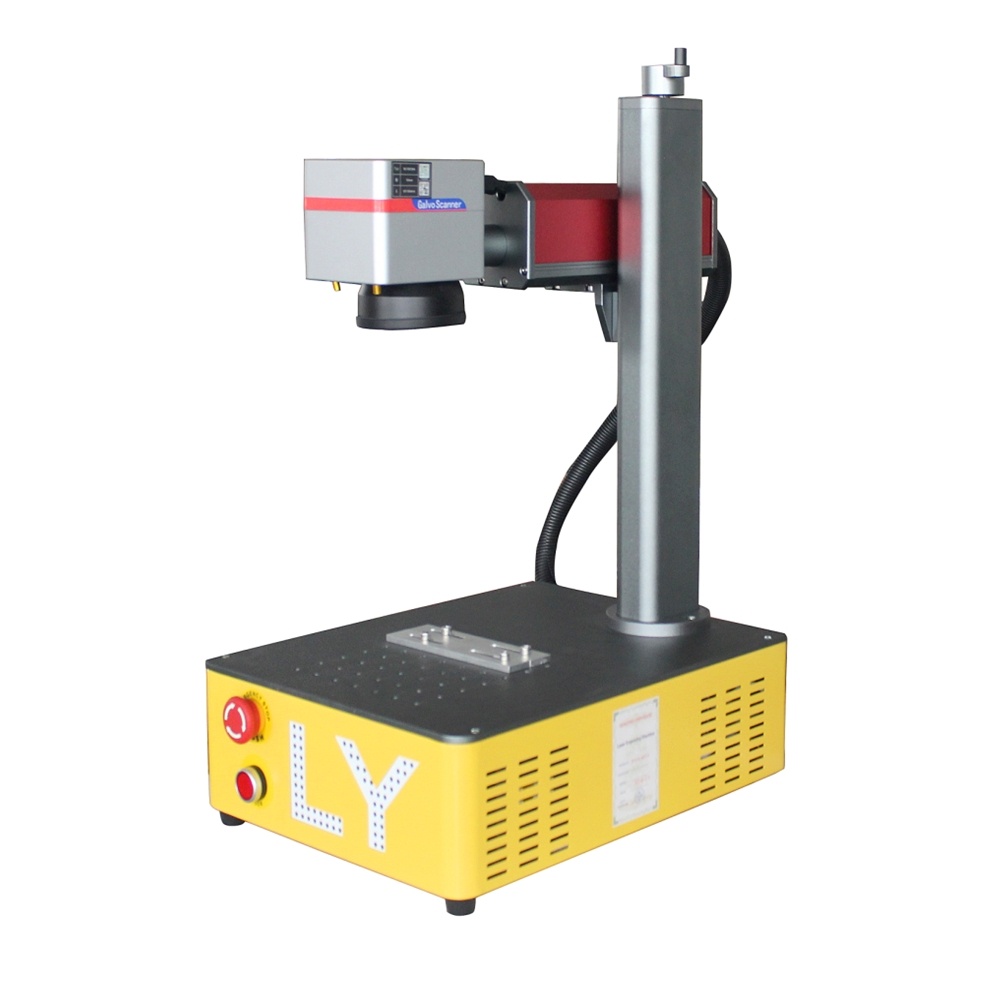

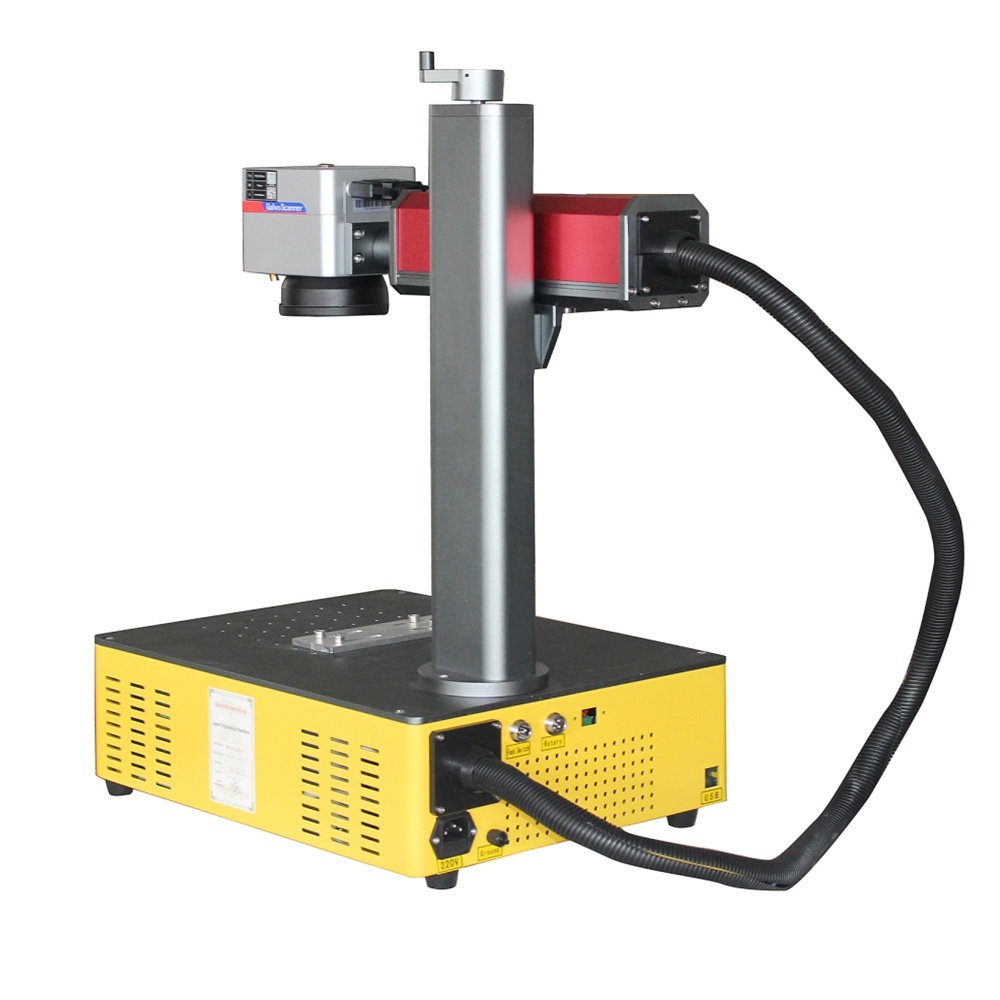

Desktop LY Ultraviolet Ray Purple Cold Light 355NM UV Laser Marking Machine For Universal Stuff Crystal Glass Brand JPT 3W 5W 220V 110V With Special Use Cool Chiller
(RE: If not need chiller total amount can less USD $300.)
Compare with optical fiber & CO2 laser
Optical fiber laser marking machine long wavelength 1064nm,is limited to all metal materials and plastic rubber, spraying materials, electroplating materials.
CO2 laser marking machine is limited to leather, cloth, paper, bamboo and wood products, acrylic, glass, resin and other non-metallic materials.

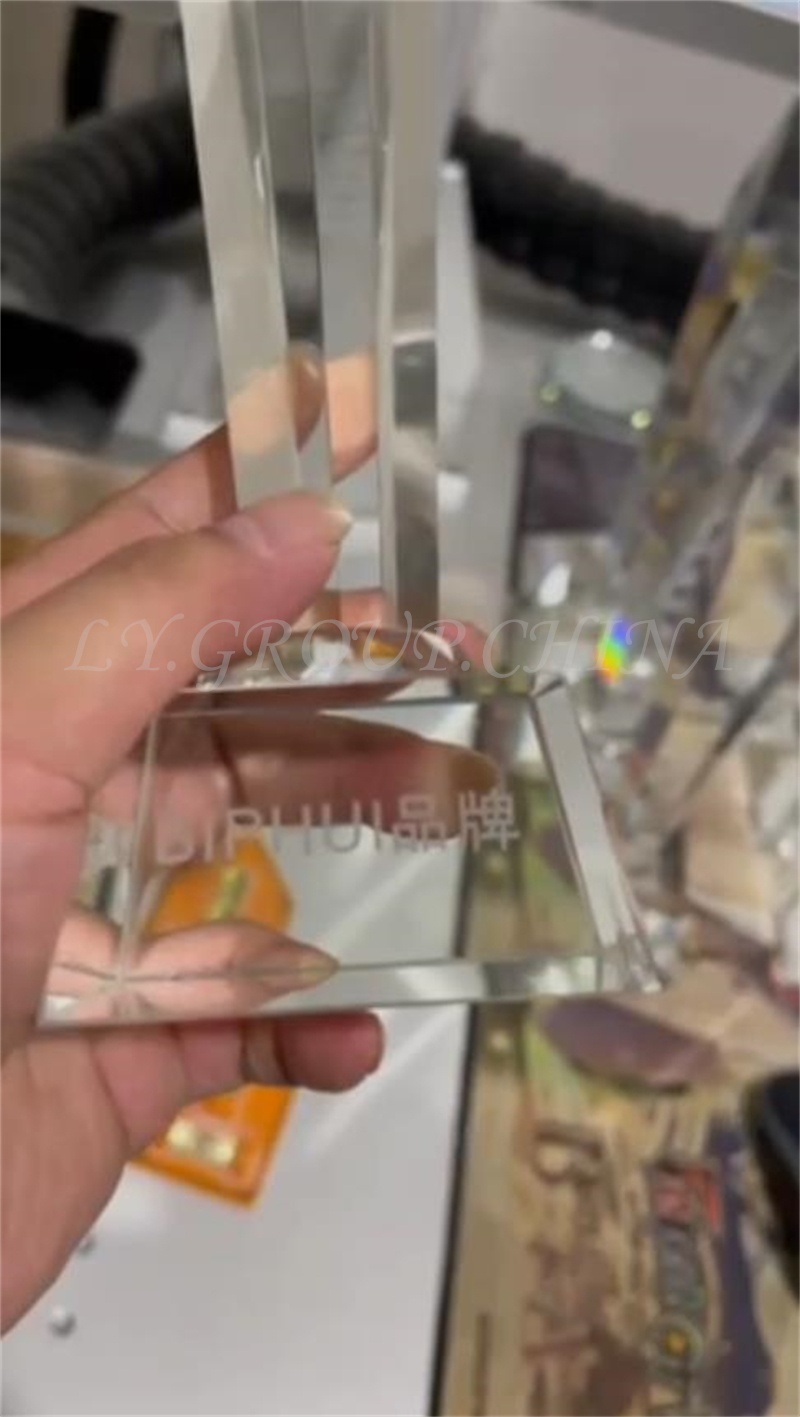

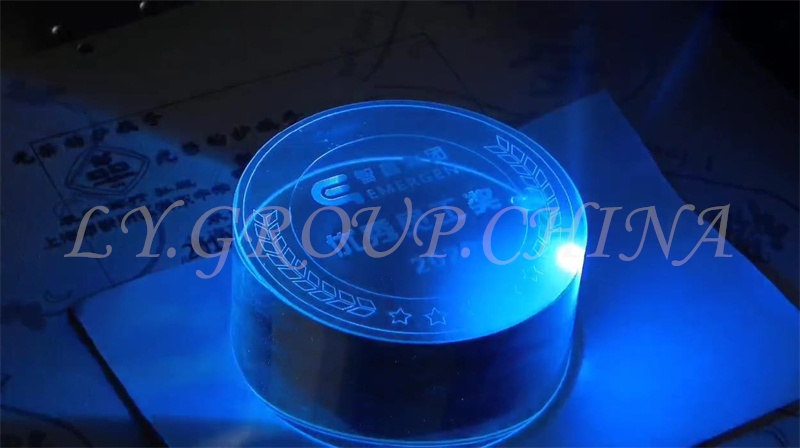

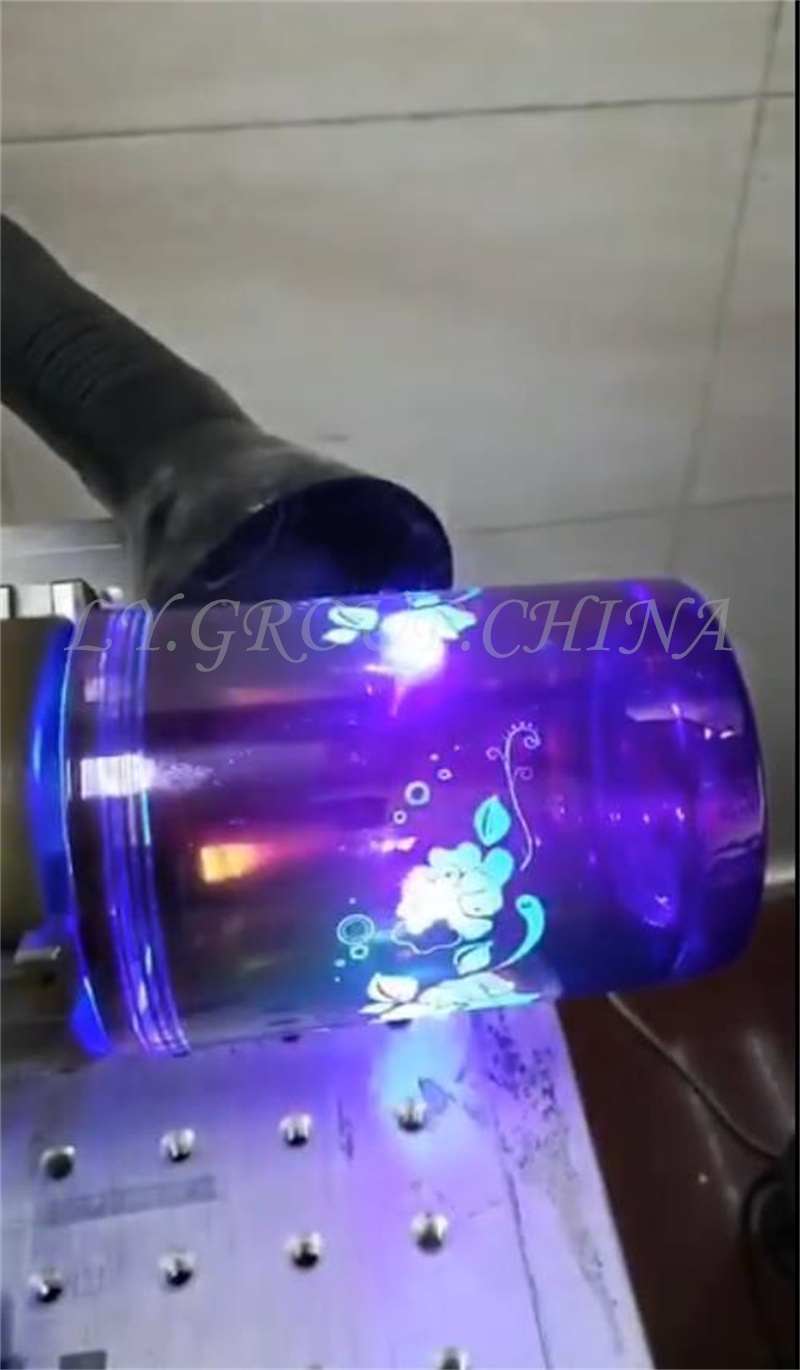

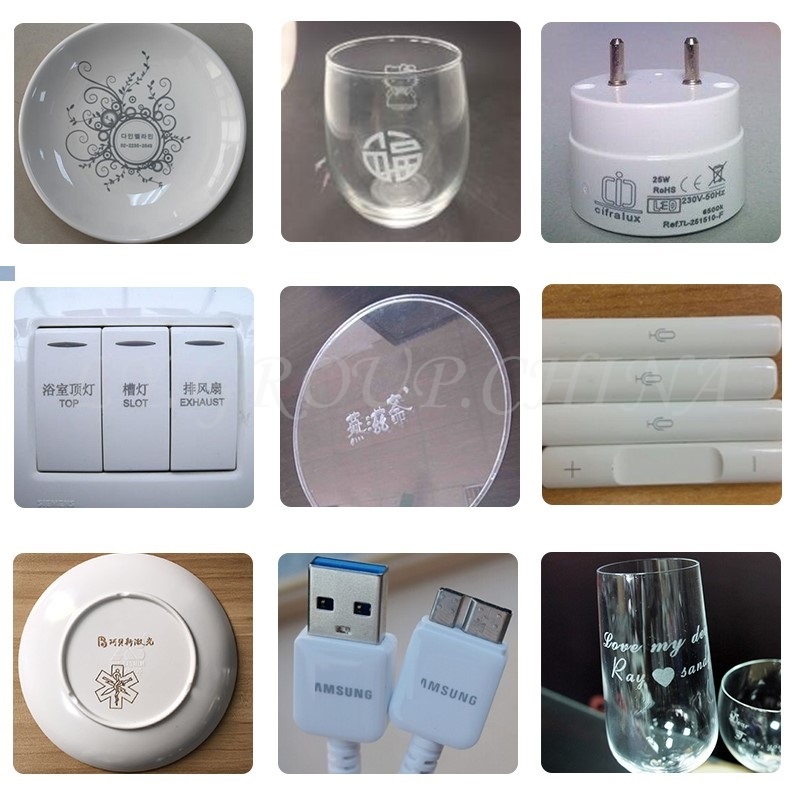

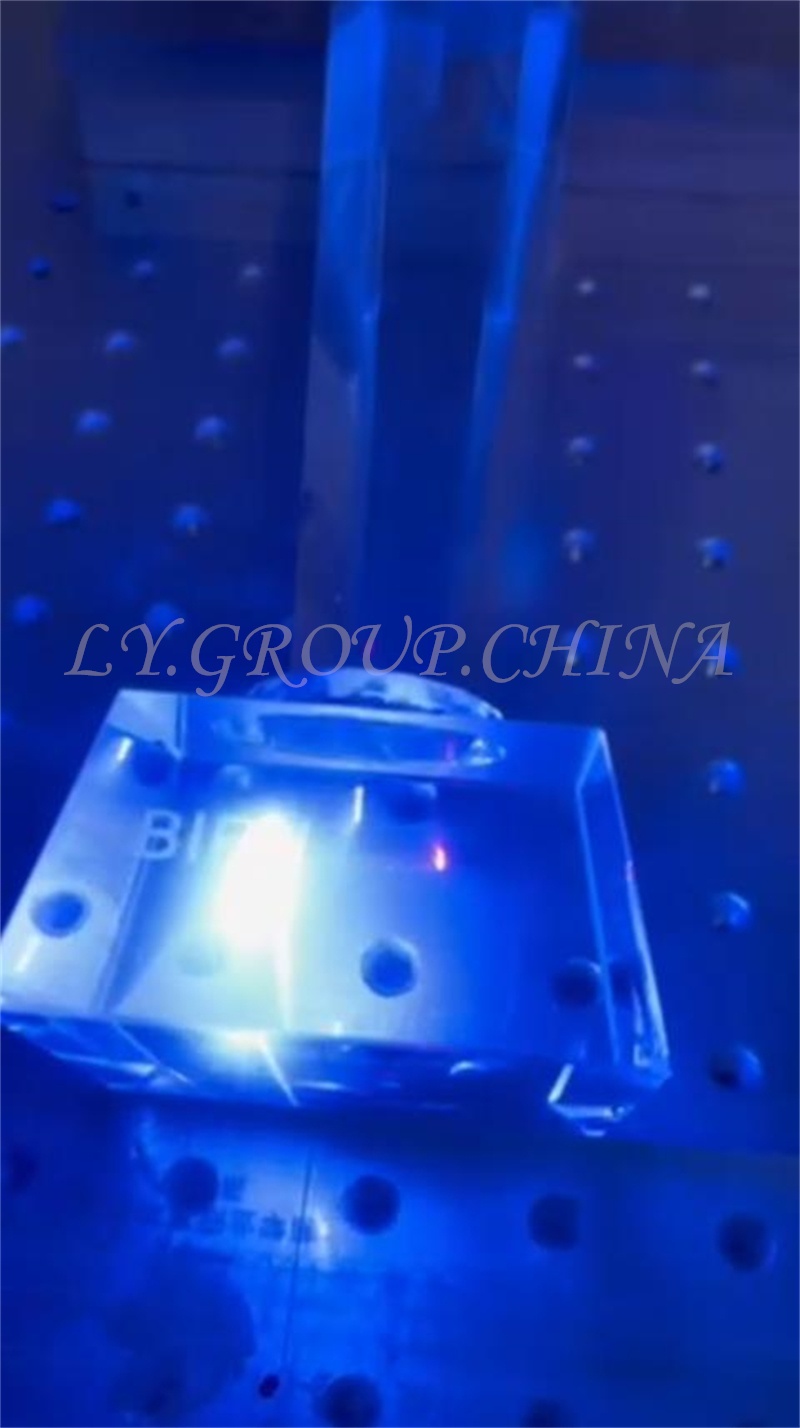

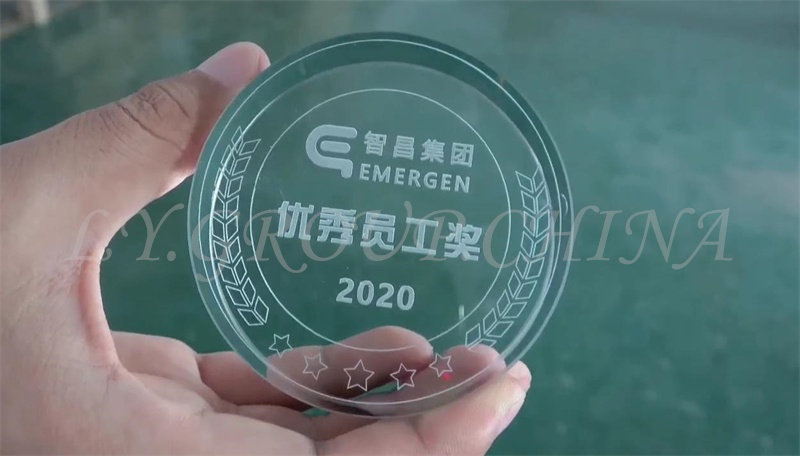

Ultraviolet ray UV laser marking machine than the general laser marking machine,use short 355nm wavelength, light spot is cold and very small, make the heating area of the material is smaller, easy to heat deformation; Lower power; Marking effect is more detailed ,limited to the ultra-fine marking environment, food and medicine packaging, Glass,Crystal, Ceramic plates,electronic components, metal jewelry marking.

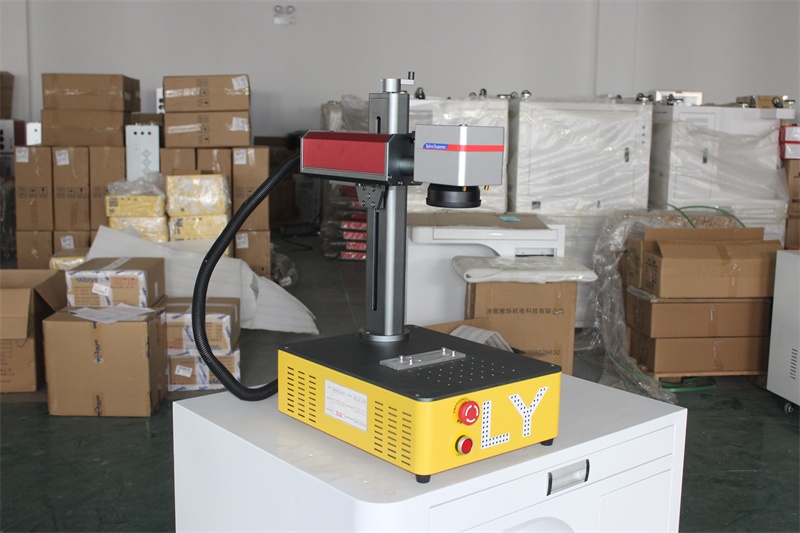

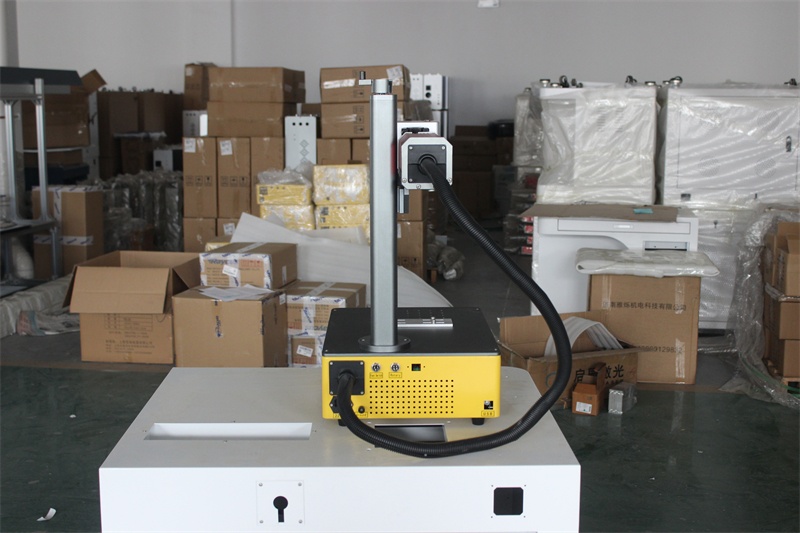

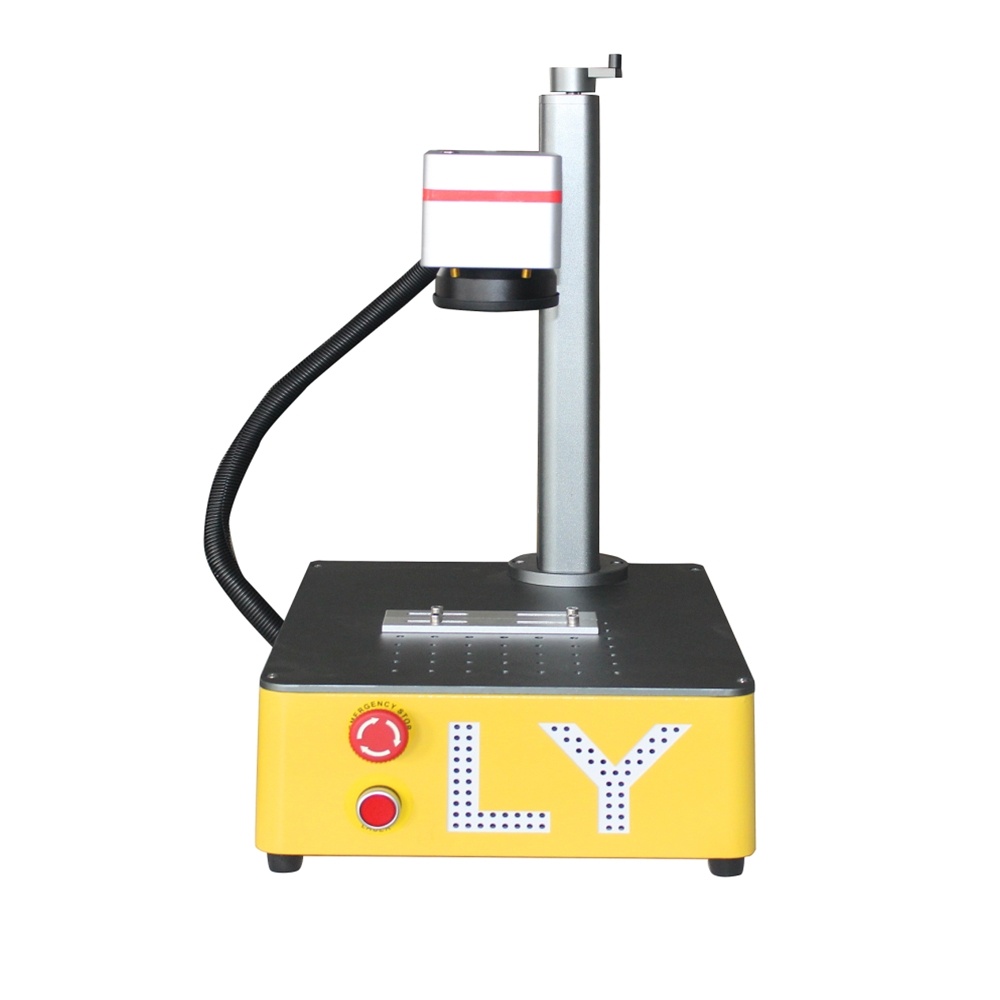

Products name | LY UV laser marking machine Desktop |
Power | 3W/5W (JPT Seal-355 Series) |
Engraving area | 200*200mm (Optional less than 200mm) |
Wavelength | 355nm |
Beam quality | m2<1.2(TEMOO) |
Laser output power | 0-100% successive use |

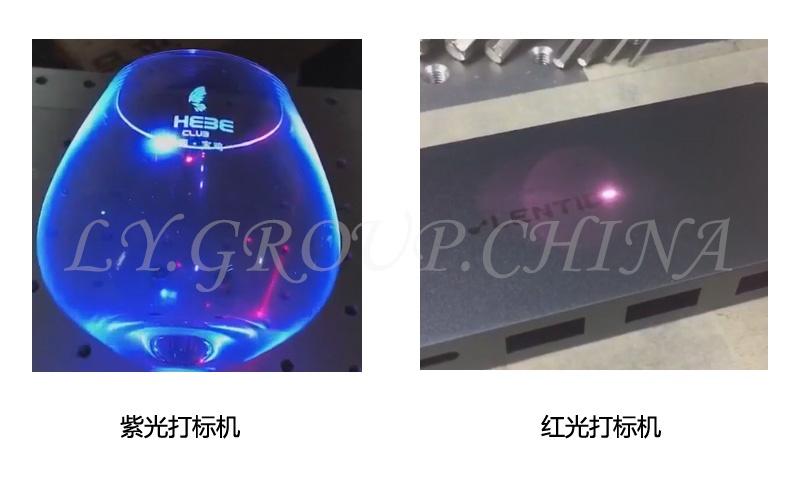

Align | Double Red point auto focus |
Marking type | Dynamic/Static |
Engraving depth | <=0.4mm |
Engraving speed | <=4000MM/S (Sino-Galvo RC1001) Support upgrade |
Minimum width | 0.1MM |
Minimum character | 0.15MM |
Pulsh width | 13-82NS |
Power stability | <+-2%RMS |
Repeat frequency | 20KHZ-150KHZ |
Light diameter | <0.6MM |
Marking speed | 800 characters/second |
Mini width | <0.005mm |

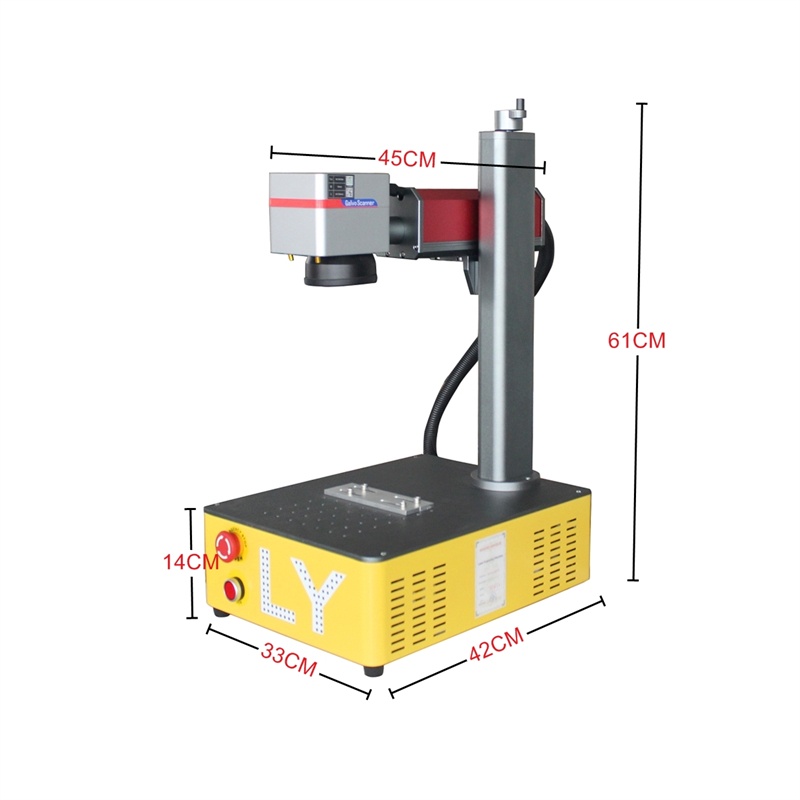

Out size | 620*420*320mm |
Gross weight | Machine 30KG, Chiller 35KG |
Laser head | Solid violet fiber laser |
Cooling | Water cool (JPT) |

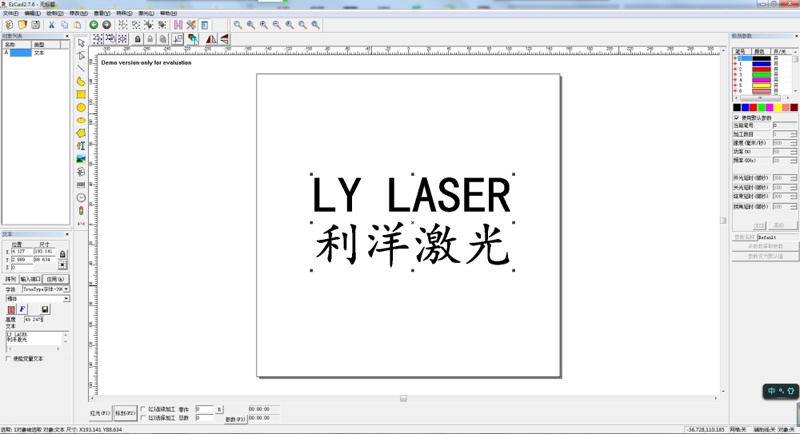

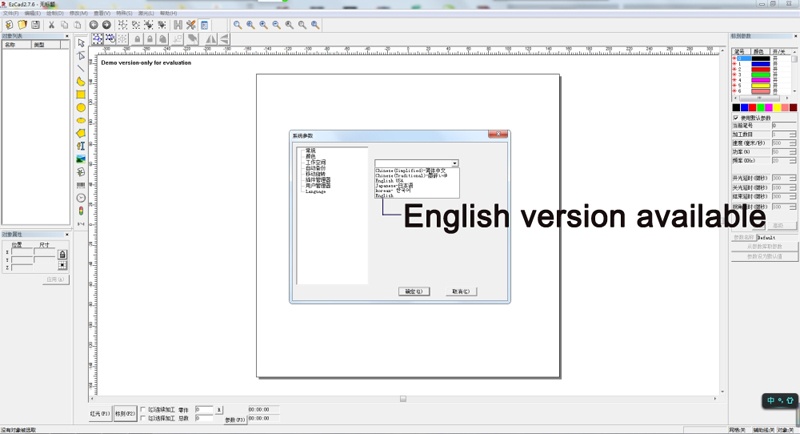

Work circumstance | Windows |
Connect way | USB |
Power | 220V / 110V |
Laser module lifetime | 50K hours |
Packing List
LY UV laser marking machine Desktop x1 (3W or 5W)

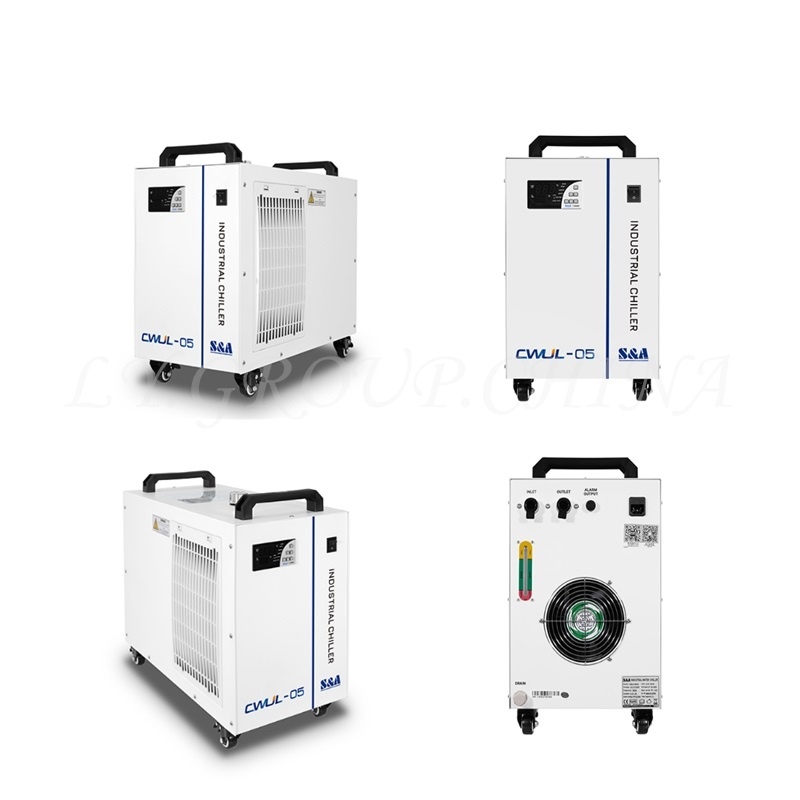

Special UV marking machine use cool chiller x 1 (Model:CWUL-05 or same level model)
Packing List
