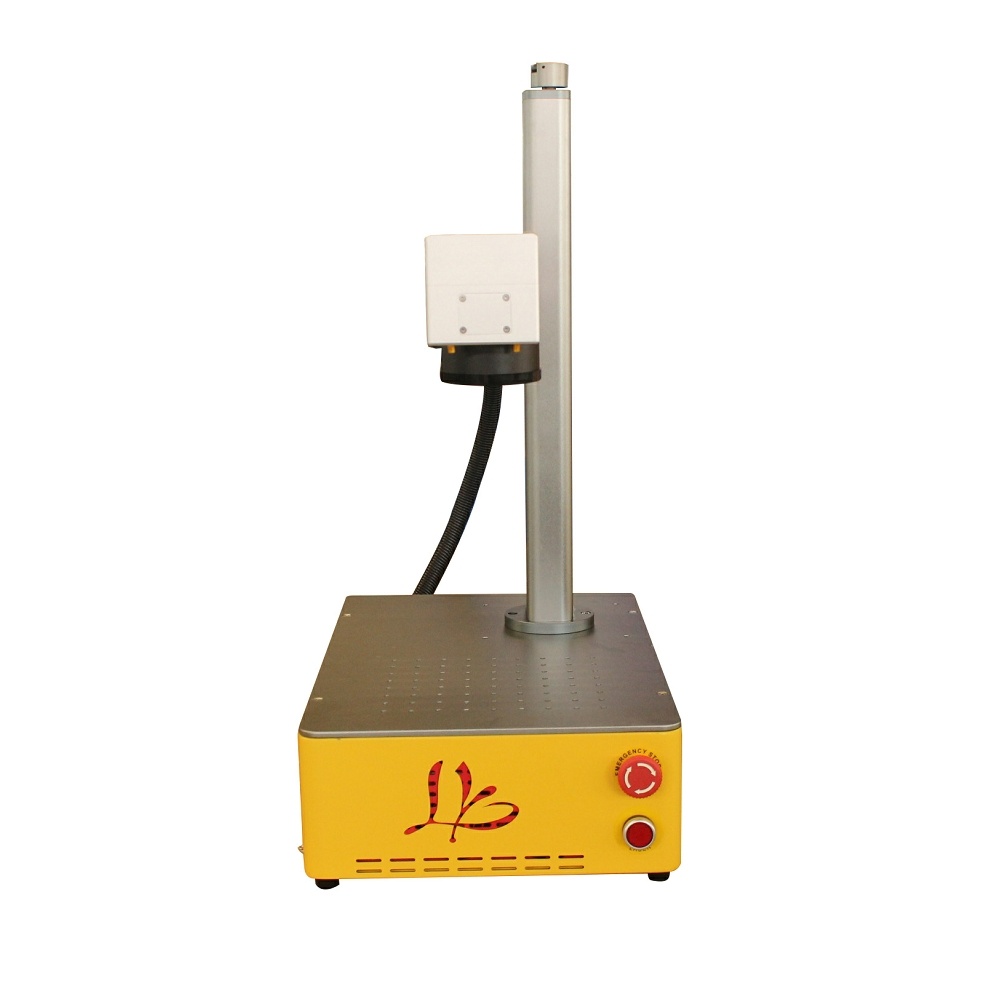

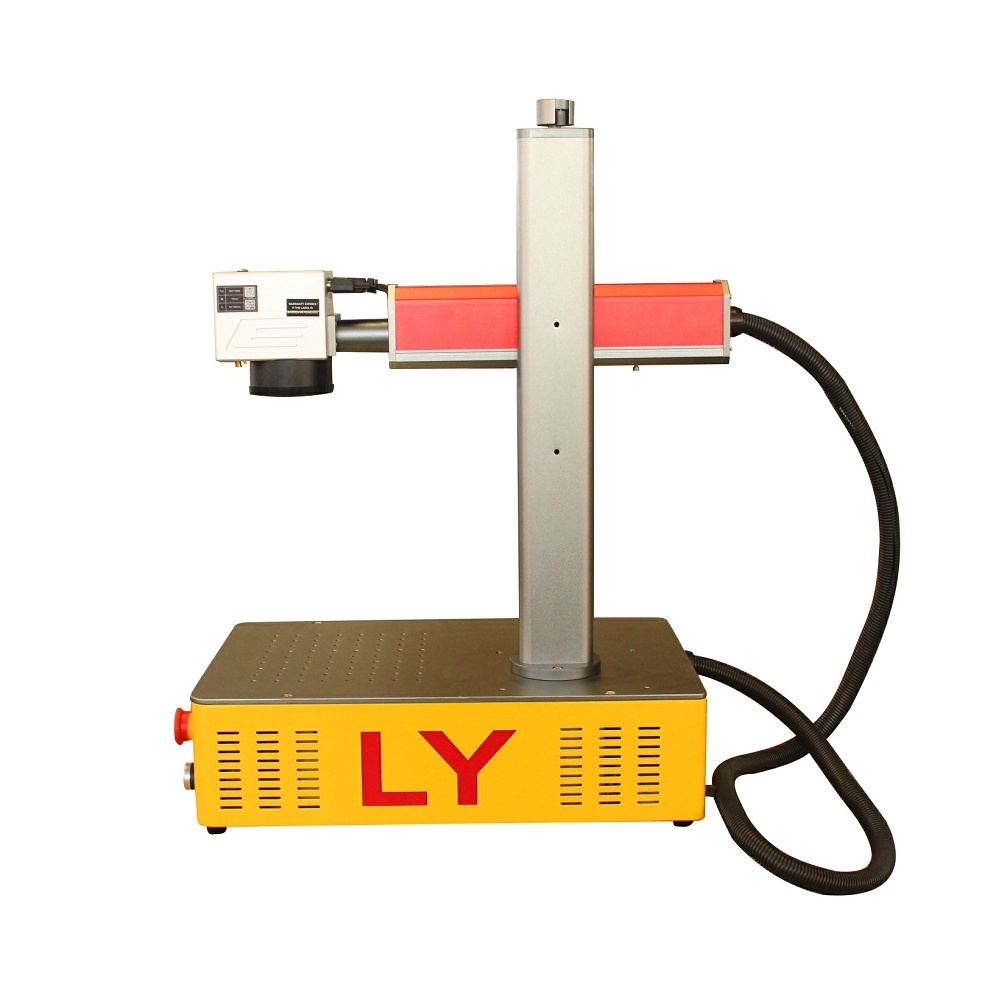

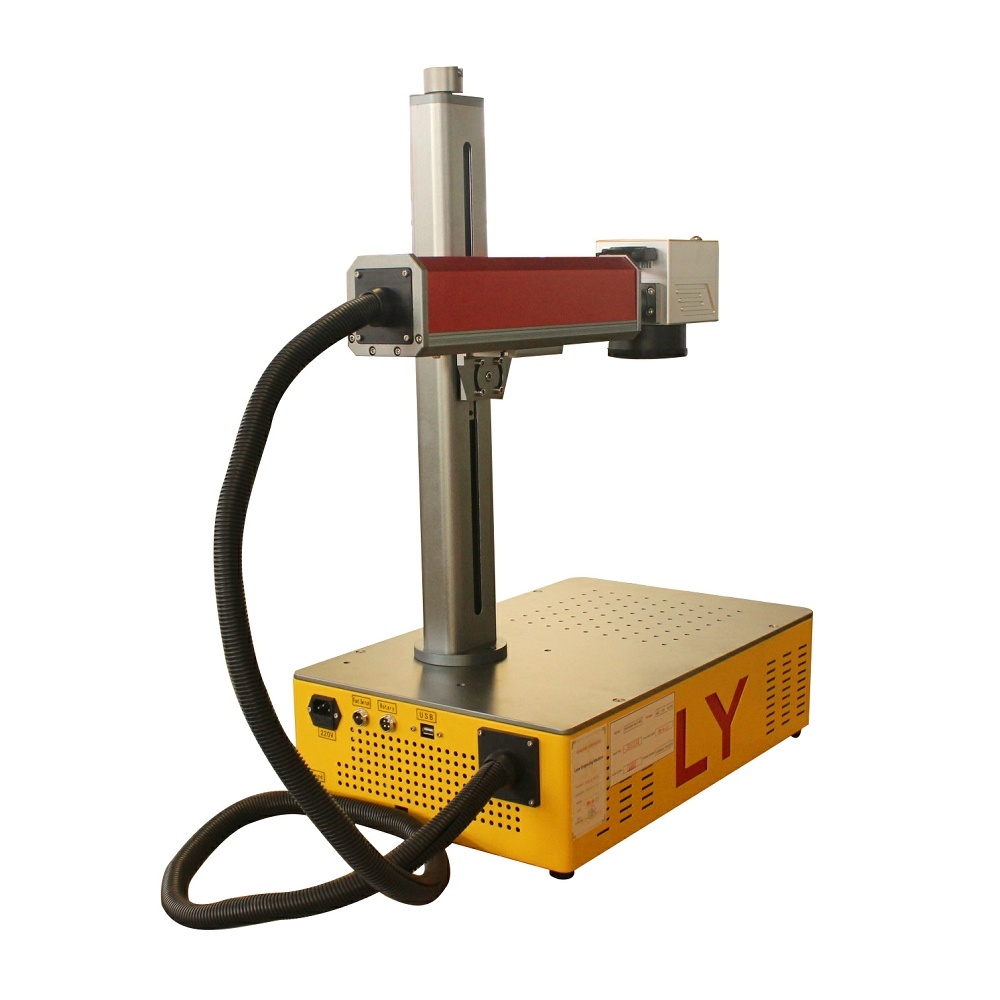

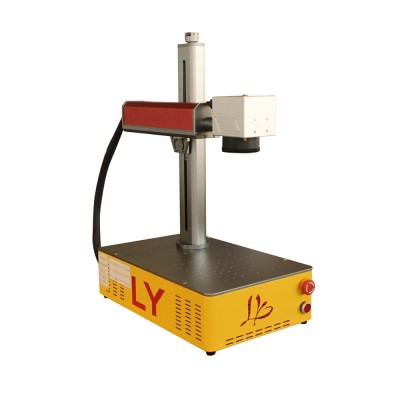

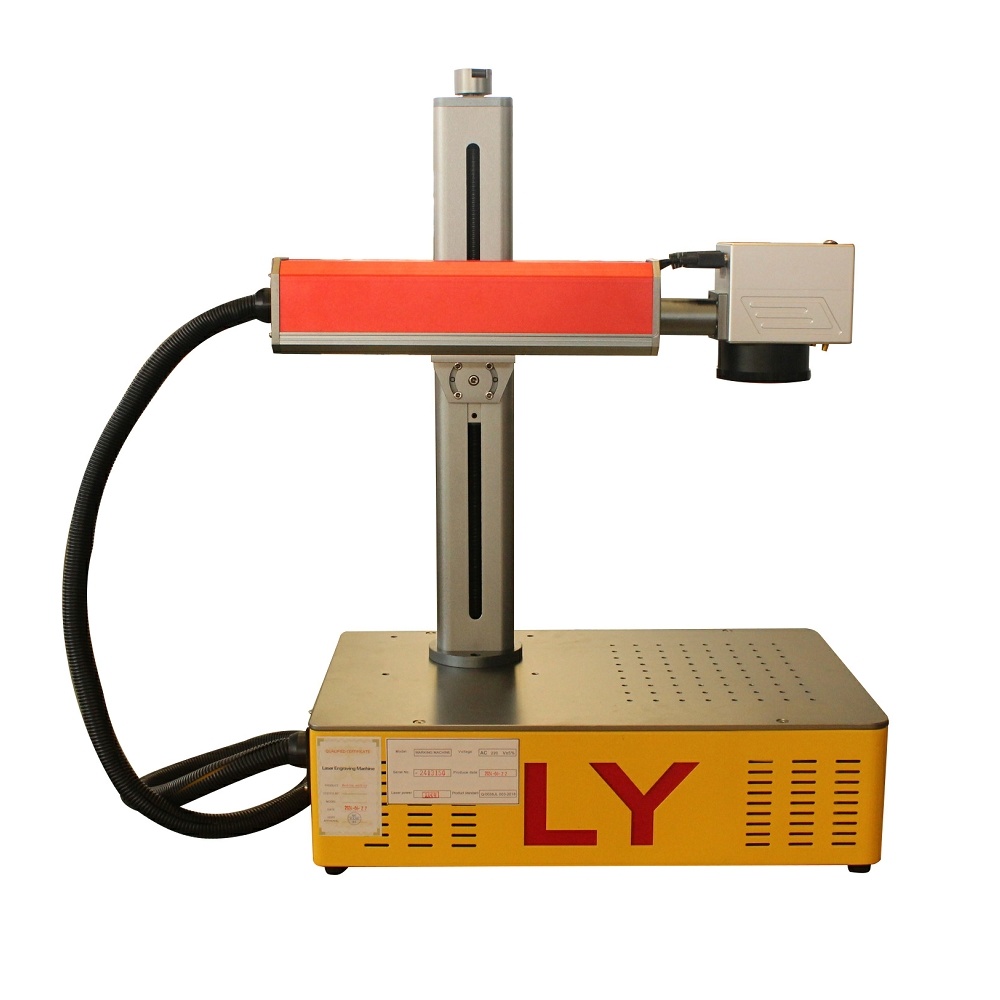

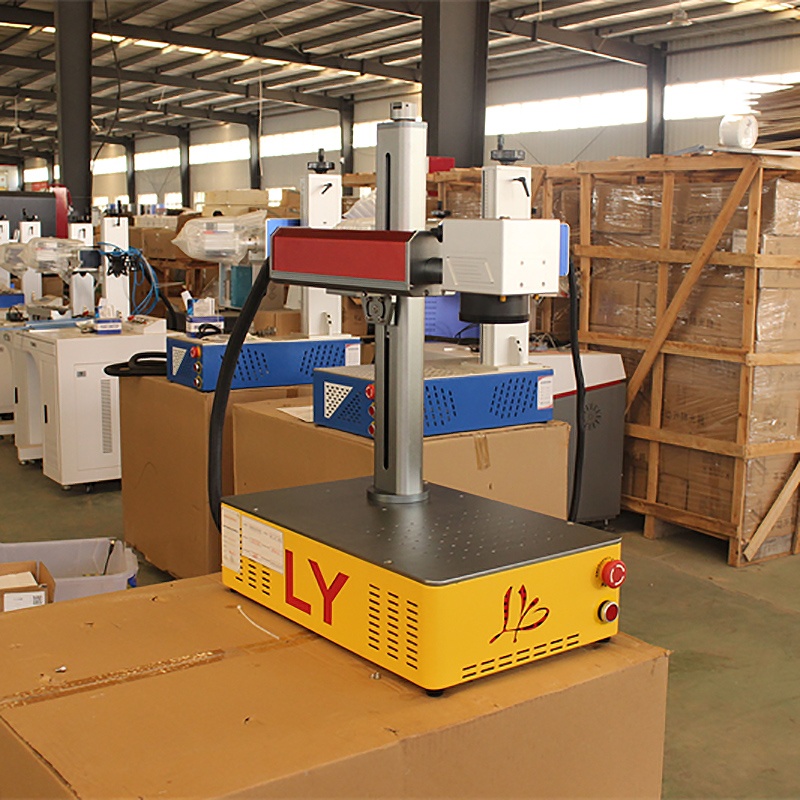

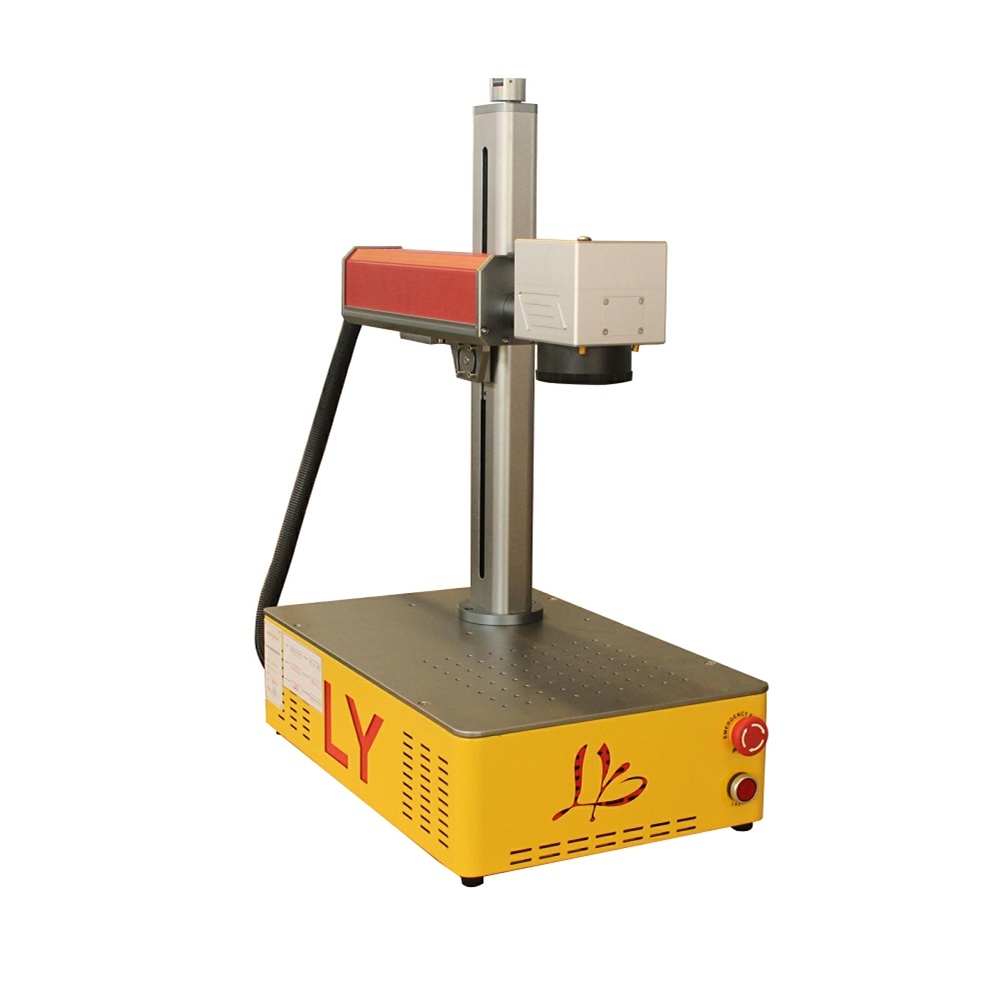

LY Branded Desktop 200W JPT Fiber Laser Engraving Marking Machine Built in 4th Axis Drive For Ceramic Plastic PVC Mark Stainless Stuff Color DIY Metal Sheet Cutting With Quartz Lens 220V 110V
Reviews(0)
Product Detail
Product Tags
LY Branded Desktop 200W JPT Fiber Laser Engraving Marking Machine Built in 4th Axis Drive For Ceramic Plastic PVC Mark Stainless
Stuff Color DIY Metal Sheet Cutting With Quartz Lens 220V 110V
1. Machine with special lightweight design, remove unnecessary design, maximum save shipping cost for customers.(So shippingcost won’t occupy big proportion in general budget.)
2.This machine can upgrade or add more parts, such as Rotary Axis, more Field Mirrors, more Peripheral Accessories, so can refer relative showcase, can add to shopping cart to pay directly, or leave message to seller to update total after final options confirmed. `

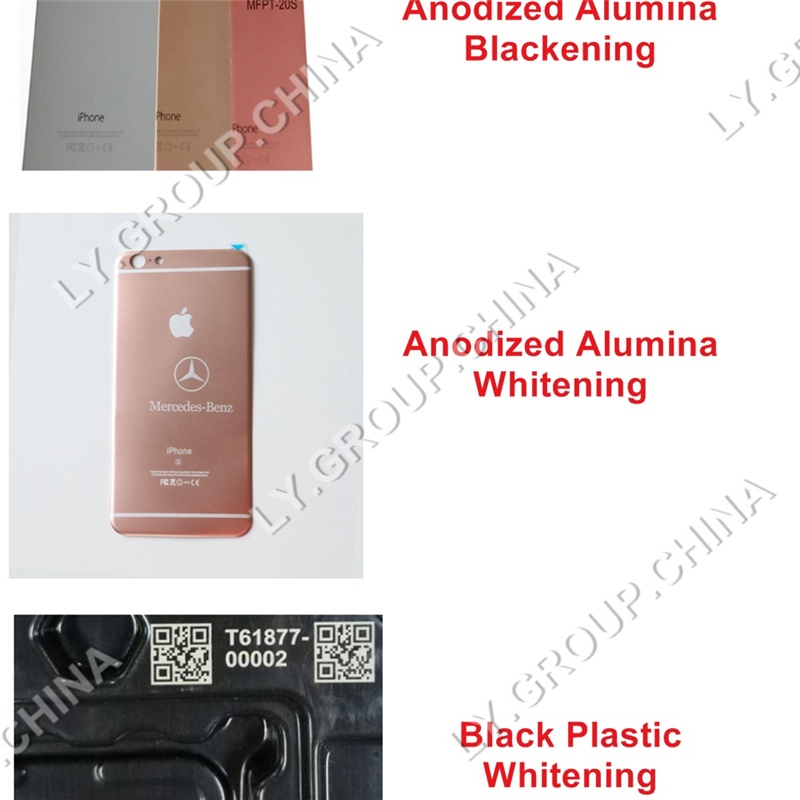

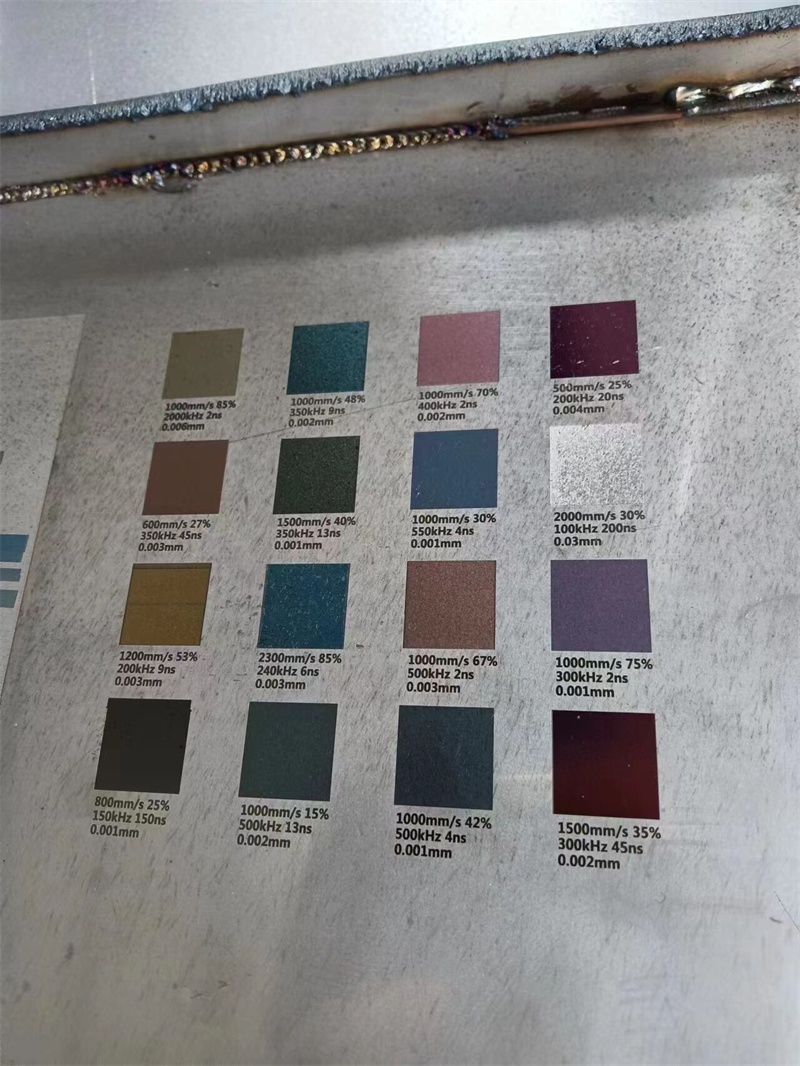

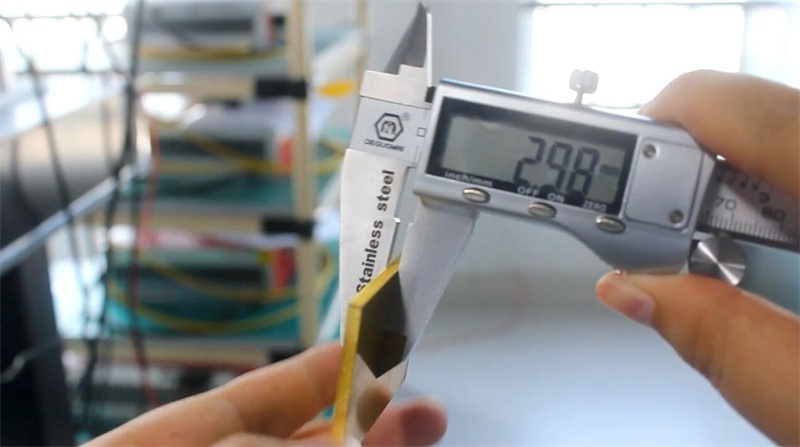

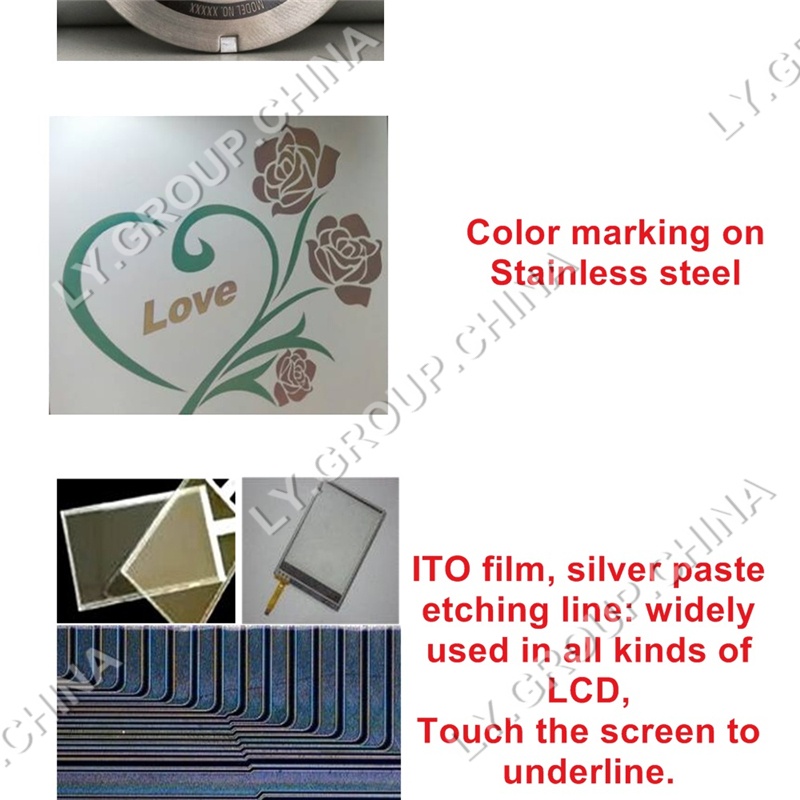

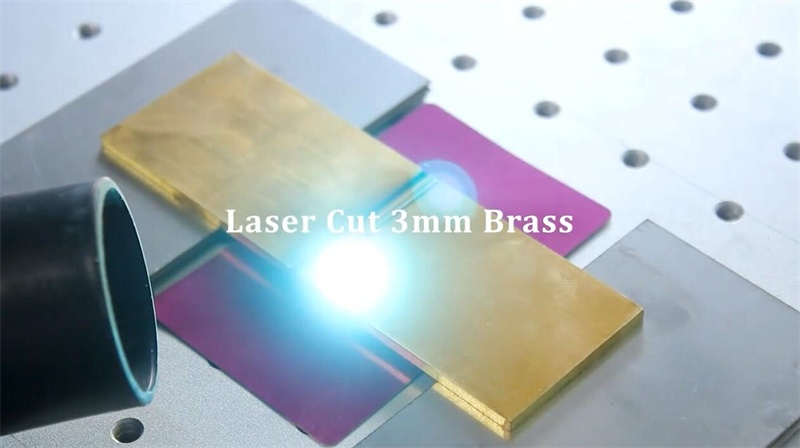

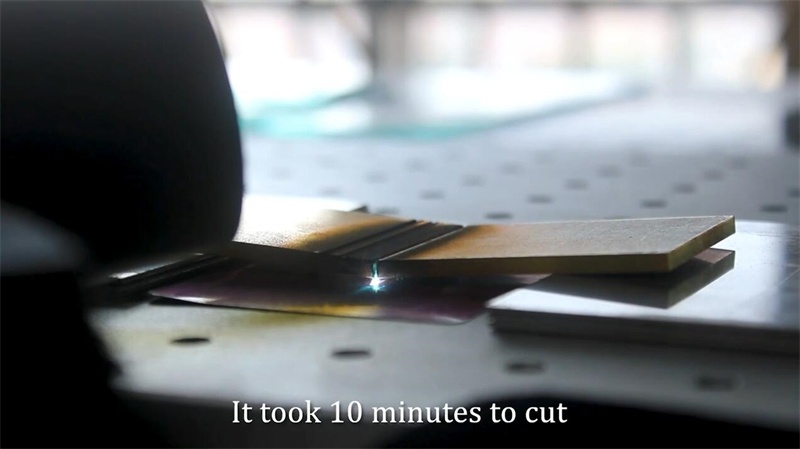

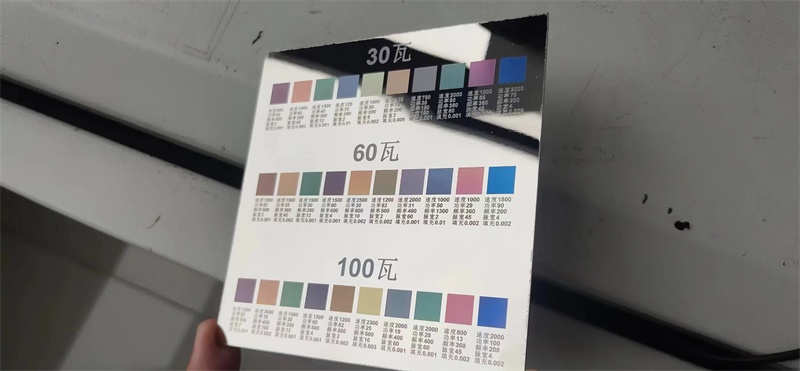

3. Our 200W machine can be used for regular marking, stainless steel color marking, and thin metal sheet cutting. In addition, many configurations still retain for upgrade options, striving to meet the needs of different customers.
Specification:
| Brand | LY-Fiber-Desktop |

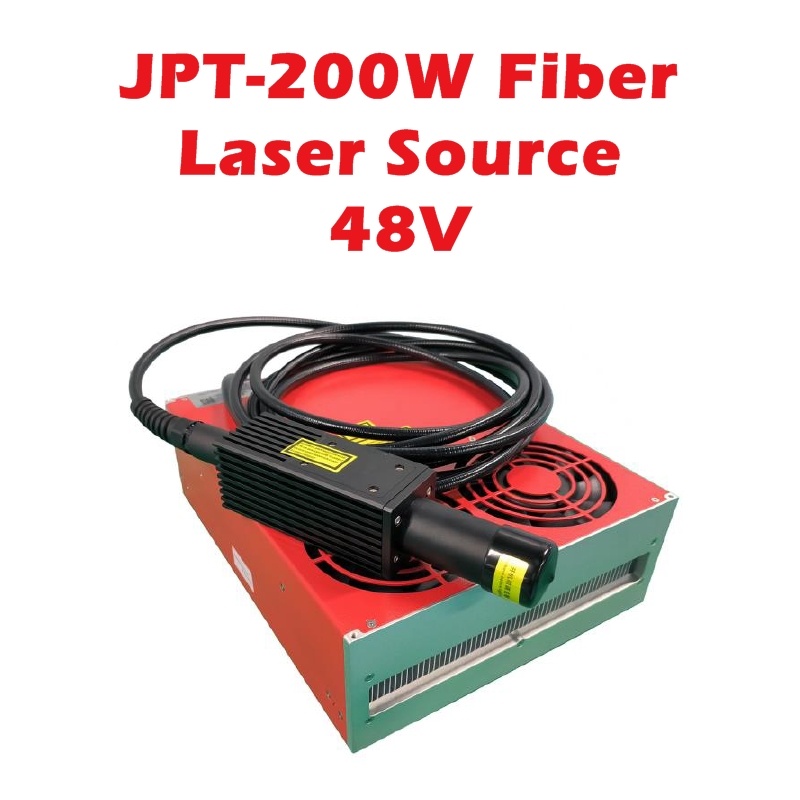

| Laser power | 200W JPT 48V |
| Working Area | Optional (Initial 200MM) |
| Cooling Mode | Air Cooling |
| Laser Wavelength | 1064nm |
| Frequency of pulse Adjust Range | 1-4000 KHz |

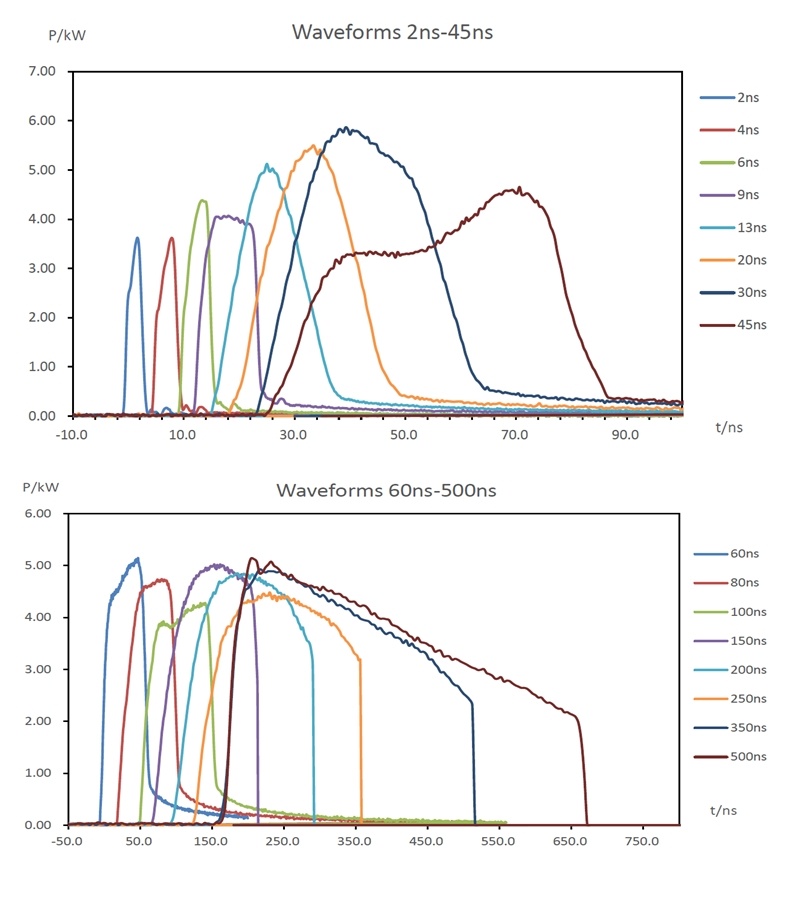

| Pulse Width | 2-500ns |
| Marking Speed | ≤5000 mm/s SG7110 With Dual Red Dots |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.002 mm |
| Resolution Ratio | 0.1 mm |

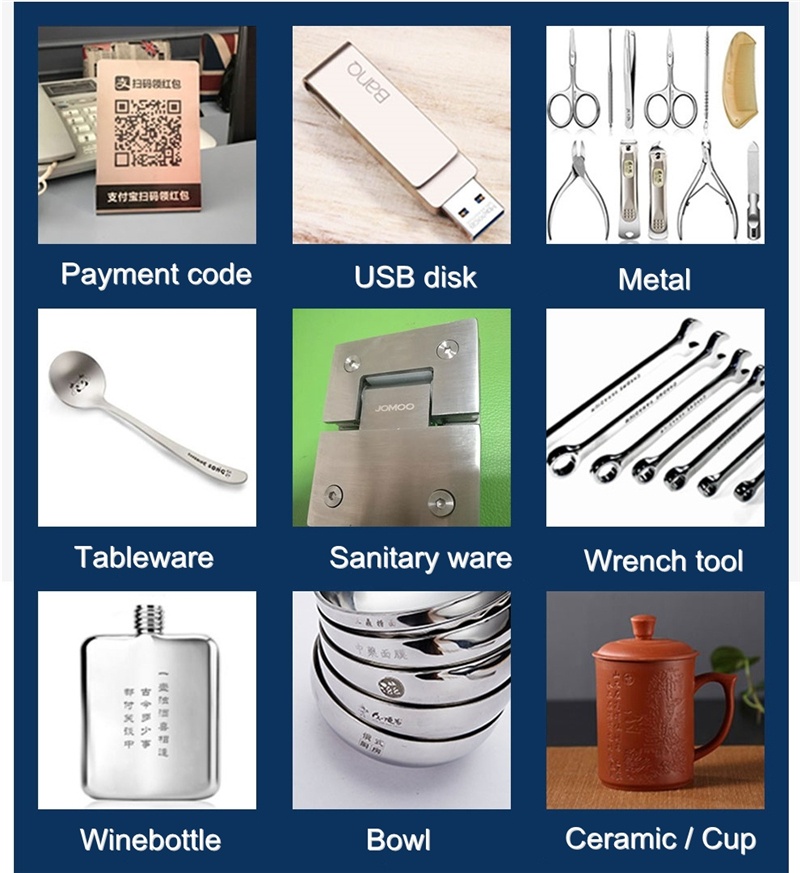

| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |

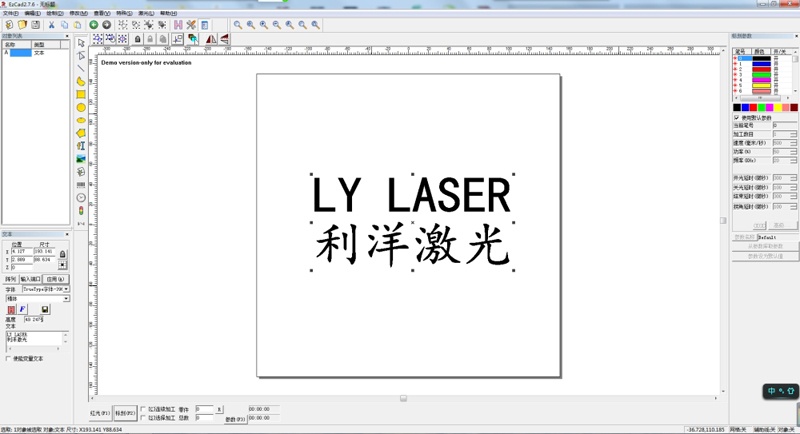

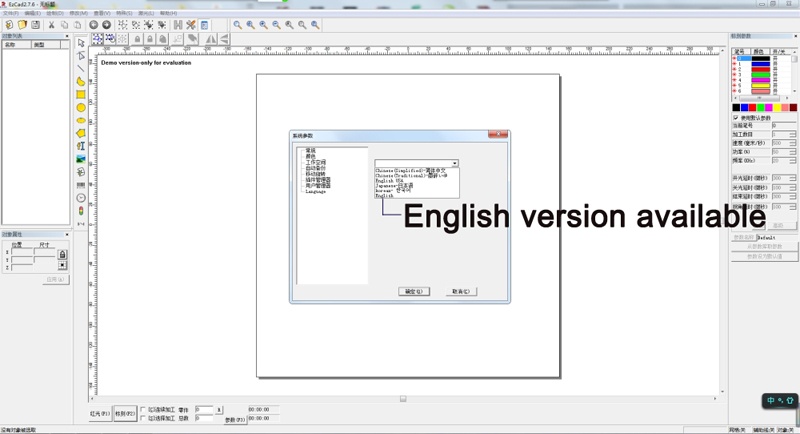

| Control Software | EZCAD ENGLISH Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | ≤0.9 KW |
| Operation Temperature | 0°C-40°C |
| Relative Moisture | ≤ 90%, no fog |

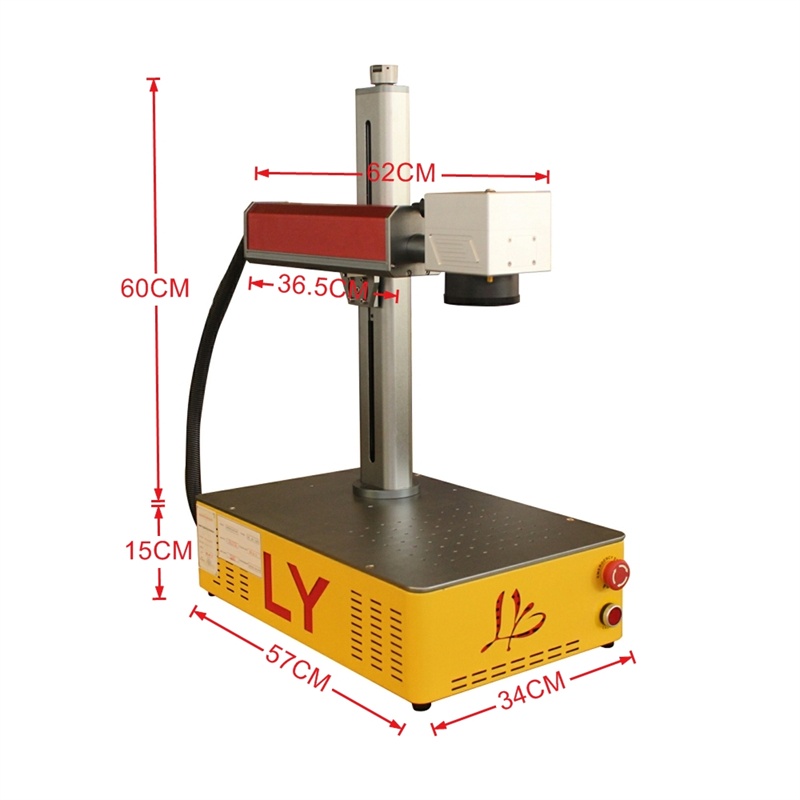

| Dimensions(L*W*H) | 55 x 50 x 55 cm ( Not fixed, can be Wooden box 1 or Cartoon box 2,based on delivery channel.) |
| Power supply requirements | 220 V or 110V |
| Weight | 45KG |
| Warranty | 24 months |
RE:
1.If want to change super high speed galvanometer SG7210 (8000mm/s), can contact with us.
2.If want to add Auto focusfunction can contact with us, but need to change to another shell case to make machine.
2.If want to upgrade to visual system for high efficiency industrial marking, can contact with us too.
Visual marking video as below:
Kit1:

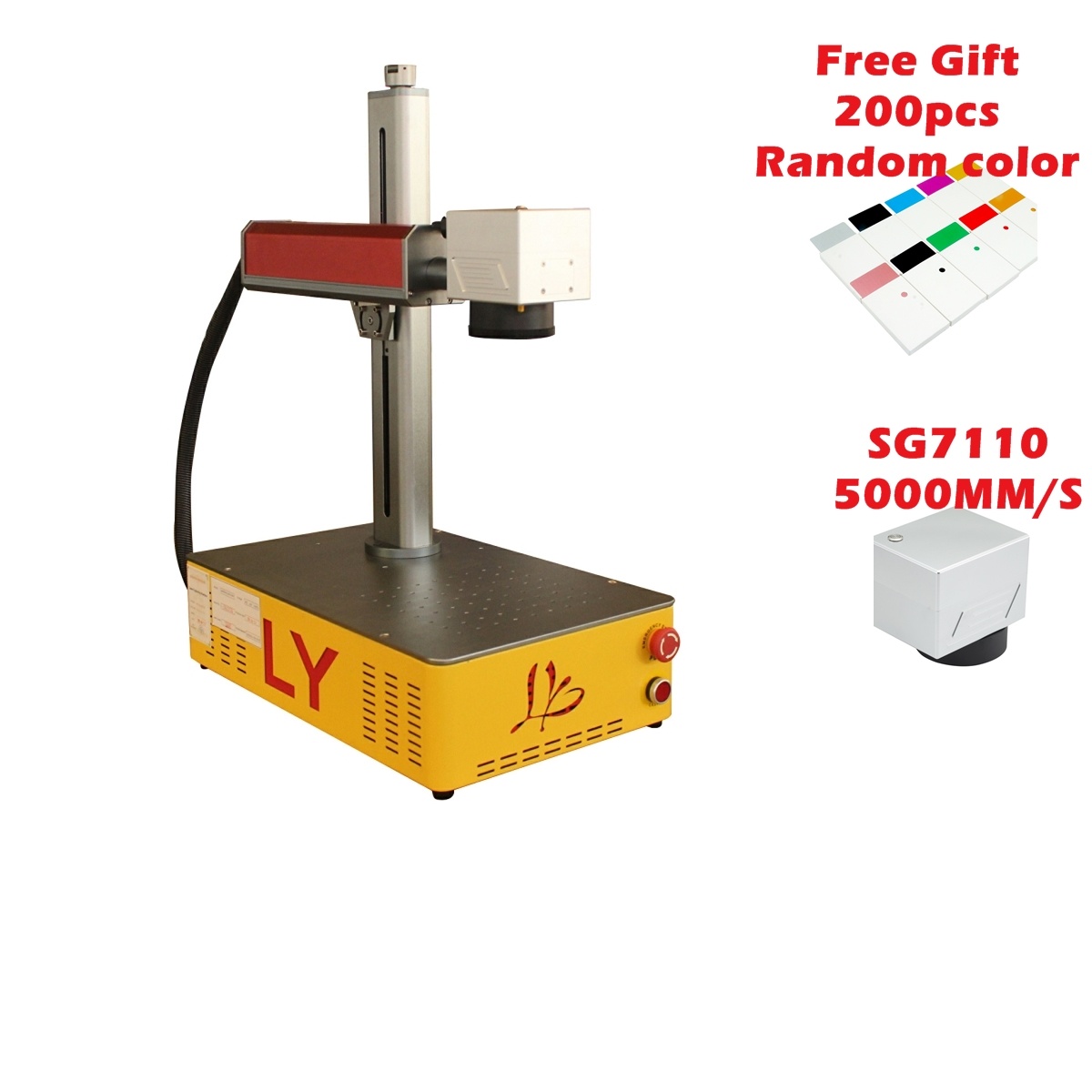

LY 200W Desktop machine with SG7110 galvanometer 200mm field lens
Kit2:
LY 200W Desktop machine with SG2206 galvanometer 200mm field lens

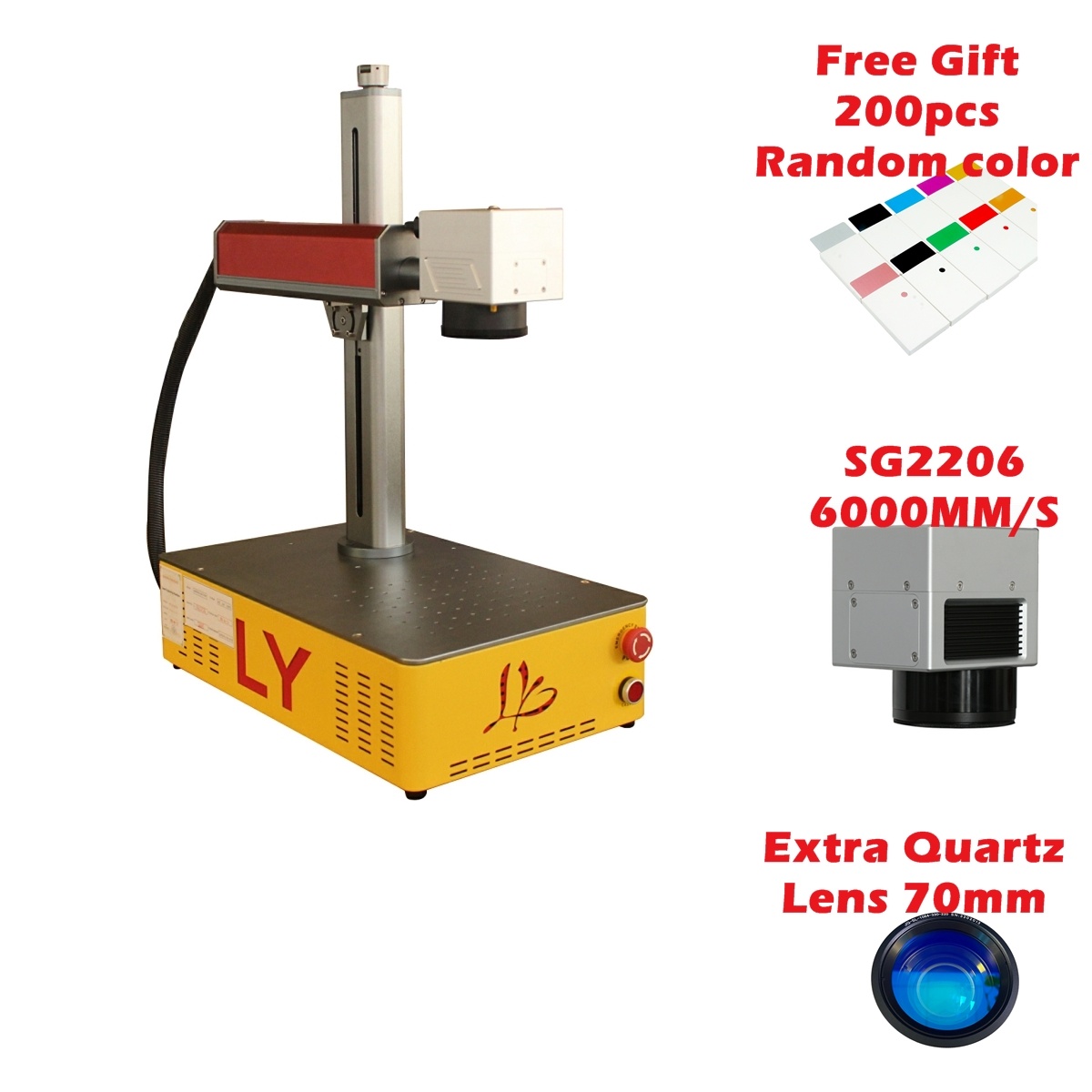

Kit3:
LY 200W Desktop machine with SG2206 galvanometer 200mm field lens
+ Quartz 70mm field lens(Not cheap K9 stuff lens)

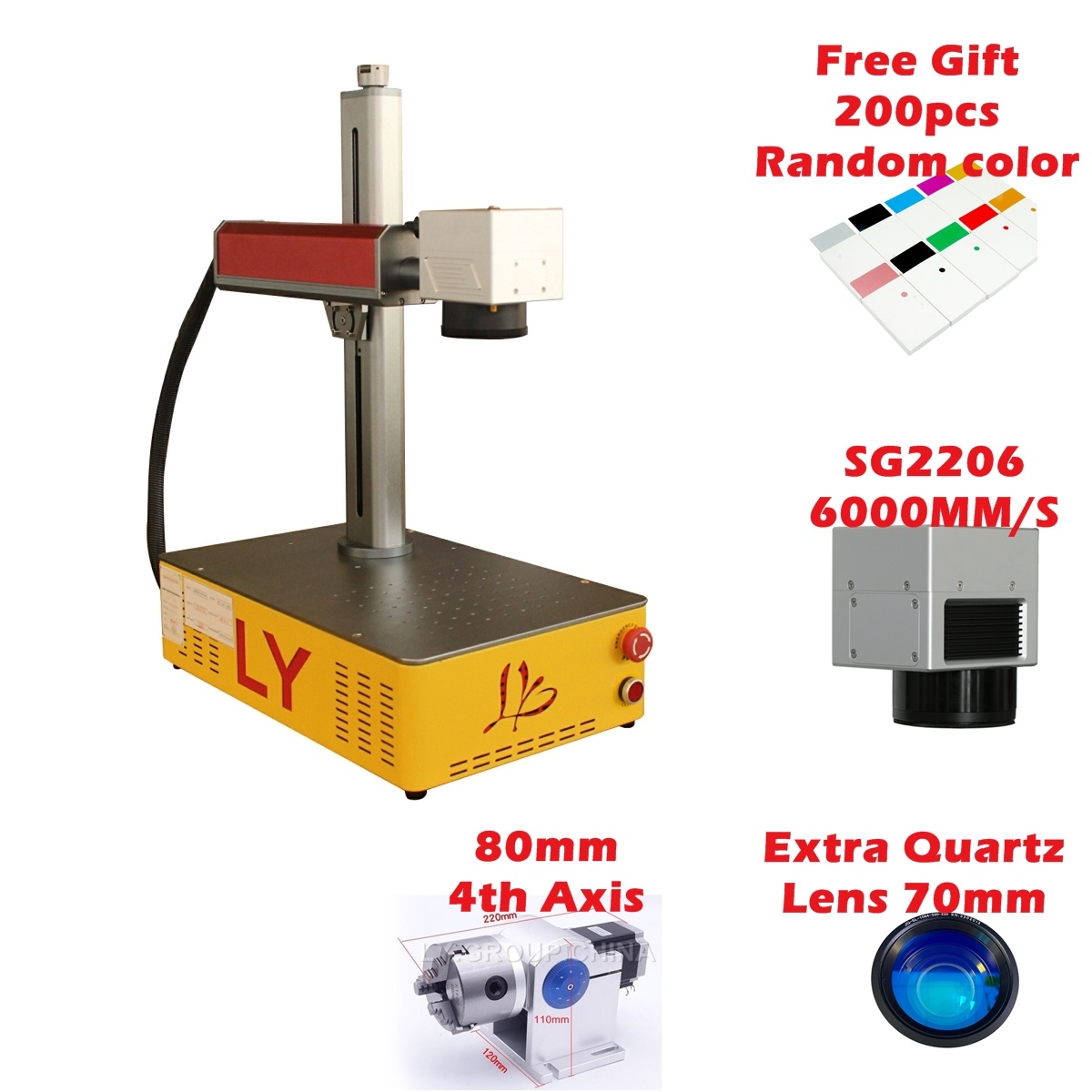

Kit4:
LY 200W Desktop machine with SG2206 galvanometer 200mm field lens
+ Quartz 70mm field lens(Not cheap K9 stuff lens)+D80 rotary axis(3 claws)

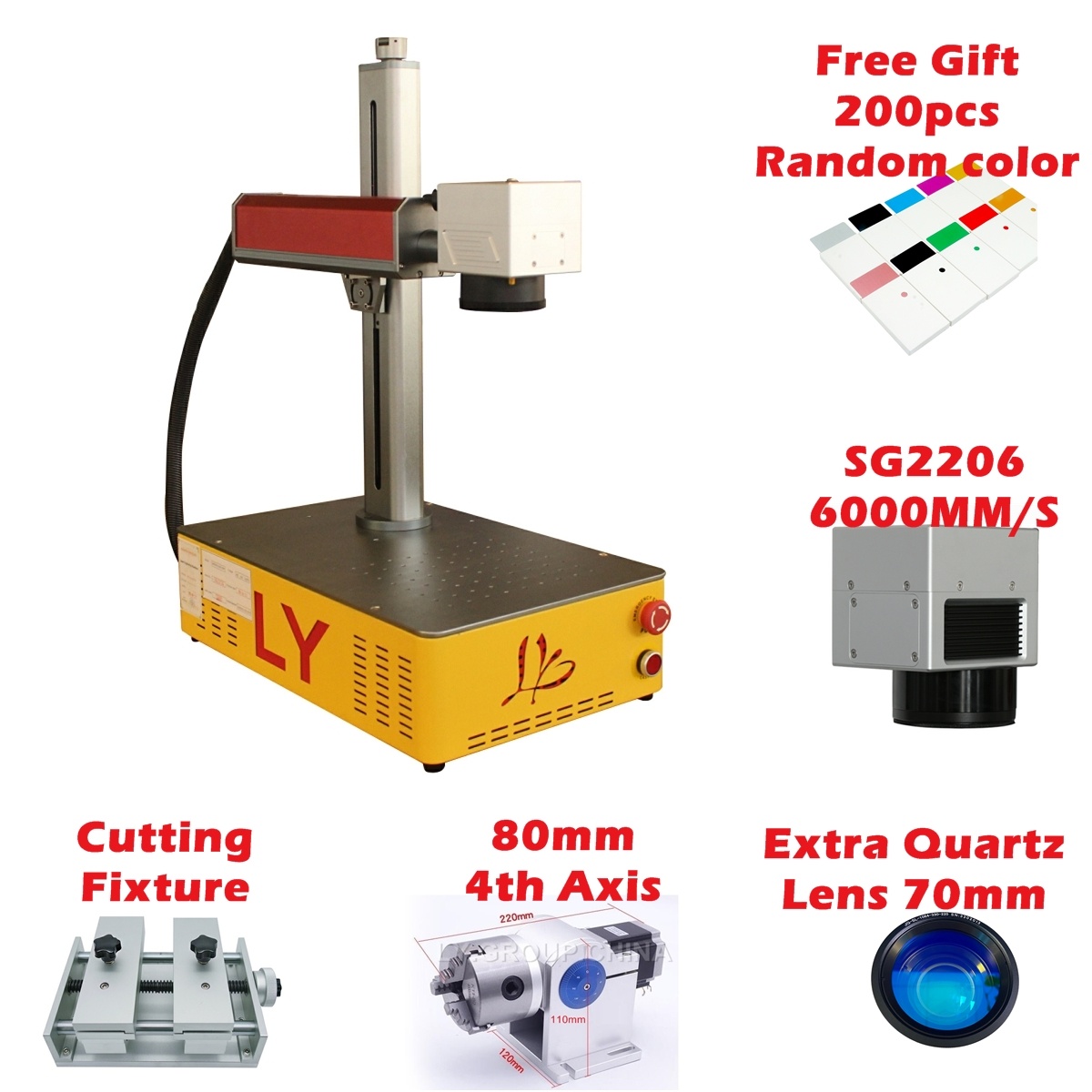

Kit5:
LY 200W Desktop machine with SG2206 galvanometer 200mm field lens
+ Quartz 70mm field lens(Not cheap K9 stuff lens)+D80 rotary axis(3 claws)+Cutting Fixture
Thanks for your order!
Product Pictures
