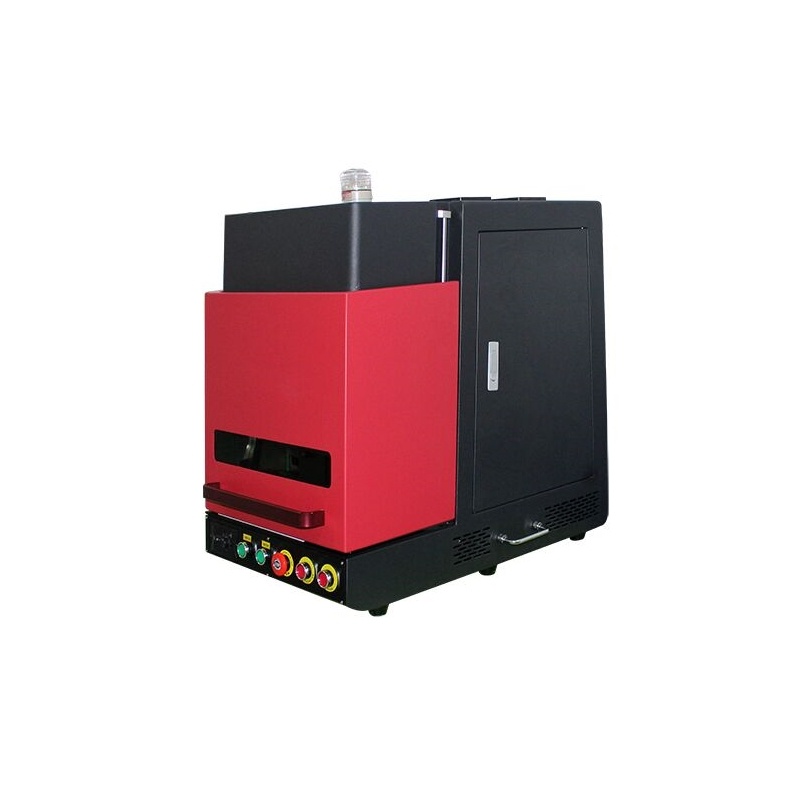

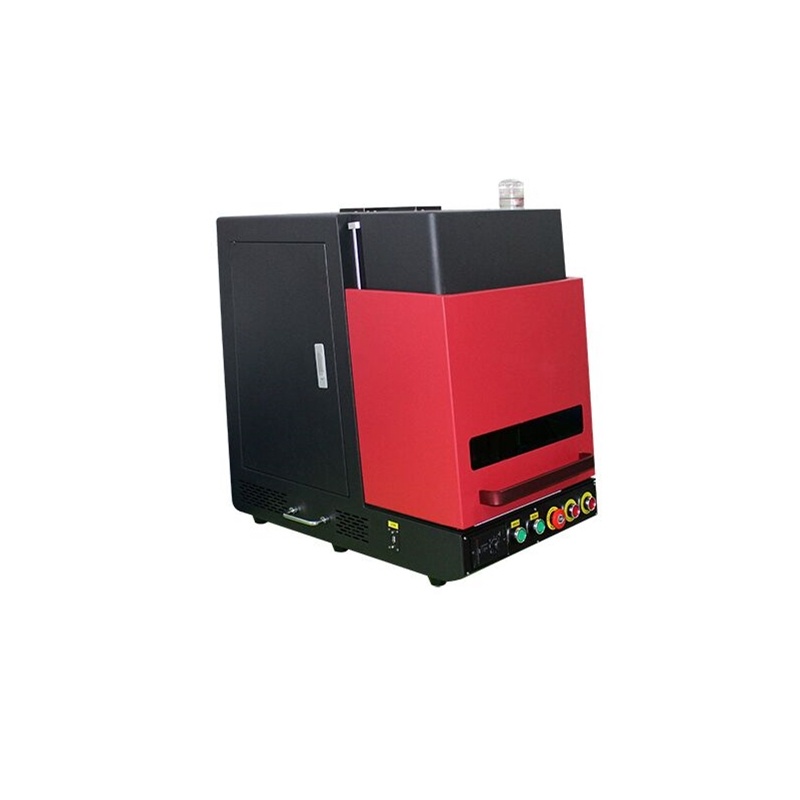

LY Closed Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable For Non-Glare Metal Iron Stainless Steel Gold Silver Copper With Electrical Lift Function
Reviews(0)
Product Detail
Product Tags

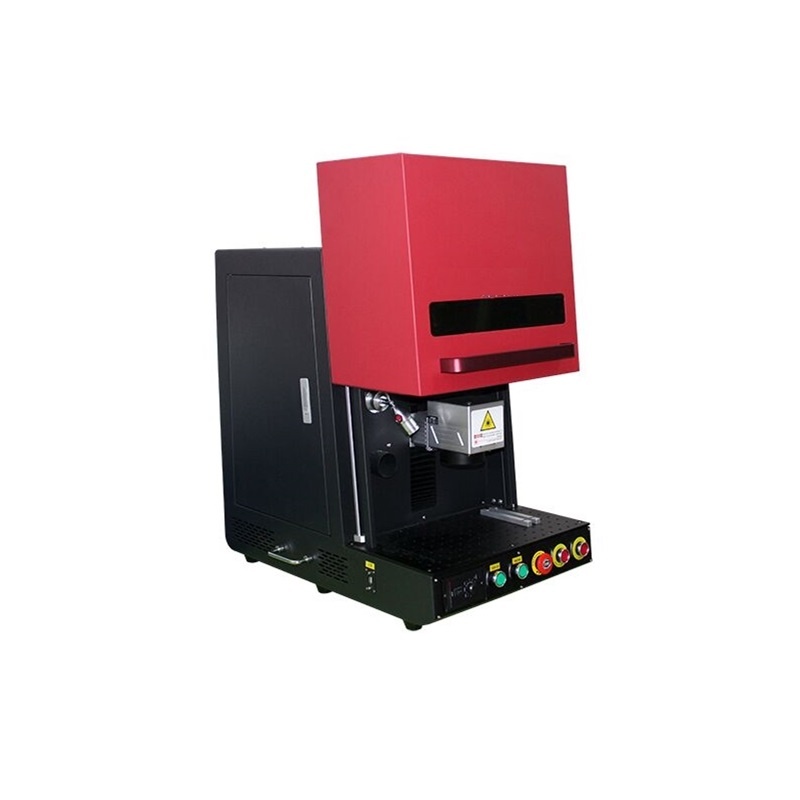

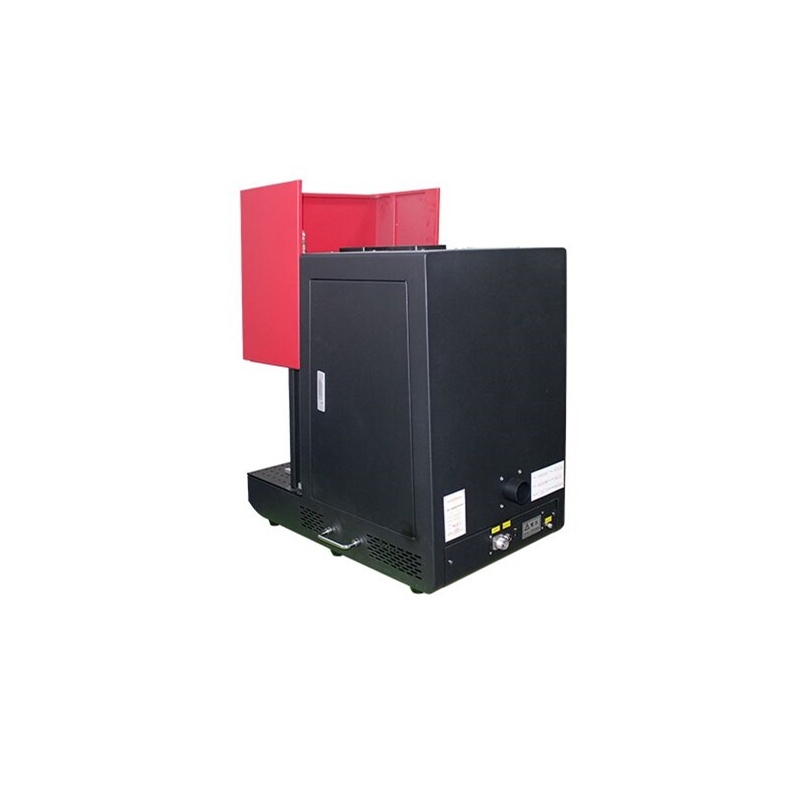

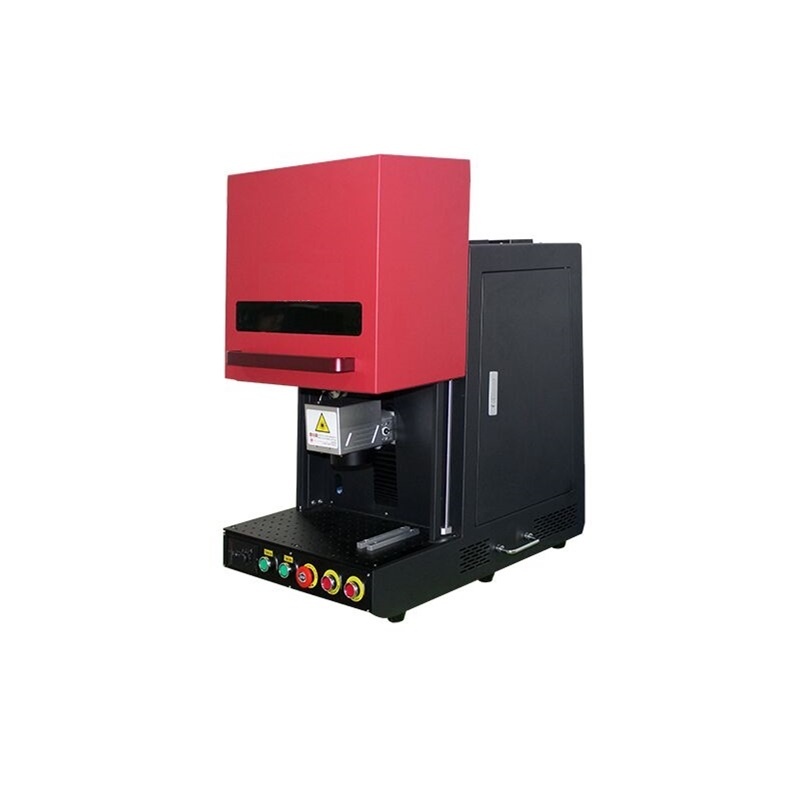

LY Closed Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable For Non-Glare Metal Iron Stainless Steel Gold Silver Copper With Electrical Lift Function
Technical Parameter
| Model | |
| Fiber Laser power | 20W/30W/50W |

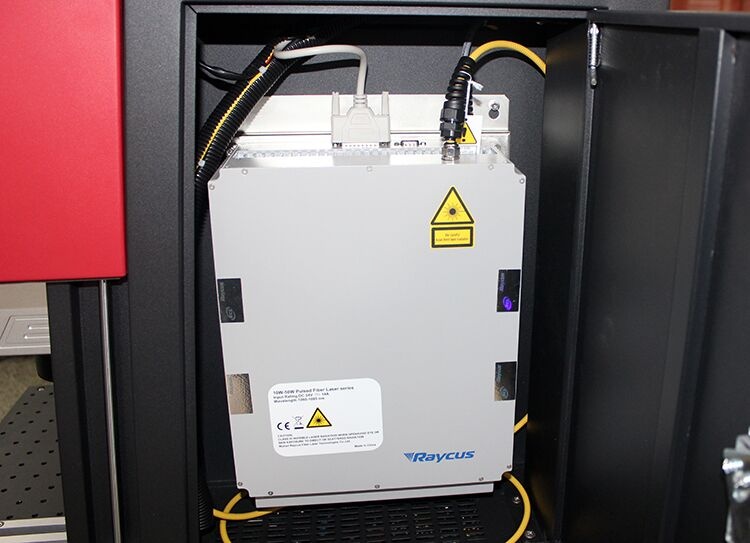

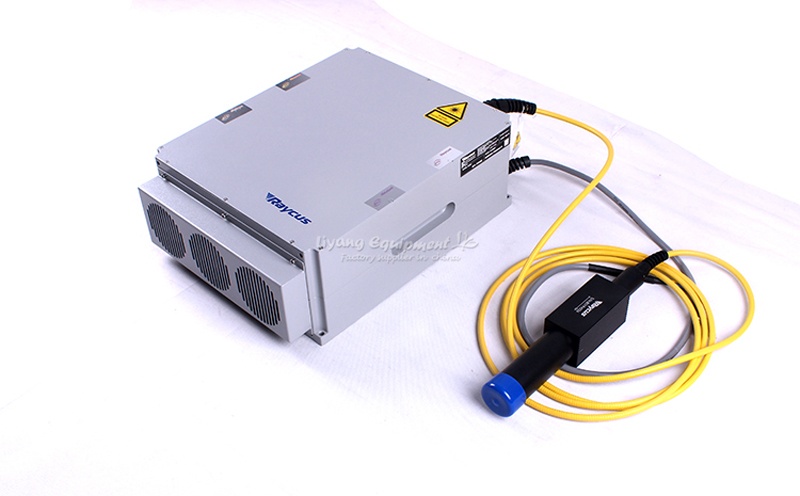

| Fiber Laser Brand | Super-Laser/MAX/RAYCUS |
| Working Area/Length | 150*150mm
(Optional 110MM. RE: Due to machine is Mini model, so if use bigger field lens, cannot get full work dimension, recommend Max 150mm ) |

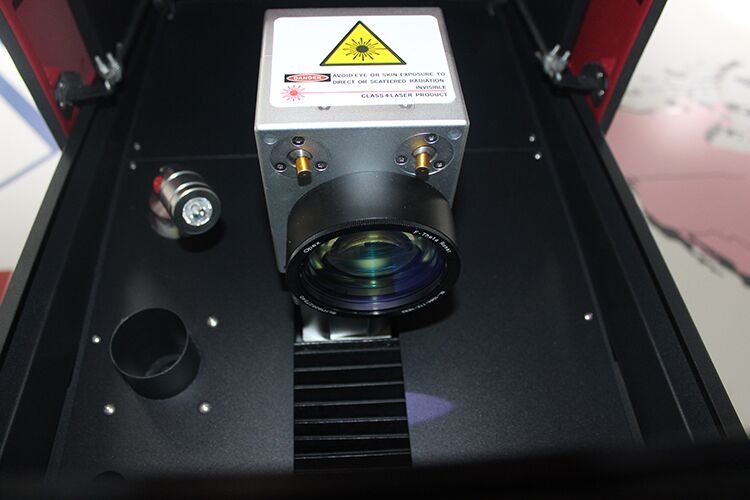

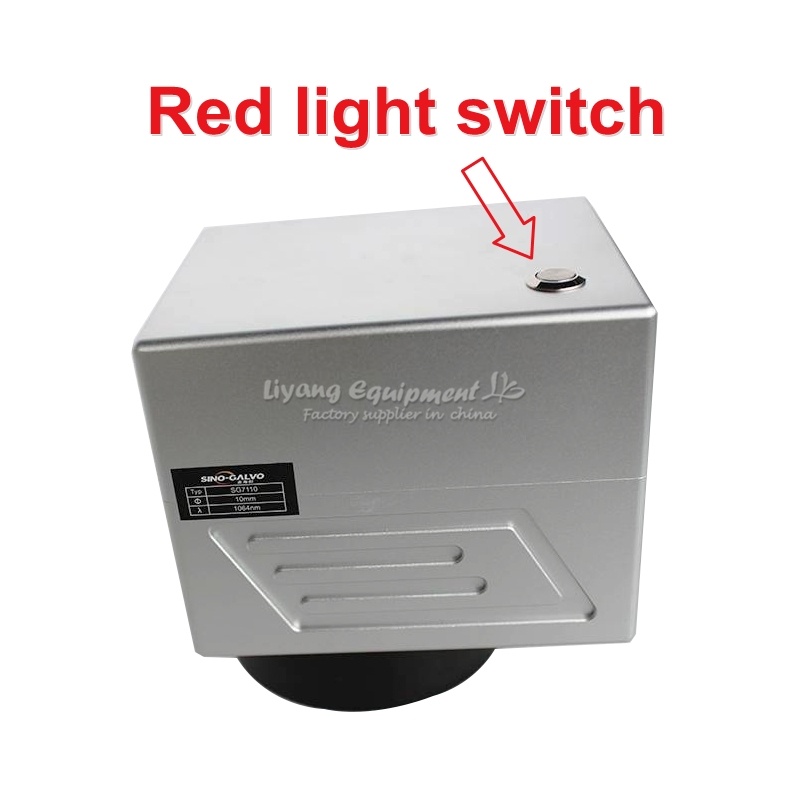

| Galvanometer | SG7110 (Double Red light Align Version) |
| Field Mirror | F200(150MM)/Optional:F160(110MM) |

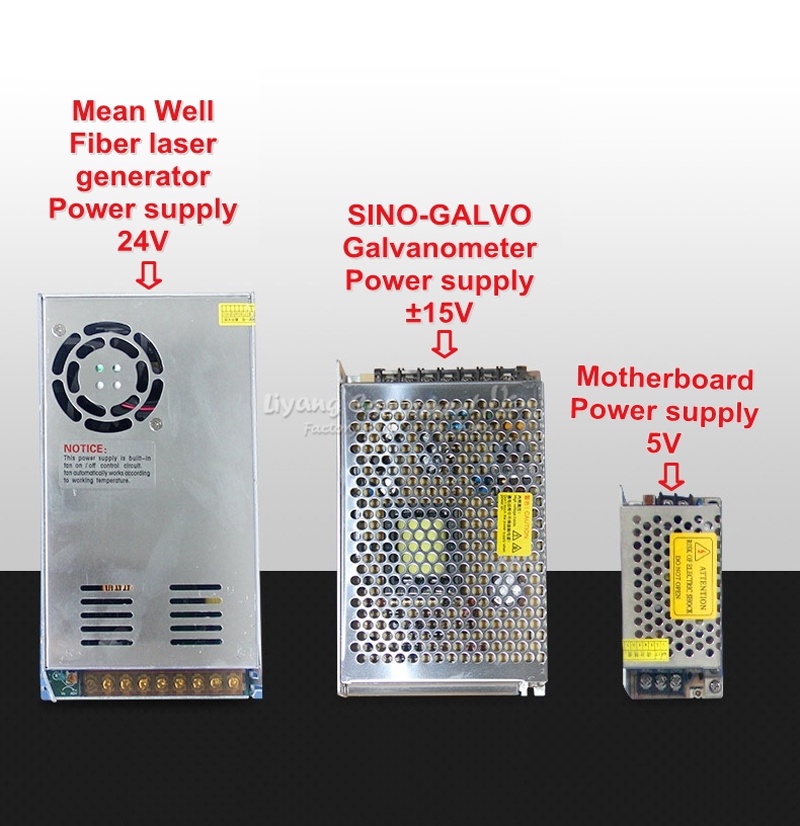

| Power supply | MeanWell (Original) |

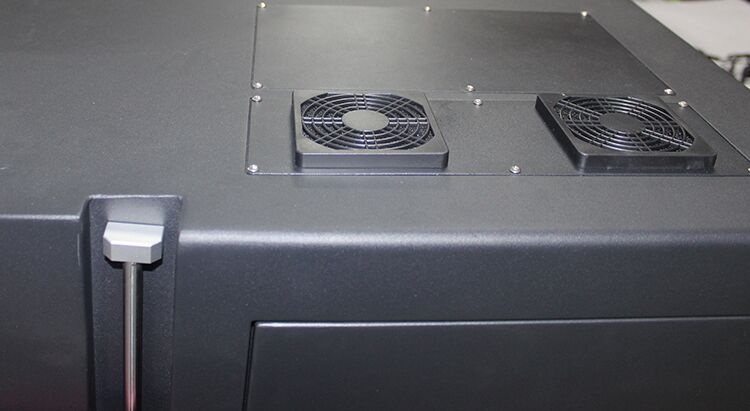

| Cooling Mode | Air Cooling |
| Laser Wavelength | 10.64 um |
| Frequency of pulse | 20-100 KHz |
| Marking Depth | ≤0.3 mm |
| Marking Speed | ≤8000 mm/s |
| Marking Lines | 1-10 lines |
| Minimum Line Width | 0.01 mm |
| Minimum Character | 0.15 mm |
| Repeatability Accuracy | ±0.002 mm |
| Resolution Ratio | 0.1 mm |

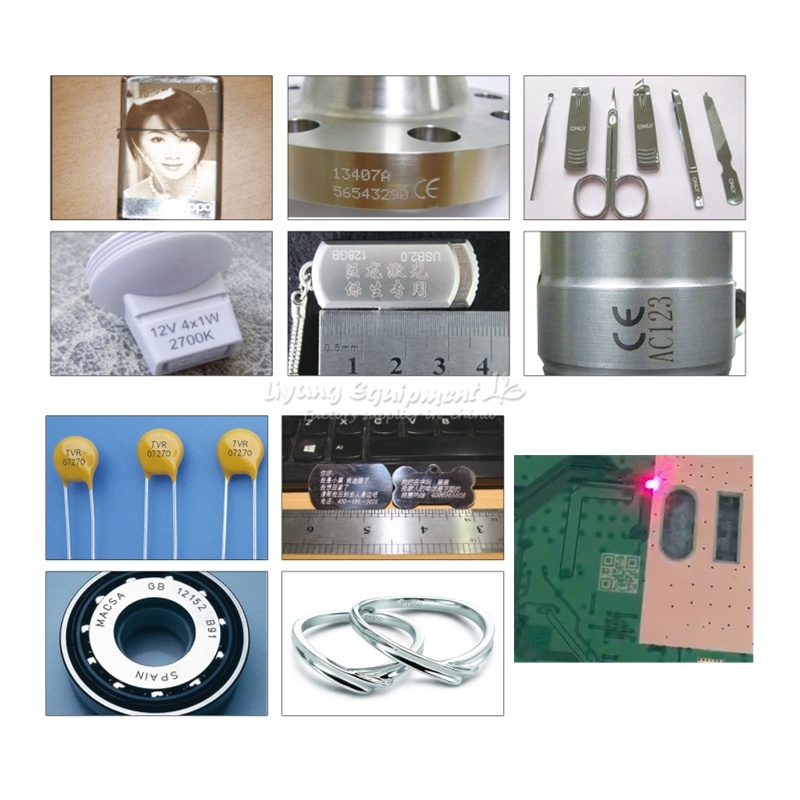

| Marking Content | Text, pattern, date, bar code, etc |
| Operation System | Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10 |

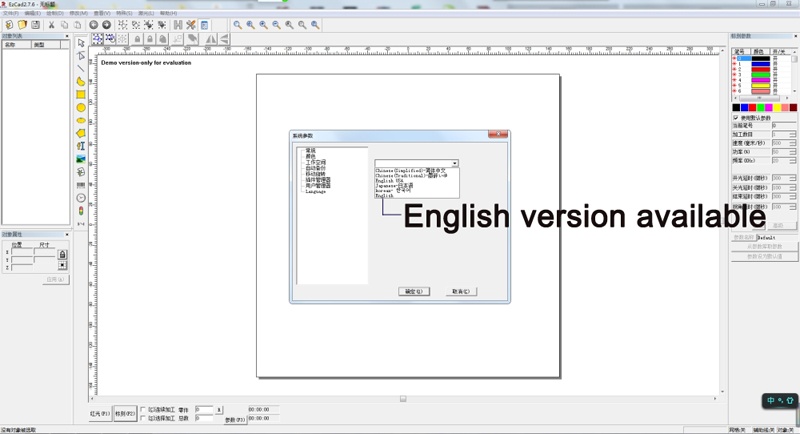

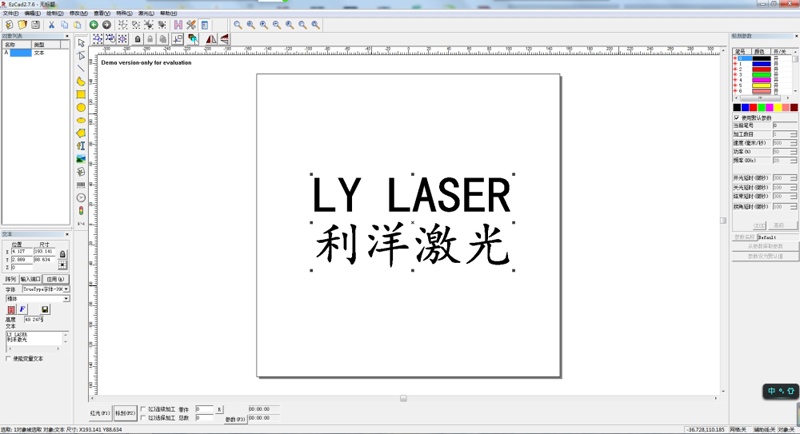

| Control Software | EZCAD ENGLISH Control Software |
| Graphic Format Supported | BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc. |
| Unit Power | ≤0.9 KW |
| Operation Temperature | 5°C-40°C |
| Relative Moisture | ≤ 90%, no fog |

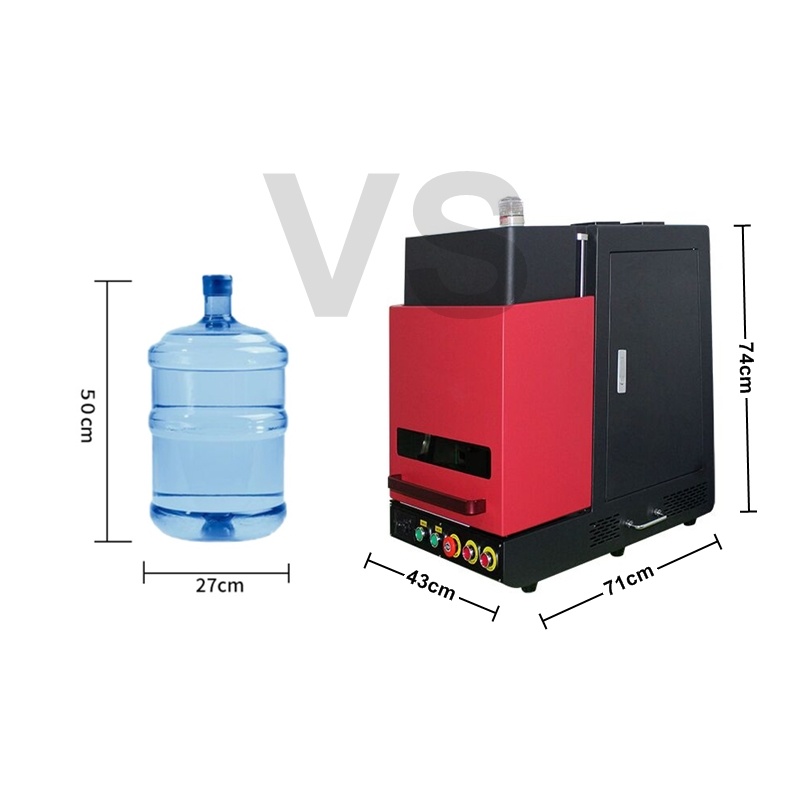

| Dimensions(L*W*H) | 58 x 86 x 90 cm |
| Power supply requirements | 220 V or 110V |
| Net Weight | 65KG |
| Gross Weight | 90KG |
| Warranty | 1 year |

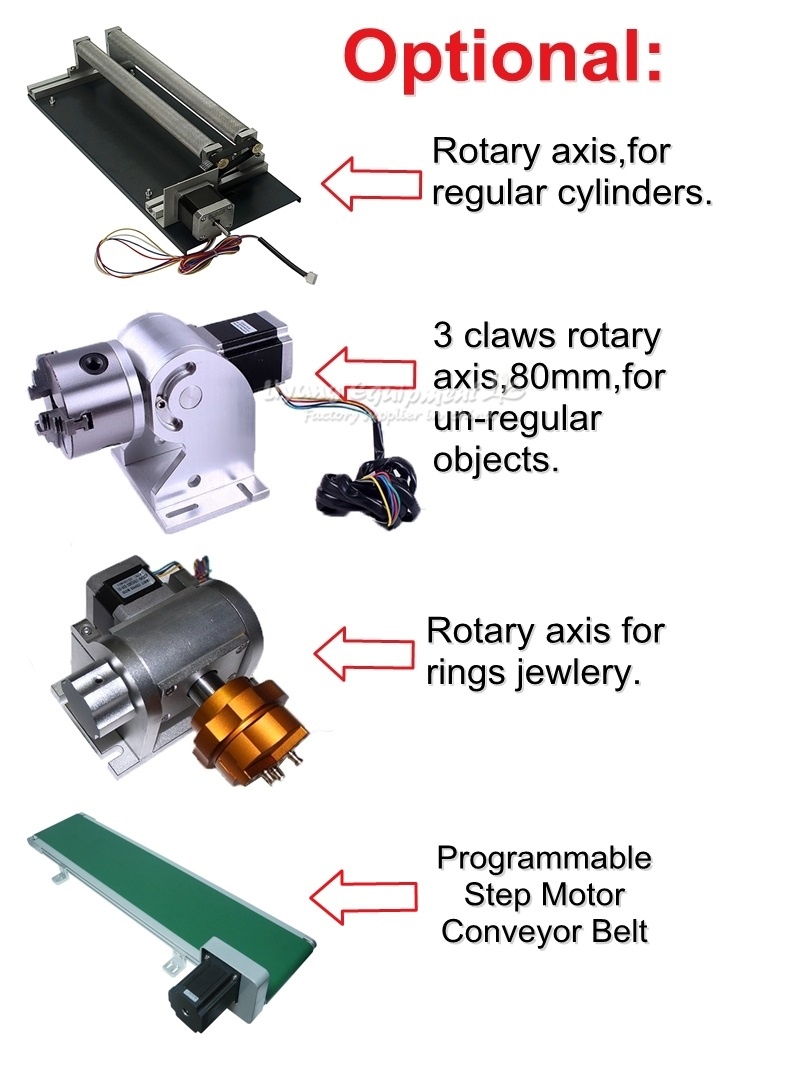

| Rotary Axis | Support (Optional) |

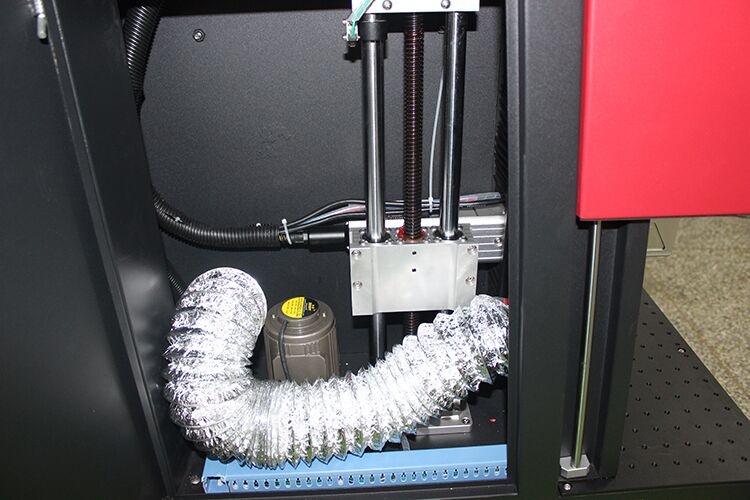

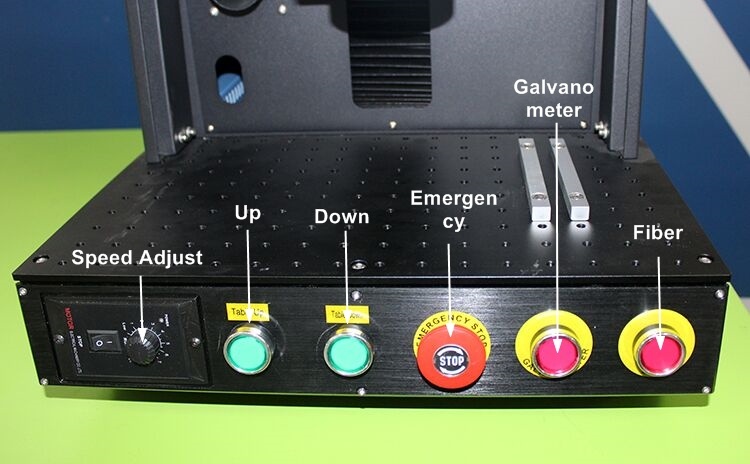

| Move | Electric up & down |
The motherboard supports win10 and supports 32-bit 64-bit.
1: Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,
2: Machine configuration:

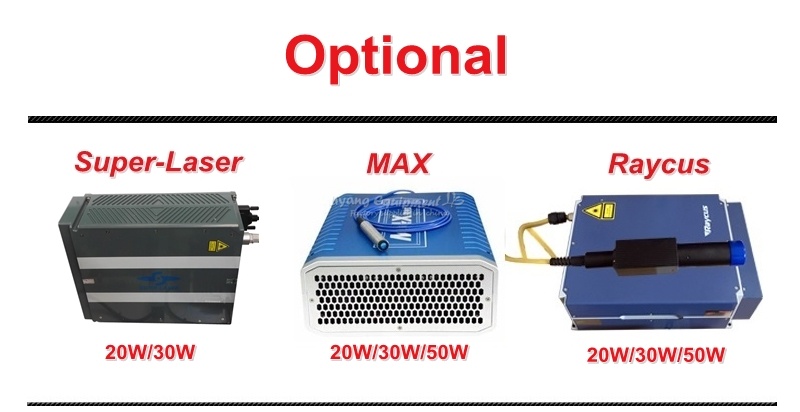

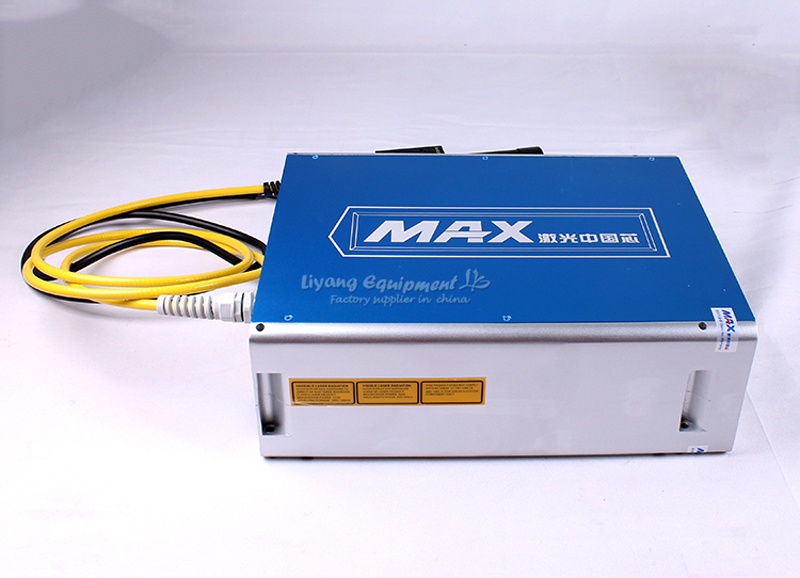

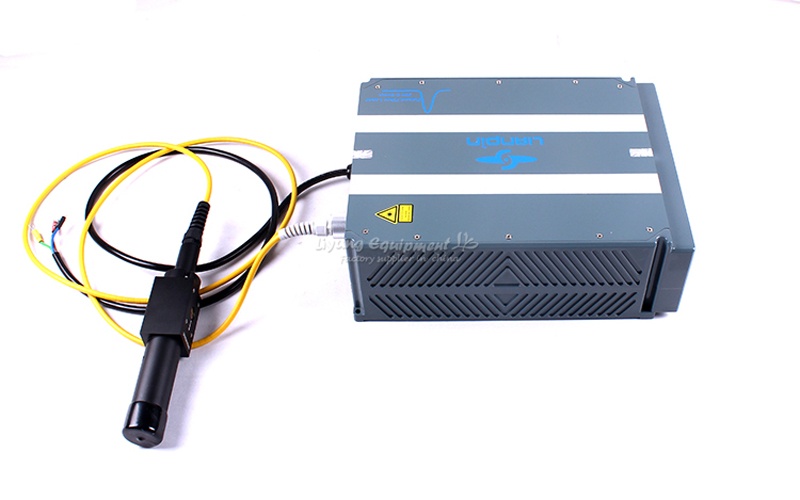

A;Fiber Laser brand:Lianpin/Raycus/Max
B; SINO-GALVO field mirror & galvanometer,
C; Taiwan Mingwell (MW) power supply,

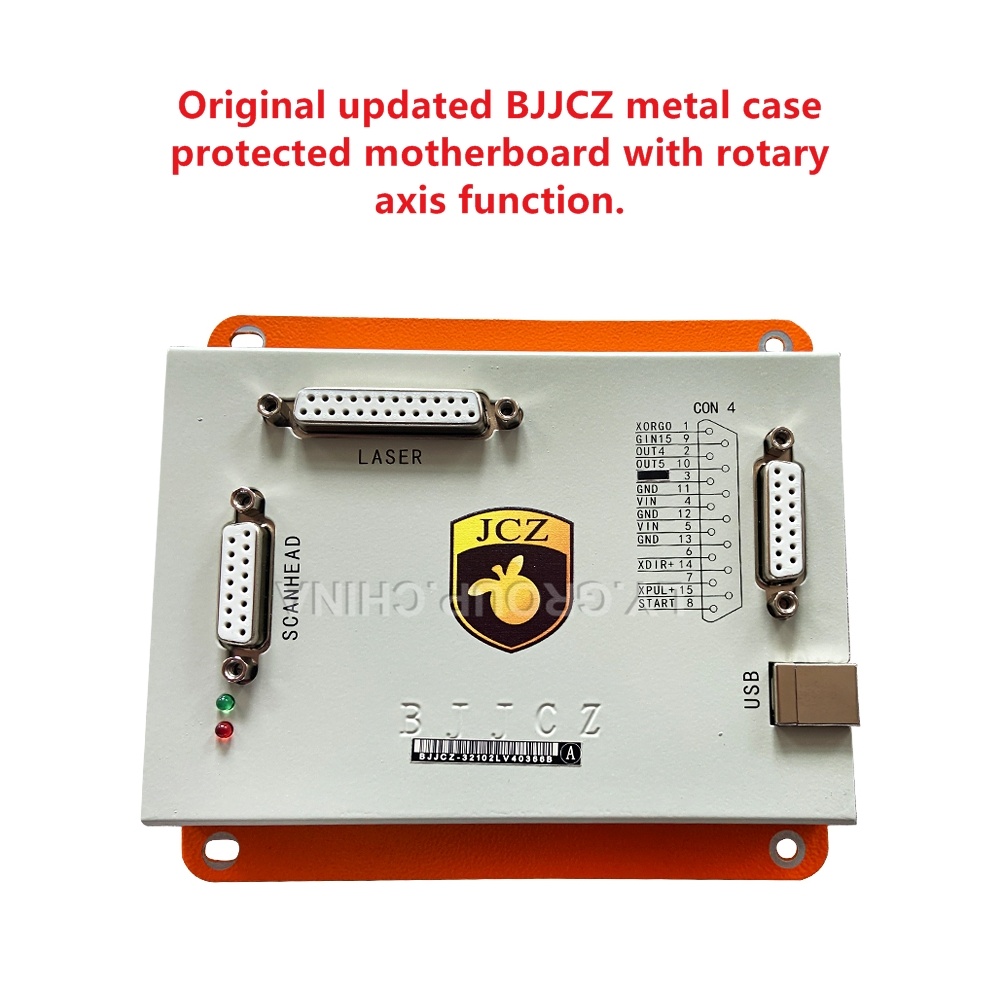

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

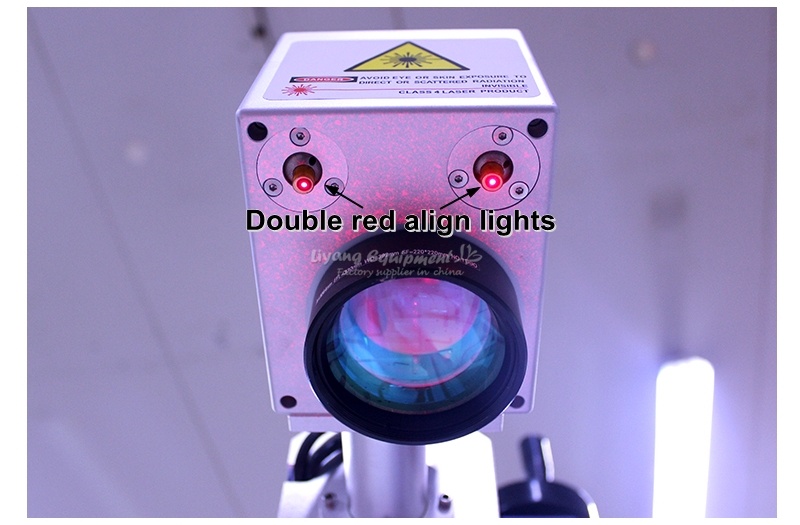

E: Double red lights assisted focusing
F:Rotary axis (Optoinal)
3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!
4: Never let price become the only guiding factor for the company’s business marketing.
Expand your own marketing ideas and position high-quality markets.
5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say, I can provide it. Just the price is different!
Thanks for your order!
