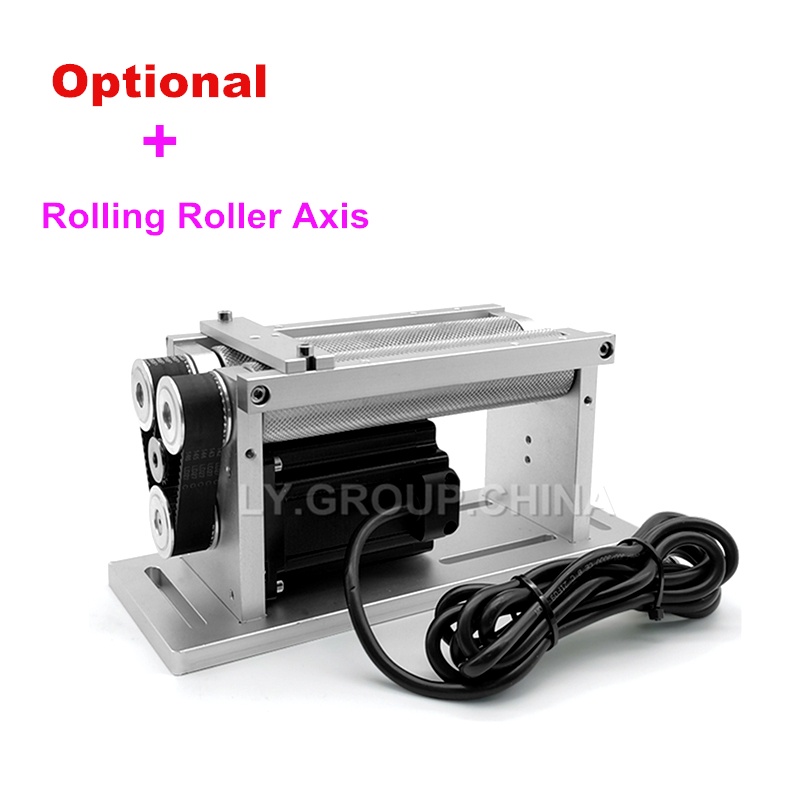

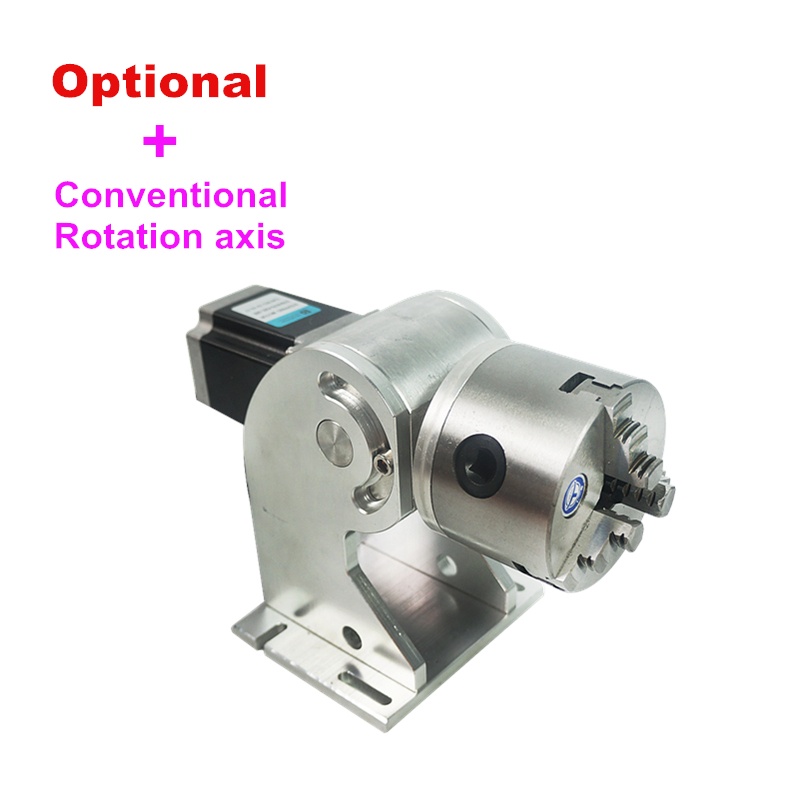

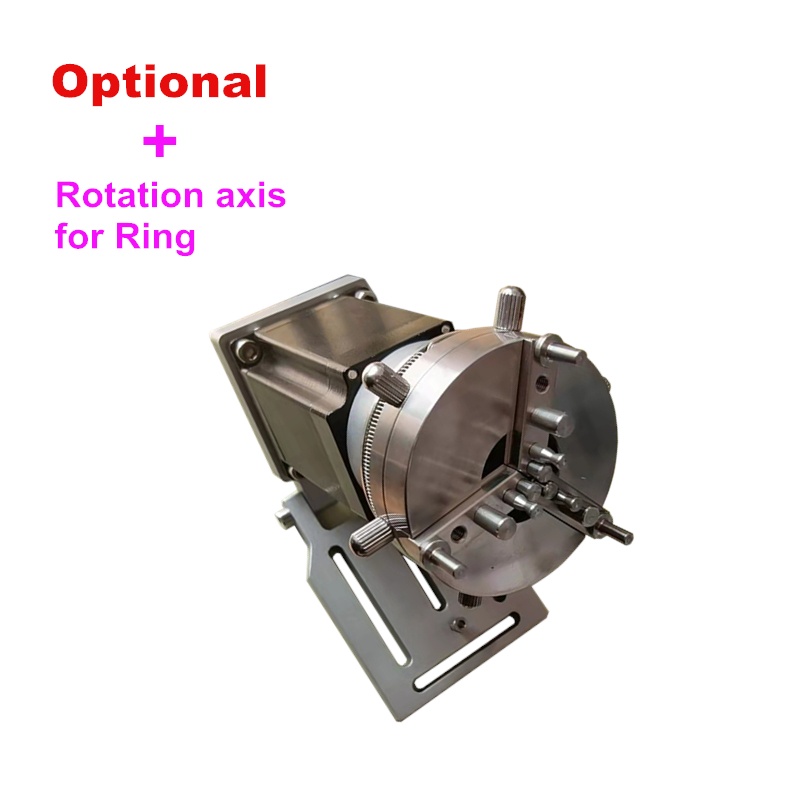

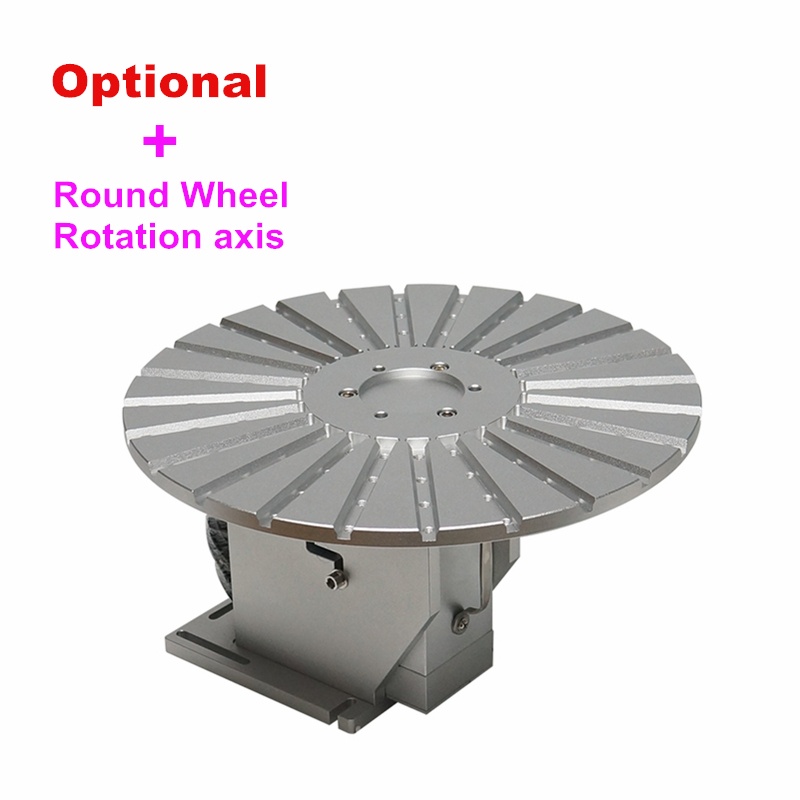

LYBGACNC Desktop Laser Marking Machine 20W 30W 50W Portable Mini Ultraviolet Ray Purple Cold Light UV 3W CO2 Metal Pipe 30W For Non-Metal Wood Acrylic Leather Paper Quick Mark Optional Rotary Axis 220V 110V
Reviews(0)
Product Detail
Product Tags

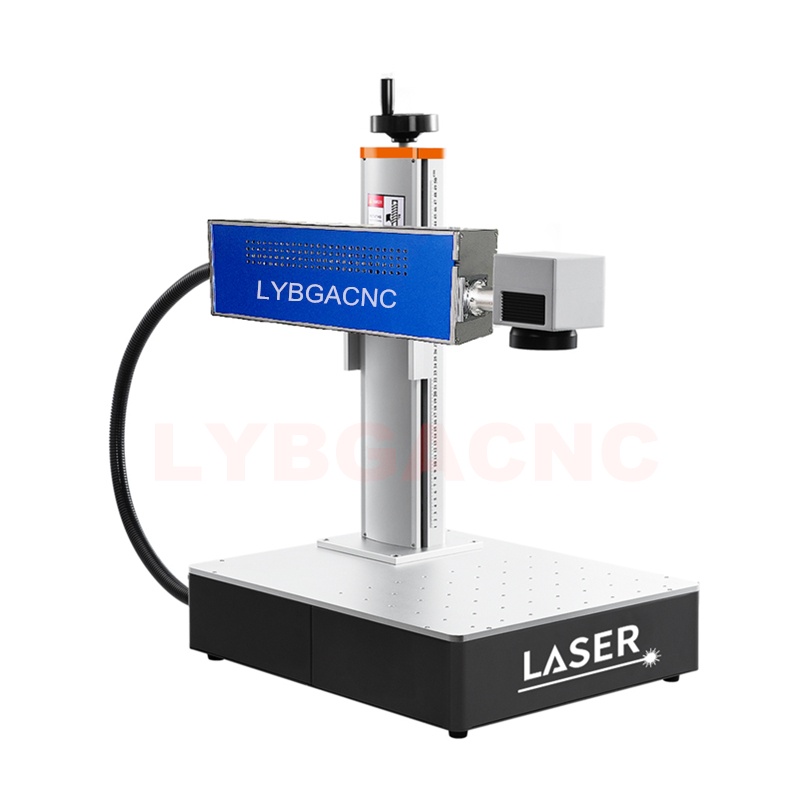

LYBGACNC Desktop Laser Marking Machine 20W 30W 50W Portable Mini Ultraviolet Ray Purple Cold Light UV 3W CO2 Metal Pipe 30W For Non-Metal Wood Acrylic Leather Paper Quick Mark Optional Rotary Axis 220V 110V

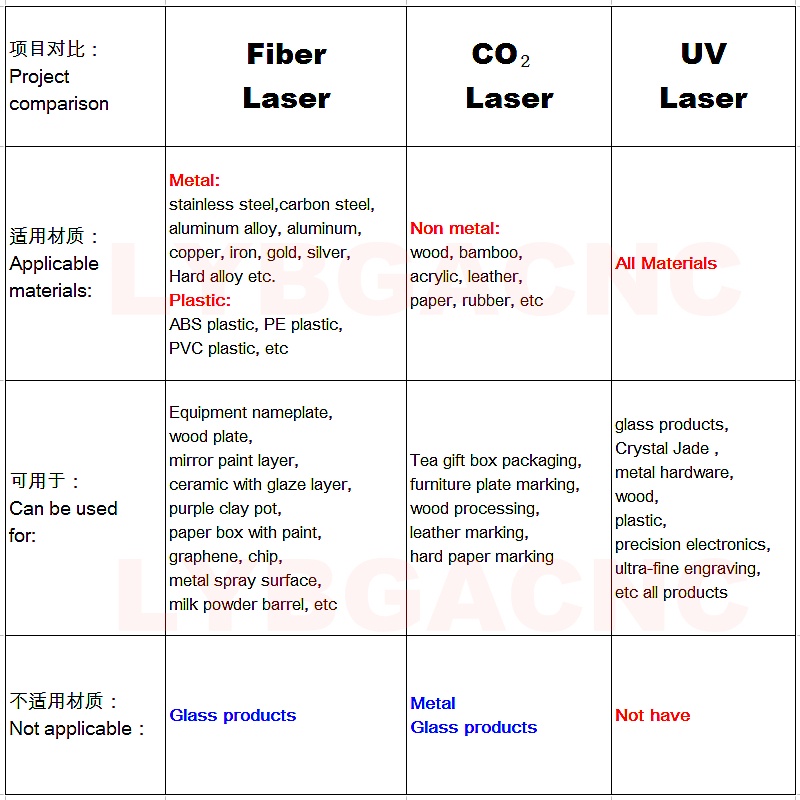

Compare with optical fiber & CO2 laser

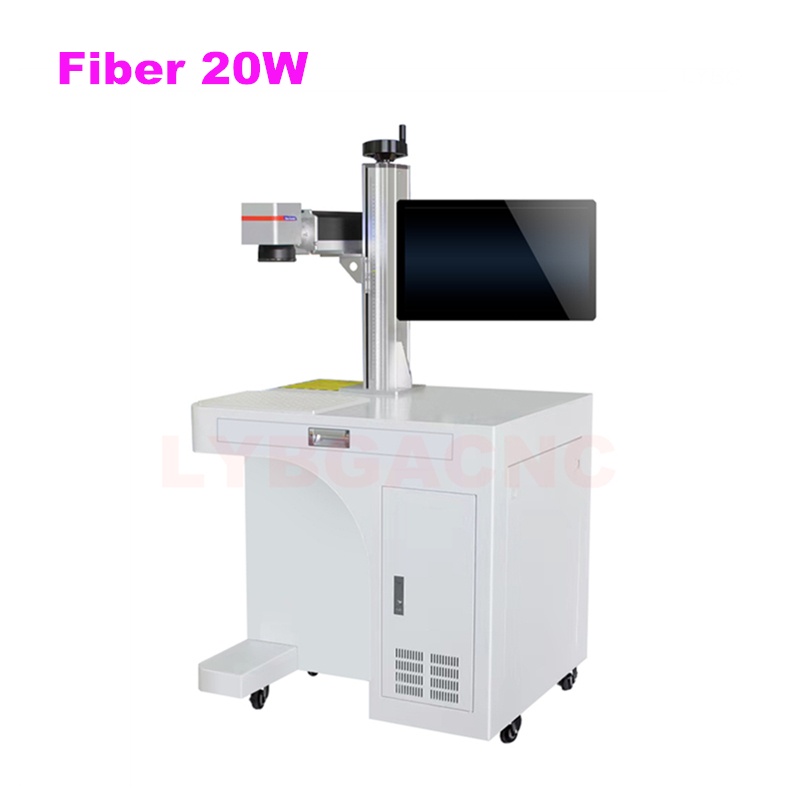

Optical fiber laser marking machine long wavelength 1064nm,is limited to all metal materials and plastic rubber, spraying materials, electroplating materials.
CO2 laser marking machine is limited to leather, cloth, paper, bamboo and wood products, acrylic, glass, resin and other non-metallic materials.
Ultraviolet ray UV laser marking machine than the general laser marking machine,use short 355nm wavelength, light spot is cold and very small, make the heating area of the material is smaller, easy to heat deformation; Lower power; Marking effect is more detailed ,limited to the ultra-fine marking environment, food and medicine packaging, Glass,Crystal, Ceramic plates,electronic components, metal jewelry marking.

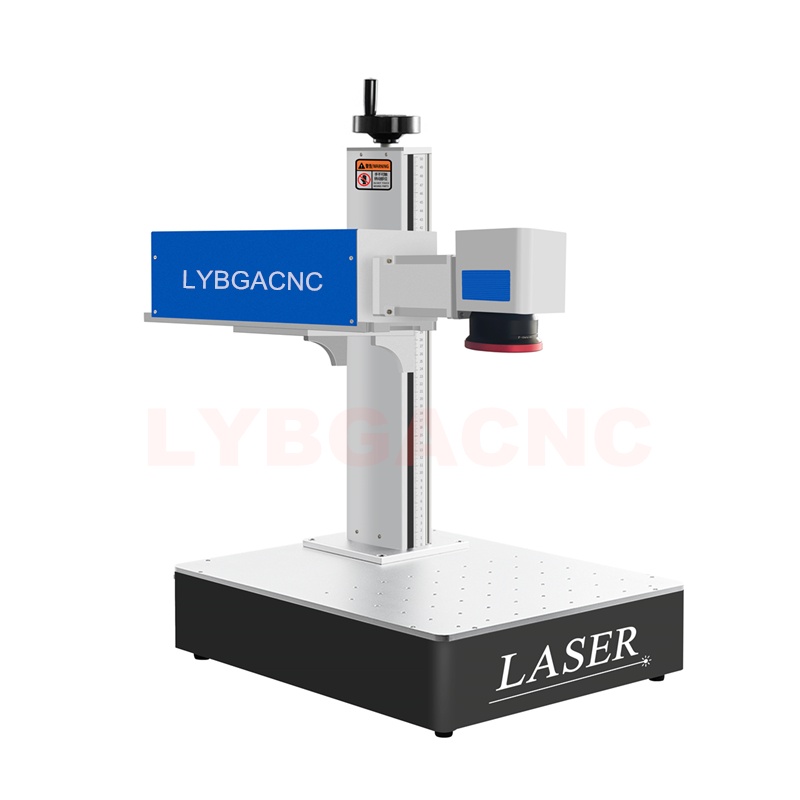

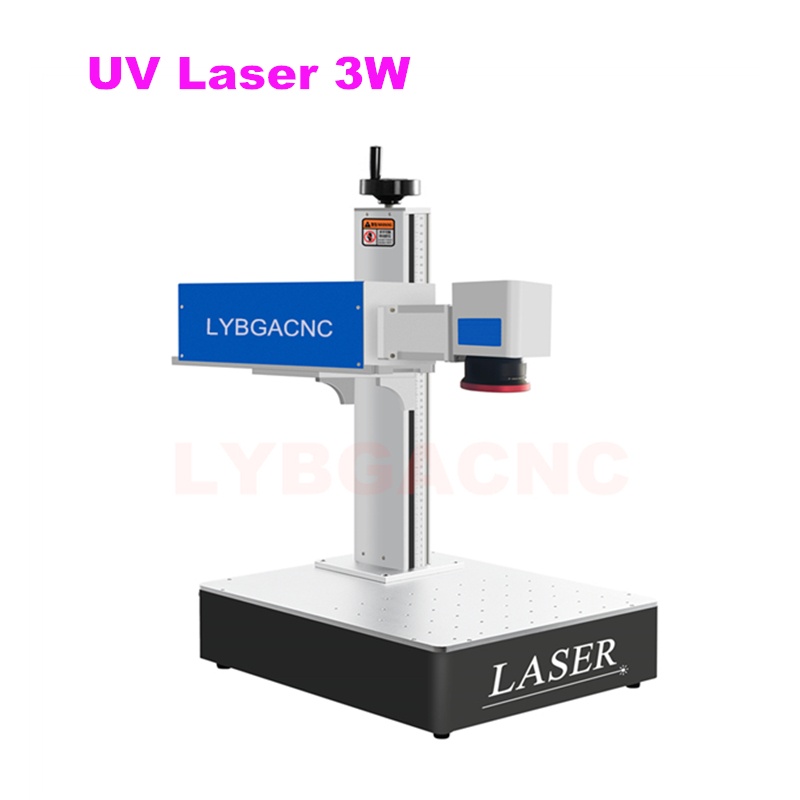

LYBGACNC UV laser marking machine :
| Power | 3W/5W (JPT Seal-355 Serial) |
| Engraving area | 200*200mm(Optional less than 200mm) |
| Wavelength | 355nm |
| Beam quality | m2<1.2(TEMOO) |
| Laser output power | 0-100% successive use |

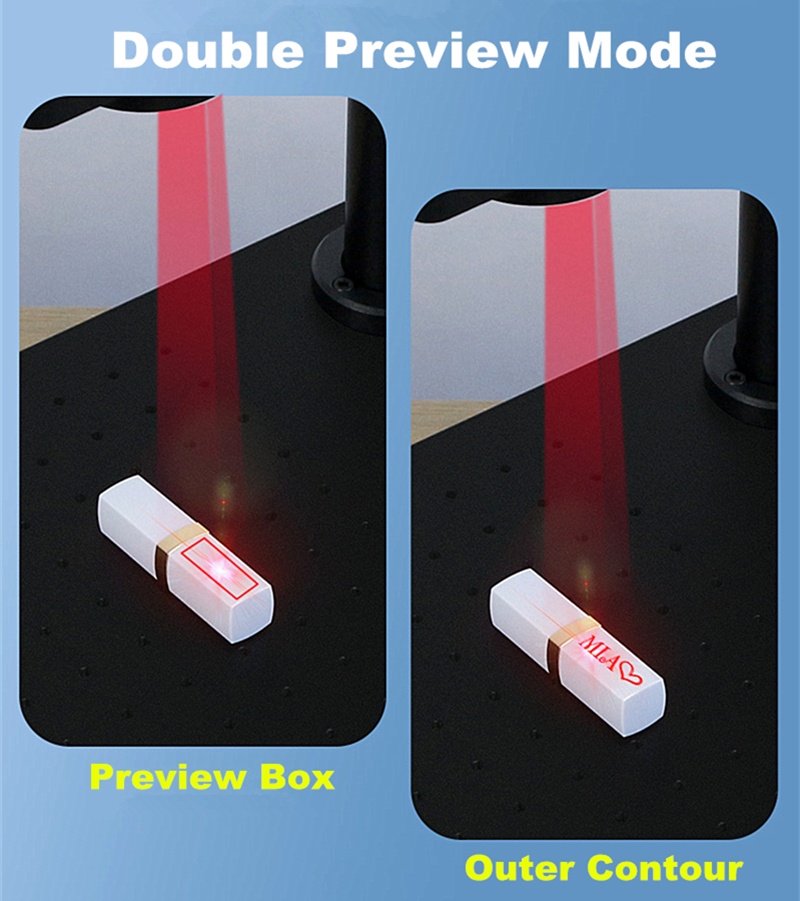

| Align | Double Red point auto focus |
| Marking type | Dynamic/Static |
| Engraving depth | <=0.4mm |
| Engraving speed | <=10000MM/S |
| Minimum width | 0.1MM |
| Minimum character | 0.15MM |
| Pulsh width | 13-82NS |
| Power stability | <+-2%RMS |
| Repeat frequency | 20KHZ-150KHZ |
| Light diameter | <0.6MM |
| Marking speed | 800 characters/second |
| Mini width | <0.005mm |
| Out size | 500*400*720mm |
| Gross weight | 28KG |
| Laser head | Solid violet fiber laser (Brand: Gainlaser) |
| Cooling | Water cool |
| Work circumstance | Win XP |
| Connect way | USB |
| Power | 220V / 110V |
| Laser module lifetime | 50K hours |

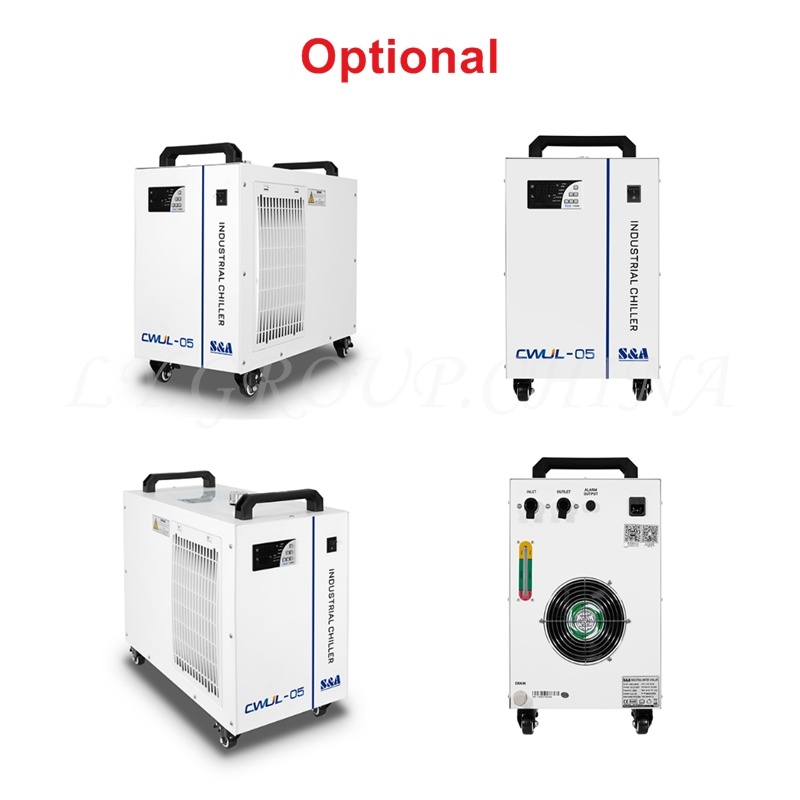

RE: We are high recommend customer to buy machine with special UV marking machine use cool chiller together, water cool is better for tube maintenance, air cool cannot last working for long time, and other model cool chiller also cannot get best effect.

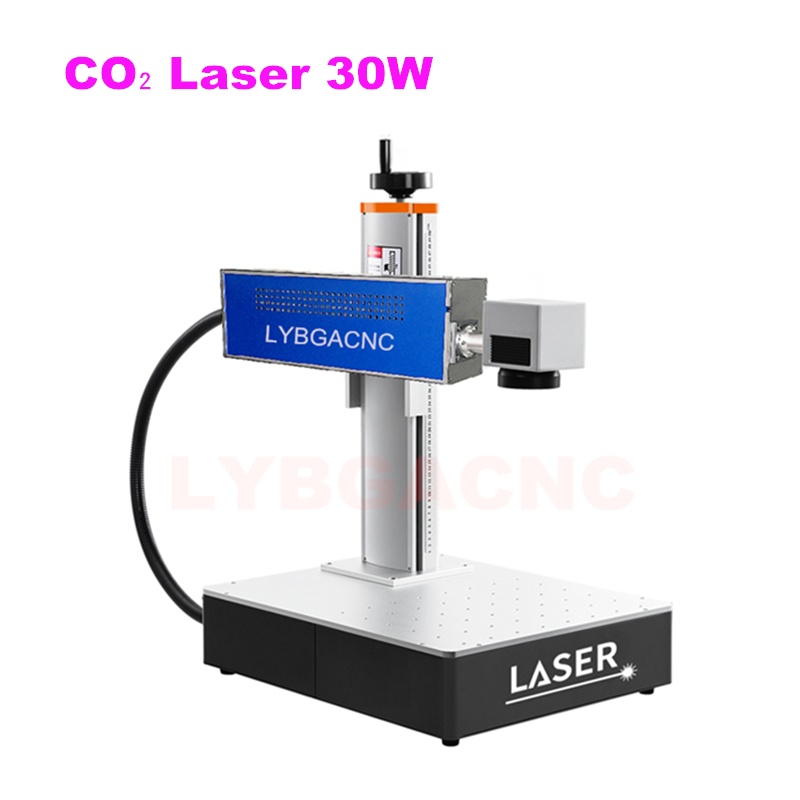

LYBGACNC CO2 laser marking machine :
| Power | 30W/40W |

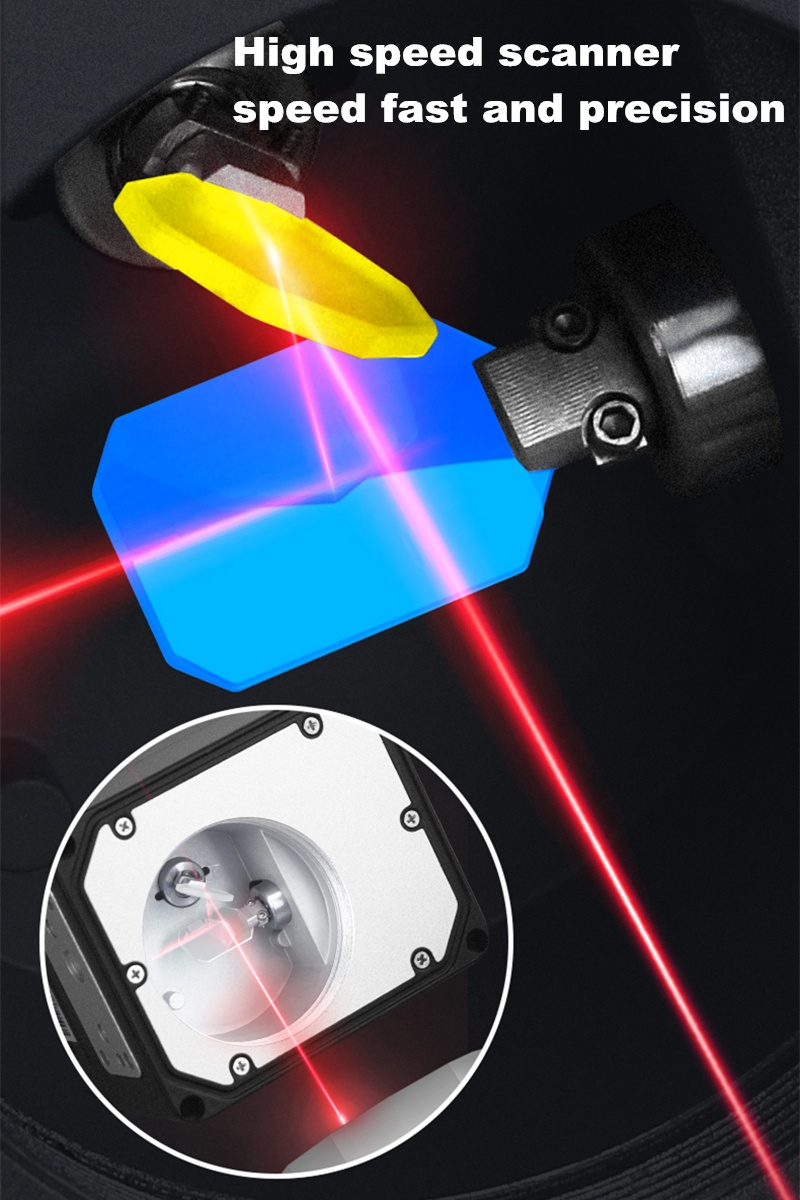

| Galvanometer | RC1001 |
| Power supplier | Mean well |
| Laser wavelength | 1064NM |
| Laser quality | M2<1.4 |
| Output frequency | 20KHZ-80KHZ |
| Laser Marking Area | 70*70MM/110*110MM/150*150MM/175*175MM/200*200MM/300*300MM (RE:We equip 1 pc 150*150MM field lens with machine only, can get good effect, if need more work area field lens, can contact us, more bigger work area, power will be more weaker. ) |
| Mini line width | 0.01mm |
| Repetition accuracy | 0.0001mm |
| Voltage | 220V or 110V |
| Marking speed | 5000mm/s |
| Cooling system | Air-cooling |
| Net weight | 28KG |
| Gross weight | 35KG |
| Machine size | 500*400*720mm |
| Warranty Year | 2 Years |

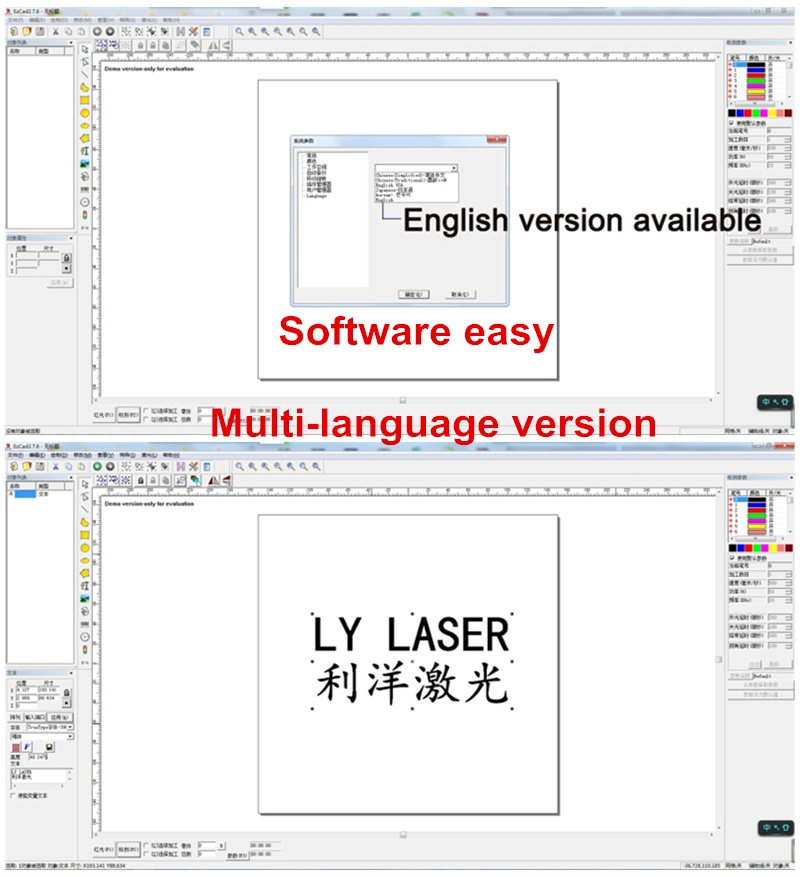

| Control card | BJJCZ EZCAD Original |
| Operation System | Win xp/7/8/10 (32bits/64 bits) |
| Operation Environment | 5-45 degree, clean or dust-free |
RE: Customer can buy with our smoke absorber together, to reduce the harmful smoke against health.
