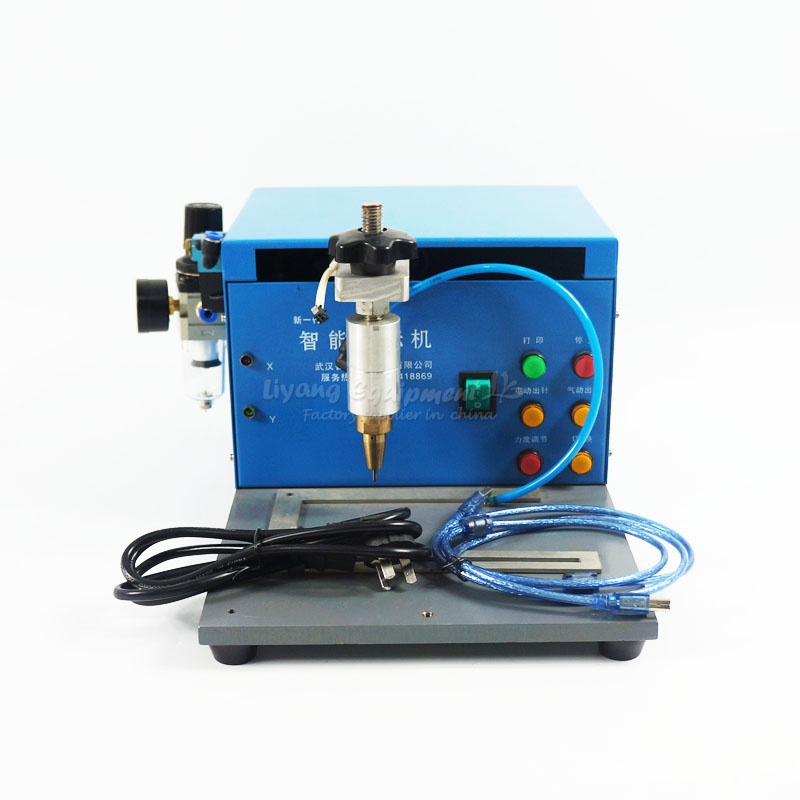

Portable smart metal nameplate marking machine 170x110mm pneumatic electric 2 in 1
Product function:
automatic dot pin marking machine, CNC Stainless Steel / Aluminum / Iron / pneumatic Dot Pin metal Engraving Marking Machine for Vin Code ,air marking machine, Pneumatic marker, also known as Dot Pin marking is also known as micro percussion marking machines.
These machines are ideal for replacing a hand punching operation & has a lot of advantages over many similar conventional processes.
Hot foil stamping is also replaced with Pneumatic Metal marking machine. These machine are capable of marking on soft & hard components.
These machines can mark all metals such as Steel, Stainless Steel, Copper brass, Gold, Silver etc.Ideal for marking on hard plastics.
These machines mark permanent Batch numbers, Serial numbers, Barcode scanned data, Data from PLC, Date Codes, Month Codes, Year Codes, etc.
Machine parameters:
One type of portable electric marking machine
The main performance and parameters:
No gas source, marking the first choice, simple operation, easy maintenance
|
Marking range |
170x110mm |
|
Mark assured |
up, down, left, right, screen and fan optional |
|
Marking speed |
<5 words / S, 3mm digital or English as a reference, speed adjustable |
|
Marking depth |
0.02-1mm, depending on the material hardness |
|
Voltage |
220V |
|
Power |
200W |
|
Operating temperature |
-15 ~ 45 degrees Celsius |
|
Weight |
about 18KG |
|
Packing size |
about 480x380x300mm |
|

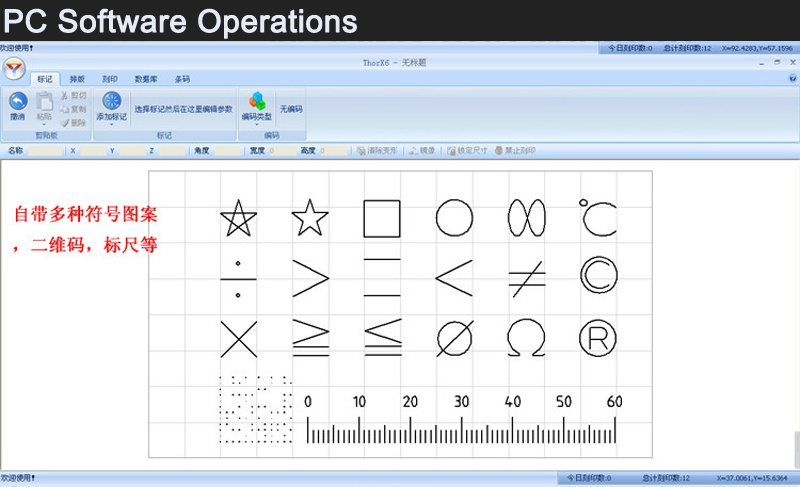

Support system |
Windows xp or Win7 system |
|
Applications |

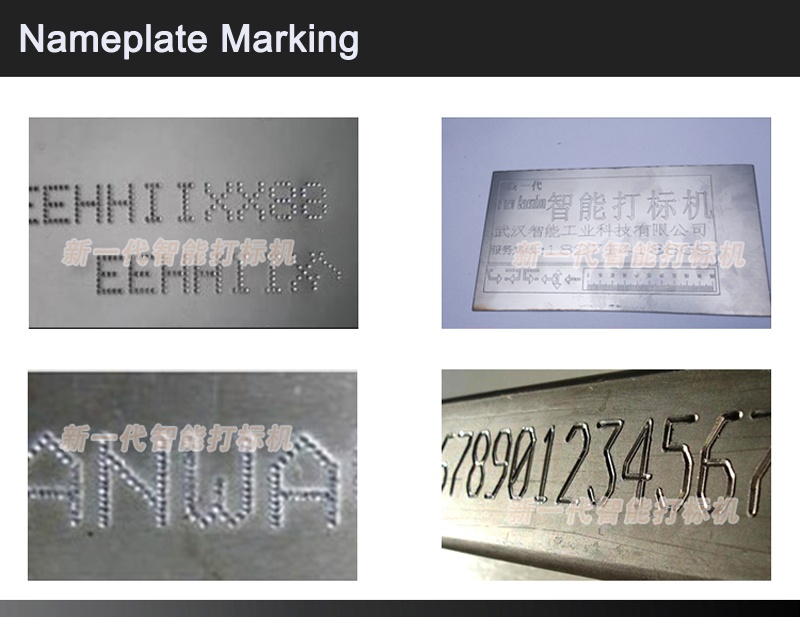

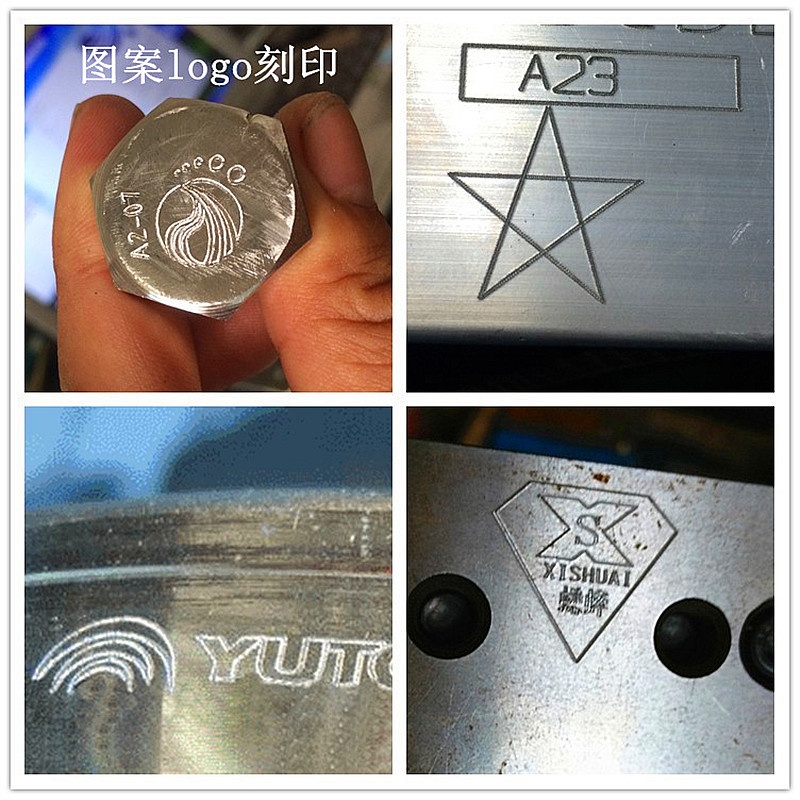

all kinds of metal and non-metallic plane marking; a variety of nameplate, signs marking, affordable, simple operation |
Thanks for your order!

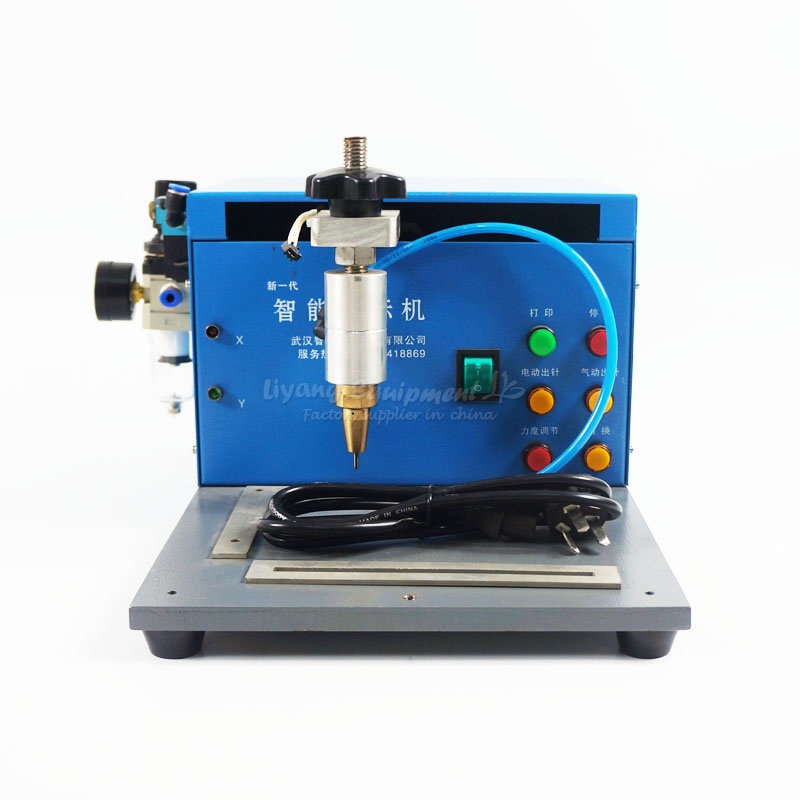

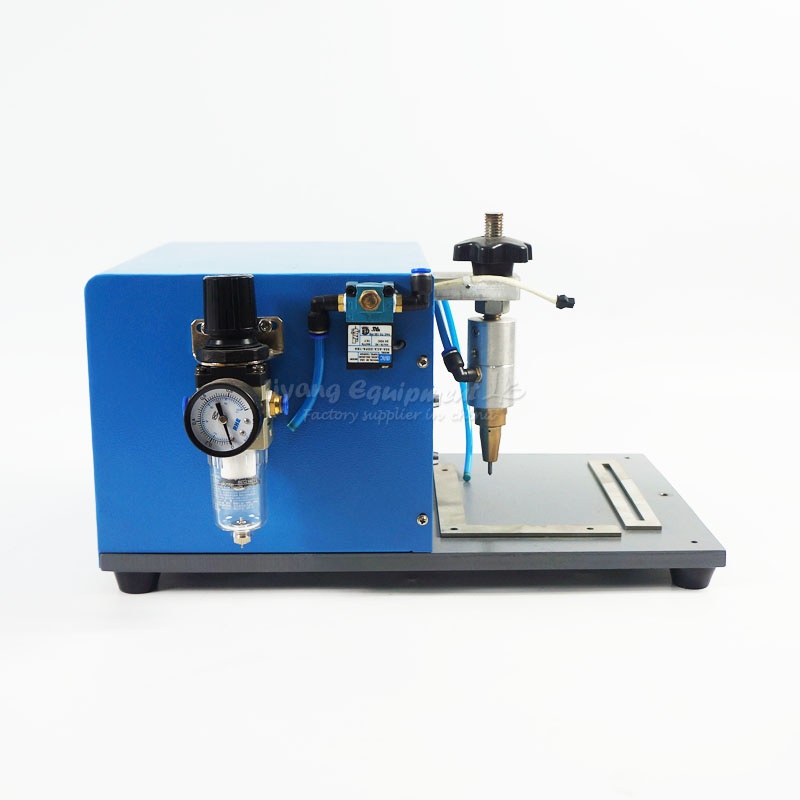

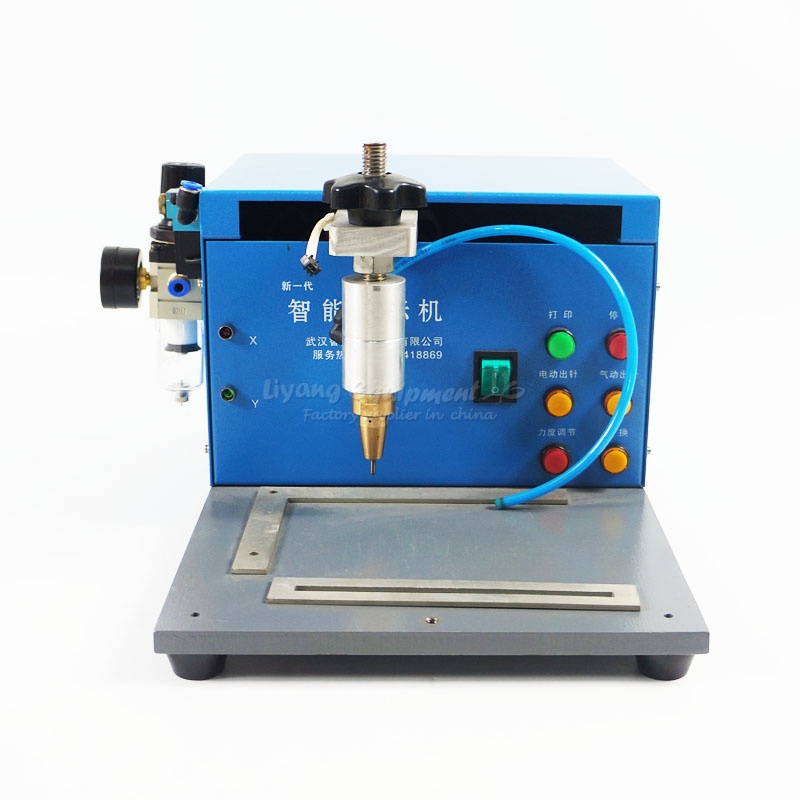

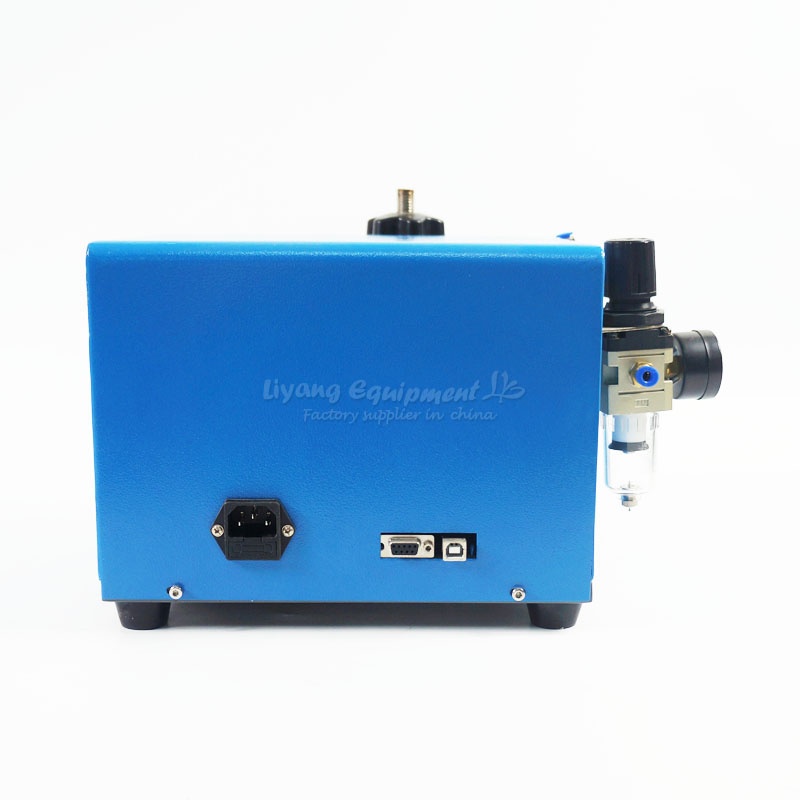

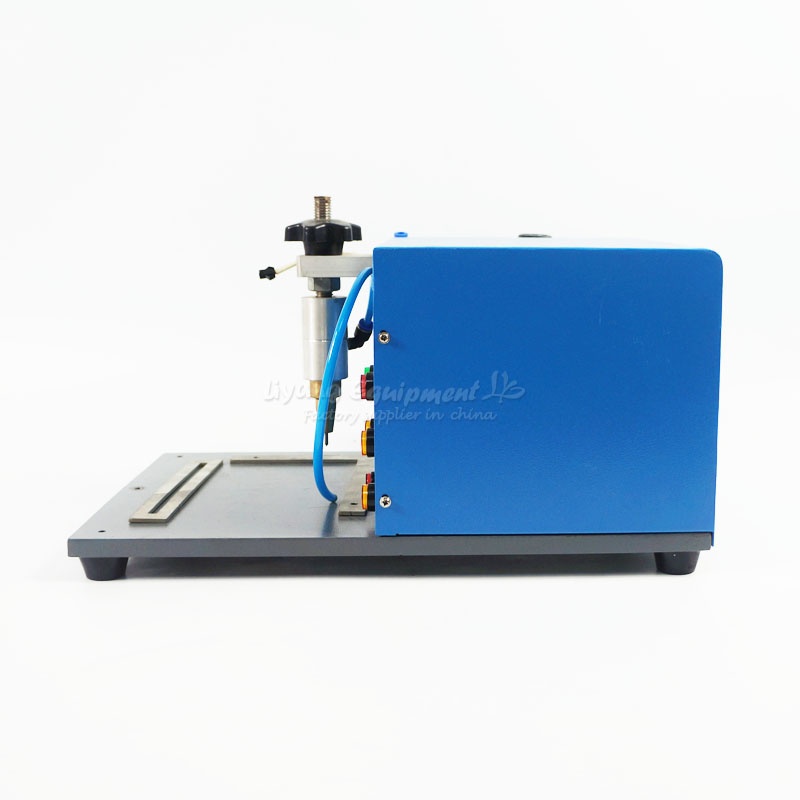

Product Pictures
