Stainless steel metal marking machine printer nameplate cutting plotter code machine electric marking machine engraving machine 2015 3020
Product function:
automatic dot pin marking machine, CNC Stainless Steel / Aluminum / Iron / pneumatic Dot Pin metal Engraving Marking Machine for Vin Code ,air marking machine, Pneumatic marker, also known as Dot Pin marking is also known as micro percussion marking machines.
These machines are ideal for replacing a hand punching operation & has a lot of advantages over many similar conventional processes.
Hot foil stamping is also replaced with Pneumatic Metal marking machine. These machine are capable of marking on soft & hard components.
These machines can mark all metals such as Steel, Stainless Steel, Copper brass, Gold, Silver etc.Ideal for marking on hard plastics.
These machines mark permanent Batch numbers, Serial numbers, Barcode scanned data, Data from PLC, Date Codes, Month Codes, Year Codes, etc.
Machine parameters:

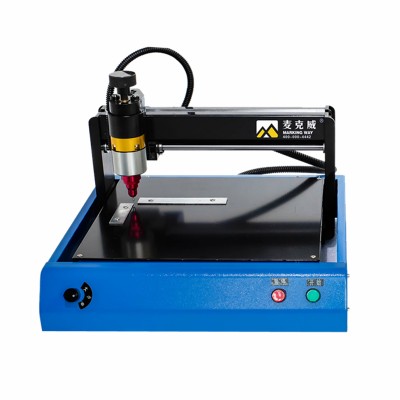

One type of portable electric marking machine
No gas source, marking the first choice, simple operation, easy maintenance
Support system: Windows xp or Win7/8/10 system
|

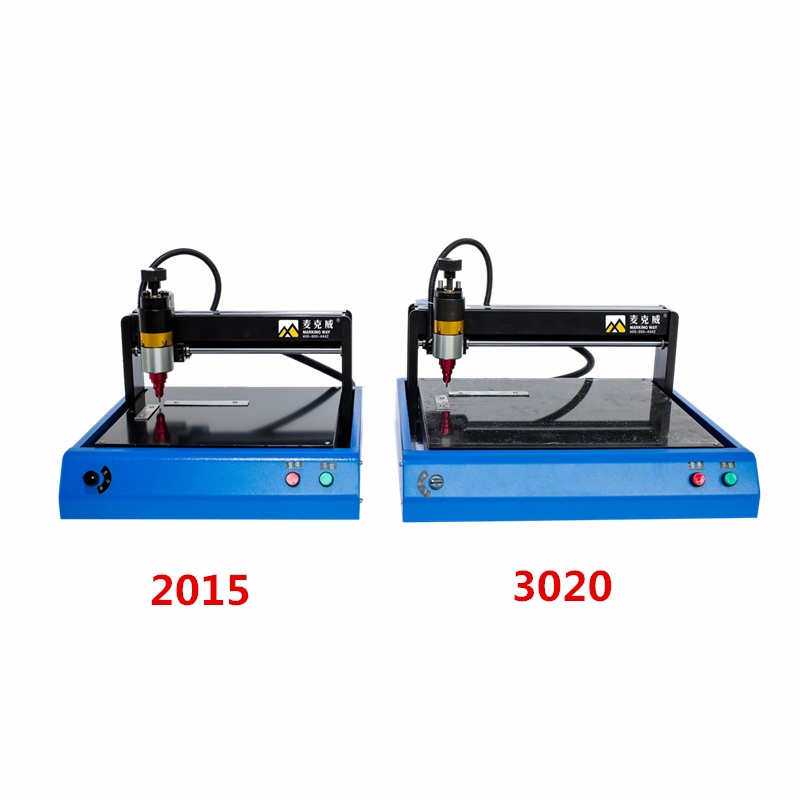

Model: |
Marking machine 2015 |
Marking machine 3020 |
|
Marking range: |
200x150mm |
300x200mm |
|
Weight: |
about 13KG |
about 20KG |
|
Packing size: |
about 450x400x350mm |
about 500x450x350mm |
|
Lifting height: |
15mm |
|
|
Marking speed: |
50mm/s |
|
|
Marking depth: |
0.05-1mm depending on the material hardness |
|
|
Needle hardness: |
93HRA |
|
|
Needle distance: |
0.5-1mm |
|
|
Voltage: |
220V |
|
|
Power: |
400W |
|
|
Operating temperature: |
-15 ~ 45 degrees Celsius |
|
|
Applications: |

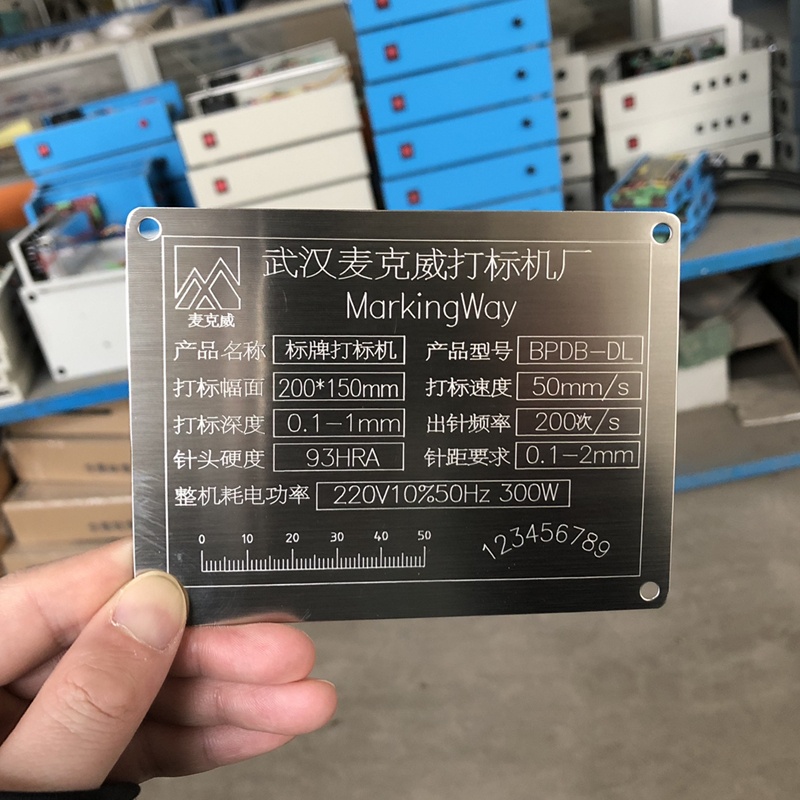

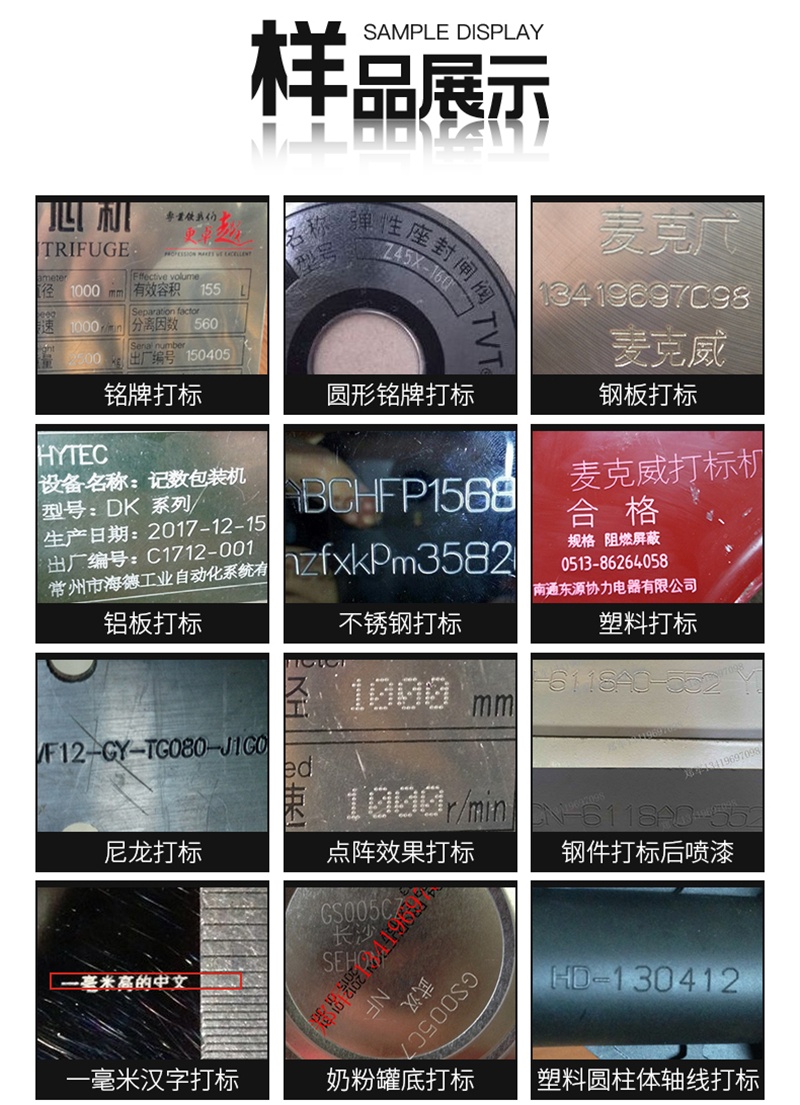

all kinds of metal and non-metallic plane marking; a variety of nameplate, signs marking, affordable, simple operation |
|
