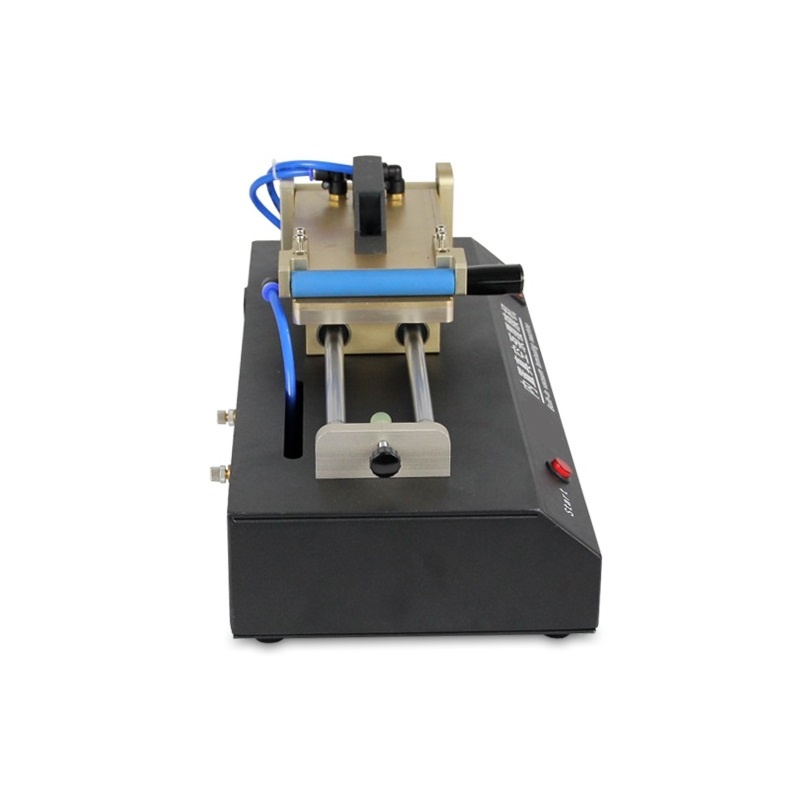

LY 971 manual vacuum film laminating machine 220V 110V Instruction for use

LY 971 manual vacuum film laminating machine 220V 110V Instruction for use

Thank you for using our products.For the safe of use of this new product,Before operating this unit, please read these instructions completely and save this manual for future use.

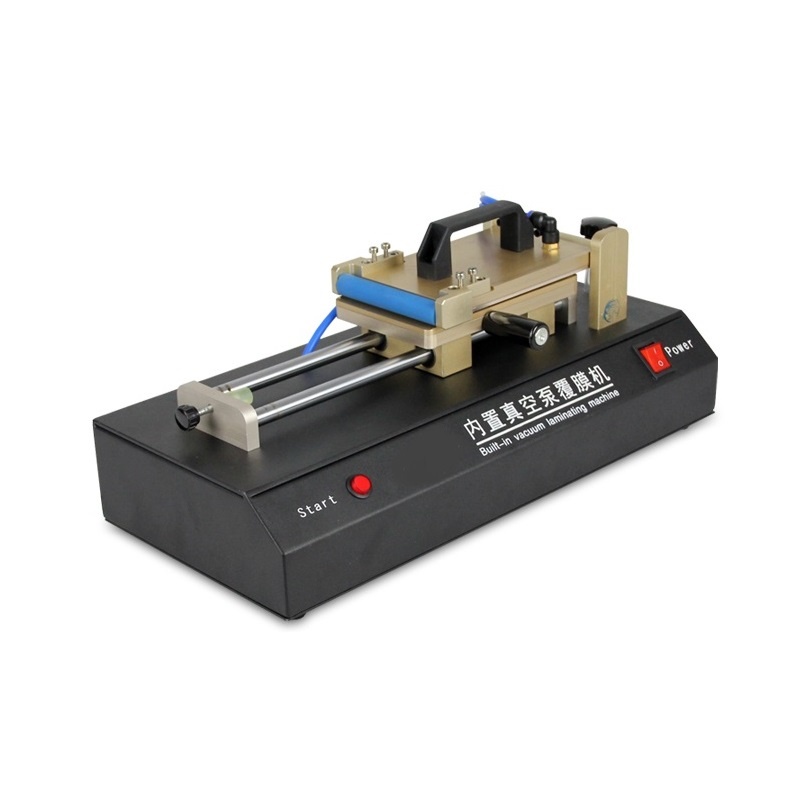

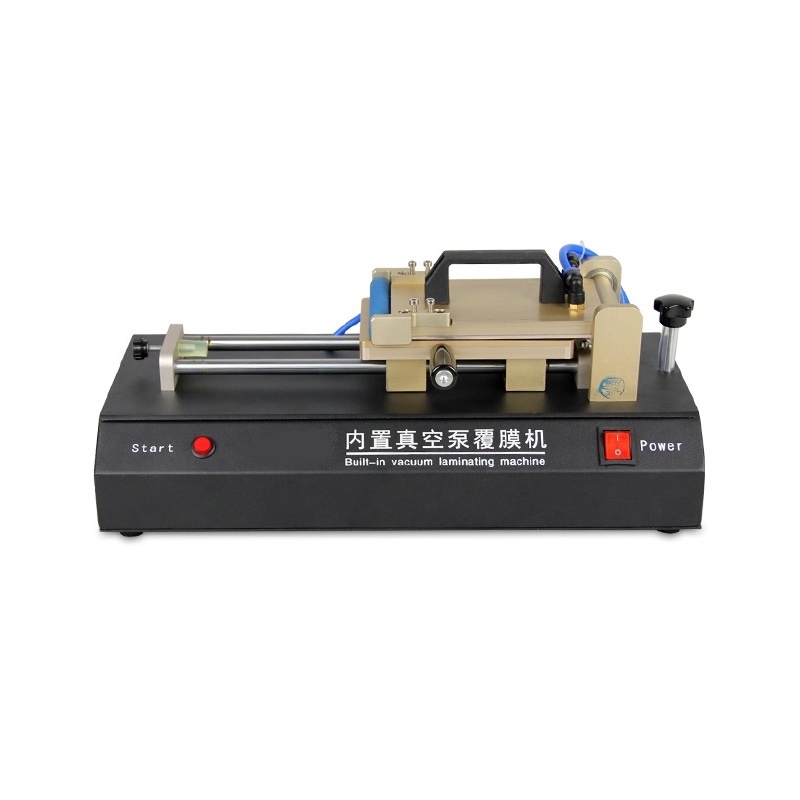

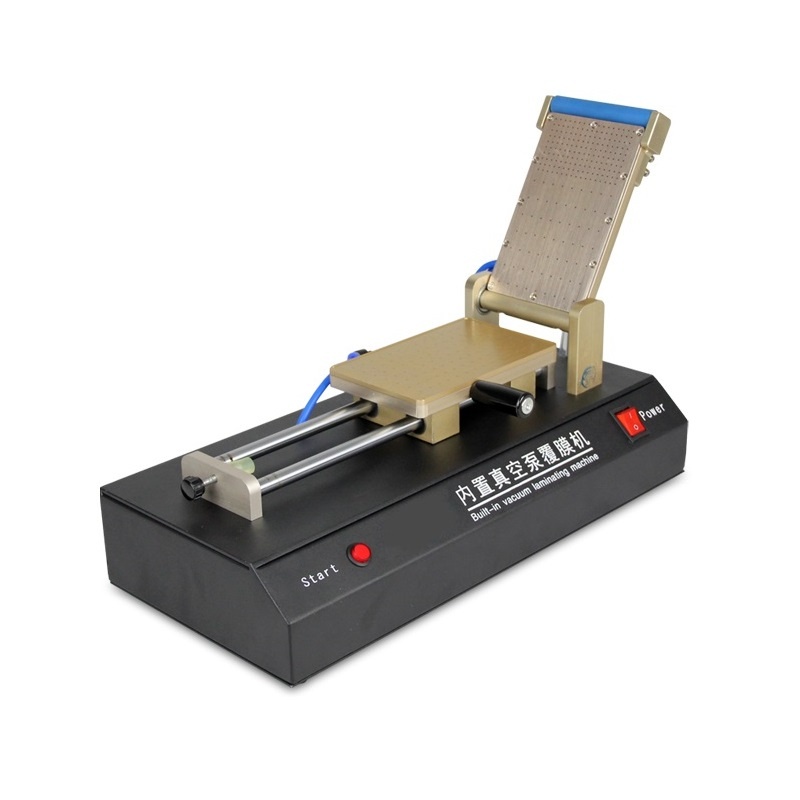

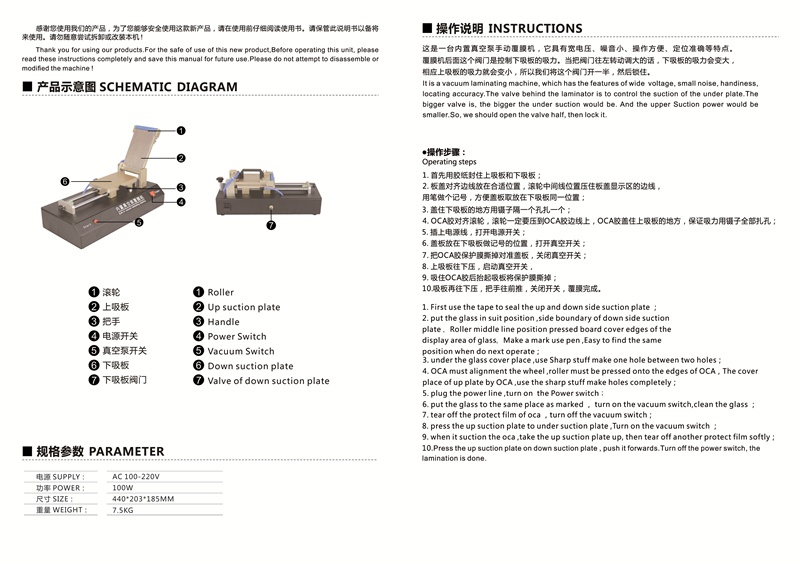

SCHEMATIC DIAGRAM

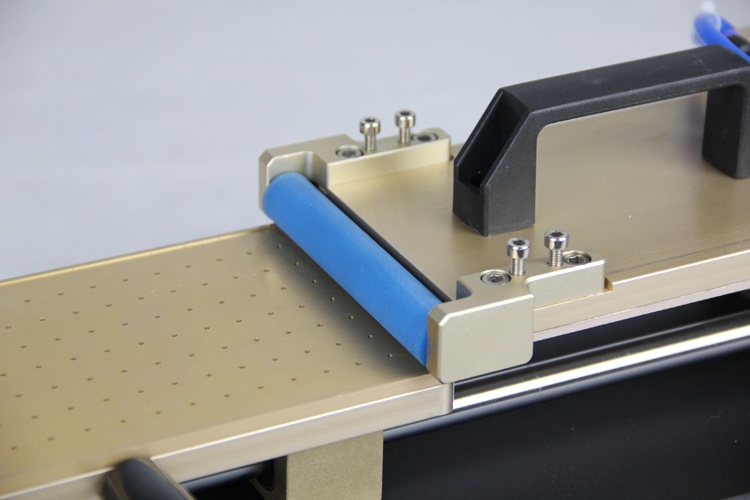

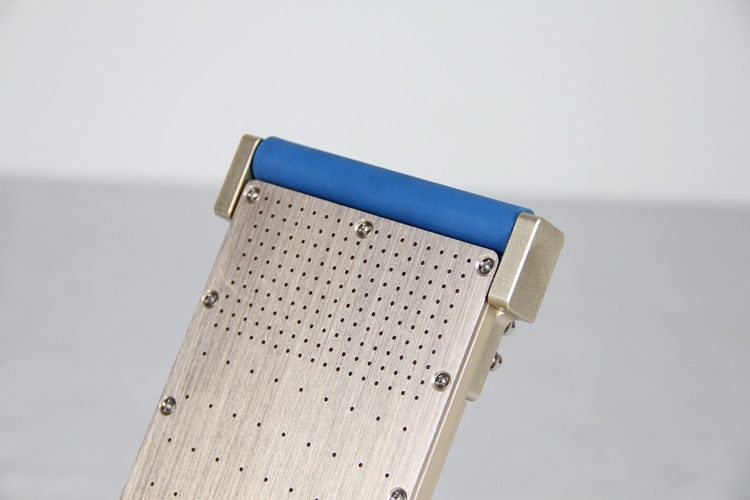

1. Roller

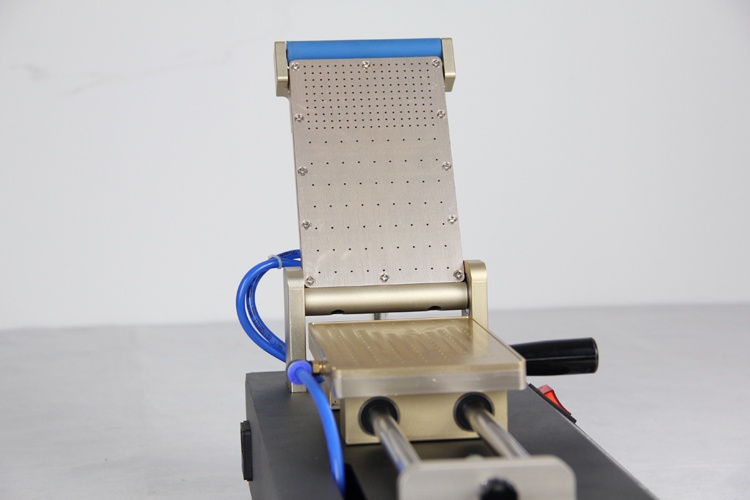

2. Up suction plate

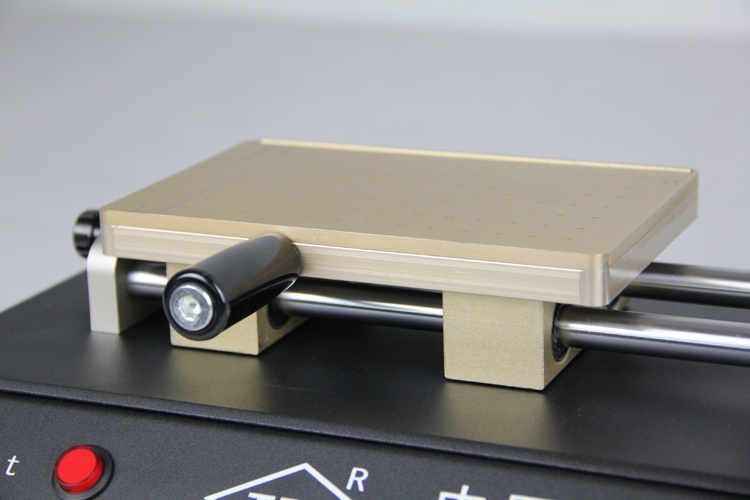

3. Down suction plate

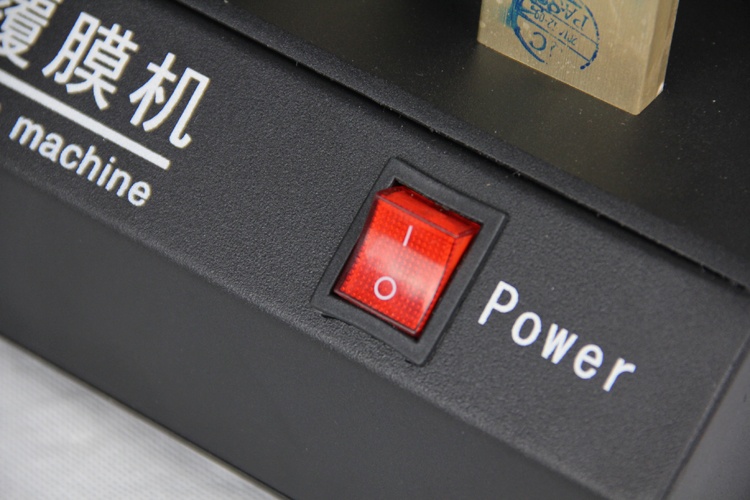

4. Power Switch

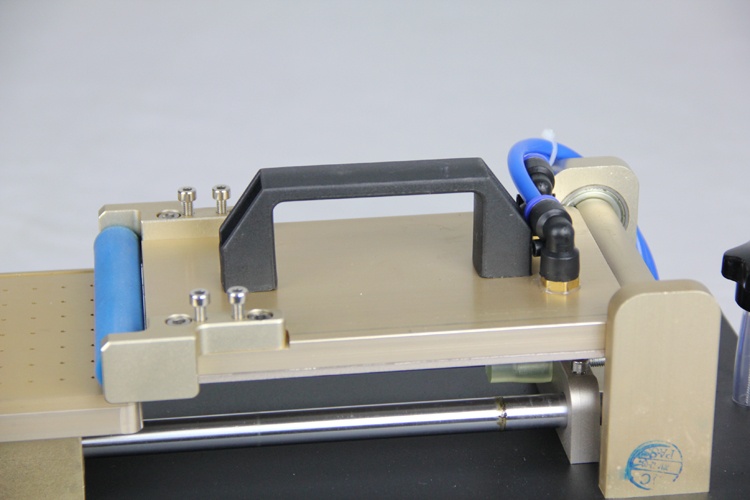

5. Press
6. Start
7. Vacuum Switch

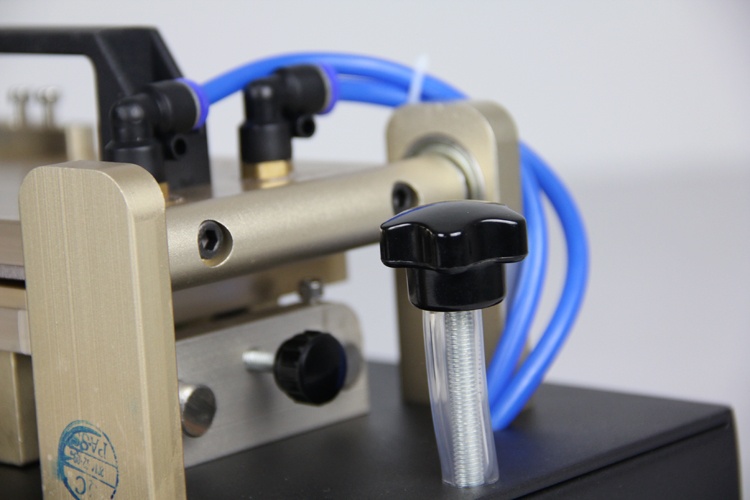

8. Valve of down suction plate

PARAMETER

SUPPLY：    AC 100-240V

POWER：    100W

SIZE：       440*203*185MM

WEIGHT：    7.5KG

INSTRUCTIONS

It is a maual vacuum laminating machine, which has the features of wide voltage, small noise, handiness, locating accuracy.The valve behind the laminator is to control the suction of the under plate.The bigger valve is, the bigger the under suction would be. Andthe upper Suction power would be smaller.So, we should open the valve half, then lock it.

Operating steps

1. First use the tape to seal the up and down side suction plate ；

2. Put the glass on down suction plate edge position ,Let Machine roller can cover the edge of glass, then use pen make a mark ,for next operation can find the same place.

3. under the glass cover place ,use Sharp stuff make one hole between two holes；

4. OCA must alignment the wheel ,Roller must be pressed onto the edges of OCA，The cover place of up plate by OCA ,use the sharp stuff make holes completely；

5. plug the power line ,turn on  the Power switch；

6. put the glass to the same place as marked ， turn on the vacuum switch,clean the glass ；

7. tear off the protect film of oca ，turn off the vacuum switch；

8. Press the up suction plate on down suction plate ,Turn on the vacuum switch ；

9. When OCA be suction ,Lift the up suction plate ,Then tear off another protect film of OCA；

10. press the up suction plate to under suction plate again ,turn on the start button ，after that turn off start button,whole process finished。
