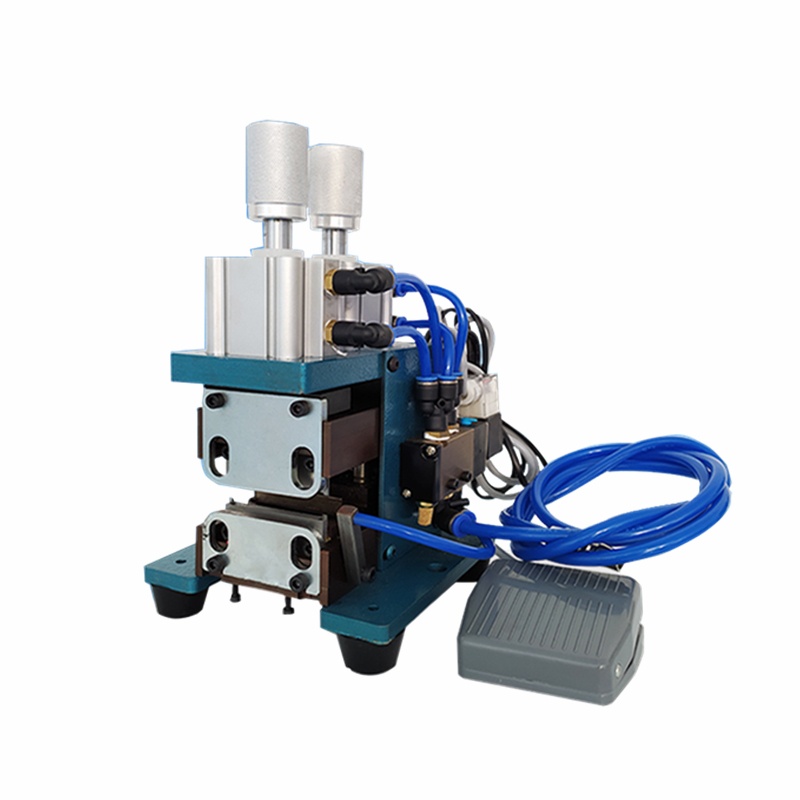

Pneumatic Cable Stripping Machine Description:

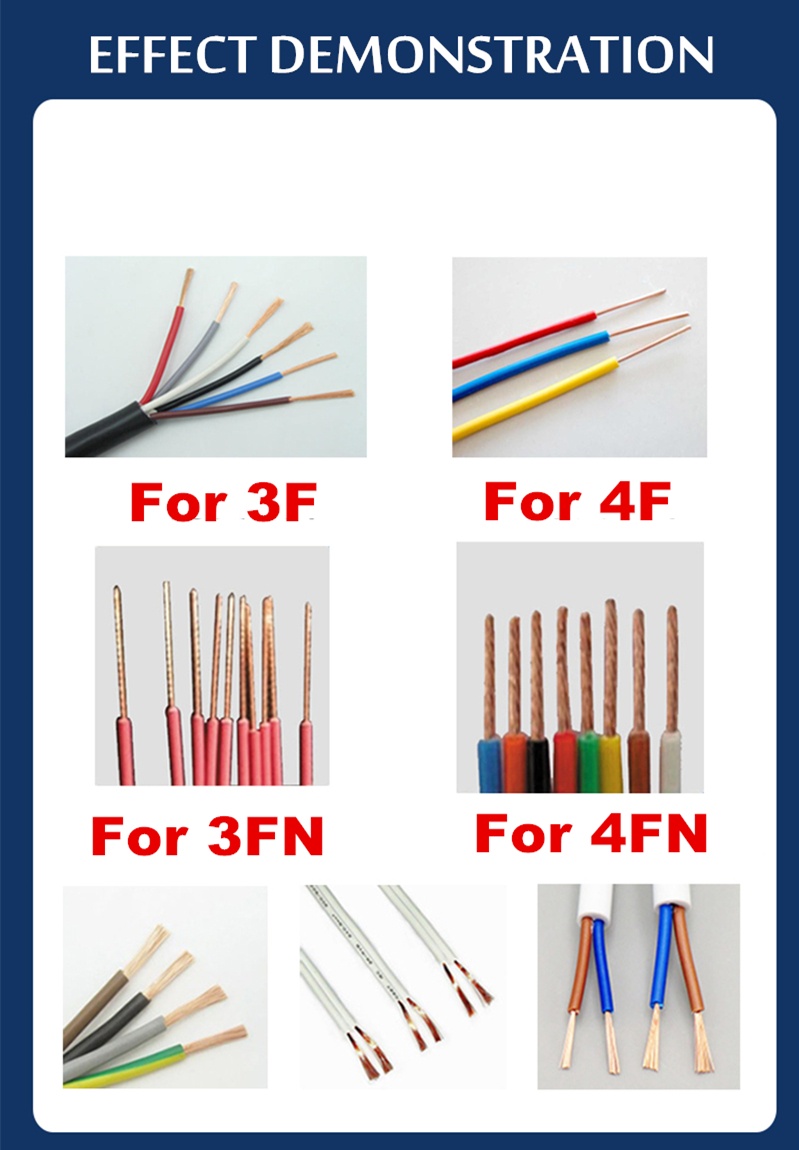

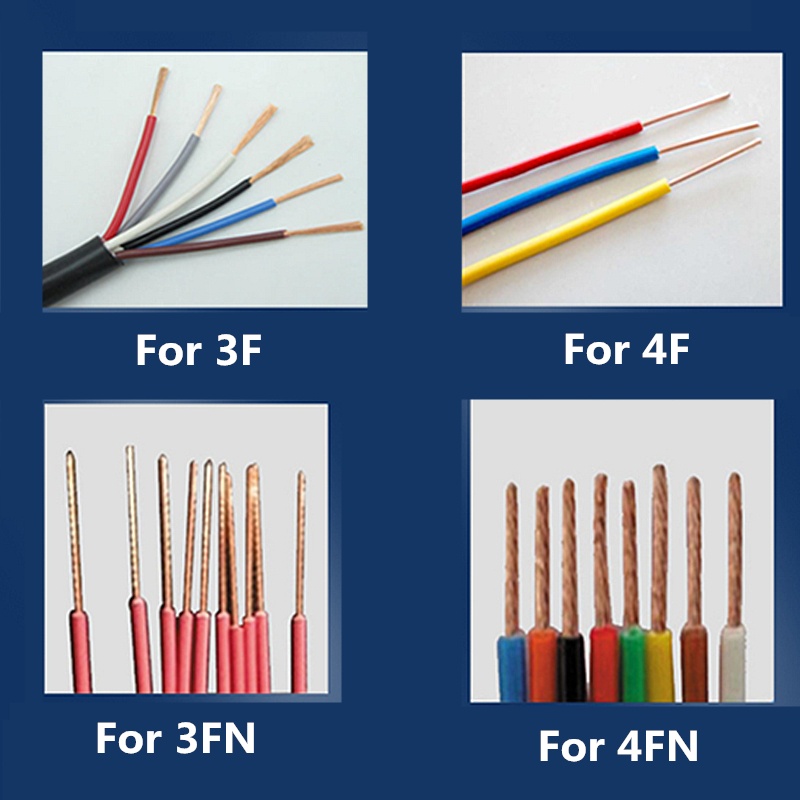

Pneumatic wire stripper cable crimping and peeling machine is suitable for flat ribbon cable, power cable, electric cable, computer wire  multi-core cables, telephone wire, flat cables , Multi core sheathed cables , electrica wires….,

Pneumatic wire stripping machine from 0.5 till to 25mm can do; and 2pcs ,3 pcs,4pcs wire put together one time no problem;

Smart design makes the pneumatic stripping machine more compact, light weight, easier operation. Peeling feature enables multiple synchronization efficiency multiplied,and its quality is perfect.

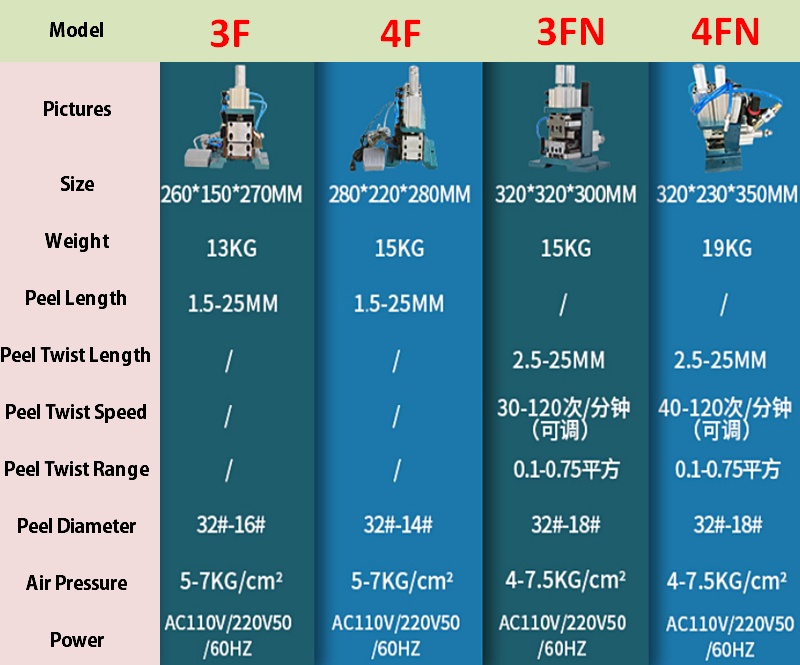

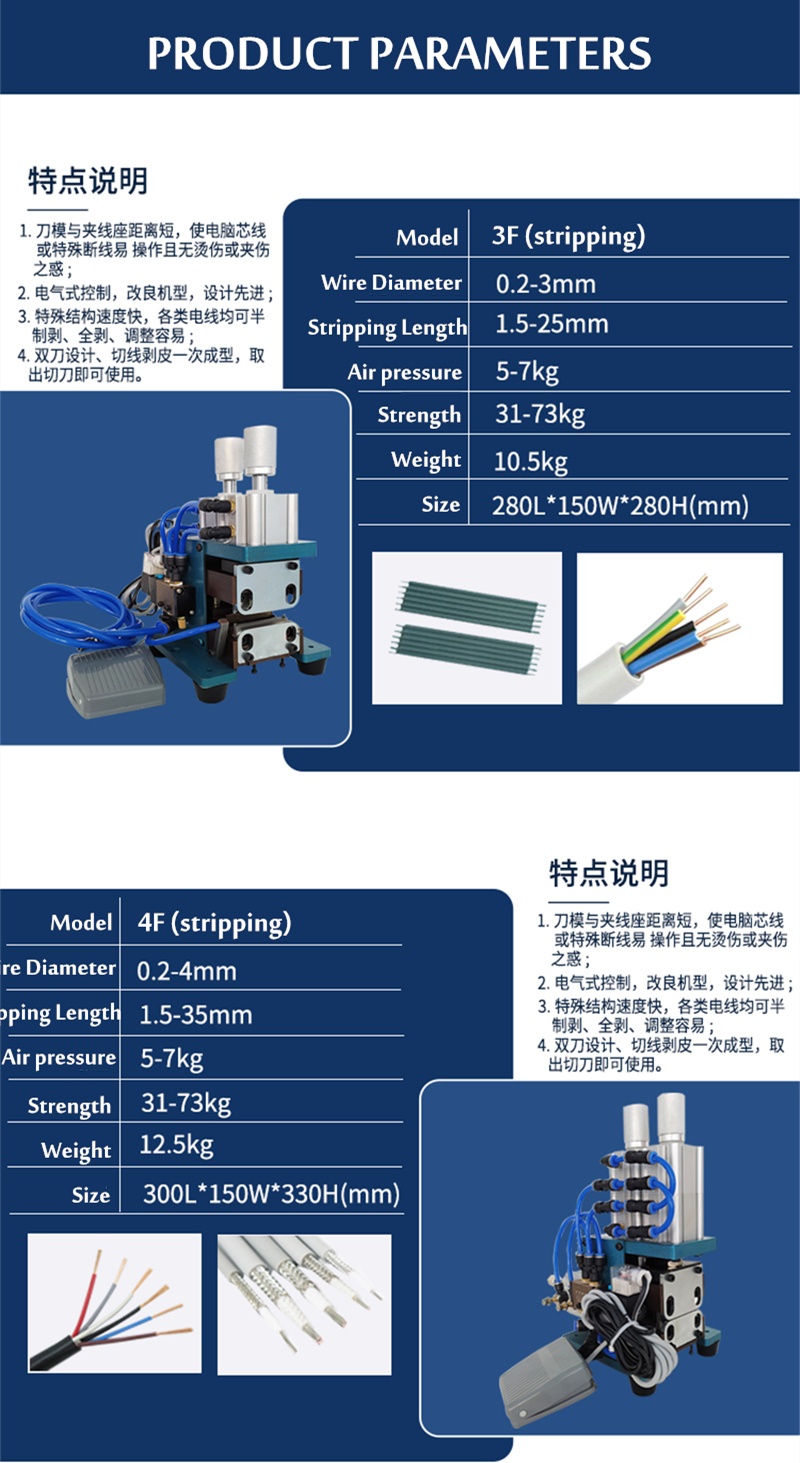

Machine Parameter:

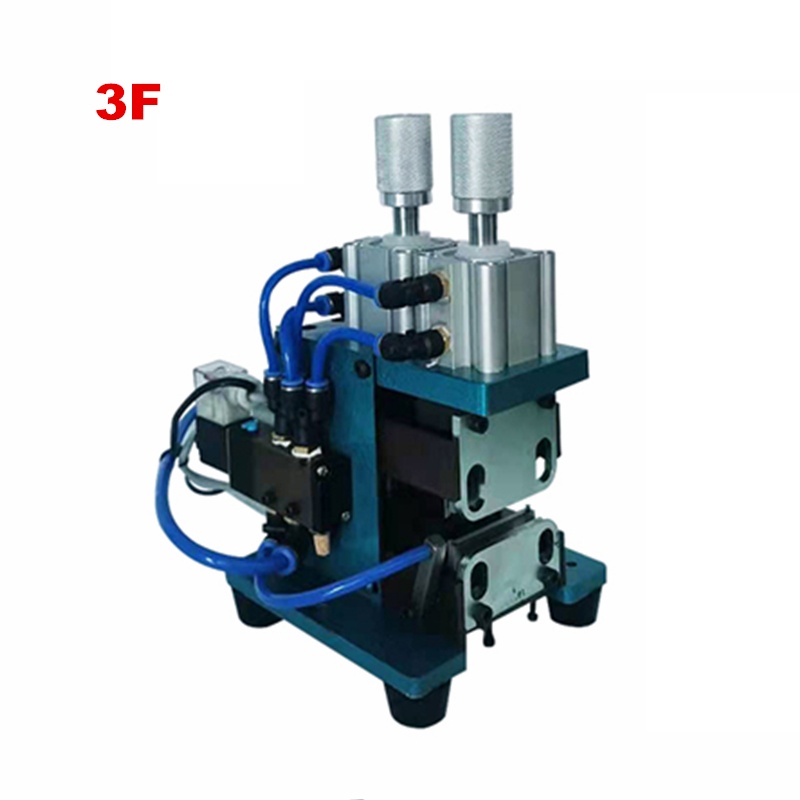

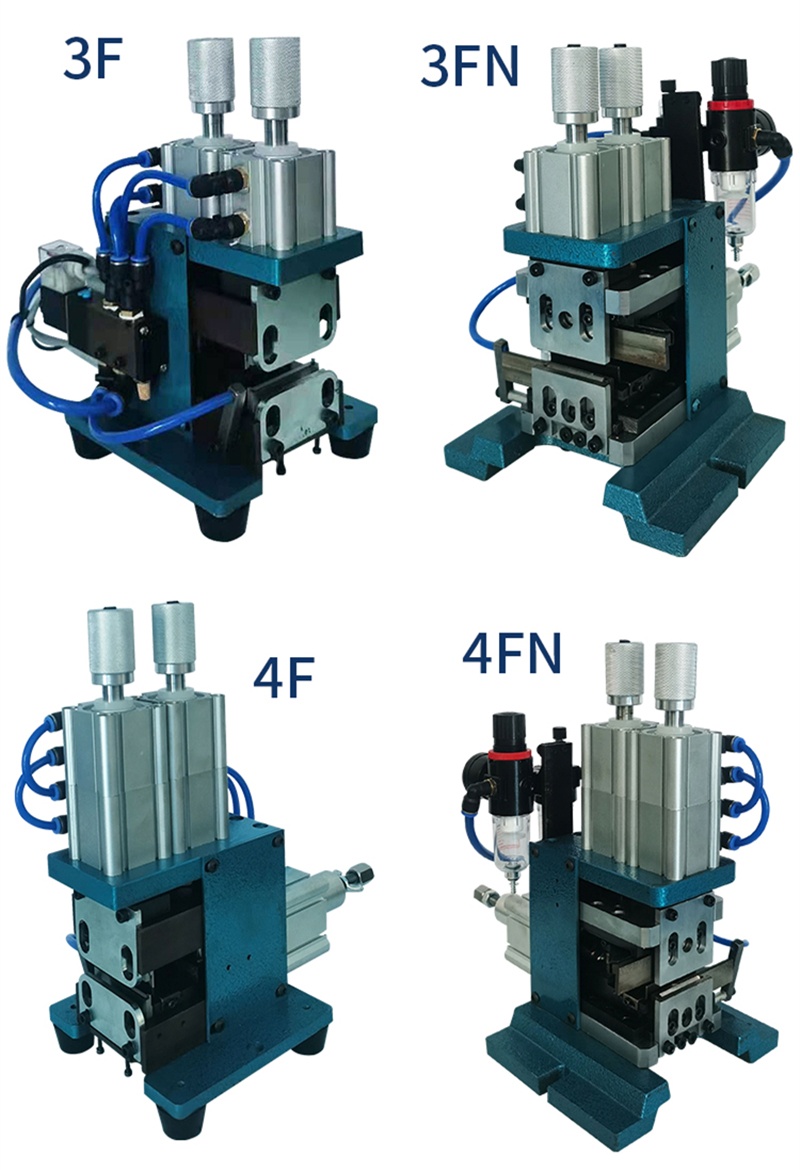

Model: 3F (Stripping)

External appearance size: L280*W150*H280mm

Weight: 10.5 kg

Power supply: 220V/50HZ 110V/60HZ

Stripping length: 1.5~25mm

Stripping Wire diameter:0.2-3mm

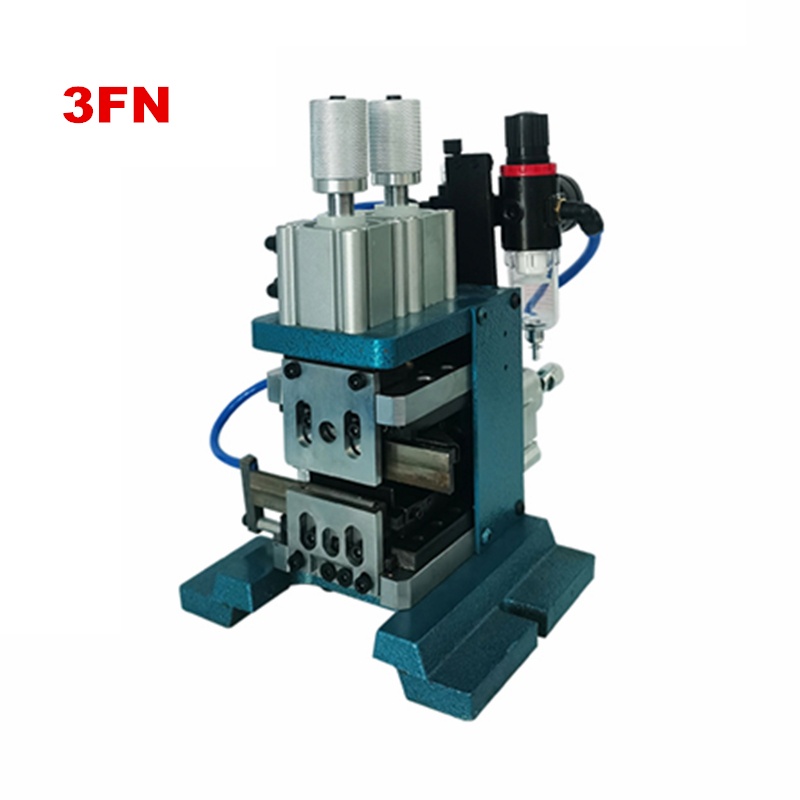

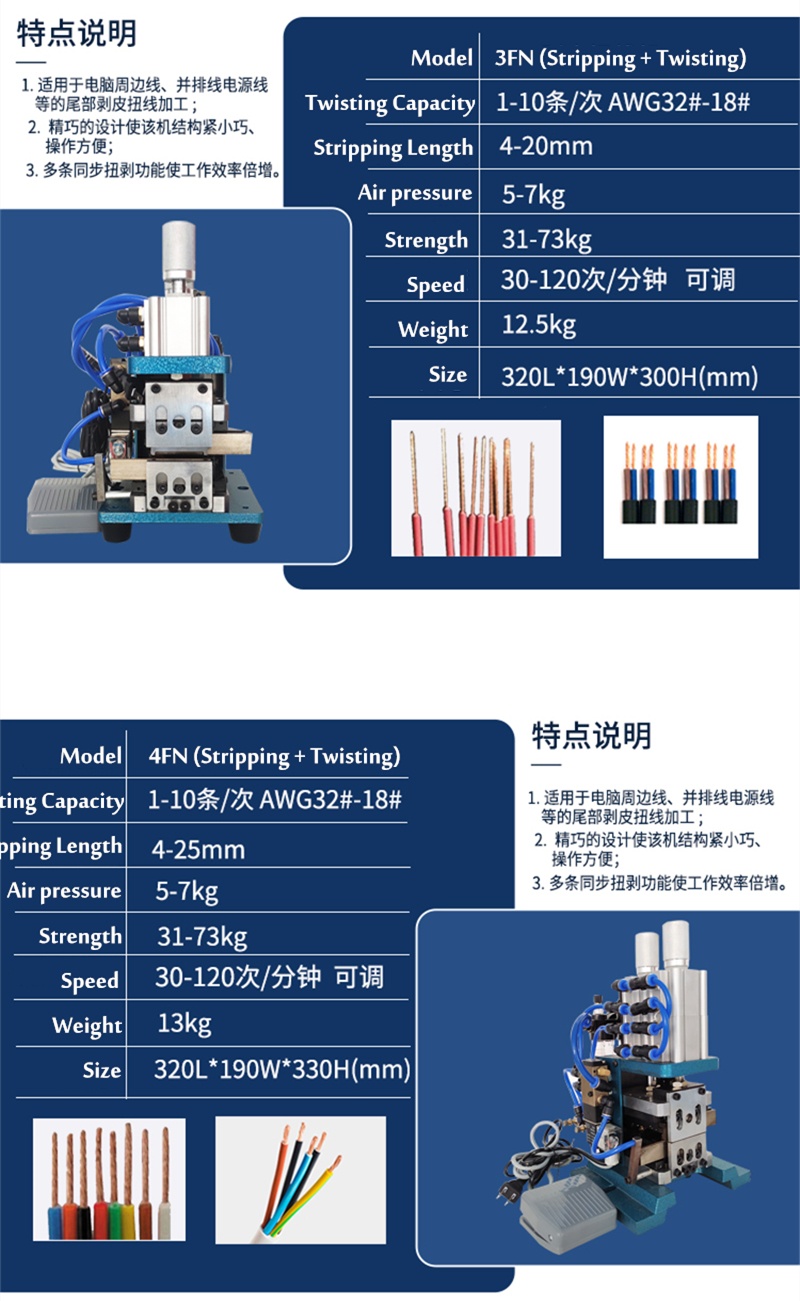

Model: 3FN (Stripping+ Twisting)

External appearance size: L320*W190*H300mm

Weight: 12.5 kg

Power supply: 220V/50HZ 110V/60HZ

Stripping length: 4~20mm

Twist speed: 30~120Times / min (Adjustable)

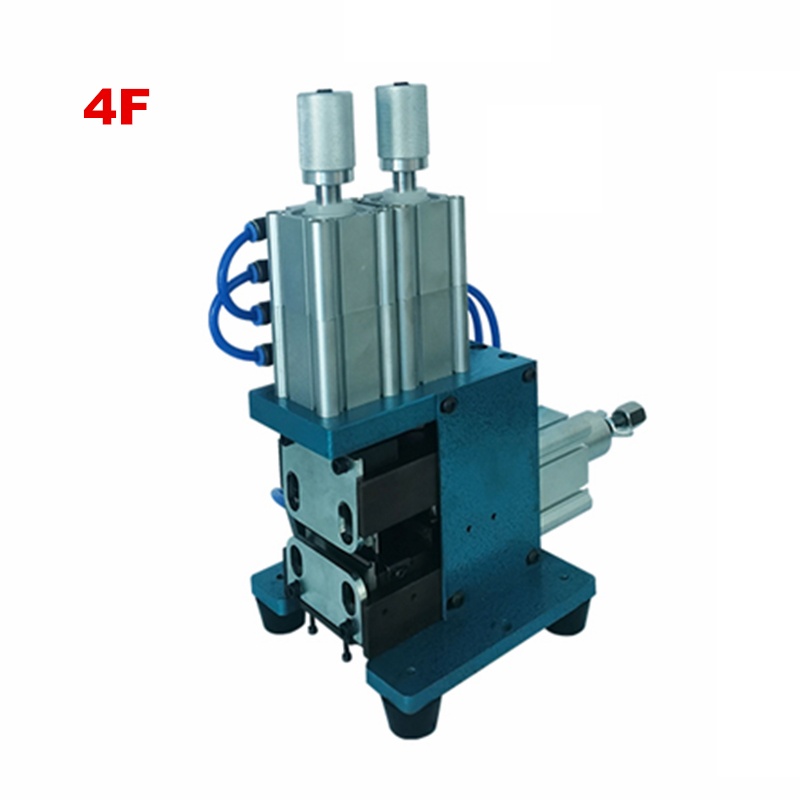

Model: 4F

External appearance size: L300*W150*H330mm

Weight: 12.5 kg

Power supply: 220V/50HZ 110V/60HZ

Stripping length: 1.5~35mm

Stripping Wire diameter:0.2-4mm

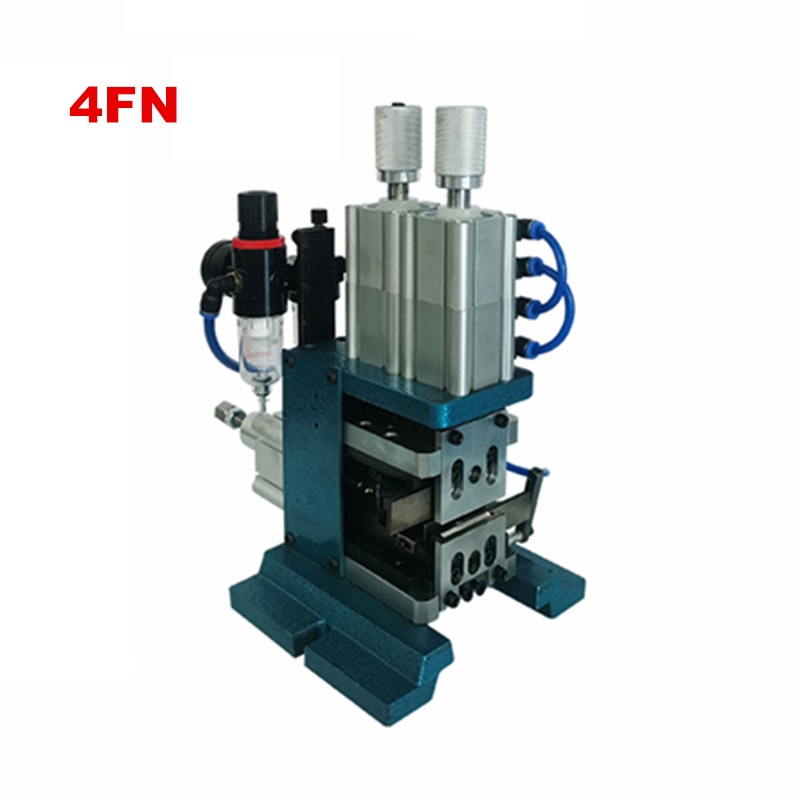

Model: 4FN (Stripping+ Twisting)

External appearance size: L320*W190*H330mm

Weight: 13 kg

Power supply: 220V/50HZ 110V/60HZ

Stripping length: 4~25mm

Twist speed: 30~120Times / min (Adjustable)
