AL X130 130mm High quality Automatic Label Stripping Dispenser Machine for Self-adhesive Labels/Bar Codes auto Peeling/ Separating
Description:

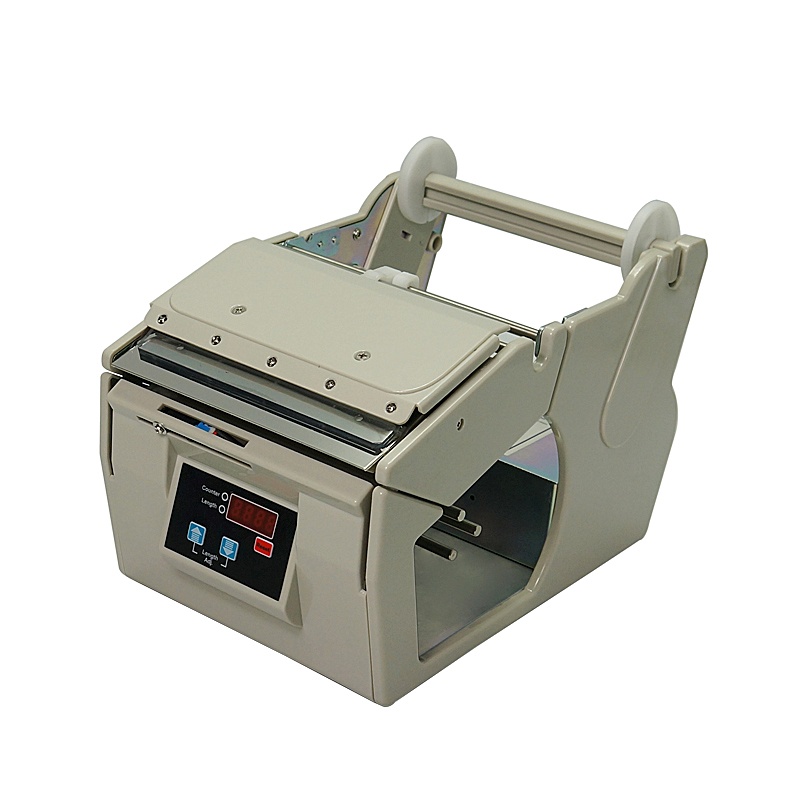

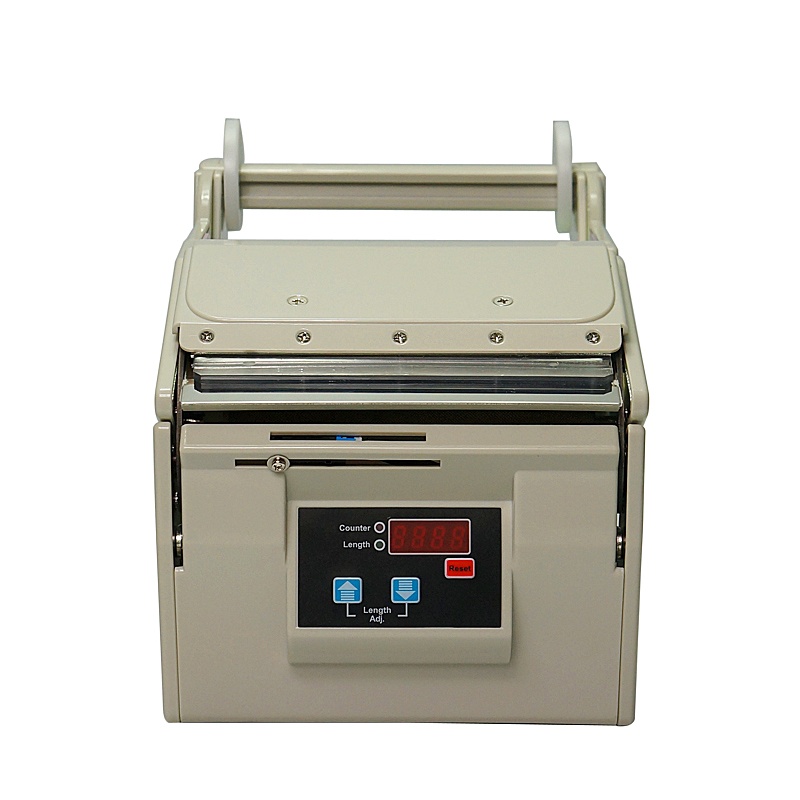

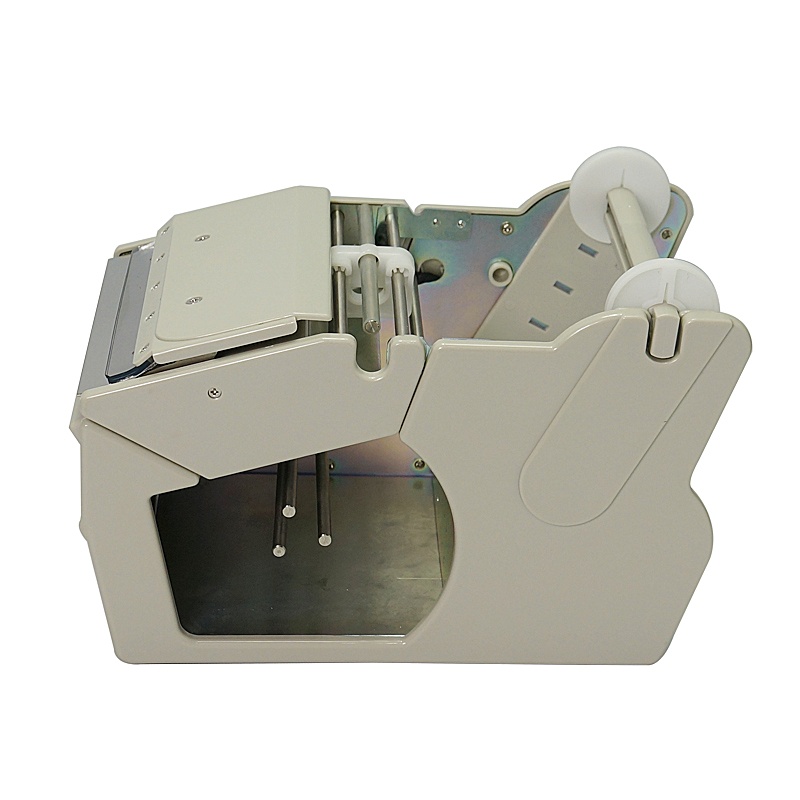

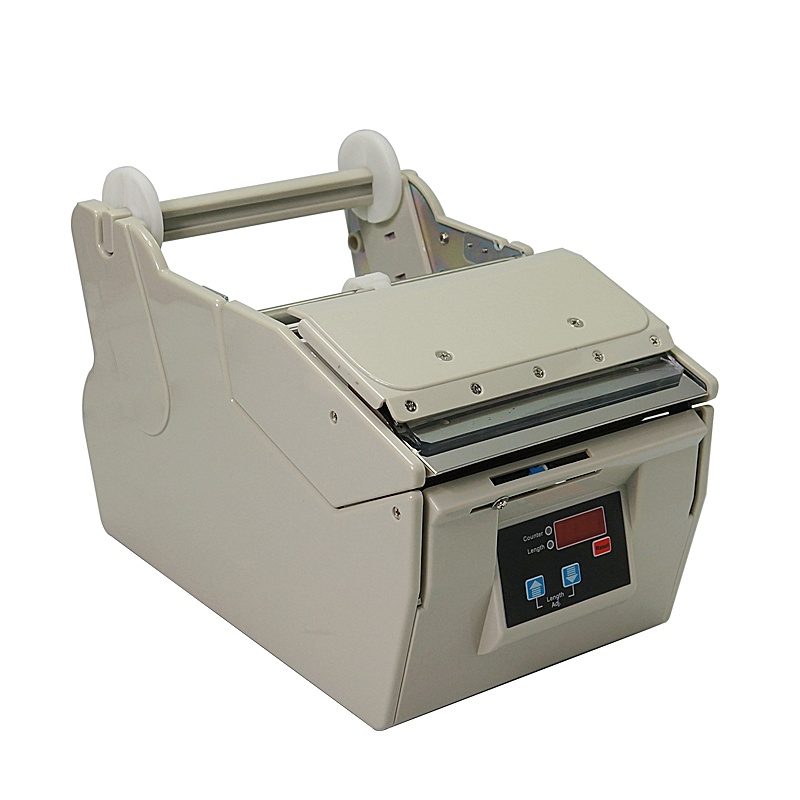

X-130 electronic label peeling machine,sticker dispenser,5-130mm width,250mm max. diameter
Labeling accuracy + 1 (mm) labeling speed: 130 (bottle/min)
Packing materials: film, aluminum foil, paper, hose, metal, all kinds of tag stripping of maximum width: 100 (mm)
Custom processing: it is type: the tag stripping machine
Posted content size: 1 (mm) packaging types: cans, bottles, barrels, cans
Automation: automatic models: X – 130
Applicable industry: hardware, mechanical objects: apply to all kinds of labels
Product features:
Model 1, low failure rate, easy to use, compact easy to lay.
2, electronic control system, automatic stripping, label smooth, no wrinkles.
3, the operation is simple, use more than one machine.

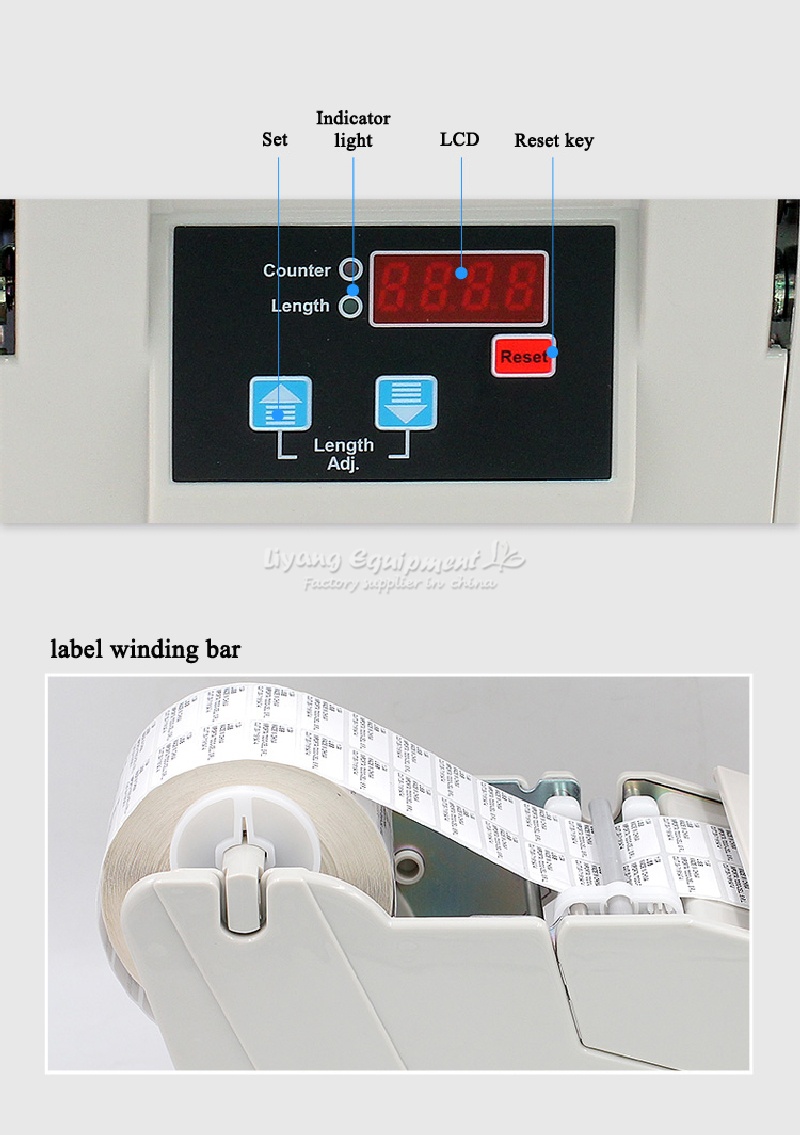

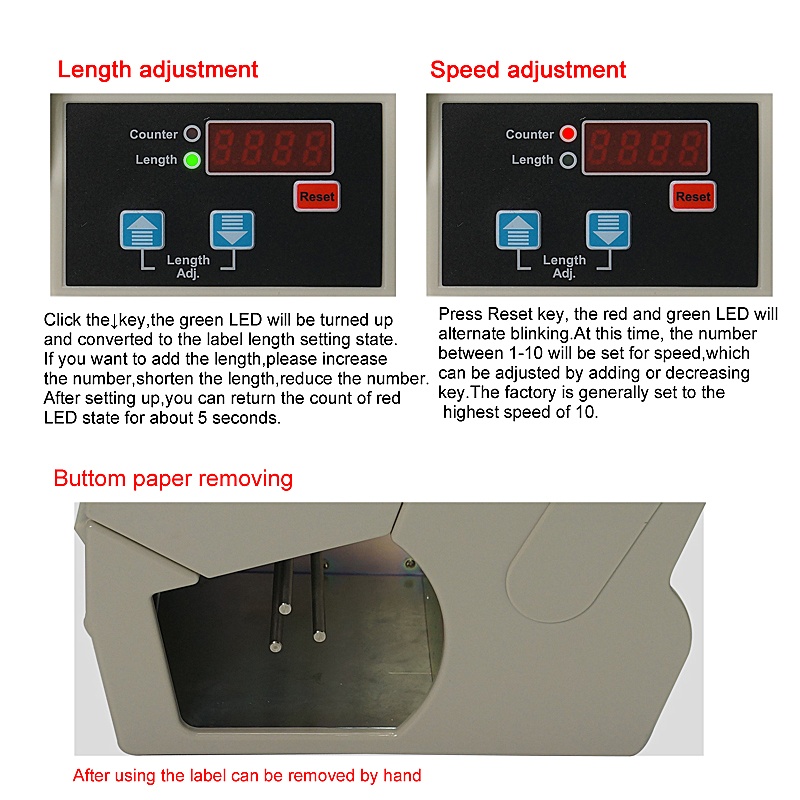

4, convenient automatic counting 0-999999, automated production management.
5, the types of tags: adhesive labels, barcode, anti-counterfeiting, laser, packaging label, etc.
6, applicable industry: electronics manufacturing industry, chemical industry, food processing industry, logistics industry.

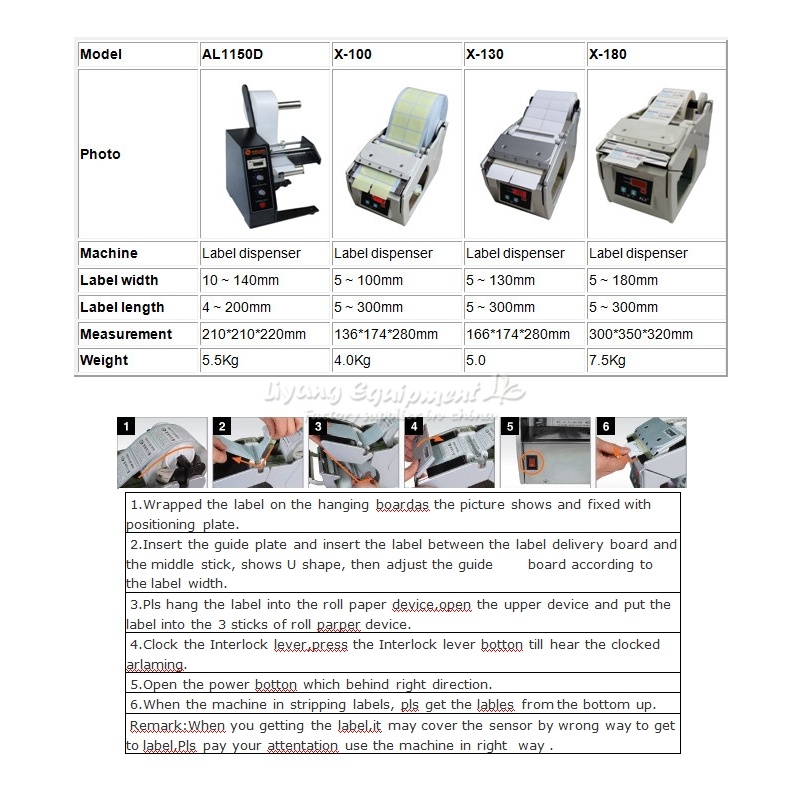

Method of use:

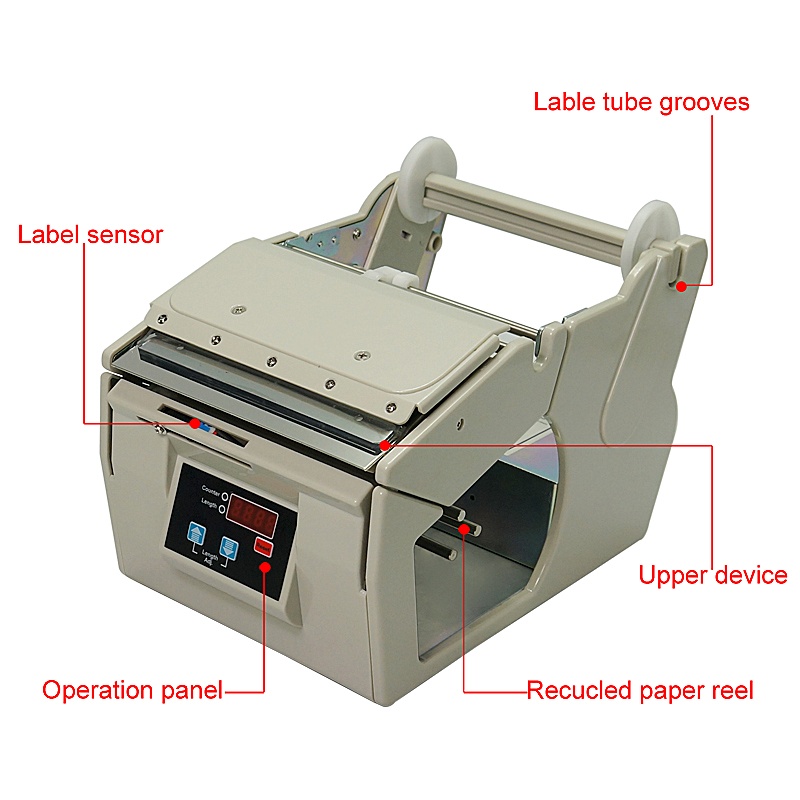

| 1.Wrapped the label on the hanging boardas the picture shows and fixed with positioning plate. |
| 2.Insert the guide plate and insert the label between the label delivery board and the middle stick, shows U shape, then adjust the guide board according to the label width. |
| 3.Pls hang the label into the roll paper device,open the upper device and put the label into the 3 sticks of roll parper device. |
| 4.Clock the Interlock lever,press the Interlock lever botton till hear the clocked arlaming. |

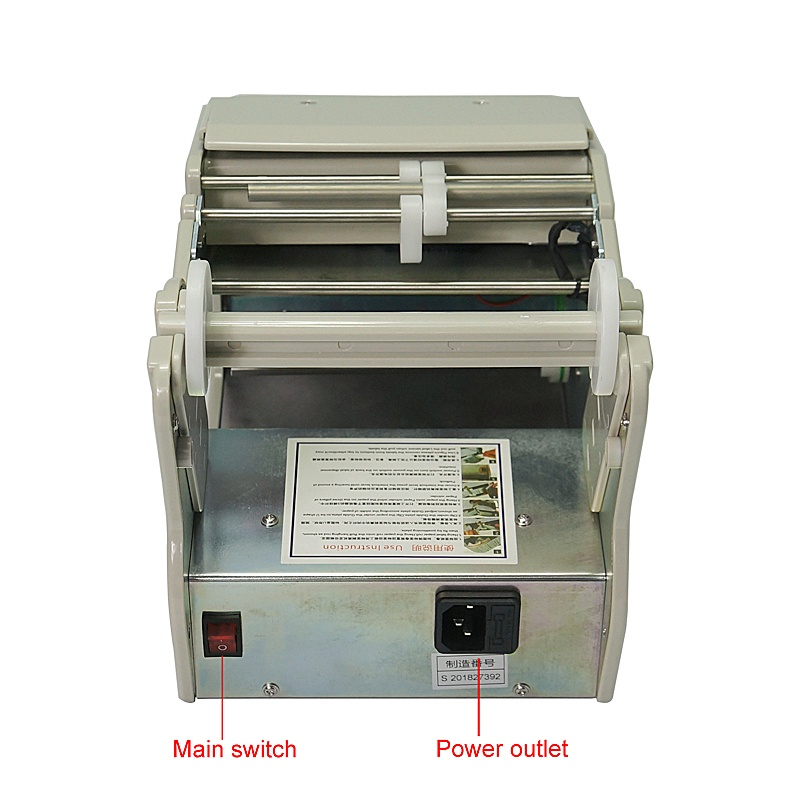

| 5.Open the power botton which behind right direction. |
| 6.When the machine in stripping labels, pls get the lables from the bottom up. |
| Remark:When you getting the label,it may cover the sensor by wrong way to get to label,Pls pay your attentation use the machine in right way . |
Note: tear the label, will pull out of the bottom of the label paper shade the sensor, please pay more attention.

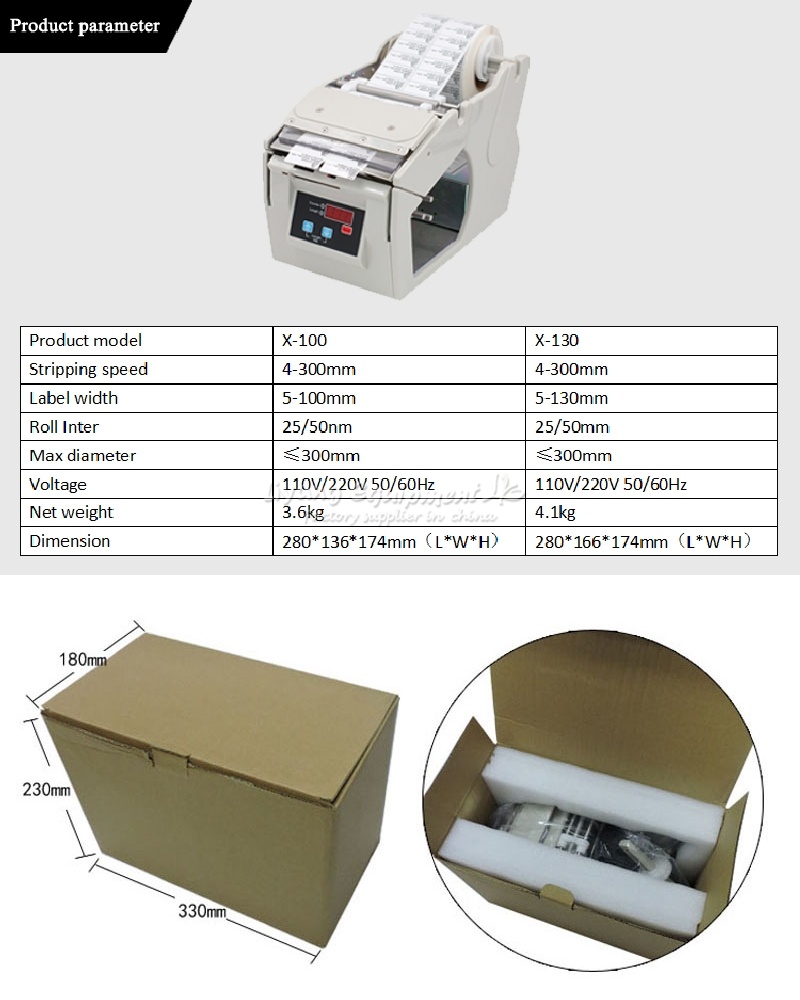

Specifications:
- Item No.:X-130
- Dimensions:166(W)*174(H)*280(L)mm
- Speed:130mm/sec
- Label width:5-100mm
- Max.Dia.:250mm
- Voltage:110V/60HZ;220V/50HZ
- N.W:4.1KG
Thanks for your order!
