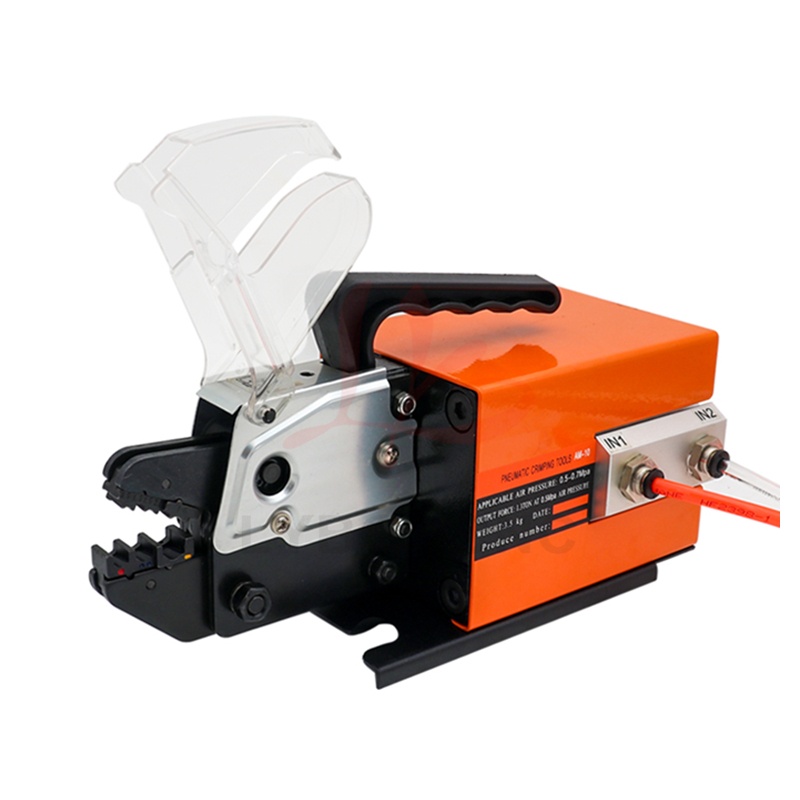

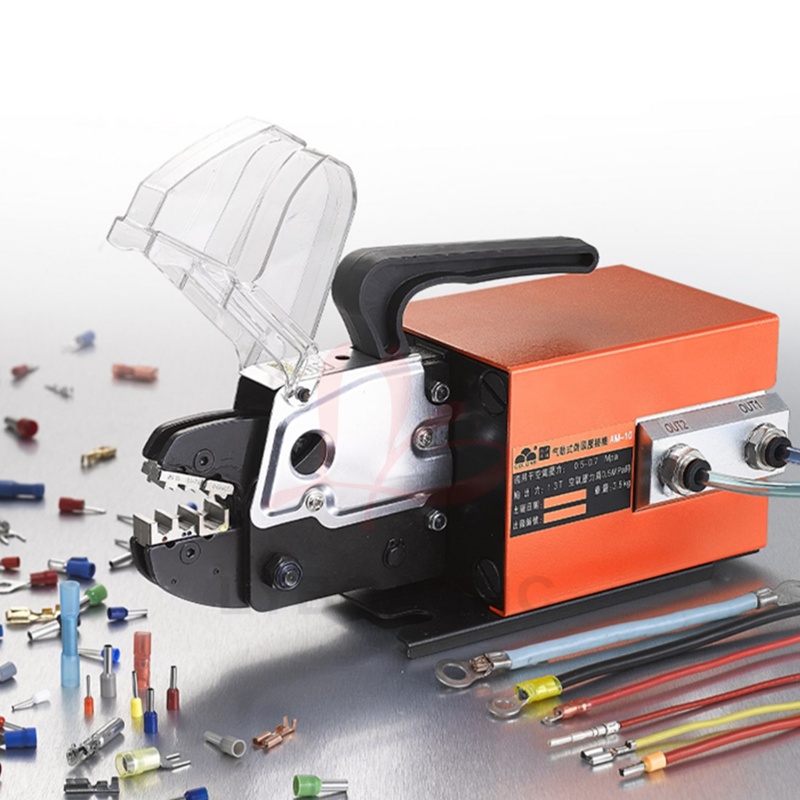

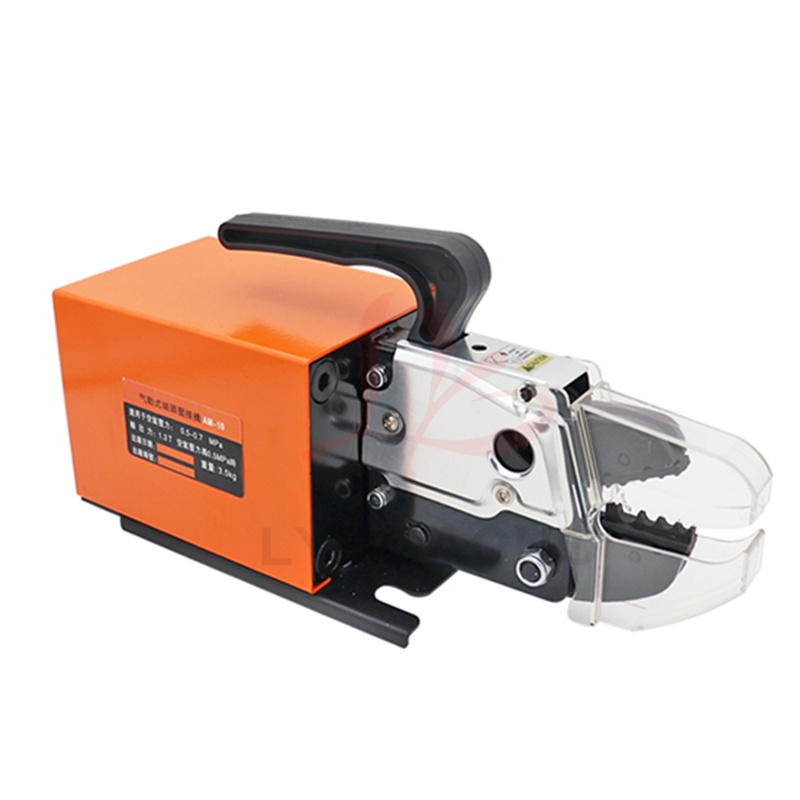

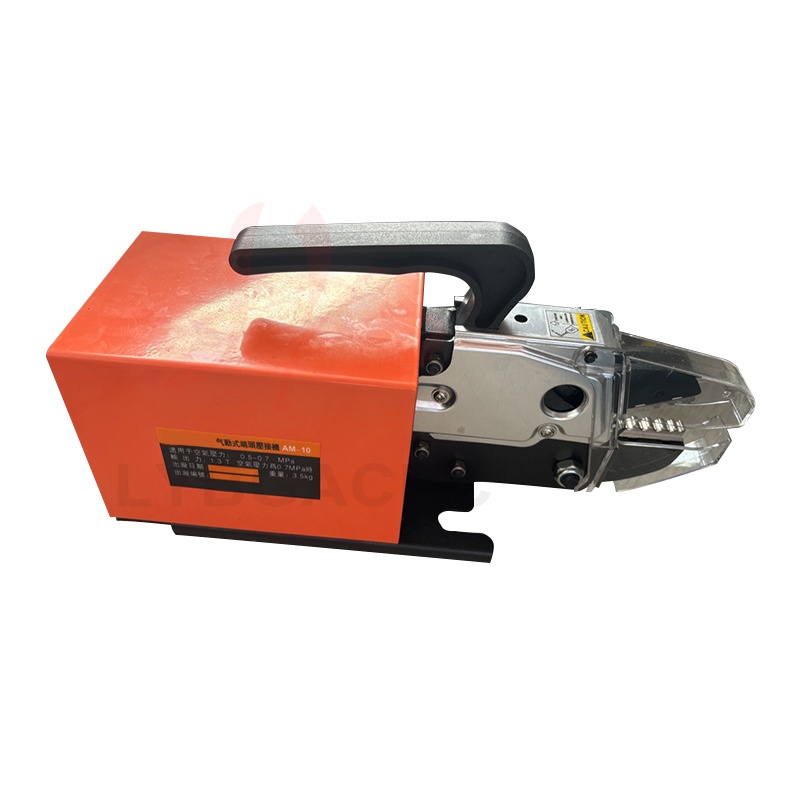

AM-10 Pneumatic crimping tool Crimping machine Multifunctional pneumatic crimping pliers for various terminals With 4 sets of molds Pre-insulated terminals Cold pressed bare terminals

AM-10 Pneumatic crimping tool Crimping machine Multifunctional pneumatic crimping pliers for various terminals With 4 sets of molds Pre-insulated terminals Cold pressed bare terminals

Specifications:

Item Model Number: AM-10

Material: Tool steel

Output Force: 1.3 T

Air Pressure: 0.5-0.7 Mpa

Max. Operating Pressure: 1.0 Mpa

Non-insulated terminals ≤ 16 mm²

Rre-insulated terminals ≤ 6 mm²

Tube terminals ≤ 35 mm²

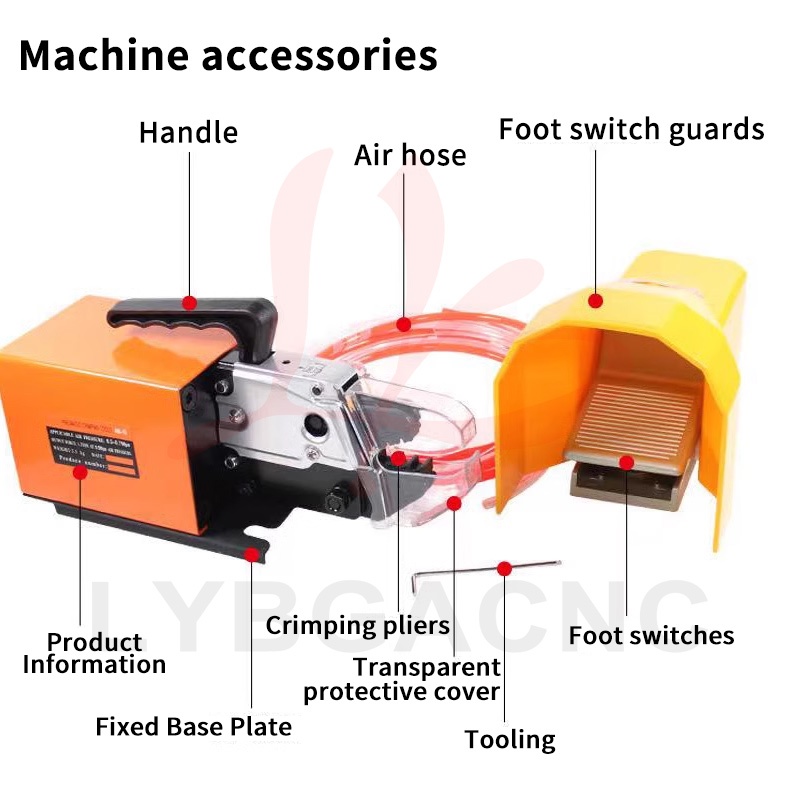

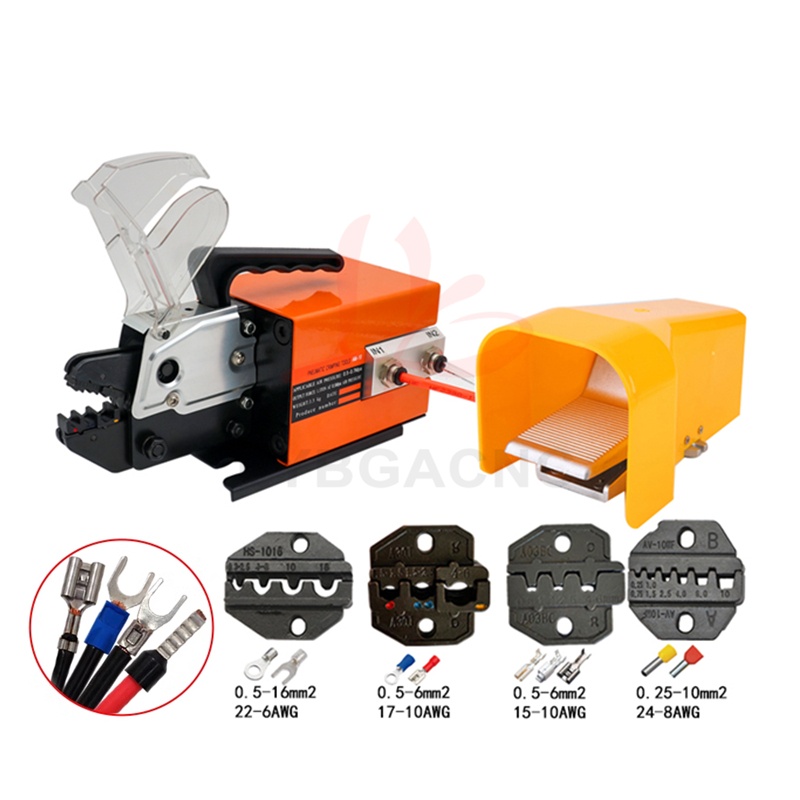

Package Content:

1 x Pneumatic Crimping Machine

1 x Foot Air Valve

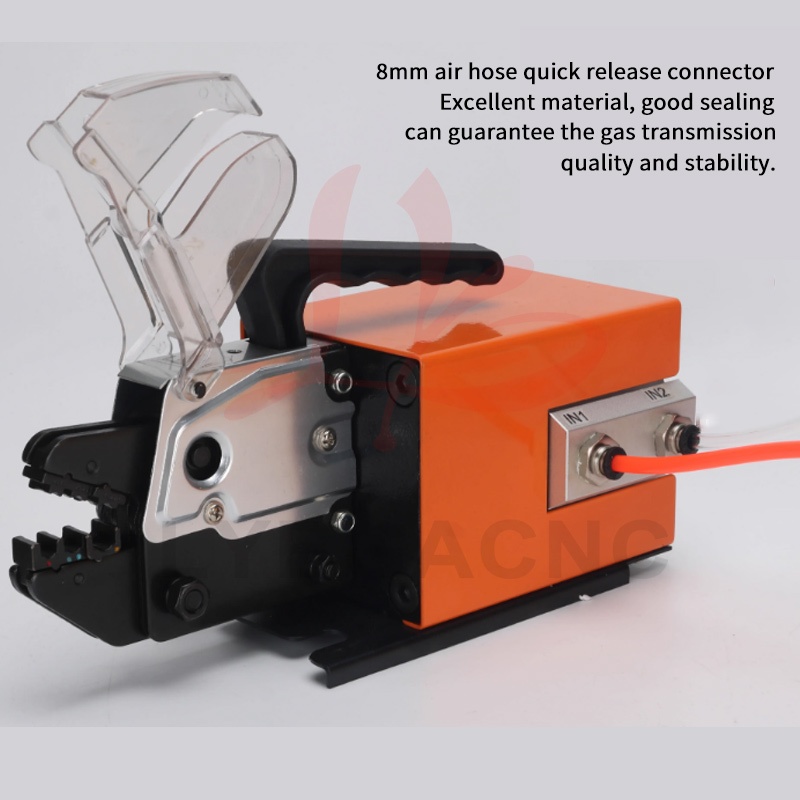

2 x Air Pipes

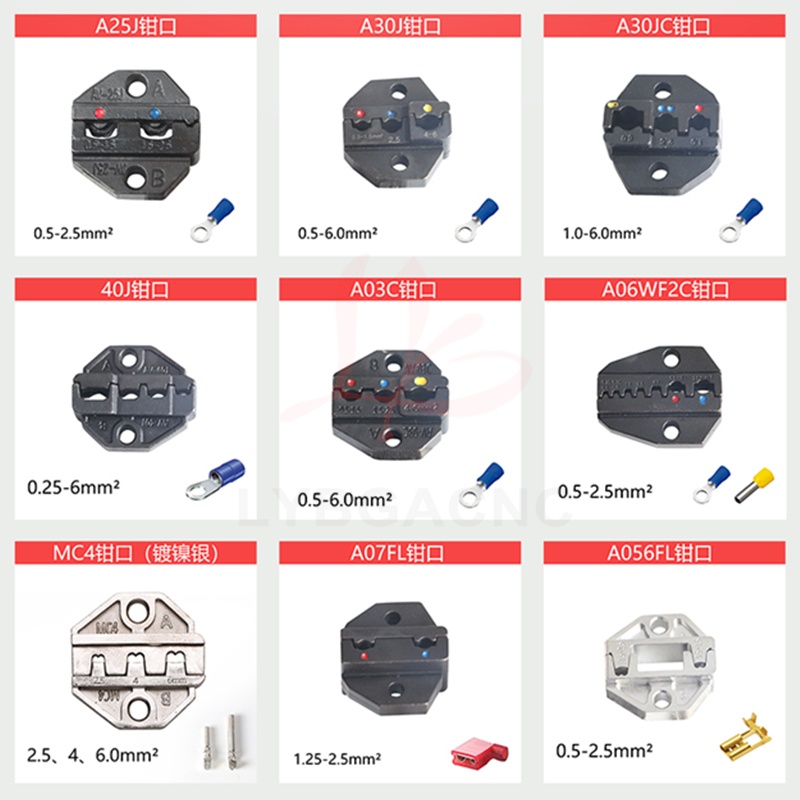

4 x Extra Die Sets

Features & Details:

Durable Material: The pneumatic crimping machine adopts tool steel material, solid forging, and durable. Our crimping machine has received international CE certification, rest assured purchase. Type: AM-10, Output Force: 1.3 T Air Pressure 0.5 Mpa, Air Pressure Flow: 0.5-0.7 Mpa.

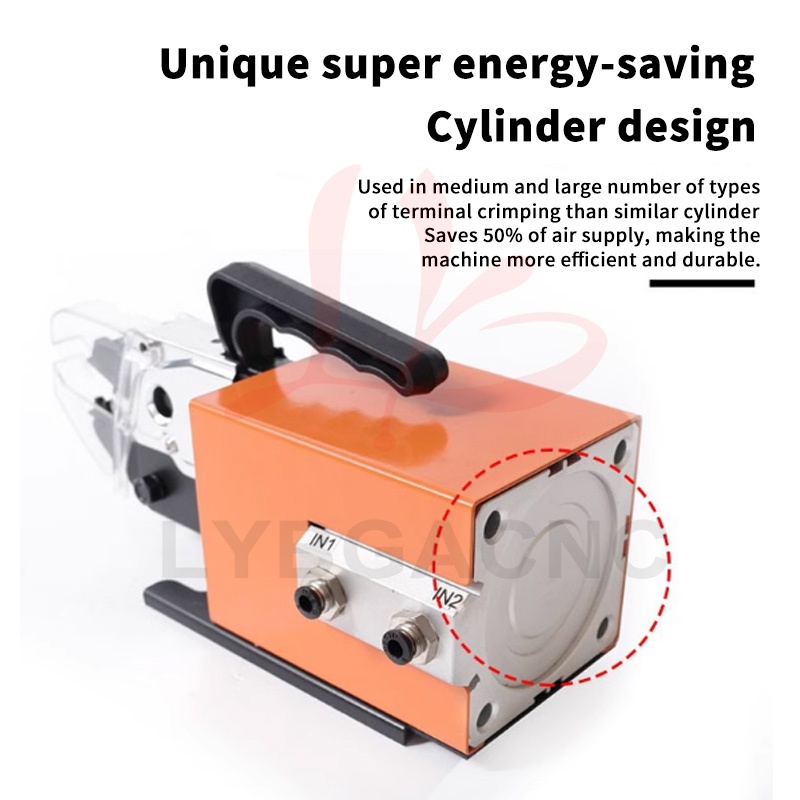

High Efficient: This AM-10 pneumatic crimping tool is driven by a dual-action standard cylinder to achieve high efficiency and quality in both crimping force and speed. It has a precision die jaws, capable of precision crimping work. Besides, we provide you with an extra 10 sets of dies for free!

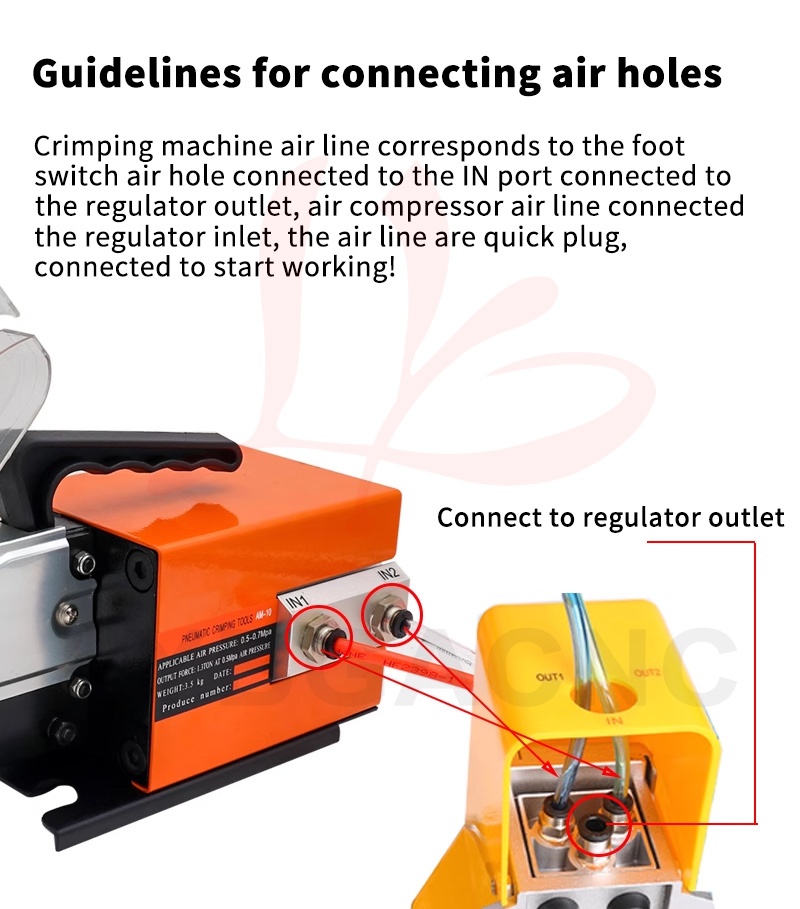

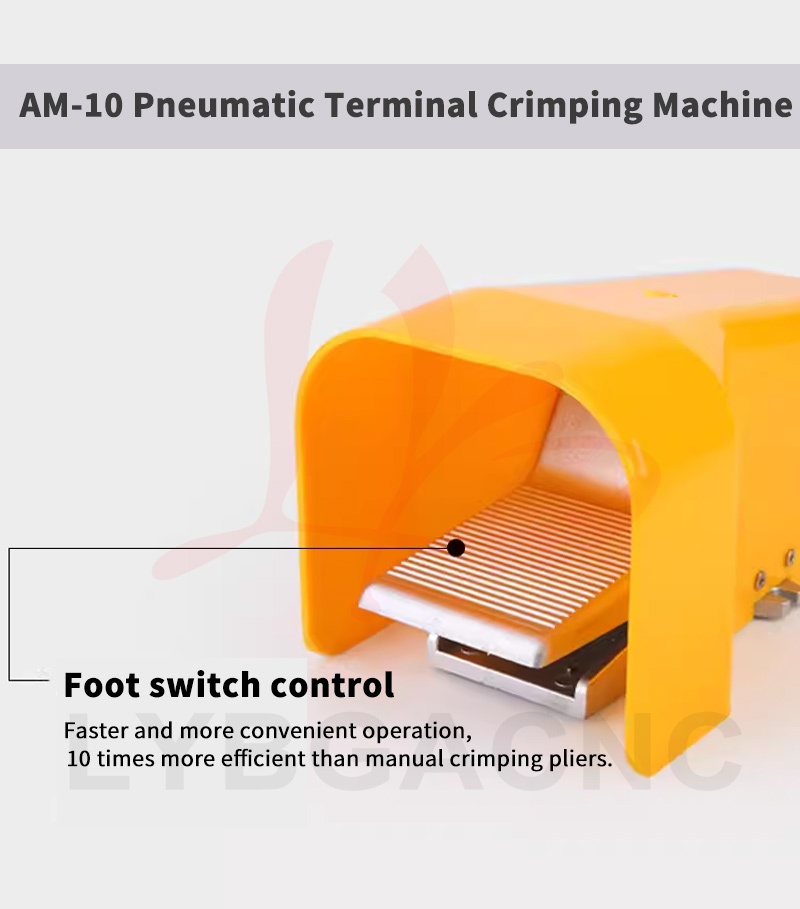

Comfortable Operation: Foot-valve design, with less effort than conventional crimping machines more efficient. Mode jaws super fast conversion to meet your diverse crimp demand, fast crimping the port of different shapes.

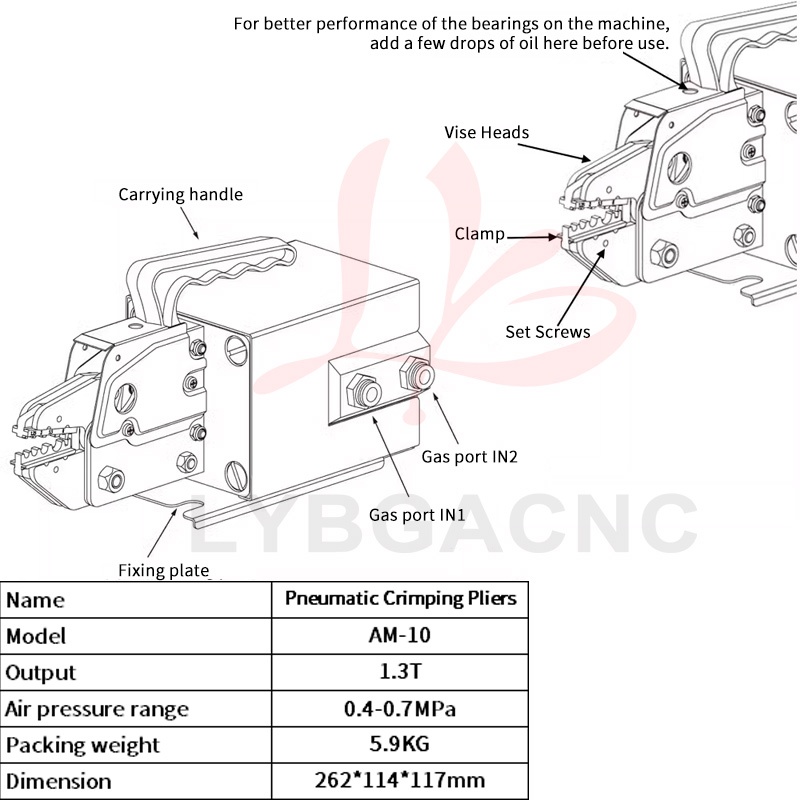

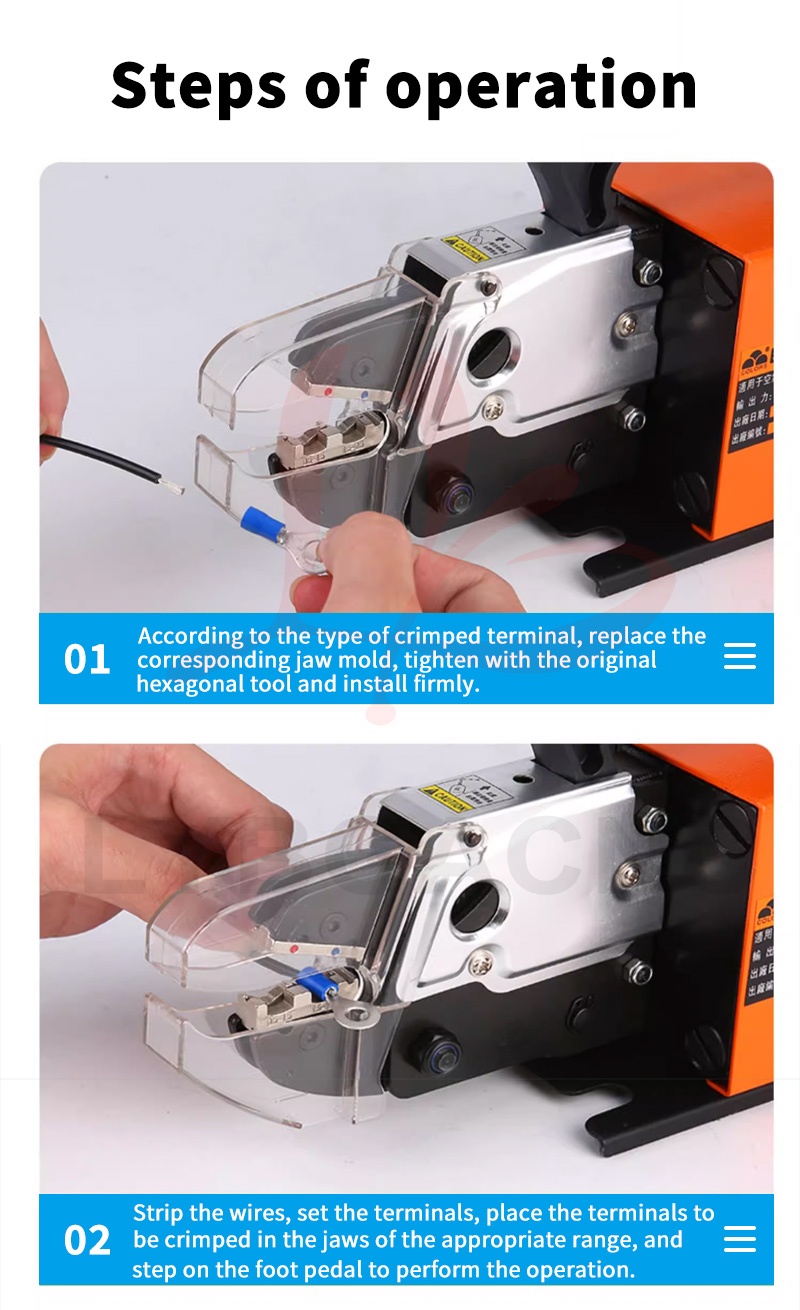

Easy to Use: After the first crimping machine assembly, slowly press machine so that the foot-valve low-speed idle operation 1 to 2 times, before normal use. Its handle design is compact, easy to carry, and easy to maintain.

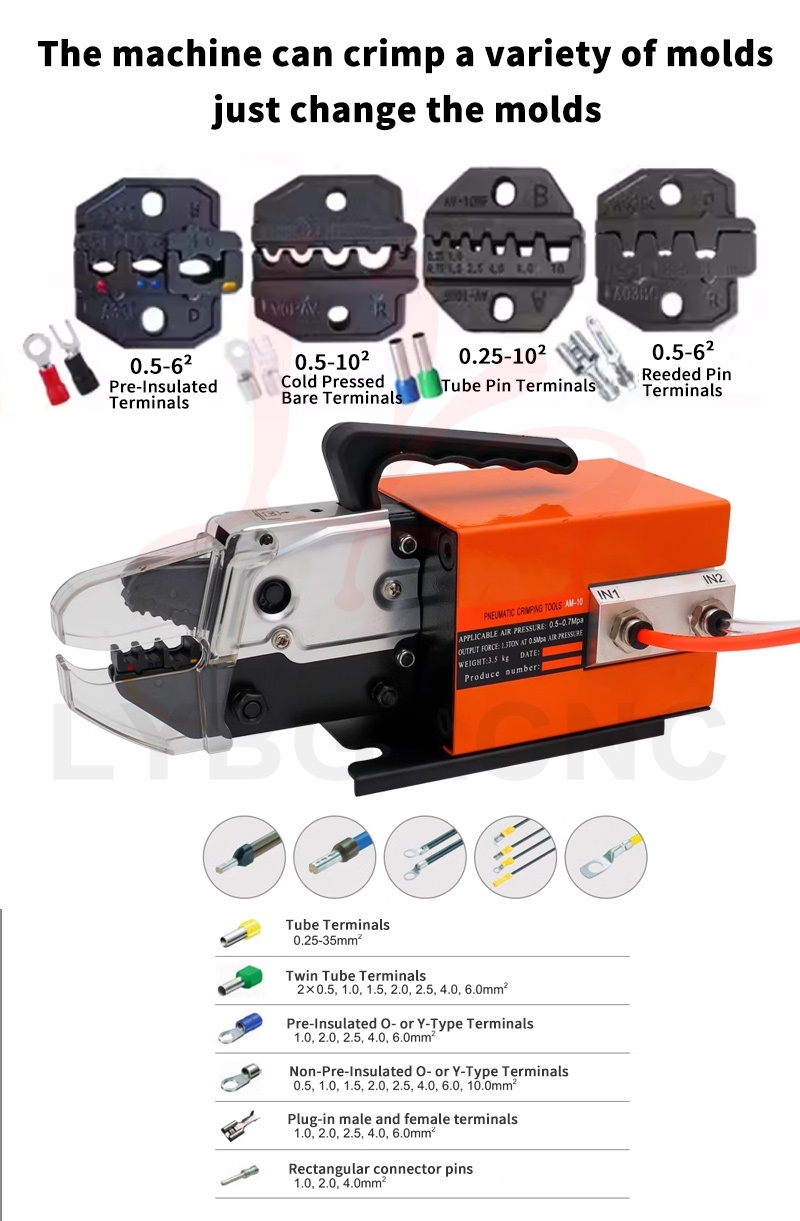

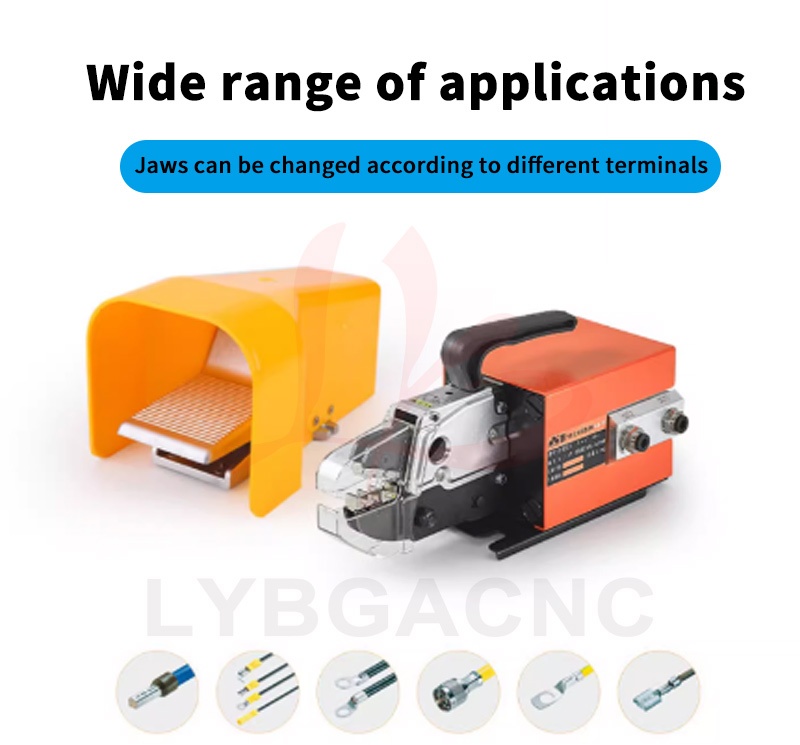

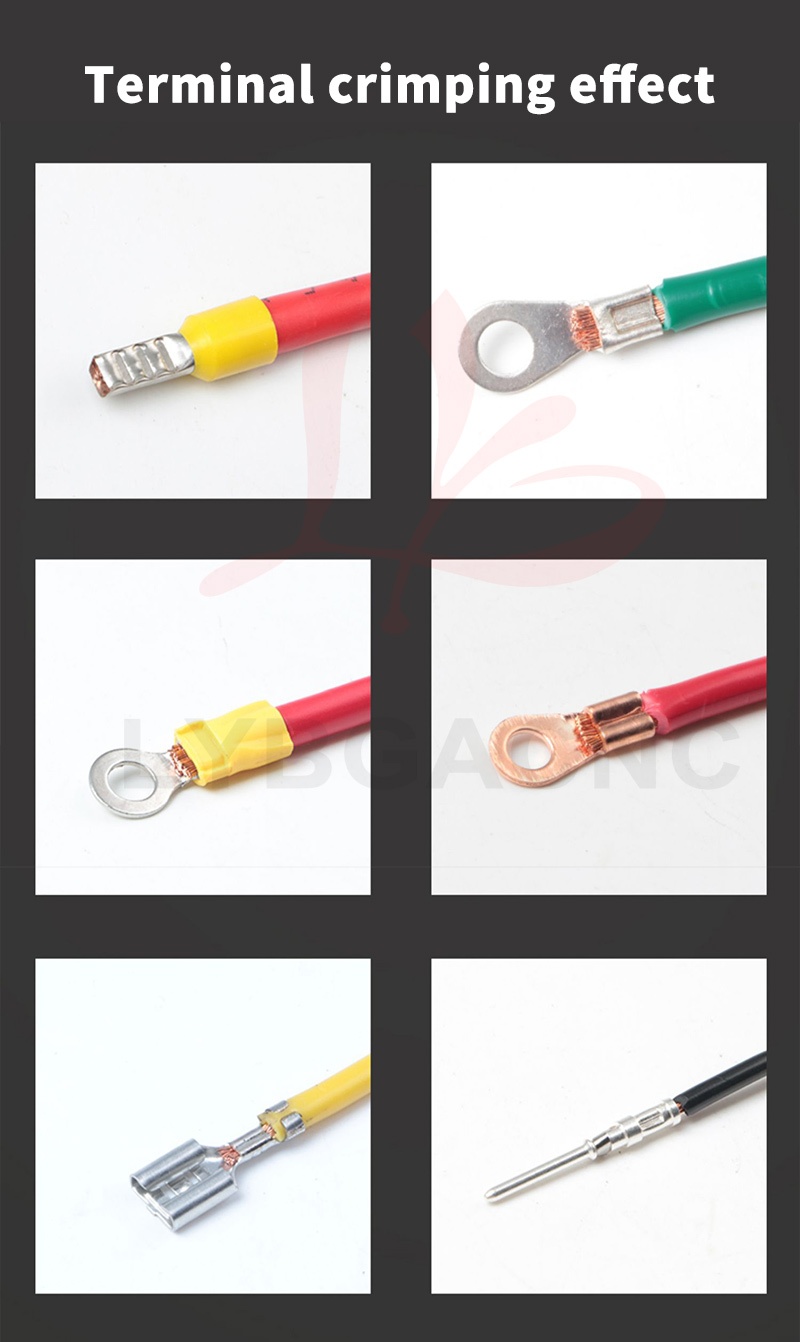

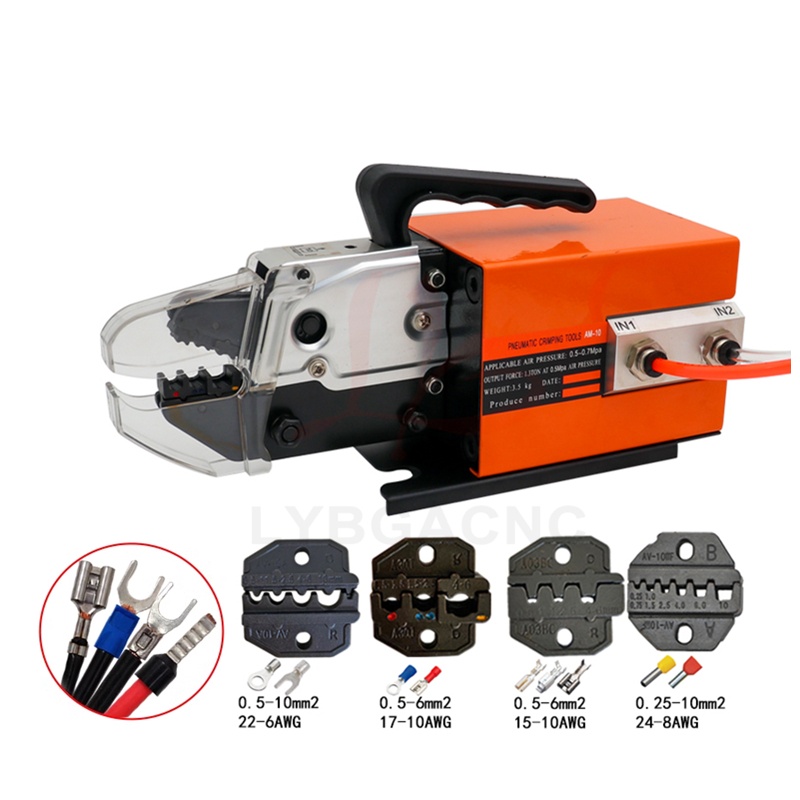

Wide Applications: The pneumatic crimping tool is suitable for Non-insulated terminals ≤ 16 mm², Rre-insulated terminals ≤ 6 mm², Tube terminals ≤ 35 mm². We provide 15 additional sets of dies to meet various terminal interface requirements.

Note: Air compressor not included. Please cut off the power when changing the mode jaws of the crimping machine.
