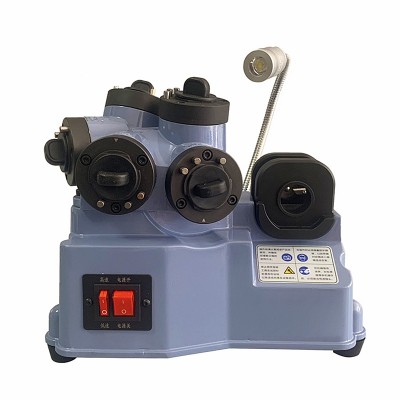

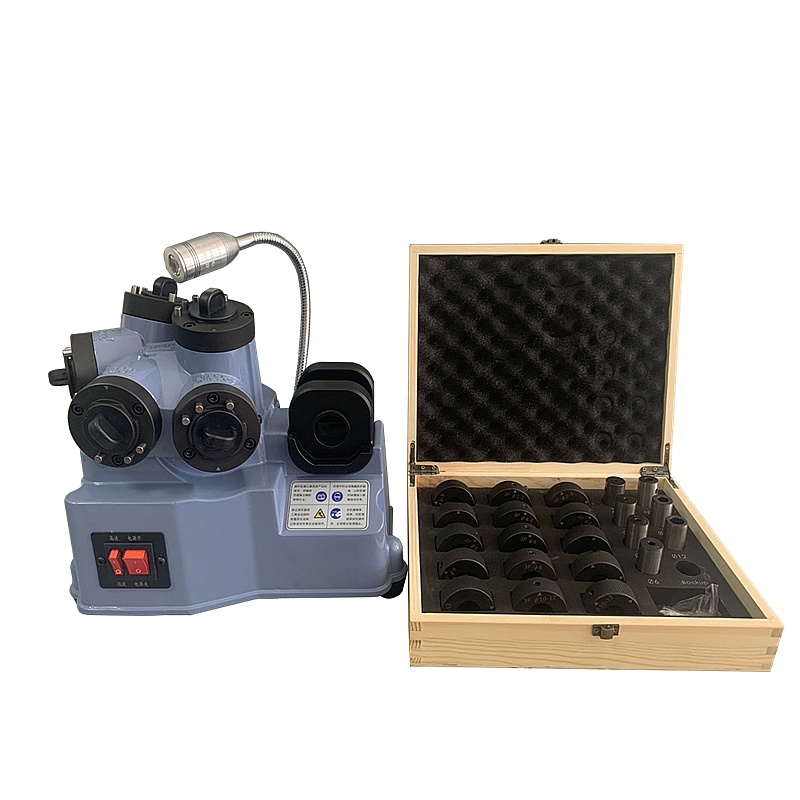

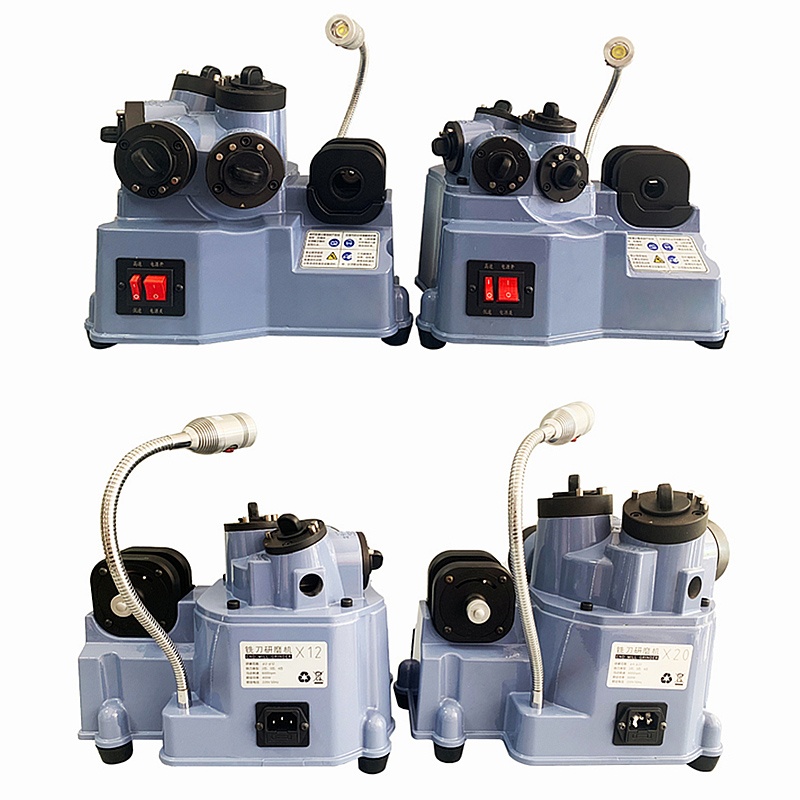

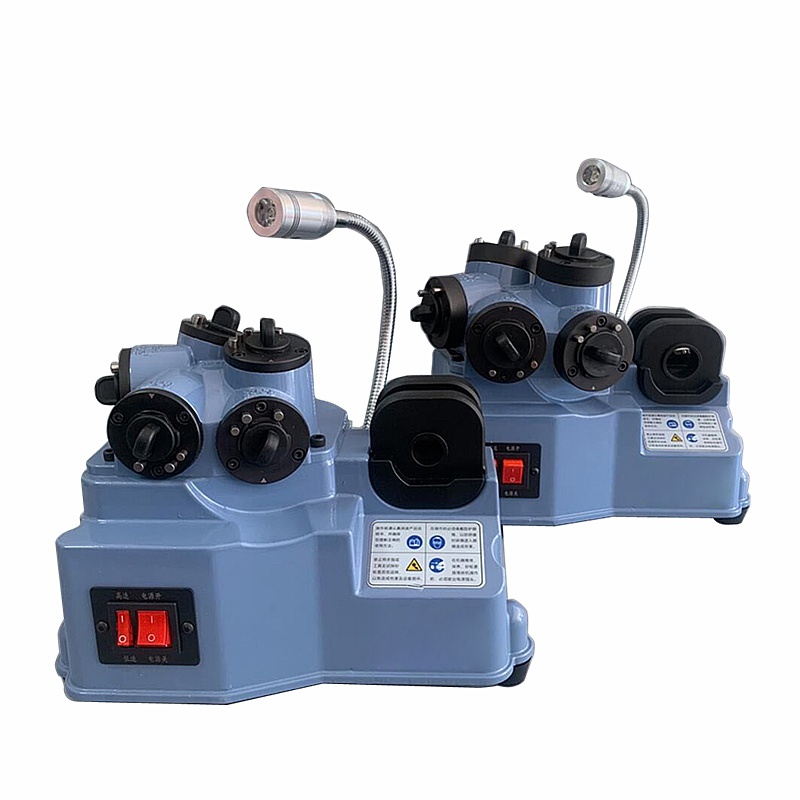

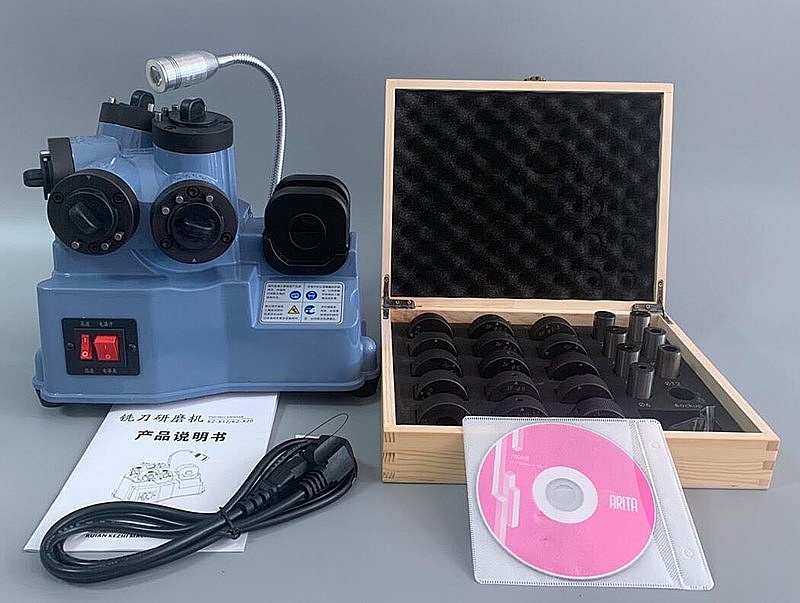

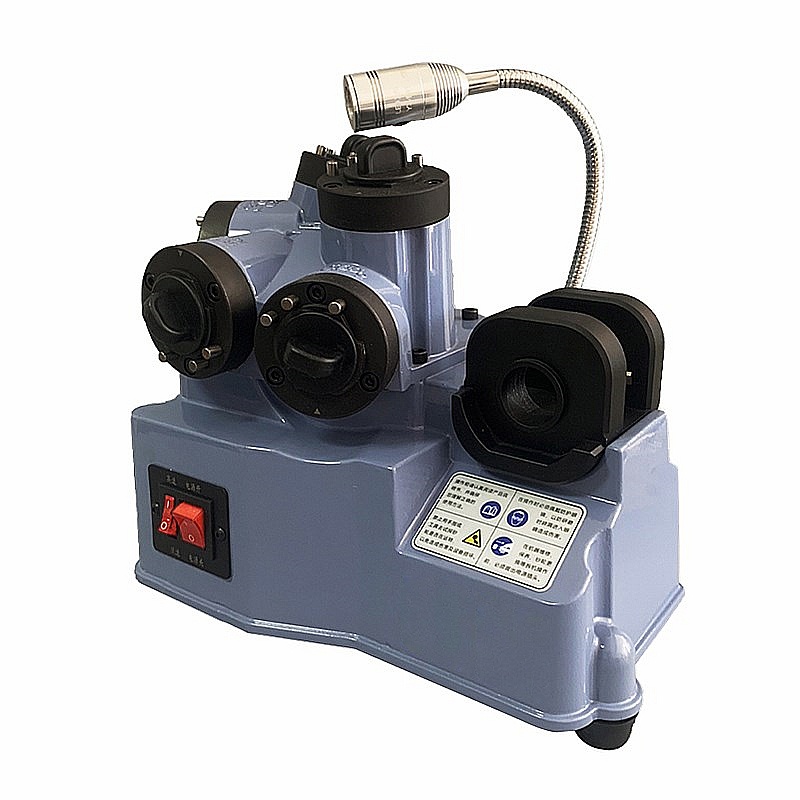

End Milling Grinder Flute End Mill Sharpening Machine 6000rpm-9000rpm Milling Cutter Grinding Machine CE 2-20mm

End Milling Grinder Flute End Mill Sharpening Machine 6000rpm-9000rpm Milling Cutter Grinding Machine CE 2-20mm

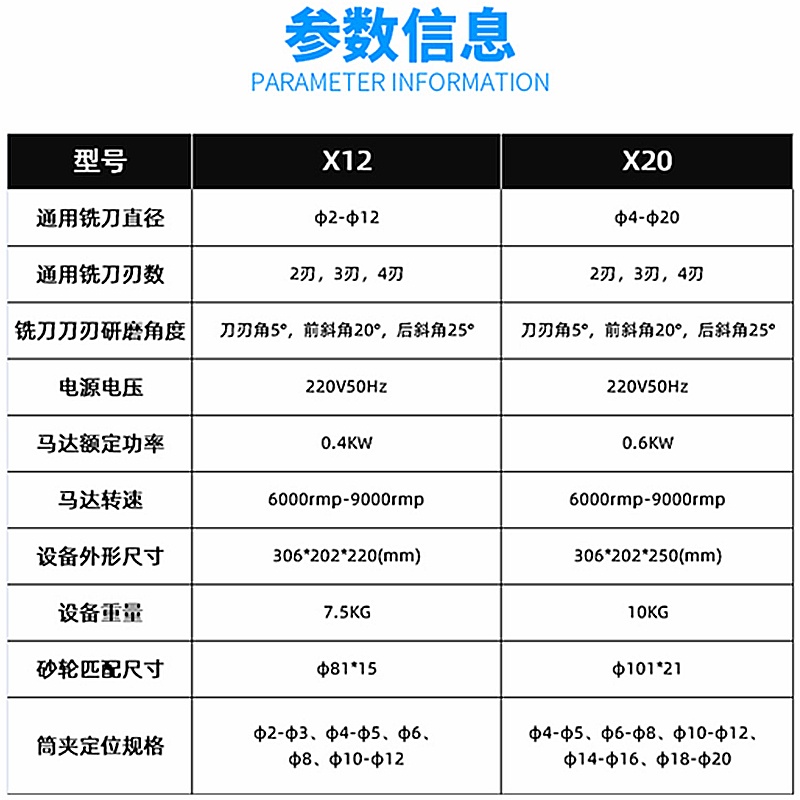

Parameter

Model: X12

Universal Milling Cutter Diameter: Φ2-Φ12

Motor: 220V/50HZ

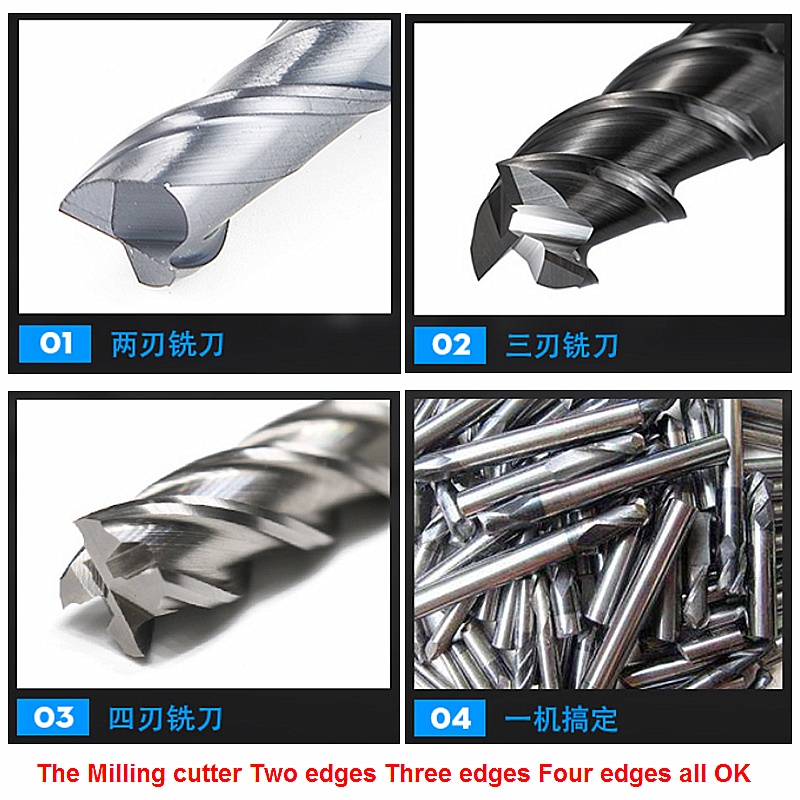

Universal Milling Cutter: 2 Blade, 3 Blade, 4 Blade

Milling Cutter Edge Gringding angle: Blade angle 5 degrees, front bevel angle 20 degrees, rear bevel angle 25 degrees

Motor rated power: 400W

Motor speed：6000rpm-9000rpm

Equipment Dimensions: 306*202*220mm

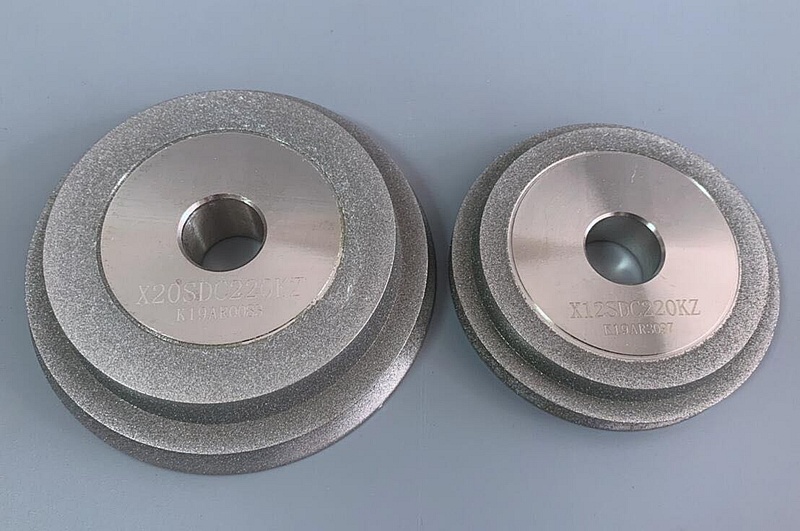

Grinding Wheel matching size: Φ81*15

Milling cutter number 2F: Φ2-Φ3, Φ4-Φ5,Φ6,Φ8,Φ10-Φ12

Milling cutter number 3F: Φ2-Φ3, Φ4-Φ5,Φ6,Φ8,Φ10-Φ12

Milling cutter number 4F: Φ2-Φ3, Φ4-Φ5,Φ6,Φ8,Φ10-Φ12

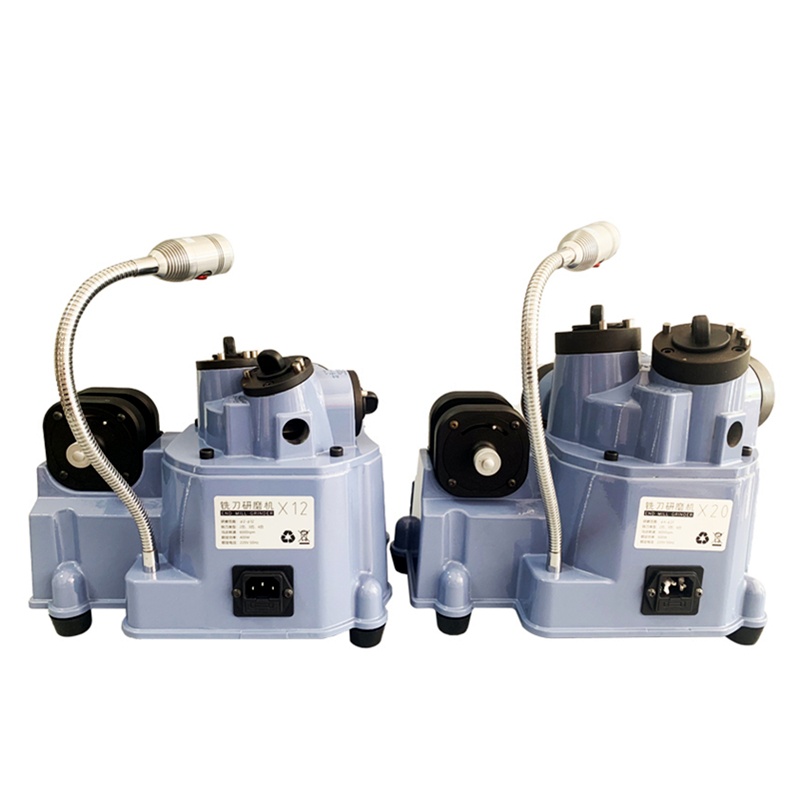

Model: X20

Universal Milling Cutter Diameter: Φ4-Φ20

Motor: 220V/50HZ

Universal Milling Cutter: 2 Blade, 3 Blade, 4 Blade

Milling Cutter Edge Gringding angle: Blade angle 5 degrees, front bevel angle 20 degrees, rear bevel angle 25 degrees

Motor rated power: 600W

Motor speed：6000rpm-9000rpm

Equipment Dimensions: 306*202*250mm

Grinding Wheel matching size: Φ101*21

Milling cutter number 2F:  Φ4-Φ5,Φ6-Φ8,Φ10-Φ12,Φ14-Φ16,Φ18-Φ20,

Milling cutter number 3F: Φ4-Φ5,Φ6-Φ8,Φ10-Φ12,Φ14-Φ16,Φ18-Φ20,

Milling cutter number 4F: Φ4-Φ5,Φ6-Φ8,Φ10-Φ12,Φ14-Φ16,Φ18-Φ20,

Warranty: Three years.
