High-speed terminal crimping machine Peeling Striping Cutting Machine for Computer wire

High-speed terminal crimping machine Peeling  Striping Cutting Machine for Computer wire

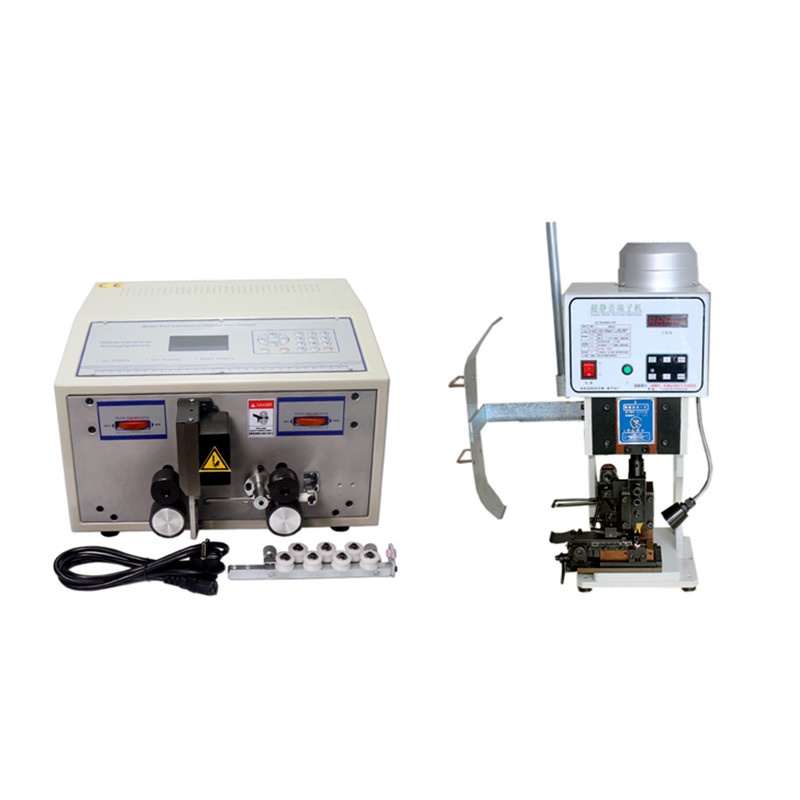

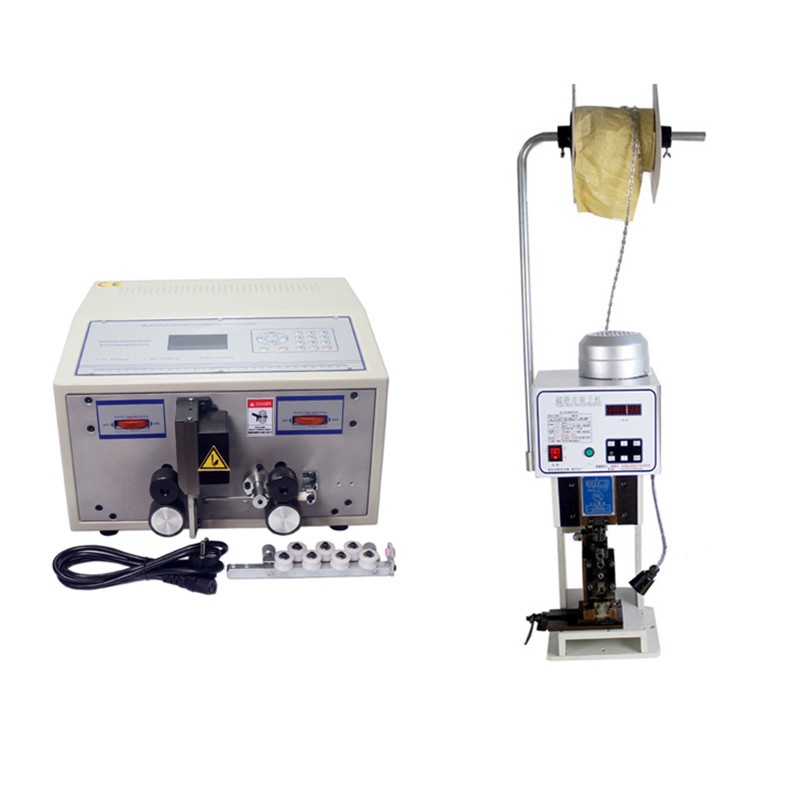

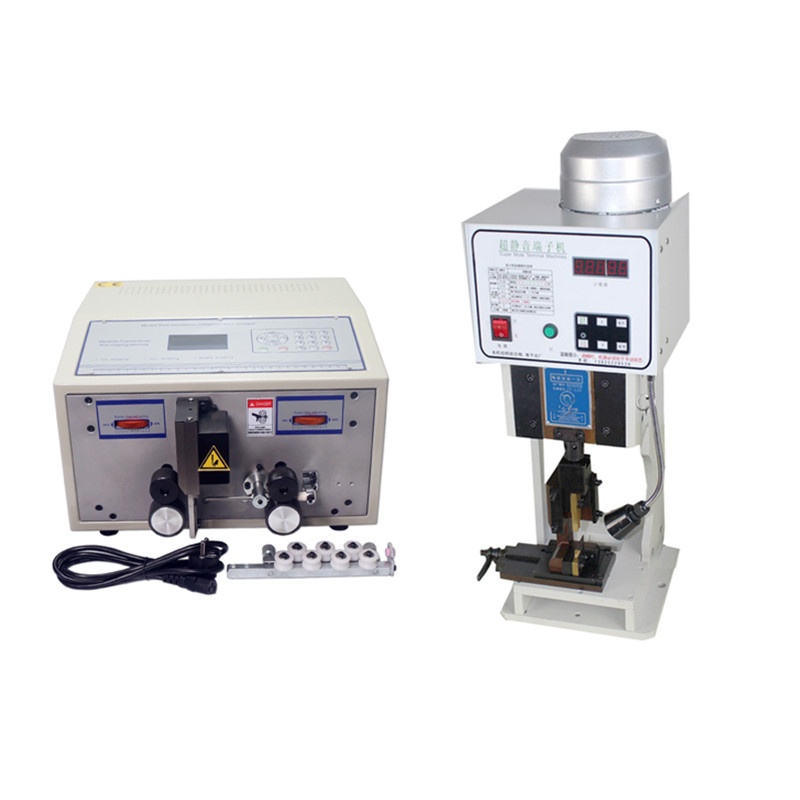

Packing list:

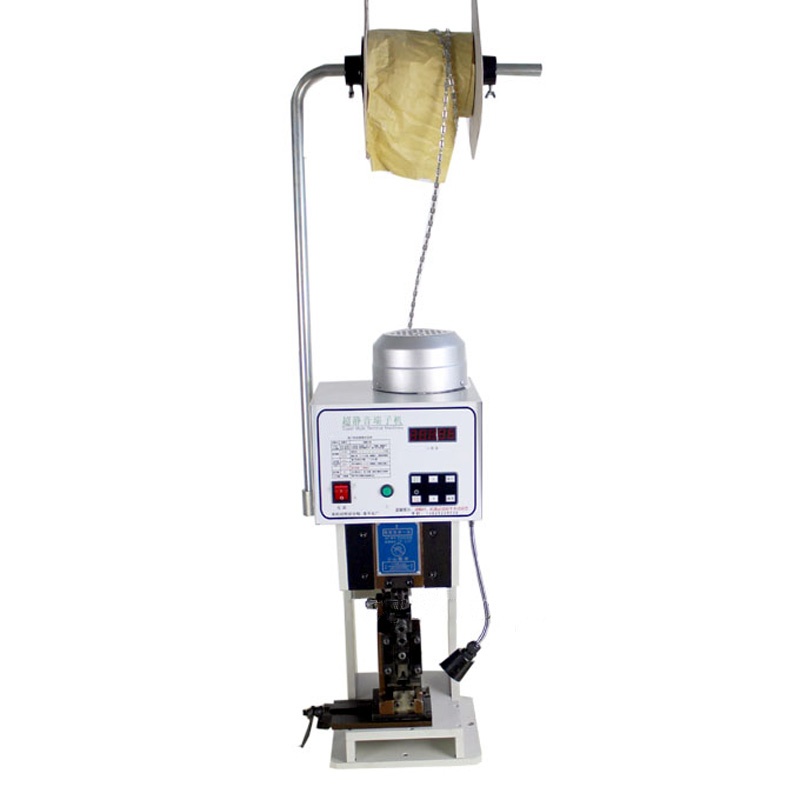

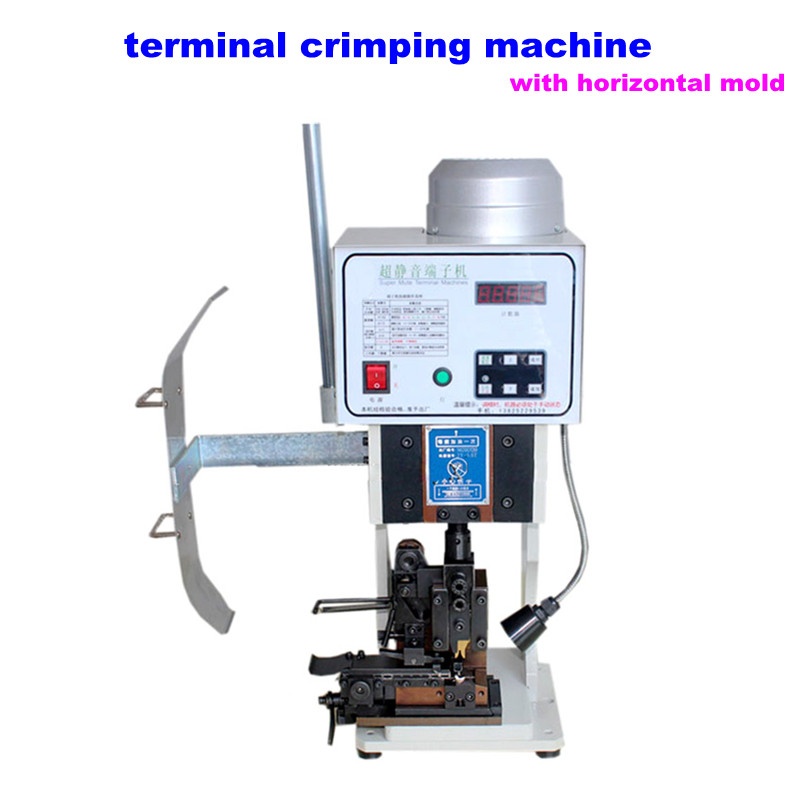

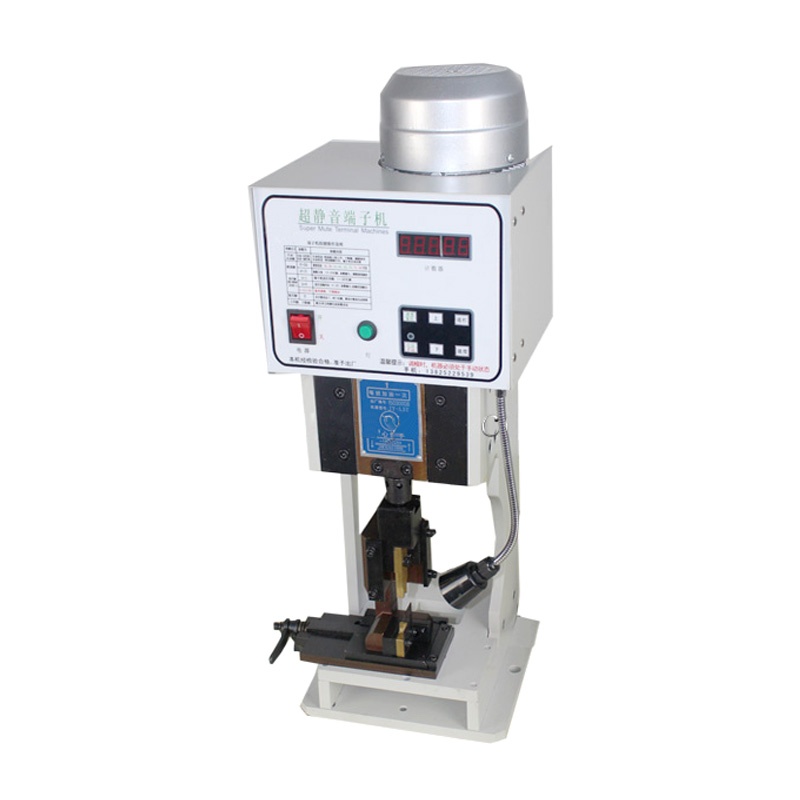

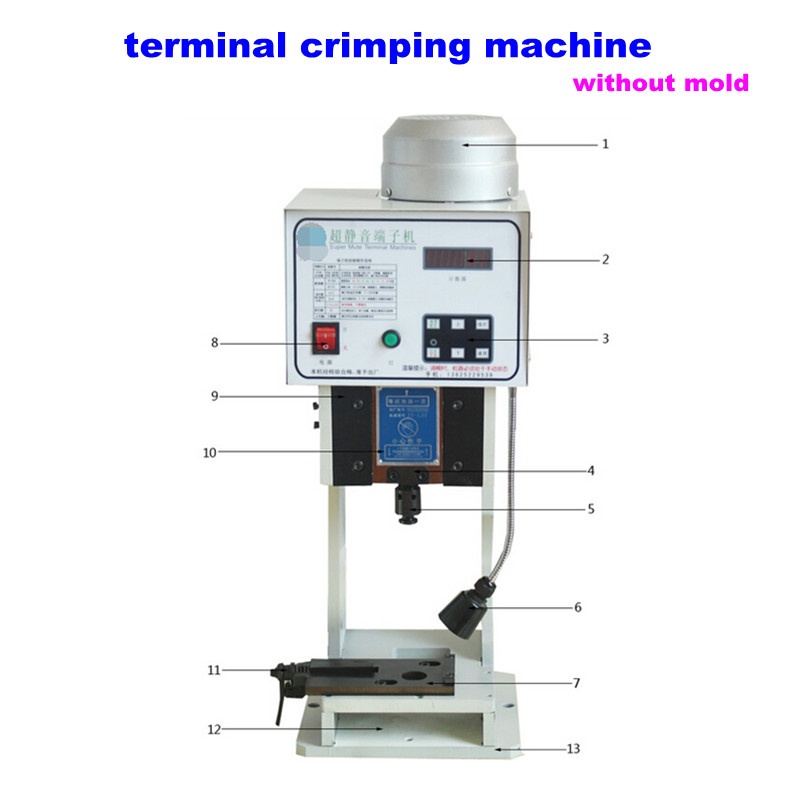

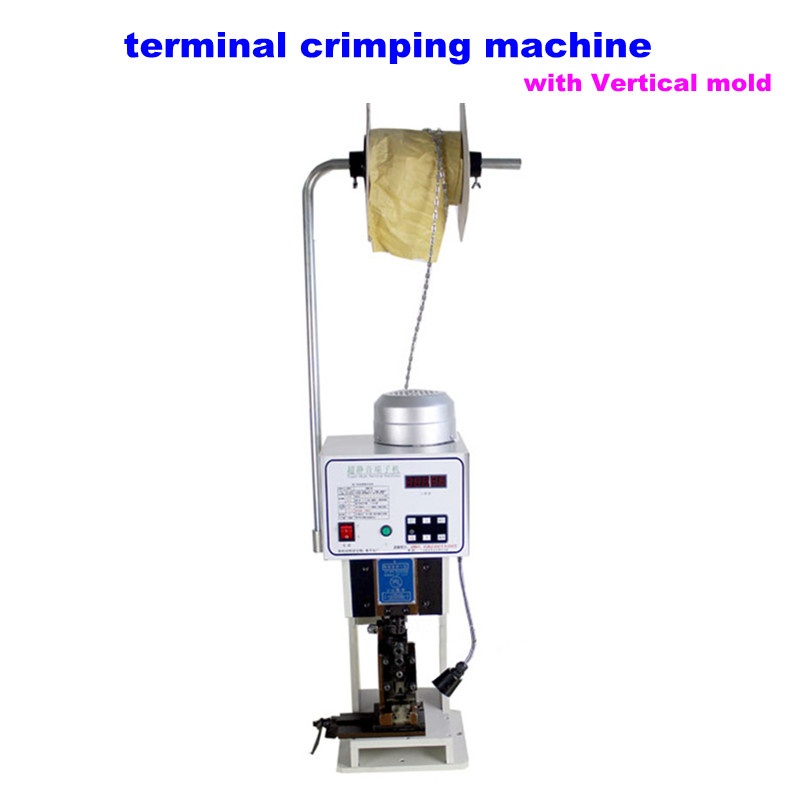

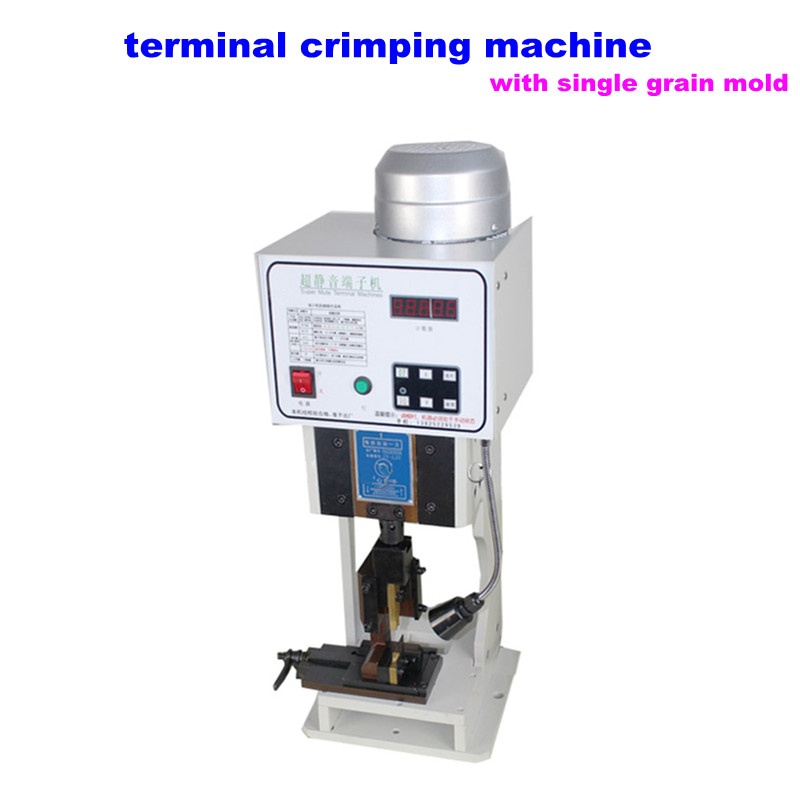

1 x terminal crimping machine

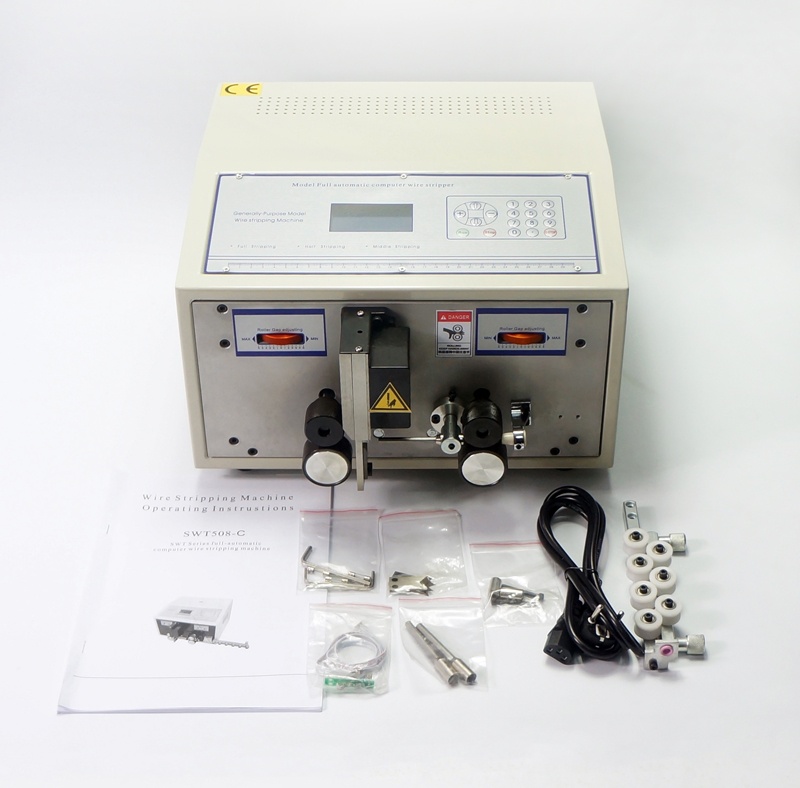

1x Peeling Striping Cutting Machine

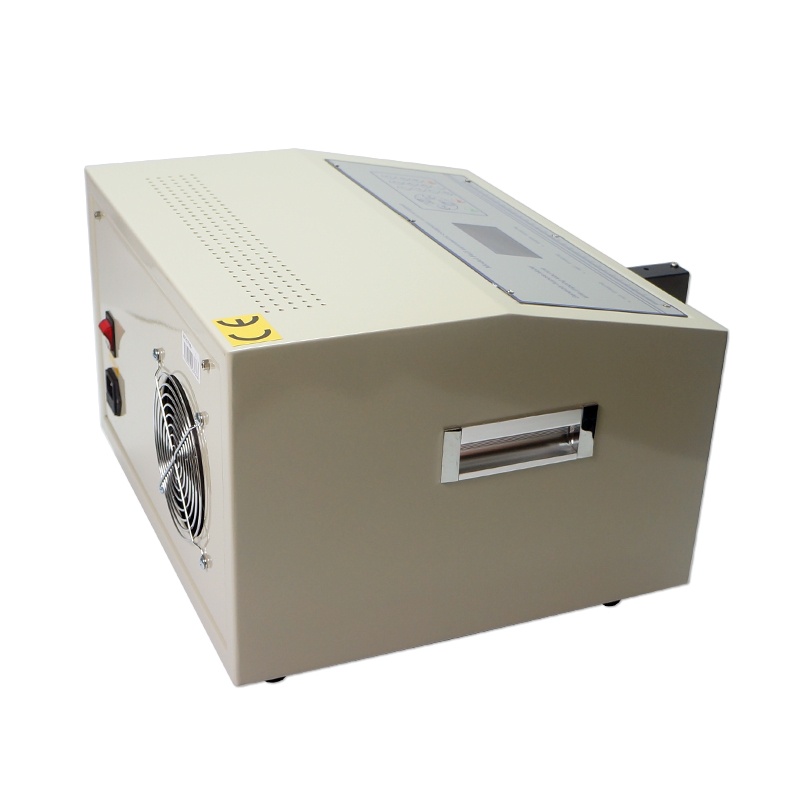

Peeling Striping Cutting Machine

Product Description

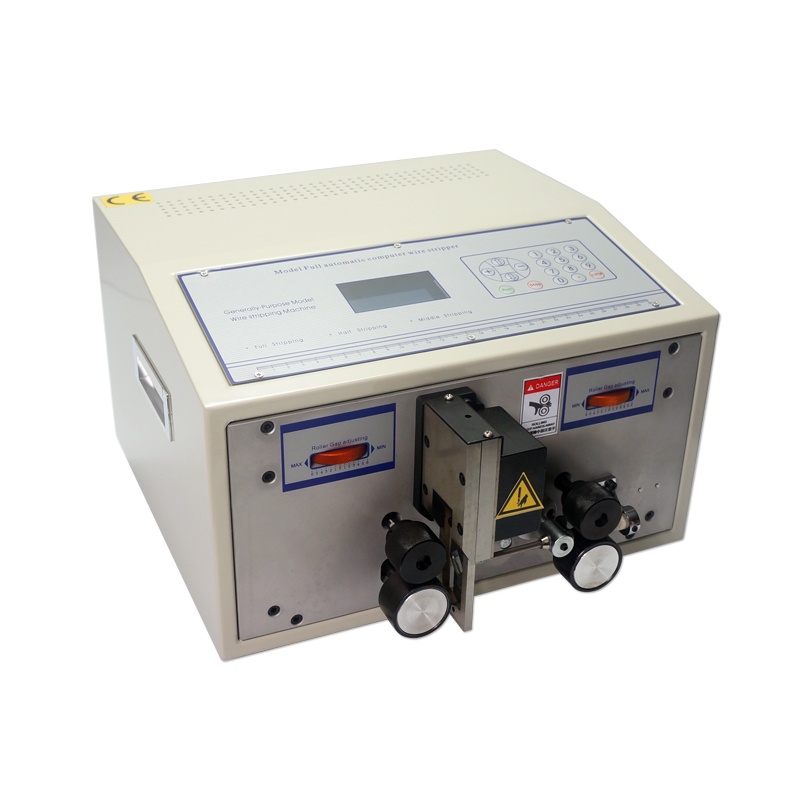

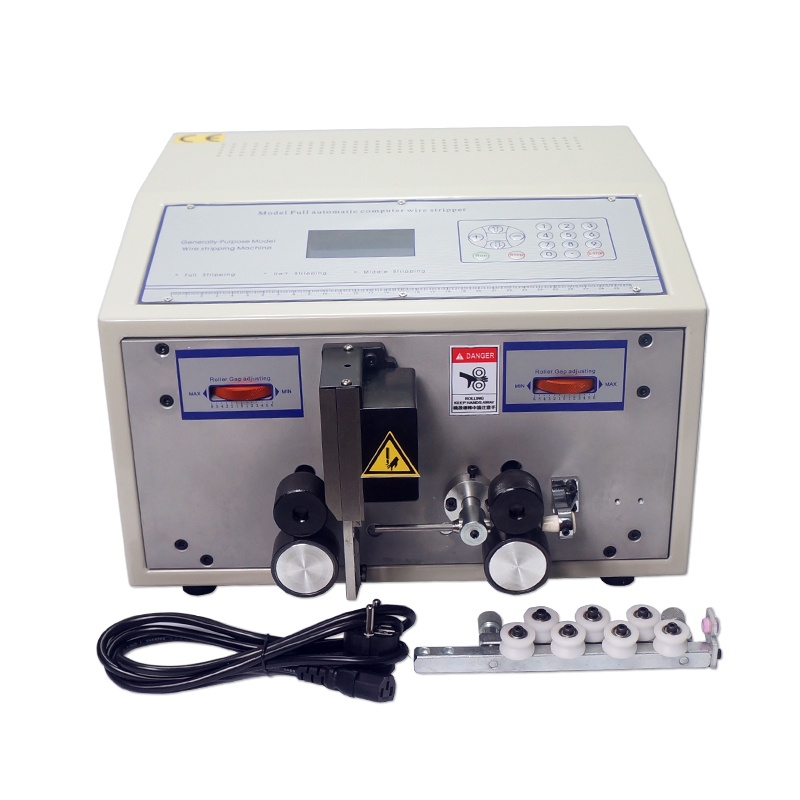

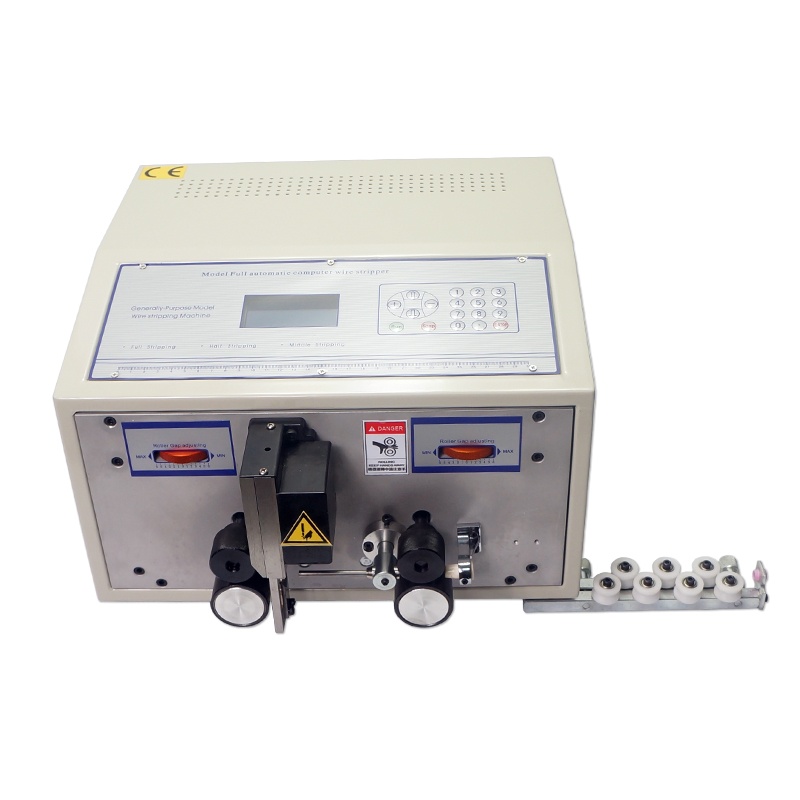

Computer Wire Peeling Striping Cutting Machine/ computer strip wire machine 2.5mm2 SWT508C

 The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function

Applications:

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

 Technical parameters:

 1,The model: SWT508C

 2,Power: AC 110 V / 220 V / 50/60 Hz

 3, POWER:160W

 4,Cutting length: 1-9999 mm

 5,Cutting tolerance: (0.2+/- 0.002 by L) mm

 6,Cut off the error: can be modified

 7,Stripping length: thrum 0-35, wire ends 0-15 mm

 8,Middle strip cut: eleven place strip

 9,Cutting wire core section: 0.1-2.5mm2 was the (AWG16 #-AWG32 #)

 10,The biggest diameter ducts: 6

 11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

 12,The blade material: hard tungsten steel (import BaiGang optional)

 13,Peel linear velocity (a/hour) : L = 100 mm, 3000 8000 PCS/h (high yield)

 14,Driving way: two wheel drive

 15,Envelop dimensions: 390 x350x255

 16,weight:30KG

 17,Showing the way: Chinese and English LCD interface

 18, 12 months warranty
