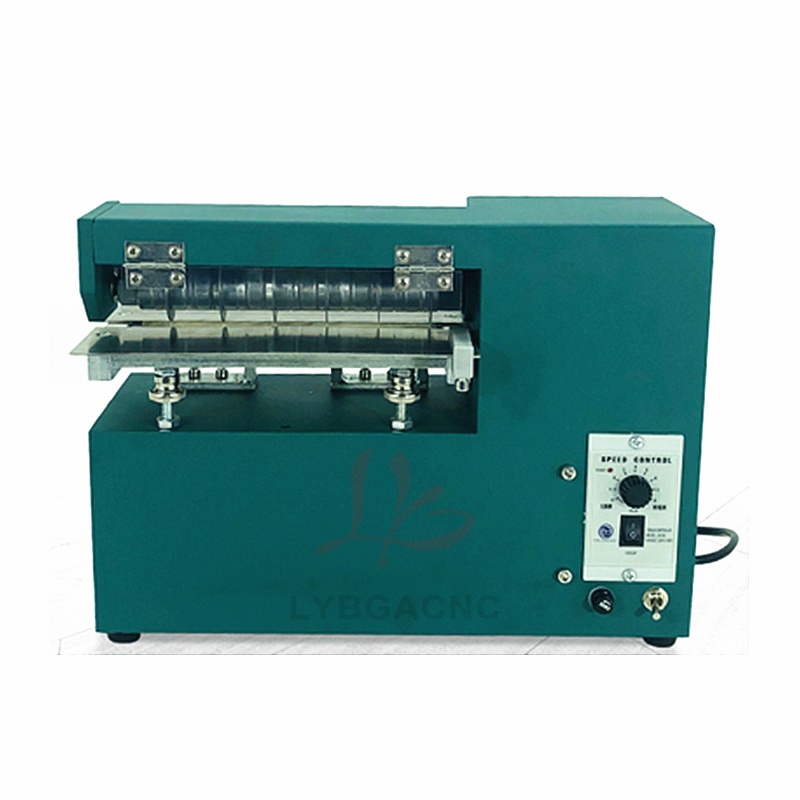

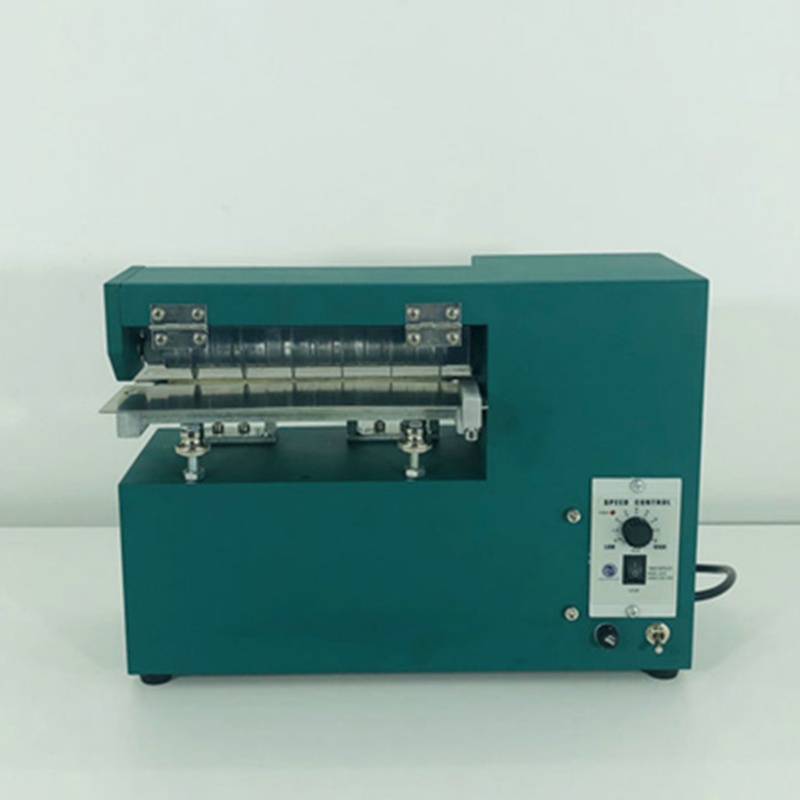

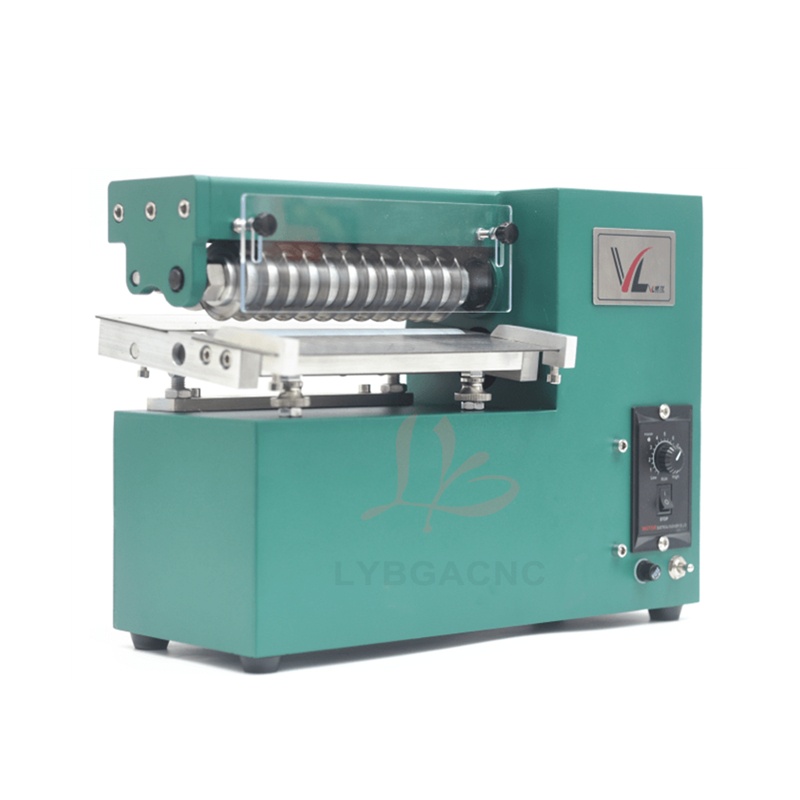

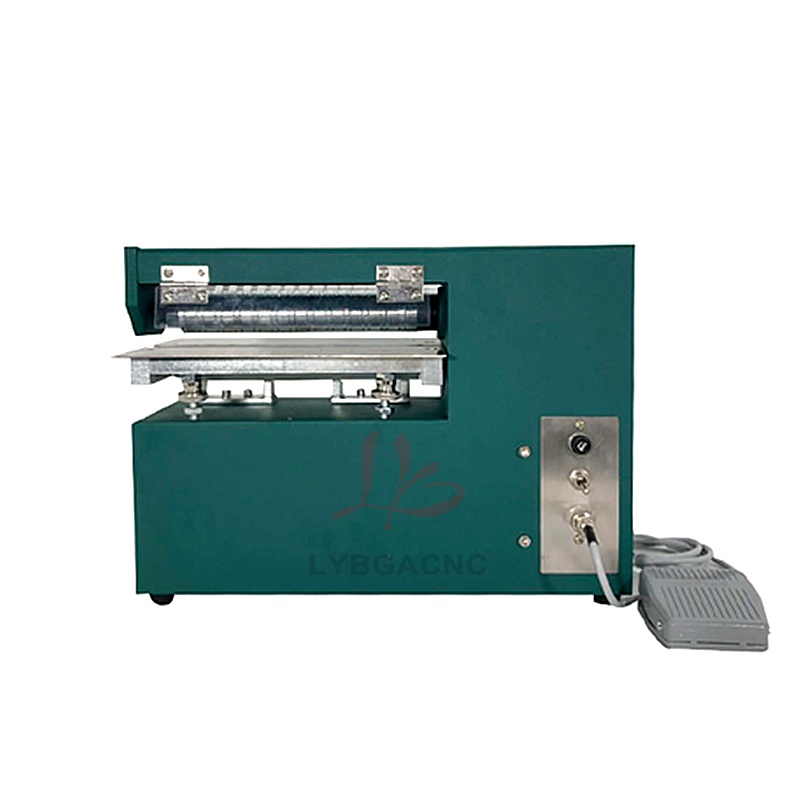

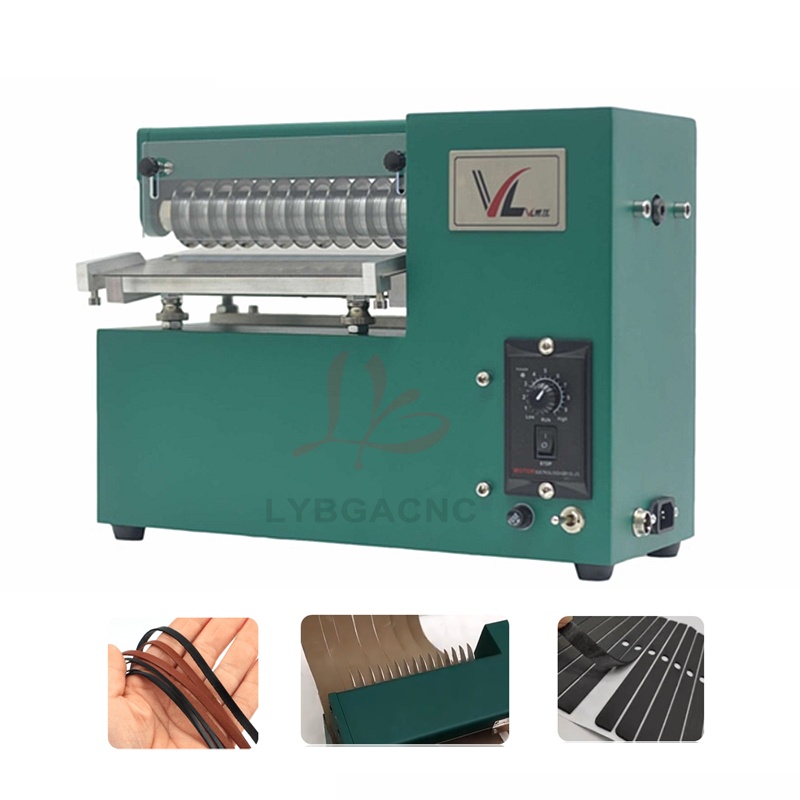

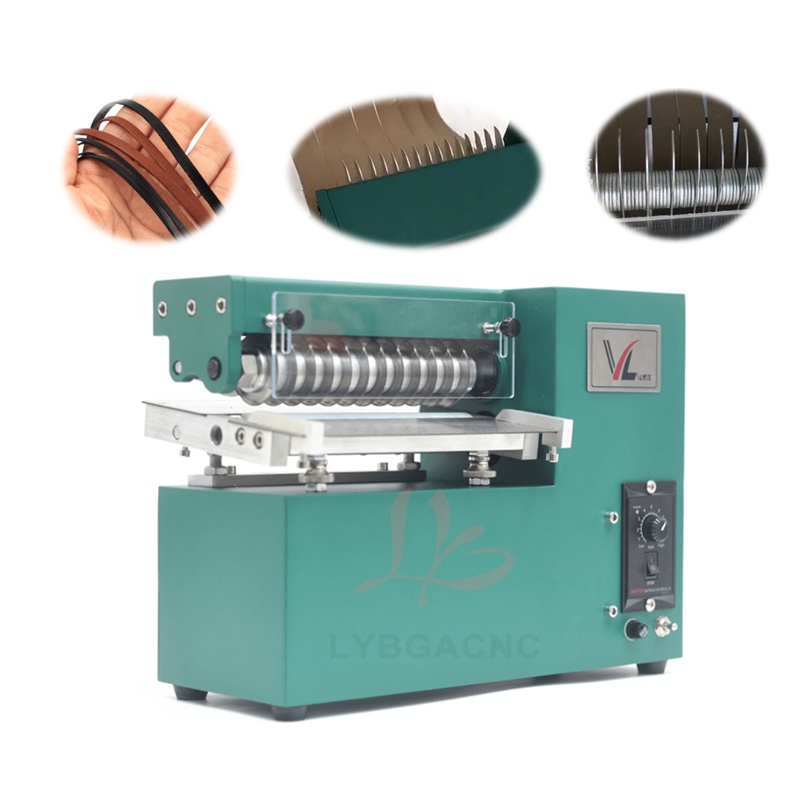

Leather Slitter Machine Belt Cutter Strap Cutting Machine Edge Folding Laminating Machine Leather craft Slicer 220V 110V Cutting width 2-200MM

Leather Slitter Machine Belt Cutter Strap Cutting Machine Edge Folding Laminating Machine Leather craft Slicer 220V 110V Cutting width 2-200MM

Application：

This product is suitable for leather shoes, bags, handicrafts and other leather goods cut straight, It can also be cut paper products.

Cutting thickness: For soft leather, it can cut 6mm thick. For hard leather, it can cut 3mm thick.

Suitable for soft leather thickness less than 3mm, width between 2-200mm

Product parameters:

Product name: Leather Slitter

Voltage: 220V/110V

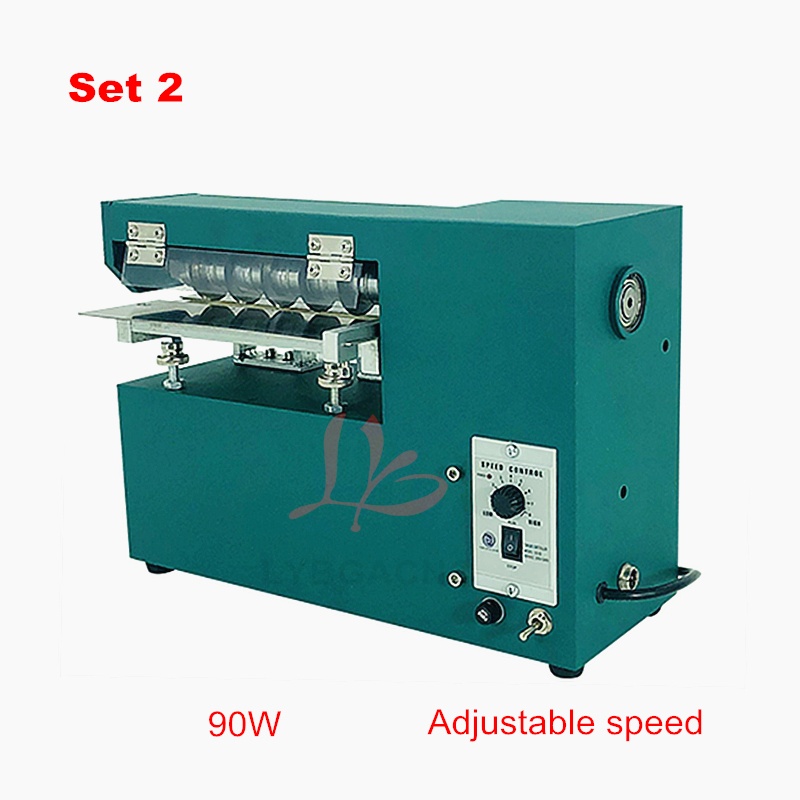

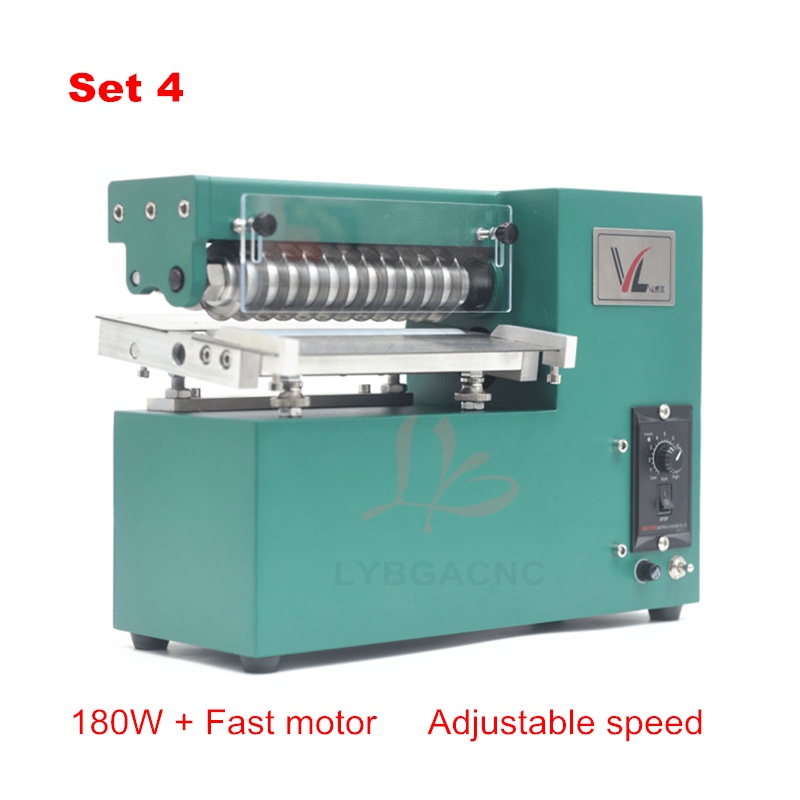

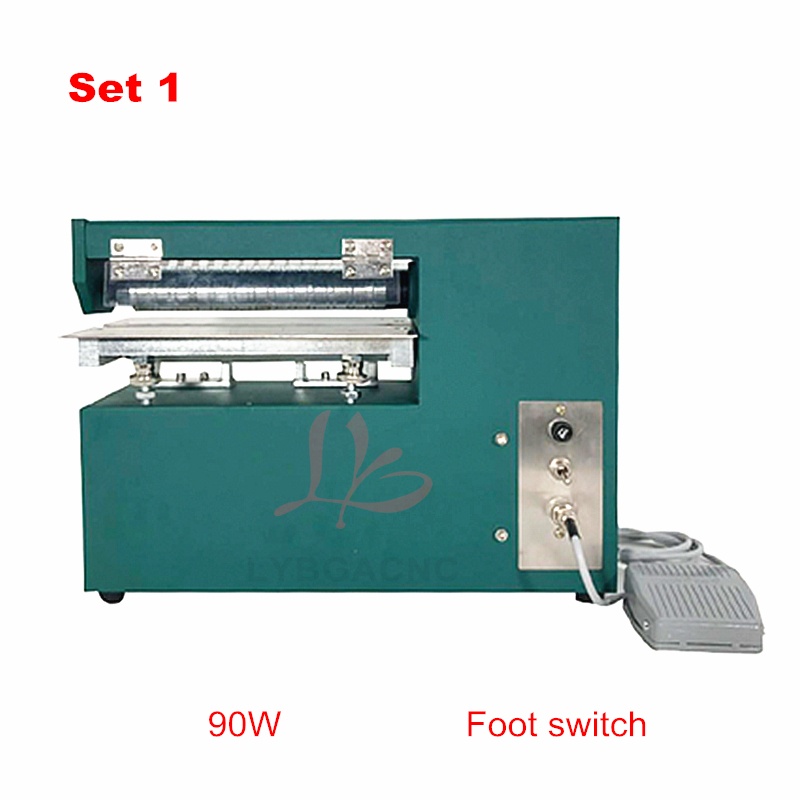

Power: 90W/120W/180W (other can be customized)

Shaft cutting length: 200MM

Cutting width: 2-200MM

Speed ratio: 1: 10

Motor speed: 1600 rpm

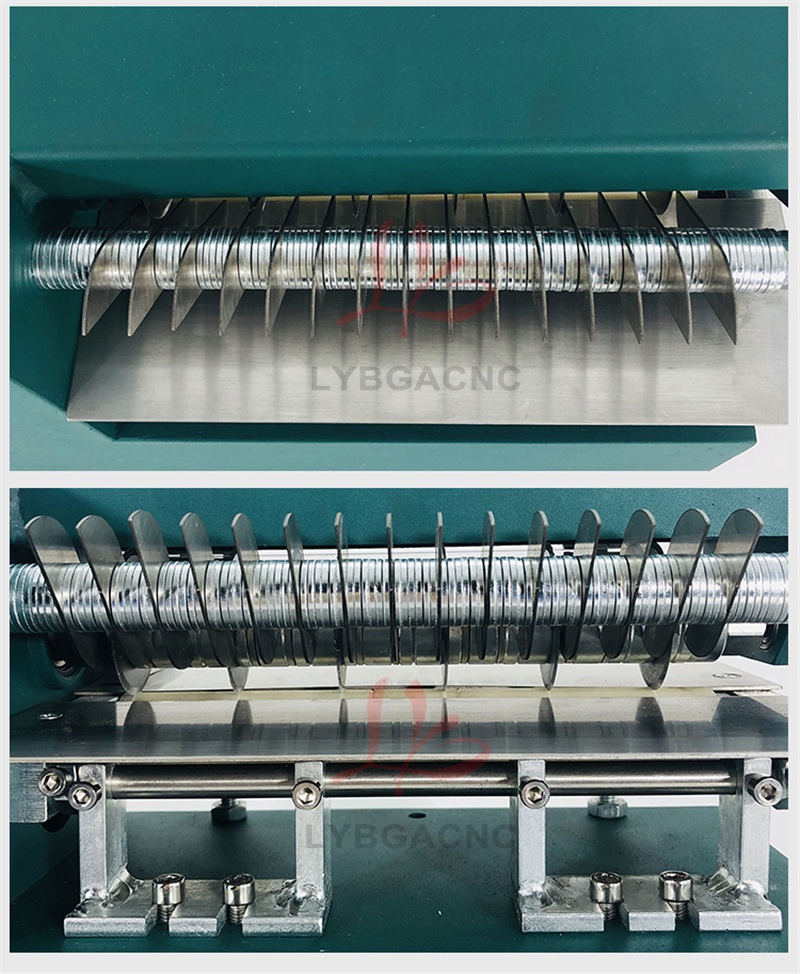

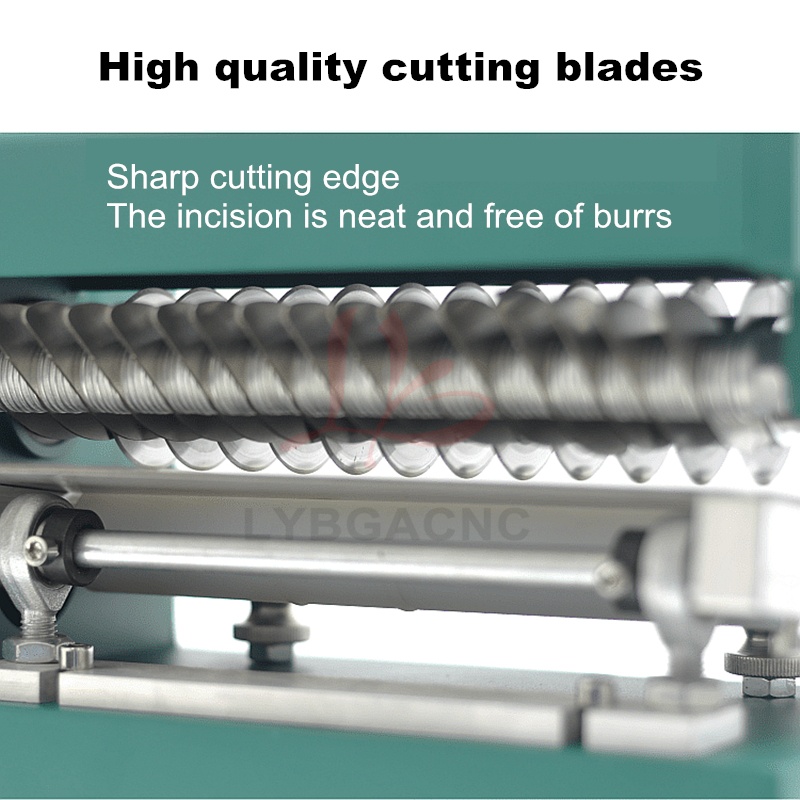

Blade specifications: 50*16*1MM

Net weight: 18kg

Gross weight: 20kg

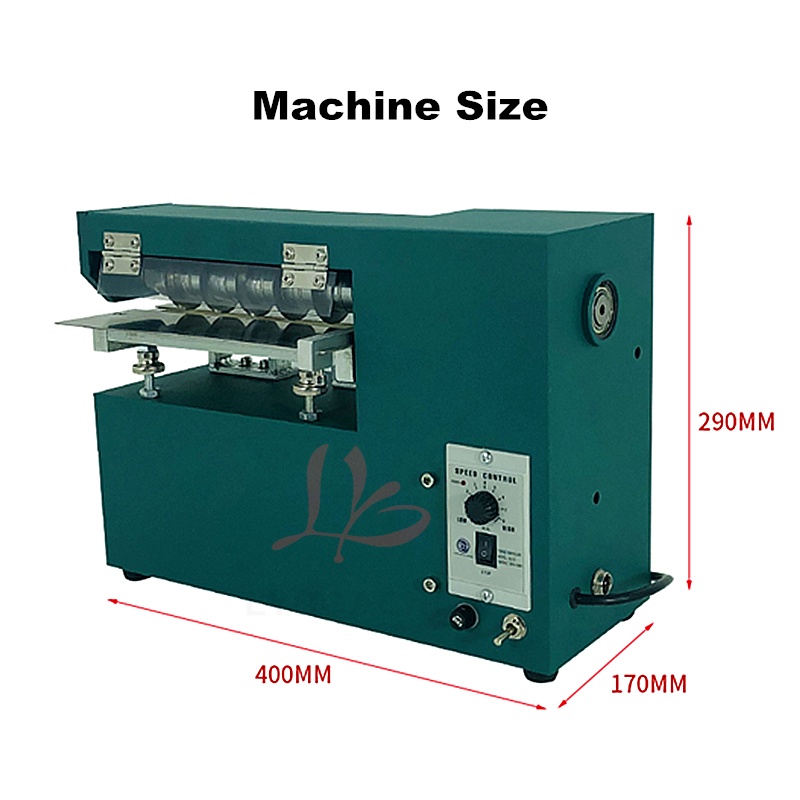

Mechanical size: 400*170*290M

Outer box size: 450*240*350MM

Packing list:

1 x leather Slitter Machine

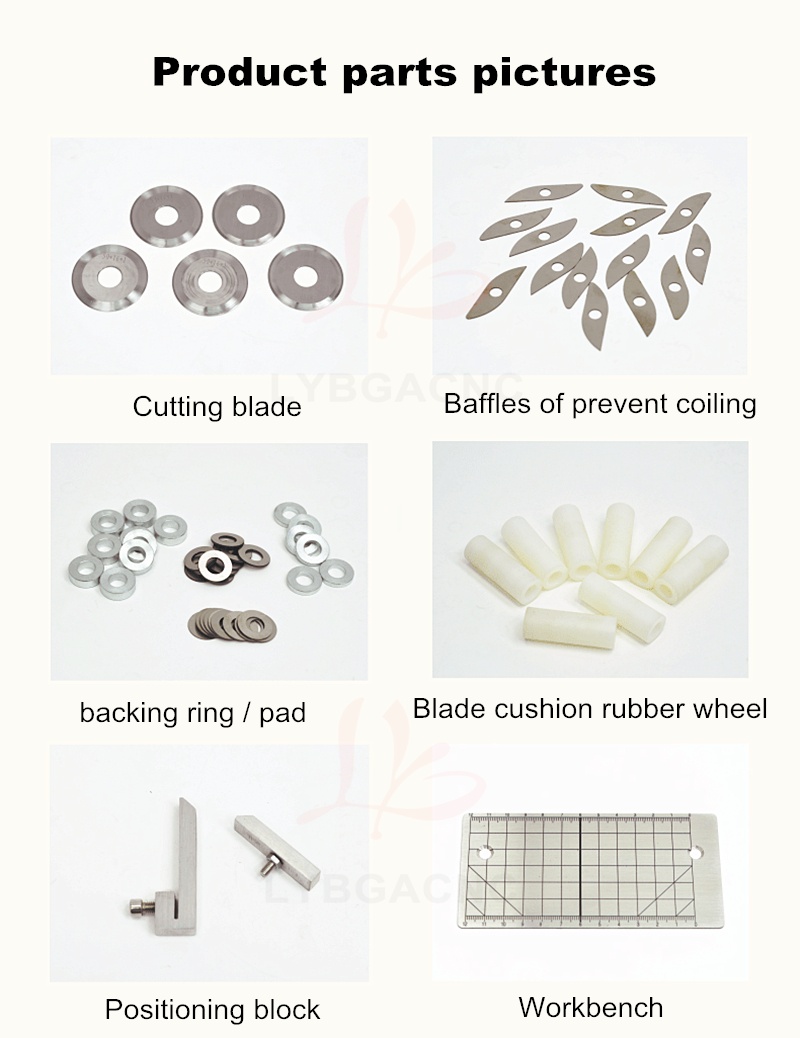

1 x Accessories

Maintenance

1, the lubrication hole filling oil regularly, prevent the rotation axis of normal lubrication and wear or killed.

2, should pay attention to safety when using, do not reach out her hand to the blade when the machine is turning.

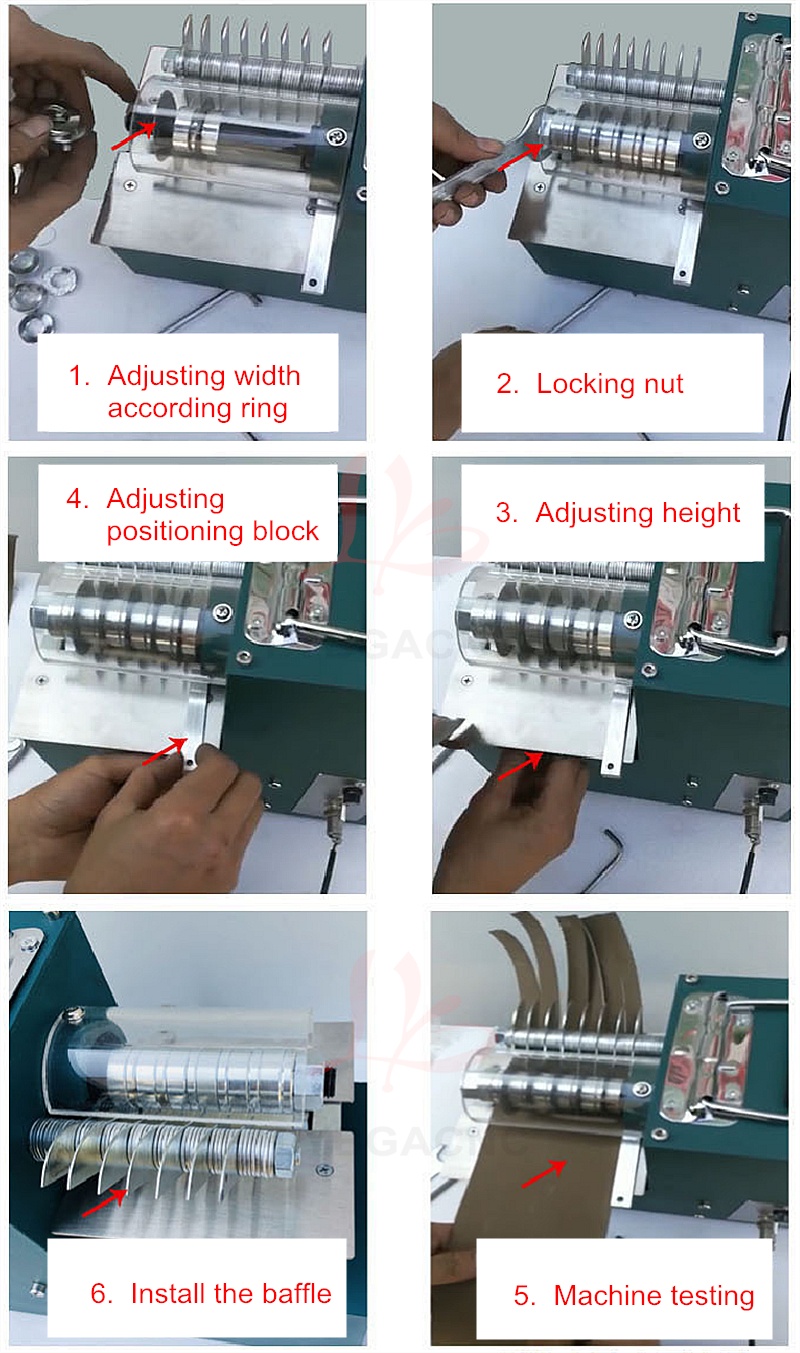

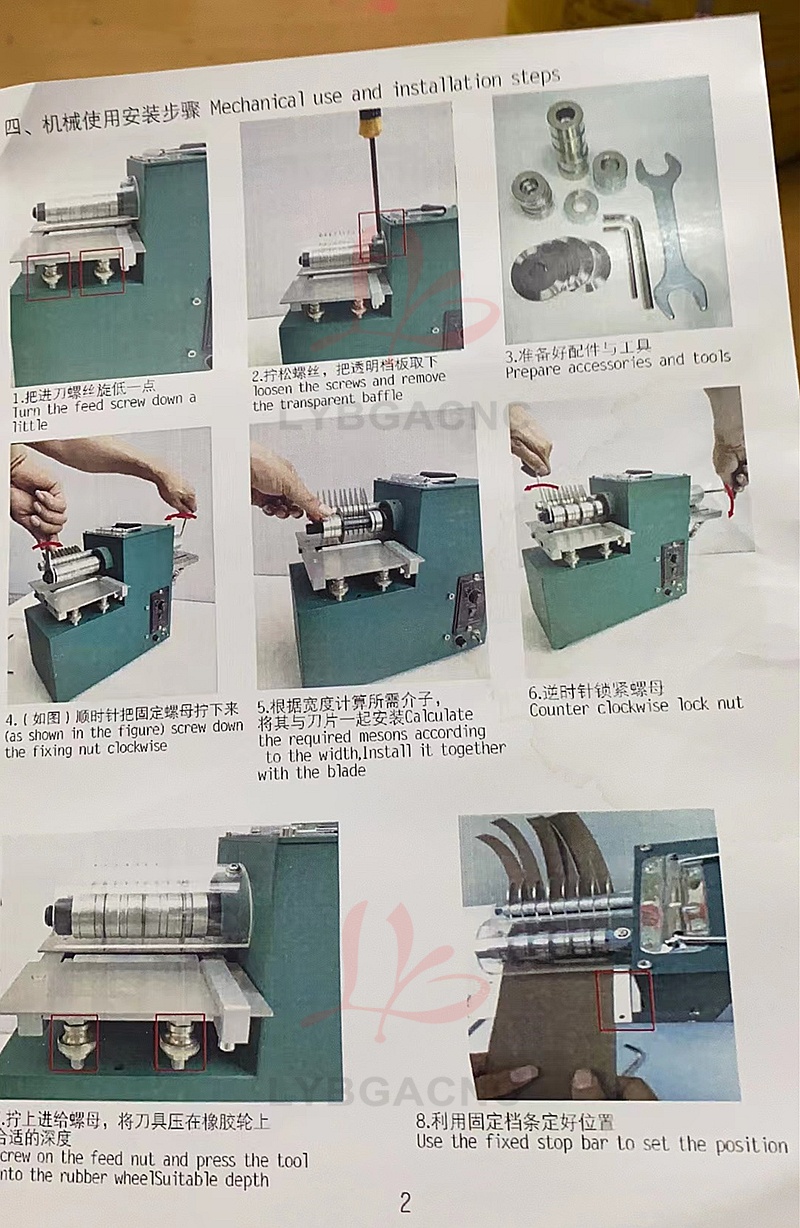

3, use for a long time that the condition of the rod nylon washer, serious breakage of workpiece in cutting burr should beoff work at this time, open beside cover board, use special wrench to loosen the nut, loose screws, unload swinging rod. Pull the nylon washer, with the changing location method, nylon ring again.

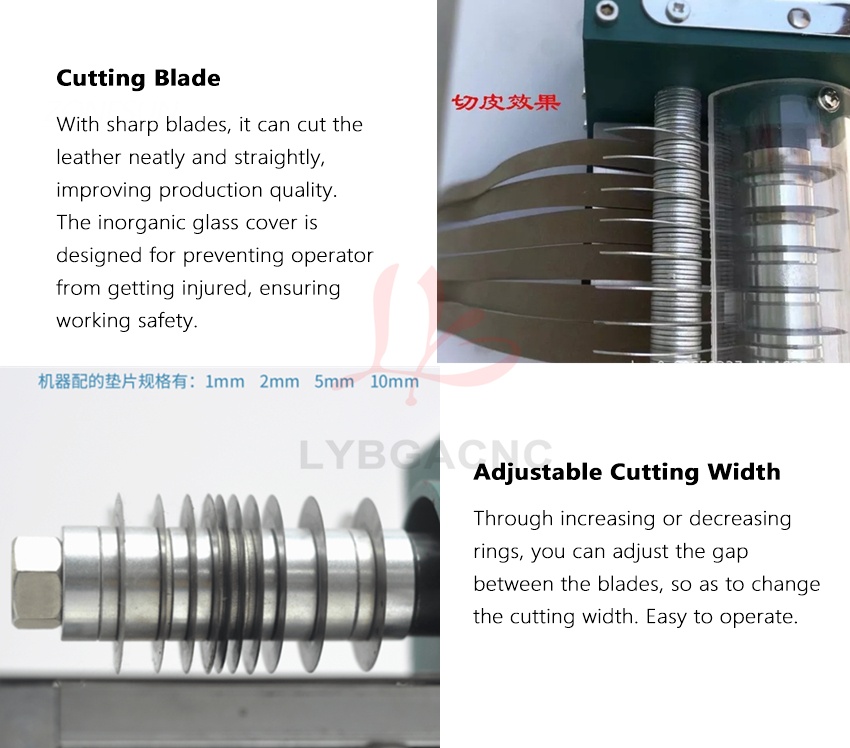

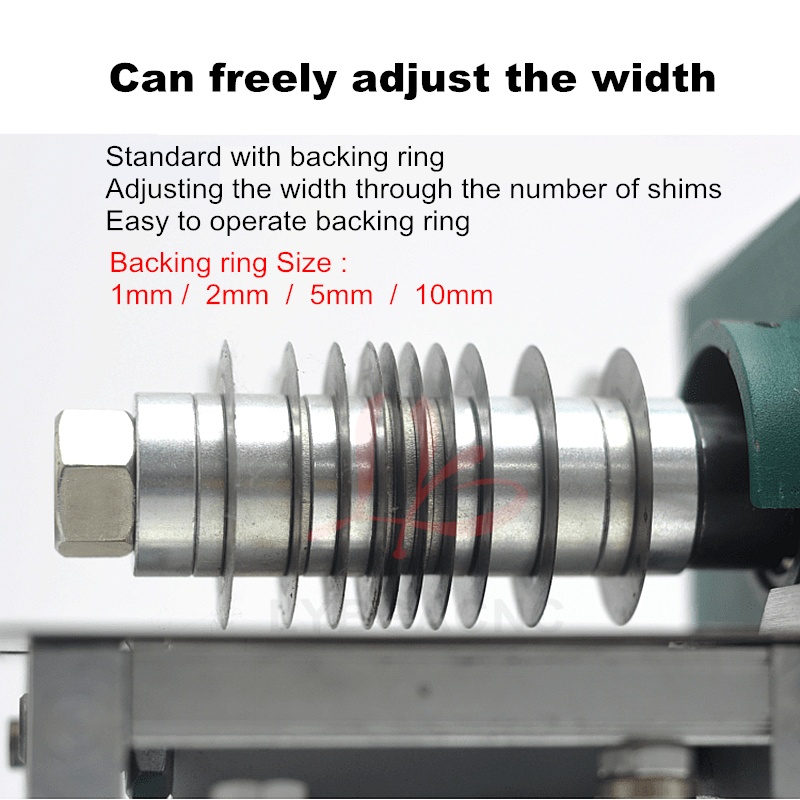

4, if users need special cutting width of the workpiece, can be made to our various types of special gasket.

5, power supply should be safety grounding, ensure no leakage phenomenon.

Notice

The standard machine is without leather hemming component, which should be bought separately. It should be customized according to leather’s size. Please contact us if you need .
