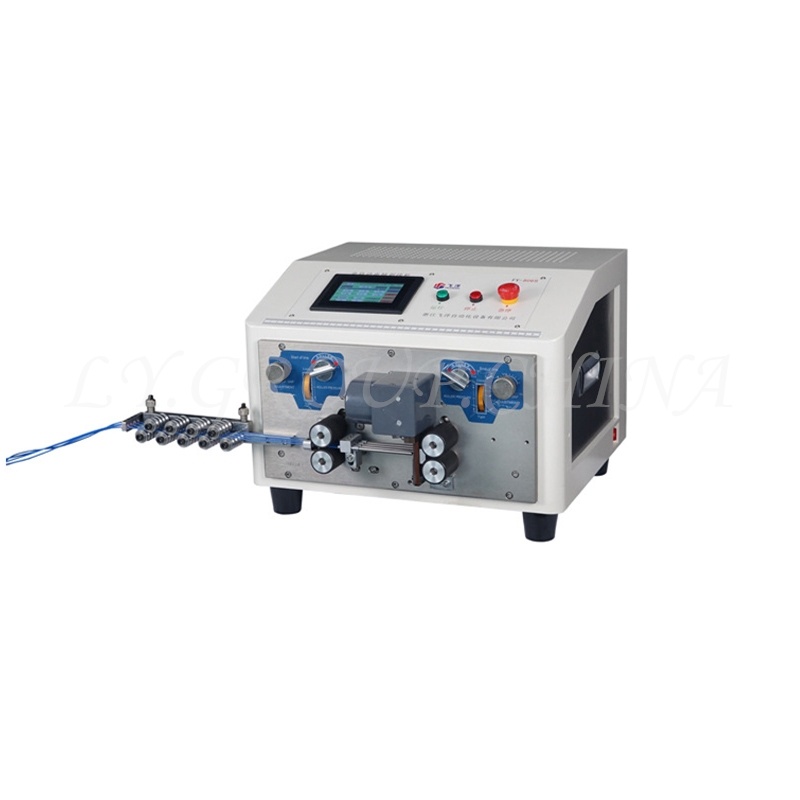

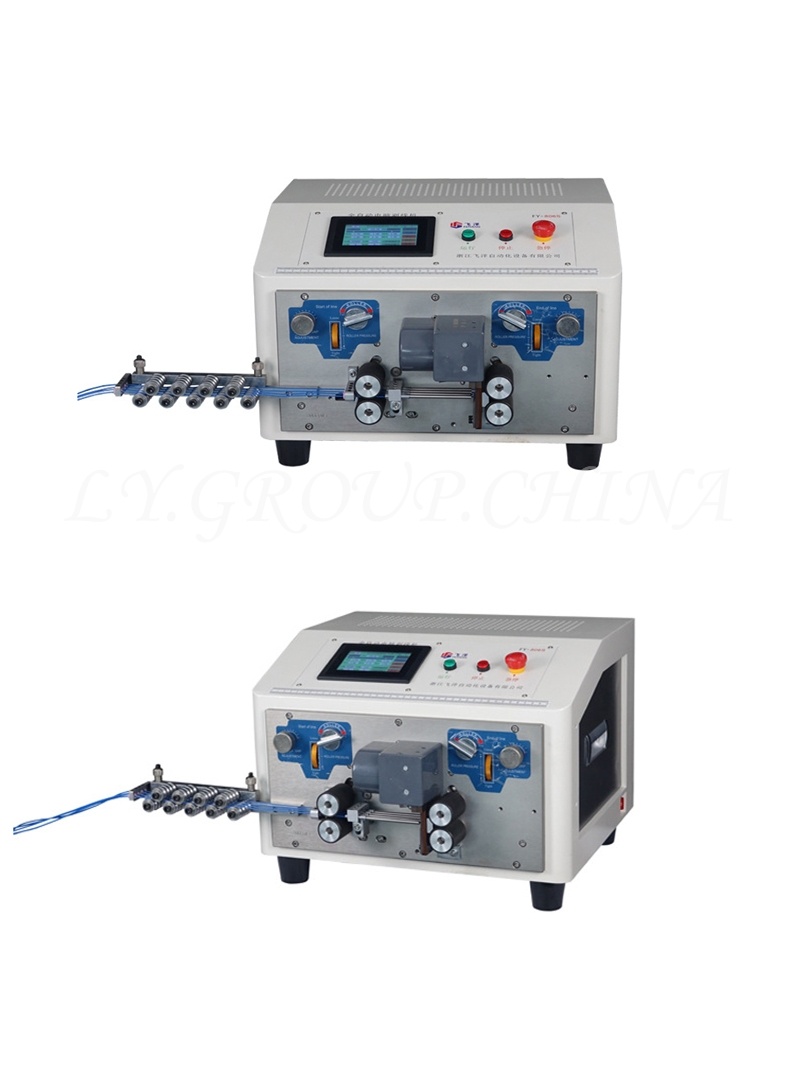

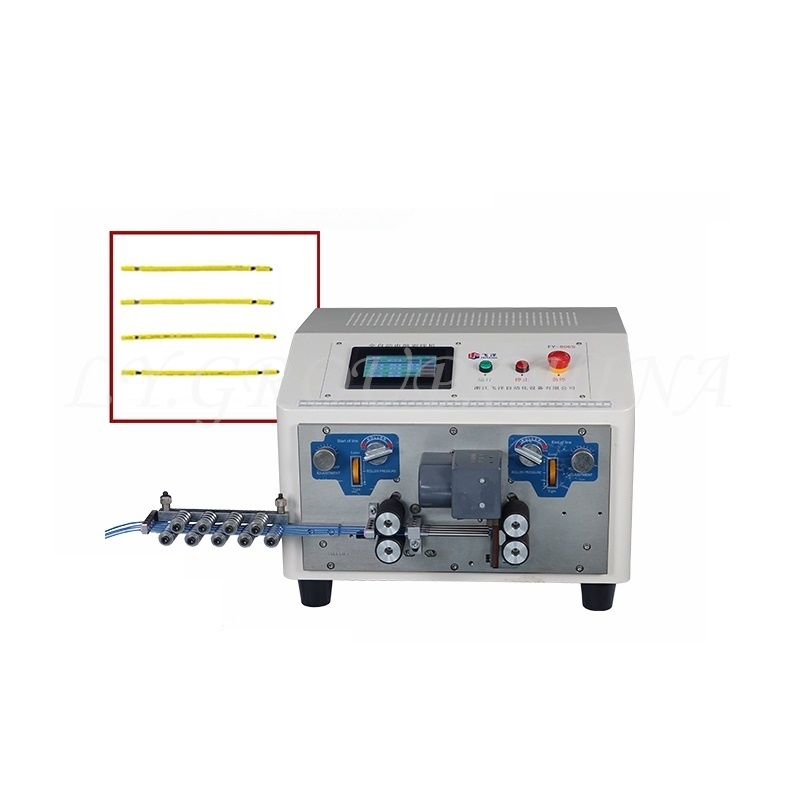

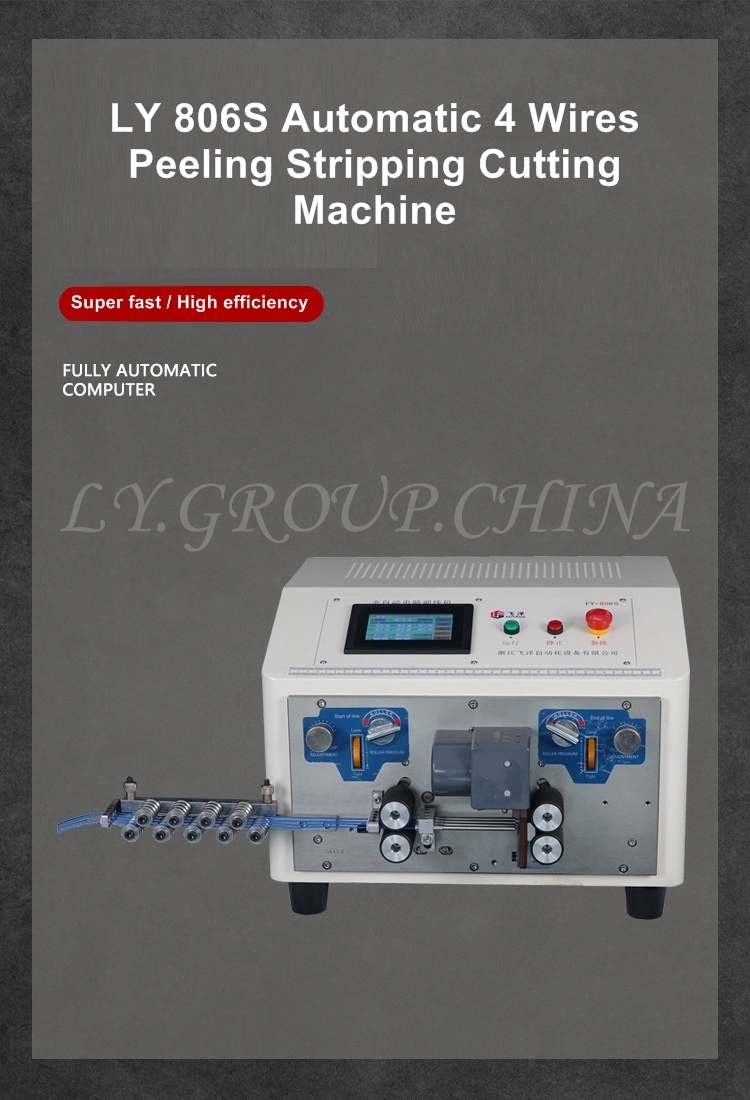

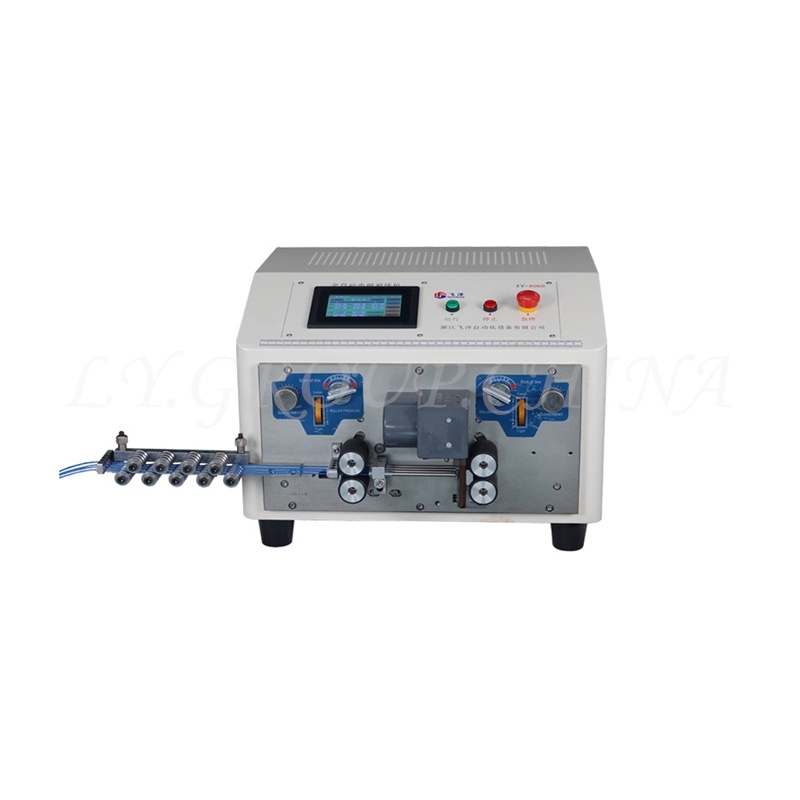

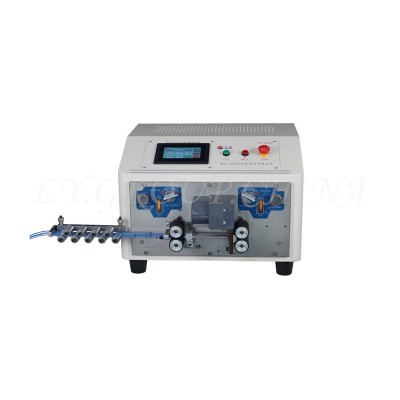

LY 806S Automatic Computer 4 Wires Touch Screen Electric Peeling Stripping Cutting Machine Strip 4pcs wires 0.1mm-1.5mm²

(RE:. Crystal Protect case not included, if need please leave message to seller.)

Applications:

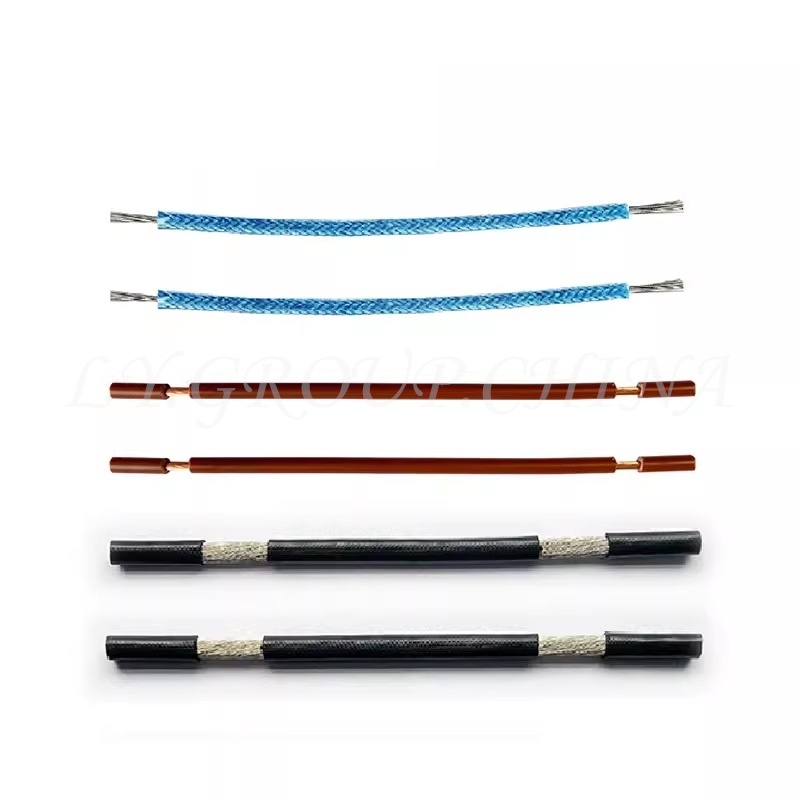

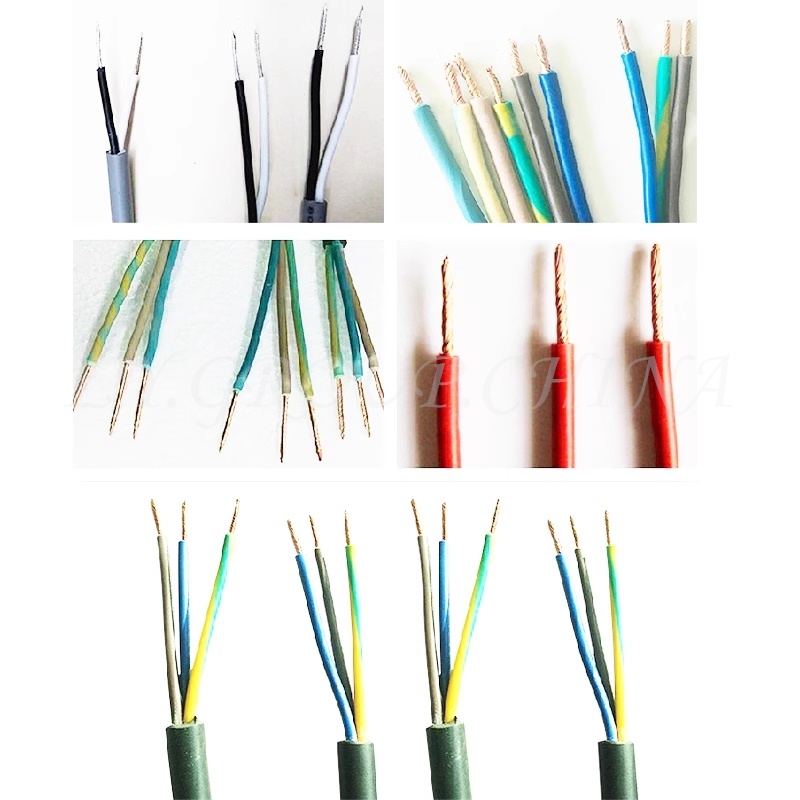

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

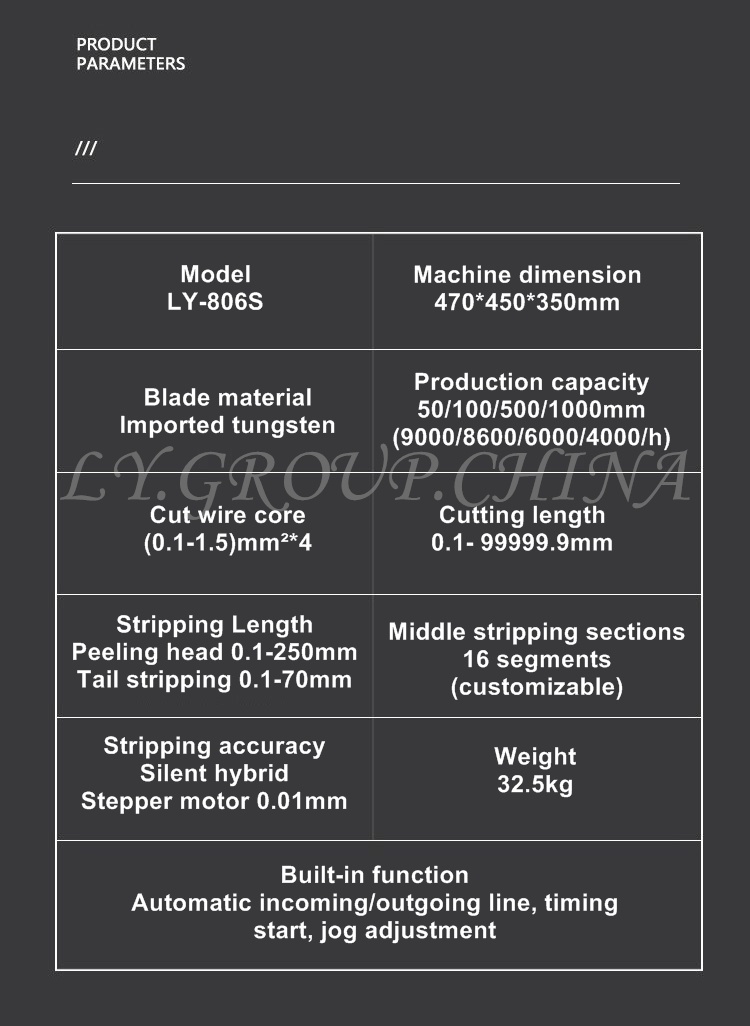

Technical parameters:

Model

LY -806S

Machine dimension

470*450*350mm

Blade material

Imported tungsten

Production capacity

50/100/500/1 000mm

 (9000/8600/6000/4000/h)

Cut wire core

(0.1-1 .5)mm2*4

Cutting length

0.1- 99999.9mm

Stripping Length

Peeling head 0.1-250mm

Tail stripping 0.1-70mm

Middle stripping sections

16 segments

 (customizable)

Stripping accuracy

Silent hybrid

Stepper motor 0.01mm

Weight

32.5kg

Built-in function

Automatic incoming/outgoing line, timing

start, jog adjustment
