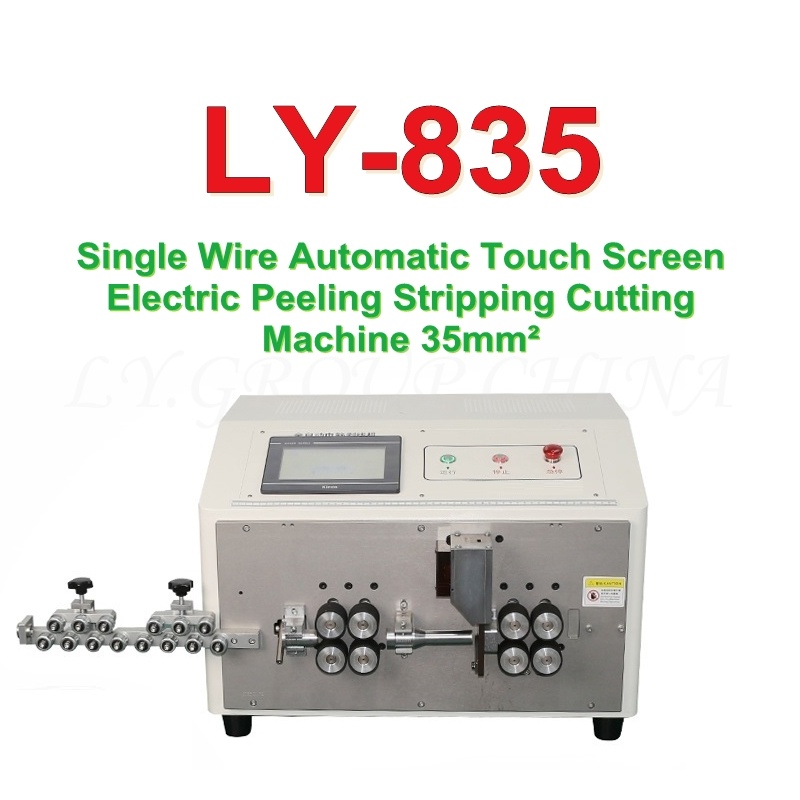

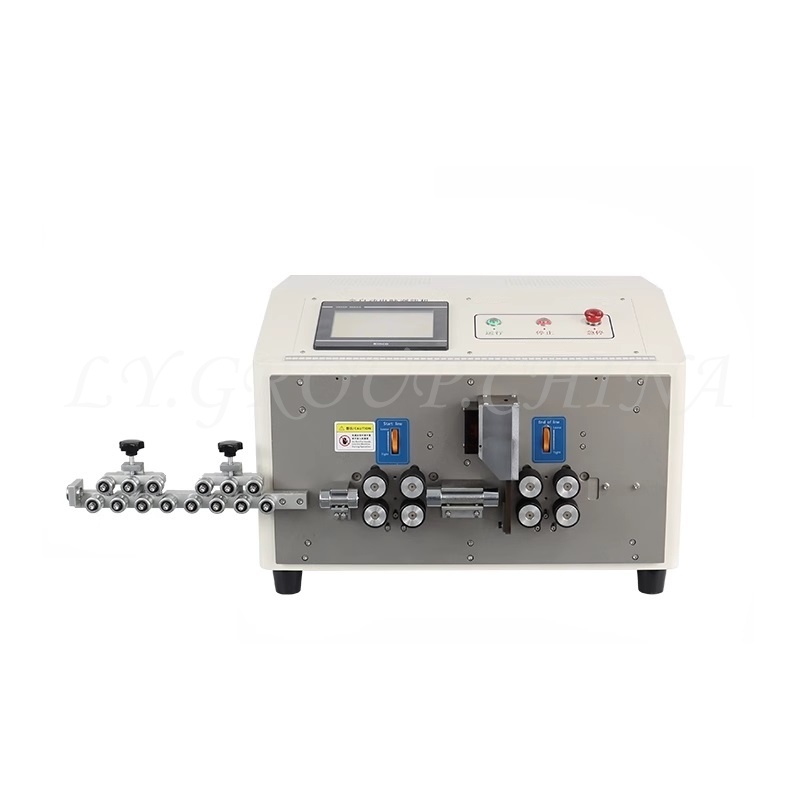

LY 825 835 Single Wire Automatic Touch Screen Electric Peeling Stripping Cutting Machine 8 Wheels For Computer strip wire 25mm2 35mm2 Optional
Reviews(0)
Product Detail
Product Tags

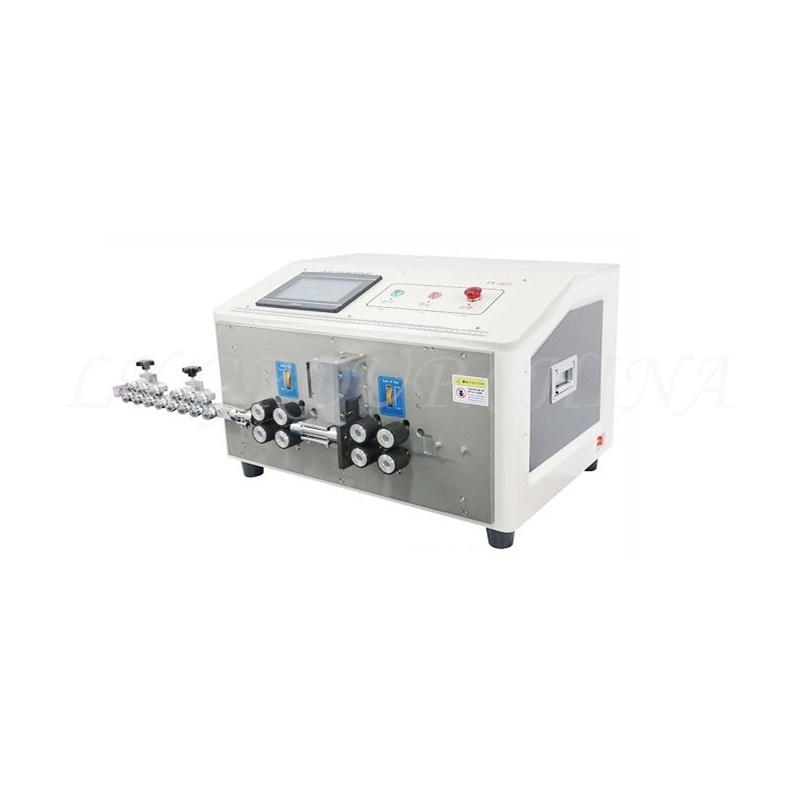

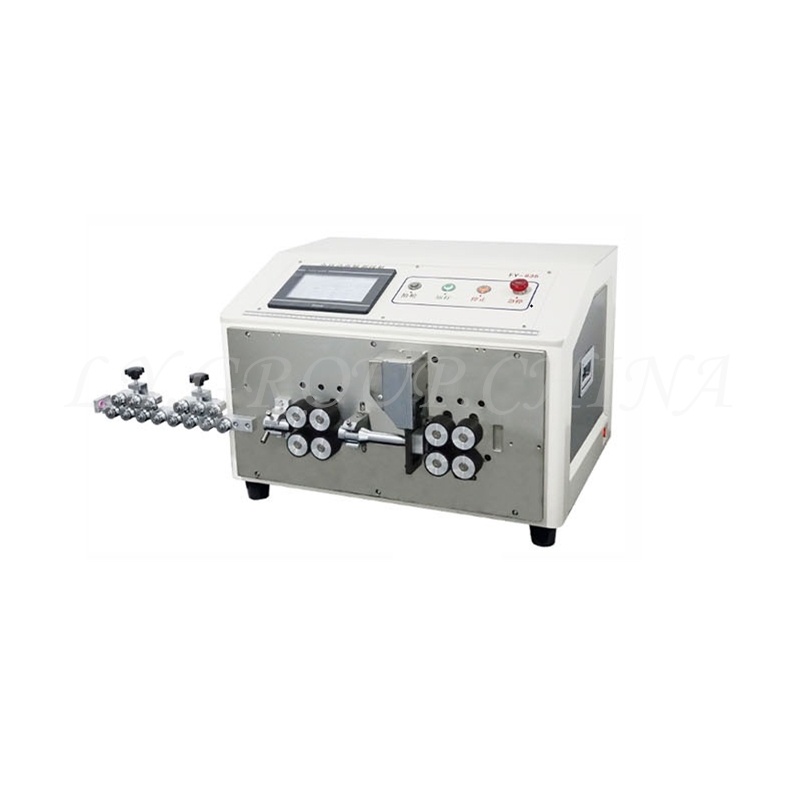

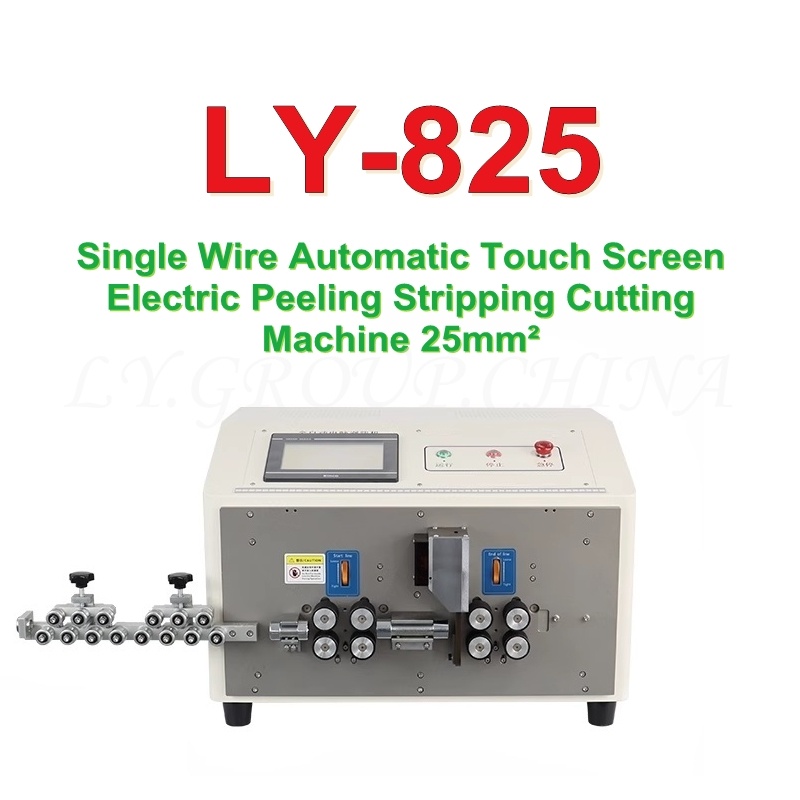

LY 825 835 Single Wire Automatic Touch Screen Electric Peeling Stripping Cutting Machine 8 Wheels For Computer strip wire 25mm2 35mm2 Optional
(RE:. Crystal Protect case not included, if need please leave message to seller.)
Applications:

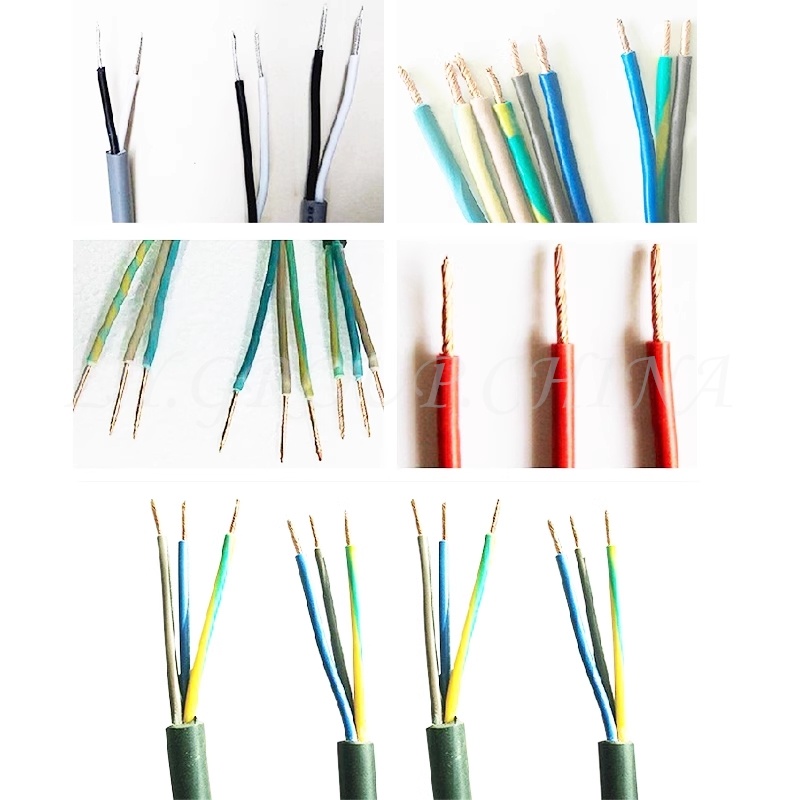

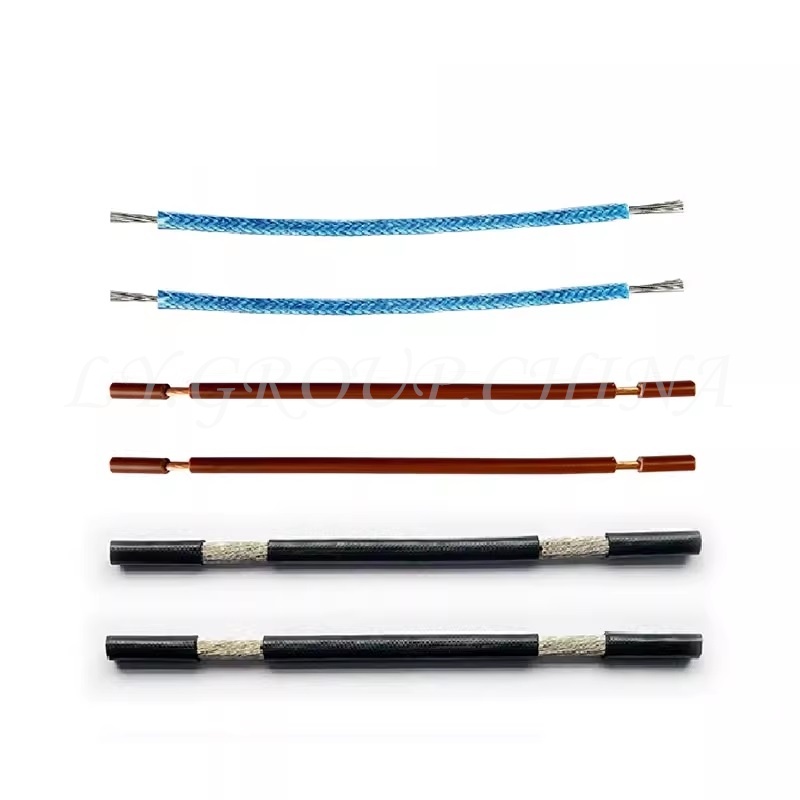

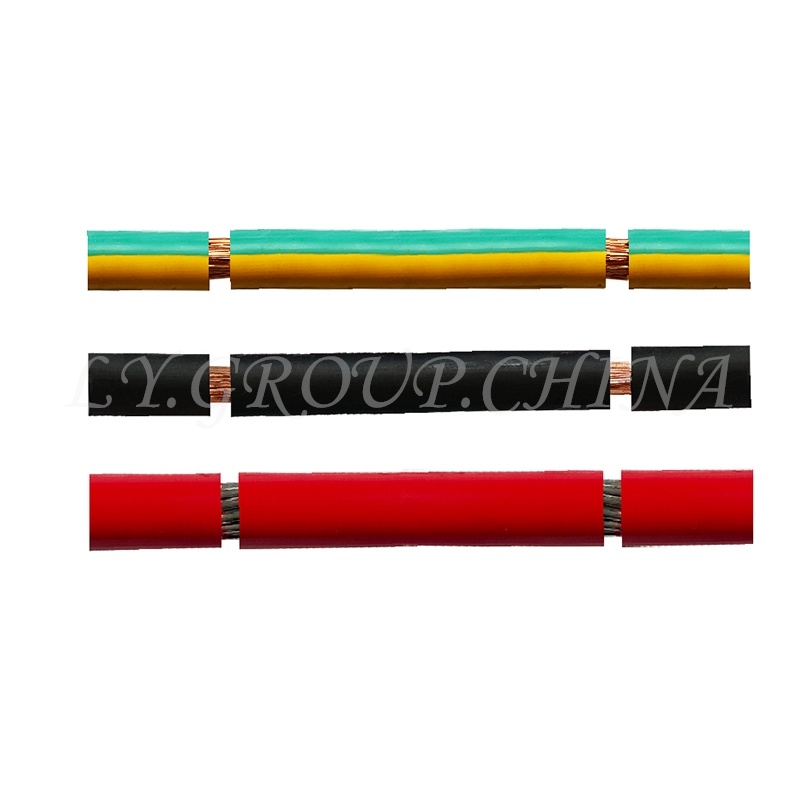

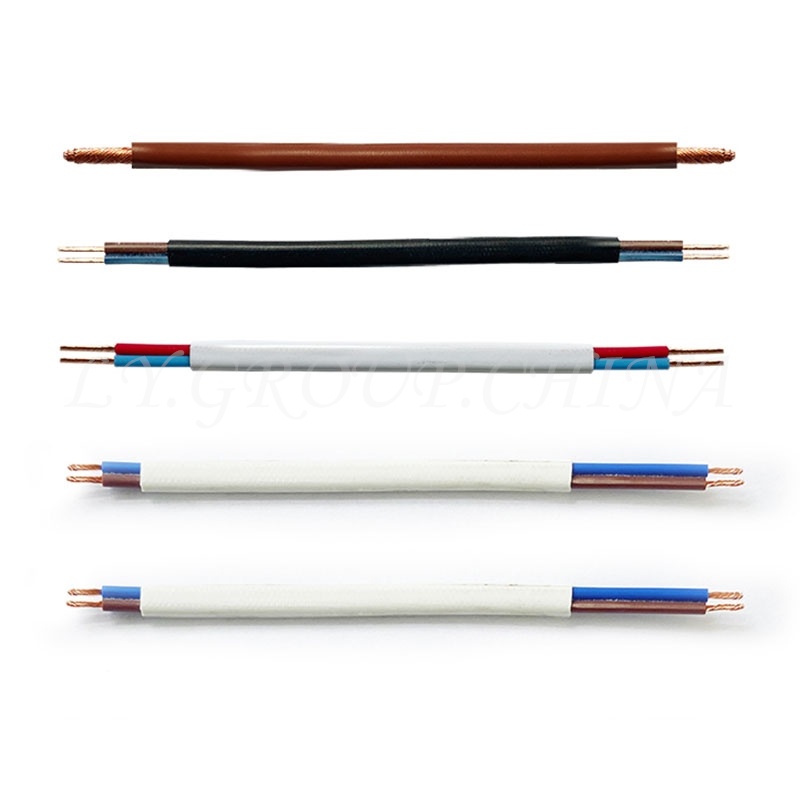

Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

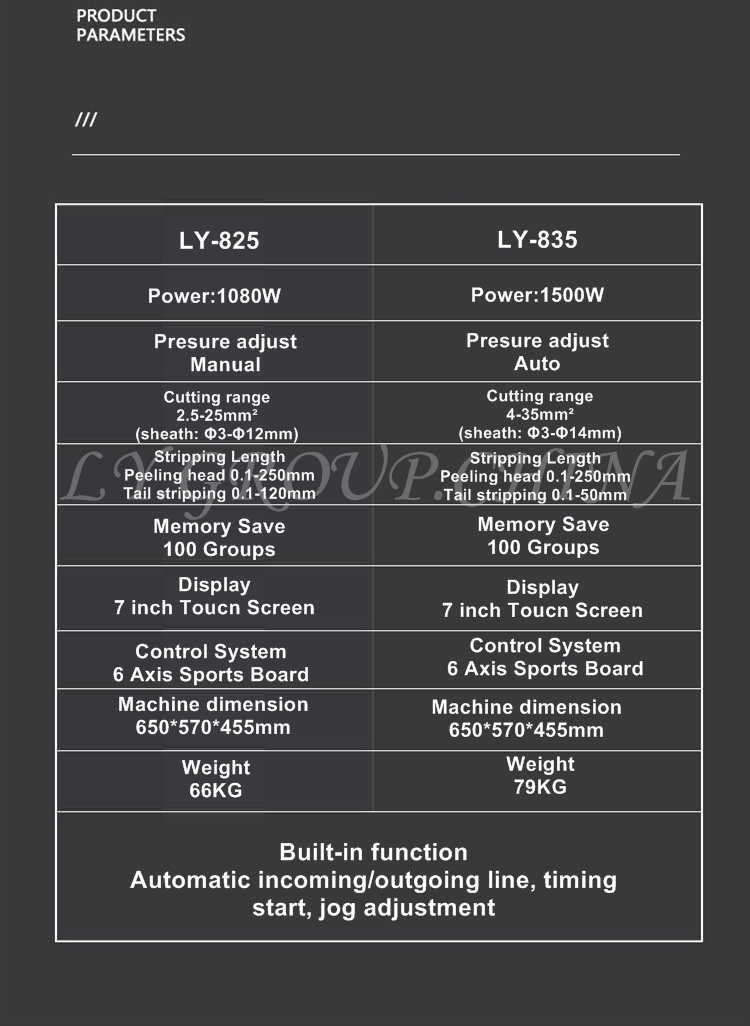

Technical parameters:
|
LY-825 |
LY-835 |
|
Power:1080W |
Power:1500W |
|
Presure adjust |
Presure adjust |
|
Manual |
Auto |
|
Cutting range |
Cutting range |
|
2.5-25mm2 |
4-35mm2 |
|
(sheath: φ3-φ12mm) |
(sheath: φ3-φ14mm) |
|
Stripping Length |
Stripping Length |
|
Peeling head 0.1-250mm |
Peeling head 0.1-250mm |
|
Tail stripping 0.1-120mm |
Tail stripping 0. 1-50mm |
|
Memory Save |
Memory Save |
|
100 Groups |
100 Groups |
|
Display |
Display |
|

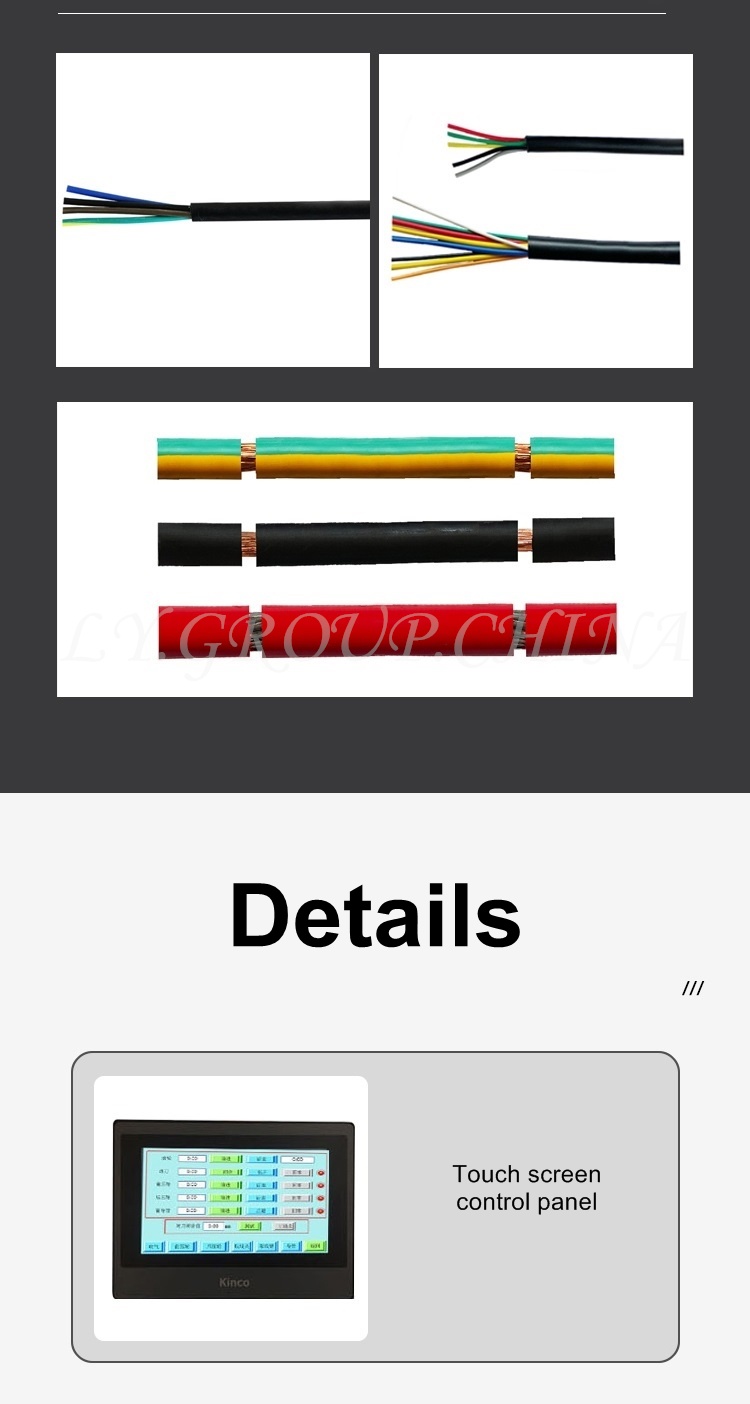

7 inch Toucn Screen |
7 inch Toucn Screen |
|
Control System |
Control System |
|
6 Axis Sports Board |
6 Axis Sports Board |
|
Machine dimension |
Machine dimension |
|
650* 570*455mm |
650*570*455mm |
|
Weight |
Weight |
|
66KG |
79KG |
Thanks for your order!

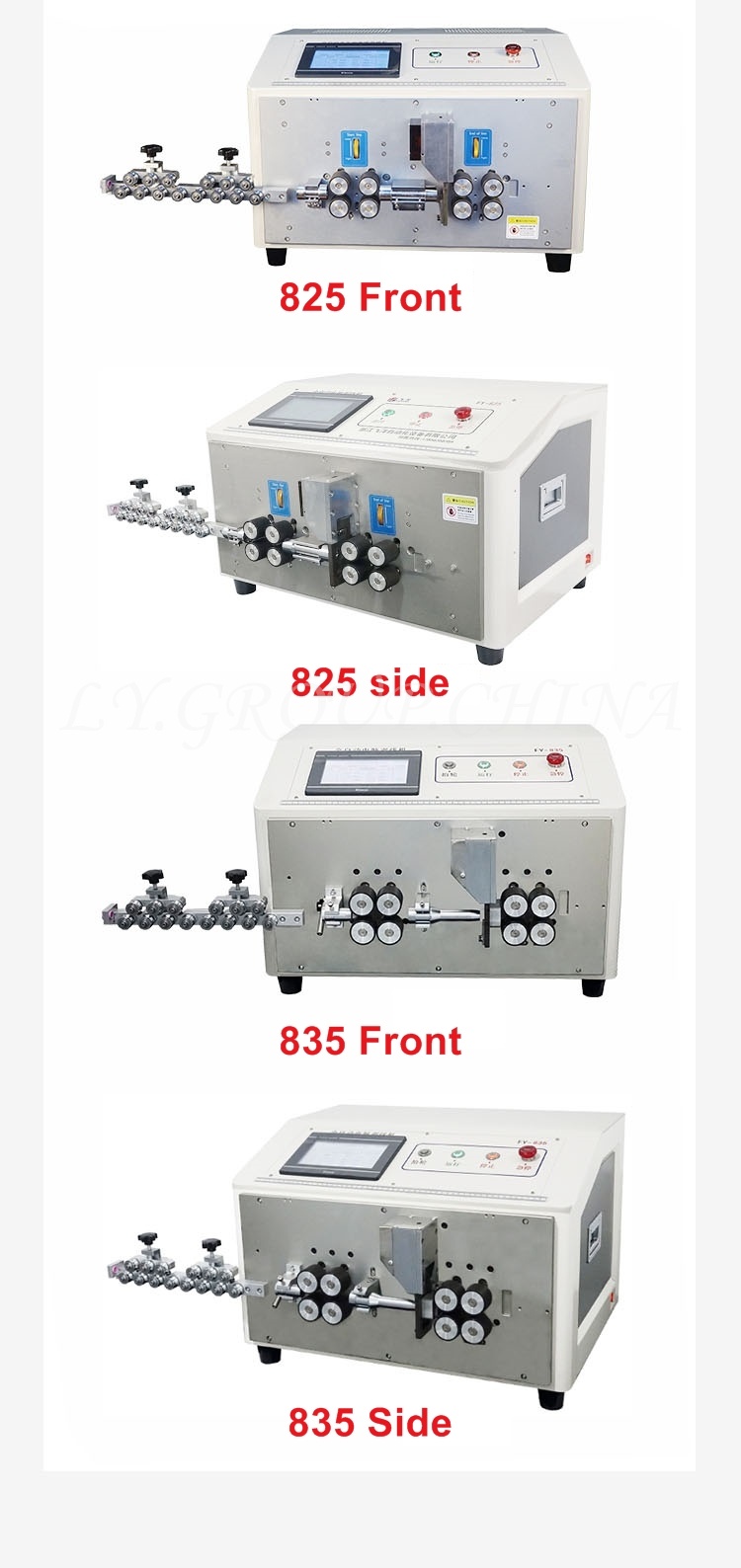

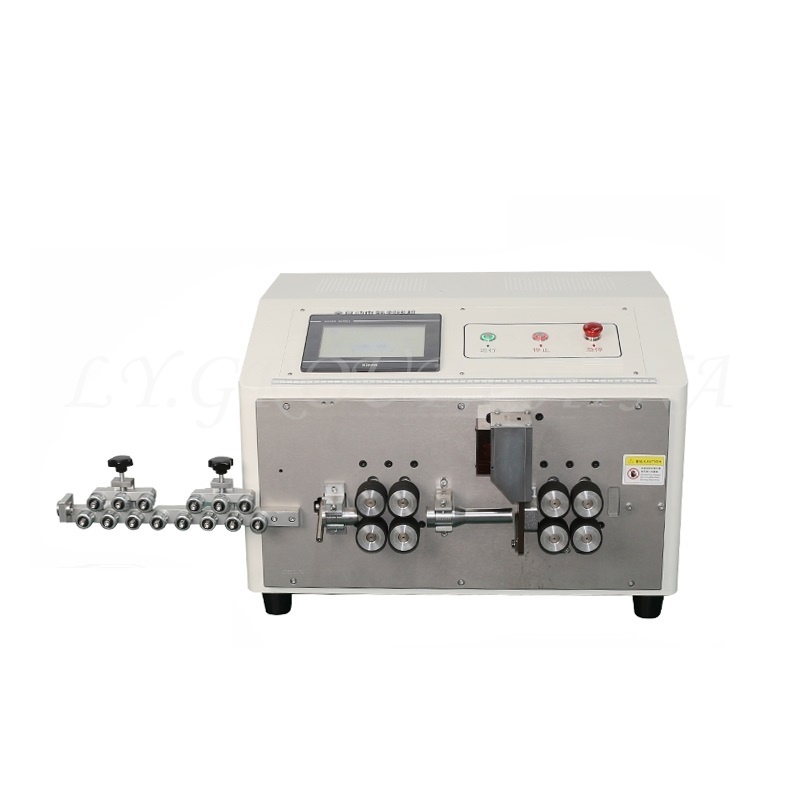

Product Pictures
