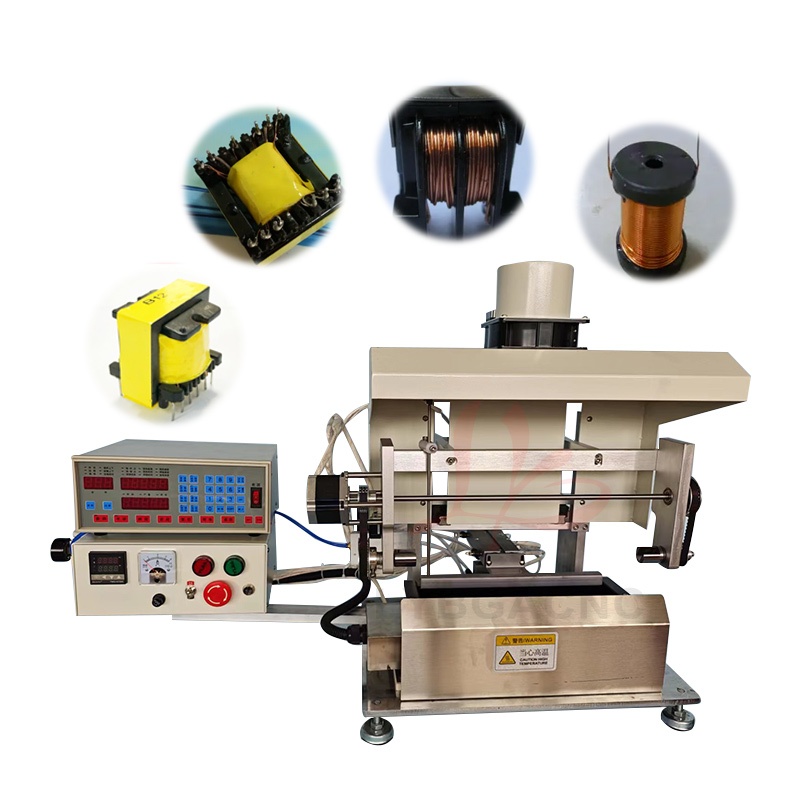

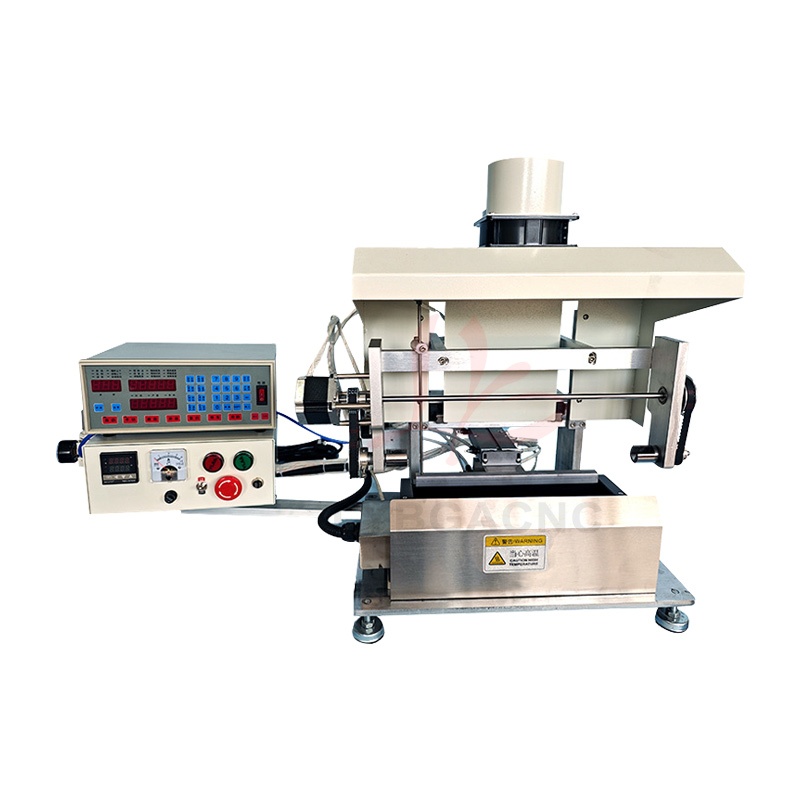

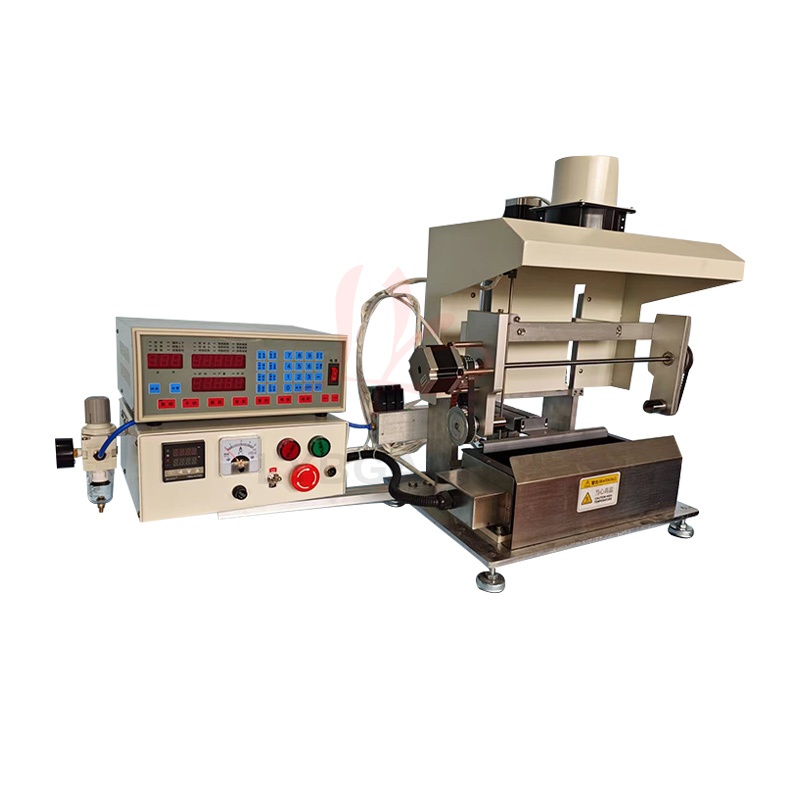

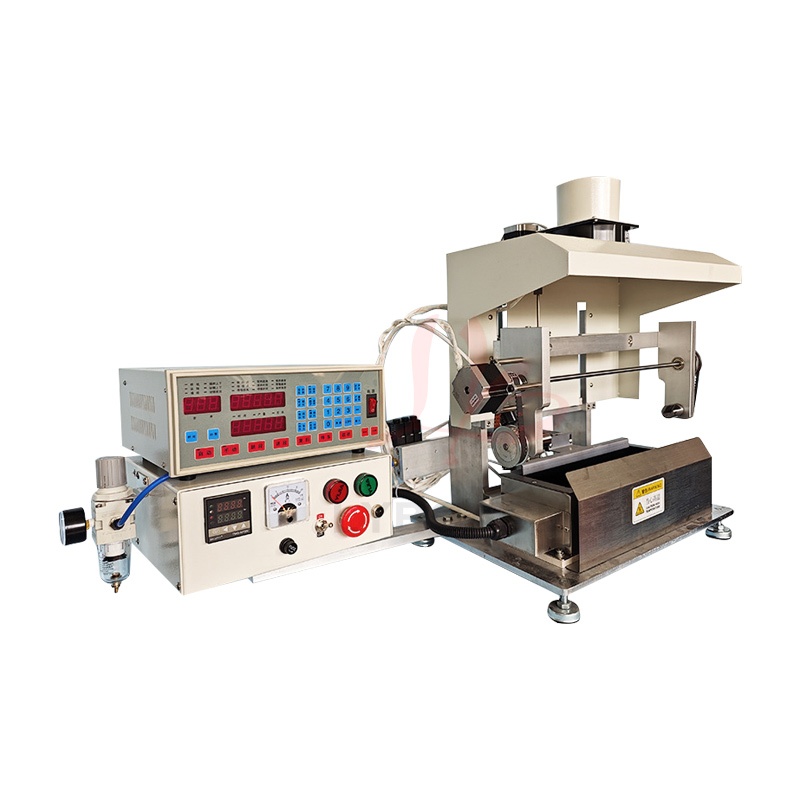

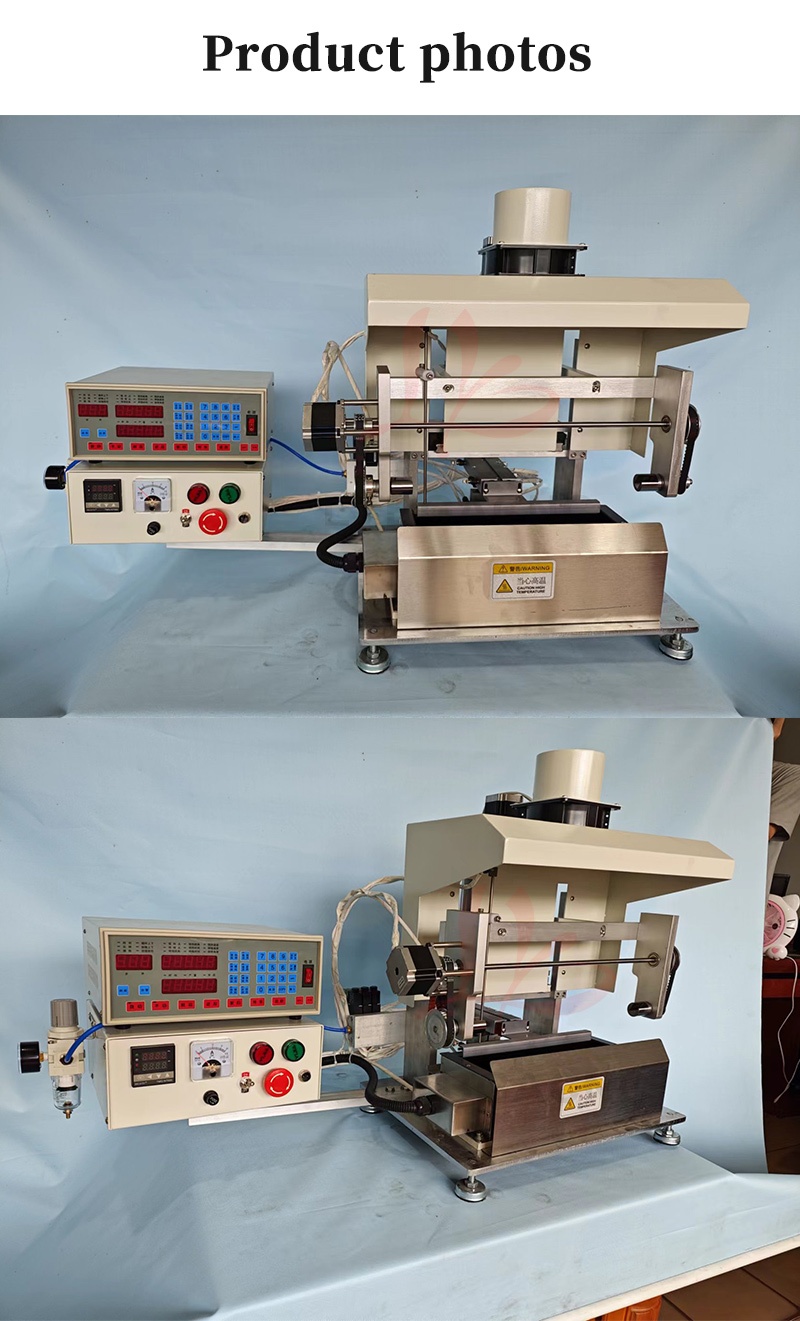

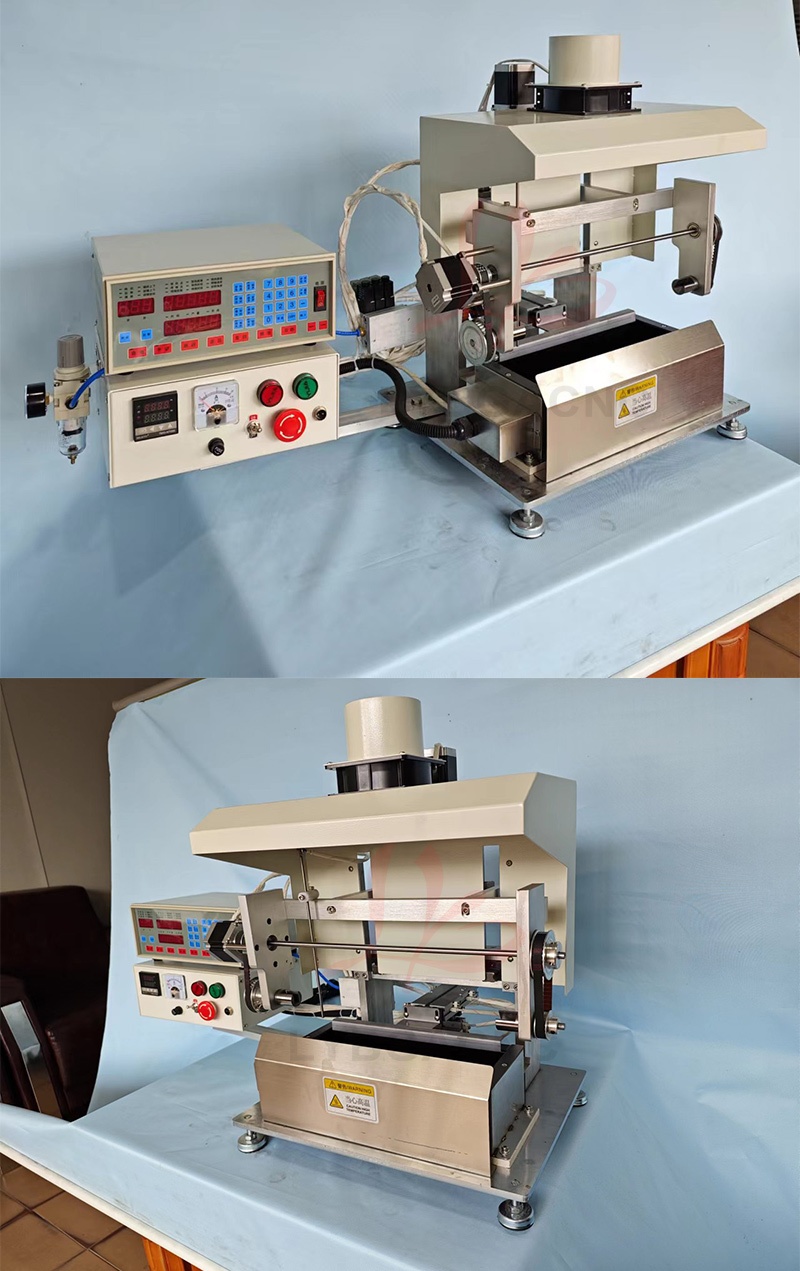

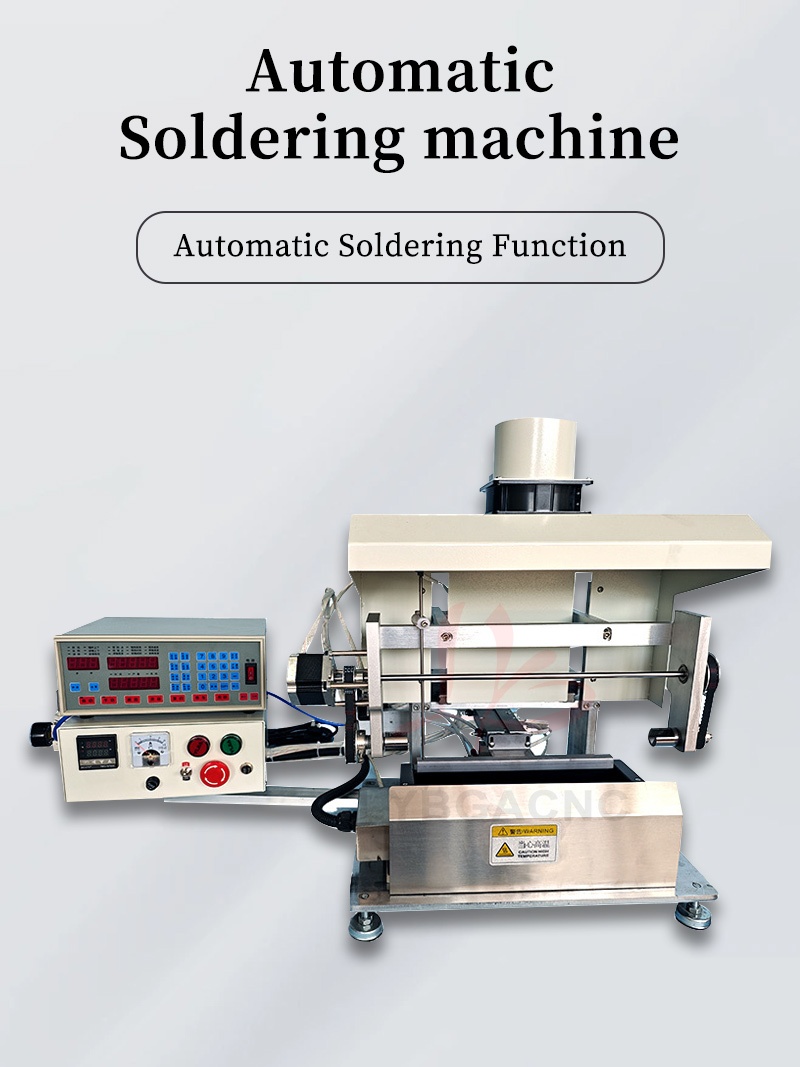

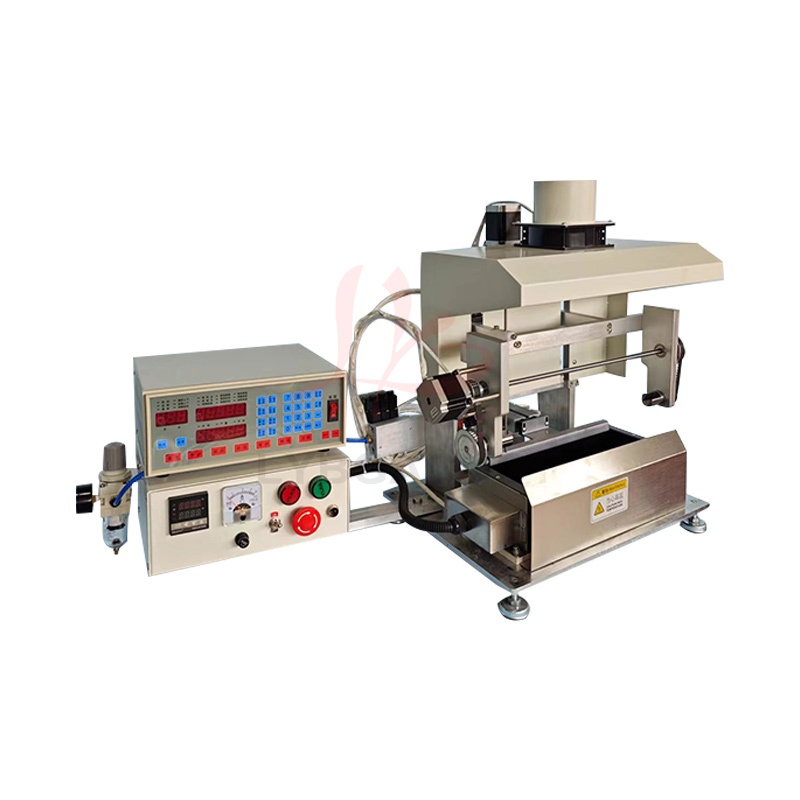

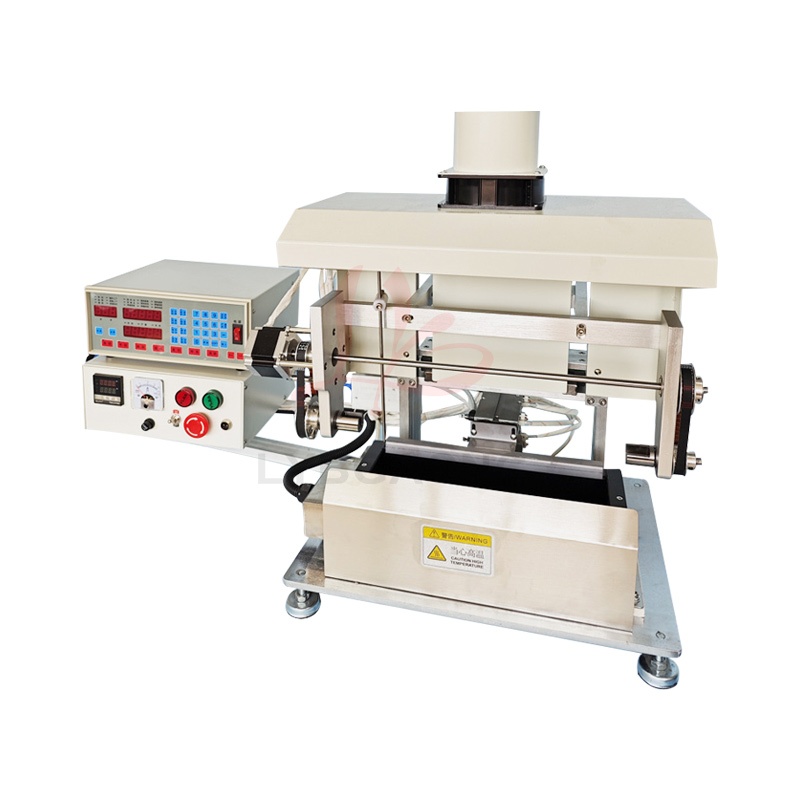

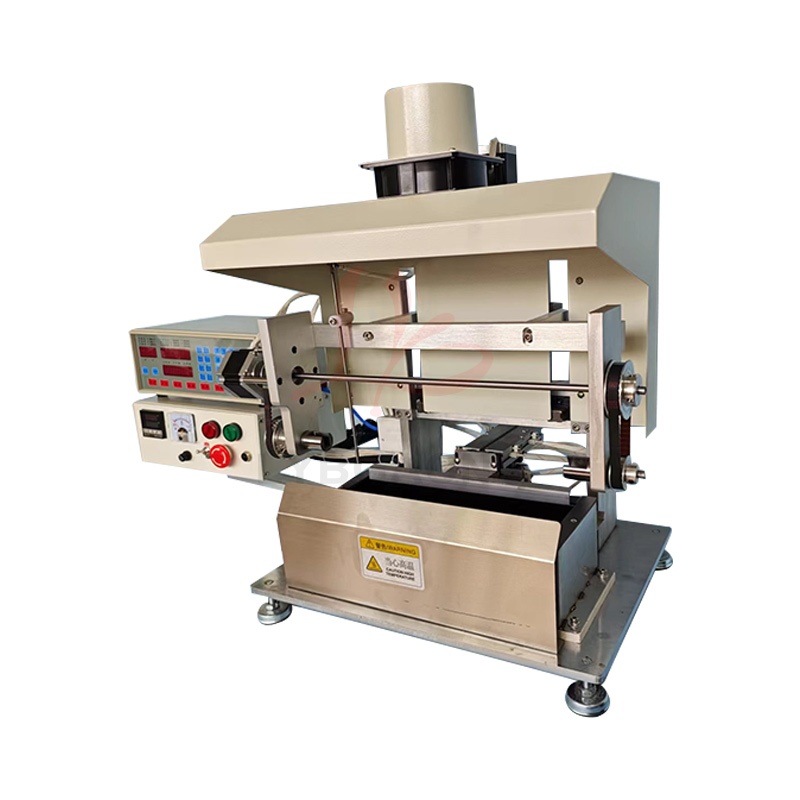

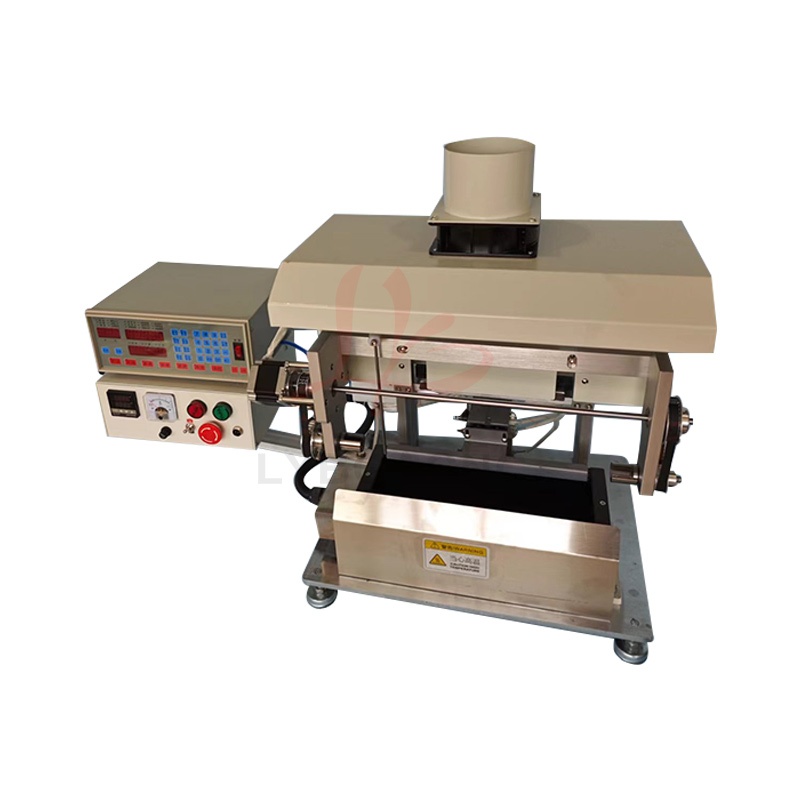

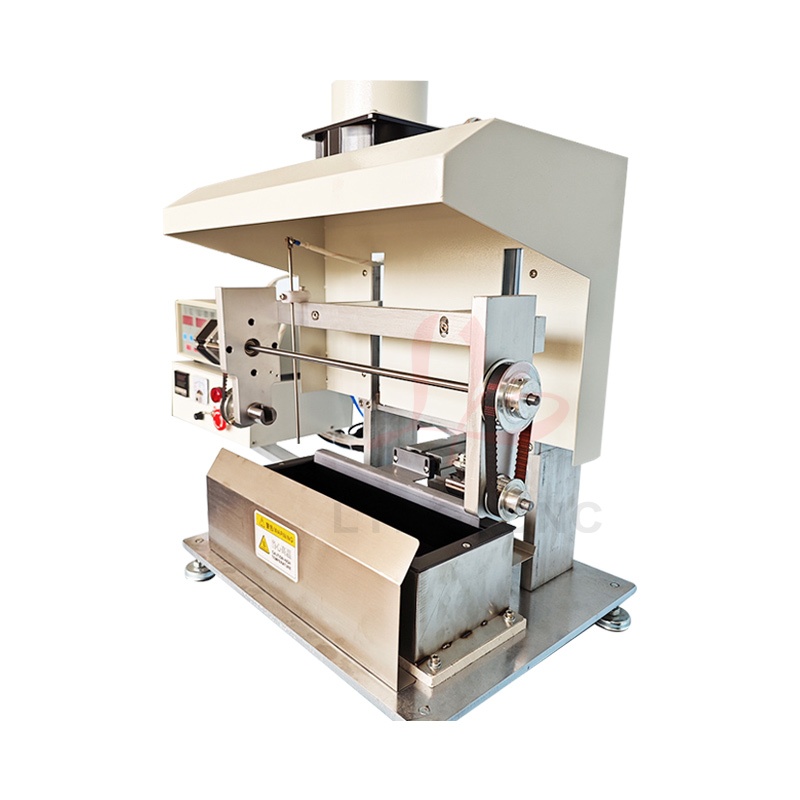

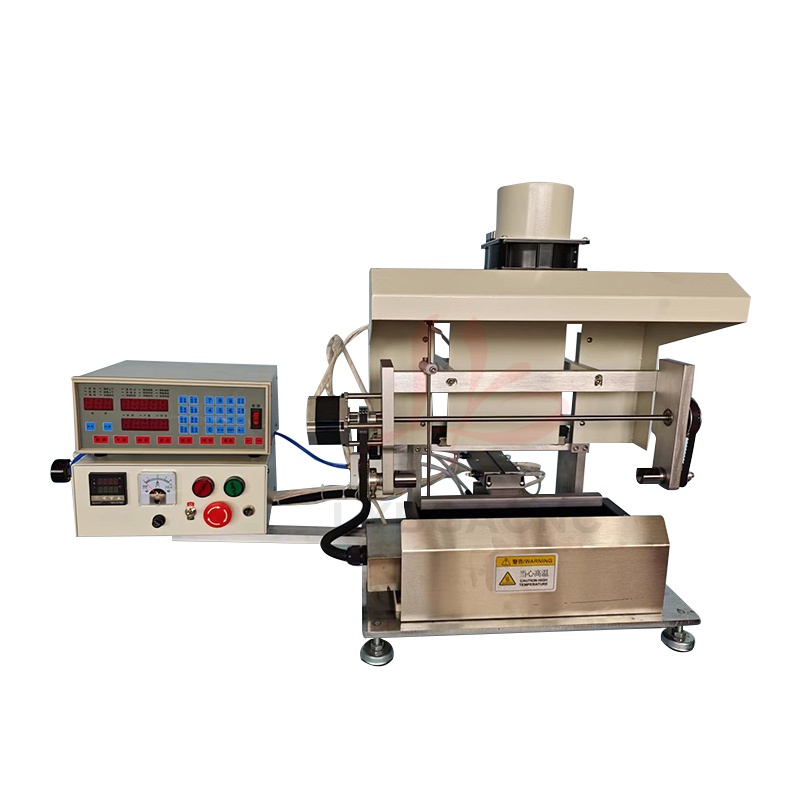

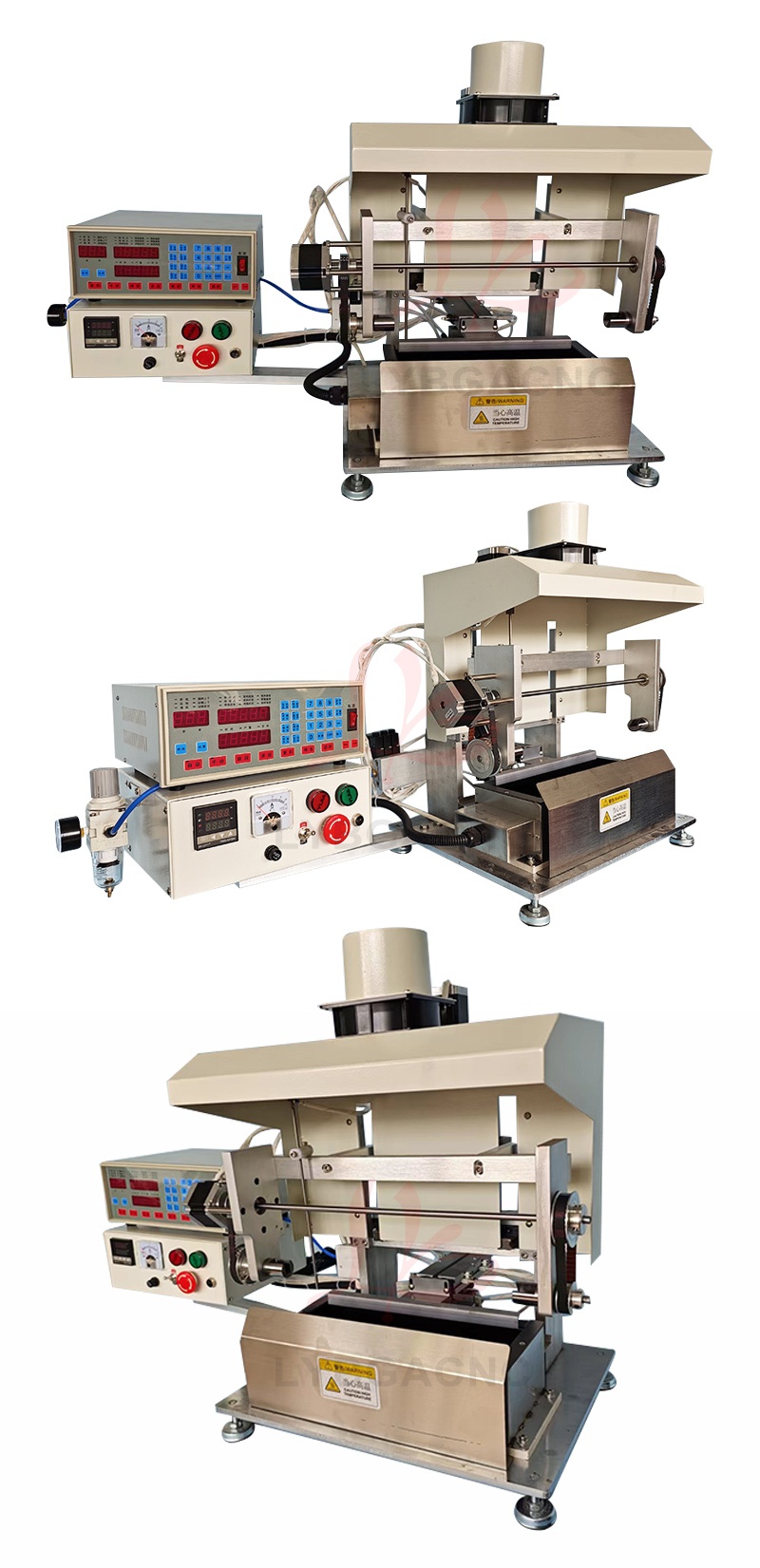

LY-870 Desktop Automatic Tin Soldering Machine With Digital Display 360° Solder Suitable For High And Low Frequency Transformers Inductors Coils Products Ball-screw 2000W 220V 110V

LY-870 Desktop Automatic Tin Soldering Machine With Digital Display 360° Solder Suitable For High And Low Frequency Transformers

Inductors Coils Products Ball-screw 2000W 220V 110V

Features:

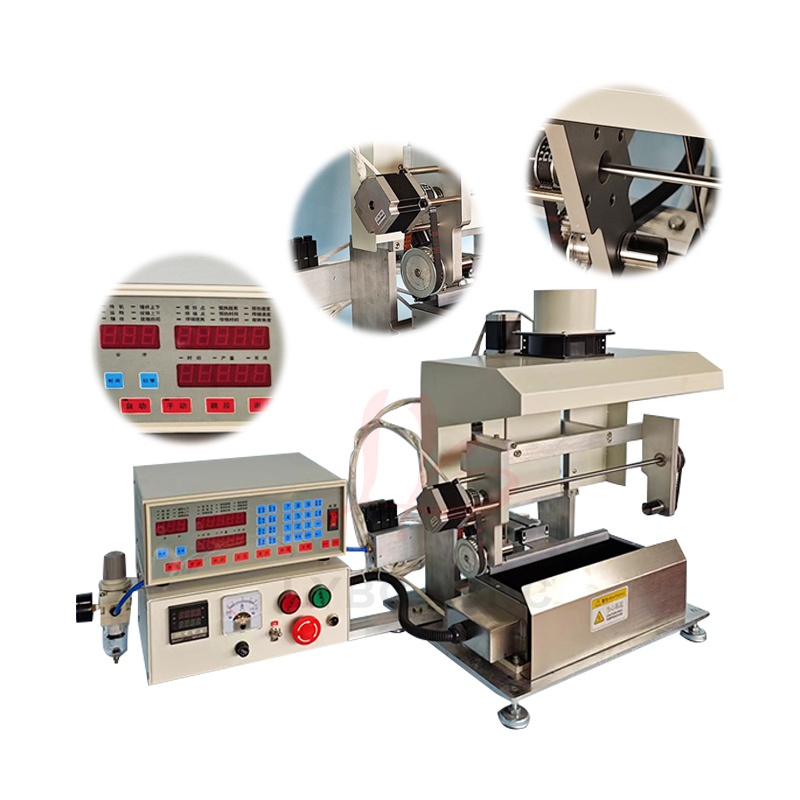

LY-870 automatic tin soldering machine is an electromechanical integrated product, which is composed of the following parts:

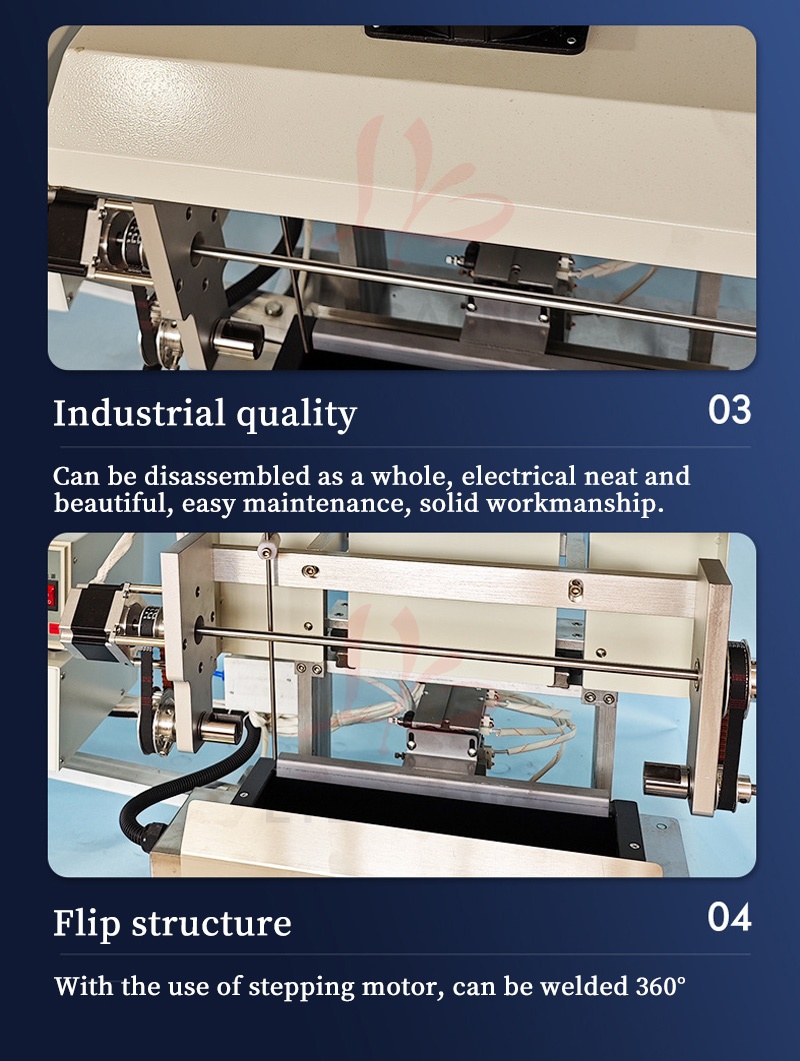

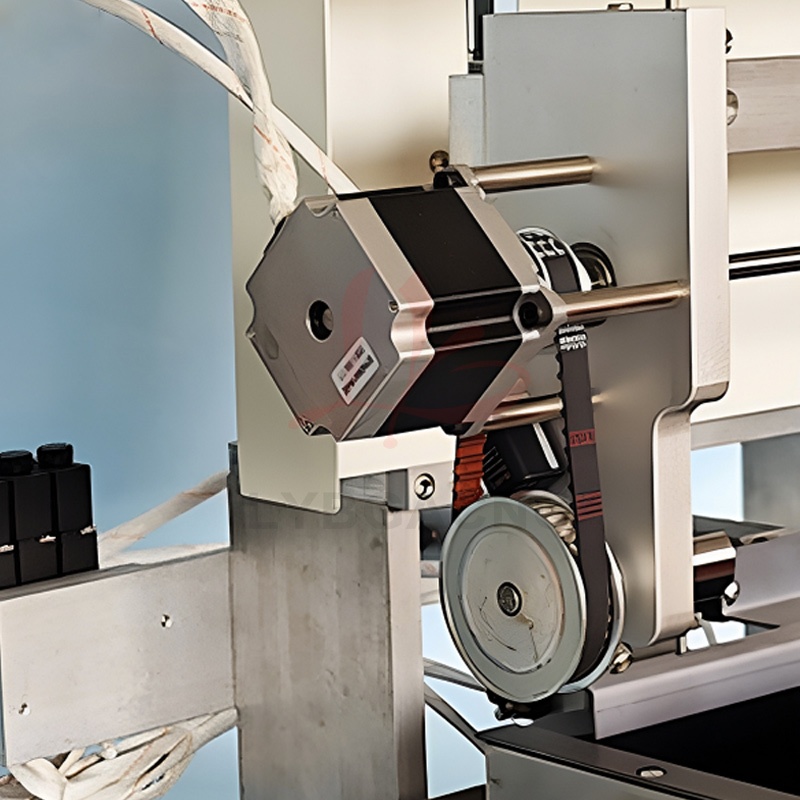

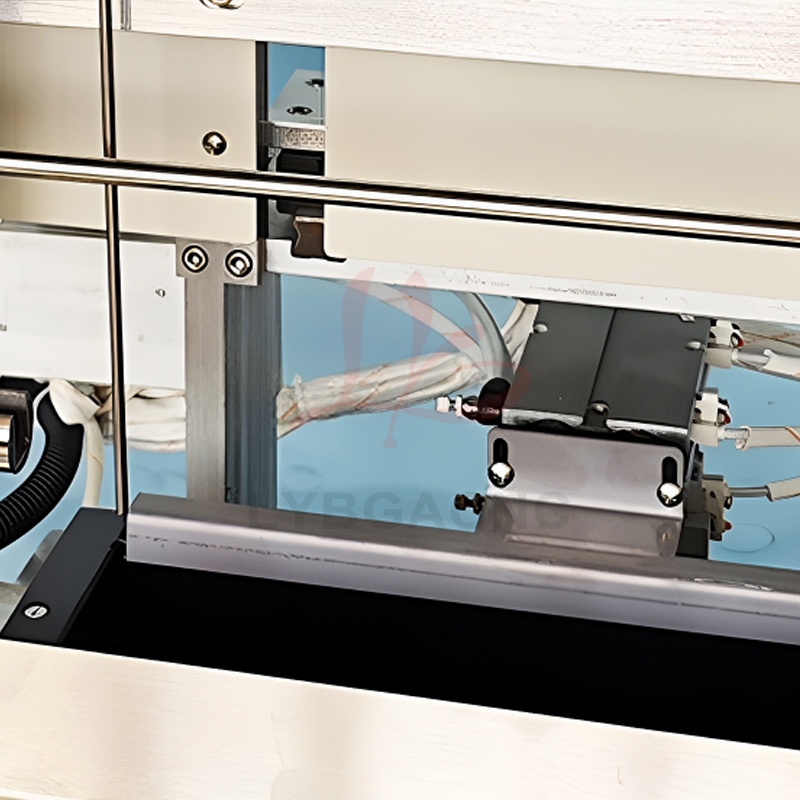

1. Tin dipping mechanism: This mechanism consists of a stepper motor, cylinder, screw guide rail, guide shaft, and flipping pulley.

2. Tin scraping mechanism: This mechanism consists of a cylinder, a bracket, a tin scraping spoon, etc.

3. Exhaust mechanism: This mechanism consists of an exhaust fan and a bracket.

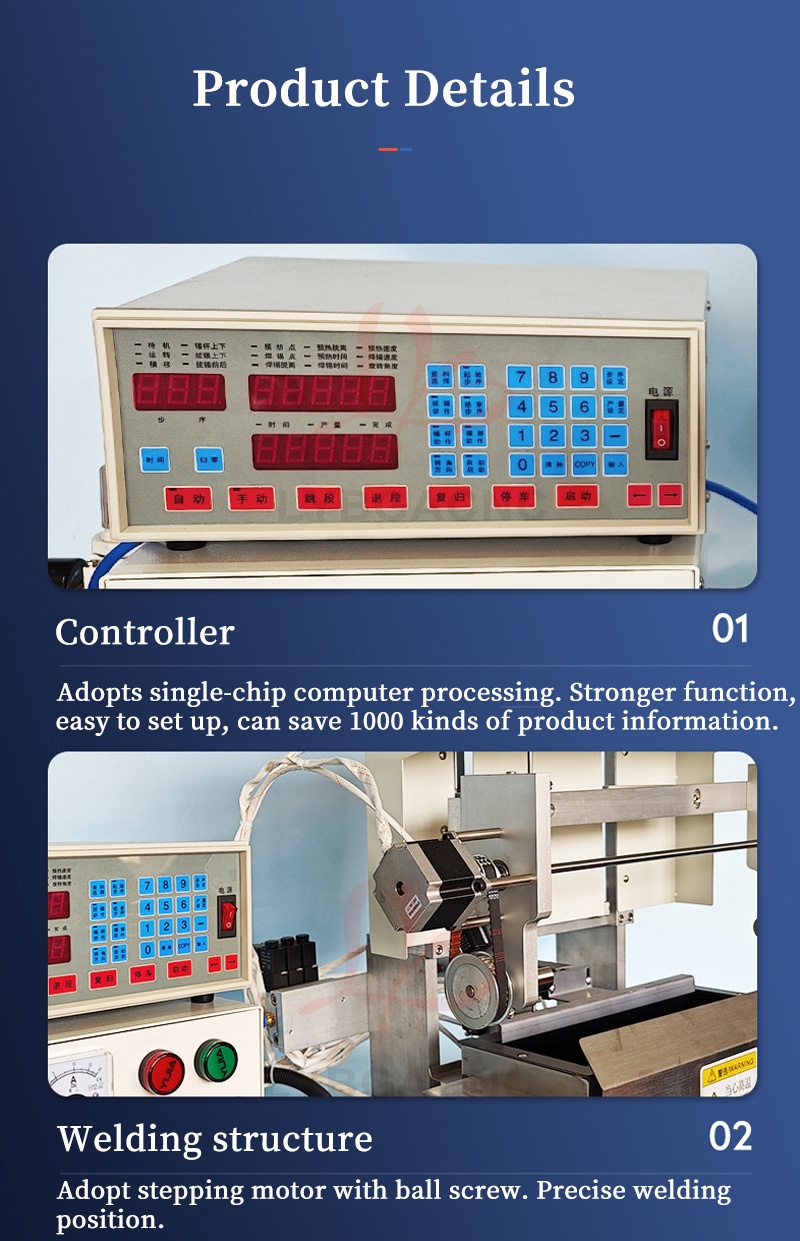

4. Control mechanism: This mechanism consists of a CNC controller, temperature controller, stepper motor, and switch.

5. Foot switch device, fast and convenient production operation.

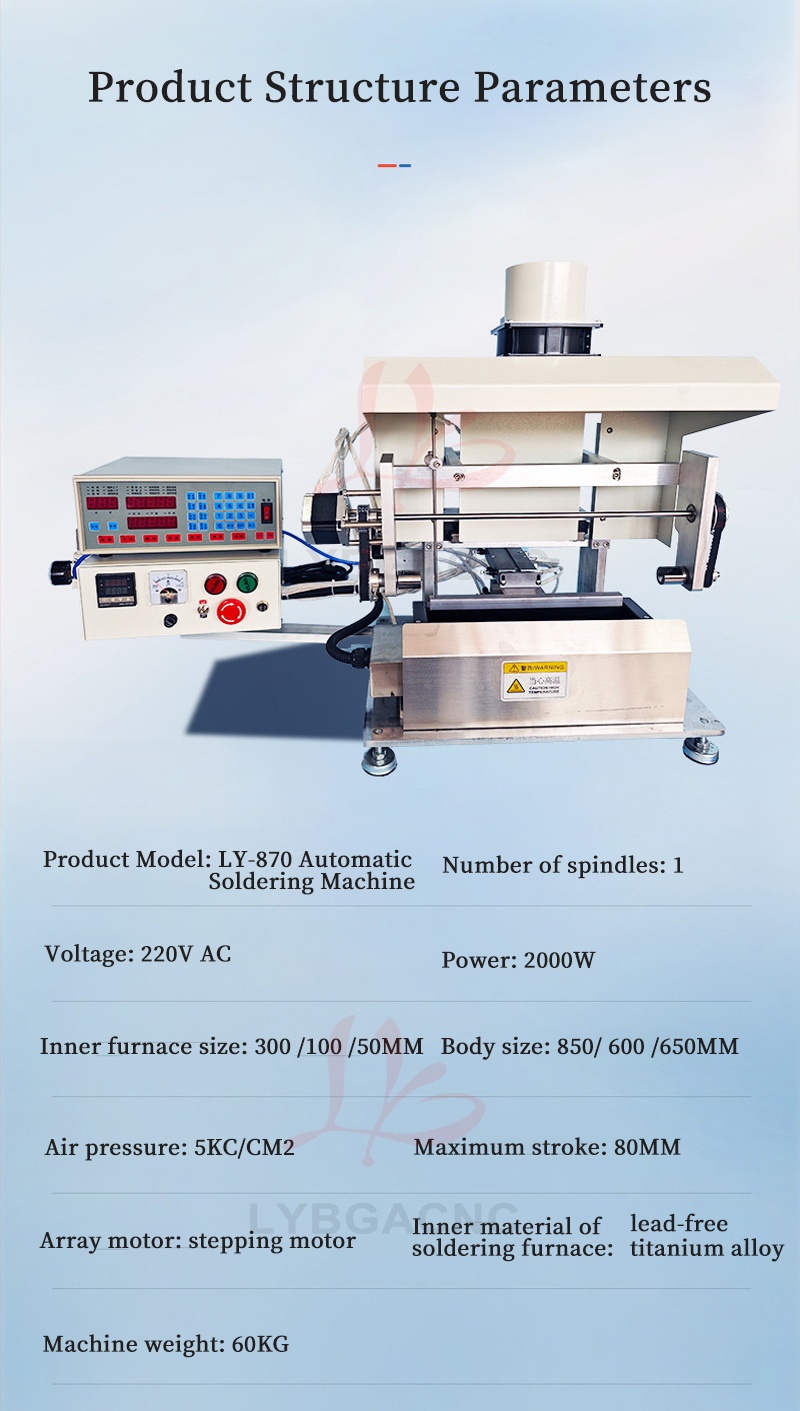

Specification:

Voltage: 220V AC 50Hz (110V Optional)

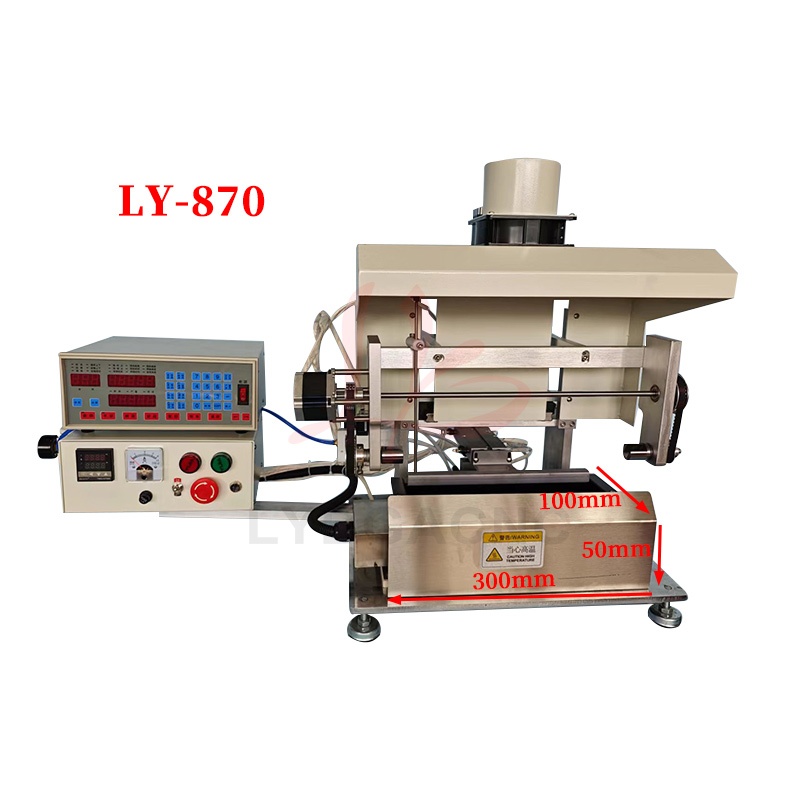

Tin Furnace size: 300*100*50MM

Air pressure: 5KC/CM²

Array motor: stepping motor

Screw: Ball-screw

Number of spindle: 1

Power: 2000W

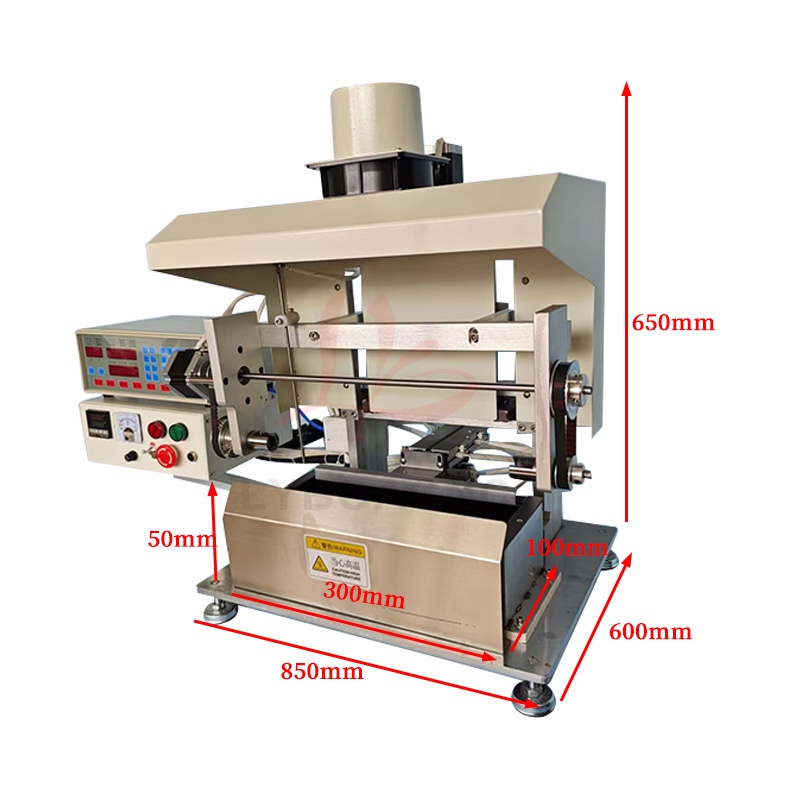

Machine size: 850*600*700MM

Maximum Stroke: 80MM

Inner material of soldering furnace: lead-free titanium alloy

Machine weight: 66KG
