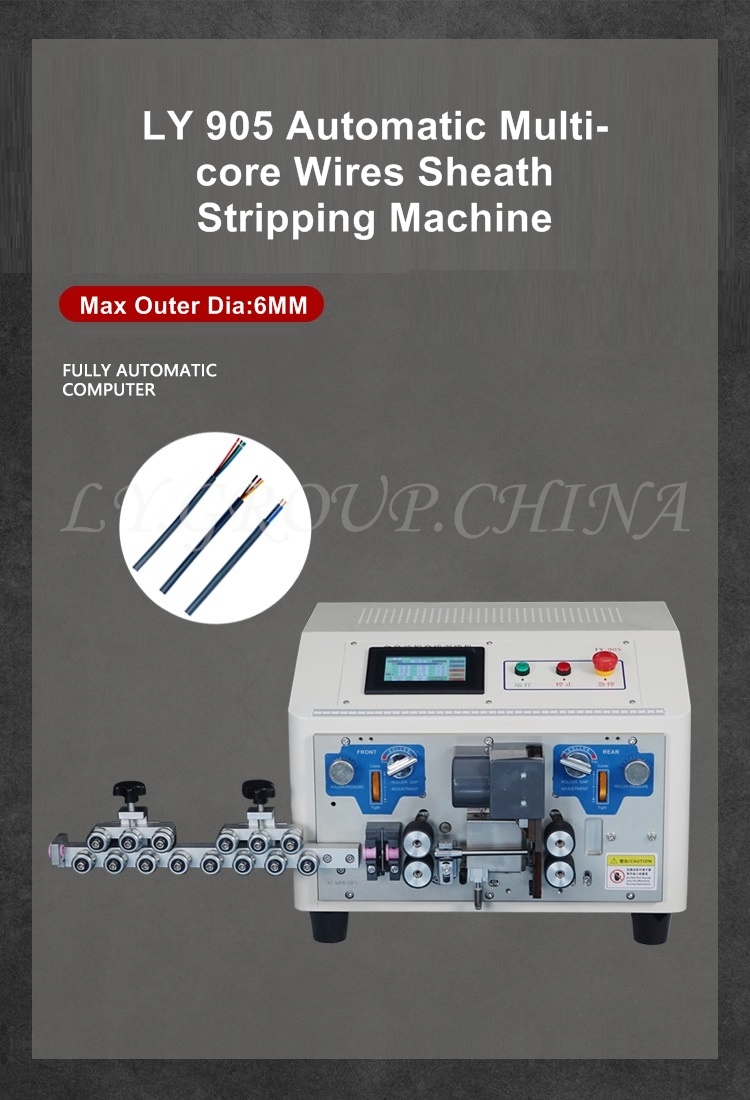

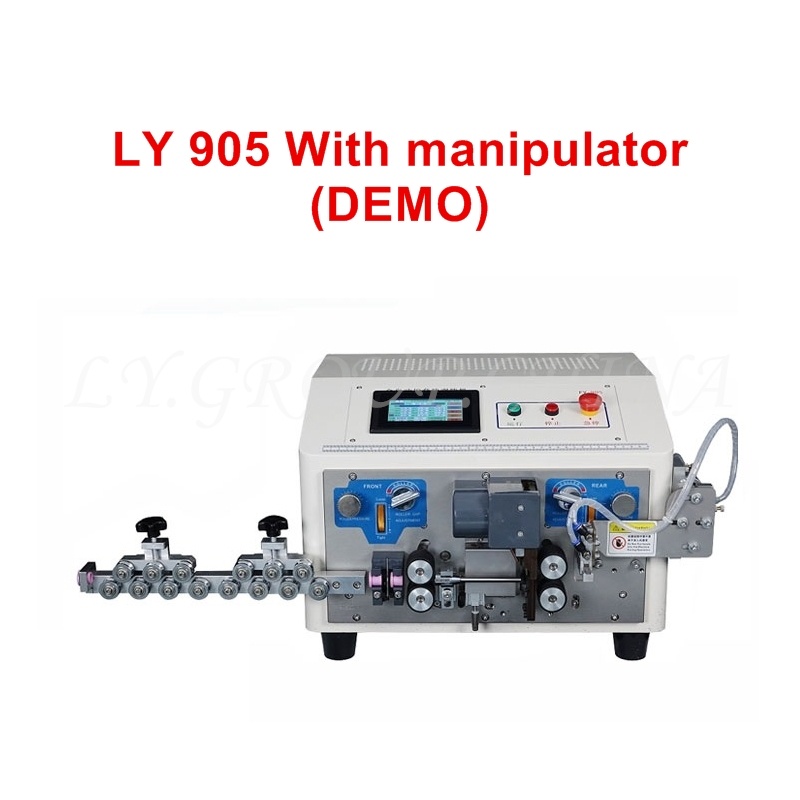

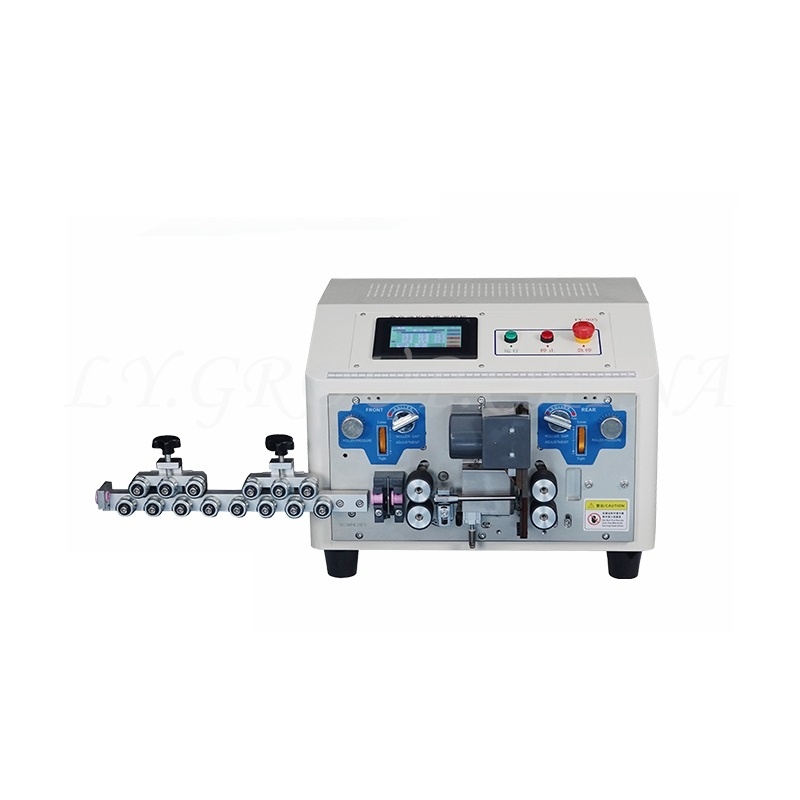

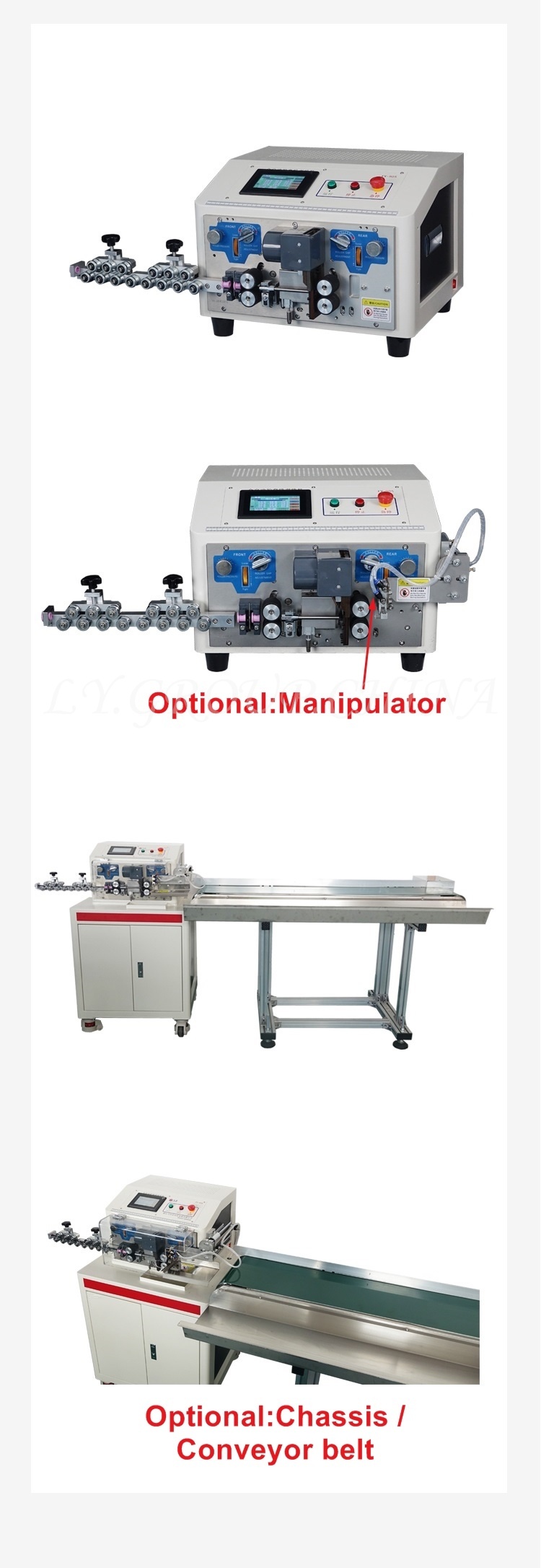

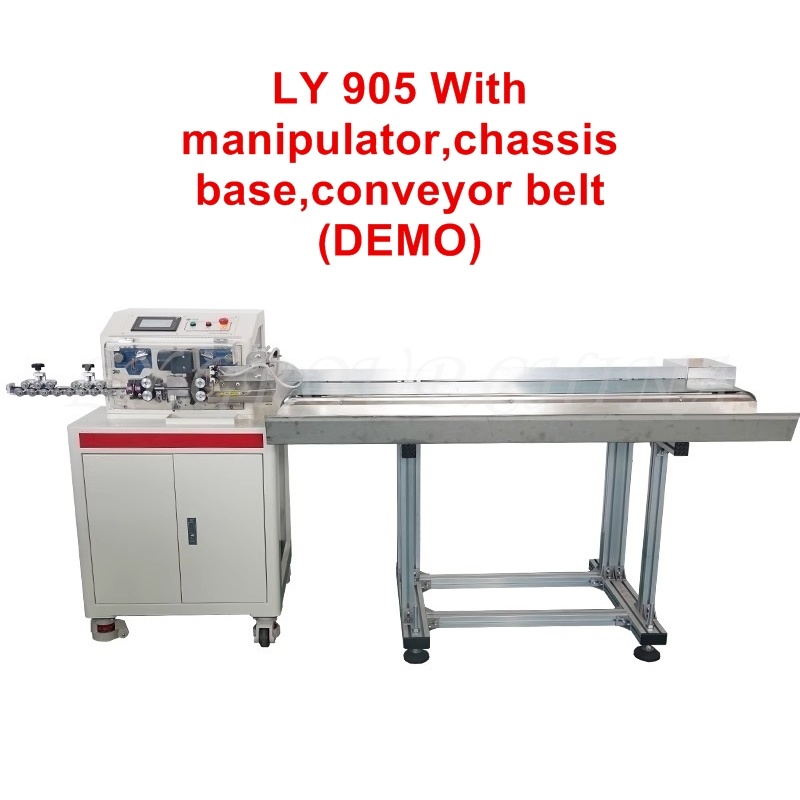

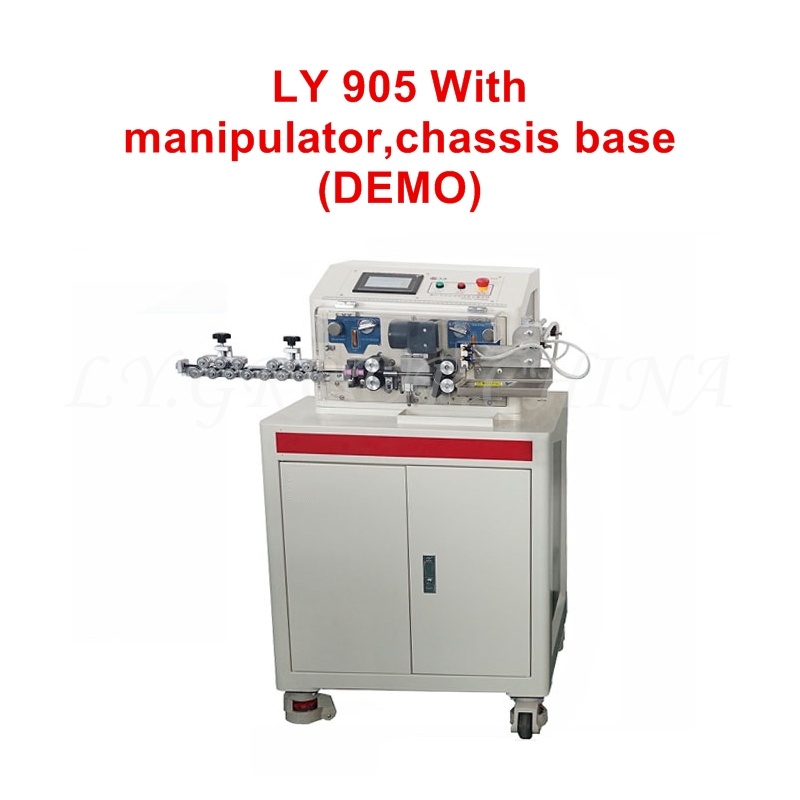

LY 905 Automatic Multi-core Multi-cores Wires Sheath Stripping Machine 4 Wheels For 2 3 4 5 Inner Cores Wire Optional Manipulator Protect Crystal Case

This Machine is mainly suitable for processing wires in such industries as electronic products, electric appliances, toys and auto and motorcycle etc. With computer controlled very clean designed mechanism, It cuts and strips wire automatically. The direct and easy to use interface allows inexperienced users to operate it easily. Various cutting style and programmable length and distance can suit any wire assemble needed. Rapid and automatic cutting allow high boots the productivity.

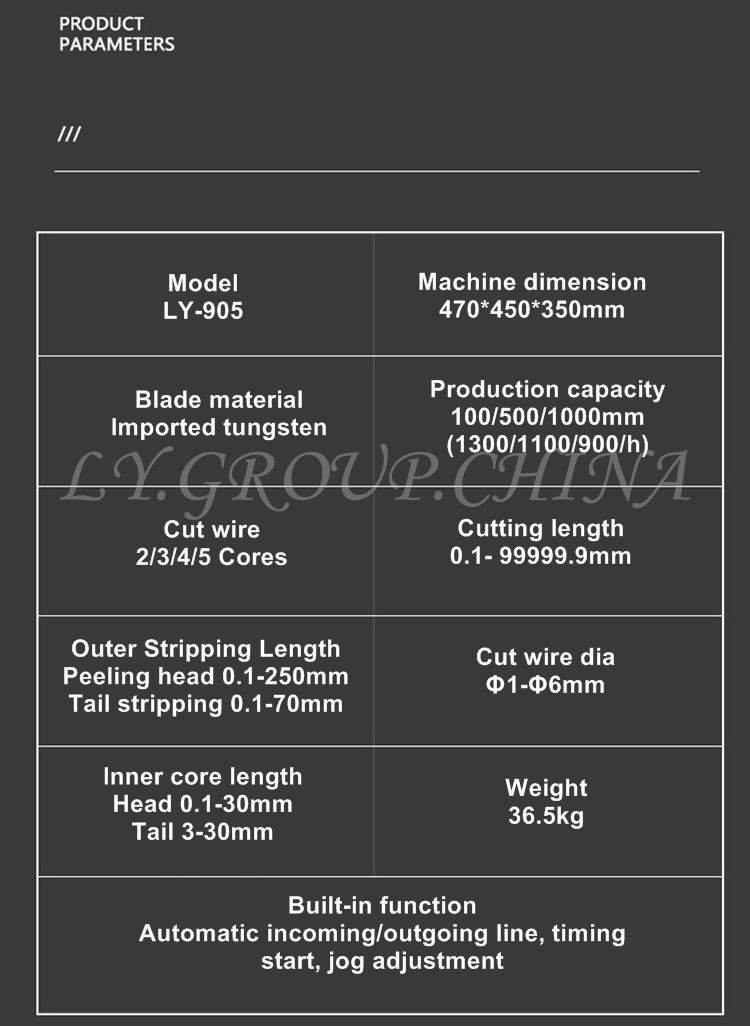

Parameter

Model LY-905

Machine Size:470*450*350mm

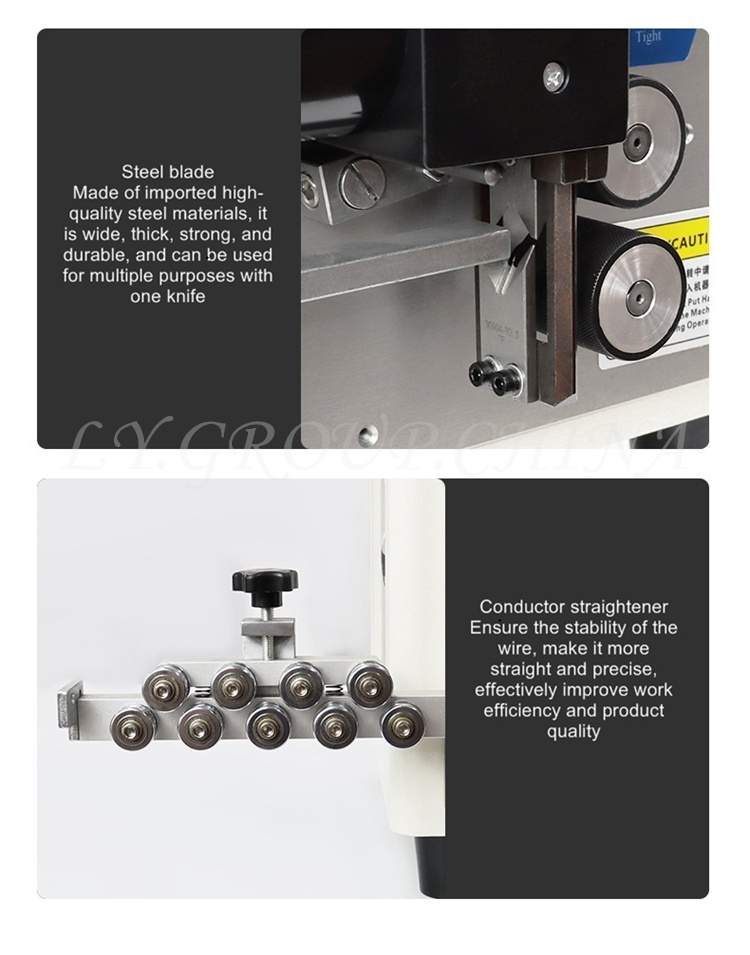

Blade material : Imported tungsten

Production capacity

100/500/1000mm

(1300/1100/900/h)

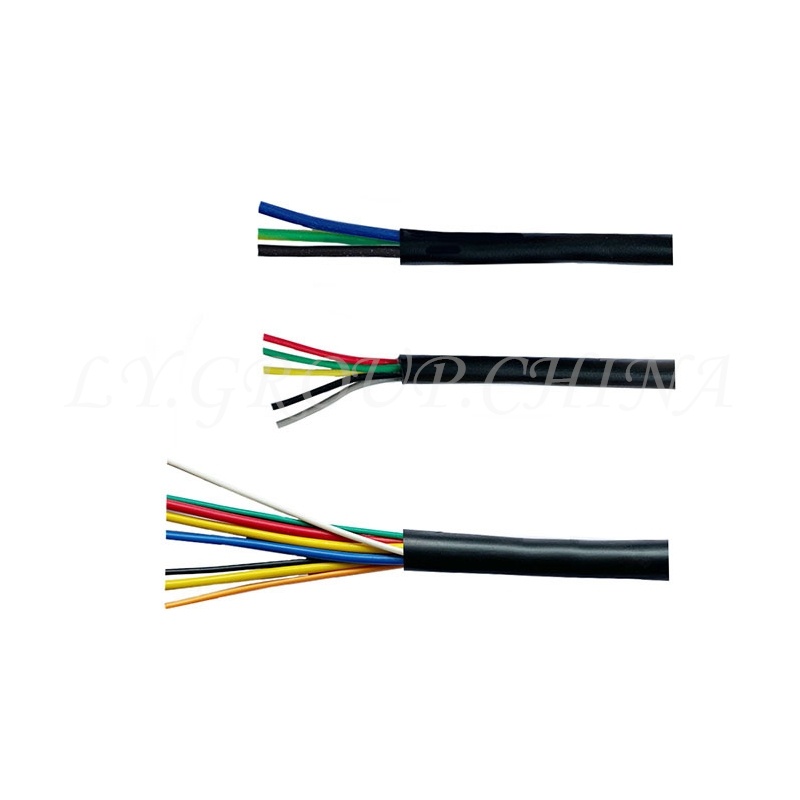

Cut wire: 2/3/4/5 Cores

Cutting length:

99999.9mm

Outer Stripping Length

Peeling head 0.1-250mm

Tail stripping 0.1-70mm

Cut wire dia

Φ1-Φ6mm

Inner core length

Head 0.1-30mm

Tail 3-30mm

Weight

36.5kg

Built-in function

Automatic incoming/outgoing line, timing start, jog adjustment
