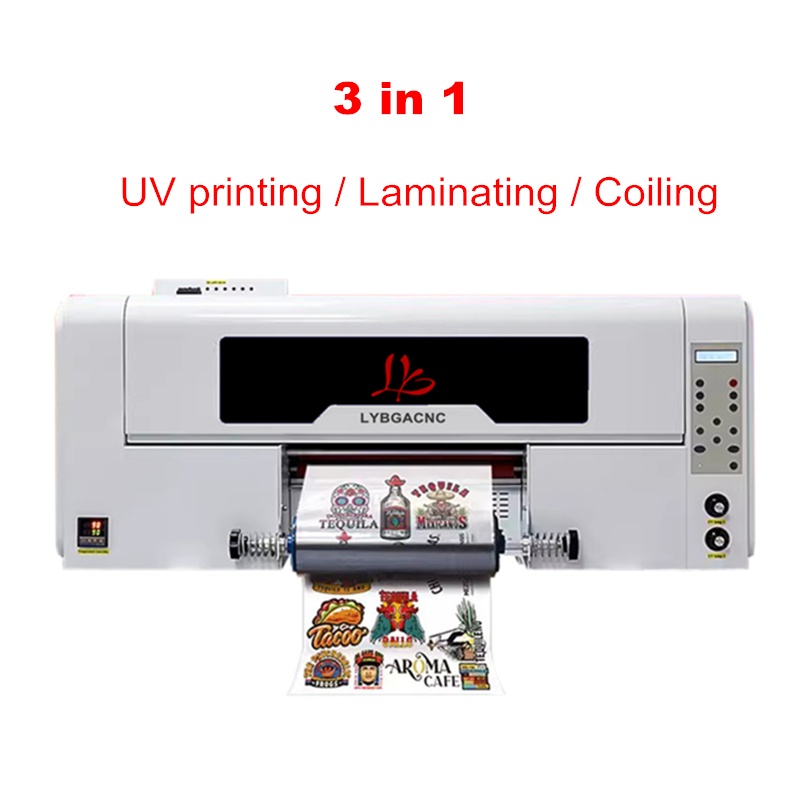

LY A3 Multifunctional Crystal Label Printing Laminating Coiling 3 In 1 Machine UV DTF Double T-shirt Printing Machine
Reviews(0)
Product Detail
Product Tags
LY A3 Multifunctional Crystal Label Printing Laminating Coiling 3 In 1 Machine UV DTF Double T-shirt Printing Machine
that created by LY and was built with industrial configuration as thicken aluminum profile, Water circulating cooling system.
Automatic detect UV curing system, 6 colors and max 2880 dpi printing resolution. Can print on all kinds of surfaces, available in 3D textured and raised printing, suitable for printing on both rigid and flexible material, like phone cases, metal ( aluminum, copper etc ), alloys, mirror, gifts packaging (wood, carbon paper, metal), tablet cover, USB sticks, DVD disc, industry signs, badge, plastic card, PVC, glass, wood, paper etc.
Specifications:
| Printer Model | LY-A3UVDTF 3 IN 1 Double Printer |
| Print head | 2* F1080-A1 |
| Colors channels | CMYK+W W+ VARNISH |
| Resolution | 360/ 720/ 1440*2880dpi |
| Speed | 6-8pass 60-120 min/ Sqaure meter |
| Output | White or Colors, White+ colors, White+ colors +Varnish |
| Print wide width | 330mm |
| Printing speed | 3 m²/h |
| Printing Media | Crystal Label AB Transfer Film |
| Ink type | Crystal Label Special Ink |
| Curing system | LED curing lamp |

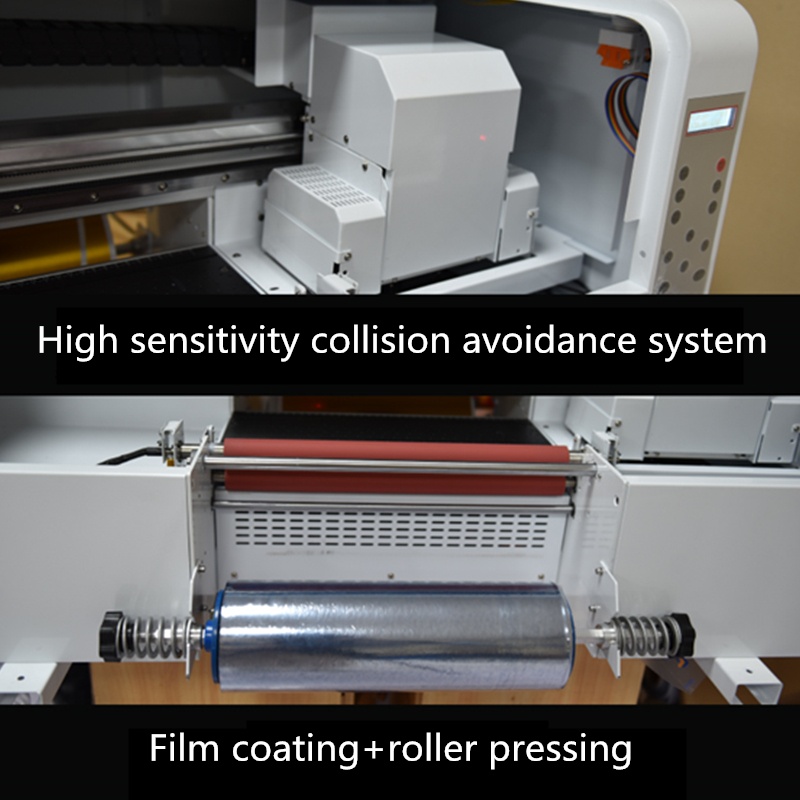

| Laminated rubber roller | High temperature, supporting hot stamping rubber rollers |
| Laminated moving rod | Control the balance of lamination paper feeding |
| Paper receiving device | Front finished film dispenser+rear protective film dispenser |
| Paper feeding device | Standard configuration |
| operating system | All windows system |
| Environmental requirements | Suitable working temperature: 18-30 ° C, working humidity: 40% -60% RH. |
| power | 650W |

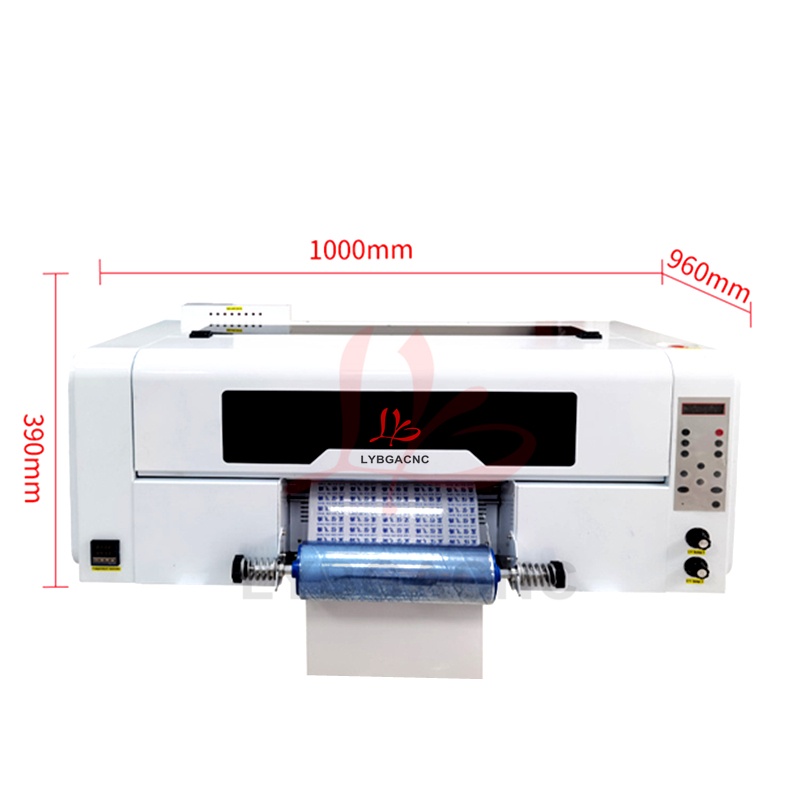

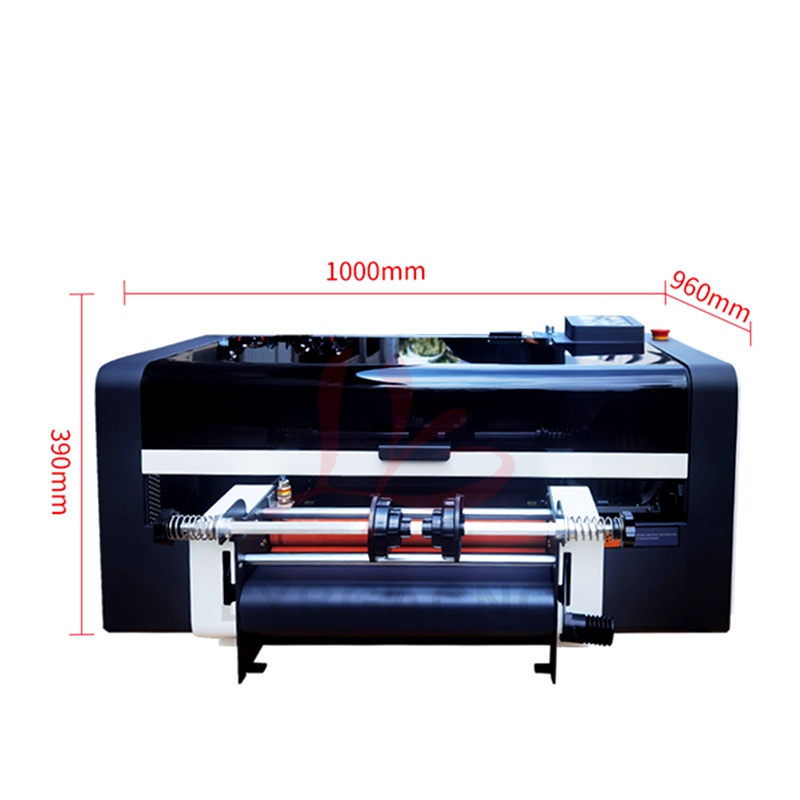

| Packaging size | L1070mm*W1060mm*H500mm |
Packing List:
1* A3 UVDTF printer
1* Accessories tools
5* 250ML UV ink (C/M/Y/K/WT) [optional]
Thanks for your order!

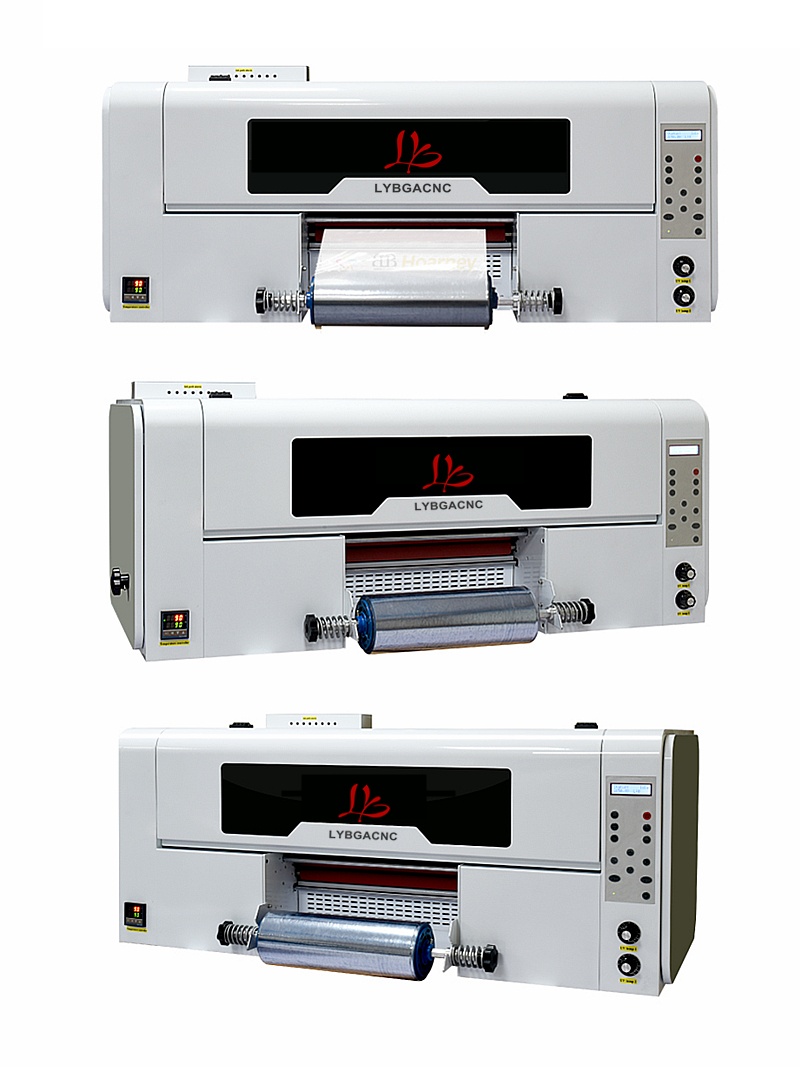

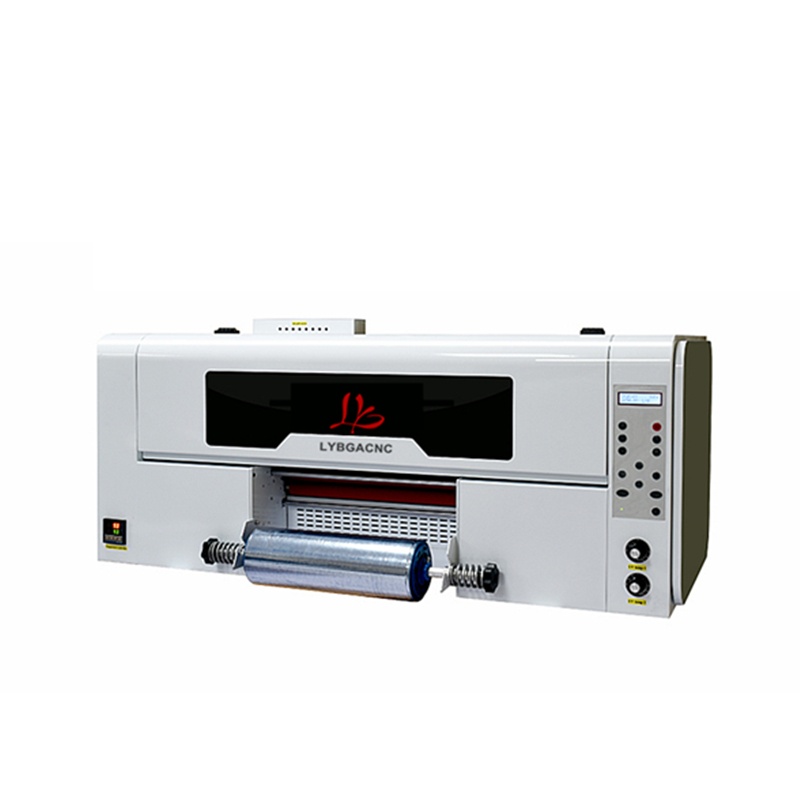

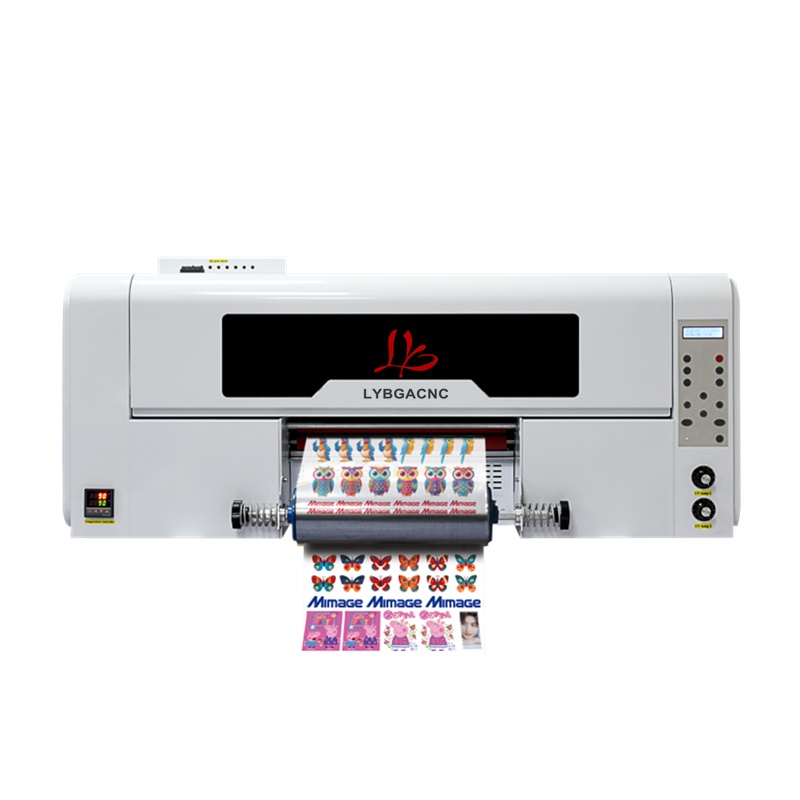

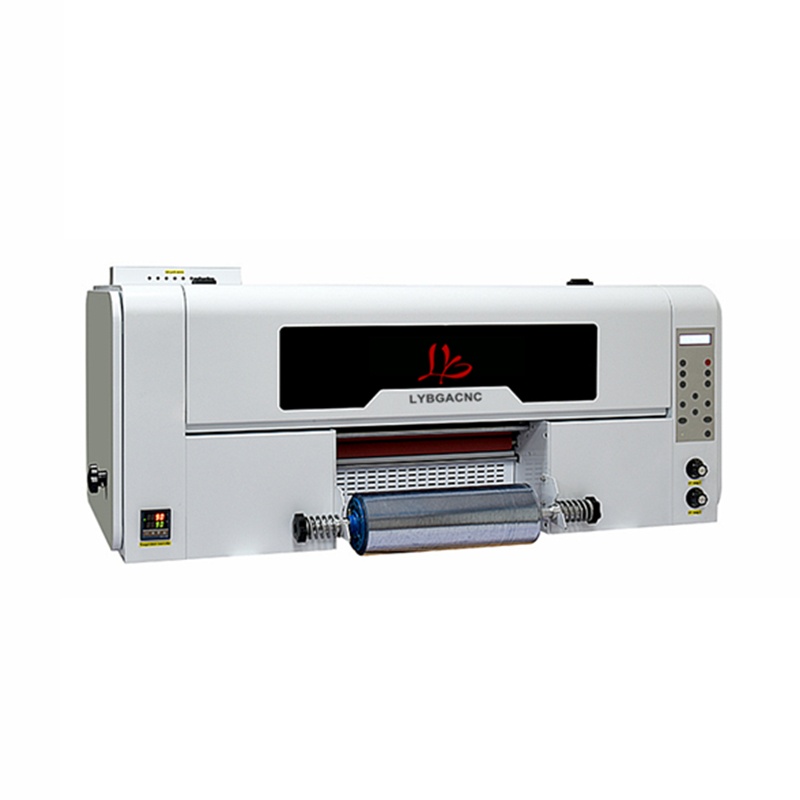

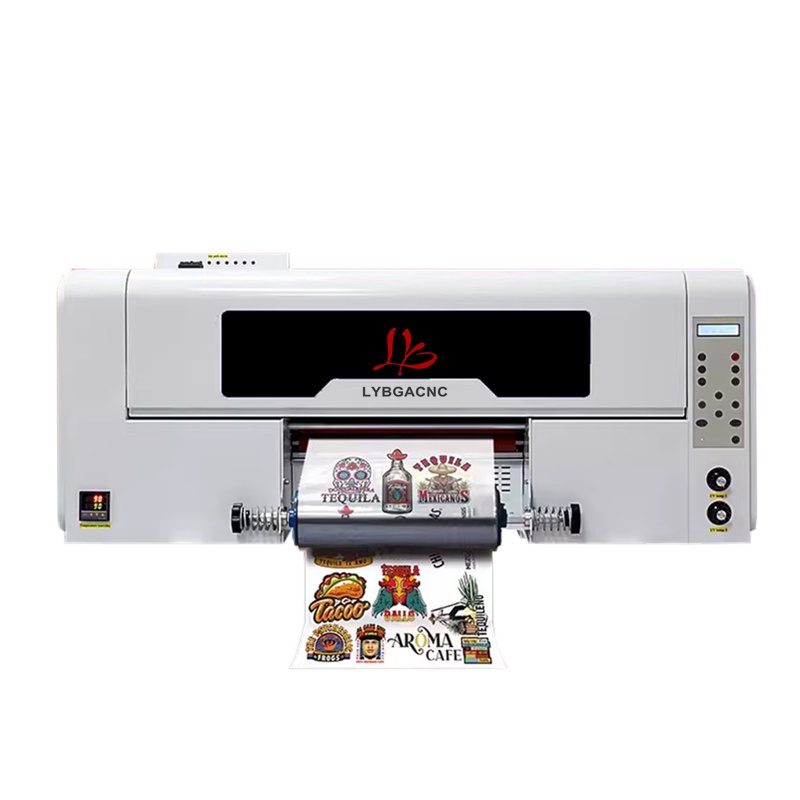

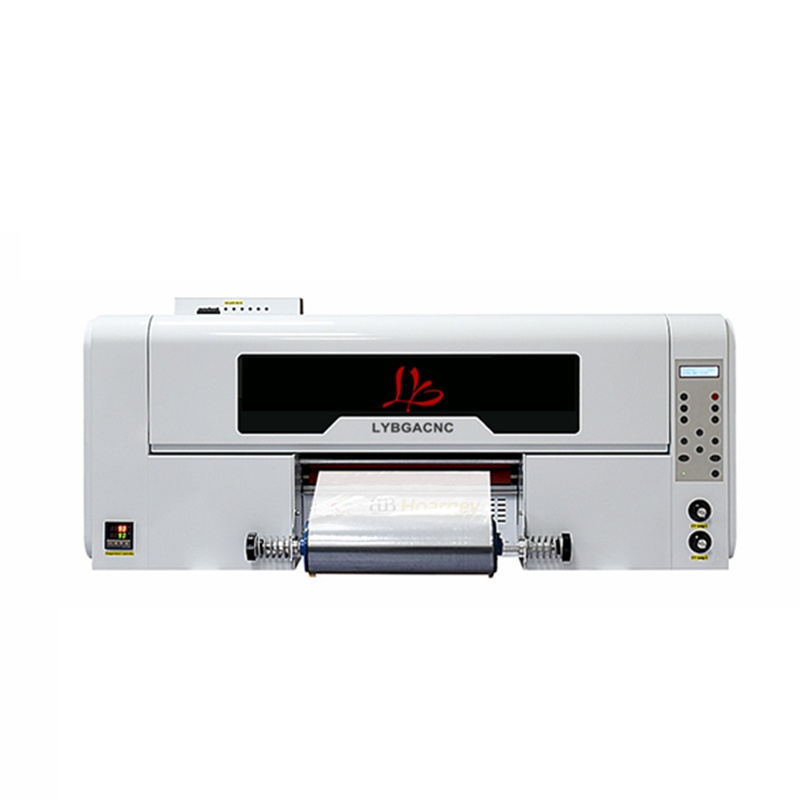

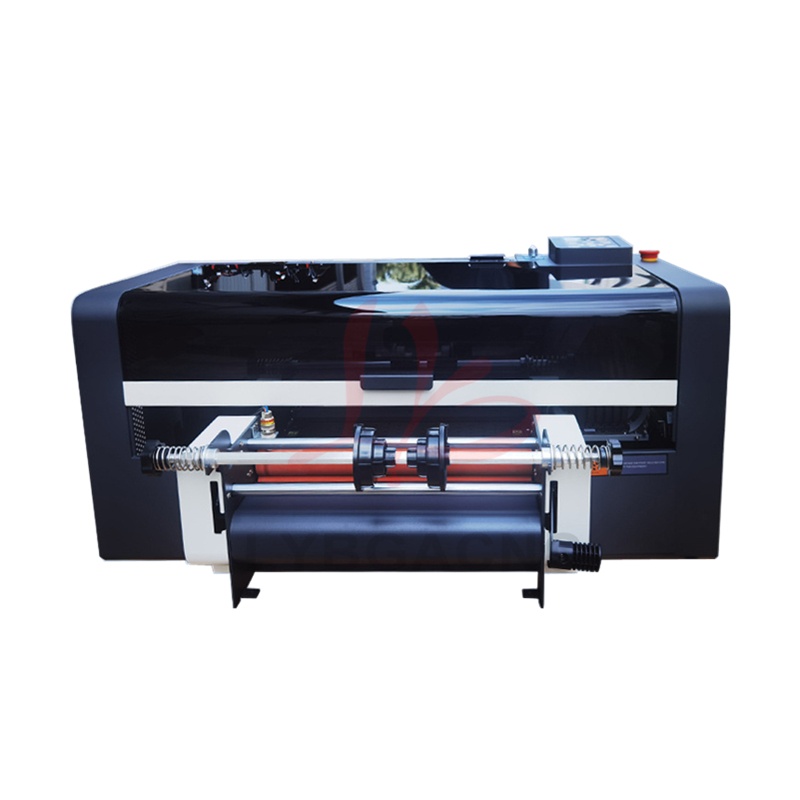

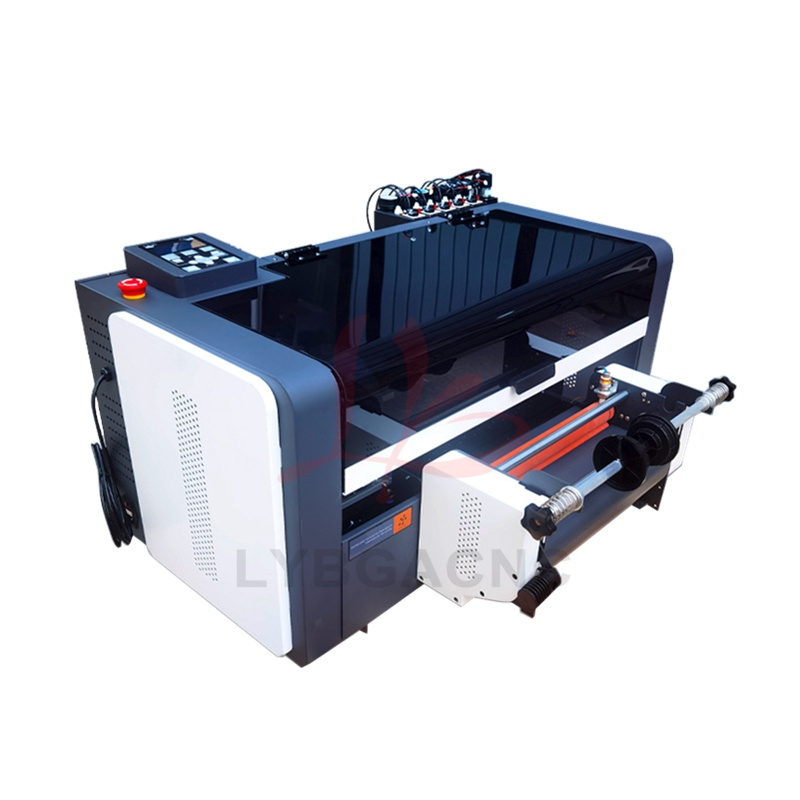

Product Pictures
