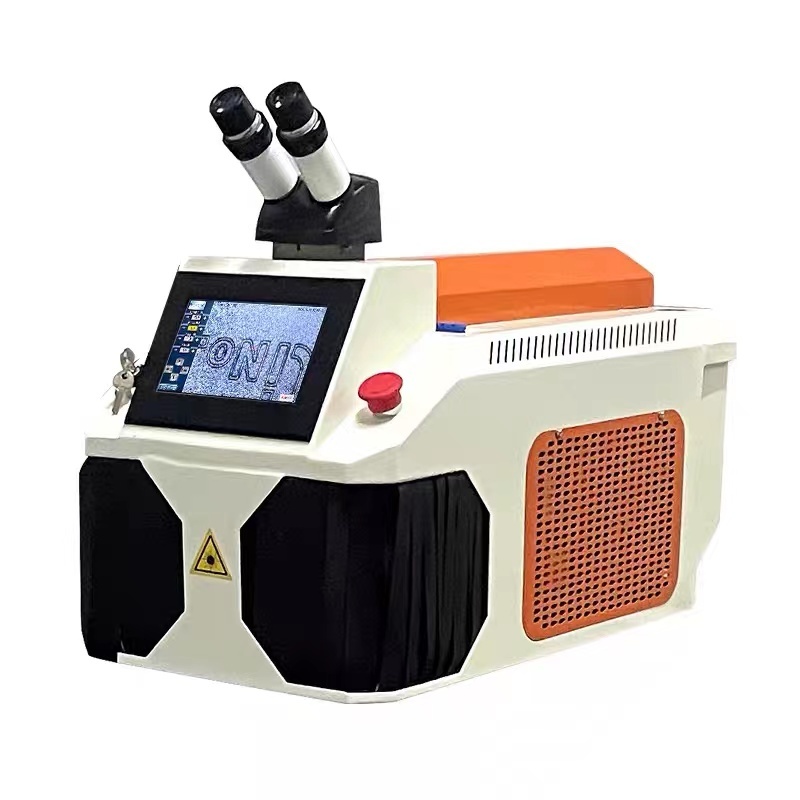

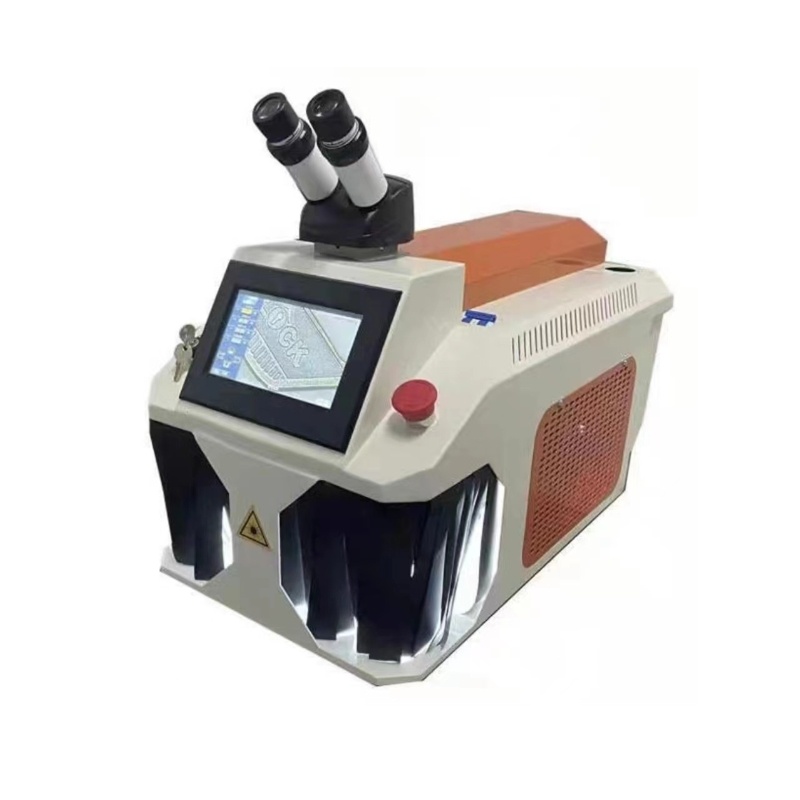

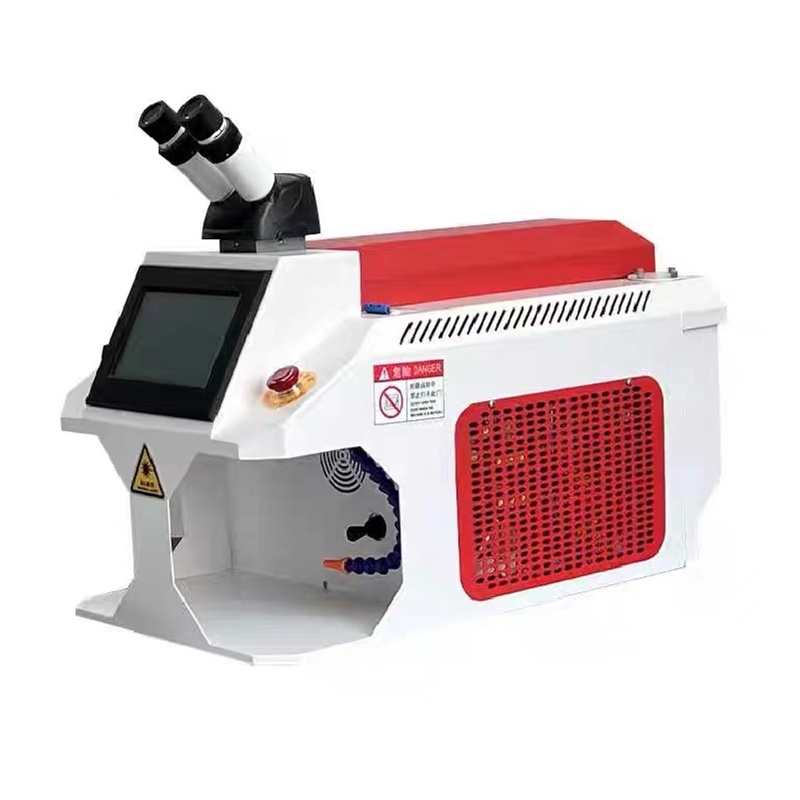

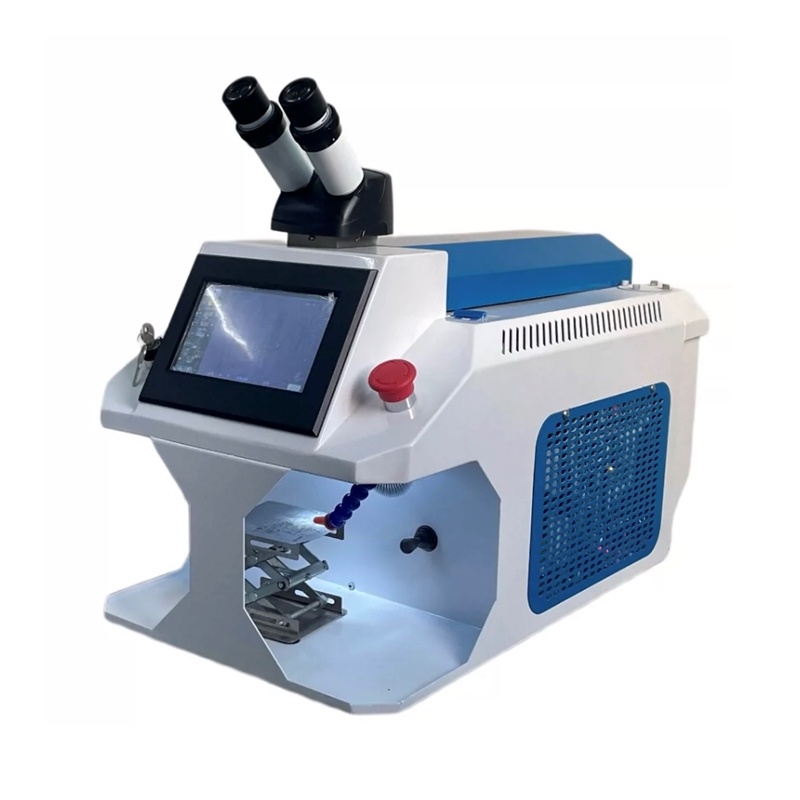

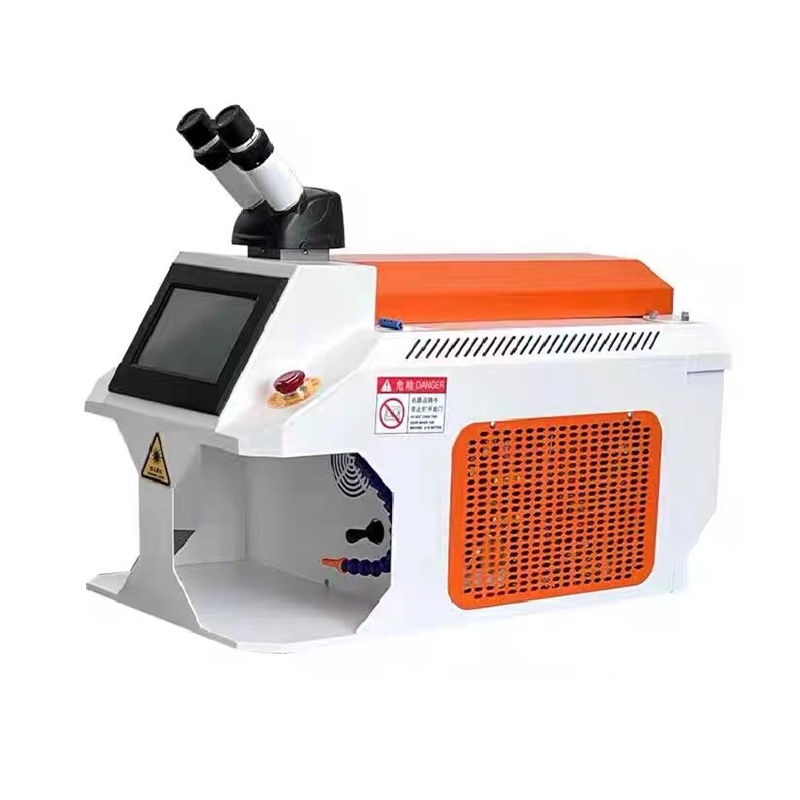

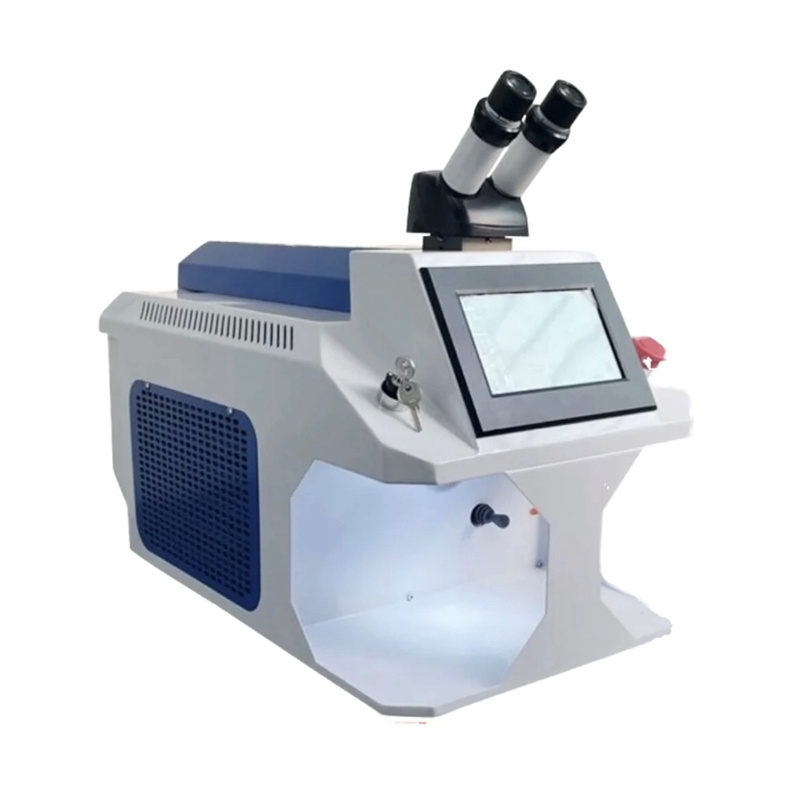

LY Mini YAG Laser 200W Touch Screen Control Jewelry Spot Welding Machine Micro laser Soldering For Gold Silver Chain Ring Pendant Denture With HD CCD Microscope Built-in Air Cooling System

LY Mini YAG Laser 200W Touch Screen Control Jewelry Spot Welding Machine Micro laser Soldering For Gold Silver Chain Ring Pendant Denture With HD CCD Microscope Built-in Air Cooling System

(RE: If no designated color, we will send random color as default.)

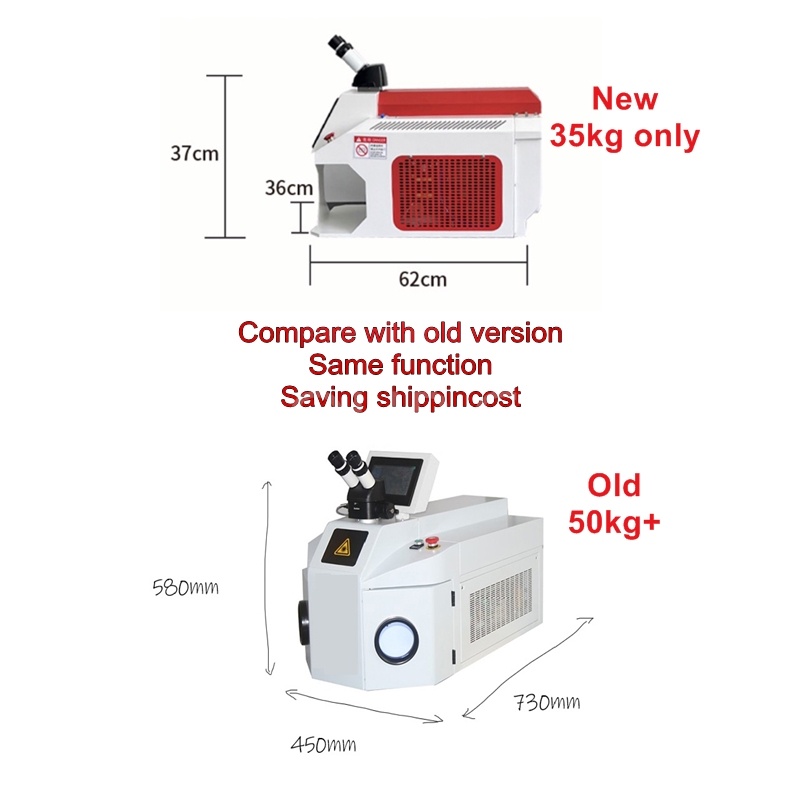

New mini version smaller size with same function,save shippingcost for foreign customers.

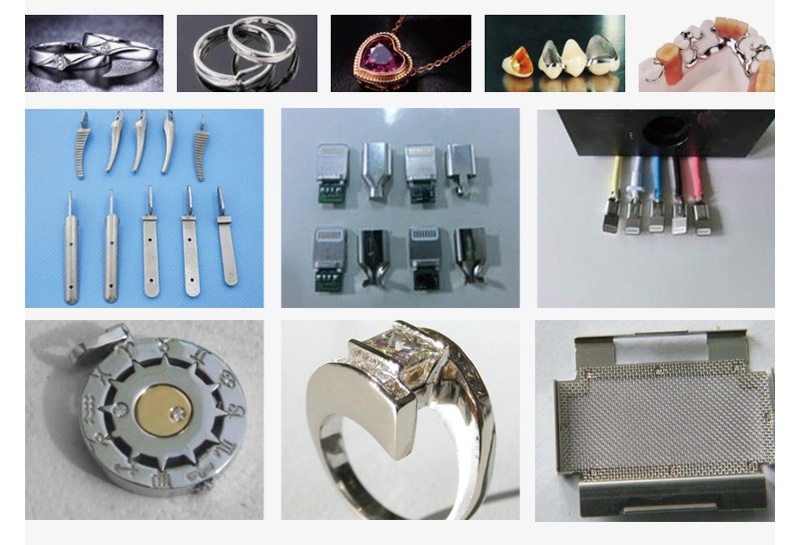

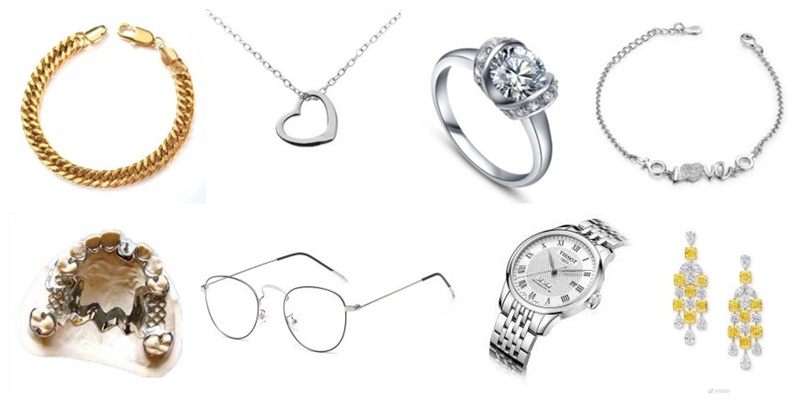

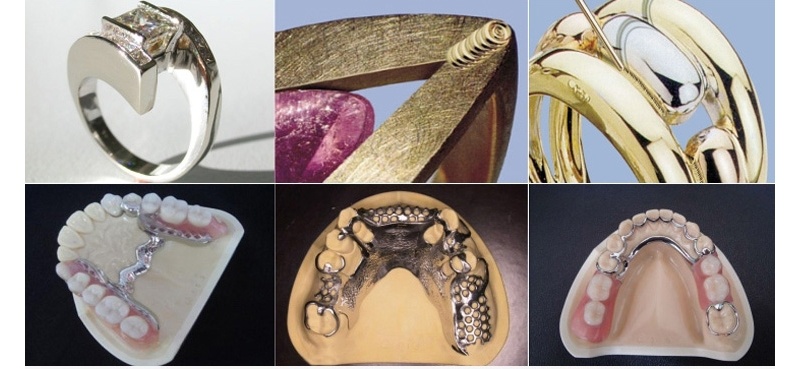

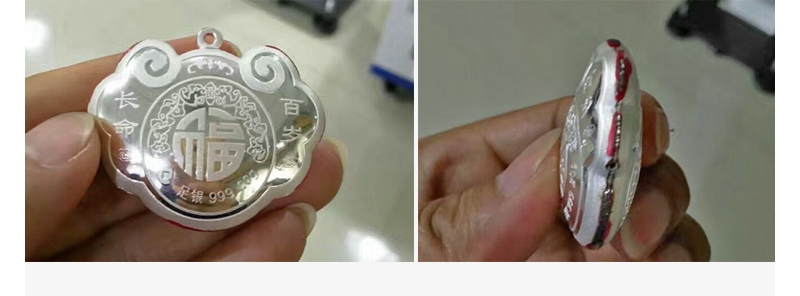

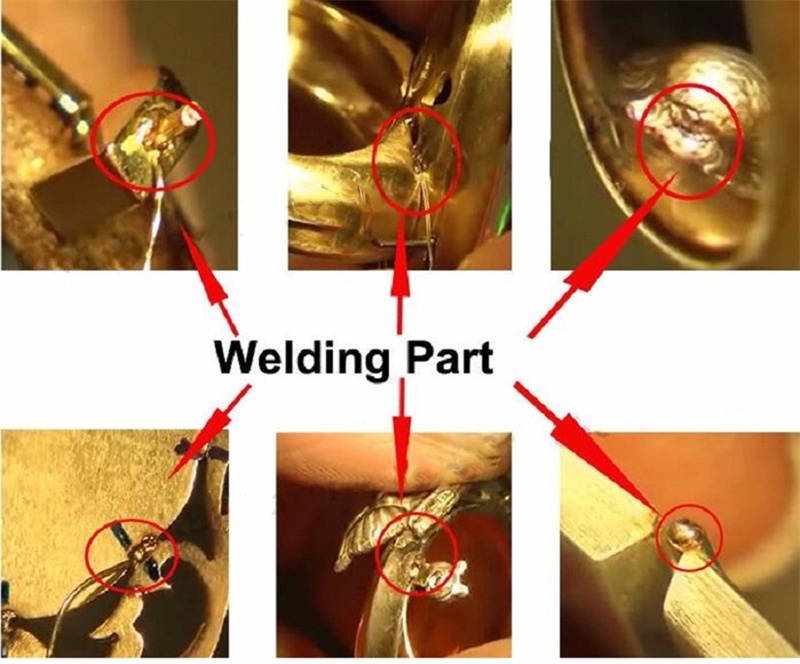

The jewelry laser welder is specifically for jewelry laser welding of a product, mainly used in gold and silver ornaments of the hole and spot welding blisters. Laser spot welding machine is one of the important aspects of the application of laser material processing technology. The jewelry laser welding machine’s process is heat conduction. That is, laser radiation heats the surface of the work piece. The heat of the surface spreads through the heat conduction to the interior. By controlling the width, energy, peak power and repetition of laser pulse Frequency and other parameters, the workpiece melting, forming a specific pool. Because of jewelry laser welding machine’s unique advantages, has been successfully applied to gold and silver jewelry processing and micro, small parts welding.

200W desktop integrated YAG laser

Welding machine manual

Specification

Laser medium

Nd 3+ :YAG

Laser Wavelength 1064nm

Output power 200W

Pulse width 0.1~20ms adjustable

Pulse Repeated Frequency 1~20Hz adjustable

HD CCD System

Maximum single pulse power  100J

Cooling : Built-in Air cool system

Maximum input power 6KW

Net weight: 35KG

Voltage: 220V/50HZ/3KVA  (If 110V country need to use with transformer)
