Description

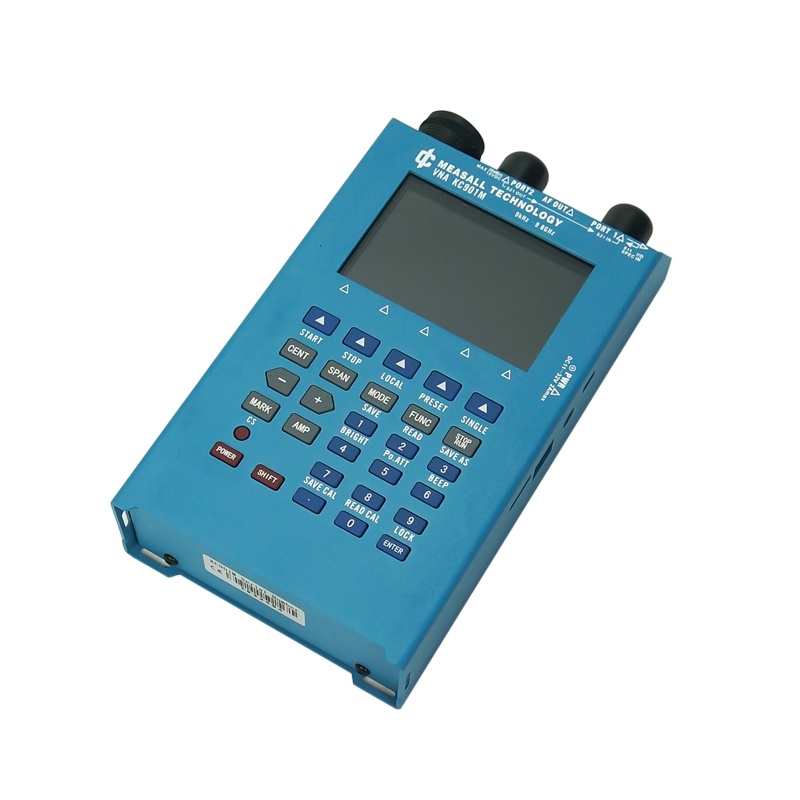

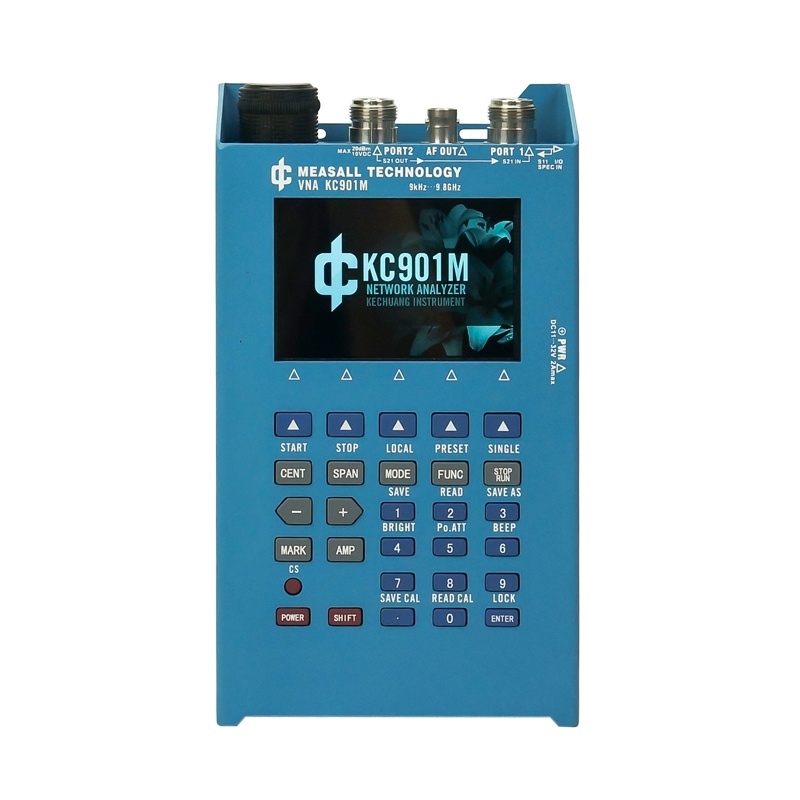

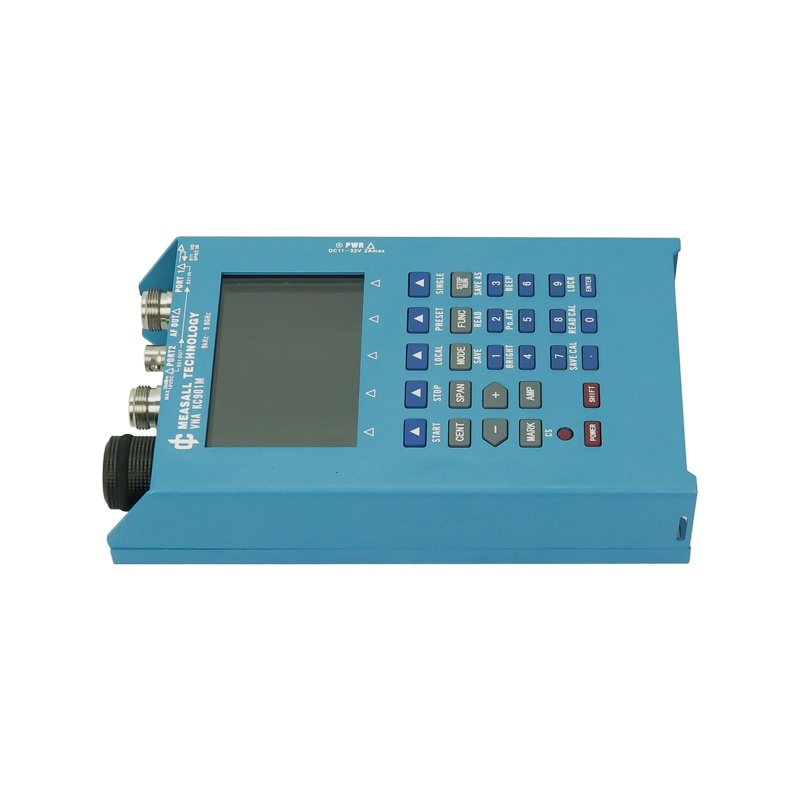

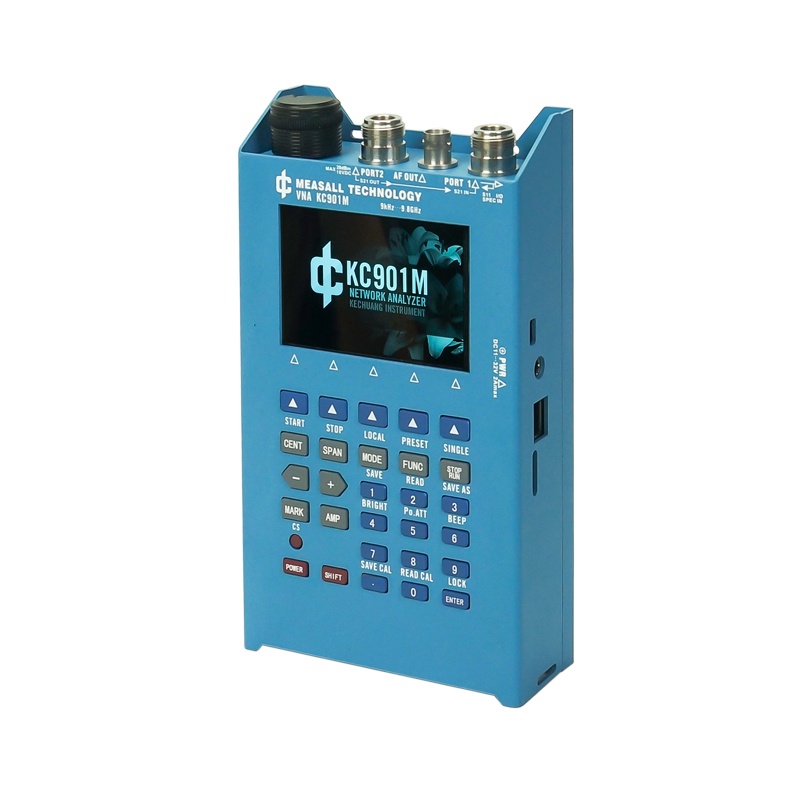

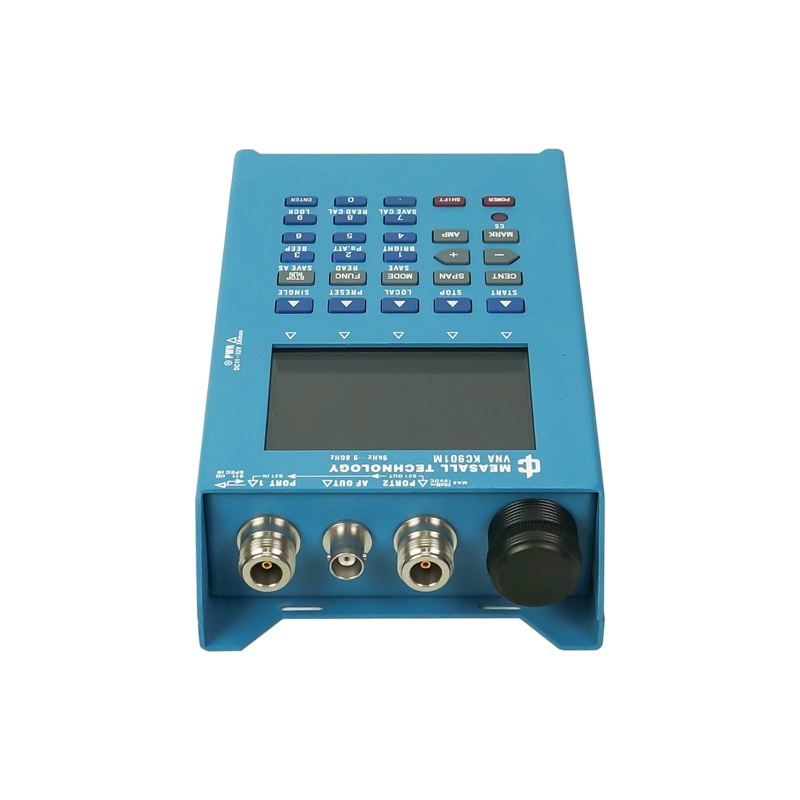

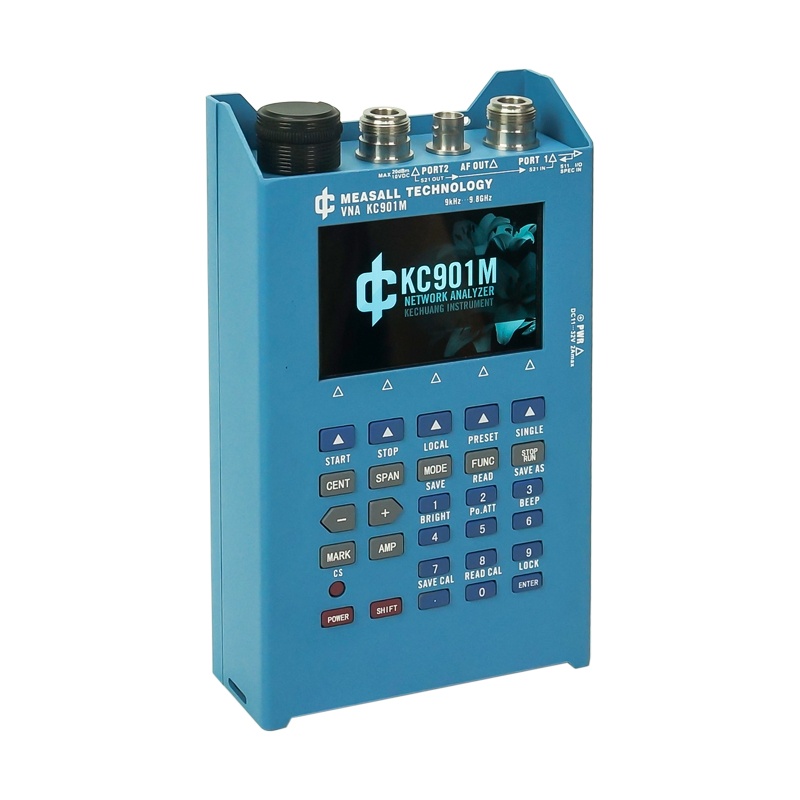

KC901M is a multipurpose RF instrument integrating a VNA (vector network analyzer), spectrum analyzer, field strength meter, and an extra low-frequency signal source. It can do complete single port vector measurement and 2-ports simple vector network analyzing.

Main Features

• Vector network analyzing up to 9KHz-9.8GHz
• 1Hz frequency step
• Good accuracy and anti-interference ability
• Abundant functions and easy to carry (Weight less than 1kg)
•
• Transmission measurement (Filter adjustments, measuring amplifiers, verifying directivity of antennas)
• Reflection measurement (Impedance matching network adjustment, antenna feeding system quality evaluation)
• RF source plus an extra audio signal source
• Spectrum display and field strength observation (potentially used for inspecting a radio station’s emission performance, or for searching for the interference sources)
•

Main Functions

Recommended Applications

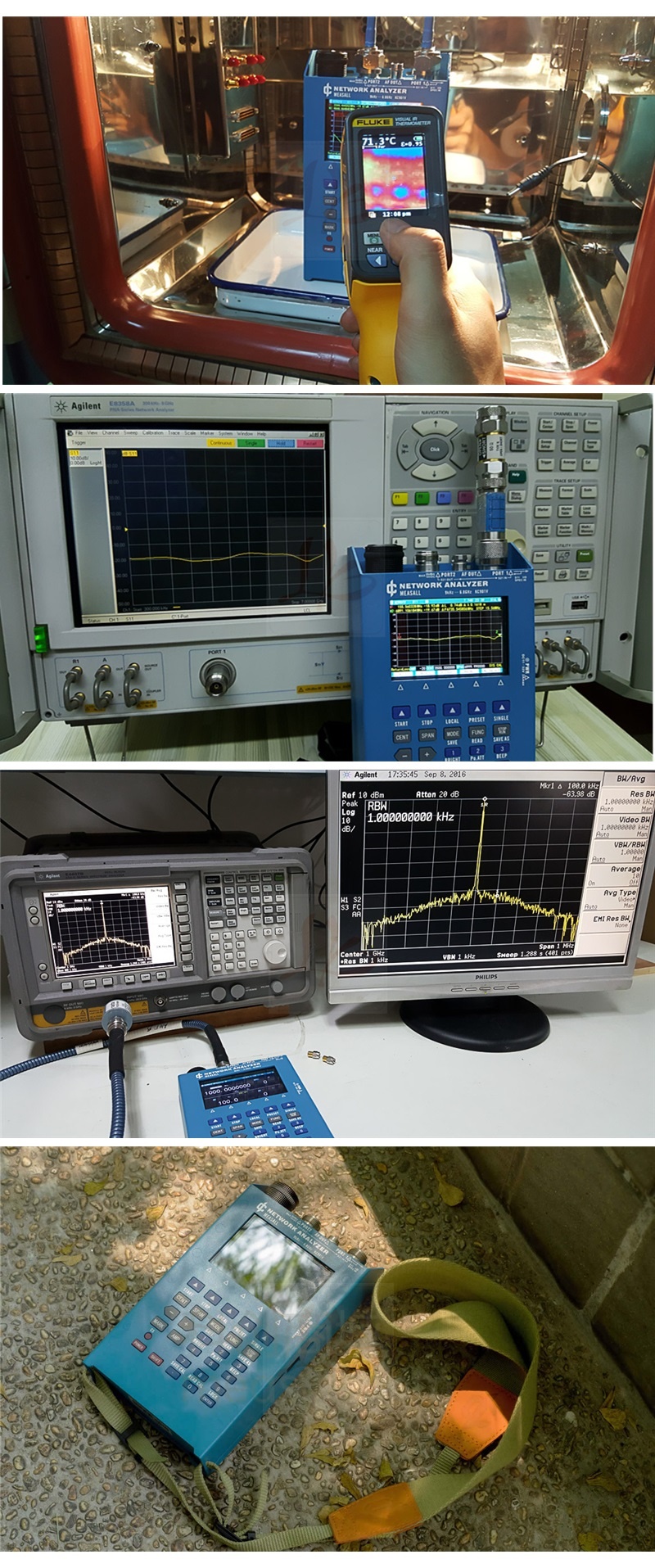

The KC901M is mainly used for adjusting various RF circuits, such as filters, amplifiers, splitters, combiners; testing input/output impedance, evaluating antenna feeding system and detecting equipment’s signal amplitudes at all levels. It can also do field strength measurement, which is useful for checking  the correct operation of low powered devices with integrated antennas and when searching for interference sources etc.

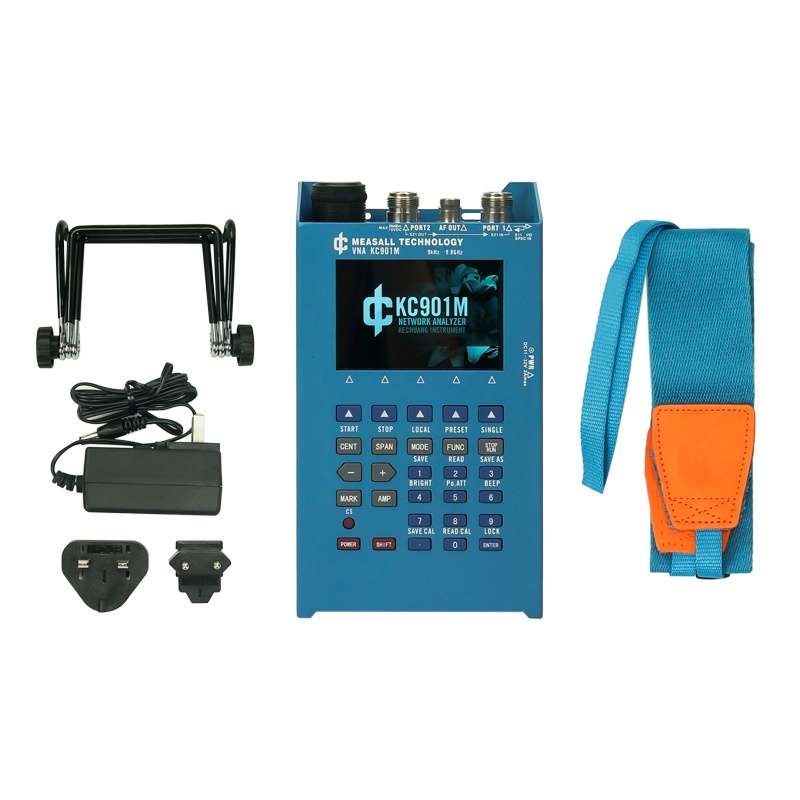

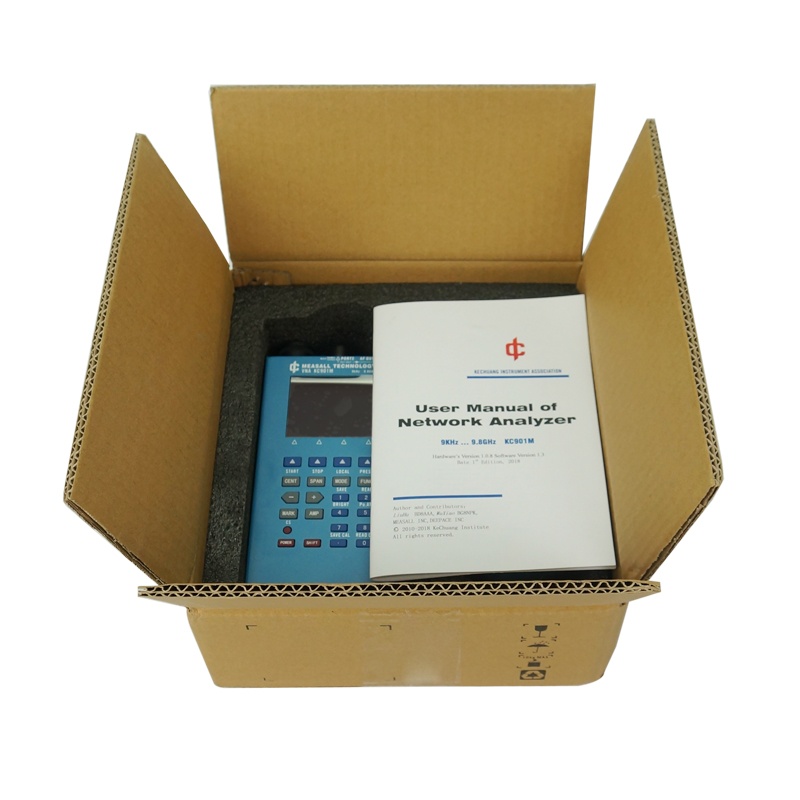

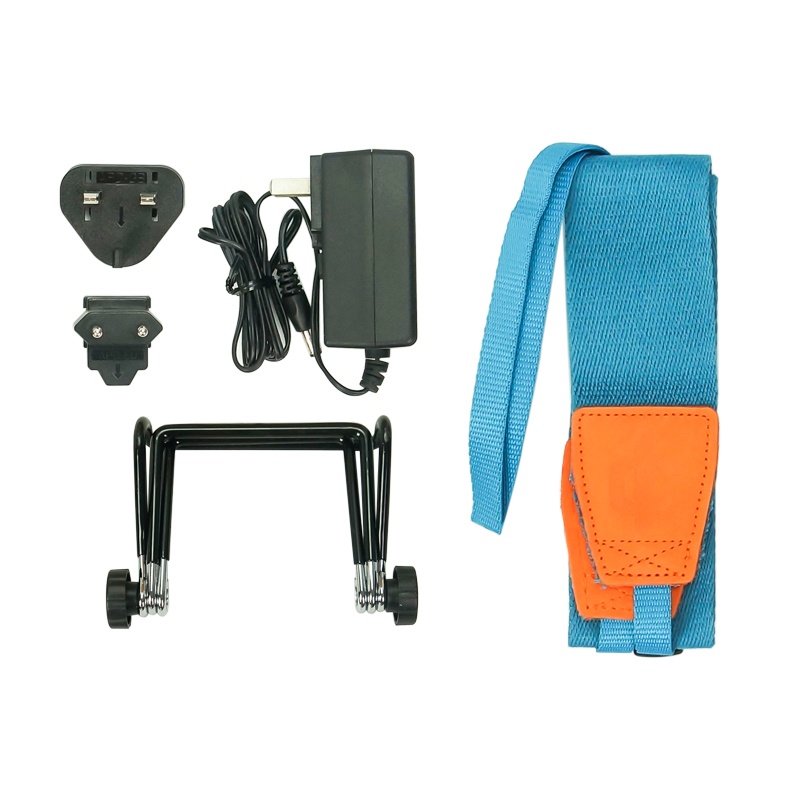

Packing List

KC901M 1

Charger 1

Shoulder Strap 1

User manual 1

Desktop Stand 1

Package Size

31cm×26cm×12cm
2.5Kg
