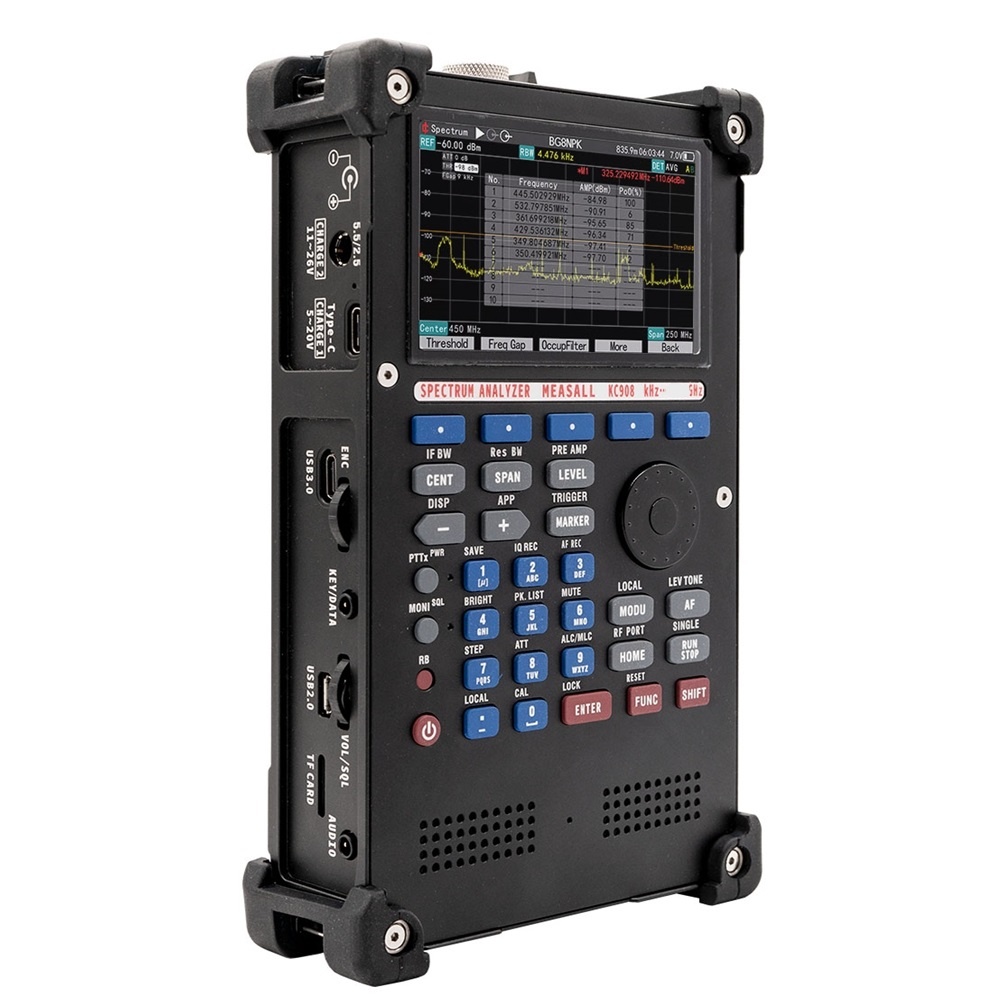

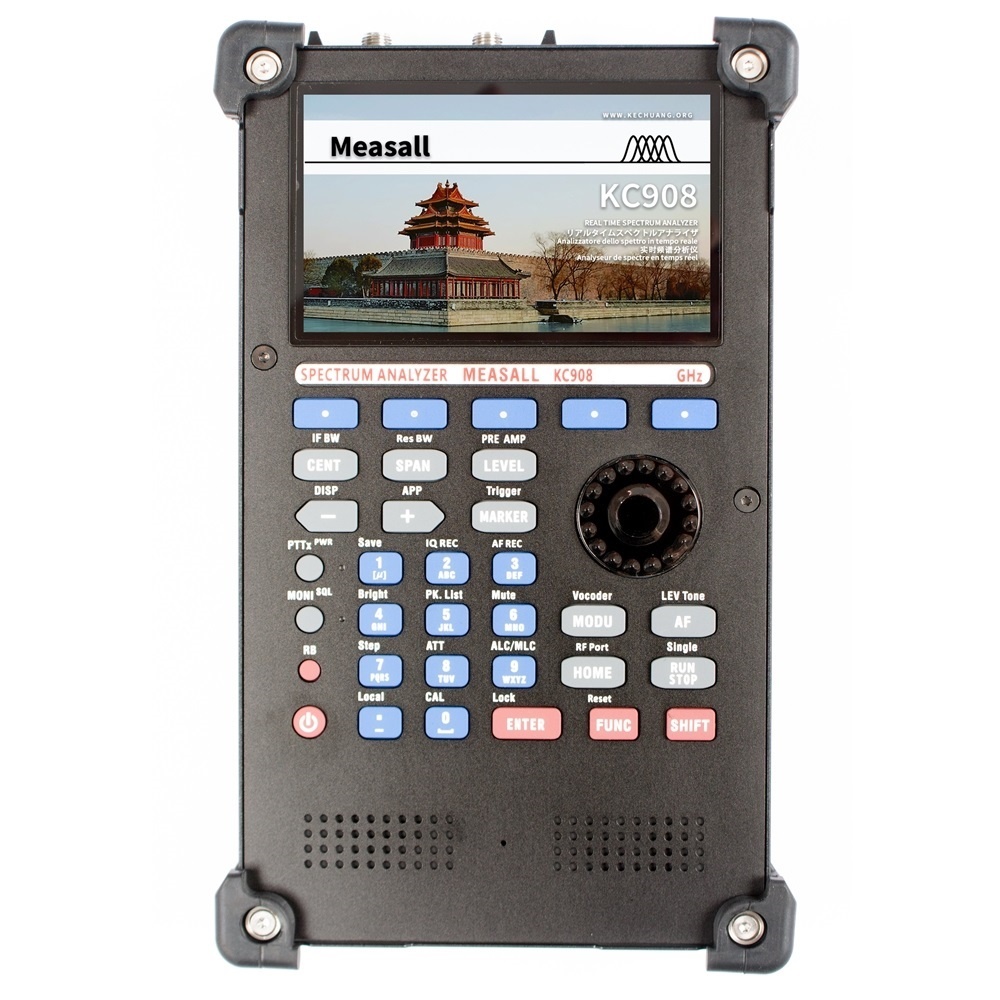

MEASALL LY.GROUP.CHINA Distributor Ultra-lightweight KC908U Real-time 4GHz Spectrum Analyzer Wide-band Sweep Monitor Receiver

MEASALL LY.GROUP.CHINA Distributor Ultra-lightweight KC908U Real-time 4GHz Spectrum Analyzer Wide-band Sweep Monitor Receiver

Model with different GHz:

KC908 U / V / A / B

(4.0GHz / 6.0GHz / 10.8GHz / 18.6GHz )

Description

KC908 is a wide-band sweep receiver, it is capable of measuring spectrum and field strength,demodulating and monitoring signals likeFM SSB  P25 Tetra and DMR. As for uncommon signals, KC908 can record the IQ signal and save to micro SD card.

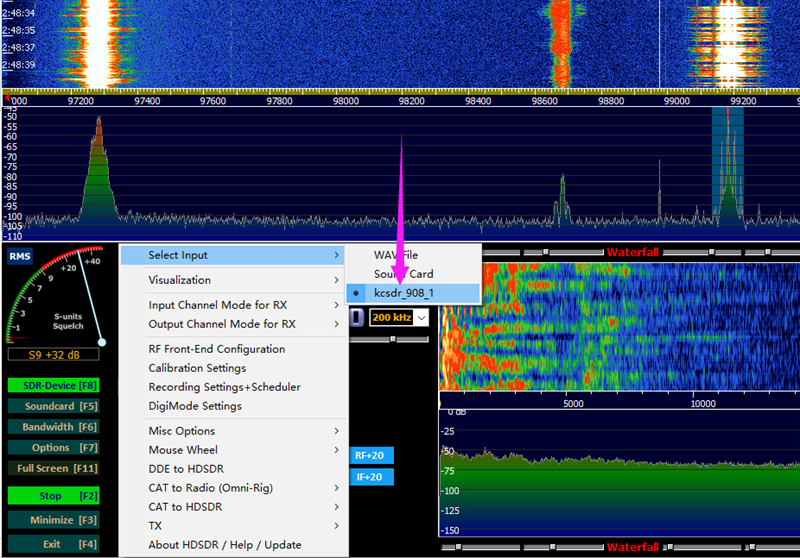

KC908 is based on SDR construct. Different from other PC-based SDR receivers, KC908 integrates complete digital signal processing unit and user interface, it is no need to use with PC. Also KC908 supports SDR software like HDSDR and is able to connect with GNURadio.

Fast sweep reaches 3GHz bandwidth per-second with a 10kHz frequency resolution, which is equivalent to 120,000 25kHz channels. It takes less than 0.1 second to sweep 300-500MHz,. We’re proud of such a decent performance on a micro-size hand-held equipment.

Signal source function able to generate RF signals and play IQ files in full frequency range.

 Basic Function

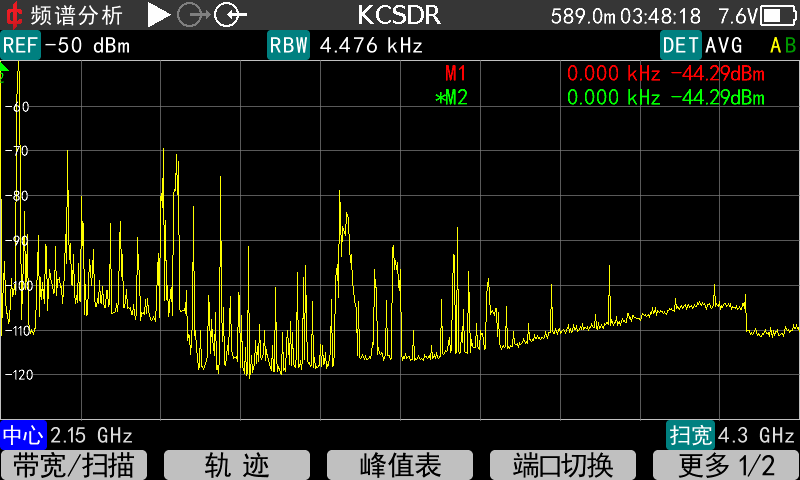

• Spectrum analysis
• Field strength measurement
• Simple signal generator
•

Useful Functions

1. Better than 15KHz frequency measurement accuracy with any sweep span, a single measurement can get the accurate frequency.
2. Comfortable monitoring with multiple squelch mode
3. Automatically log strong signals for reconnaissance
4. Storing up to 999 channels

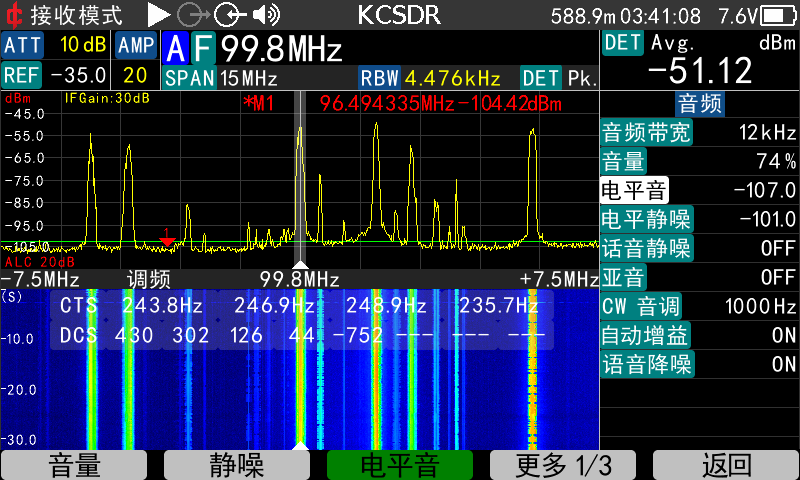

5. Waterfall figure display
6. Record IQ and audio to TF card
7. Level tone function for tracing on foot
8. Analogical demodulation with high volume audio for noisy environment

Highlights

1. DMR/TETRA/P25 and other digital-voice demodulation
2. Monitoring with multiple squelch and analysis
3. High volume audio output for noisy environmen
4. Record IQ and audio to TF card
5. Zero to Full span for spectrum mode with 3GHz/s fast sweeping
6. Better than 15KHz frequency measurement accuracy with any sweep span
7. Full band RF signal source with 90dB adjustable amplitude and IQ replay
8. +10dBm output level up to 18.6GHz (KC908B Only)
9. GNURadio connectivity

Application

KC908 can be used as a traditional spectrum analyzer. It’s also the ideal choice for digital, pulse or unstable signals(like magnetron output).

Professional communication engineering

IoT project

Interference searching

Concealed signal source searching

Electromagnetic radiation measurement

Radar and satellite station

Radio reconnaissance and monitoring

Spectrum resource occupancy analysis.

Industrial microwave engineering

Electromagnetic environment evaluation

Introduction

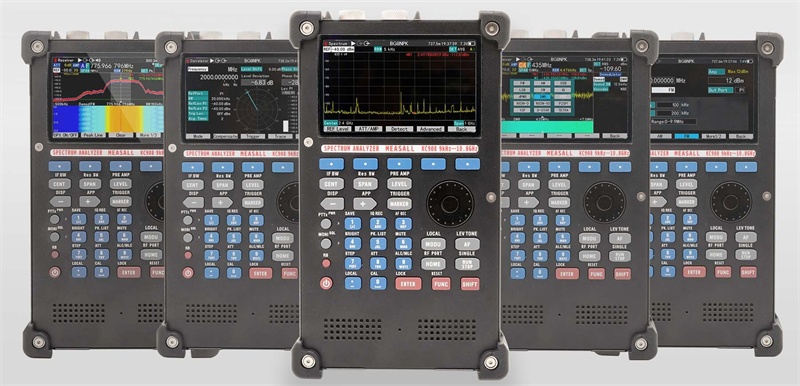

The KC908 series is a family of MEASALL® pocket-sized instruments that continues the tradition of feature-rich, compact, and moderate performance. The KC908 series includes three selectable frequency ranges covering low frequencies up to 10.8GHz, 18.6GHz and 33GHz, respectively.

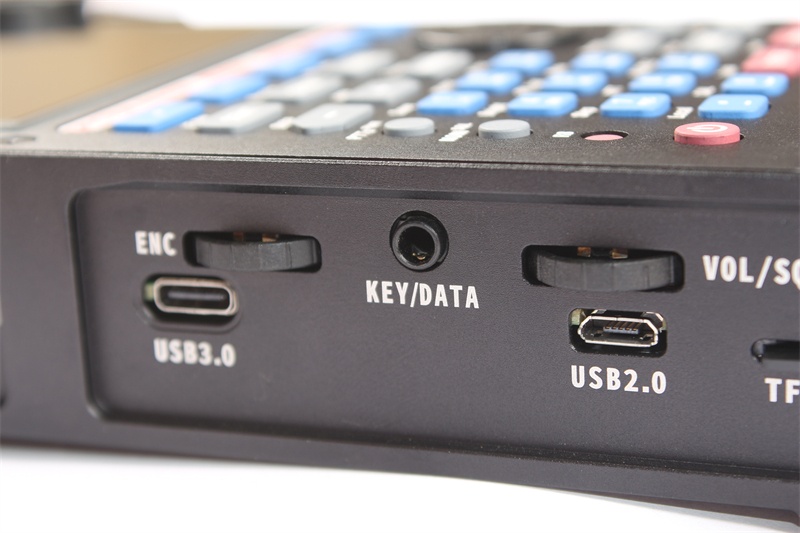

The basis of the KC908 is a real-time spectrometer, which provides a real-time bandwidth of 15MHz when working independently and allows panoramic scanning over the entire coverage area. For narrowband digital signals, the raw data (IQ data) can be recorded to a TF card. If further analysis is desired, USB 3.0 can be used to connect to a computer with a real-time bandwidth of 40 MHz when using the GNURadio software.

The 2 models have a vector signal source in the same frequency range as the received frequency, allowing analog modulation. It is also possible to play back recorded IQ data or to create signals using GNURadio software.

For narrowband communication reconnaissance, the KC908 is optimized for, for example,better than 10kHz carrier frequency measurement accuracy (RBW less than 5kHz) at any sweep width, while still scanning at speeds up to 2GHz/s, and automatically counting peaks and their occupancy. The instrument’s receiver is capable of common analog modulations such as AM/SSB/FM demodulation, and has its own audio amplifier.

The combination of versatility and minimal size makes the KC908 ideal for field

applications, especially for field service, construction and maintenance activities that require frequent travel. In most cases, one KC908 in your pocket can do the job that used to require a shoulder-mounted instrument.

The KC908′s performance specifications are moderate and suitable for most common uses, but with some skill it can also be used to tackle more performance-critical jobs.
