Multi-purpose leather slitting machine belt rubber fabric sponge fabric slitting machine straight cutting machine cutting width 200-300MM 120W 180W

Multi-purpose leather slitting machine belt rubber fabric sponge fabric slitting machine straight cutting machine cutting width 200-300MM 120W 180W

Application：

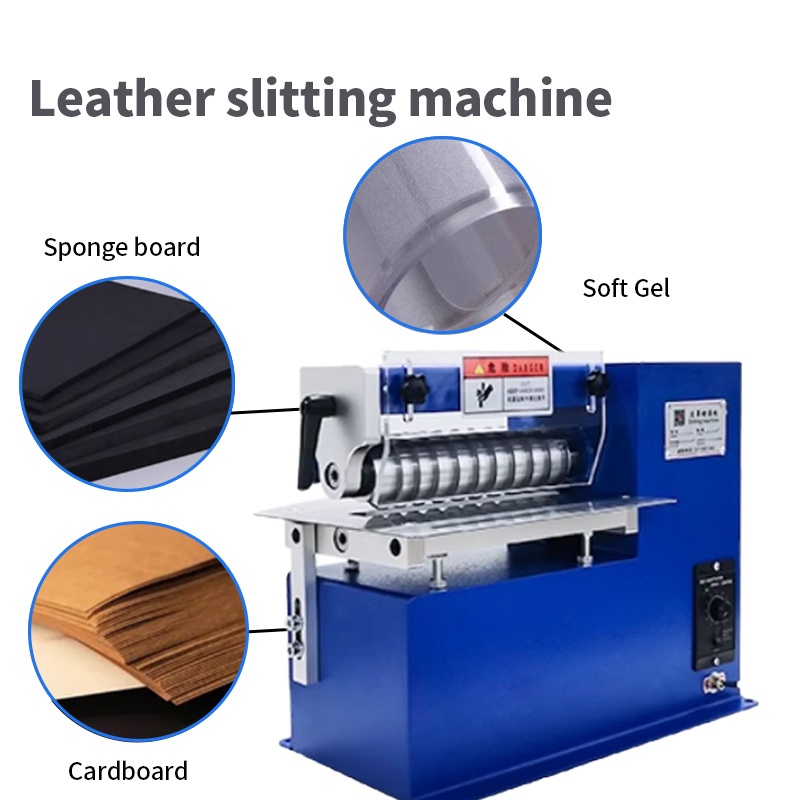

This product is suitable for leather shoes, bags, handicrafts and other leather goods cut straight, It can also be cut paper products.

Cutting thickness: For soft leather, it can cut 6mm thick. For hard leather, it can cut 3mm thick.

Suitable for soft leather thickness less than 3mm, width between 2-300mm

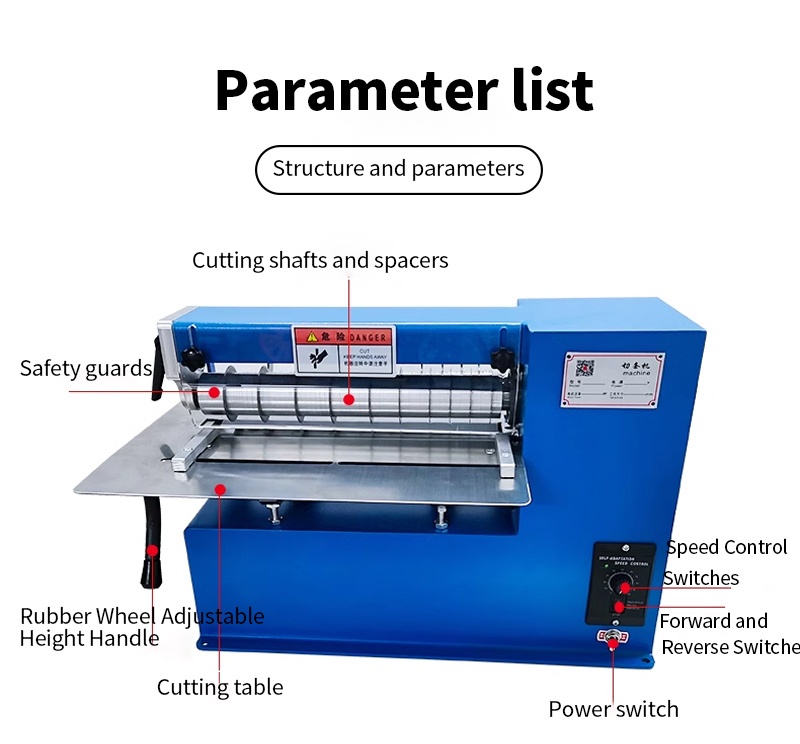

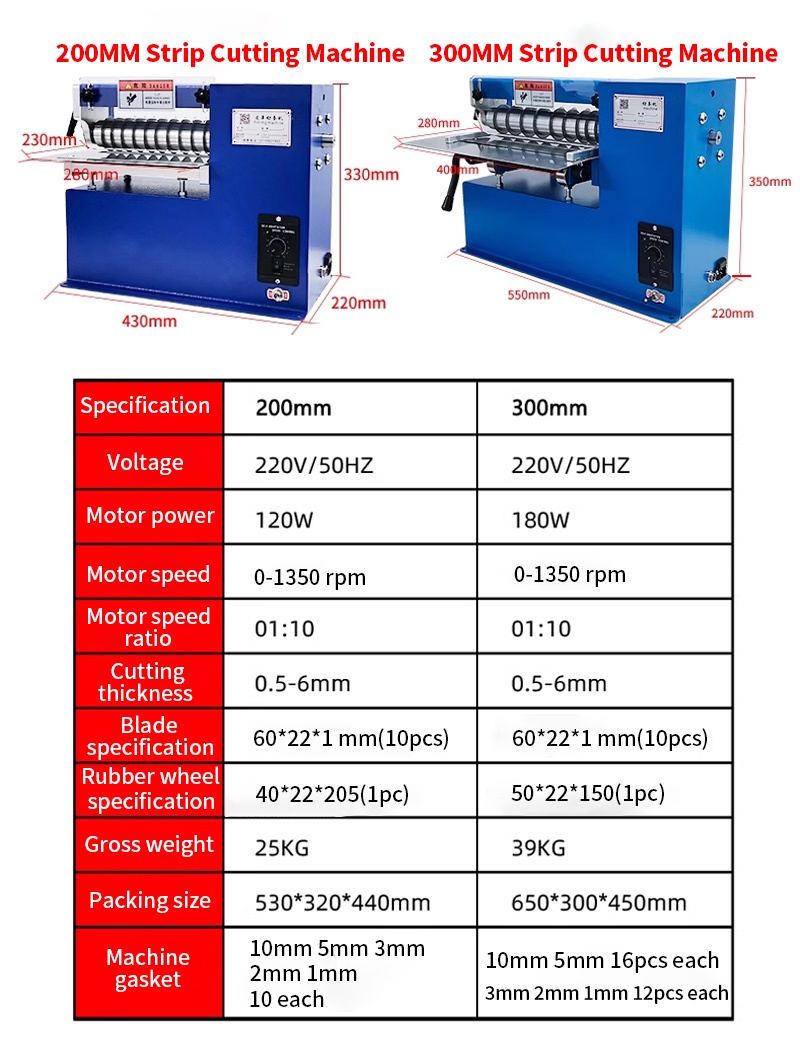

Product parameters:

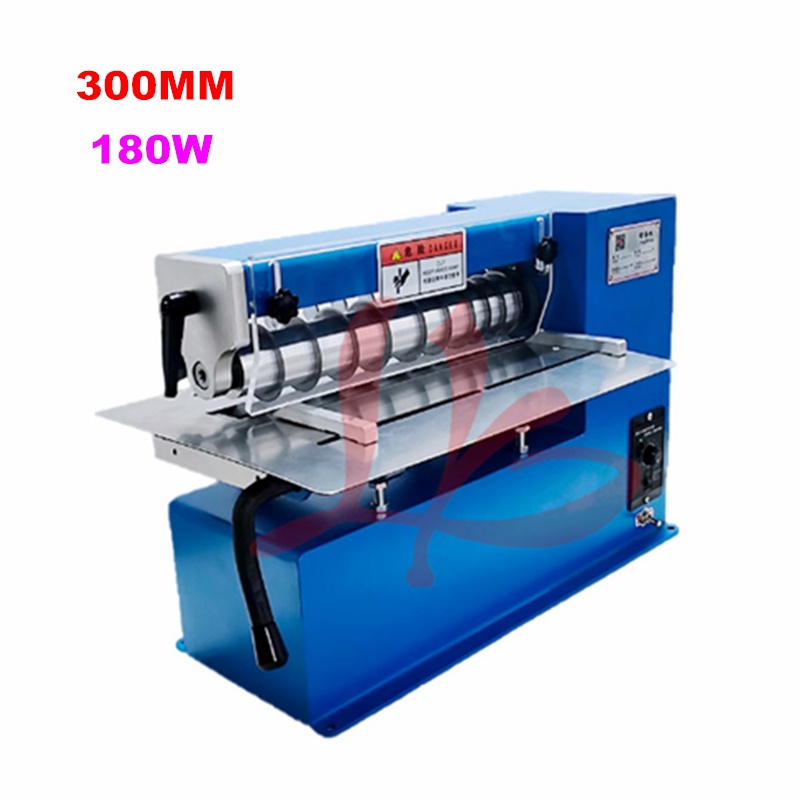

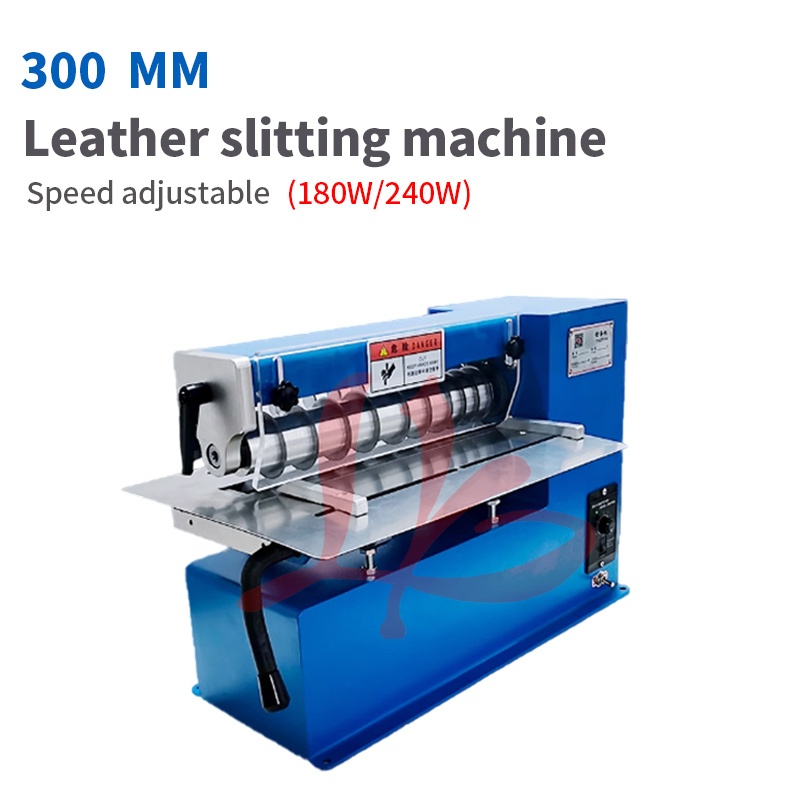

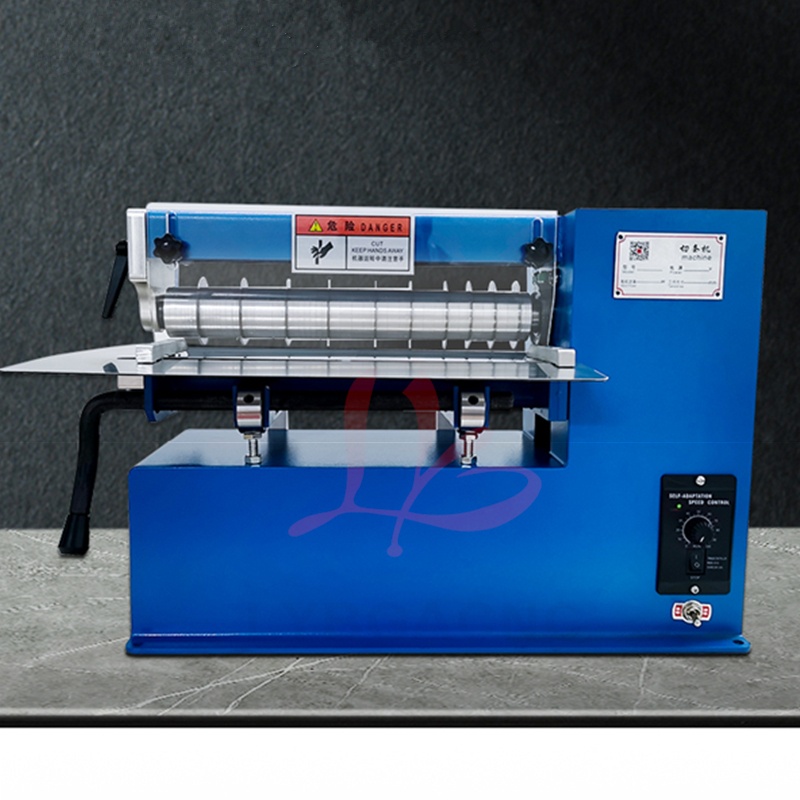

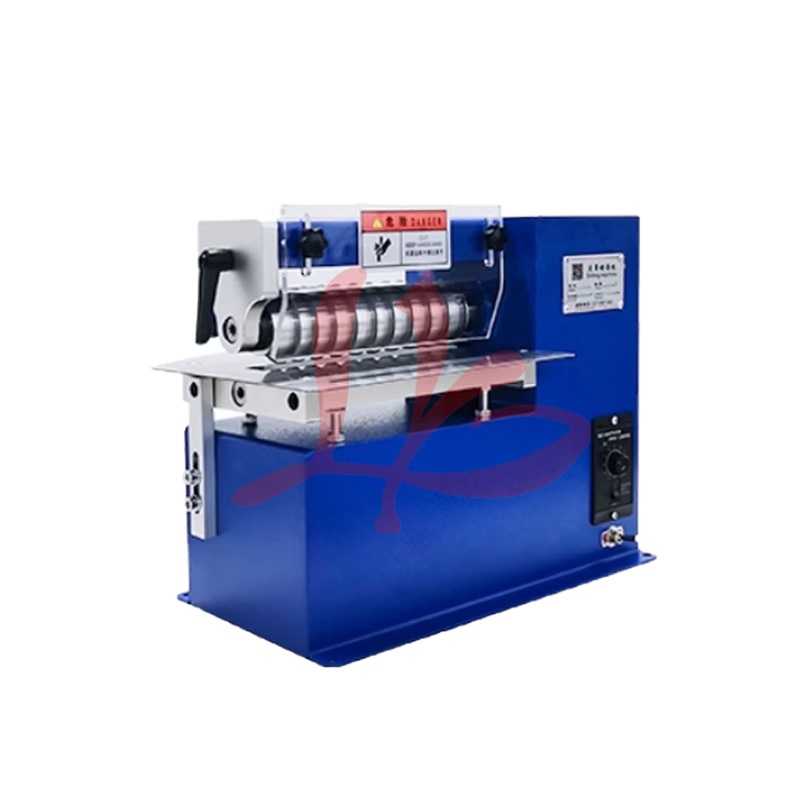

Product name: 12 inch multi-purpose cutting machine

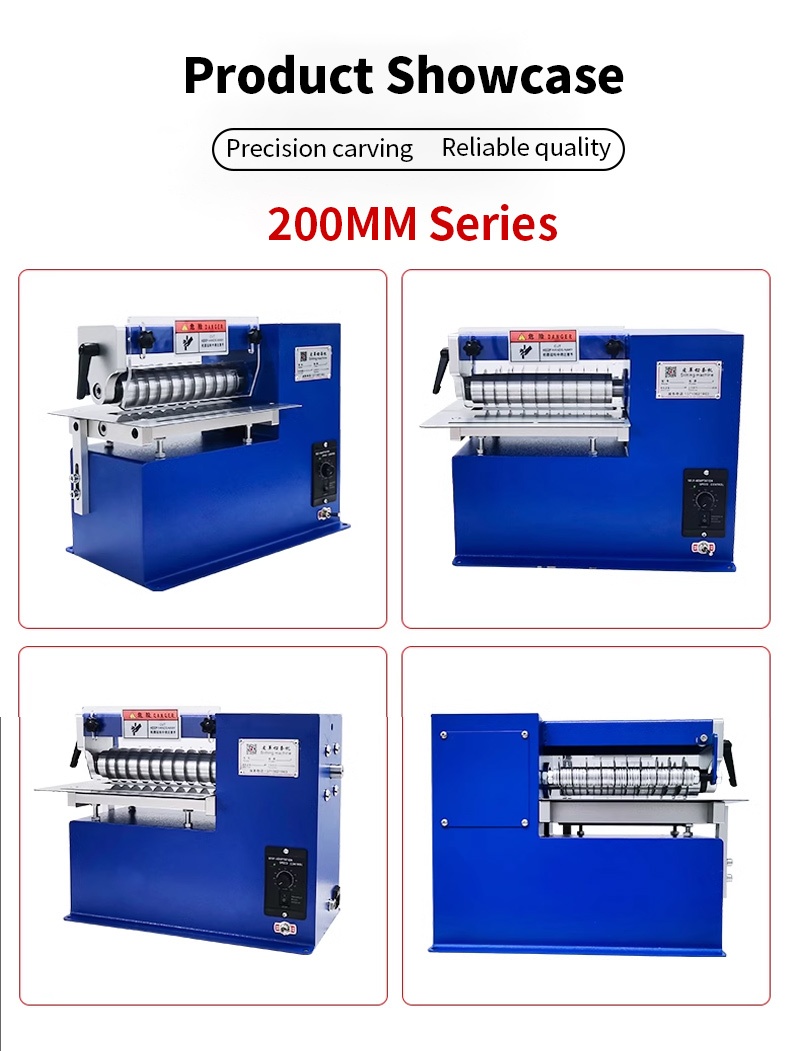

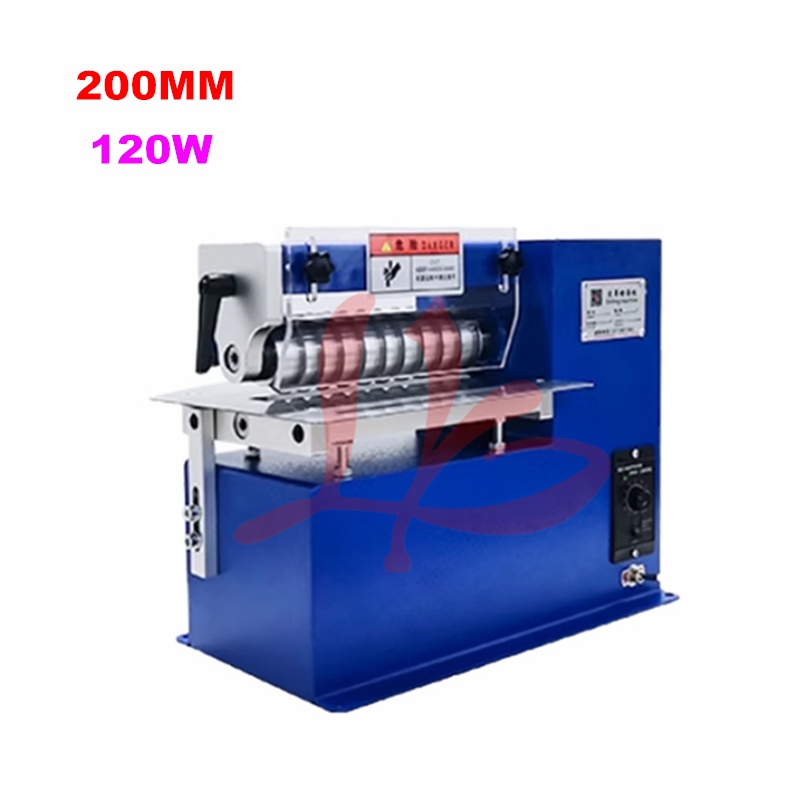

Product model: LY-200MM/ LY-300MM

Power: 120W & 180W &400W

Cutting shaft length: 12 inches (300mm)

Cutting width: between 4~200mm~300mm

Gross weight: 25KG(200MM) / 40KG(300MM)

Speed ratio: 1:10

Motor speed: 1350 rpm

Cutting length: no limit

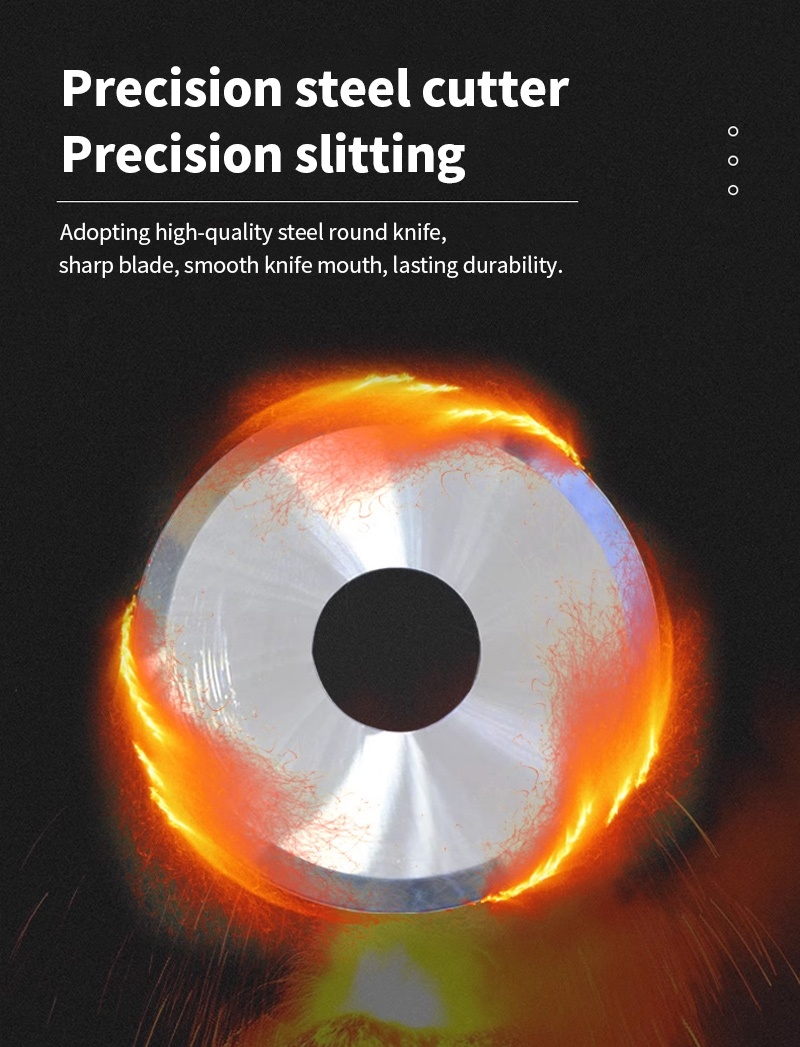

Blade specifications: 60*30*1mm

Blade standard: 5 pieces

Rear fork stopper: 10 pieces

Packing list:

1 x leather Slitter Machine

1 x Accessories

Maintenance

1, the lubrication hole filling oil regularly, prevent the rotation axis of normal lubrication and wear or killed.

2, should pay attention to safety when using, do not reach out her hand to the blade when the machine is turning.

3, use for a long time that the condition of the rod nylon washer, serious breakage of workpiece in cutting burr should beoff work at this time, open beside cover board, use special wrench to loosen the nut, loose screws, unload swinging rod. Pull the nylon washer, with the changing location method, nylon ring again.

4, if users need special cutting width of the workpiece, can be made to our various types of special gasket.

5, power supply should be safety grounding, ensure no leakage phenomenon.

Thanks for your order!
