New Desktop Type Constant Heating Mobile Phone TAB COG COF COP ACF LCD Repair Green Flex Cable Bonding Machine EN-580-2C 4C Two Or Four
Cameras Optional 220V 110V

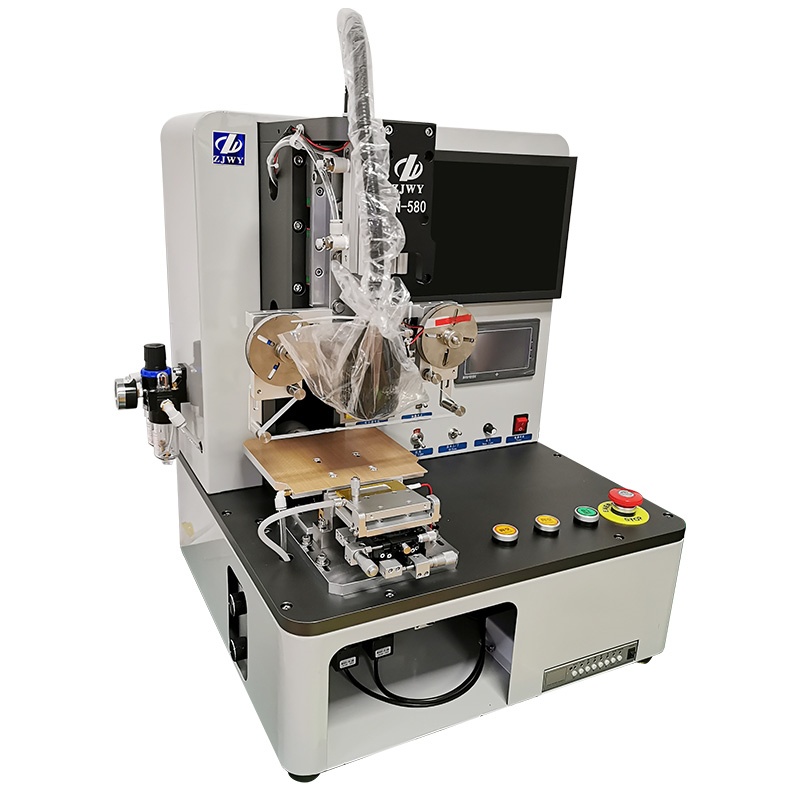

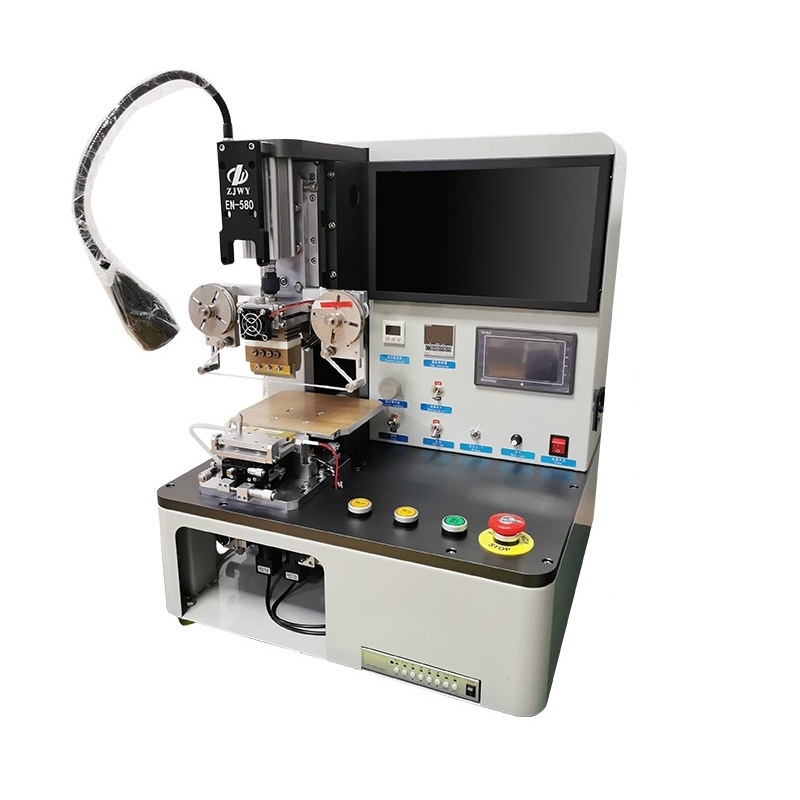

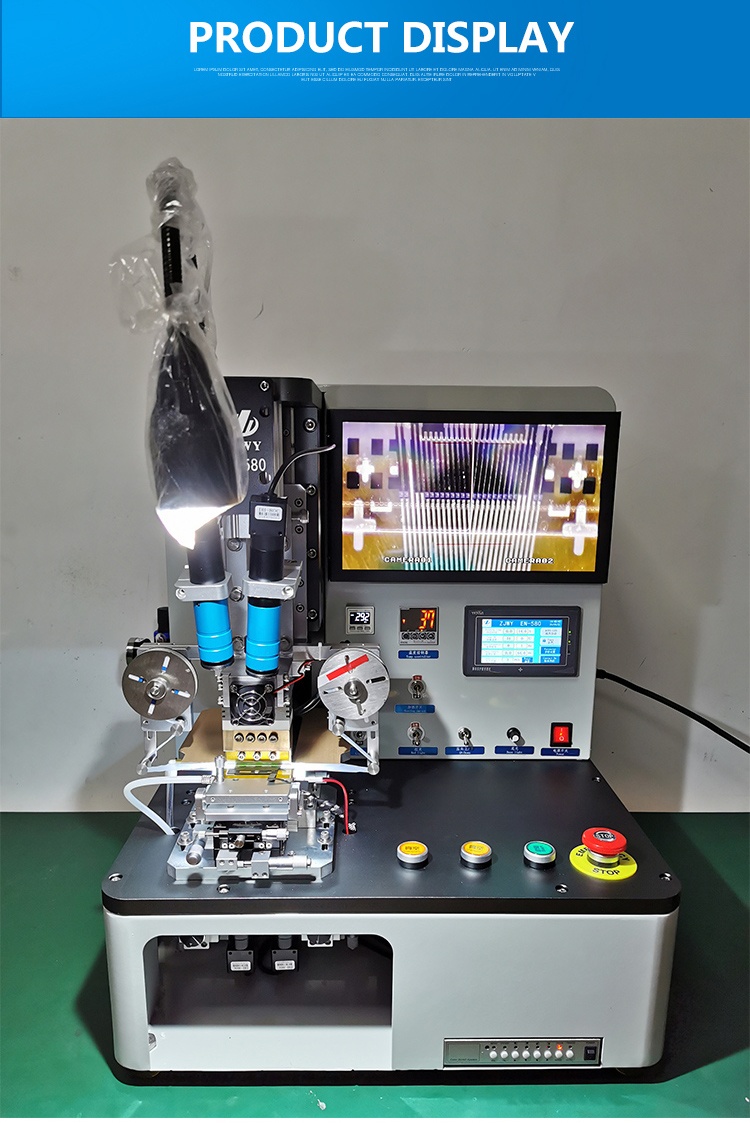

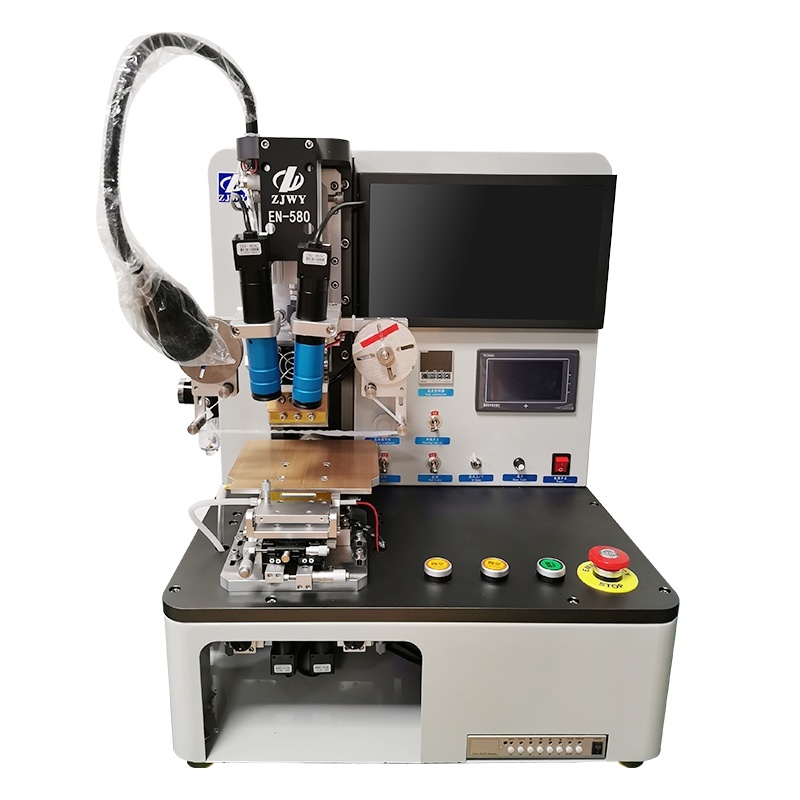

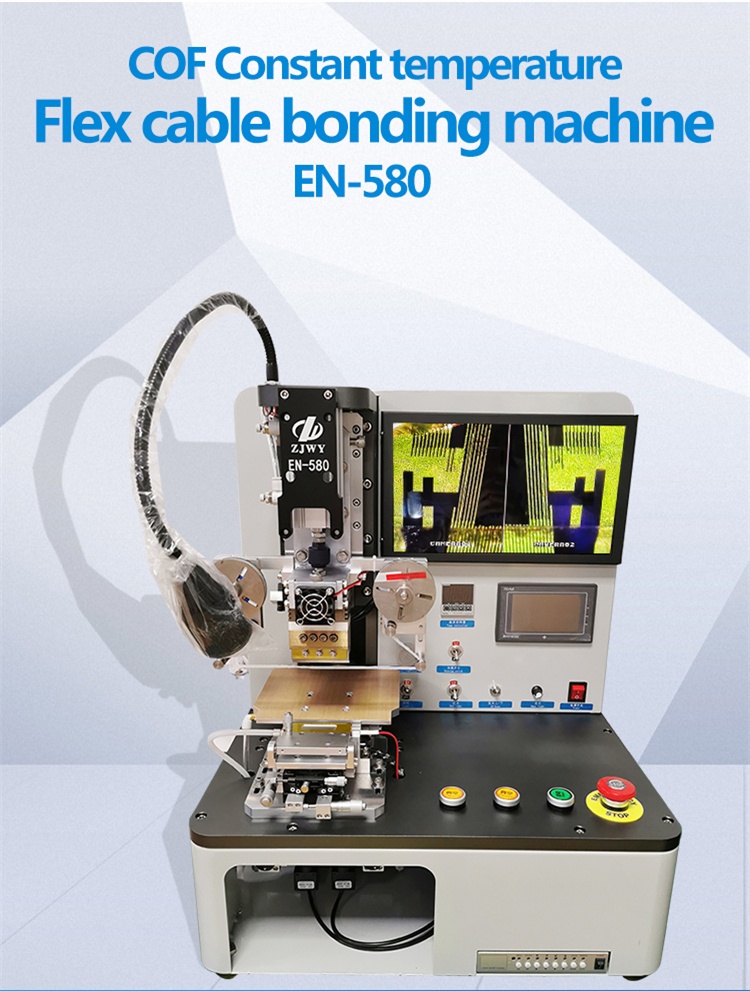

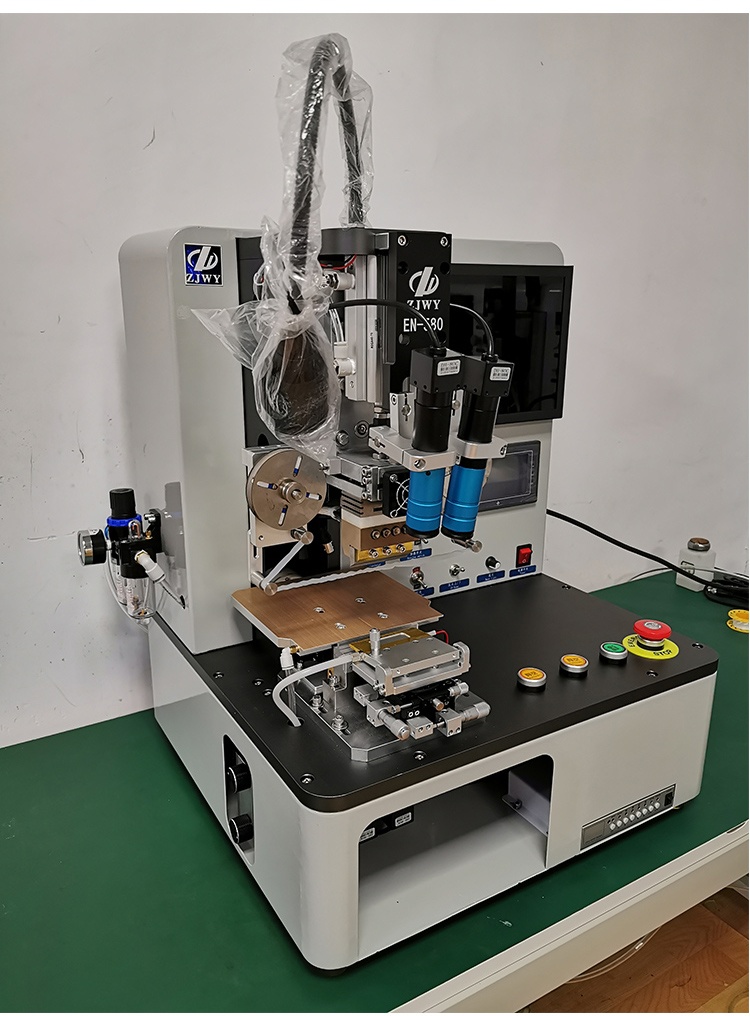

New flex cable bonding machine EN-580

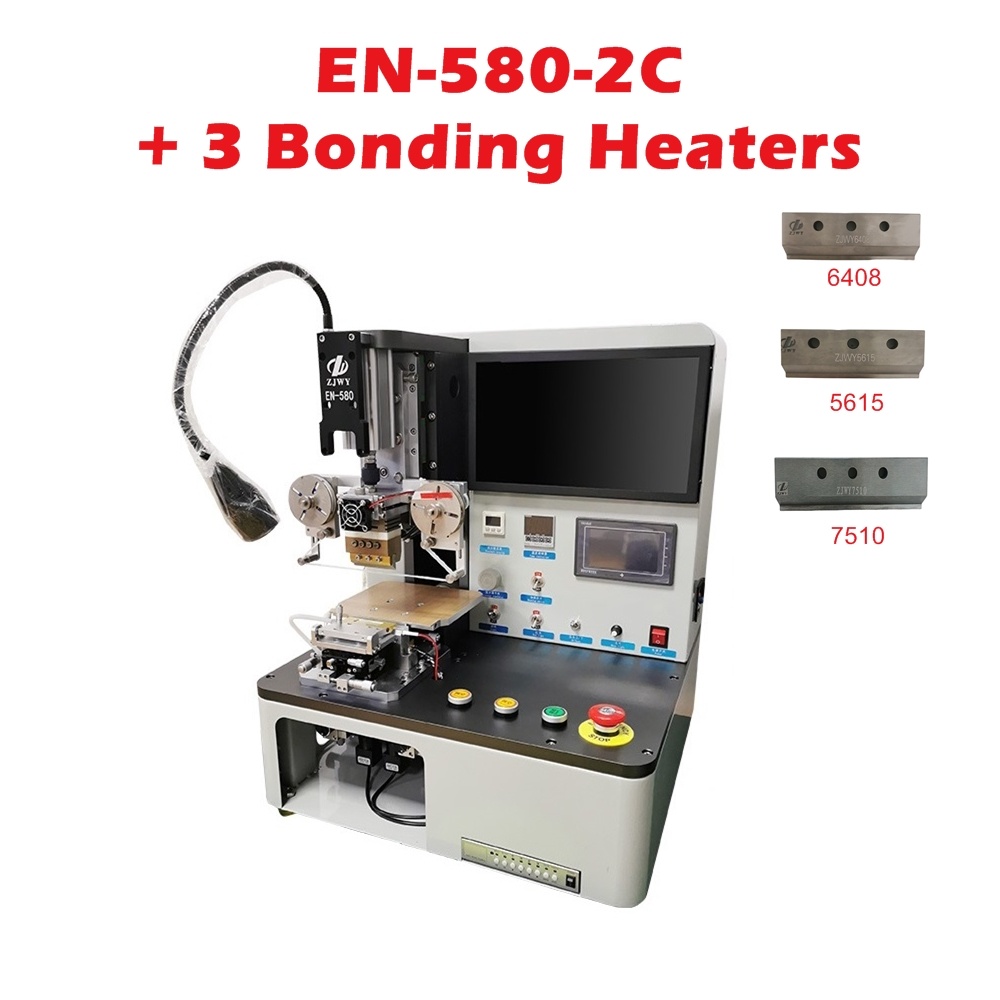

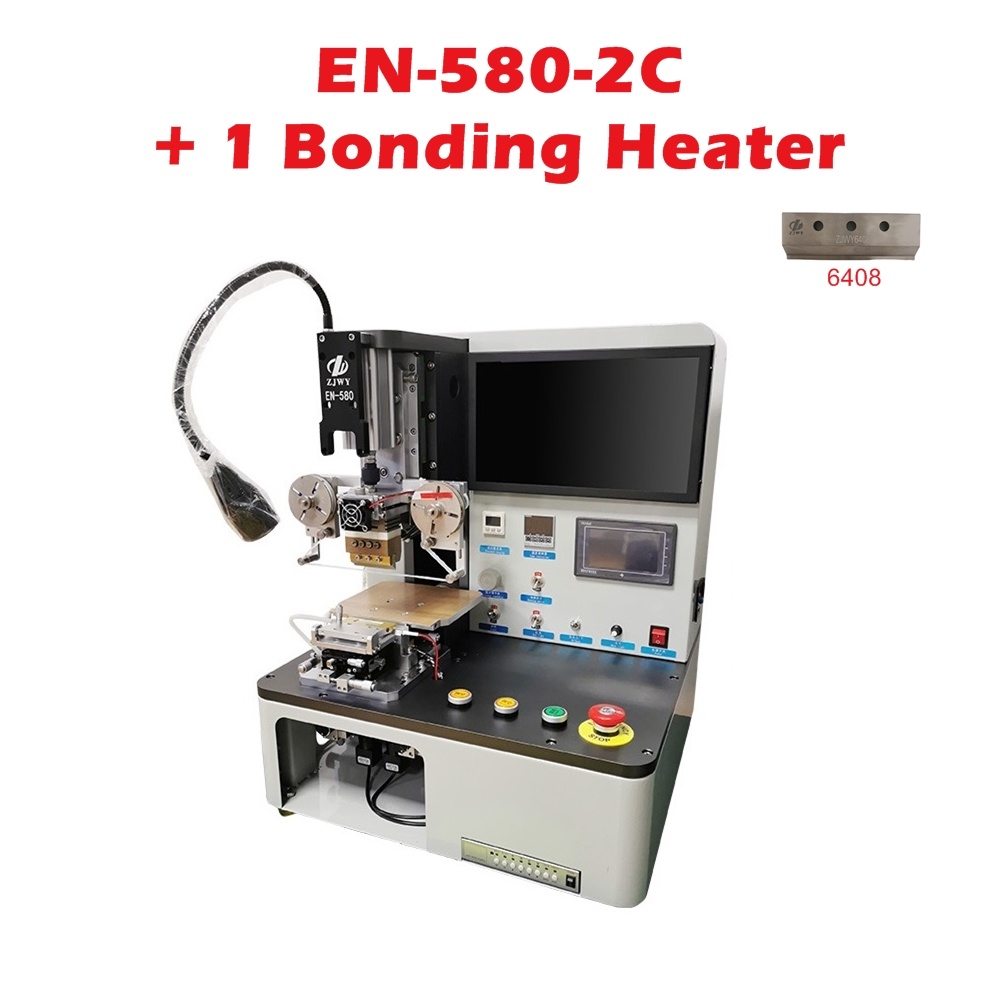

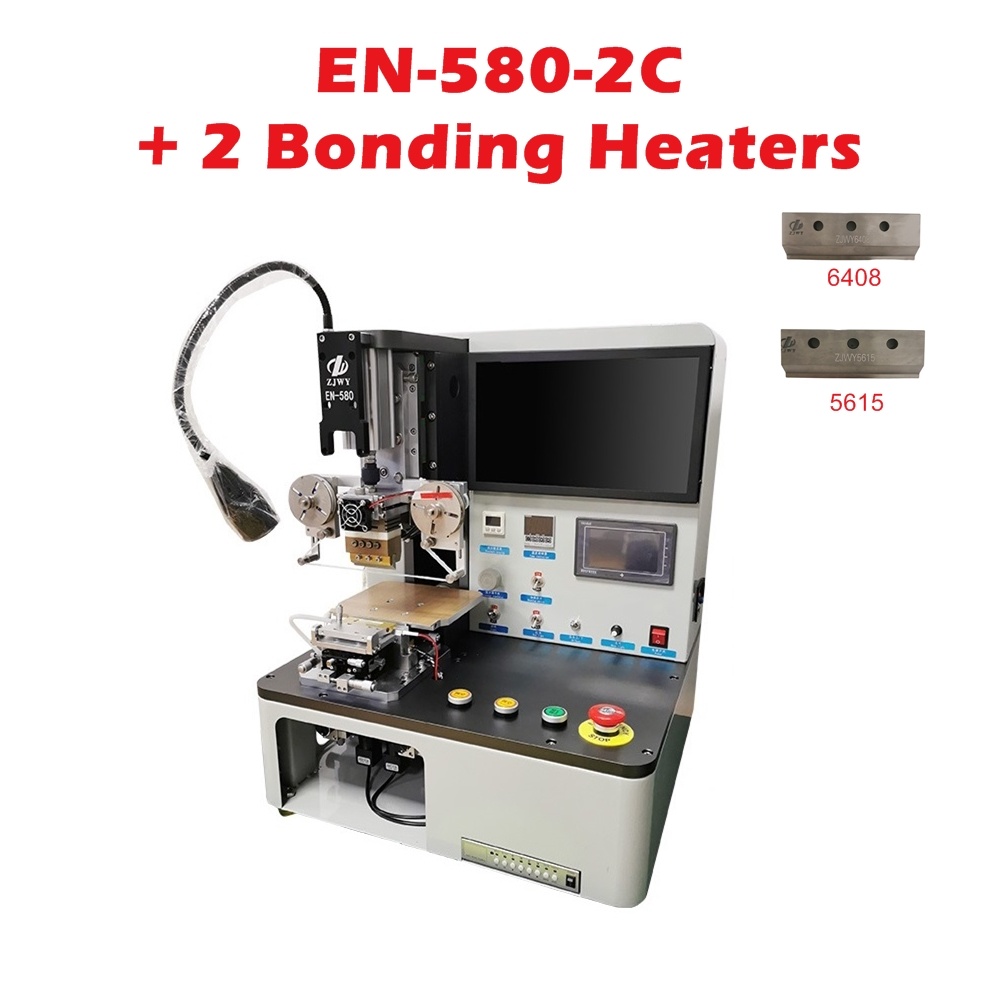

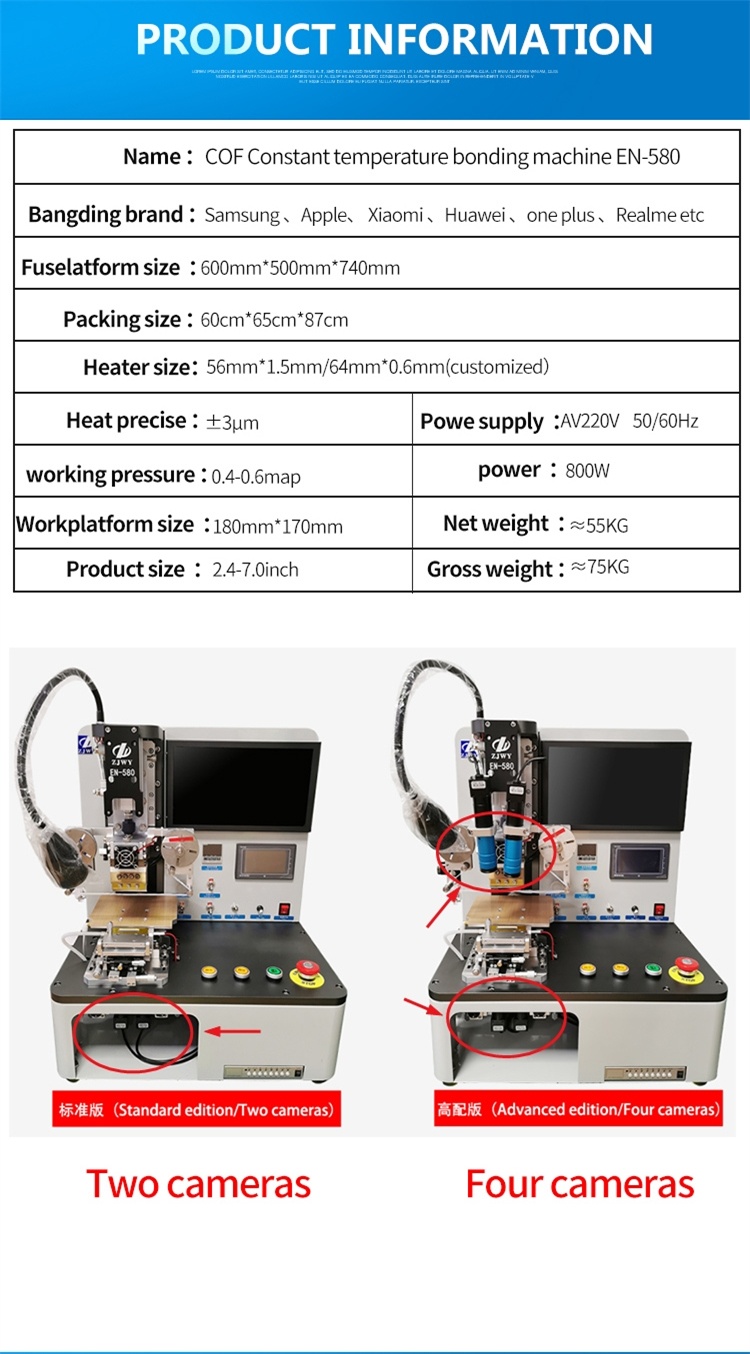

EN-580-2C

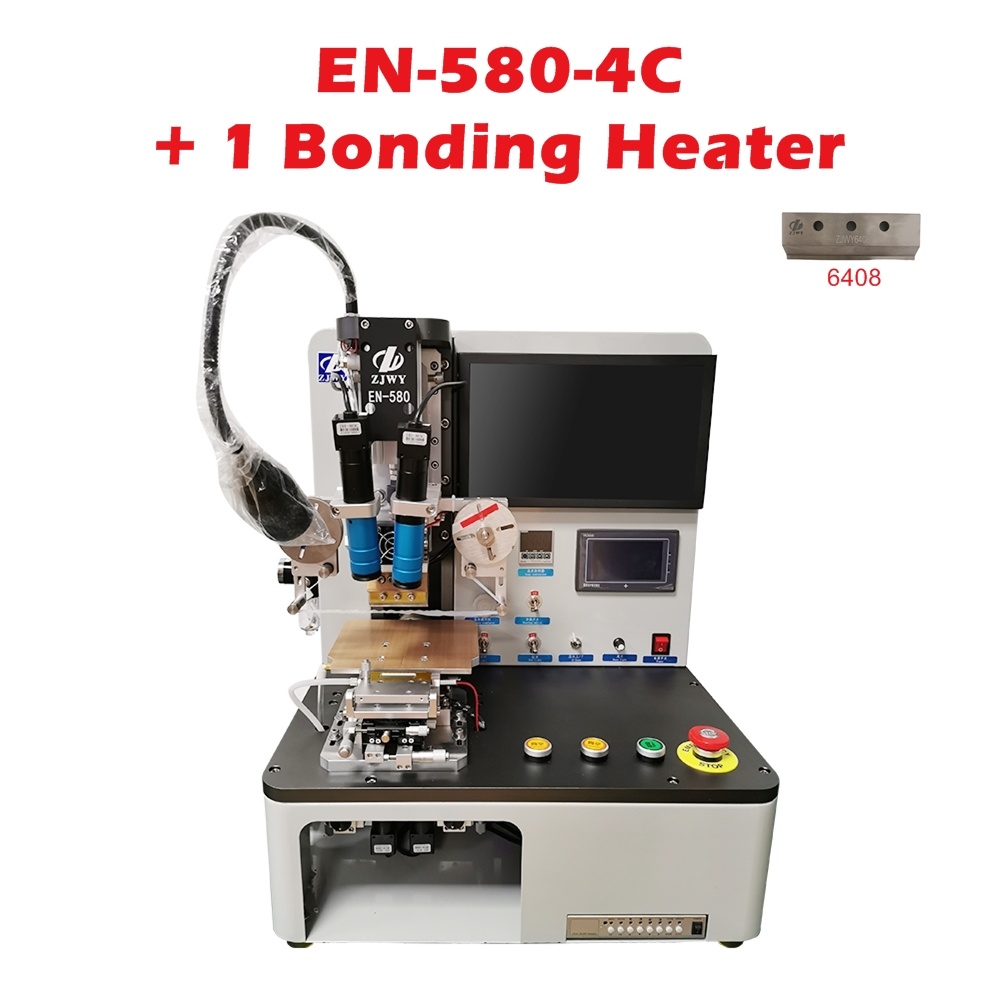

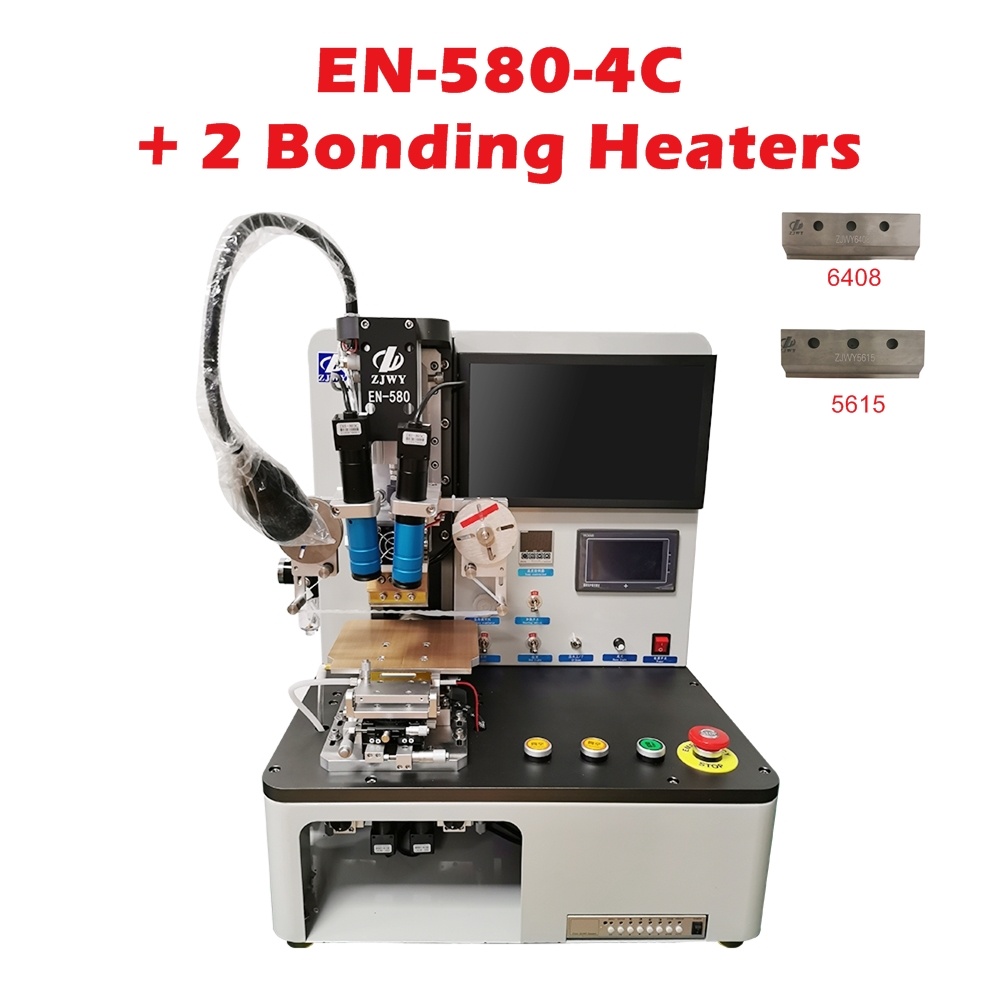

EN-580-4C
It can bond usual cable, green flex cable, iPhone x series cable, display and touch cable.

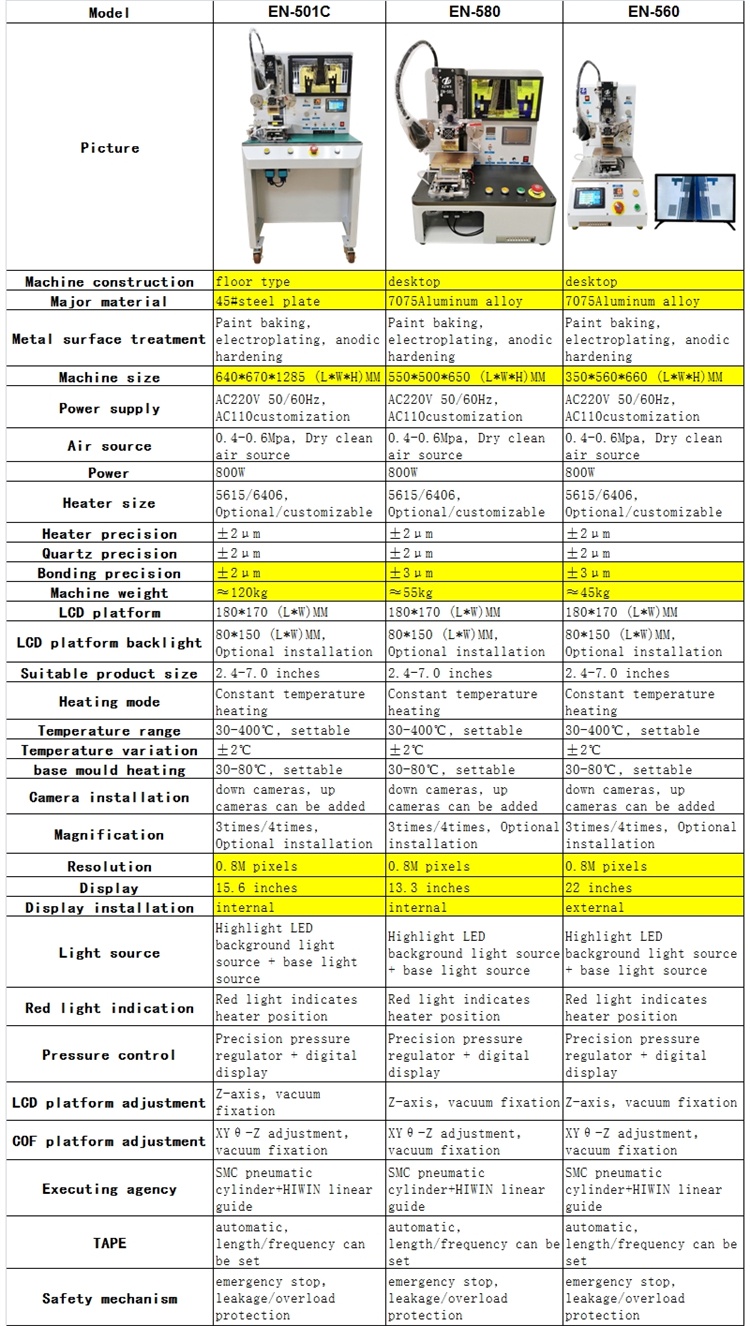

Machine construction |
Desktop |
Major material |
7075Aluminum alloy |
Metal surface treatment |
Paint baking,electroplating,anodic hardening |

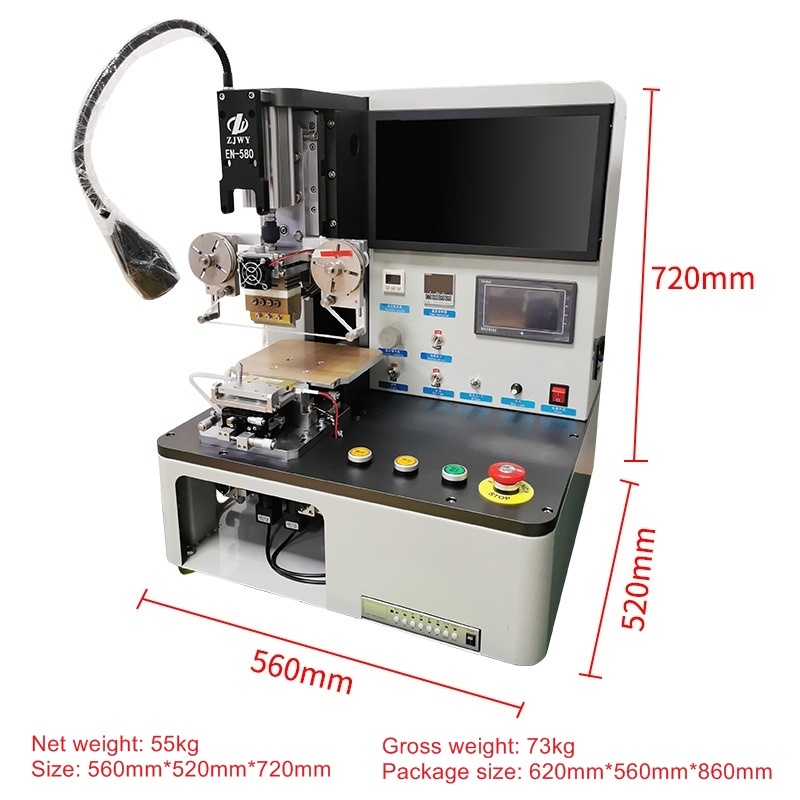

Machine size |
550*500*650 (L*T*H) MM |
Power supply |
AC220V 50/60Hz,AC110 Customization |
Air source |
0.4-0. 6Mpa,Dry clean,air source |
Power |
800W |

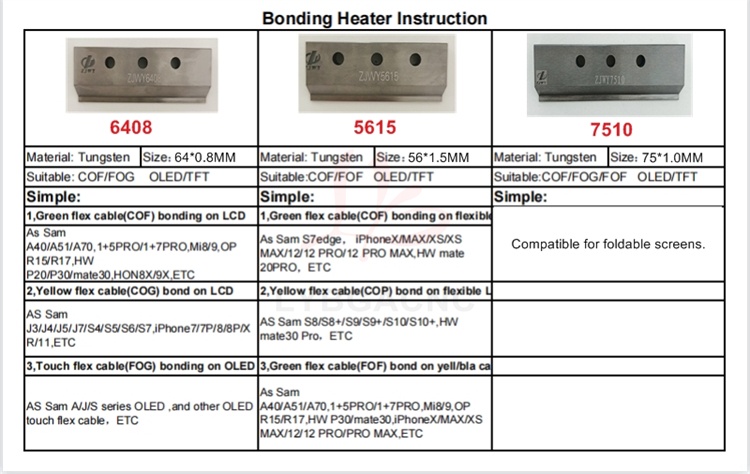

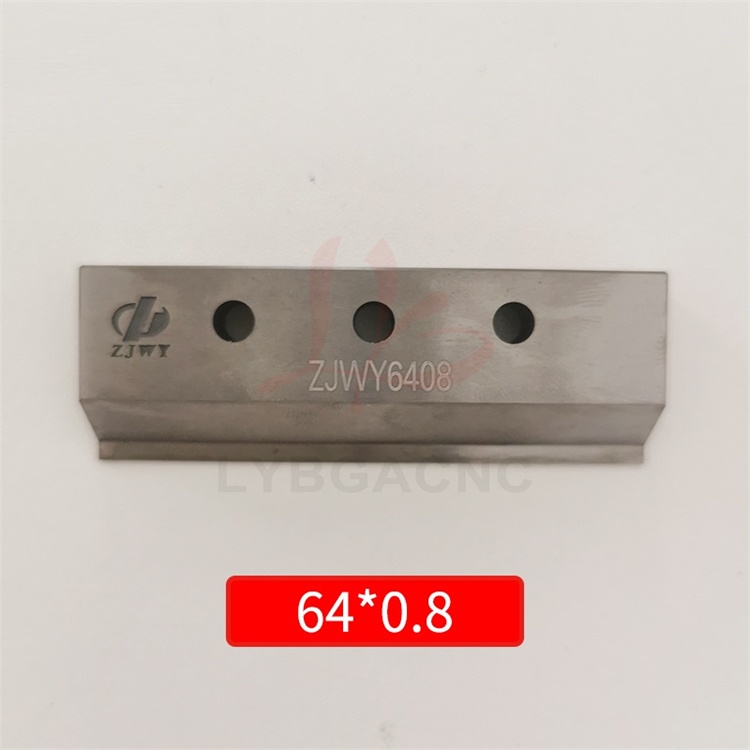

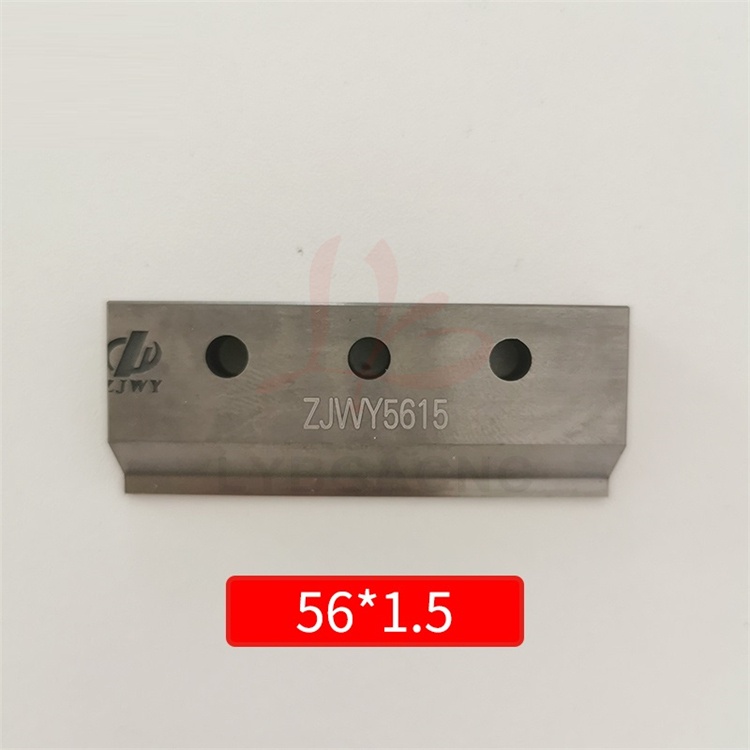

Heater size |

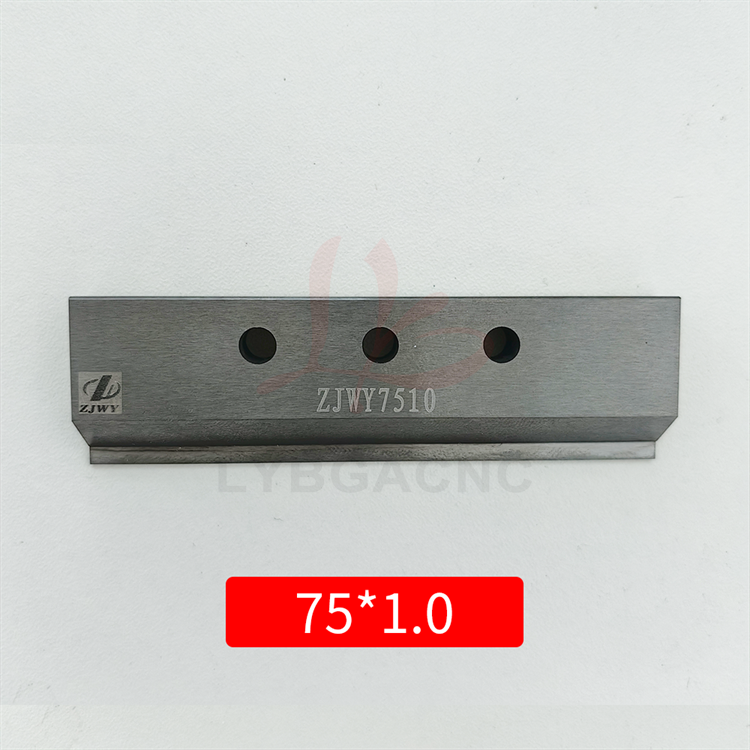

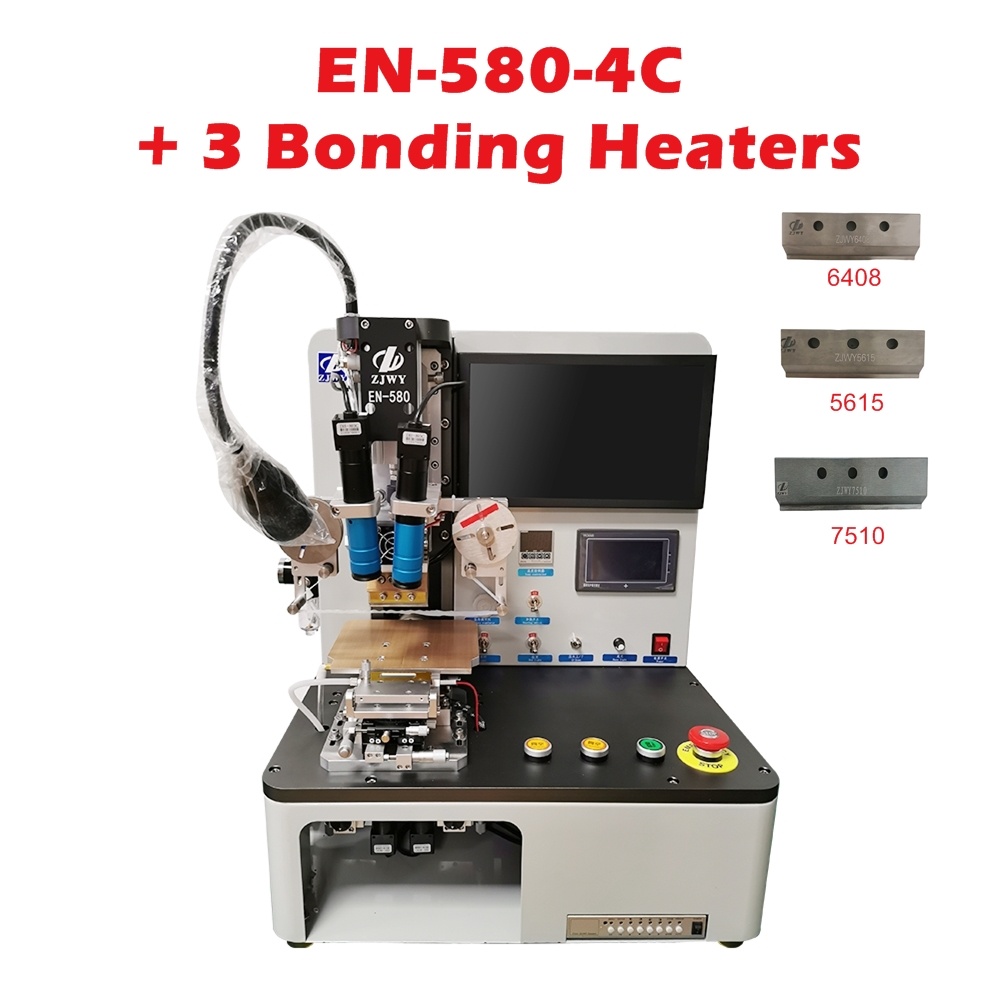

5615/6408/7510 0ptional/customizable |
Heater precision |
土2um |
Quartz precision |
土2um |
Bonding precision |
士3um |
Machine weight |
About 55kg |
LCD platform |
180*170 (1*W) MINI |
LCD platform backI ight |
80*150 (L*W)MM, Optional installation |
Suitable product size |
2.4-7.0 inches |
Heating mode |
Constant temperature heating |
Temperature range |
30-400 degree,settable |
Temperature variation |
土2 degree |
base mould heat ing |
30-80 degree, settable |

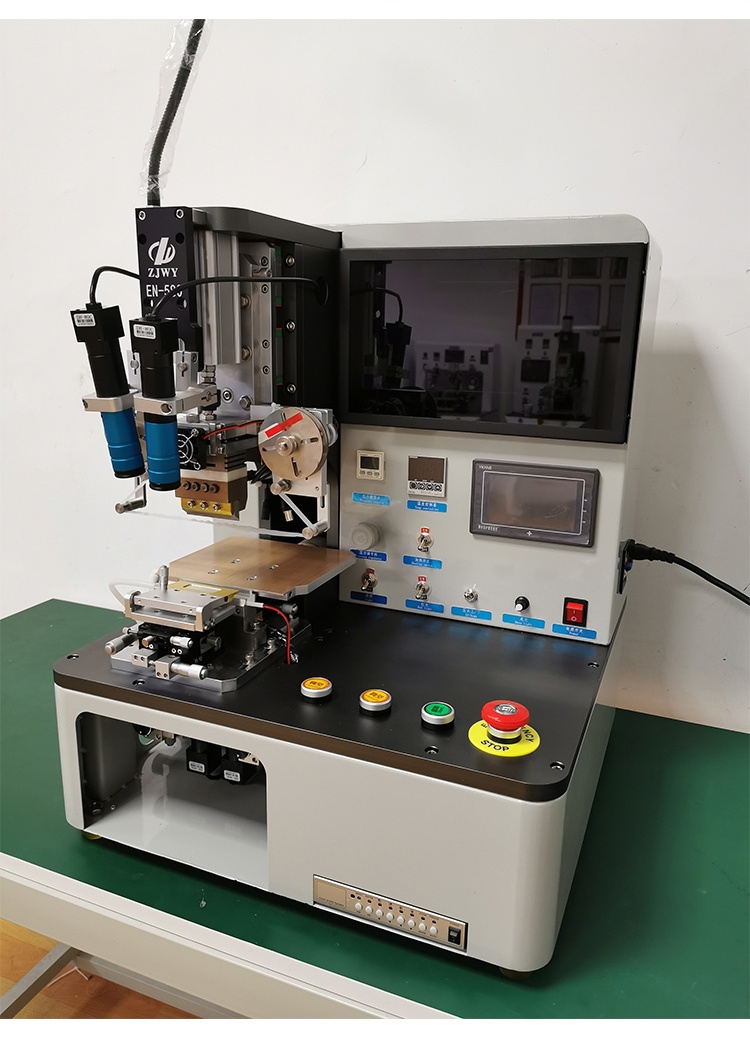

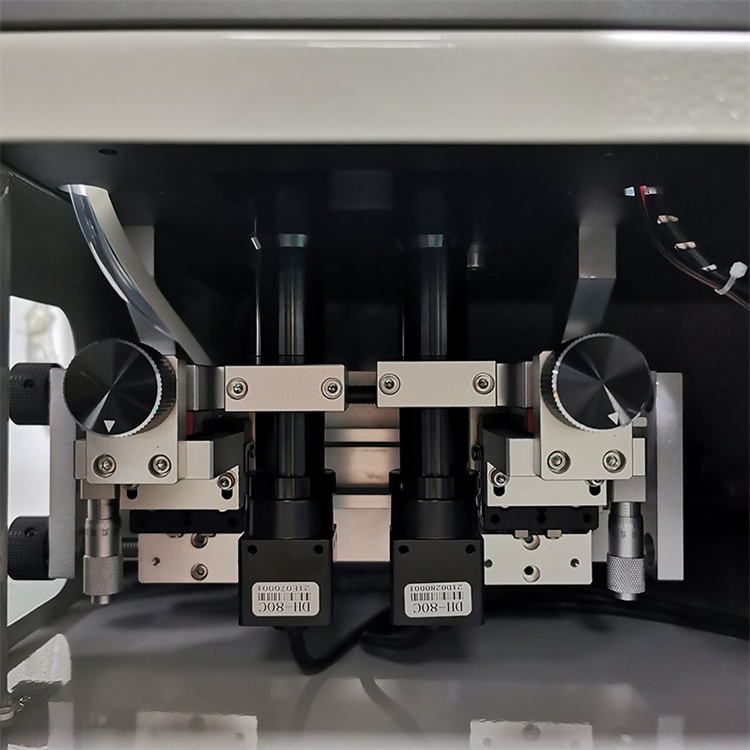

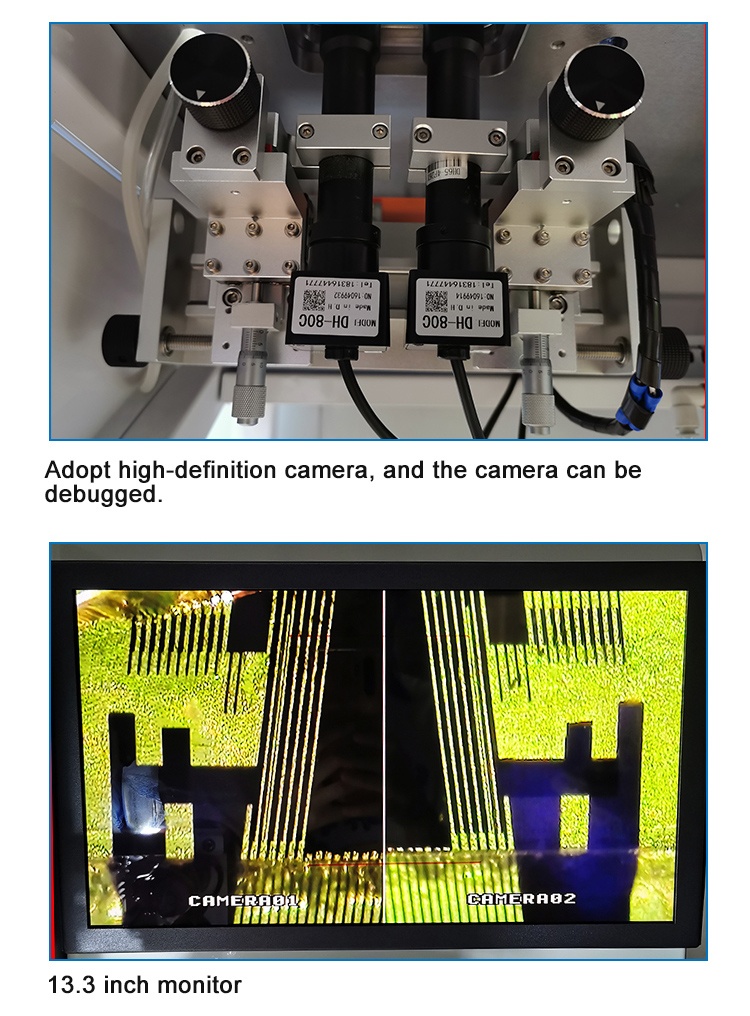

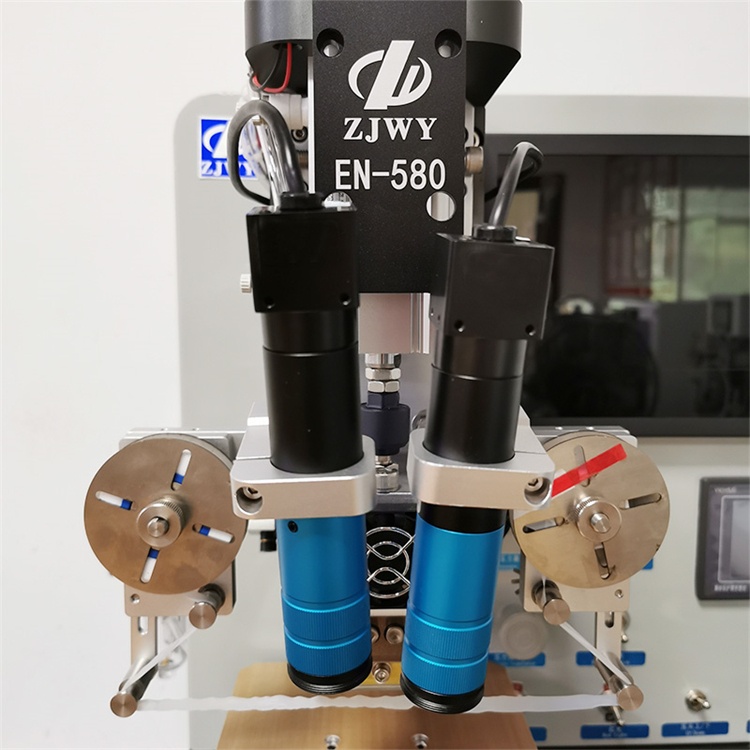

Camera installation |
down cameras, up cameras can be added |
Magnification |
3times/4times, Optional installation |
Resolution |
0. 8u pixels |

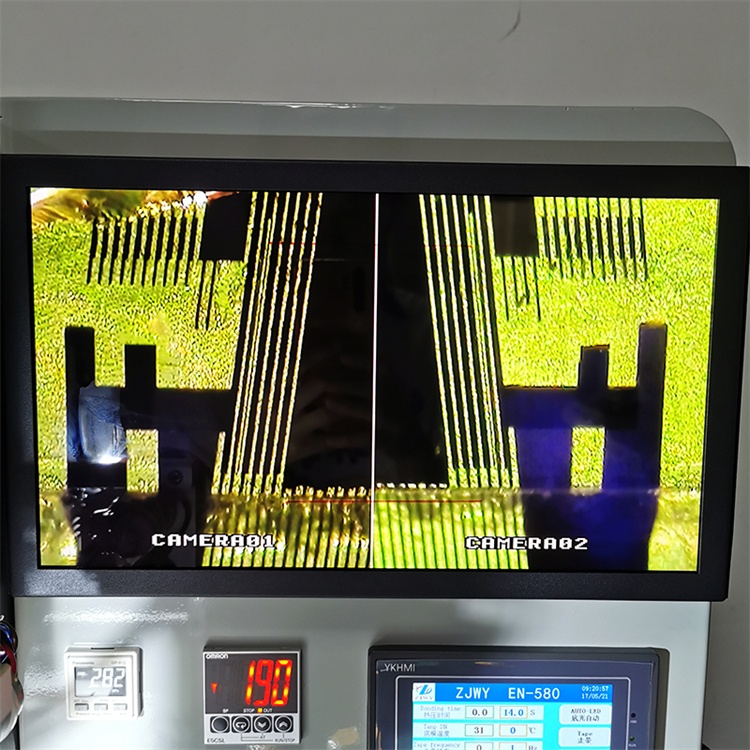

Display . |
13.3 inches |
Display installat ion |
internal |
Light source |
Highlight LED background light source+base light source |
Red light indication |
Red light indicates heater position |

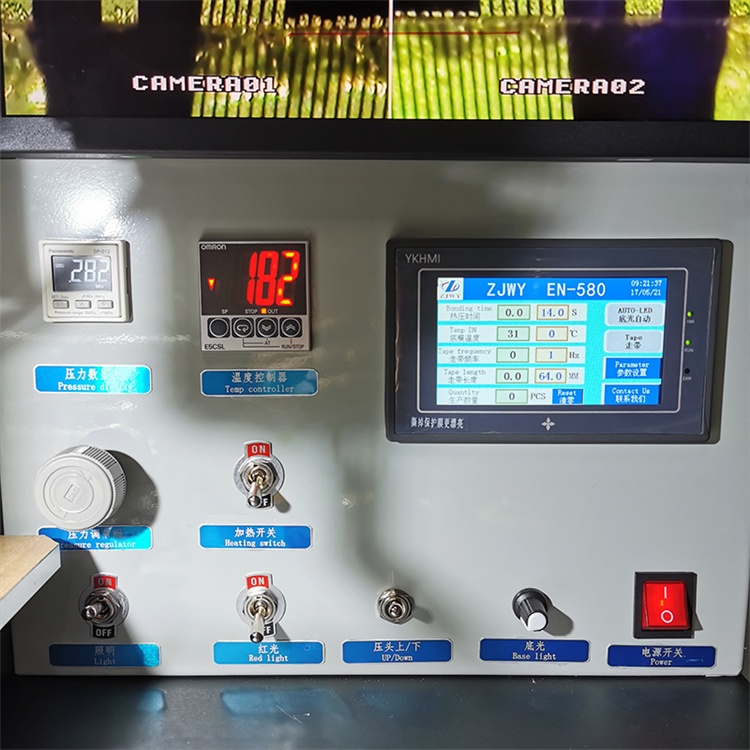

Pressure control |

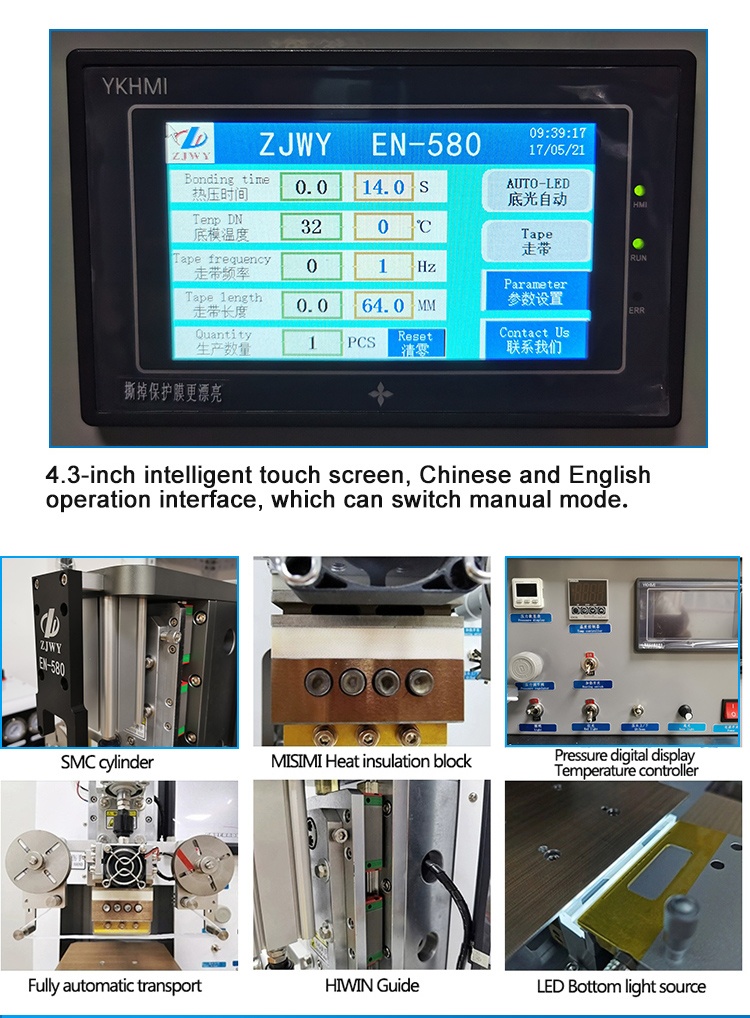

Precision pressure regulator + digital display |
LCD platform adjustment |
Z- -axis, vacuum fixation |

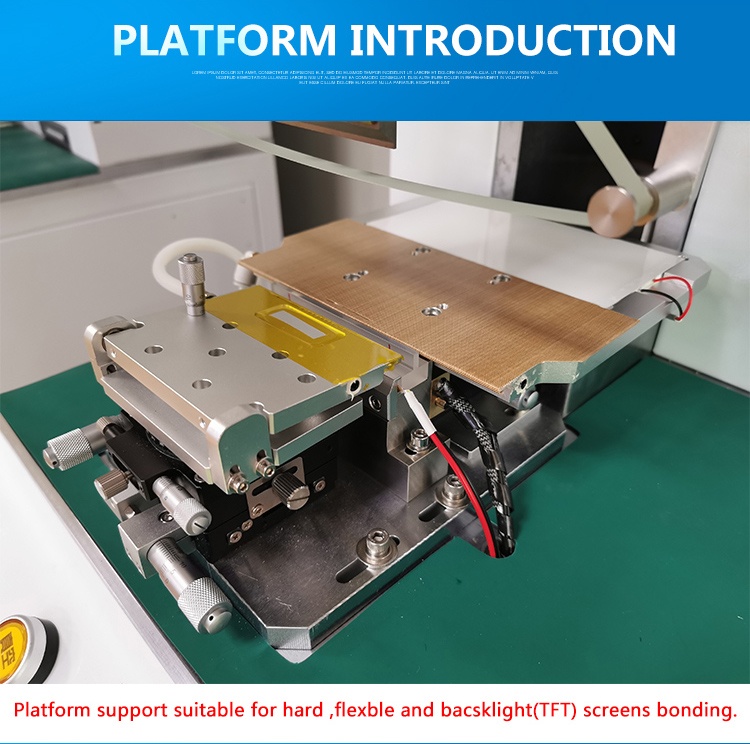

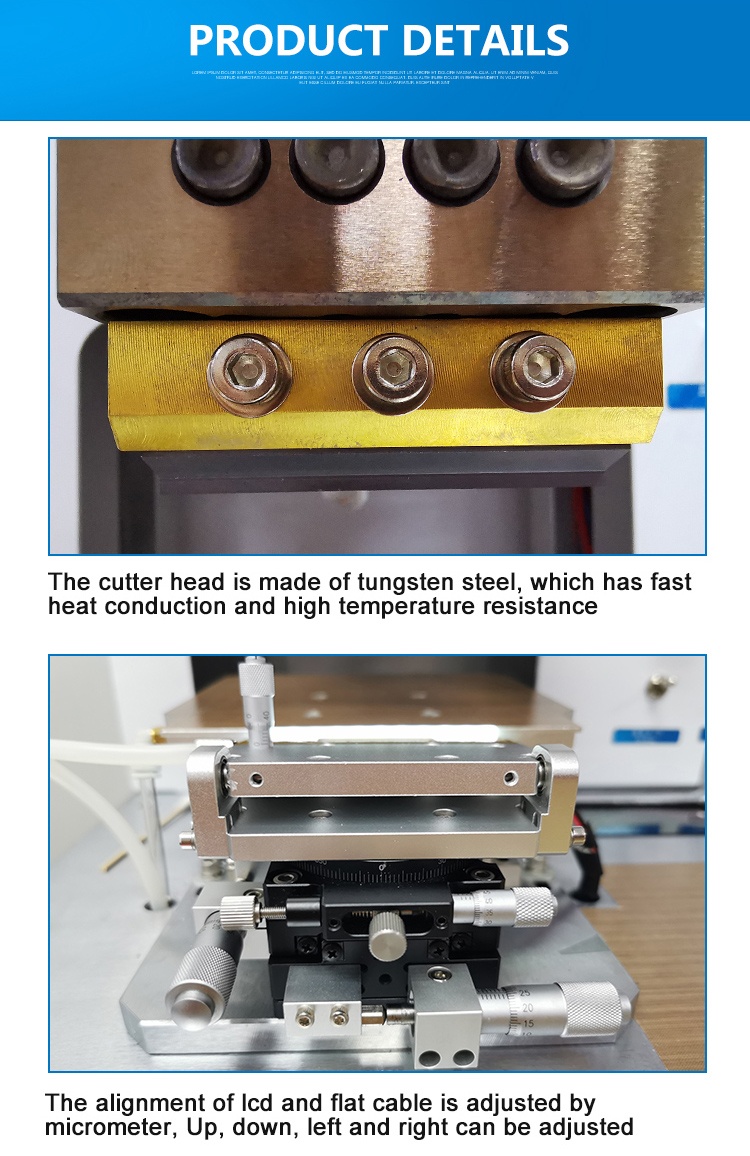

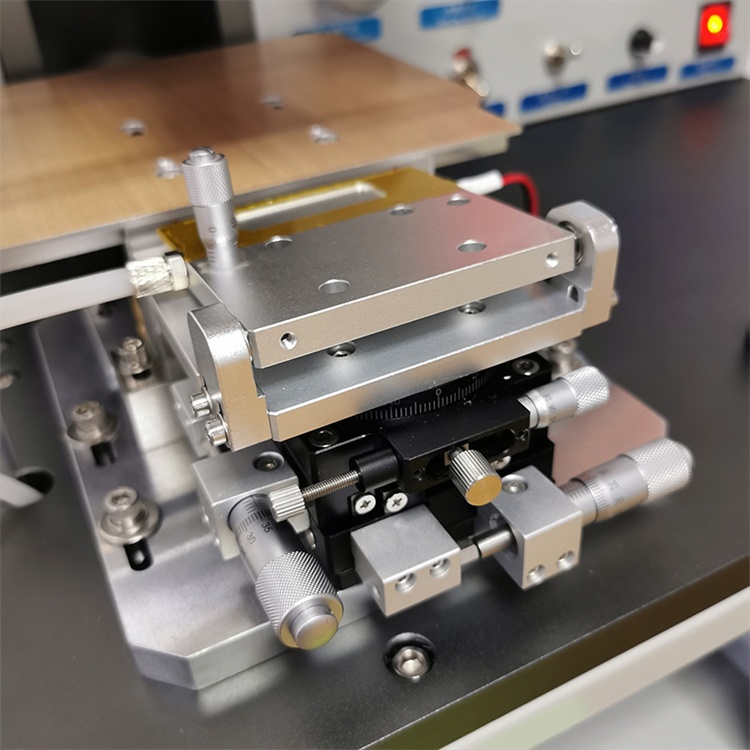

COF platform ad justment |
XYθ-Z adjustment, vacuum fixation vacuum fixation |

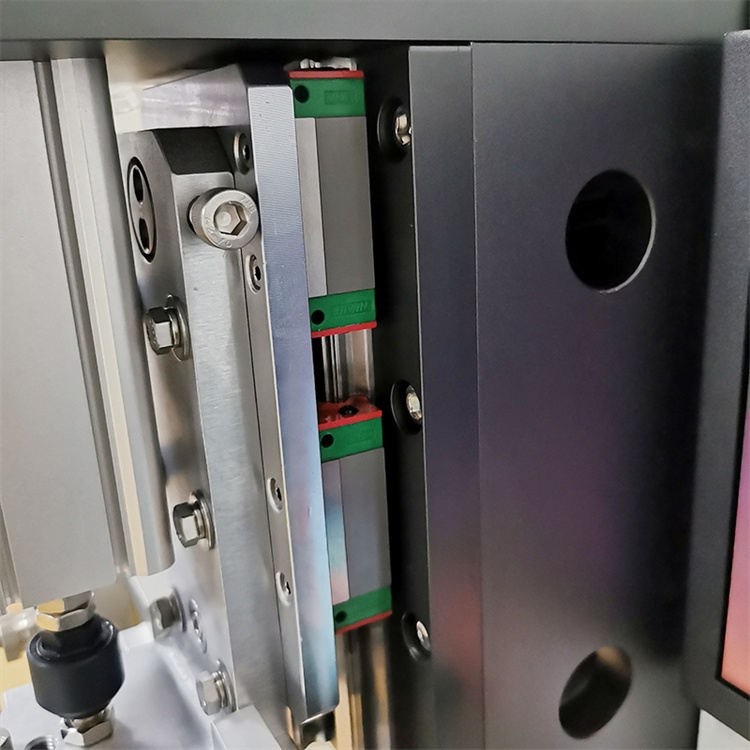

Executing agency |
SMC pneumatic cylinder+HIWIN linear guide |
TAPE |
automatic,length/ frequency can be set |
Safety mechani sm |
emergency stop,leakage/overload protection |
