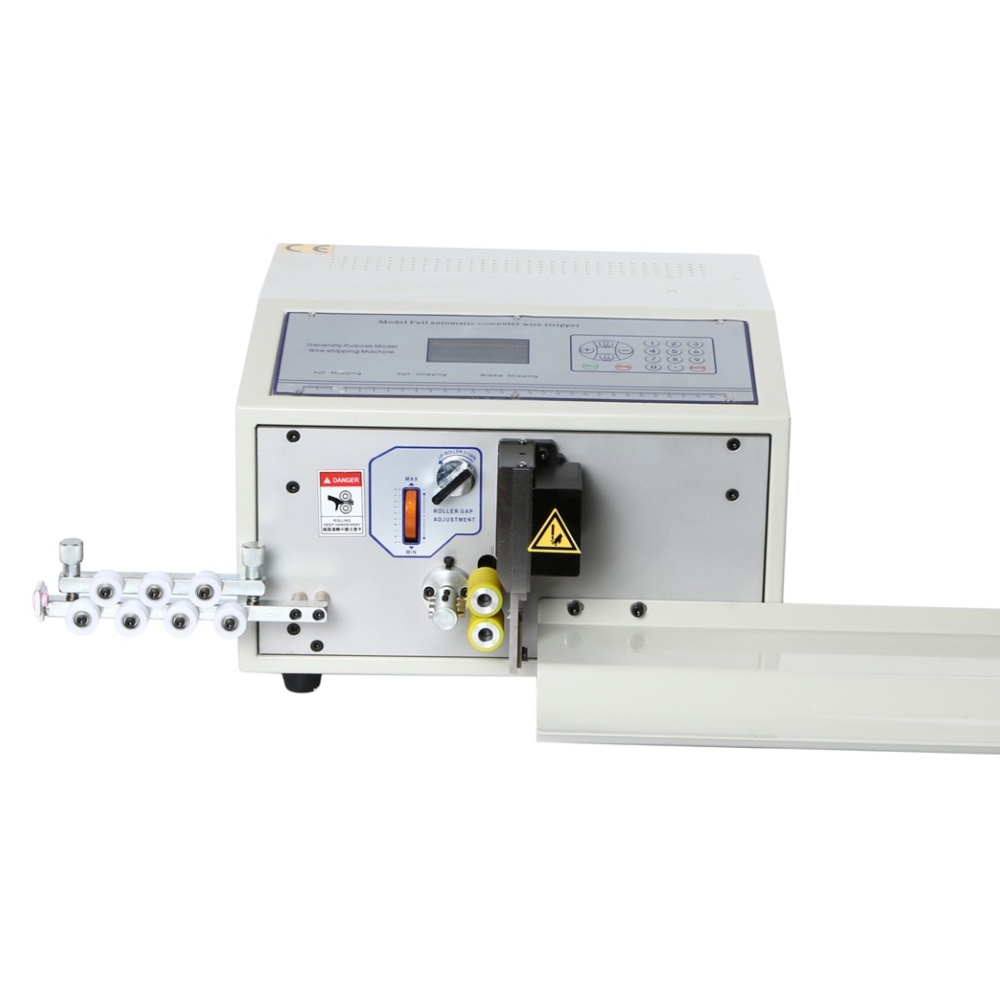

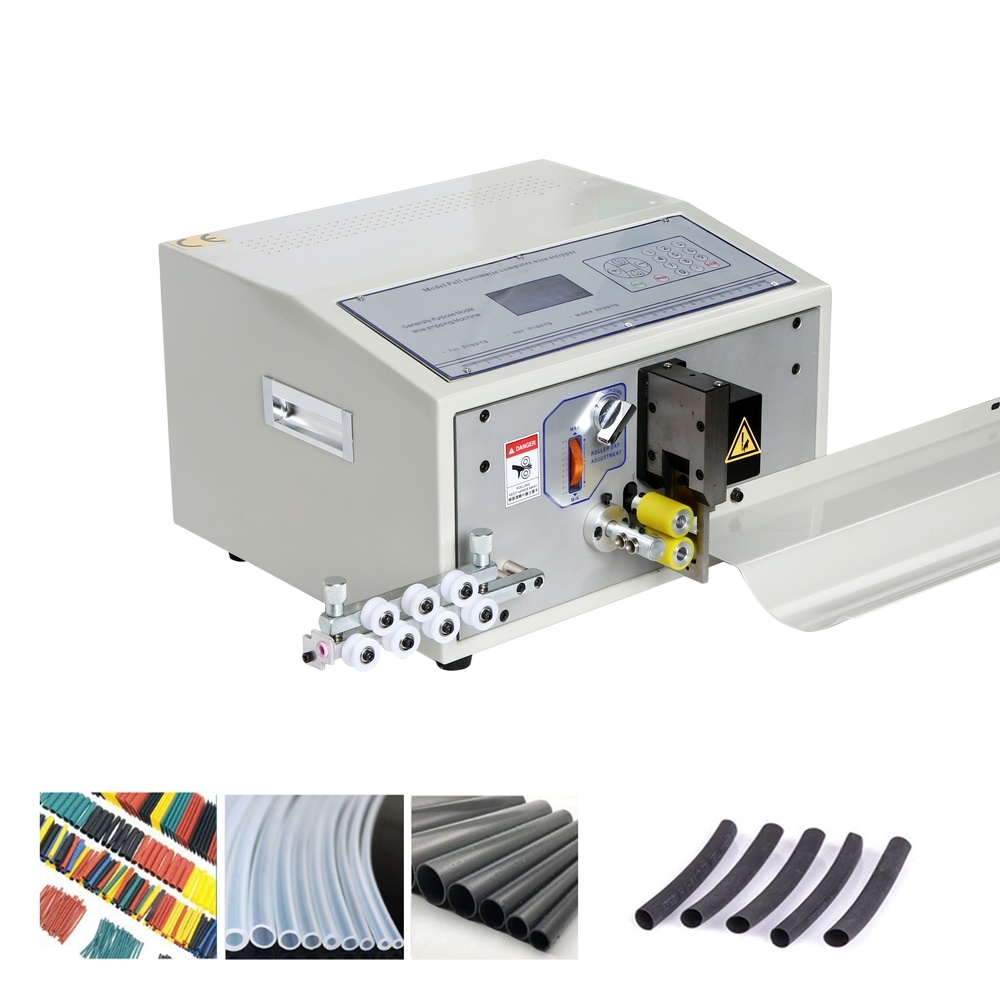

SWT508-QG automatic Wire tube Sleeving pipe Cutting Machine for wire cable cutting stripping peeling machines 220V 110V

SWT508-QG automatic Wire tube Sleeving pipe Cutting Machine for wire cable cutting stripping peeling machines 220V 110V

(RE:

1.C / E/ SD/ SDB / SDB2/ JE / JE2 / ZW16 / ZW25 / YHT2 / NX2 above models with Wire Cable Straightener only, other models need to buy extra.

2.Such as E/S, SD/S, DB2/S, JE/S, JE2/S, MAX1-4S, HT2/S are touch screen panel models.

3. Crystal Protect case not included, if need please leave message to seller.

4. Wire collector not included, if need please leave message to seller.)

Product Description

 The product function characteristics:

 Collection and integration, the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

 Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features. Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc. Function

Applications:

 Widely used in the electronics industry, the city ahs, electrical appliances, motor, lamps and lanterns, toys, and other various products of wire processing. Optimal stripped wire PVC, teflon, glass wire, etc.

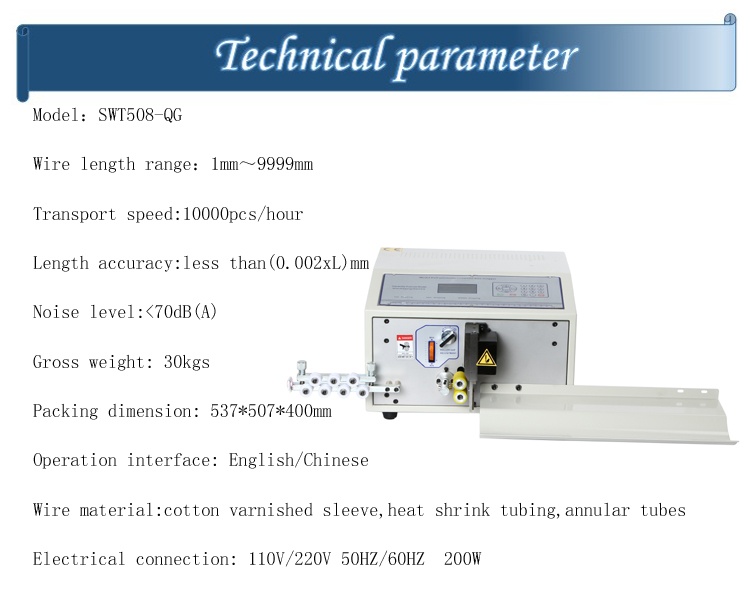

 Technical parameters:

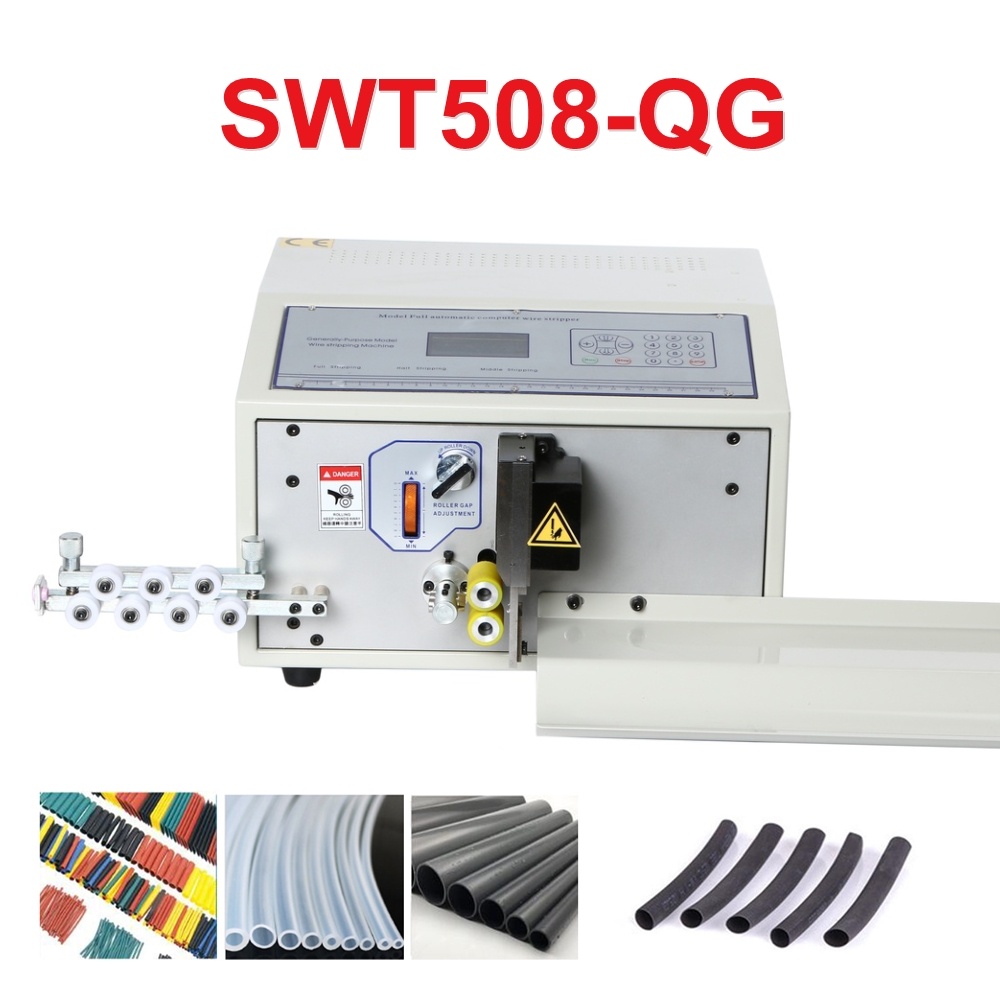

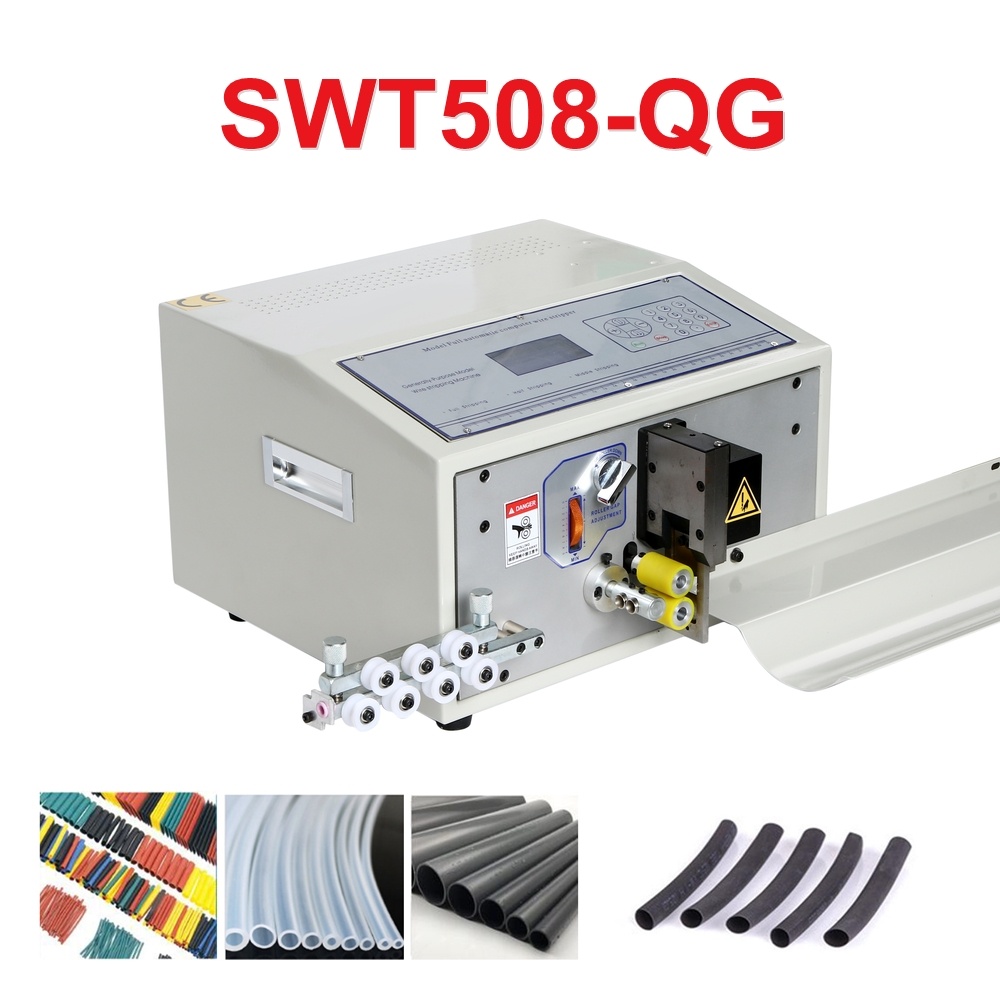

 1,The model: SWT508-QG

 2,Power: AC 220V/110V  50/60 Hz

 3, POWER:200W

 4,Cutting length: 1-9999mm

 5,Cutting tolerance: (+/- 0.002 by L) mm

 6,Cut off the error: can be modified

 7,Stripping length:

 8,Middle strip cut:

 9,Cutting wire core section:

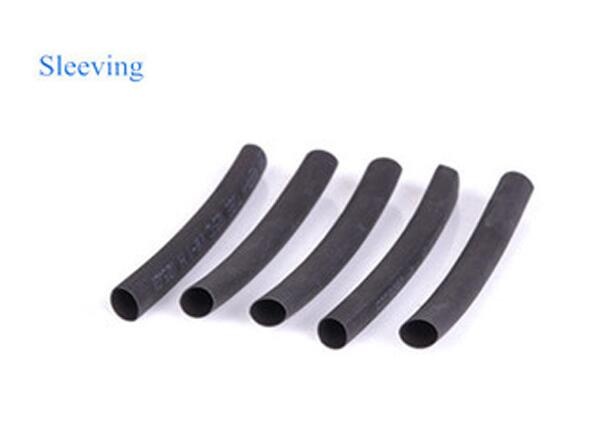

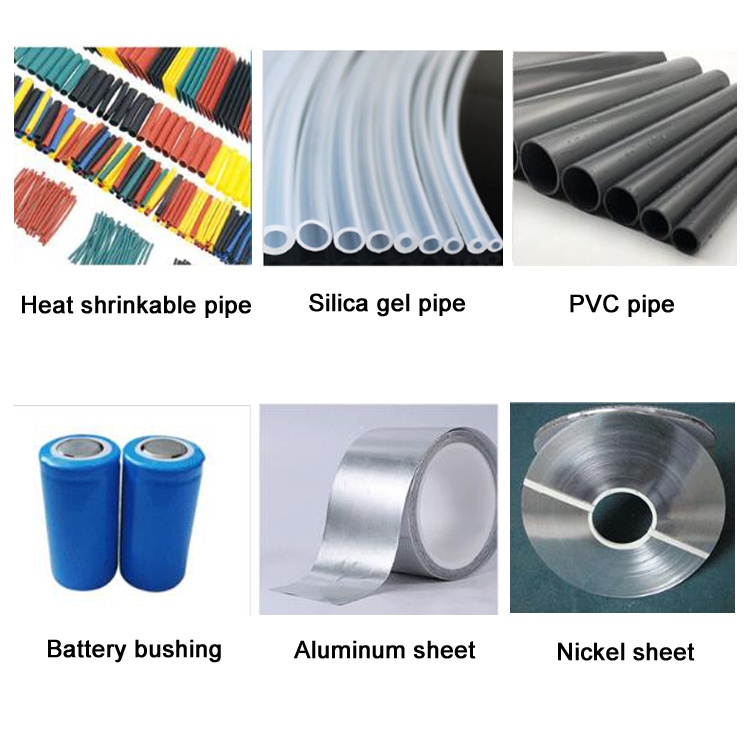

 10,Max cut diameter: Wax tube, heat shrinkable tube, Sleeving, Pipes

 11,Optimal stripped wire: PVC/teflon/silica gel line /. Glass fiber cables, etc

 12,The blade material: hard tungsten steel (import BaiGang optional)

 13,Peel linear velocity (a/hour) : L = 100 mm, 10K PCS/h (high yield)

 14,Driving way: 2 wheels drive

 15,Envelop dimensions: 537*507*400mm

 16,weight:30KG

 17,Showing the way: Chinese and English LCD interface

 18, 12 months warranty

19, Noise level <70dB(A)

Thanks for your order!
